171 [GF10920(ALL)06/96]
one third page art:0095028-A
*
[GF11000(ALL)05/96]
RWARNING
Hold the brake pedal down while you
move the gearshift lever from position to
position. If you do not hold the brake
pedal down, your vehicle may move
unexpectedly and injure someone.
*
[GF12000(ALL)05/96]
Once you place the gearshift securely into
position, gradually release the brake pedal and
use the accelerator as necessary.
%*
[GF12100(ALL)05/96]
NOTE: Your vehicle is equipped with a
brake-shift interlock feature. This
feature prevents you from shifting
from P (Park) unless you have the
brake pedal depressed. (The ignition
must be in the ON position.) If you
cannot shift from P (Park) with the
brake pedal depressed:
*
[GF12200(ALL)05/96]
1. Apply the parking brake.
*
[GF12300(ALL)05/96]
2. Remove the key.
*
[GF12400(ALL)05/96]
3. Insert the key and rotate it one position
clockwise (ignition in the OFF position).
File:09cpgfa.ex
Update:Wed Jun 5 12:04:06 1996
Page 172 of 347
![FORD AEROSTAR 1997 1.G Owners Manual 172
*
[GF12500(ALL)05/96]
4. Apply the brake pedal and shift to N
(Neutral). (If the vehicle is shifted back to P
[Park], you must repeat the previous steps.)
*
[GF12600(ALL)05/96]
5. Start the vehicl FORD AEROSTAR 1997 1.G Owners Manual 172
*
[GF12500(ALL)05/96]
4. Apply the brake pedal and shift to N
(Neutral). (If the vehicle is shifted back to P
[Park], you must repeat the previous steps.)
*
[GF12600(ALL)05/96]
5. Start the vehicl](/img/11/4752/w960_4752-171.png)
172
*
[GF12500(ALL)05/96]
4. Apply the brake pedal and shift to N
(Neutral). (If the vehicle is shifted back to P
[Park], you must repeat the previous steps.)
*
[GF12600(ALL)05/96]
5. Start the vehicle.
*
[GF12700(ALL)05/96]
If you need to shift out of P (Park) by using the
alternate procedure described above, it is
possible that a fuse has blown and that your
brakelamps may also not be functional. Please
refer to the chapter titledRoadside Emergenciesin
this Owner Guide for instructions on checking
and replacing fuses.
*
[GF12800(ALL)05/96]
RWARNING
DO NOT DRIVE YOUR VEHICLE UNTIL
YOU VERIFY THAT THE BRAKELAMPS
ARE WORKING.
*
[GF12820(ALL)05/96]
P (Park)
[GF12830(ALL)03/96]
Always come to a complete stop before you shift
into P (Park). This position locks the
transmission and prevents the rear wheels from
turning.
[GF12840(ALL)03/96]
To securely latch the gearshift in the P (Park)
position, pull it toward you, push it completely
counterclockwise against the stop, and then push
it toward the instrument panel.
*
[GF12850(ALL)06/96]
The gearshift is securely latched in P (Park) if
you cannot rotate it in a clockwise direction
without lifting it toward you.
*
[GF12860(ALL)05/96]
RWARNING
Always set the parking brake fully and
make sure the gearshift is latched in P
(Park). Turn off the ignition whenever you
leave your vehicle.
File:09cpgfa.ex
Update:Wed Jun 5 12:04:06 1996
Page 173 of 347
![FORD AEROSTAR 1997 1.G Owners Manual 173
*
[GF12870(ALL)05/96]
RWARNING
Never leave your vehicle unattended
while it is running.
%*
[GF12900(ALL)05/96]
R (Reverse)
*
[GF12950(ALL)05/96]
With the gearshift in the R (Reverse) position,
the FORD AEROSTAR 1997 1.G Owners Manual 173
*
[GF12870(ALL)05/96]
RWARNING
Never leave your vehicle unattended
while it is running.
%*
[GF12900(ALL)05/96]
R (Reverse)
*
[GF12950(ALL)05/96]
With the gearshift in the R (Reverse) position,
the](/img/11/4752/w960_4752-172.png)
173
*
[GF12870(ALL)05/96]
RWARNING
Never leave your vehicle unattended
while it is running.
%*
[GF12900(ALL)05/96]
R (Reverse)
*
[GF12950(ALL)05/96]
With the gearshift in the R (Reverse) position,
the vehicle will move backward. You should
always come to a complete stop before shifting
into or out of R (Reverse).
*
[GF12975(ALL)01/96]
N (Neutral)
*
[GF12990(ALL)06/96]
With the gearshift in the N (Neutral) position,
the vehicle can be started and is free to roll.
Hold the brake pedal down while in this
position.
*
[GF12995(ALL)06/96]
RWARNING
Do not leave the vehicle unattended with
the transfer case in the N (Neutral)
position. Always set the parking brake
fully and turn off the ignition when
leaving the vehicle.
*
[GF13000(ALL)06/96]
With the transfer case in N (Neutral), the vehicle
is free to move with either the automatic
transmission in P (Park) or with the manual
transmission in any driving gear.
[GF13050(ALL)03/96]
Driving (4R44E Transmission)
%*
[GF13100(ALL)05/96]
When to usej(Overdrive)
*
[GF13150(ALL)05/96]
This is the normal driving position. As the
vehicle picks up speed, automatic upshifts to
second, third and fourth gears will occur when
jOverdrive is chosen on the selector and the
transmission control switch has not been
pressed. The transmission will shift into the
correct gear when the right speed is achieved,
for the accelerator pedal position you have
chosen.
File:09cpgfa.ex
Update:Wed Jun 5 12:04:06 1996
Page 174 of 347
![FORD AEROSTAR 1997 1.G Owners Manual 174
*
[GF13200(ALL)05/96]
When to use Drive
[GF13250(ALL)01/96]
You will note there is not a drive position on
your gearshift indicator. However, you will find
a transmission control switch labeled
OV FORD AEROSTAR 1997 1.G Owners Manual 174
*
[GF13200(ALL)05/96]
When to use Drive
[GF13250(ALL)01/96]
You will note there is not a drive position on
your gearshift indicator. However, you will find
a transmission control switch labeled
OV](/img/11/4752/w960_4752-173.png)
174
*
[GF13200(ALL)05/96]
When to use Drive
[GF13250(ALL)01/96]
You will note there is not a drive position on
your gearshift indicator. However, you will find
a transmission control switch labeled
OVERDRIVE OFF located on the end of the
gearshift lever. Press this switch and the
indicator light (OFF) illuminates on the gearshift
lever. With overdrive cancelled and the
OVERDRIVE OFF illuminated, the transmission
will operate in gears one through three. This is
useful if you experience frequent
downshift/upshift conditions, when operating
with a heavy load or in hilly terrain, or if
additional engine braking is useful. However,
shift back toj(Overdrive) whenever practical
for optimum powertrain cooling and fuel
economy. This can be accomplished by pushing
the transmission control switch again, to cancel
the OVERDRIVE OFF control and light.
[GF13300(ALL)06/96]

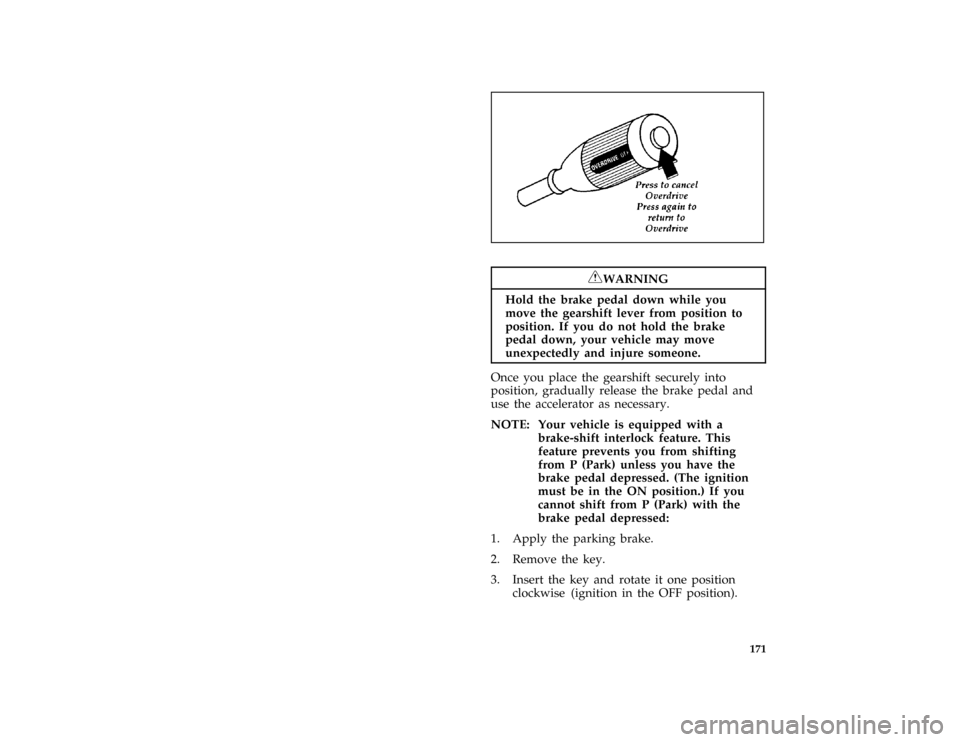

one third page art:0095028-A[GF13320(ALL)05/96]
When starting your vehicle, the overdrive system
will automatically be in the normal overdrive
mode.
File:09cpgfa.ex
Update:Wed Jun 5 12:04:06 1996
Page 175 of 347
![FORD AEROSTAR 1997 1.G Owners Manual 175
*
[GF13400(ALL)05/96]
When to use 2 (Second)
*
[GF13450(ALL)05/96]
Use 2 (Second) to start-up on slippery roads or
to provide additional engine braking on
downgrades. This position provides 2 (Sec FORD AEROSTAR 1997 1.G Owners Manual 175
*
[GF13400(ALL)05/96]
When to use 2 (Second)
*
[GF13450(ALL)05/96]
Use 2 (Second) to start-up on slippery roads or
to provide additional engine braking on
downgrades. This position provides 2 (Sec](/img/11/4752/w960_4752-174.png)
175
*
[GF13400(ALL)05/96]
When to use 2 (Second)
*
[GF13450(ALL)05/96]
Use 2 (Second) to start-up on slippery roads or
to provide additional engine braking on
downgrades. This position provides 2 (Second)
gear operation only.
*
[GF13475(ALL)05/96]
When to use 1 (Low)
*
[GF14000(ALL)05/96]
Use 1 (Low) to provide maximum engine
braking on steep downgrades. Upshifts from 1
(Low) can be made by manually shifting to 2
(Second) orj(Overdrive). Selection of 1 (Low)
gear provides only low gear operation from
start-up. Selection of 1 (Low) while at higher
speeds provides a shift to second gear, and a
shift to first gear will occur after the vehicle
decelerates to the proper speed.
*
[GF14500(ALL)05/96]
Forced Downshifts
[GF14550(ALL)03/96]
To gain acceleration inj(Overdrive) or Drive
(jposition with Overdrive cancelled) when
passing another vehicle, push the accelerator to
the floor. The transmission will downshift to the
appropriate gear: third, second or first.
[GF14600(ALL)03/96]
Driving (5R55E Transmission)
[GF14650(ALL)05/96]
When to usej(Overdrive)
*
[GF14700(ALL)05/96]
This is the normal driving position. As the
vehicle picks up speed, automatic upshifts to
second, third, fourth and fifth gears will occur
whenj(Overdrive) is chosen on the selector
and the transmission control switch has not been
pressed. The transmission will shift into the
correct gear when the right speed is achieved,
for the accelerator pedal position you have
chosen.
File:09cpgfa.ex
Update:Wed Jun 5 12:04:06 1996
Page 176 of 347
![FORD AEROSTAR 1997 1.G Owners Manual 176
*
[GF14750(ALL)05/96]
When to use Drive
[GF14800(ALL)03/96]
You will note there is not a drive position on
your gearshift indicator. However, you will find
a transmission control switch labeled
OV FORD AEROSTAR 1997 1.G Owners Manual 176
*
[GF14750(ALL)05/96]
When to use Drive
[GF14800(ALL)03/96]
You will note there is not a drive position on
your gearshift indicator. However, you will find
a transmission control switch labeled
OV](/img/11/4752/w960_4752-175.png)
176
*
[GF14750(ALL)05/96]
When to use Drive
[GF14800(ALL)03/96]
You will note there is not a drive position on
your gearshift indicator. However, you will find
a transmission control switch labeled
OVERDRIVE OFF located on the end of the
gearshift lever. With overdrive canceled and the
OVERDRIVE OFF illuminated, the transmission
will operate in gears one through four. This is
useful if you experience frequent
downshift/upshift conditions, when operating a
heavy load or in hilly terrain, or if additional
engine braking is useful. However, shift back to
j(Overdrive) whenever practical for optimum
powertrain cooling and fuel economy. This can
be accomplished by pushing the transmission
control switch again, to cancel the OVERDRIVE
OFF control and light.
*
[GF14850(ALL)05/96]
When to use 2 (Second)
*
[GF14900(ALL)05/96]
With the gearshift in the 2 (Second) position,
more engine braking is provided. Use the 2
(Second) position to drive up moderately steep
grades, to start up slippery roads, or to provide
moderate engine braking on downgrades. DO
NOT GO FASTER THAN 55 mph (88 km/h) IN
THIS GEARSHIFT POSITION.
*
[GF14950(ALL)05/96]
When to use 1 (Low)
*
[GF14970(ALL)05/96]
With the gearshift in the 1 (First) position,
maximum engine braking is provided. This
position provides 1 (First) gear operation only
with no automatic upshifts. To obtain upshifts,
the gearshift must be moved out of this position.
Use the 1 (First) position to drive up steep
grades or to provide maximum engine braking
on downgrades.
File:09cpgfa.ex
Update:Wed Jun 5 12:04:06 1996
Page 177 of 347
![FORD AEROSTAR 1997 1.G Owners Manual 177
*
[GF15000(ALL)05/96]
Forced Downshifts
[GF15100(ALL)06/96]
To gain acceleration inj(Overdrive) or Drive
(Overdrive off) when passing another vehicle,
push the accelerator to the floor. The
transm FORD AEROSTAR 1997 1.G Owners Manual 177
*
[GF15000(ALL)05/96]
Forced Downshifts
[GF15100(ALL)06/96]
To gain acceleration inj(Overdrive) or Drive
(Overdrive off) when passing another vehicle,
push the accelerator to the floor. The
transm](/img/11/4752/w960_4752-176.png)
177
*
[GF15000(ALL)05/96]
Forced Downshifts
[GF15100(ALL)06/96]
To gain acceleration inj(Overdrive) or Drive
(Overdrive off) when passing another vehicle,
push the accelerator to the floor. The
transmission will downshift to the appropriate
gear: fourth, third, second or first gear.
%
*
[GF15600(ALL)05/96]
Traction-Lok Rear Axle
(If equipped)
*
[GF15700(ALL)05/96]
This axle provides added drive away traction on
slippery surfaces, particularly when one or more
wheels are on a surface with poor traction.
*
[GF15800(ALL)03/96]
Extended use of other than matching size tires
on a Traction-Lok rear axle could result in a
permanent reduction in effectiveness. This loss of
effectiveness does not affect normal driving and
should not be noticeable to the driver.
[GF16005(ALL)01/96]Electronic 4-Wheel Drive (E-4WD)
(If equipped)
[GF16015(ALL)01/96]
If your vehicle is equipped with the E-4WD
option, power is provided to all four wheels
whenever you press the accelerator pedal. It
improves both handling and traction during
difficult driving conditions, adjusting
automatically to your driving needs. Because the
entire E-4WD system is controlled by a
microprocessor, your vehicle is not equipped
with the switch or shift lever used with most
traditional 4WD vehicles. The microprocessor
does all the adjusting for you.
File:09cpgfa.ex
Update:Wed Jun 5 12:04:06 1996
Page 178 of 347
![FORD AEROSTAR 1997 1.G Owners Manual 178 [GF16025(ALL)01/96]How the Electronic 4-Wheel Drive (E-4WD)
System Works
[GF16036(ALL)01/96]
Under normal driving conditions, when the road
is firm, dry and level, the engine power is
distributed FORD AEROSTAR 1997 1.G Owners Manual 178 [GF16025(ALL)01/96]How the Electronic 4-Wheel Drive (E-4WD)
System Works
[GF16036(ALL)01/96]
Under normal driving conditions, when the road
is firm, dry and level, the engine power is
distributed](/img/11/4752/w960_4752-177.png)
178 [GF16025(ALL)01/96]How the Electronic 4-Wheel Drive (E-4WD)
System Works
[GF16036(ALL)01/96]
Under normal driving conditions, when the road
is firm, dry and level, the engine power is
distributed one-third to the front axle and
two-thirds to the rear axle. However, if a wheel
begins to slip, the microprocessor will sense this
condition and signal the system to transmit more
power to the axle with more traction. (You may
feel a momentary surge of power.)
[GF16046(ALL)01/96]
NOTE: The microprocessor is disabled when
the brakes are applied or when the
transmission selector is in the P (Park)
or N (Neutral) positions.
[GF16055(ALL)01/96]
Driving Your Electronic 4-Wheel Drive
(E-4WD) Vehicle
[GF16065(ALL)01/96]
Since your E-4WD vehicle is unique, follow these
steps to be safe:
[GF16075(ALL)01/96]
q
Avoid unnecessary turns or other maneuvers
that could cause loss of control and possible
injury.
[GF16076(ALL)01/96]
q
Use the same size and type of tire and wheel
as originally provided for your vehicle and
inflate the tires to the manufacturer's
recommended air pressure.
[GF16077(ALL)01/96]
q
Become familiar with your vehicle's operating
characteristics and study this Owner Guide
for specific operating instructions. Be sure all
occupants wear the safety belts provided.
Drive cautiously, defensively, and at speeds
safe for current road conditions.
File:09cpgfa.ex
Update:Wed Jun 5 12:04:06 1996
Page 179 of 347
![FORD AEROSTAR 1997 1.G Owners Manual 179 [GF16095(ALL)01/96]
q
Do not let the added driving traction of
E-4WD lead you to believe that you can stop
any quicker than a conventional two-wheel
drive vehicle. The added traction performance
d FORD AEROSTAR 1997 1.G Owners Manual 179 [GF16095(ALL)01/96]
q
Do not let the added driving traction of
E-4WD lead you to believe that you can stop
any quicker than a conventional two-wheel
drive vehicle. The added traction performance
d](/img/11/4752/w960_4752-178.png)
179 [GF16095(ALL)01/96]
q
Do not let the added driving traction of
E-4WD lead you to believe that you can stop
any quicker than a conventional two-wheel
drive vehicle. The added traction performance
does not improve the braking ability of the
E-4WD vehicle. Allow the same amount of
distance when braking as with a two-wheel
drive vehicle.
[GF16096(ALL)01/96]
RWARNING
Your E-4WD Aerostar is a passenger
vehicle designed for on-road use; it is not
intended for any off-road use.
[GF16097(ALL)01/96]
RWARNING
On-vehicle wheel balancing will cause
damage to the drivetrain of E-4WD
Aerostars.
%
*
[GF28050(ALL)01/96]
Driving With a Heavy Load
*
[GF28101(ALL)01/96]
There are limits to the amount of weight your
vehicle can carry or tow. The total weight of
your vehicle, plus the weight of the passengers
and cargo, should never be more than the Gross
Vehicle Weight Rating (GVWR). Also, the weight
that your vehicle carries over the front axle and
rear axle should never be more than the Gross
Axle Weight Rating (GAWR) for the respective
axle.
*
[GF28150(ALL)01/96]
The weight limits of your vehicle's tires affect
the GVWR or GAWR limitations. Usage of
replacement tires with higher weight limits than
originals does not increase GVWR or GAWR.
Usage of lower capacity replacement tires may
lower GVWR and GAWR limitations.
File:09cpgfa.ex
Update:Wed Jun 5 12:04:06 1996
Page 180 of 347
![FORD AEROSTAR 1997 1.G Owners Manual 180
*
[GF28201(ALL)01/96]
RWARNING
Do not exceed the GVWR or the GAWR
specified on the Safety Compliance
Certification Label.
*
[GF28750(ALL)03/96]
Vehicle/Trailer Loads
*
[GF28801(ALL)03/96]
All vehi FORD AEROSTAR 1997 1.G Owners Manual 180
*
[GF28201(ALL)01/96]
RWARNING
Do not exceed the GVWR or the GAWR
specified on the Safety Compliance
Certification Label.
*
[GF28750(ALL)03/96]
Vehicle/Trailer Loads
*
[GF28801(ALL)03/96]
All vehi](/img/11/4752/w960_4752-179.png)
180
*
[GF28201(ALL)01/96]
RWARNING
Do not exceed the GVWR or the GAWR
specified on the Safety Compliance
Certification Label.
*
[GF28750(ALL)03/96]
Vehicle/Trailer Loads
*
[GF28801(ALL)03/96]
All vehicles may tow a Class I trailer provided
the Gross Combined Weight (GCW) is less than
or equal to the GVWR shown on the Safety
Compliance Certification Label. For heavier
trailer applications, refer to the towing
information found later in this chapter.
*
[GF29001(ALL)01/96]
Towing a trailer puts additional loads on your
vehicle's engine, transmission, axle, brakes, tires
and suspension. For your safety and for the
good of your vehicle, use the right equipment
for the type of trailer you tow.
*
[GF29025(ALL)01/96]
Your trailer towing capability will vary based on
the standard and optional equipment on your
vehicle. Refer to the followingVehicle
Loading/Towing Informationand the Trailer
Towing Tables to determine the specific towing
capability of your vehicle.
*
[GF29050(ALL)01/96]
q
Stay within the load limits when you tow.
*
[GF29101(ALL)05/96]
q
Carefully and thoroughly prepare your
vehicle for towing, making sure to use the
right equipment and to attach it properly.
(SeePreparing to Towin this chapter.)
*
[GF29151(ALL)05/96]
q
Use extra caution when driving your vehicle
while you tow. (SeeDriving while you towin
this chapter.)
*
[GF29201(ALL)05/96]
q
Service your vehicle more frequently if you
tow a trailer. (SeeServicing your vehicle if you
towin this chapter.)
File:09cpgfa.ex
Update:Wed Jun 5 12:04:06 1996
