FORD AEROSTAR 1997 1.G Owners Manual

139 %
*
[SS27700(ALL)04/96]
Attaching Safety Seats With Tether Straps
*
[SS27750(ALL)04/96]
Some manufacturers make safety seats that
include a tether strap that goes over the back of
the vehicle seat and attaches to an anchoring
point. Other manufacturers offer the tether strap
as an accessory. Contact the manufacturer of
your child safety seat for information about
ordering a tether strap.
[SS27760(ALL)04/96]
You can attach a tether strap anchor bracket to
the rear floor by using a tether anchor kit
(613D74), available at no charge from any Ford
dealership.
*
[SS27770(ALL)01/96]
Read and carefully follow the instructions
provided with the kit for installation of the child
tether strap anchor.
[SS27790(ALL)01/96]
Ford recommends placement of tethered safety
seats in a second row seating position with the
tether strap installed to the tether anchoring
point as shown in the instructions provided with
the child tether strap anchor kit.
*
[SS27800(ALL)01/96]
RWARNING
Only use the tether attachment hole
locations shown in the illustrations. The
tether anchor may not perform properly if
the wrong mounting location is used.
[SS27810(ALL)01/96]
Four (4) tether strap anchor locations have been
provided in your vehicle. If you want your
child's safety seat located in the front, right hand
passenger seat, you must use the tether strap
anchor attachment location under the second
row bench seat or right hand bucket seat. For
second row seating positions, you must use one
of the three (3) tether strap anchor locations
under the third row bench seat.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

140 [SS27812(ALL)01/96]Until a floor anchor is installed, follow these
steps to install a tethered child safety seat in the
front seat:
[SS27814(ALL)01/96]
1. Buckle the lap/shoulder belt in the seat
directly behind the front passenger seat.
[SS27816(ALL)01/96]
2. Pull all the stored belt out of the rear seat
belt retractor to switch the retractor to
automatic locking mode.
*
[SS27818(ALL)03/96]
3. Let the retractor wind up the slack from the
lap/shoulder belt. A clicking sound should
be heard as the belt retracts, indicating that
the retractor is in automatic locking mode.
[SS27820(ALL)01/96]
4. Install the child safety seat in the right front
seat. Refer to the previous section on
Installing Child Safety Seats. Hook the tether
strap around the webbing near the center of
the shoulder portion of the lap/shoulder
belt.
*
[SS27822(ALL)05/96]
5. Tighten the tether strap.
[SS27824(ALL)01/96]
Until floor-mounted tether anchors are installed,
tether straps of child safety seats in the second
row may be anchored to lap/shoulder belts for
the third row, following the five steps above, or
to the tongue of the third row lap belt.
*
[SS27830(ALL)01/96]
RWARNING
Follow these precautions to decrease the
chance of injury in an accident.
*
[SS27840(ALL)01/96]
RWARNING
If the anchor bolt(s) is ever removed, the
hole(s) in the floor must be sealed to
prevent the possibility of exhaust fumes
entering the passenger compartment.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

141 %
*
[SS30000(ALL)01/96]
Built-In Child Seat (If equipped)
[SS30010(ALL)05/96]
The second row bench seat may include an
optional built-in child safety seat. This child
restraint is to be usedonlyby children who are
at least one year old, weigh between 22 and 60
pounds (10 and 27 kilograms) and whose
shoulders (top) are below the shoulder harness
slots in the seatbacks with the headrest in the
full up position.
*
[SS30020(ALL)03/96]
If your child is less than one year old or weighs
less than 10 kilograms (22 pounds),alwaysuse a
rear facing infant or convertible seat because a
child of that size is not sufficiently developed to
withstand crash forces in a front facing position.
Follow the specific manufacturer's instructions
for weight and height restrictions.
*
[SS30030(ALL)08/95]
Children must be properly buckled before riding
in the vehicle. It is the law in every state and
province. This child seat conforms to all
Federal/Canadian motor vehicle safety
standards.
*
[SS30070(ALL)01/96]
Always adjust the lap and shoulder harness belts
provided with this child seat snugly around
your child.
*
[SS30080(ALL)03/96]
RWARNING
Do not leave children, unreliable adults,
or pets unattended in your vehicle.
*
[SS30090(ALL)01/96]
RWARNING
Safety belts and seats can become hot in a
vehicle that has been closed up in sunny
weather; they could burn a small child.
Check seat covers and buckles before you
place a child anywhere near them.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

142
*
[SS30100(ALL)01/96]
RWARNING
Failure to follow all of the instructions on
the use of this child restraint system can
result in your child striking the vehicle's
interior during a sudden stop or crash.
*
[SS30110(ALL)08/95]
How to use the Built-In Child Seat
*
[SS30120(ALL)01/96]
Read the following procedures and all of the
labels on the Built-In Child Seat before using the
seat.
*
[SS30130(ALL)01/96]
RWARNING
Never use the Built-In Child Seat as a
booster cushion with the adult safety
belts. A child using the adult belts could
slide forward and out from under the
safety belts.
[SS30140(ALL)01/96]
1. Pull the headrest release strap and grasp the
headrest as shown in Figure 1. Then release
the strap and rotate the headrest fully until
the latch ªclicksº in the full up position.
[SS30155(ALL)01/96]
one third page art:0095048-A
Figure 1
[SS30160(ALL)01/96]

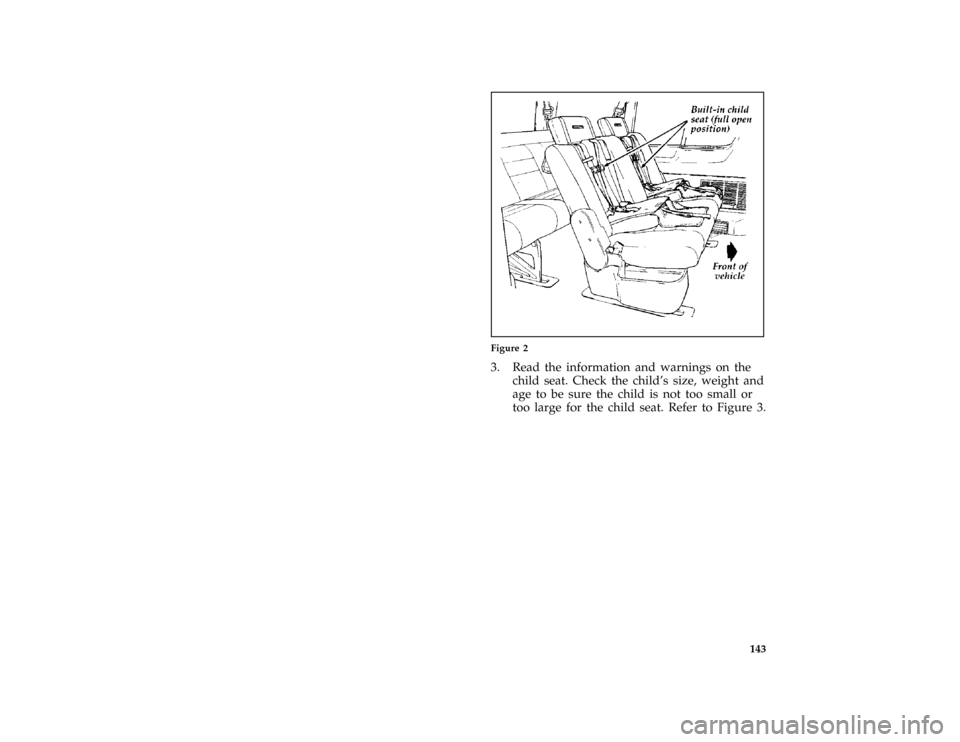

2. Continue to unfold the child seat until it
rests on the seat as shown in Figure 2.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

143 [SS30170(ALL)01/96]
half page art:0095049-A
Figure 2
[SS30190(ALL)01/96]

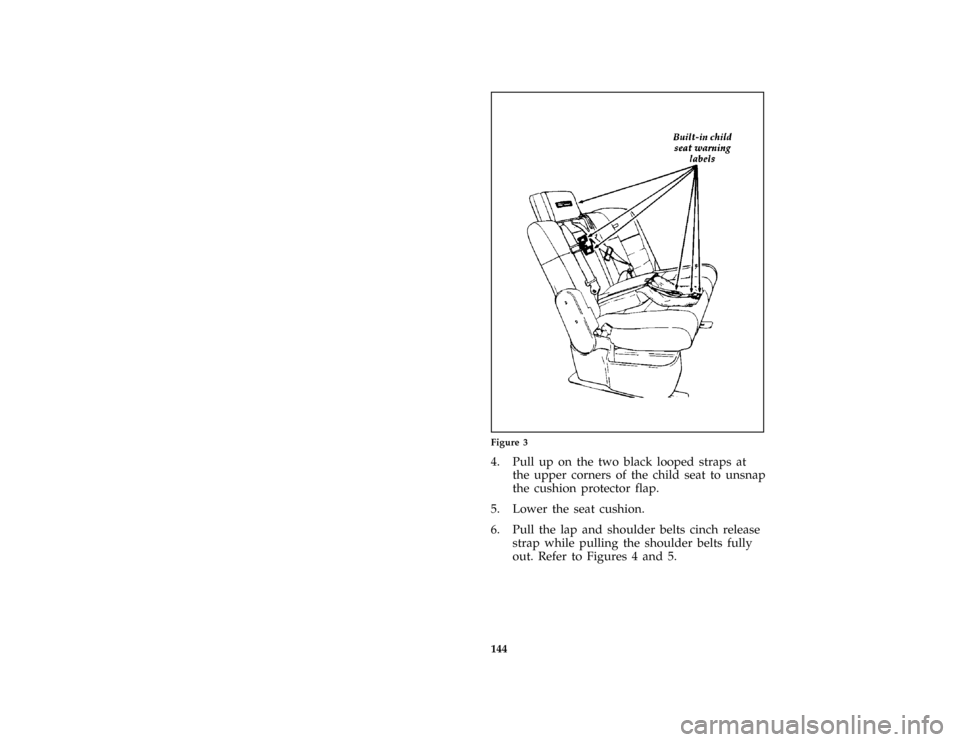

3. Read the information and warnings on the
child seat. Check the child's size, weight and
age to be sure the child is not too small or
too large for the child seat. Refer to Figure 3.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

144 [SS30195(ALL)01/96]
two third page art:0095050-AFigure 3
[SS30200(ALL)01/96]
4. Pull up on the two black looped straps at
the upper corners of the child seat to unsnap
the cushion protector flap.
[SS30210(ALL)01/96]
5. Lower the seat cushion.
[SS30230(ALL)01/96]

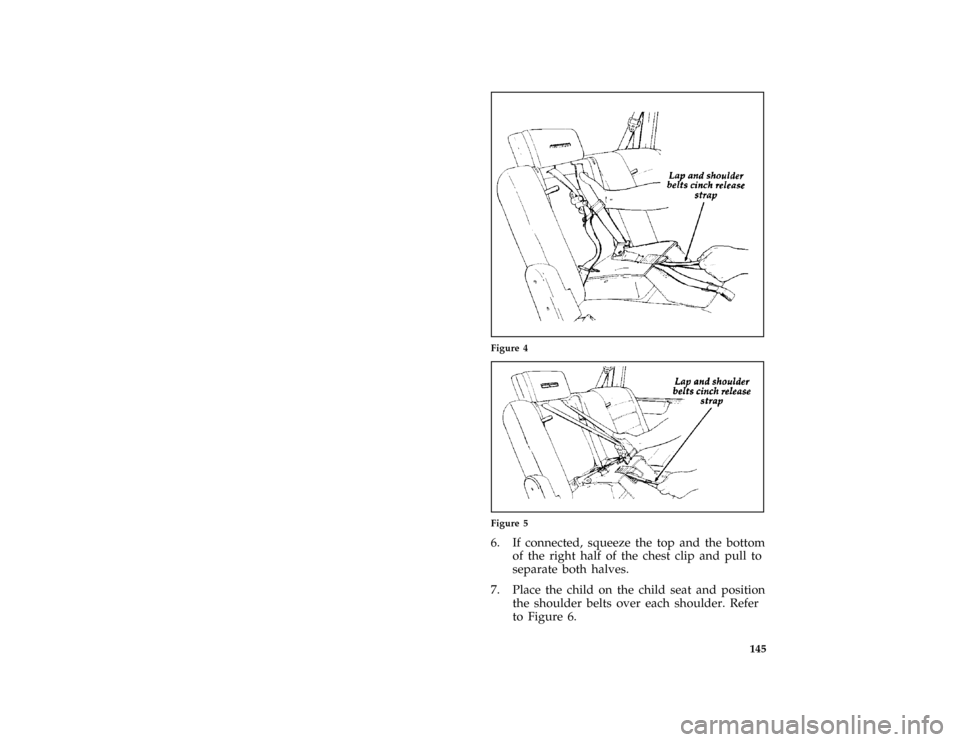

6. Pull the lap and shoulder belts cinch release
strap while pulling the shoulder belts fully
out. Refer to Figures 4 and 5.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

145 [SS30240(ALL)01/96]
half page art:0095051-A
Figure 4
[SS30250(ALL)01/96]
one third page art:0095052-A
Figure 5
[SS30260(ALL)01/96]
6. If connected, squeeze the top and the bottom
of the right half of the chest clip and pull to
separate both halves.
[SS30270(ALL)04/96]

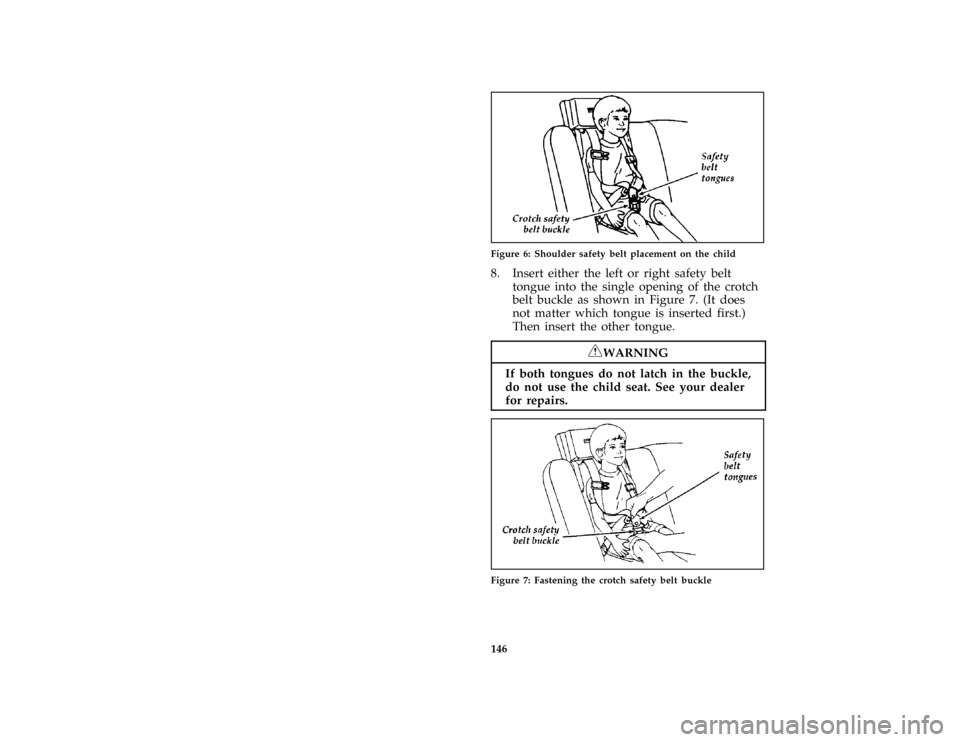

7. Place the child on the child seat and position
the shoulder belts over each shoulder. Refer
to Figure 6.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

146 [SS30280(ALL)01/96]
one third page art:0095053-AFigure 6: Shoulder safety belt placement on the child
[SS30300(ALL)01/96]
8. Insert either the left or right safety belt
tongue into the single opening of the crotch
belt buckle as shown in Figure 7. (It does
not matter which tongue is inserted first.)
Then insert the other tongue.
*
[SS30310(ALL)01/96]
RWARNING
If both tongues do not latch in the buckle,
do not use the child seat. See your dealer
for repairs.
[SS30320(ALL)01/96]
one third page art:0095054-A
Figure 7: Fastening the crotch safety belt buckle
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

147 [SS30330(ALL)01/96]

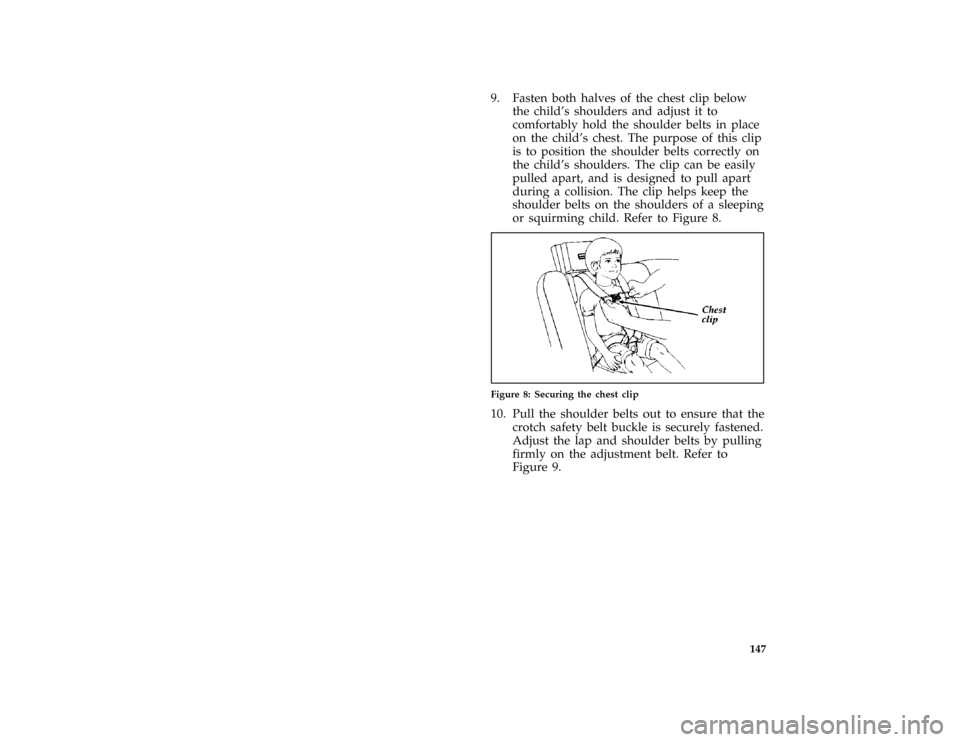

9. Fasten both halves of the chest clip below
the child's shoulders and adjust it to
comfortably hold the shoulder belts in place
on the child's chest. The purpose of this clip
is to position the shoulder belts correctly on
the child's shoulders. The clip can be easily
pulled apart, and is designed to pull apart
during a collision. The clip helps keep the
shoulder belts on the shoulders of a sleeping
or squirming child. Refer to Figure 8.
[SS30340(ALL)01/96]
one third page art:0095055-A
Figure 8: Securing the chest clip
[SS30350(ALL)01/96]

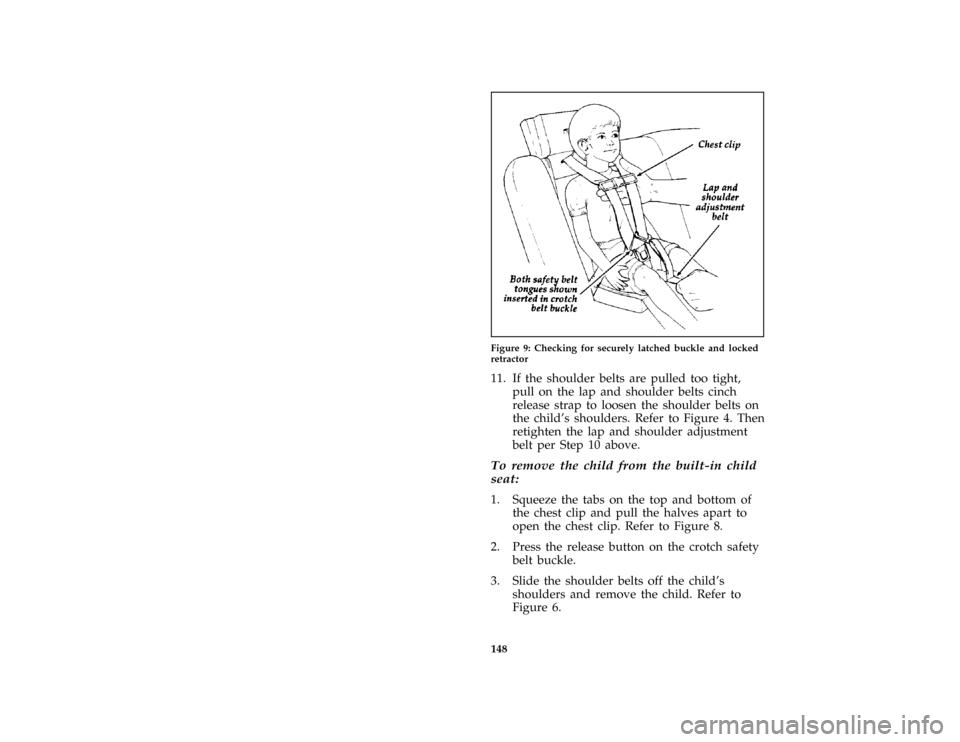

10. Pull the shoulder belts out to ensure that the
crotch safety belt buckle is securely fastened.
Adjust the lap and shoulder belts by pulling
firmly on the adjustment belt. Refer to
Figure 9.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

148 [SS30360(ALL)01/96]
half page art:0095056-AFigure 9: Checking for securely latched buckle and locked
retractor
[SS30370(ALL)01/96]
11. If the shoulder belts are pulled too tight,
pull on the lap and shoulder belts cinch
release strap to loosen the shoulder belts on
the child's shoulders. Refer to Figure 4. Then
retighten the lap and shoulder adjustment
belt per Step 10 above.
*
[SS30380(ALL)08/95]
To remove the child from the built-in child
seat:
[SS30390(ALL)01/96]
1. Squeeze the tabs on the top and bottom of
the chest clip and pull the halves apart to
open the chest clip. Refer to Figure 8.
*
[SS30400(ALL)08/95]
2. Press the release button on the crotch safety
belt buckle.
[SS30410(ALL)01/96]
3. Slide the shoulder belts off the child's
shoulders and remove the child. Refer to
Figure 6.
