FORD AEROSTAR 1997 1.G Owners Manual

129
*
[SS14625(ALL)05/96]
RWARNING
It is extremely dangerous to ride in a
cargo area, inside or outside of a vehicle.
In a collision, people riding in these areas
are more likely to be seriously injured or
killed. Do not allow people to ride in any
area of your vehicle that is not equipped
with seats and safety belts. Be sure
everyone in your vehicle is in a seat and
using a safety belt properly.
*
[SS14650(ALL)05/96]
When possible, put children in the rear seat of
your vehicle. Accident statistics suggest that
children are safer when properly restrained in
the rear seating positions than in the front
seating positions.
*
[SS14700(ALL)03/96]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
*
[SS15000(ALL)01/96]
RWARNING
Safety belts and seats can become hot in a
vehicle that has been closed up in sunny
weather; they could burn a small child.
Check seat covers and buckles before you
place a child anywhere near them.
*
[SS15025(ALL)03/96]
RWARNING
Do not leave children, unreliable adults,
or pets unattended in your vehicle.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

130 %
*
[SS15900(ALL)01/96]
Safety Seats for Children
*
[SS16000(ALL)01/96]
Use a safety seat that is recommended for the
size and weight of the child. Always follow the
safety seat manufacturer's instructions when
installing and using the safety seat.
[SS16005(ALL)01/96]
Most child safety seats can be used in this
vehicle only in vehicle seating positions with
lap/shoulder belts. Any booster-type seat that
places the vehicle's lap belt or shoulder belt
around a shield above and ahead of the child's
hips should not be used in this vehicle. This
type of safety seat could cause injury by tipping
over the front edge of the vehicle seat during a
collision.
[SS16010(ALL)04/96]
RWARNING
The following instructions MUST BE
FOLLOWED to reduce risk of injury from
a safety seat tipping too far forward in a
severe crash.
[SS16012(ALL)01/96]
Install forward-facing child safety seats only in
vehicle seating positions equipped with
lap/shoulder belts. Forward-facing convertible
safety seats can be used in the center of the
three-passenger second row bench seat only if a
top tether strap is used. Ford recommends
placing forward-facing safety seats in the second
row and using safetey seats with top tether
straps for added protection.
[SS16015(ALL)01/96]
For more information on top tether straps see
Attaching Safety Seats With Tether Strapsin this
chapter.
*
[SS16025(ALL)05/96]
When installing a child safety seat, be sure to
use the correct safety belt buckle for that seating
position, and make sure the tongue is securely
fastened in the buckle. For a shoulder/lap belt
combination with a sliding tongue, make sure
the retractor is in the automatic locking mode.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

131
*
[SS16090(ALL)05/96]
All child restraint systems are designed to be
secured in vehicle seats by lap belts or by the
lap portion of a lap-shoulder belt.
*
[SS16100(ALL)03/96]
RWARNING
If you do not properly secure the safety
seat, the child occupying the seat may be
injured during a collision or sudden stop.
An unsecured safety seat could also injure
other passengers.
*
[SS16125(ALL)03/96]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
[SS25601(ALL)01/96]
Installing Child Safety Seats in
the Front Seat and Rear Outboard
Seating Positions
[SS25650(ALL)01/96]
Your vehicle is equipped with a dual locking
mode retractor on the shoulder belt portion of
the combination lap/shoulder safety belt for the
right front seat passenger and rear outboard
passengers.
[SS25701(ALL)01/96]
If you choose to install a child safety seat or
infant carrier in these seating positions:
[SS25750(ALL)01/96]
1. Position the child seat on the seat of the
vehicle. In the front seat, adjust the vehicle
seat as far rearward as possible.
[SS25801(ALL)01/96]

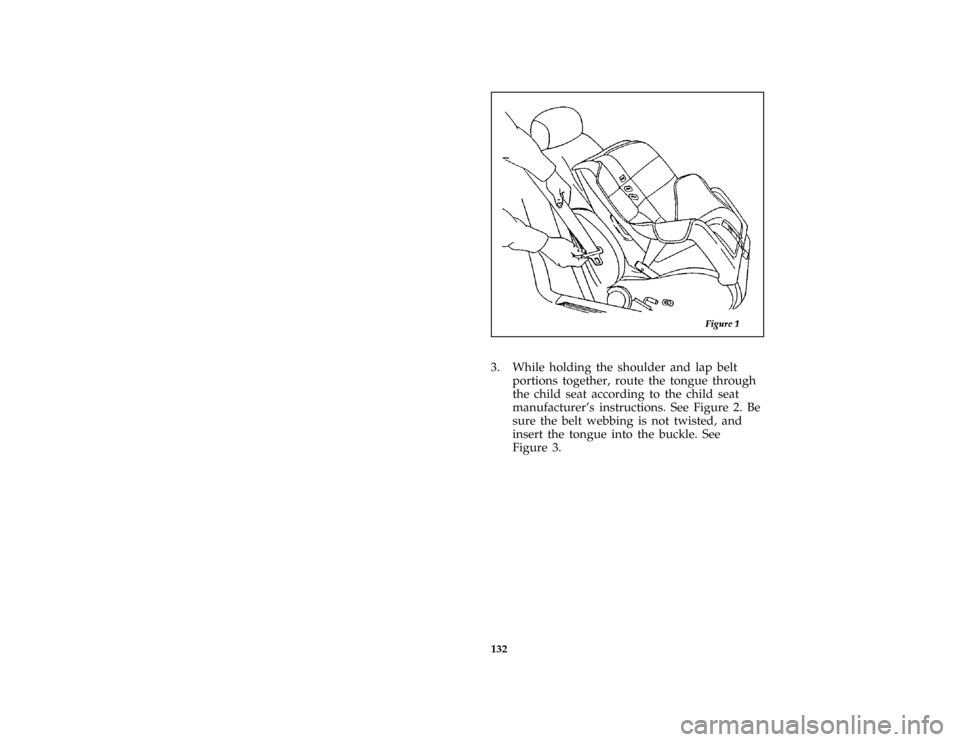

2. Pull down on the shoulder belt, then grasp
the shoulder belt and lap belt together. See
Figure 1.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

132 [SS25900(ALL)01/96]
half page art:0095072-A
*
[SS26000(ALL)01/96]

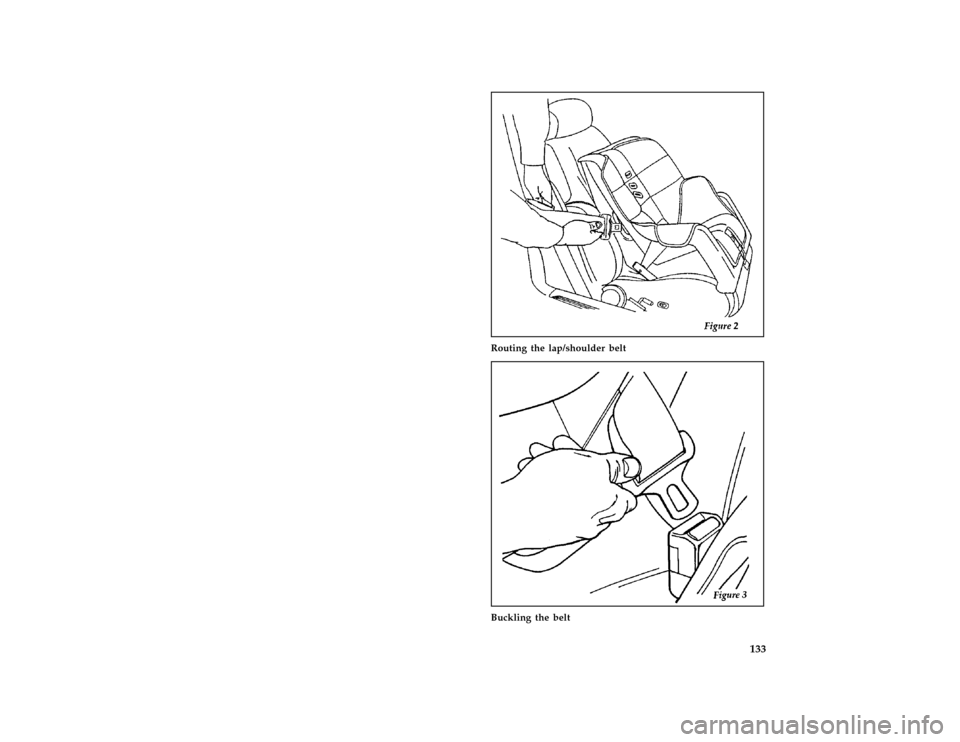

3. While holding the shoulder and lap belt
portions together, route the tongue through
the child seat according to the child seat
manufacturer's instructions. See Figure 2. Be
sure the belt webbing is not twisted, and
insert the tongue into the buckle. See
Figure 3.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

133 [SS26100(ALL)01/96]
half page art:0095073-A
Routing the lap/shoulder belt
[SS26201(ALL)01/96]
half page art:0011240-B
Buckling the belt
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

134
*
[SS26301(ALL)01/96]

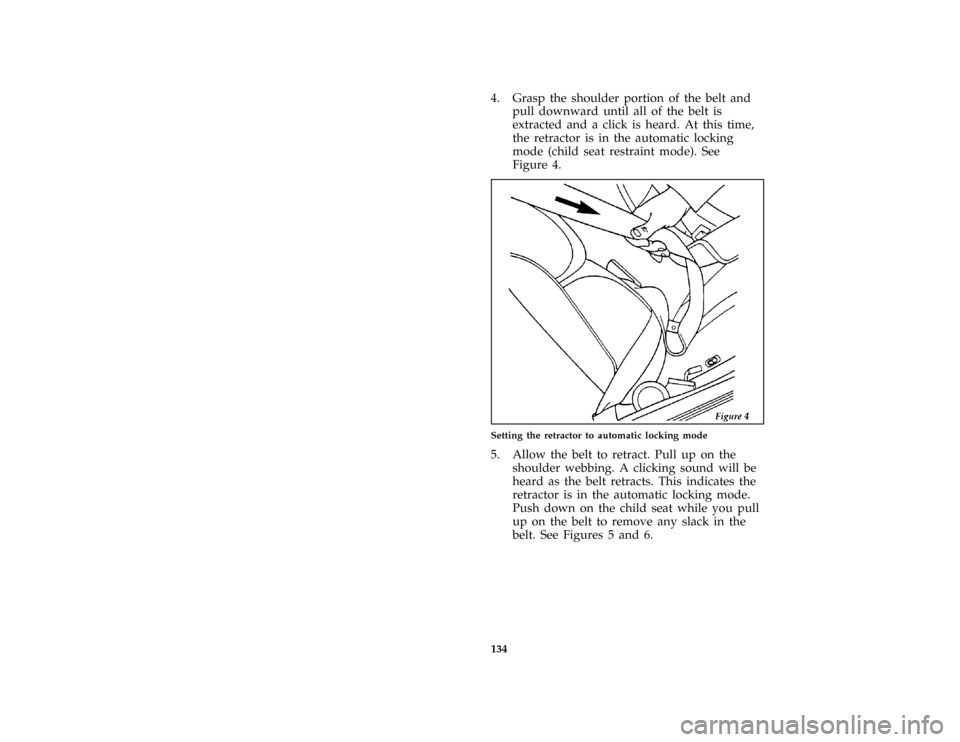

4. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted and a click is heard. At this time,
the retractor is in the automatic locking
mode (child seat restraint mode). See
Figure 4.
[SS26401(ALL)01/96]
half page art:0011241-A
Setting the retractor to automatic locking mode
*
[SS26500(ALL)02/96]

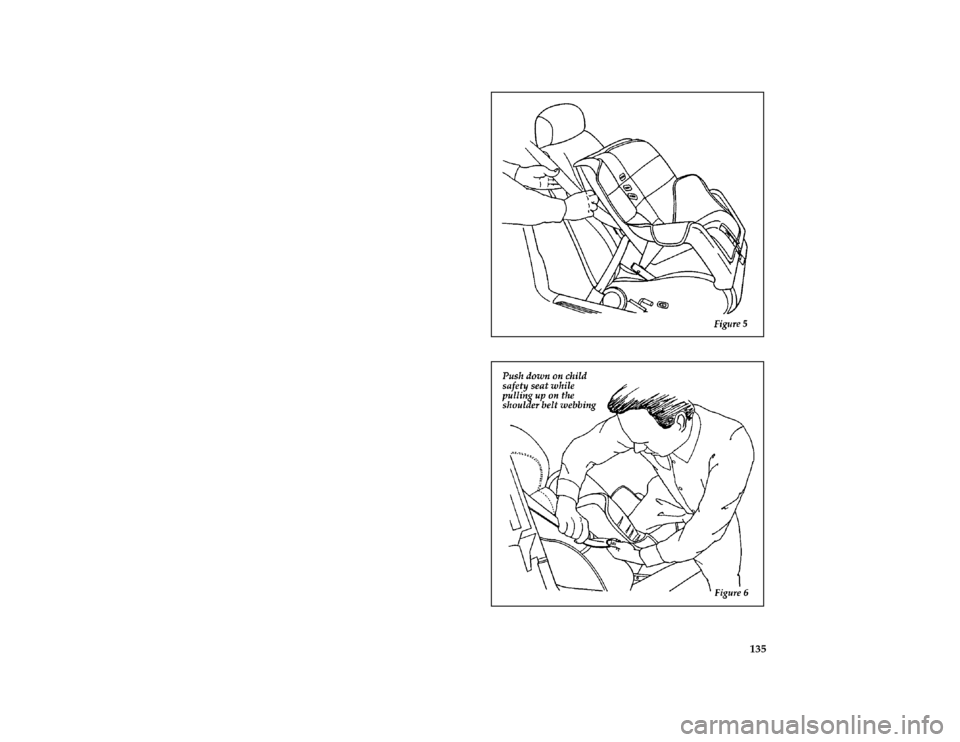

5. Allow the belt to retract. Pull up on the
shoulder webbing. A clicking sound will be
heard as the belt retracts. This indicates the
retractor is in the automatic locking mode.
Push down on the child seat while you pull
up on the belt to remove any slack in the
belt. See Figures 5 and 6.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

135 [SS26601(ALL)01/96]
half page art:0011242-A
[SS26700(ALL)01/96]
half page art:0011243-AFile:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

136
*
[SS26801(ALL)02/96]
6. Before placing the child in the child seat,
forcibly tilt the seat from side to side, and
tug it forward to make sure that the seat is
securely held in place. See Figure 7.
[SS26900(ALL)01/96]
half page art:0011244-A
Checking that the seat is secure
*
[SS27000(ALL)02/96]

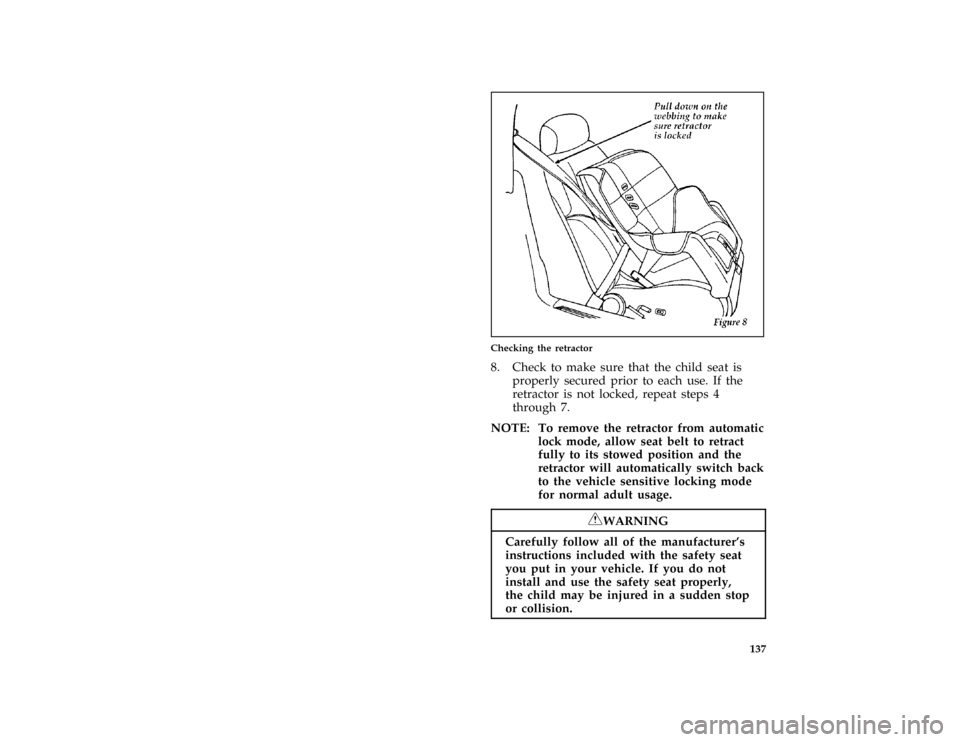

7. Double check that the retractor is in the
automatic locking mode. Try to pull more
belt out of the retractor. If you cannot, the
belt is in the automatic locking mode. See
Figure 8.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

137 [SS27100(ALL)01/96]
half page art:0011245-B
Checking the retractor
*
[SS27201(ALL)01/96]
8. Check to make sure that the child seat is
properly secured prior to each use. If the
retractor is not locked, repeat steps 4
through 7.
*
[SS27205(ALL)01/96]
NOTE: To remove the retractor from automatic
lock mode, allow seat belt to retract
fully to its stowed position and the
retractor will automatically switch back
to the vehicle sensitive locking mode
for normal adult usage.
*
[SS27210(ALL)03/96]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

138
[SS27300(ALL)01/96]
Installing Child Safety Seats at
the Rear Center Seating Position
with Locking Adjustable Lap Belt
[SS27350(ALL)01/96]
DO NOT install a forward-facing child safety
seat in the third row center seating position.
Forward-facing seats must be installed with a
lap/shoulder belt, or a lap belt and top tether
strap.
[SS27400(ALL)01/96]
1. Lengthen the lap belt. To lengthen the belt,
hold the tongue so that its bottom is
perpendicular to the direction of webbing
while sliding the tongue toward the loose
end of webbing.
*
[SS27450(ALL)01/96]
2. Place the child safety seat in the center
seating position.
*
[SS27500(ALL)01/96]
3. Route the tongue and webbing through the
child seat according to the child seat
manufacturer's instructions.
*
[SS27550(ALL)01/96]
4. Insert the belt tongue into the proper buckle
for the center seating position until you hear
a snap and feel it latch. Make sure the
tongue is securely fastened to the buckle by
pulling on tongue.
*
[SS27600(ALL)01/96]
5. Push down on the child seat while pulling
on the loose end of the lap belt webbing to
tighten the belt.
*
[SS27650(ALL)01/96]
6. Before placing the child into child seat,
forcibly tilt the child seat from side-to-side
and in forward directions to ensure that the
seat is held securely in place. If the child
seat moves excessively, repeat steps 5
through 6, or properly install the child seat
in a different seating position.
