NOTE: When the combination lap/shoulder
belt is unbuckled and allowed to
retract completely, the retractor will
switch to the vehicle sensitive
(emergency) locking mode. See the
detailed instructions underSafety Seats
for Childrenin this chapter.
%*
[SS09475(ALL)02/96]
Safety Belt Extension Assembly
*
[SS09478(ALL)01/96]
For some people, the safety belt may be too
short even when it is fully extended. You can
add about eight inches (20 cm) to the belt length
with a safety belt extension assembly (part
number 611C22). Safety belt extensions are
available at no cost from your dealer.
*
[SS09482(ALL)02/96]
WARNING
Failure to follow these instructions will
affect the performance of the safety belts
and increase the risk of personal injury.
%
*
[SS09484(ALL)03/96]
Safety Belt Maintenance
*
[SS09486(ALL)02/96]
Check the safety belt systems periodically to
make sure that they work properly and are not
damaged.
%*
[SS09488(ALL)05/96]
All safety belt assemblies, including retractors,
buckles, front seat belt buckle support assemblies
(slide bar) (if equipped), shoulder belt height
adjusters (if equipped), child safety seat tether
bracket assemblies (if equipped), and attaching
hardware, should be inspected after any
collision. Ford recommends that all safety belt
assemblies used in vehicles involved in a
collision be replaced. However, if the collision
was minor and a qualified technician finds that
the belts do not show damage and continue to
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997
Page 72 of 254
69
operate properly, they do not need to be
replaced. Safety belt assemblies not in use
during a collision should also be inspected and
replaced if either damage or improper operation
is noted.
%
*
[SS11700(ALL)05/96]
Air Bag Supplemental Restraint
System (SRS)
[SS11950(ALL)05/96]
Important Air Bag Precautions
*
[SS11960(ALL)05/96]
Your vehicle is equipped with a supplemental
restraint system designed to work with the
safety belts to help protect you and your right
front seat passenger in the event of a collision.
The Air Bag Supplemental Restraint System is
primarily designed to reduce certain upper body
injuries.
*
[SS11970(ALL)05/96]
WARNING
All occupants of the vehicle, including the
driver, should always wear their safety
belts, failure to do so may increase the
risk of personal injury in the event of a
collision.
*
[SS11980(ALL)05/96]
WARNING
Do not place objects or mount equipment
on or near the air bag covers that may
come into contact with an inflating air
bag. Failure to follow these instructions
may increase the risk of personal injury in
the event of a collision.
*
[SS12000(ALL)05/96]
WARNING
Do not attempt to service, repair, or
modify the air bag Supplemental Restraint
System or its fuses. See your Ford or
Lincoln-Mercury dealer.
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997
Page 73 of 254
70
*
[SS12100(ALL)05/96]
WARNING
If you are close to an inflating air bag, it
could seriously injure you. Position your
seat such that it is as far back from the
steering wheel as possible but still allows
you to properly control the vehicle.
*
[SS12150(ALL)05/96]
Children and Air Bags
*
[SS12200(ALL)05/96]
NOTE: For additional important safety
information on the proper use of seat
belts, child seats, and infant seats,
please read the entire Safety Restraints
chapter in this owner guide.
*
[SS12250(ALL)05/96]
WARNING
Children should always wear their safety
belts. Failure to follow these instructions
may increase the risk of personal injury in
the event of a collision.
*
[SS12260(ALL)05/96]
WARNING
Rear-facing child seats or infant carriers
should never be placed in the front seats.
*
[SS12270(ALL)05/96]
In rear-facing infant seats, the infant's head is
closer to the air bag. The force of the rapidly
inflating air bag could push the top of the
rear-facing seat against the vehicle seatback or
center armrests (if so equipped), or center
console (if so equipped). REAR-FACING
INFANT CARRIERS MUST ALWAYS BE
SECURED IN THE REAR SEAT, and other child
safety seats and infant seats should be secured in
the rear seat whenever possible.
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997
Page 74 of 254
71 %
*
[SS12275(ALL)05/96]
How Does the Air Bag Supplemental
Restraint System Work?
*
[SS12300(ALL)05/96]
The Air Bag Supplemental Restraint System is
designed to activate when the vehicle is in a
collision similar to hitting a fixed barrier head
on at 8-14 mph (13-23 km/h). The fact that the
air bags did not inflate in a collision does not
mean that something is wrong with the system.
Rather, it means the forces were not of the type
sufficient to cause activation.
[SS12350(ALL)05/96]
If the vehicle is in a moderate or severe frontal
collision, the system is activated and the air bags
inflate rapidly. After the air bag inflates, it will
quickly deflate. After the air bag deployment,
you may notice a smoke-like, powdery residue
or smell the burnt propellant. This is normal.
The residue may consist of cornstarch or talcum
powder (which is used to lubricate the air bag)
or sodium compounds, such as sodium
carbonates (e.g. baking soda) that result from the
combustion process that inflates the air bag.
Small amounts of sodium hydroxide may be
present which may irritate the skin and eyes, but
none of the residue is toxic. The Air Bag
Supplemental Restraint System will reduce, but
not eliminate all injuries in an accident.
*
[SS12375(ALL)05/96]
WARNING
Several air bag system components get hot
after inflation. Do not try to touch them
after inflation.
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997
Page 75 of 254
72 [SS12380(ALL)05/96]

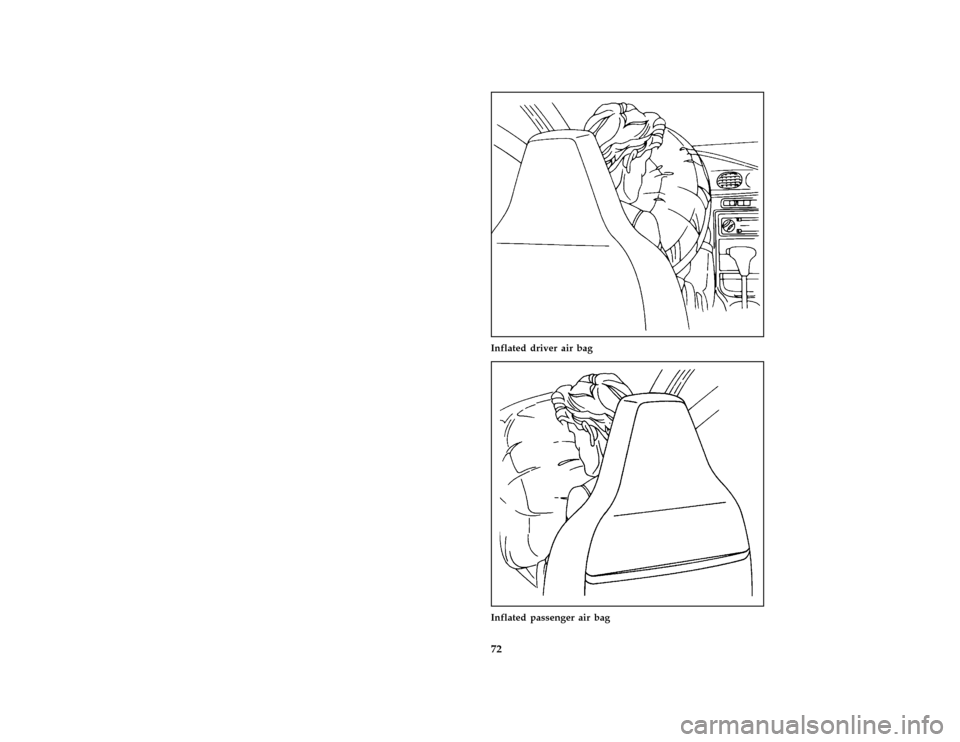

half page art:0032250-BInflated driver air bag
[SS12390(ALL)05/96]
half page art:0032251-A
Inflated passenger air bag
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997
Page 76 of 254
73
*
[SS12400(ALL)05/96]
WARNING
The air bag will inflate only once. The
system is designed to function on a
one-time-only basis. If the air bag is
inflated, THE AIR BAG WILL NOT
FUNCTION AGAIN AND MUST BE
REPLACED IMMEDIATELY. If the air
bag is not replaced, this will increase the
risk of injury in a subsequent collision.
[SS12450(ALL)05/96]
The Air Bag Supplemental Restraint System
consists of:
*
[SS12460(ALL)05/96]
q
driver and passenger air bag modules (which
include the inflators and air bags),
[SS12470(ALL)05/96]
q
one or more impact and safing sensors,
[SS12480(ALL)05/96]
q
a system diagnostic module,
[SS12490(ALL)05/96]
q
a readiness light and tone,
[SS12500(ALL)05/96]
q
and the electrical wiring which connects the
components.
*
[SS12550(ALL)05/96]
The diagnostic module monitors its own circuits,
the air bag electrical system, the air bag
readiness light, the air bag power and the air
bag inflators.
[SS12600(ALL)05/96]
Determining if System Is Operational
*
[SS12625(ALL)05/96]
The Air Bag Supplemental Restraint System uses
a readiness light and a tone to indicate the
condition of the system. The readiness light is in
the instrument cluster. When you turn the
ignition key to ON, this light will illuminate for
approximately six (6) seconds and then turn off.
This indicates that the system is operating
normally. NOTE: Routine maintenance of the air
bag system is not required.
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997
Page 77 of 254
74 %
*
[SS12650(ALL)05/96]
A problem with the system is indicated by one
or more of the following:
[SS12675(ALL)05/96]
q
the readiness light will either flash or stay lit,
[SS12690(ALL)05/96]
q
the readiness light will not light immediately
after ignition is turned on,
%*
[SS12700(ALL)05/96]
q
a group of five beeps will be heard. The tone
pattern will repeat periodically until the
problem and light are repaired.
*
[SS12800(ALL)05/96]
If any of these things happen, even
intermittently, have the Air Bag Supplemental
Restraint System serviced at your Ford or
Lincoln-Mercury dealer immediately. Unless
serviced, the system may not function properly
in the event of a collision.
*
[SS13000(ALL)05/96]
Disposal of Air Bags and Air Bag
Equipped Vehicles
*
[SS13100(ALL)05/96]
For disposal of air bags or air bag equipped
vehicles, see your local Ford or Lincoln-Mercury
dealer. Air bags MUST BE disposed of by
qualified personnel.
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997
Page 78 of 254
75 % [SS13325(ALL)05/96]

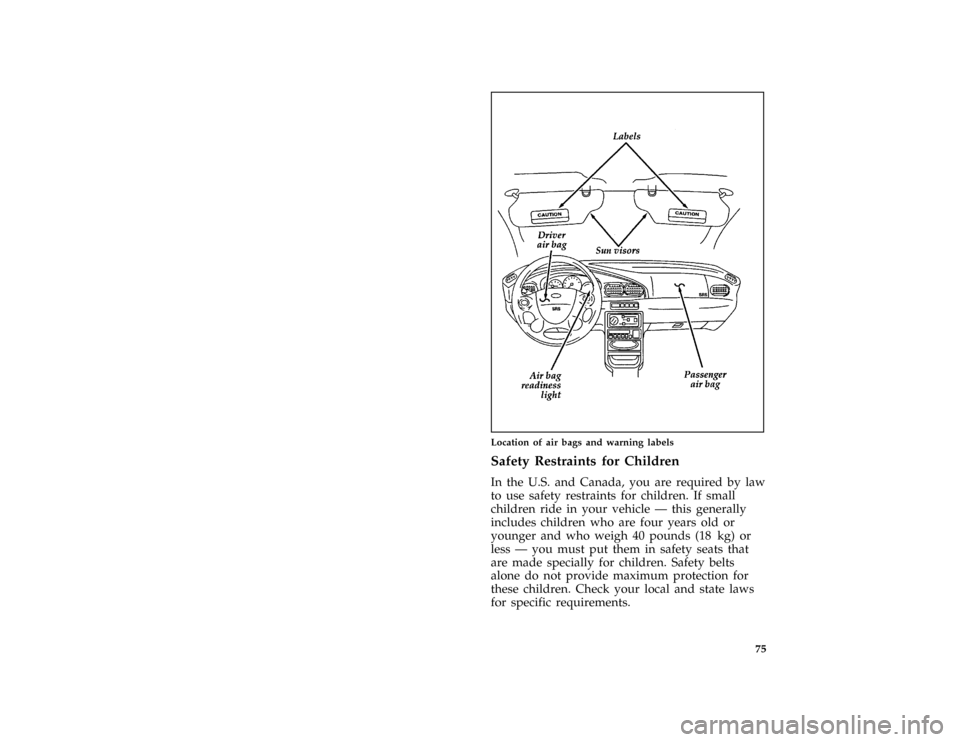

two third page art:0032274-B
Location of air bags and warning labels
[SS15425(ALL)01/96]
Safety Restraints for Children
*
[SS15450(ALL)01/96]
In the U.S. and Canada, you are required by law
to use safety restraints for children. If small
children ride in your vehicle Ð this generally
includes children who are four years old or
younger and who weigh 40 pounds (18 kg) or
less Ð you must put them in safety seats that
are made specially for children. Safety belts
alone do not provide maximum protection for
these children. Check your local and state laws
for specific requirements.
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997
Page 79 of 254
76
*
[SS15475(ALL)02/96]
WARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
*
[SS15480(ALL)01/96]
WARNING
To prevent the risk of injury, make sure
children sit where they can be properly
restrained.
*
[SS15490(ALL)05/96]
WARNING
It is extremely dangerous to ride in a
cargo area, inside or outside of a vehicle.
In a collision, people riding in these areas
are more likely to be seriously injured or
killed. Do not allow people to ride in any
area of your vehicle that is not equipped
with seats and safety belts. Be sure
everyone in your vehicle is in a seat and
using a safety belt properly.
*
[SS15500(ALL)05/96]
When possible, put children in the rear seat of
your vehicle. Accident statistics suggest that
children are safer when properly restrained in
the rear seating positions than in the front
seating positions.
*
[SS15600(ALL)03/96]
WARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997
Page 80 of 254
77
*
[SS15700(ALL)01/96]
WARNING
Safety belts and seats can become hot in a
vehicle that has been closed up in sunny
weather; they could burn a small child.
Check seat covers and buckles before you
place a child anywhere near them.
*
[SS15800(ALL)03/96]
WARNING
Do not leave children, unreliable adults,
or pets unattended in your vehicle.
%*
[SS16500(ALL)01/96]
Safety Seats for Children
*
[SS16600(ALL)01/96]
Use a safety seat that is recommended for the
size and weight of the child. Always follow the
safety seat manufacturer's instructions when
installing and using the safety seat.
*
[SS16620(ALL)01/96]
Ford recommends the use of a child safety seat
having a top tether strap. Install the child safety
seat in a seating position which is capable of
providing a tether anchorage. For more
information on top tether straps seeAttaching
Safety Seats With Tether Strapsin this chapter.
*
[SS16640(ALL)05/96]
When installing a child safety seat, be sure to
use the correct safety belt buckle for that seating
position, and make sure the tongue is securely
fastened in the buckle. For a shoulder/lap belt
combination with a sliding tongue, make sure
the retractor is in the automatic locking mode.
*
[SS16649(ALL)03/96]
Your vehicle is equipped with a right front
passenger air bag. Air bags deploy with great
force, faster than the blink of an eye. Front
passengers, especially children and small adults,
must never sit on the front edge of the seat,
stand near the glove compartment of the
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997
