engine FORD C MAX 2011 2.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Circuits protected
Ampere
rating
Fuse
Not used
-
57
Not used
-
58
Passive anti theft system (PATS)
5
59
Interior lamp, driver's door switch pack, glove box
10
60
Cigar lighter, second row power point
20
61
Rain sensor module, interior mirror
5
62
Not used
-
63
Not used
-
64
Liftgate release
10
65
Driver's door lock, double locking
20
66
Information and entertainment display
7.5
67
Steering column lock
15
68
Instrument cluster
5
69
Central locking
20
70
Air conditioning
10
71
Steering wheel control module
7.5
72
Alarm, on-board diagnostics II
5
73
Main beam
15
74
Front fog lamps
15
75
Reversing lamp
10
76
Washer pump
20
77
Ignition switch or start button
5
78
Voice control module, radio, navigation system, DVD
player, CD changer, door lock button
15
79
Not used
-
80
Interior motion sensor, RF receiver, sun blinds.
5
81
Washer pump ground
20
82
179
Fuses

Downloaded from www.Manualslib.com manuals search engine Circuits protected
Ampere
rating
Fuse
Central locking ground
20
83
Driver's door lock and double locking ground
20
84
Radio, navigation system, passenger airbag deactivation
switch, heated front seats switch, parking heater, manual
air conditioning heater module
7.5
85
Restraint system
10
86
Not used
-
87
Not used
-
88
Not used
-
89
Load compartment fuse box Circuits protected
Ampere
rating
Fuse
Not used
-
1
Keyless vehicle module
10
2
Keyless vehicle door handles
5
3
Door module (left-hand front) (power windows, central
locking, electric folding exterior mirror, heated exterior
mirror)
25
4
180
FusesE129927

Downloaded from www.Manualslib.com manuals search engine Circuits protected
Ampere
rating
Fuse
Door module (right-hand front) (window up/down, central
locking, electric folding mirror, heated mirror)
25
5
Door module (left-hand rear) (window up/down)
25
6
Door module (right-hand rear) (window up/down)
25
7
Security Horn
10
8
Electric driver's seat
25
9
Not used
-
10
Not used
-
11
Not used
-
12
Not used
-
13
Not used
-
14
Not used
-
15
Not used
-
16
Not used
-
17
Not used
-
18
Not used
-
19
Not used
-
20
Not used
-
21
Not used
-
22
Not used
-
23
Power inverter
30
24
Power operated tailgate
25
25
Accessories, trailer module
40
26
Not used
-
27
Not used
-
28
Blind spot information system
5
29
Park aid Module
5
30
181
Fuses

Downloaded from www.Manualslib.com manuals search engine Circuits protected
Ampere
rating
Fuse
Rear view camera
5
31
Power inverter
5
32
Not used
-
33
Heated driver's seat
15
34
Heated front passenger seat
15
35
Not used
-
36
Sun blind system
20
37
Not used
-
38
Not used
-
39
Not used
-
40
Not used
-
41
Not used
-
42
Not used
-
43
Not used
-
44
Not used
-
45
Not used
-
46
182
Fuses

Downloaded from www.Manualslib.com manuals search engine TOWING POINTS
Towing eye location
The screw-in towing eye is located in the
spare wheel well.
The towing eye must always be carried in
the vehicle.
Installing the towing eye
CAUTION
The screw-in towing eye has a
left-hand thread. Turn it
anti-clockwise to install it. Make sure
that the towing eye is fully tightened. Note:
On vehicles with a tow bar, the
towing eye cannot be installed at the rear
of the vehicle. Use the tow bar to tow a
vehicle.
Front towing eye Rear towing eye
Insert a suitable object into the hole on the
underside of the cover and prise off the
cover.
Install the towing eye.
TOWING THE VEHICLE ON
FOUR WHEELS
All vehicles
WARNINGS
Switch the ignition on when your
vehicle is being towed. The steering
lock will engage and the direction
indicators and brake lamps will not work
if you do not. The brake and steering assistance
will not operate unless the engine is
running. Press the brake pedal harder
and allow for increased stopping distances
and heavier steering. 183
Vehicle recoveryE78367 E78368

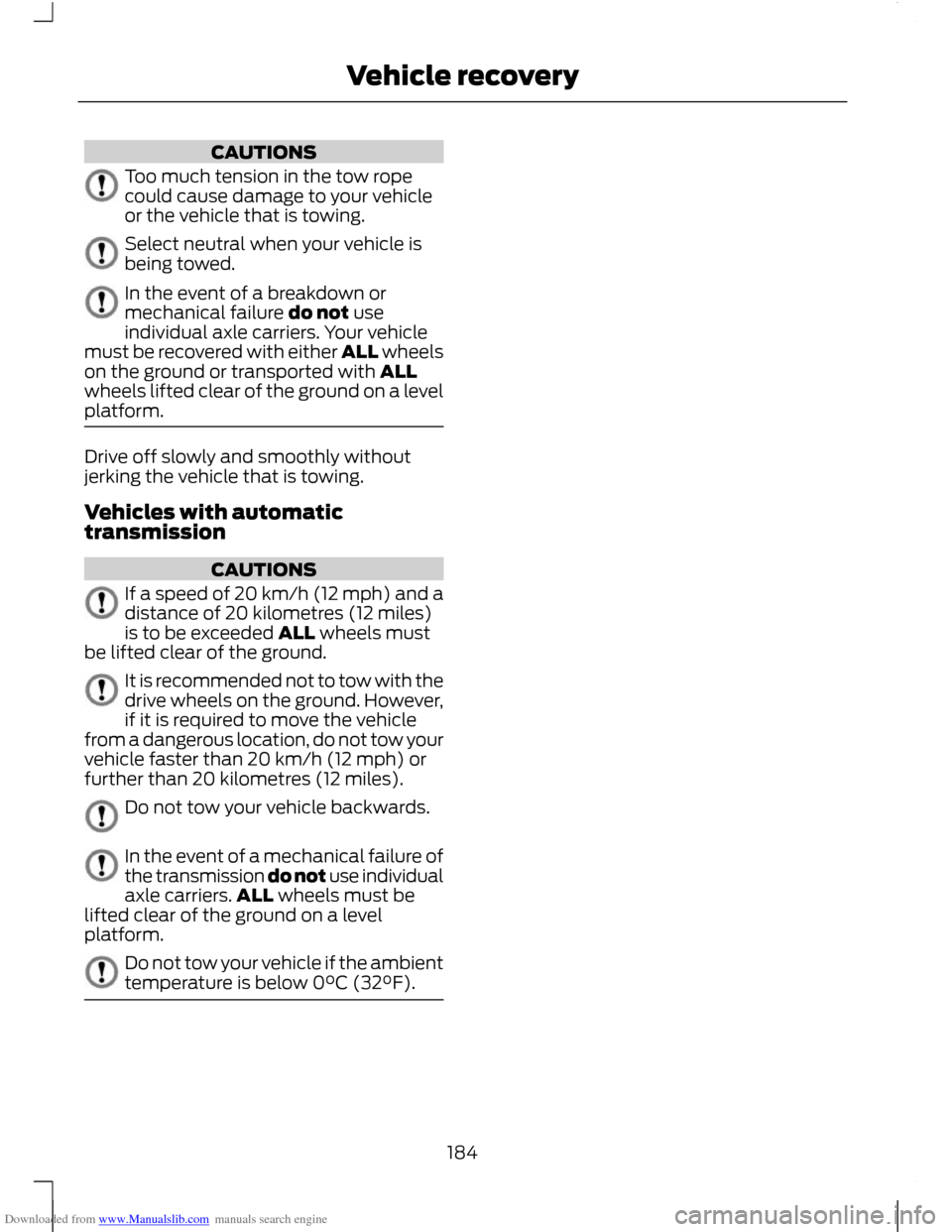

Downloaded from www.Manualslib.com manuals search engine CAUTIONS
Too much tension in the tow rope
could cause damage to your vehicle
or the vehicle that is towing.
Select neutral when your vehicle is
being towed.
In the event of a breakdown or
mechanical failure do not use
individual axle carriers. Your vehicle
must be recovered with either ALL wheels
on the ground or transported with ALL
wheels lifted clear of the ground on a level
platform. Drive off slowly and smoothly without
jerking the vehicle that is towing.
Vehicles with automatic
transmission
CAUTIONS
If a speed of 20 km/h (12 mph) and a
distance of 20 kilometres (12 miles)
is to be exceeded ALL wheels must
be lifted clear of the ground. It is recommended not to tow with the
drive wheels on the ground. However,
if it is required to move the vehicle
from a dangerous location, do not tow your
vehicle faster than 20 km/h (12 mph) or
further than 20 kilometres (12 miles). Do not tow your vehicle backwards.
In the event of a mechanical failure of
the transmission do not use individual
axle carriers.
ALL wheels must be
lifted clear of the ground on a level
platform. Do not tow your vehicle if the ambient
temperature is below 0°C (32°F).
184
Vehicle recovery

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of Ford
Authorised Repairers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialised tools developed
specifically for servicing your vehicle.
In addition to regular servicing, we
recommend that you carry out the
following additional checks.
WARNINGS
Switch the ignition off before
touching or attempting adjustment
of any kind.
Do not touch the electronic ignition
system parts after you have switched
the ignition on or when the engine is
running. The system operates at high
voltage. Keep your hands and clothing clear
of the engine cooling fan. Under
certain conditions, the fan may
continue to run for several minutes after
you have switched the engine off. CAUTION
When carrying out maintenance
checks, make sure that filler caps are
fitted securely.
Daily checks
•
Exterior lamps.
• Interior lamps.
• Warning lamps and indicators. Check when refuelling
•
Engine oil level. See Engine Oil Check
(page 190).
• Brake fluid level. See Brake and
Clutch Fluid Check (page 191).
• Washer fluid level. See Washer Fluid
Check (page 192).
• Tyre pressures (when cold). See
Technical Specifications (page 209).
• Tyre condition. See Wheels and Tyres
(page 199).
Monthly checks
• Engine coolant level (engine cold). See
Engine Coolant Check (page 191).
• Pipes, hoses and reservoirs for leaks.
• Air conditioning operation.
• Parking brake operation.
• Horn operation.
• Tightness of wheel nuts. See
Technical Specifications (page 209).
OPENING AND CLOSING THE
BONNET
Opening the bonnet 185
MaintenanceE73698

Downloaded from www.Manualslib.com manuals search engine Move the catch to the left.
Open the bonnet and support it with the
strut.
Closing the bonnet
WARNING
Make sure that the bonnet is closed
properly.
Lower the bonnet and allow it to drop from
under its own weight for the last 20 – 30
centimetres (8 - 11 inches).
186
MaintenanceE135852 E87786

Downloaded from www.Manualslib.com manuals search engine UNDER BONNET OVERVIEW - 1.6L DURATEC-16V TI-VCT (SIGMA)
Engine coolant reservoir
*
: See Engine Coolant Check (page 191).
A
Brake and clutch fluid reservoir (right-hand drive) *
: See Brake and Clutch
Fluid Check (page 191).
B
Engine oil filler cap *
: See Engine Oil Check (page 190).
C
Brake and clutch fluid reservoir (left-hand drive) *
: See Brake and Clutch Fluid
Check (page 191).
D
Battery: See Vehicle battery (page 197).
E
Engine compartment fuse box: See Fuses (page 174).
F
Air cleaner: No maintenance necessary.
G
Engine oil dipstick *
: See Engine Oil Check (page 190).
H
Screen washer fluid reservoir *
: See Washer Fluid Check (page 192).
I
* For easy identification, filler caps and the engine oil dipstick are marked in colour.
187
MaintenanceE130030ABCDEFGHI

Downloaded from www.Manualslib.com manuals search engine UNDER BONNET OVERVIEW - 1.6L DURATORQ-TDCI (DV) DIESEL
Engine coolant reservoir
*
: See Engine Coolant Check (page 191).
A
Brake and clutch fluid reservoir (right-hand drive) *
: See Brake and Clutch
Fluid Check (page 191).
B
Engine oil filler cap *
: See Engine Oil Check (page 190).
C
Brake and clutch fluid reservoir (left-hand drive) *
: See Brake and Clutch Fluid
Check (page 191).
D
Battery: See Vehicle battery (page 197).
E
Engine compartment fuse box: See Fuses (page 174).
F
Air cleaner: No maintenance necessary.
G
Engine oil dipstick *
: See Engine Oil Check (page 190).
H
Screen washer fluid reservoir *
: See Washer Fluid Check (page 192).
I
* For easy identification, filler caps and the engine oil dipstick are marked in colour.
188
MaintenanceE130031ABCDEFGHI
