140combustion process that inflates the air bag.
Small amounts of sodium hydroxide may be
present which may irritate the skin and eyes, but
none of the residue is toxic. The Air Bag
Supplemental Restraint System will reduce, but
not eliminate all injuries in an accident.
*
[SS23601( ALL)05/96]
WARNING
Several air bag system components get hot
after inflation. Do not try to touch them
after inflation.
*
[SS23701( ALL)05/96]
WARNING
The air bag will inflate only once. The
system is designed to function on a
one-time-only basis. If the air bag is
inflated, THE AIR BAG WILL NOT
FUNCTION AGAIN AND MUST BE
REPLACED IMMEDIATELY. If the air
bag is not replaced, this will increase the
risk of injury in a subsequent collision.
*
[SS23801( ALL)05/96]
The Air Bag Supplemental Restraint System
consists of:
*
[SS23901( ALL)05/96]
q
driver and passenger air bag modules (which
include the inflators and air bags),
*
[SS24001( ALL)05/96]
q
one or more impact and safing sensors,
*
[SS24101( ALL)05/96]
q
a system diagnostic module,
*
[SS24201( ALL)05/96]
q
a readiness light and tone,
*
[SS24301( ALL)05/96]
q
and the electrical wiring which connects the
components.
[SS24350( ALL)04/96]
The diagnostic module monitors its own circuits,
the air bag electrical system, the air bag
readiness light, the air bag power, and the air
bag inflators.
File:06rcssv.ex
Update:Thu Mar 27 14:52:08 1997

141
*
[SS24401( ALL)05/96]
Determining if System Is Operational
*
[SS24501( ALL)05/96]
The Air Bag Supplemental Restraint System uses
a readiness light and a tone to indicate the
condition of the system. The readiness light is in
the instrument cluster. When you turn the
ignition key to ON, this light will illuminate for
approximately six (6) seconds and then turn off.
This indicates that the system is operating
normally. NOTE: Routine maintenance of the air
bag system is not required.
%*
[SS24601( ALL)05/96]
A problem with the system is indicated by one
or more of the following:
*
[SS24701( ALL)05/96]
q
the readiness light will either flash or stay lit,
*
[SS24801( ALL)05/96]
q
the readiness light will not light immediately
after ignition is turned on,
%*
[SS24901( ALL)05/96]
q
a group of five beeps will be heard. The tone
pattern will repeat periodically until the
problem and light are repaired.
*
[SS25001( ALL)05/96]
If any of these things happen, even
intermittently, have the Air Bag Supplemental
Restraint System serviced at your Ford or
Lincoln-Mercury dealer immediately. Unless
serviced, the system may not function properly
in the event of a collision.
*
[SS25101( ALL)05/96]
Disposal of Air Bags and Air Bag
Equipped Vehicles
*
[SS25201( ALL)05/96]
For disposal of air bags or air bag equipped
vehicles, see your local Ford or Lincoln-Mercury
dealer. Air bags MUST BE disposed of by
qualified personnel.
File:06rcssv.ex
Update:Thu Mar 27 14:52:08 1997

142
%*
[SS26300( ALL)01/96]
Safety Restraints for Children
*
[SS26400( ALL)01/96]
In the U.S. and Canada, you are required by law
to use safety restraints for children. If small
children ride in your vehicle Ð this generally
includes children who are four years old or
younger and who weigh 40 pounds (18 kg) or
less Ð you must put them in safety seats that
are made specially for children. Safety belts
alone do not provide maximum protection for
these children. Check your local and state laws
for specific requirements.
*
[SS26500( ALL)02/96]
WARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
*
[SS26600( ALL)05/96]
WARNING
Cargo should always be secured to
prevent it from shifting and causing
damage to the vehicle or harm to
passengers.
*
[SS26700( ALL)05/96]
When possible, put children in the rear seat of
your vehicle. Accident statistics suggest that
children are safer when properly restrained in
the rear seating positions than in the front
seating positions.
*
[SS26800( ALL)03/96]
WARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
File:06rcssv.ex
Update:Thu Mar 27 14:52:08 1997

143
*
[SS26900( ALL)01/96]
WARNING
Safety belts and seats can become hot in a
vehicle that has been closed up in sunny
weather; they could burn a small child.
Check seat covers and buckles before you
place a child anywhere near them.
*
[SS27000( ALL)03/96]
WARNING
Do not leave children, unreliable adults,
or pets unattended in your vehicle.
%*
[SS27100( ALL)05/96]
WARNING
When using forward-facing child seats
move the passenger seat as far back from
the instrument panel as possible. Never
secure rear-facing child seats or infant
carriers in the front seat.
%*
[SS27200( ALL)01/96]
Safety Seats for Children
*
[SS27300( ALL)01/96]
Use a safety seat that is recommended for the
size and weight of the child. Always follow the
safety seat manufacturer's instructions when
installing and using the safety seat.
*
[SS27500( ALL)05/96]
When installing a child safety seat, be sure to
use the correct safety belt buckle for that seating
position, and make sure the tongue is securely
fastened in the buckle. For a shoulder/lap belt
combination with a sliding tongue, make sure
the retractor is in the automatic locking mode.
*
[SS27600( ALL)05/96]
Children weighing less than 40 lbs. (18 kg)
should use child or infant seats. Forward facing
child seats must have the passenger seat moved
as far back from the instrument panel as
possible.
File:06rcssv.ex
Update:Thu Mar 27 14:52:08 1997

144
*
[SS27700( ALL)05/96]
WARNING
Rear-facing child seats or infant carriers
should never be placed in the front seats.
*
[SS27800( ALL)05/96]
All child restraint systems are designed to be
secured in vehicle seats by lap belts or by the
lap portion of a lap-shoulder belt.
*
[SS27900( ALL)03/96]
WARNING
If you do not properly secure the safety
seat, the child occupying the seat may be
injured during a collision or sudden stop.
An unsecured safety seat could also injure
other passengers.
*
[SS28000( ALL)03/96]
WARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
File:06rcssv.ex
Update:Thu Mar 27 14:52:08 1997

145 % [SS30500( GV)12/95]
Installing Safety Seats in the Front and
Rear Outboard Passenger Seating Positions
[SS30700( ALL)12/95]
For seating positions equipped with a dual
locking mode retractor, use the following
procedure.
[SS30800( ALL)04/96]
If you choose to install a forward-facing child
safety seat in the front seating positions, move
vehicle seat as far back as possible.
*
[SS30900( ALL)05/96]
1. Position the child seat in the center of the
passenger seating position.
*
[SS31000( ALL)02/96]
2. Pull down on shoulder belt, then grasp
shoulder belt and lap belt together. See
Figure 1.
*
[SS31100( ALL)04/96]
half page art:0011238-C
Pulling out belt webbing
File:06rcssv.ex
Update:Thu Mar 27 14:52:08 1997

146
*
[SS31200( ALL)01/96]
3. While holding the shoulder and lap belt
portions together, route the tongue through
the child seat according to the child seat
manufacturer's instructions. See Figure 2. Be
sure that the belt webbing is not twisted.
*
[SS31300( ALL)04/96]
half page art:0011239-C
Routing the lap/shoulder belt
File:06rcssv.ex
Update:Thu Mar 27 14:52:08 1997

147
*
[SS31400( ALL)01/96]
4. Insert the belt tongue into the buckle for that
seating position until you hear and feel the
latch engage. See Figure 3. Make sure tongue
is latched securely to buckle by pulling on
tongue.
*
[SS31500( ALL)01/96]
half page art:0011240-B
Buckling the belt
File:06rcssv.ex
Update:Thu Mar 27 14:52:08 1997

148
*
[SS31600( ALL)01/96]

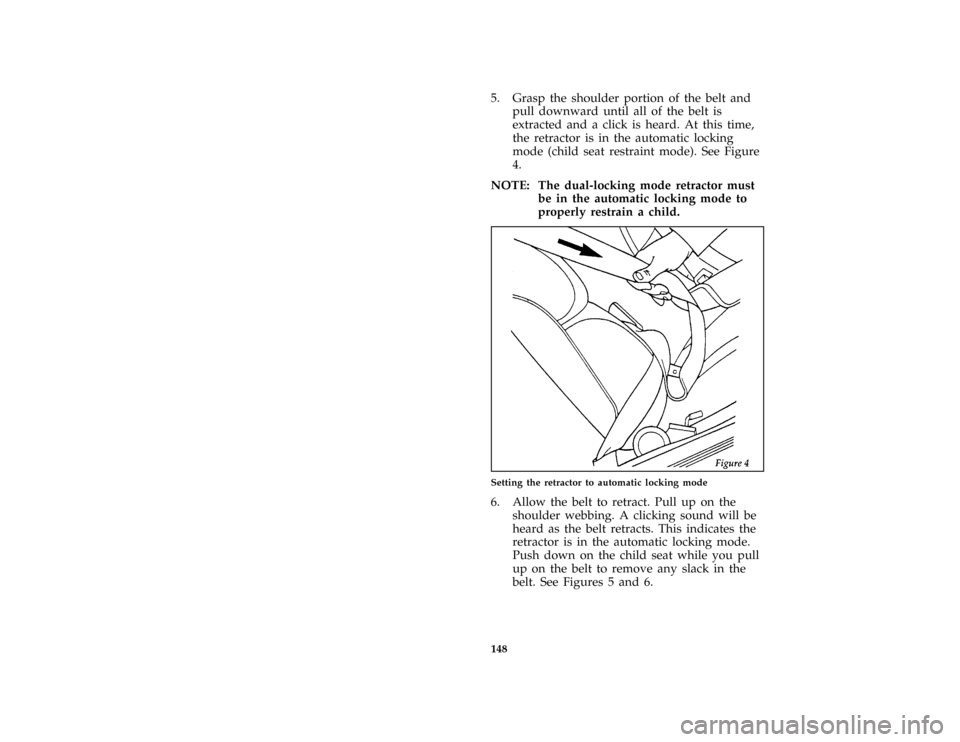

5. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted and a click is heard. At this time,
the retractor is in the automatic locking
mode (child seat restraint mode). See Figure
4.
*
[SS31700( ALL)01/96]
NOTE: The dual-locking mode retractor must
be in the automatic locking mode to
properly restrain a child.
*
[SS31800( ALL)04/96]
half page art:0011241-B
Setting the retractor to automatic locking mode
*
[SS31900( ALL)01/96]

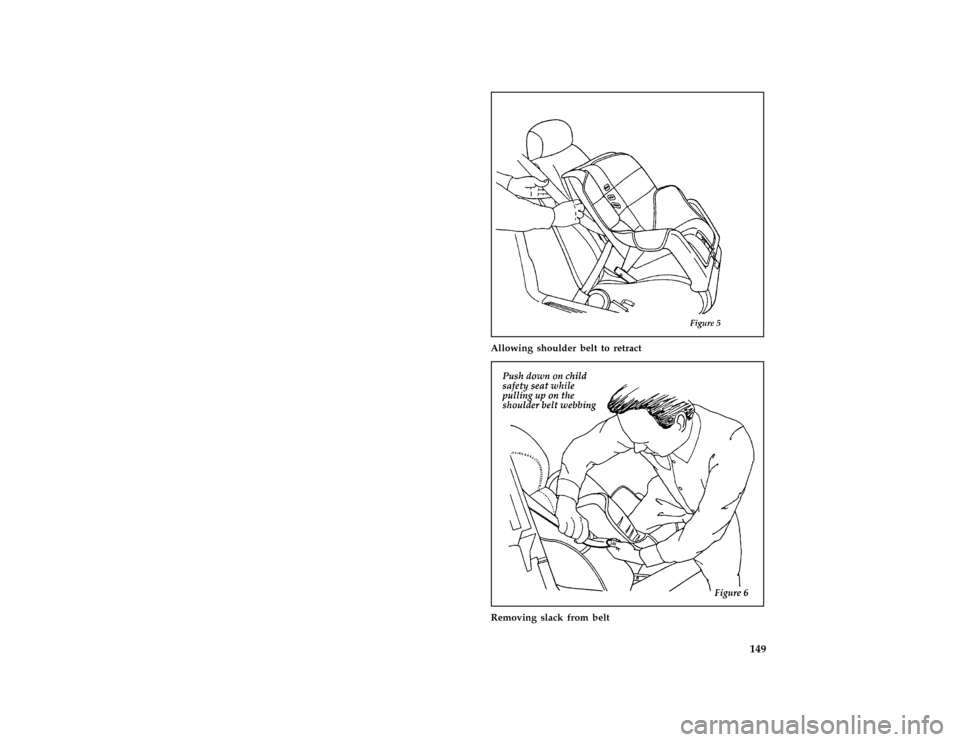

6. Allow the belt to retract. Pull up on the
shoulder webbing. A clicking sound will be
heard as the belt retracts. This indicates the
retractor is in the automatic locking mode.
Push down on the child seat while you pull
up on the belt to remove any slack in the
belt. See Figures 5 and 6.
File:06rcssv.ex
Update:Thu Mar 27 14:52:08 1997

149
*
[SS32000( ALL)04/96]
half page art:0011242-B
Allowing shoulder belt to retract
*
[SS32100( ALL)01/96]
half page art:0011243-A
Removing slack from belt
