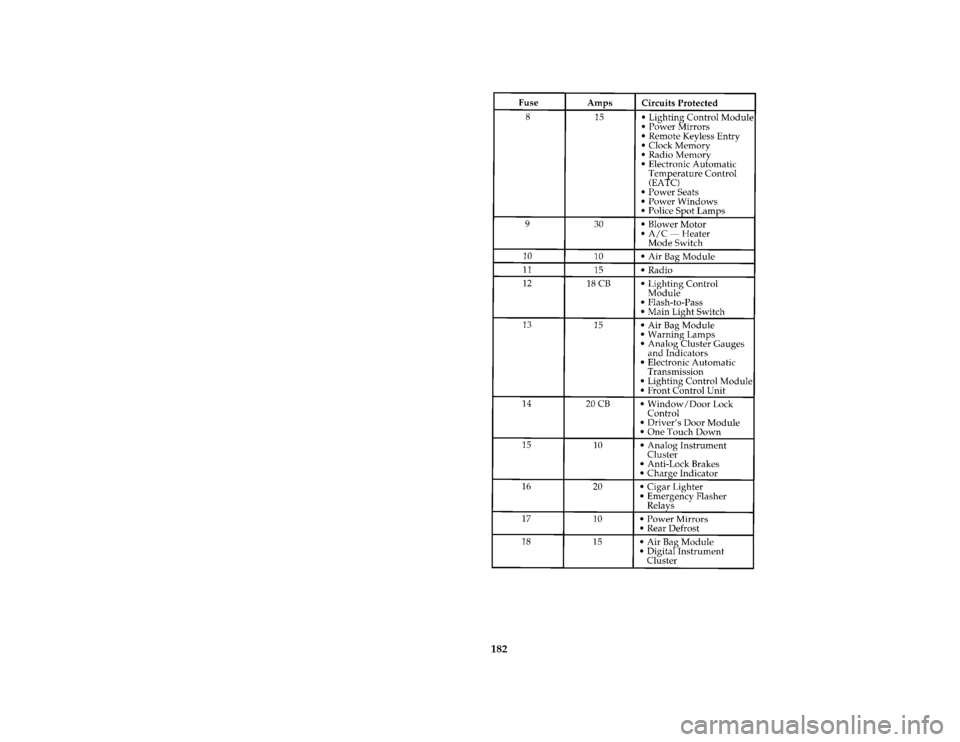

thirty-two pica chart:0010395-LFile:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

182 [ER02100( V)12/95]
thirty-six pica chart:0010495-R
File:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

183 %
*
[ER02300( ALL)12/95]
High Current Fuses
*
[ER02400( ALL)12/95]
High current fuses are circuit protectors that are
part of the wiring harness for some electrical
equipment. These, like fuses, open when the
circuit load exceeds their amperage rating. High
current fuses may be purchased from your Ford
or Lincoln-Mercury dealer.
[ER02600( GV)12/95]
The high current fuse panel is located in the
engine compartment near the battery.
*
[ER02700( ALL)01/96]
RWARNING
Always disconnect the battery before
servicing high current fuses.
*
[ER02800( ALL)01/96]
Ford recommends that high current fuses be
replaced by a qualified technician.
File:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

184 % [ER03100( ALL)12/95]The high current fuse panel
[ER03500( V)12/95]

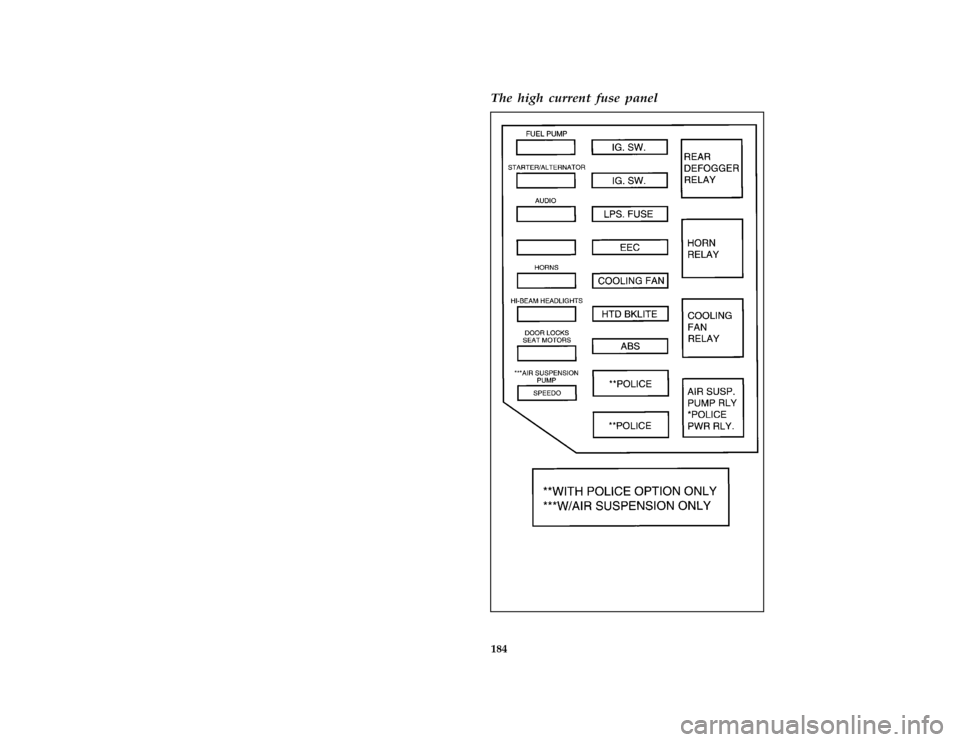

full page art:0011381-BFile:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

185 [ER03600( ALL)12/95]
The high current fuses and relays
[ER04100( V)12/95]

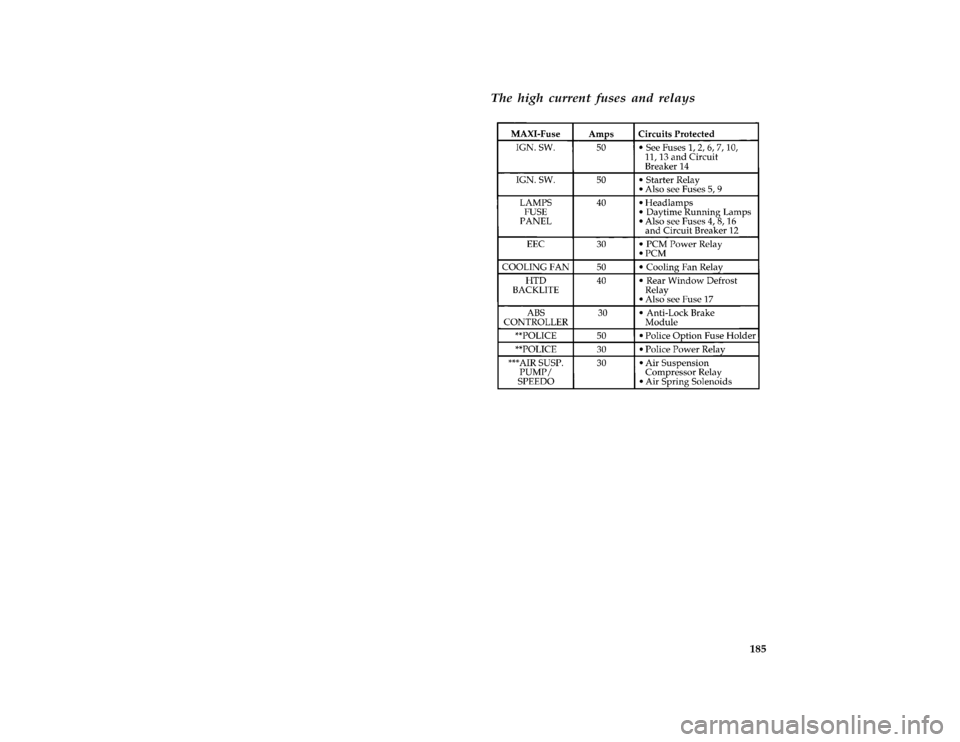

twenty-four pica chart:0011314-CFile:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

186 [ER04200( V)12/95]
eighteen pica chart:0011382-B
%*
[ER04400( ALL)01/96]
Checking and Replacing Fuses
*
[ER04500( ALL)01/96]
If you need to check a fuse, follow these steps:
[ER04800( GV)12/95]
1. Find the fuse panel to the left of the steering
column. Remove the fuse panel cover to
expose the fuse panel.
[ER05000( BCGV)12/95]
2. Check the fuse to see if it is blown. Look
through the clear side of the fuse to see if
the metal wire inside is separated. If it is,
the fuse should be replaced.
[ER05200( ALL)12/95]
quarter page art:0010416-A
The side view of a fuse
File:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

187 [ER05300( GV)12/95]
3. Replace the fuse with one that has the right
amperage rating. (See the following charts.)

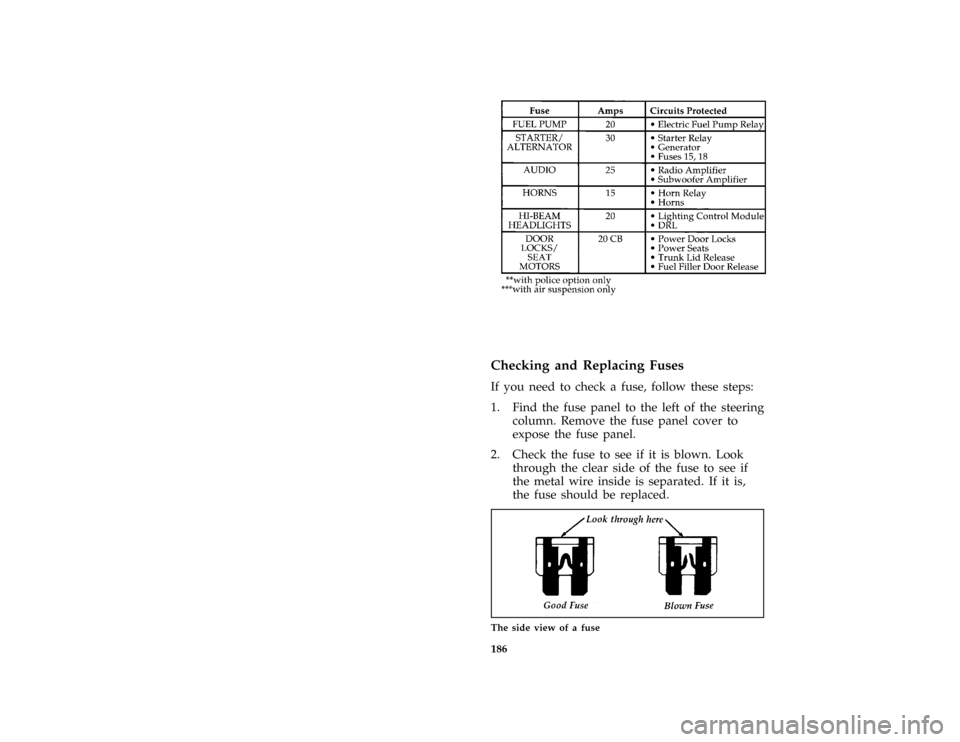

[ER05600( ALL)12/95]

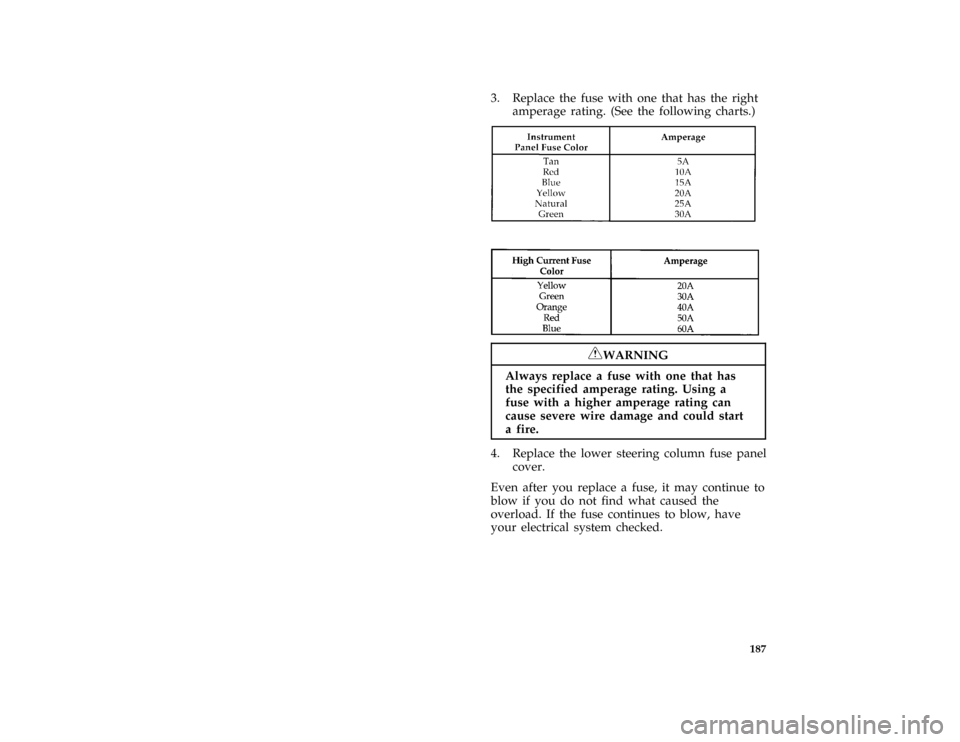

eight pica chart:0001092-B[ER05700(M GV)12/95]
six pica chart:0001093-B*
[ER05900( ALL)01/96]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
[ER06200( GV)05/96]
4. Replace the lower steering column fuse panel
cover.
*
[ER06300( BCGV)04/96]
Even after you replace a fuse, it may continue to
blow if you do not find what caused the
overload. If the fuse continues to blow, have
your electrical system checked.
File:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

188 %
*
[ER06400( ALL)05/96]
Circuit Breakers
*
[ER06500( ALL)05/96]
If you need to check a circuit breaker that is on
the fuse panel, seeChecking and replacing fusesin
this chapter to find out how to locate the fuse
panel.
[ER06600( ALL)12/95]
Circuit breakers will reset themselves and allow
the electrical parts to work again once the
overload on the circuit is removed. If the circuit
breakers continue to cut off electricity, have your
vehicle's electrical system checked.
*
[ER06700( ALL)01/96]
Diagnostic equipment is needed to check circuit
breakers. Refer to the manufacturer's
instructions.
*
[ER06800( ALL)05/96]
If you replace a circuit breaker, use one with the
same amperage rating. To remove a circuit
breaker mounted in the fuse panel, grip it with
your finger and thumb and pull it straight out
of its socket.
[ER06900(M GV)05/96]
Since the circuit breaker for the headlamps is
mounted in the headlamp switch, you must
replace the entire switch to install a new circuit
breaker.
File:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

189 [ER07000( GV)12/95]
Fuse Links
[ER07100( GV)12/95]
Fuse links are circuit protectors that are part of
the wiring harness for some electrical equipment.
These, like fuses, open when the circuit lead
exceeds their amperage rating. Fuse links may be
purchased from your Ford or Lincoln-Mercury
dealer. See the following charts to find out
which electrical parts are protected by a fuse
link.
[ER07200( GV)12/95]
ten pica chart:0010407-E%*
[ER07300( ALL)01/96]
If the Engine Cranks but Does
Not Start or Does Not Start After
a Collision
% [ER07400( ALL)12/95]
Fuel System Shut-off Switch
[ER07500( ALL)05/96]
If the engine cranks but does not start or does
not start after a collision, the fuel system shut-off
switch may have been activated. The shut-off
switch is a device intended to stop the fuel
system when your vehicle has been involved in
a substantial jolt.
*
[ER07600( BCGV)04/96]
Once the shut-off switch is activated, you must
reset the switch by hand before you can start
your vehicle. The switch is on the left side of the
trunk.
File:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

190 [ER08000( GV)12/95]

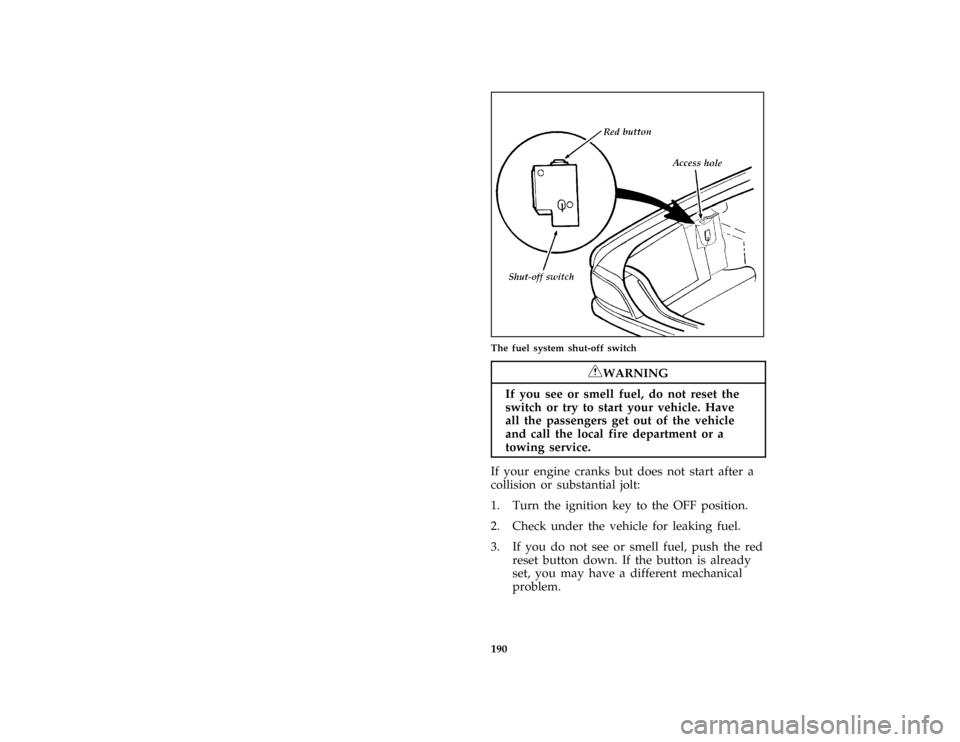

half page art:0010014-DThe fuel system shut-off switch
*
[ER08100( ALL)03/96]
RWARNING
If you see or smell fuel, do not reset the
switch or try to start your vehicle. Have
all the passengers get out of the vehicle
and call the local fire department or a
towing service.
*
[ER08200( ALL)03/96]
If your engine cranks but does not start after a
collision or substantial jolt:
*
[ER08300( ALL)01/96]
1. Turn the ignition key to the OFF position.
*
[ER08400( ALL)03/96]
2. Check under the vehicle for leaking fuel.
*
[ER08500( ALL)01/96]
3. If you do not see or smell fuel, push the red
reset button down. If the button is already
set, you may have a different mechanical
problem.
File:10rcerv.ex
