Page 5 of 292

Daytime Running Lamps............................53
Direction Indicators......................................54
Automatic High Beam Control
What Is Automatic High Beam Control..........................................................................55
Switching Automatic High Beam ControlOn and Off...................................................55
Automatic High Beam Control Indicators..........................................................................55
Overriding Automatic High Beam Control..........................................................................56
Windows and Mirrors
Power Windows.............................................57
Exterior Mirrors................................................57
Interior Mirror..................................................58
Sun Visors........................................................58
Instrument Cluster
Gauges..............................................................59
Warning Lamps and Indicators................62
Audible Warnings and Indicators............64
Information Displays
General Information.....................................65
Information Messages................................69
Climate Control
Manual Climate Control..............................74
Hints on Controlling the Interior Climate...........................................................................75
Rear Passenger Climate Controls...........76
Seats
Sitting in the Correct Position...................77
Head Restraints..............................................77
Manual Seats..................................................78
Power Seats....................................................79
Auxiliary Power Points
Auxiliary Power Points................................80
Starting and Stopping theEngine
General Information.....................................82
Ignition Switch................................................82
Starting a Gasoline Engine........................82
Engine Block Heater....................................84
Fuel and Refueling
Safety Precautions.......................................86
Fuel Quality - E85.........................................86
Fuel Quality - Gasoline...............................88
Running Out of Fuel.....................................88
Refueling..........................................................89
Fuel Consumption........................................90
Engine Emission Control
Emission Law..................................................92
Catalytic Converter.......................................93
Transmission
Automatic Transmission............................96
Brakes
General Information..................................100
Hints on Driving With Anti-Lock Brakes..........................................................................101
Parking Brake.................................................101
Hill Start Assist.............................................102
Traction Control
Principle of Operation................................103
Using Traction Control...............................103
Stability Control
Principle of Operation...............................104
Using Stability Control..............................105
2
2023 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202111, First-PrintingTable of Contents
Page 18 of 292

Note:Event data recorder data is recordedby your vehicle only if a non-trivial crashsituation occurs; no data is recorded by theevent data recorder under normal drivingconditions and no personal data orinformation (for example name, gender,age, and crash location) is recorded.However, parties, such as law enforcement,could combine the event data recorder datawith the type of personally identifying dataroutinely acquired during a crashinvestigation.
To read data recorded by an event datarecorder, special equipment is required,and access to the vehicle or the event datarecorder is needed. In addition to thevehicle manufacturer, other parties, suchas law enforcement, that have such specialequipment, can read the information if theyhave access to the vehicle or the eventdata recorder.
SETTINGS DATA
Your vehicle has electronic control unitsthat have the ability to store data basedon your personalized settings. The data isstored locally in the vehicle or on devicesthat you connect to it, for example, a USBdrive or digital music player. You can deletesome of this data and also choose whetherto share it through the services to whichyou subscribe.
Comfort and Convenience Data
Data recorded includes, for example:
•Seat and steering wheel position.
•Climate control settings.
•Radio presets.
Entertainment Data
Data recorded includes, for example:
•Music, videos or album art.
•Contacts and corresponding addressbook entries.
•Navigation destinations.
CONNECTED VEHICLE DATA
The modem has a SIM. Themodem was enabled when yourvehicle was built and periodicallysends messages to stay connected to thecell phone network, receive automaticsoftware updates and send vehicle-relatedinformation to us, for example diagnosticinformation. These messages couldinclude information that identifies yourvehicle, the SIM and the electronic serialnumber of the modem. Cell phone networkservice providers could have access toadditional information, for example cellphone network tower identification. Foradditional information about our privacypolicy, visit www.FordConnected.com orrefer to your local Ford website.
Note:The modem continues to send thisinformation unless you disable the modemor stop the modem from sharing vehicledata by changing the modem settings. SeeConnected Vehicle (page 236).
Note:The service can be unavailable orinterrupted for a number of reasons, forexample environmental or topographicalconditions and data plan coverage.
Note:To find out if your vehicle has amodem, visit www.FordConnected.com.
15
2023 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202111, First-PrintingData Privacy
Page 21 of 292

INSTRUMENT PANEL
Direction indicators. See Direction Indicators (page 54). Wiper lever. SeeWindshield Wipers (page 51).A
Information display control. See Information Display Control (page 50).B
Instrument cluster. See General Information (page 65).C
Audio control.D
Gearshift lever. See Automatic Transmission (page 96).E
Auxiliary switches. See Auxiliary Switches (page 243).F
Audio unit. See Audio Unit (page 237).G
Passenger airbag deactivation indicator. See Driver and Passenger Airbags(page 36).H
Traction control switch. See Using Traction Control (page 103).I
Hazard flasher switch. See Hazard Flashers (page 142).J
Climate control. See Manual Climate Control (page 74).K
Ignition. See Ignition Switch (page 82).L
Horn.M
Steering wheel adjustment. See Adjusting the Steering Wheel (page 49).N
18
2023 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202111, First-PrintingAt a GlanceE307562
Page 77 of 292

MANUAL CLIMATE CONTROL
Heater Only System (If Equipped)
Note:Depending on your vehicle optionpackage, the controls may look differentfrom what you see here.
Directing the Air
Turn the control to direct the air.
Direct air to the instrument panelair vents.
Direct air to the footwell airvents.
Direct air to the instrument paneland footwell air vents.
Direct air to the windshield airvents. You can also use thissetting to defog and clear thewindshield of a thin covering of ice.
Setting the Blower Motor Speed
Turn the control to adjust thevolume of air circulated in thevehicle.
Setting the Temperature
Turn the control to set the temperature.
Switching the Heater On and Off
Turn the control.
Manual Climate Control (If Equipped)
Note:Depending on your vehicle optionpackage, the controls may look differentfrom what you see here.
Directing the Air
Turn the control to direct the air.
Direct air to the instrument panelair vents.
Direct air to the footwell airvents.
Direct air to the instrument paneland footwell air vents.
74
2023 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202111, First-PrintingClimate ControlE305221 E266044 E266043 E266042 E266045 E266046 E265297 E305209 E266044 E266043 E266042
Page 78 of 292

Direct air to the windshield airvents. You can also use thissetting to defog and clear thewindshield of a thin covering of ice.
Switching the Air Conditioning On andOff
Turn to switch the airconditioning on or off.
Switching Maximum Air ConditioningOn and Off
Turn the control for maximumcooling.
Recirculated air flows through theinstrument panel vents and air conditioningturns on.
Setting the Blower Motor Speed
Turn the control to adjust thevolume of air circulated in thevehicle.
Setting the Temperature
Turn the control to set the temperature.
Switching the Climate Control On andOff
Turn the control.
HINTS ON CONTROLLING THE
INTERIOR CLIMATE
General Hints
Note:Prolonged use of recirculated air maycause the windows to fog up.
Note:You may feel a small amount of airfrom the footwell air vents regardless of theair distribution setting.
Note:To reduce humidity build-up insideyour vehicle, do not drive with the systemswitched off or with recirculated air alwaysswitched on.
Note:To reduce fogging of the windshieldduring humid weather, adjust the airdistribution control to the windshield airvents position.
Note:Do not place objects under the frontseats as this may interfere with the airflowto the rear seats.
Note:Remove any snow, ice or leaves fromthe air intake area at the base of thewindshield.
Note:To improve the time to reach acomfortable temperature in hot weather,drive with the windows open until you feelcold air through the air vents.
Quickly Heating the Interior
1.Adjust the fan speed to the highestspeed setting.
2.Adjust the temperature control to thefull heat setting.
3.Direct air to the footwell air vents.
Recommended Settings forHeating
1.Adjust the fan speed to the centersetting.
2.Adjust the temperature control to themidway point of the hot settings.
75
2023 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202111, First-PrintingClimate Control E266041 E266045 E266046 E265297
Page 79 of 292

3.Direct air to the footwell air vents.
Quickly Cooling the Interior
1.Switch MAX A/C on.
2.Drive with the windows open until youfeel cold air through the air vents.
Recommended Settings forCooling
1.Adjust the fan speed to the centersetting.
2.Adjust the temperature control to themidway point of the cold settings.
3.Direct air to the instrument panel airvents.
Vehicle Stationary for ExtendedPeriods During Extreme HighAmbient Temperatures
1.Apply the parking brake.
2.Place your vehicle in park (P) or neutral(N).
3.Switch MAX A/C on.
4.Adjust the fan speed to the lowestspeed setting.
Defogging the Side Windows inCold Weather
1.Direct air to the instrument panel andwindshield vents.
2.Turn to NORM A/C.
3.Adjust the temperature control to thedesired setting.
4.Adjust the fan speed to the highestsetting.
5.Direct air toward the side windows.
6.Close the instrument panel vents.
REAR PASSENGER CLIMATE
CONTROLS
Setting the Blower Motor Speed
Turn the control to adjust the volume ofair circulated in the vehicle.
Note:Depending on your vehicle optionpackage, the controls may look differentfrom what you see here.
Switching the Rear ClimateControl On and Off
Turn the control.
76
2023 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202111, First-PrintingClimate ControlE305193 E265297
Page 86 of 292

Before starting the engine check thefollowing:
•Make sure all occupants fasten theirseatbelts.
•Make sure the headlamps andelectrical accessories are off.
•Make sure the parking brake is on.
•Make sure the transmission is in park(P) or neutral (N).
•Turn the ignition key to the on position.
Note:Do not press the accelerator pedal.
1.Fully press the brake pedal.
2.Turn the key to the start position tostart the engine. Release the key whenthe engine starts.
Note:The engine may continue crankingfor up to 15 seconds or until it starts.
Note:If you cannot start the engine on thefirst try, wait for a short period and try again.
Failure to Start
If you cannot start the engine after threeattempts, wait 10 seconds and follow thisprocedure:
1.Fully press the brake pedal.
2.Shift into park (P).
3.Fully press and hold the acceleratorpedal.
4.Attempt to start your vehicle and waituntil the engine stops cranking.
5.Release the accelerator pedal.
6.Start the engine.
Stopping the Engine When YourVehicle is Stationary
1.Shift into park (P) or neutral (N).
2.Turn the key to the off position.
3.Apply the parking brake.
Stopping the Engine When YourVehicle is Moving
WARNING: Switching off theengine when your vehicle is still movingresults in a significant decrease inbraking assistance. Higher effort isrequired to apply the brakes and to stopyour vehicle. A significant decrease insteering assistance could also occur. Thesteering does not lock, but higher effortcould be required to steer your vehicle.When you switch the ignition off, someelectrical circuits, for example airbags,also turn off. If you unintentionally switchthe ignition off, shift into neutral (N) andrestart the engine.
1.Switch the ignition off to stop theengine.
2.Put the transmission into neutral (N)and use the brakes to bring your vehicleto a safe stop.
3.When your vehicle has stopped, shiftinto park (P).
4.Apply the parking brake.
Guarding Against Exhaust Fumes
WARNING: Exhaust leaks mayresult in entry of harmful and potentiallylethal fumes into the passengercompartment. If you smell exhaustfumes inside your vehicle, have yourvehicle inspected immediately. Do notdrive if you smell exhaust fumes.
Important Ventilating Information
If you stop your vehicle and leave theengine idling for long periods of time, werecommend you either open the windowsat least 1 in (3 cm) or set the climatecontrol to outside air.
83
2023 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202111, First-PrintingStarting and Stopping the Engine
Page 87 of 292

ENGINE BLOCK HEATER (IF
EQUIPPED)
WARNING: Failure to follow engineblock heater instructions could result inproperty damage or serious personalinjury.
WARNING: Do not use your heaterwith ungrounded electrical systems ortwo-pronged adapters. There is a risk ofelectrical shock.
WARNING: Do not fully close thehood, or allow it to drop under its ownweight when using the engine blockheater. This could damage the powercable and may cause an electrical shortresulting in fire, injury and propertydamage.
Note:The heater is most effective whenoutdoor temperatures are below 0°F(-18°C).
The heater acts as a starting aid bywarming the engine coolant. This allowsthe climate control system to respondquickly. The equipment includes a heaterelement, installed in the engine block anda wire harness. You can connect thesystem to a grounded 120-volt ACelectrical source.
We recommend that you do the followingfor a safe and correct operation:
•Use a 16-gauge outdoor extension cordthat is product certified byUnderwriter’s Laboratory (UL) orCanadian Standards Association(CSA). This extension cord must besuitable for use outdoors, in cold
temperatures, and be clearly markedSuitable for Use with OutdoorAppliances. Do not use an indoorextension cord outdoors. This couldresult in an electric shock or become afire hazard.
•Use as short an extension cord aspossible.
•Do not use multiple extension cords.
•Make sure that when in operation, theextension cord plug and heater cordplug connections are free and clear ofwater. This could cause an electricshock or fire.
•If the block heater cord is under thehood, Do Not remove the wiring fromits original location. Do Not close thehood on the extension wiring.
•Make sure your vehicle is parked in aclean area, clear of combustibles.
•Make sure the heater, heater cord andextension cord are firmly connected.
•Check for heat anywhere in theelectrical hookup once the system hasbeen operating for approximately 30minutes.
•Make sure the system is unplugged andproperly stowed before starting anddriving your vehicle. Make sure theprotective cover seals the prongs of theblock heater cord plug when not in use.
•Make sure the heater system ischecked for proper operation beforewinter.
Using the Engine Block Heater
Make sure the receptacle terminals areclean and dry prior to use. Clean them witha dry cloth if necessary.
84
2023 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202111, First-PrintingStarting and Stopping the Engine
Page 140 of 292

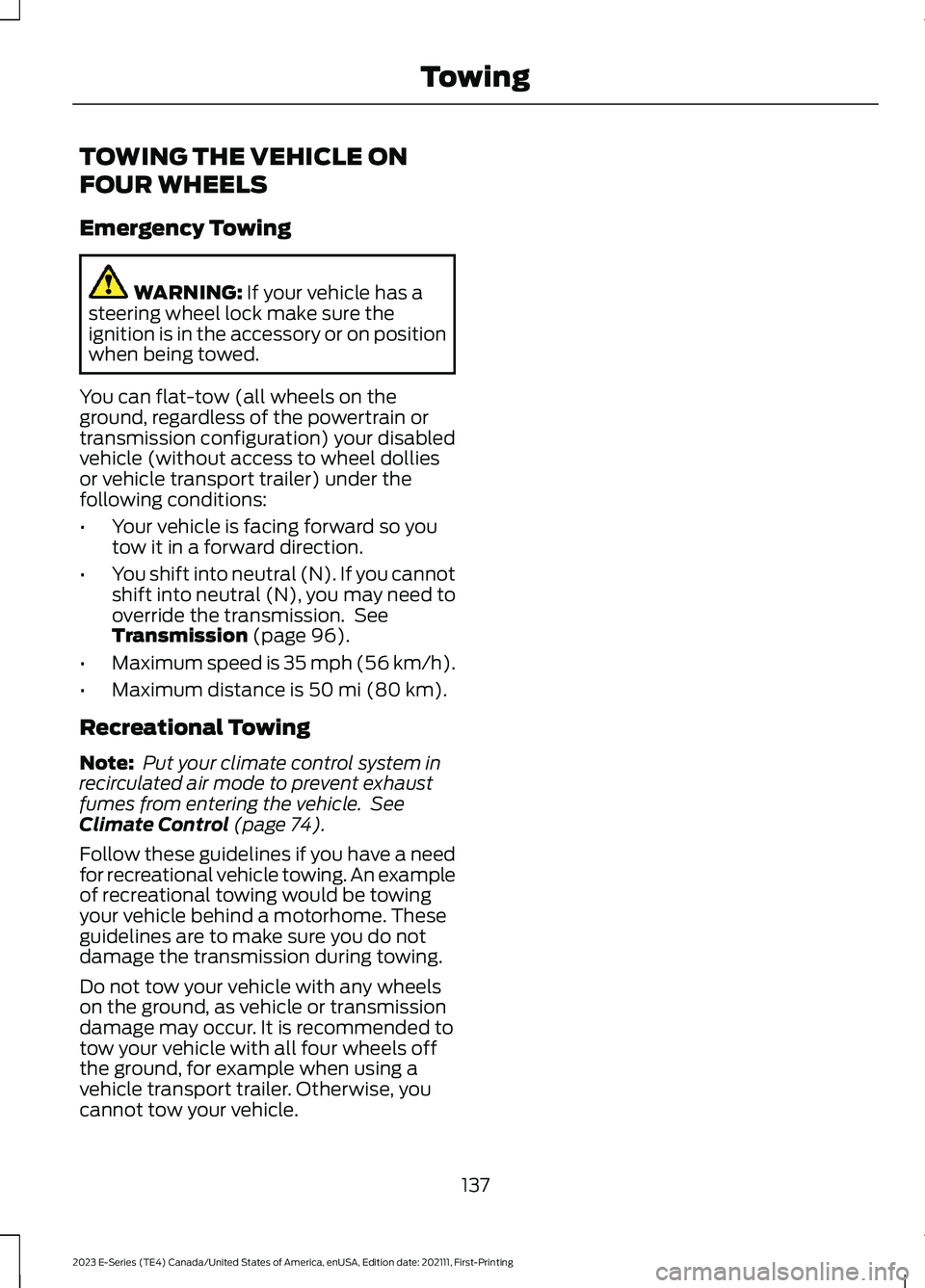

TOWING THE VEHICLE ON
FOUR WHEELS
Emergency Towing
WARNING: If your vehicle has asteering wheel lock make sure theignition is in the accessory or on positionwhen being towed.
You can flat-tow (all wheels on theground, regardless of the powertrain ortransmission configuration) your disabledvehicle (without access to wheel dolliesor vehicle transport trailer) under thefollowing conditions:
•Your vehicle is facing forward so youtow it in a forward direction.
•You shift into neutral (N). If you cannotshift into neutral (N), you may need tooverride the transmission. SeeTransmission (page 96).
•Maximum speed is 35 mph (56 km/h).
•Maximum distance is 50 mi (80 km).
Recreational Towing
Note: Put your climate control system inrecirculated air mode to prevent exhaustfumes from entering the vehicle. SeeClimate Control (page 74).
Follow these guidelines if you have a needfor recreational vehicle towing. An exampleof recreational towing would be towingyour vehicle behind a motorhome. Theseguidelines are to make sure you do notdamage the transmission during towing.
Do not tow your vehicle with any wheelson the ground, as vehicle or transmissiondamage may occur. It is recommended totow your vehicle with all four wheels offthe ground, for example when using avehicle transport trailer. Otherwise, youcannot tow your vehicle.
137
2023 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202111, First-PrintingTowing
Page 162 of 292

Protected ComponentRatingItem
Not used (spare).5 A9
Not used.—10
Not used.—11
Smart datalink connector.7.5 A12
Cluster.7.5 A13Steering column controlmodule.
Not used (spare).15 A14
Not used (spare).15 A15
Not used.—16
Not used.7.5 A17
R/S feed for Front blendactuator/climate modeswitch (cutaway).
7.5 A18
R/S feed to strip chassisconnector (strippedchassis).
Radio transceiver moduleand telematics control unit.5 A19
Telematics control unit.
Ignition switch.5 A20
Not used.5 A21
Body builder B-pillarconnector (cutaway).5 A22
Not used (stripped chassis).5 A
Not used (spare).30 A23
Not used (spare).30 A24
Not used (spare).20 A25
Not used (spare).30 A26
Not used (spare).30 A27
Not used (spare).30 A28
159
2023 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202111, First-PrintingFuses
