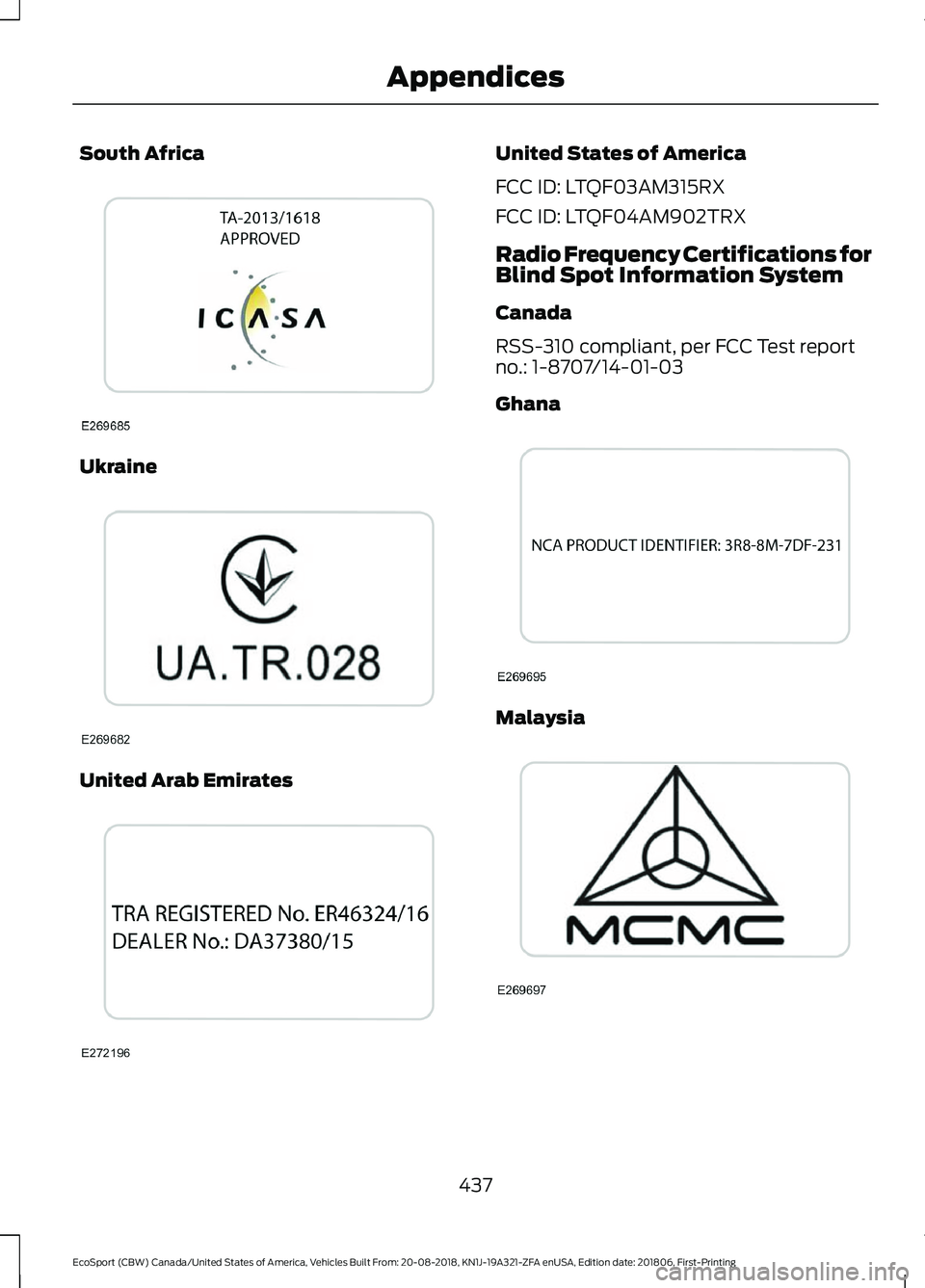

Page 441 of 458
South Africa
Ukraine
United Arab Emirates
United States of America
FCC ID: LTQF03AM315RX
FCC ID: LTQF04AM902TRX
Radio Frequency Certifications forBlind Spot Information System
Canada
RSS-310 compliant, per FCC Test reportno.: 1-8707/14-01-03
Ghana
Malaysia
437
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingAppendices

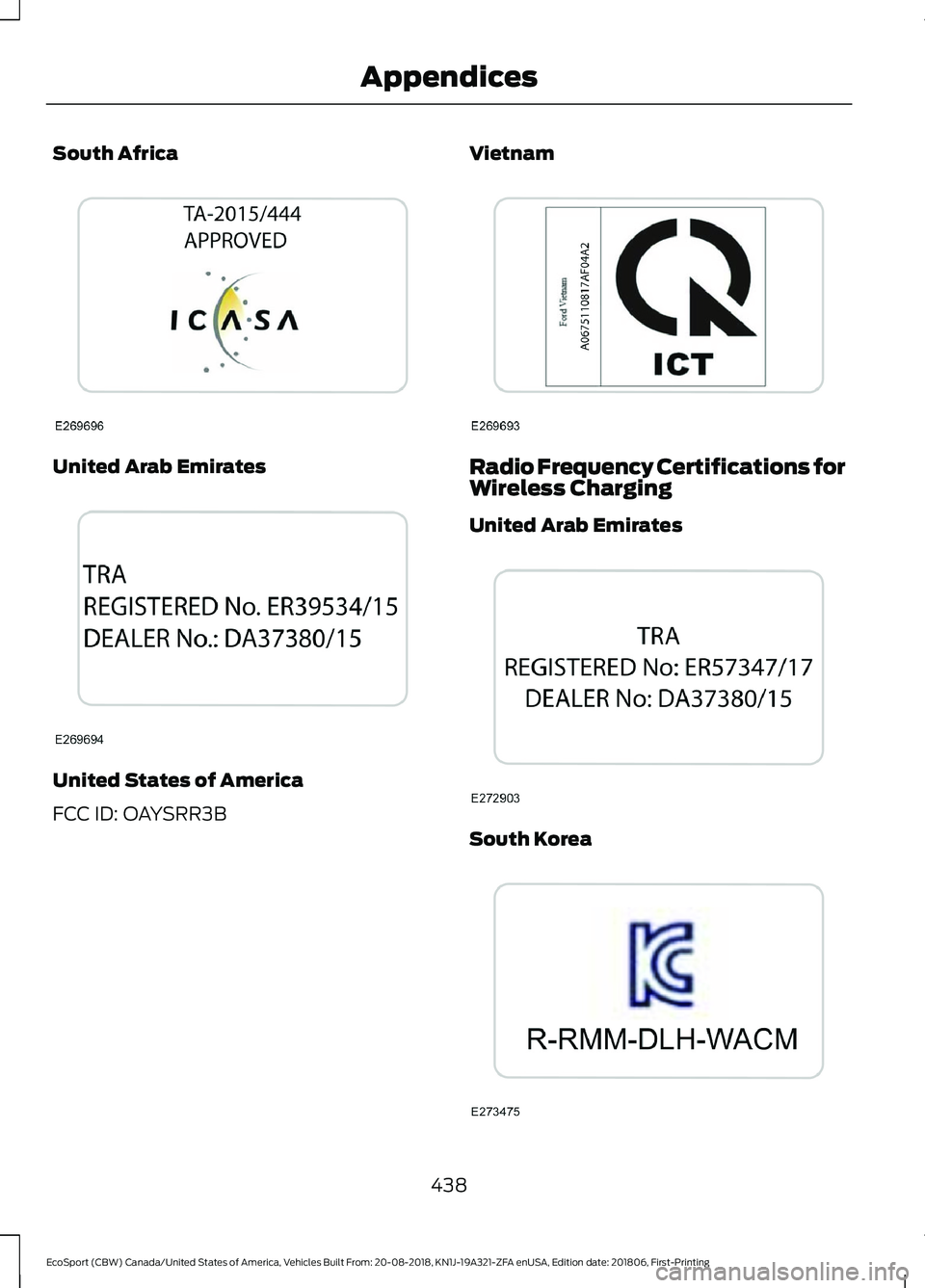

Page 442 of 458
South Africa
United Arab Emirates
United States of America
FCC ID: OAYSRR3B
Vietnam
Radio Frequency Certifications forWireless Charging
United Arab Emirates
South Korea
438
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingAppendices

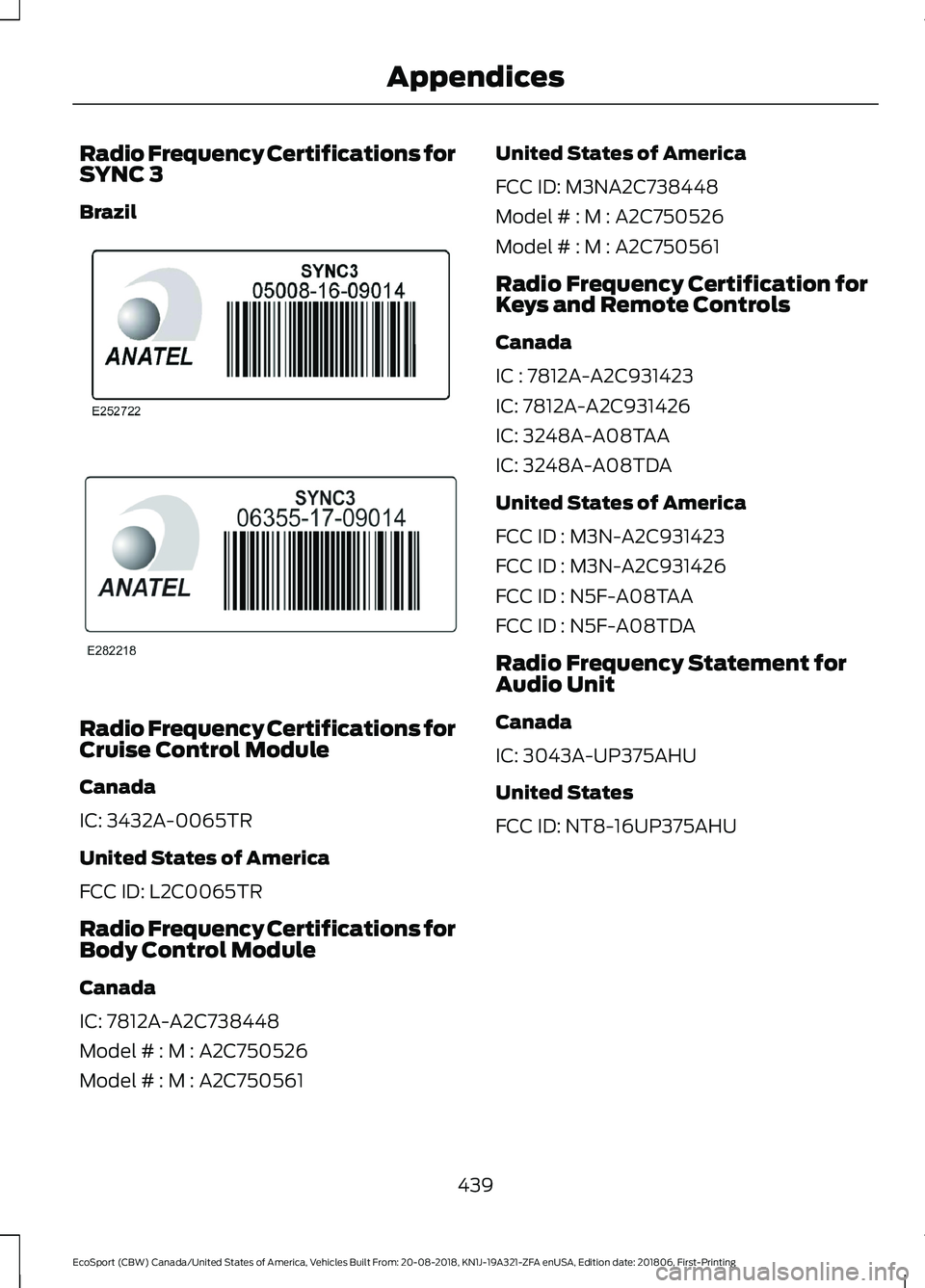

Page 443 of 458
Radio Frequency Certifications forSYNC 3
Brazil
Radio Frequency Certifications forCruise Control Module
Canada
IC: 3432A-0065TR
United States of America
FCC ID: L2C0065TR
Radio Frequency Certifications forBody Control Module
Canada
IC: 7812A-A2C738448
Model # : M : A2C750526
Model # : M : A2C750561
United States of America
FCC ID: M3NA2C738448
Model # : M : A2C750526
Model # : M : A2C750561
Radio Frequency Certification forKeys and Remote Controls
Canada
IC : 7812A-A2C931423
IC: 7812A-A2C931426
IC: 3248A-A08TAA
IC: 3248A-A08TDA
United States of America
FCC ID : M3N-A2C931423
FCC ID : M3N-A2C931426
FCC ID : N5F-A08TAA
FCC ID : N5F-A08TDA
Radio Frequency Statement forAudio Unit
Canada
IC: 3043A-UP375AHU
United States
FCC ID: NT8-16UP375AHU
439
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingAppendices

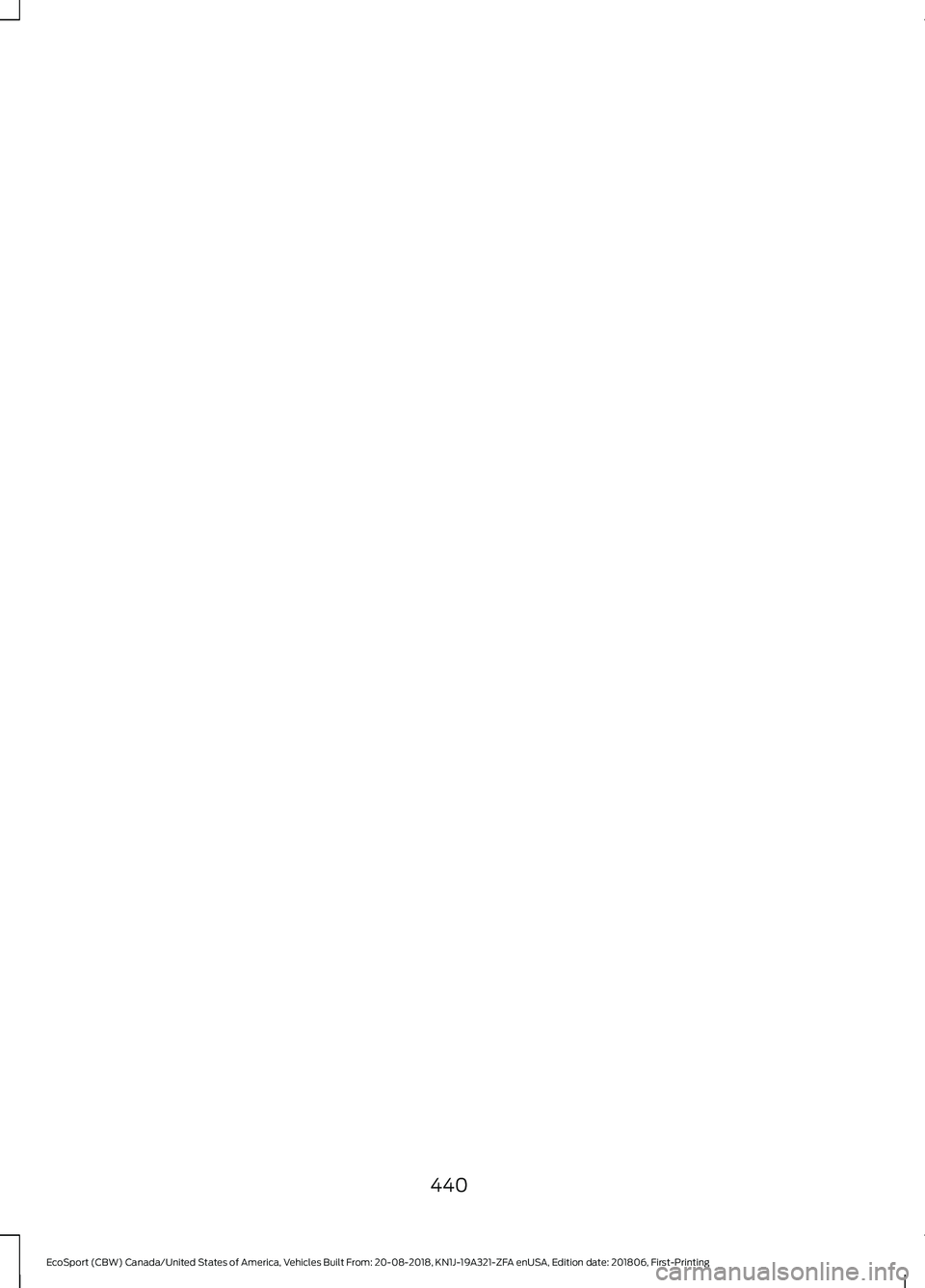

Page 444 of 458
440
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-Printing
