FORD ESCAPE 2013 3.G Owners Manual

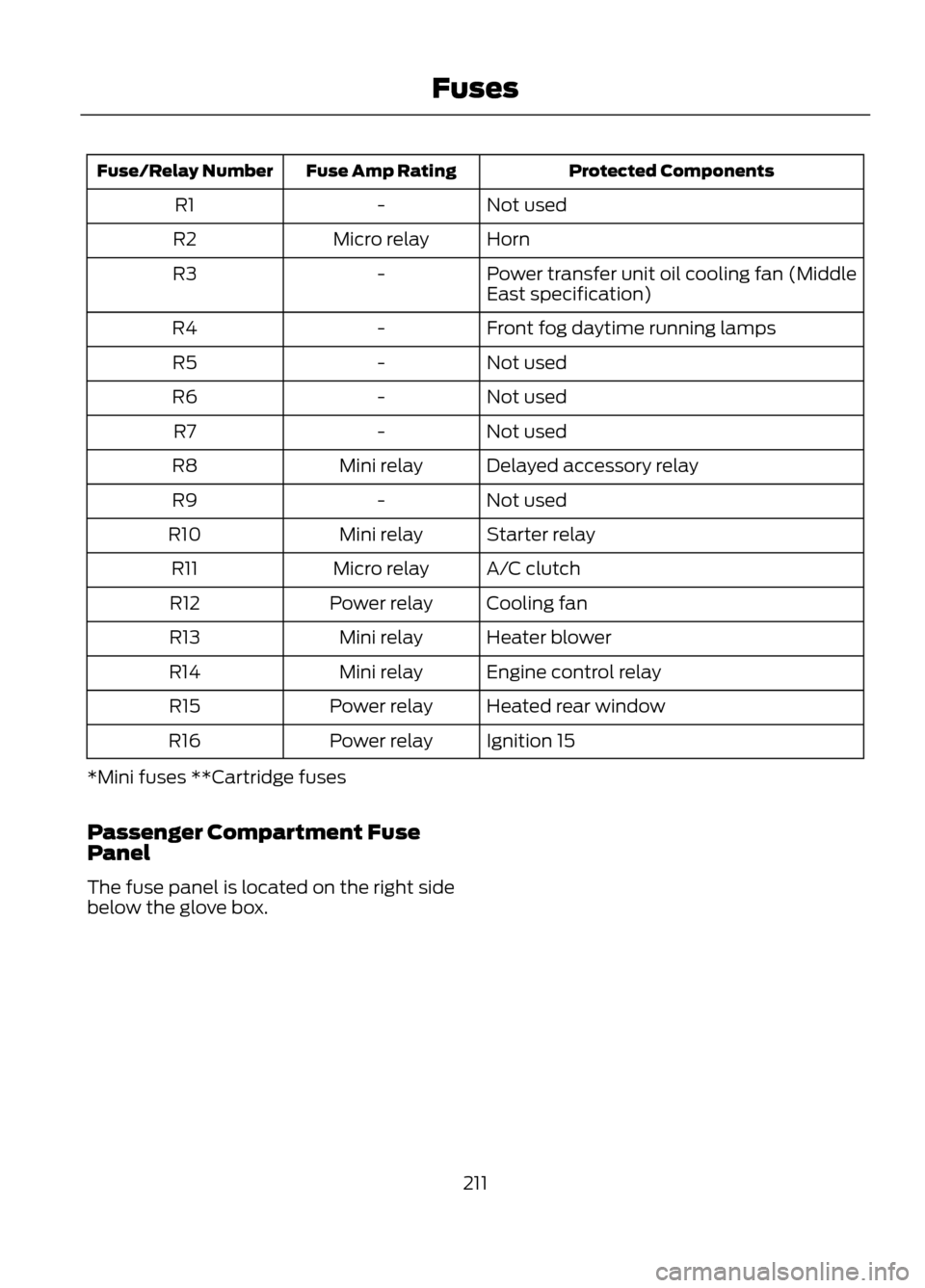

Protected Components
Fuse Amp Rating
Fuse/Relay Number
Not used
-
R1
Horn
Micro relay
R2
Power transfer unit oil cooling fan (Middle
East specification)
-
R3
Front fog daytime running lamps
-
R4
Not used
-
R5
Not used
-
R6
Not used
-
R7
Delayed accessory relay
Mini relay
R8
Not used
-
R9
Starter relay
Mini relay
R10
A/C clutch
Micro relay
R11
Cooling fan
Power relay
R12
Heater blower
Mini relay
R13
Engine control relay
Mini relay
R14
Heated rear window
Power relay
R15
Ignition 15
Power relay
R16
*Mini fuses **Cartridge fuses

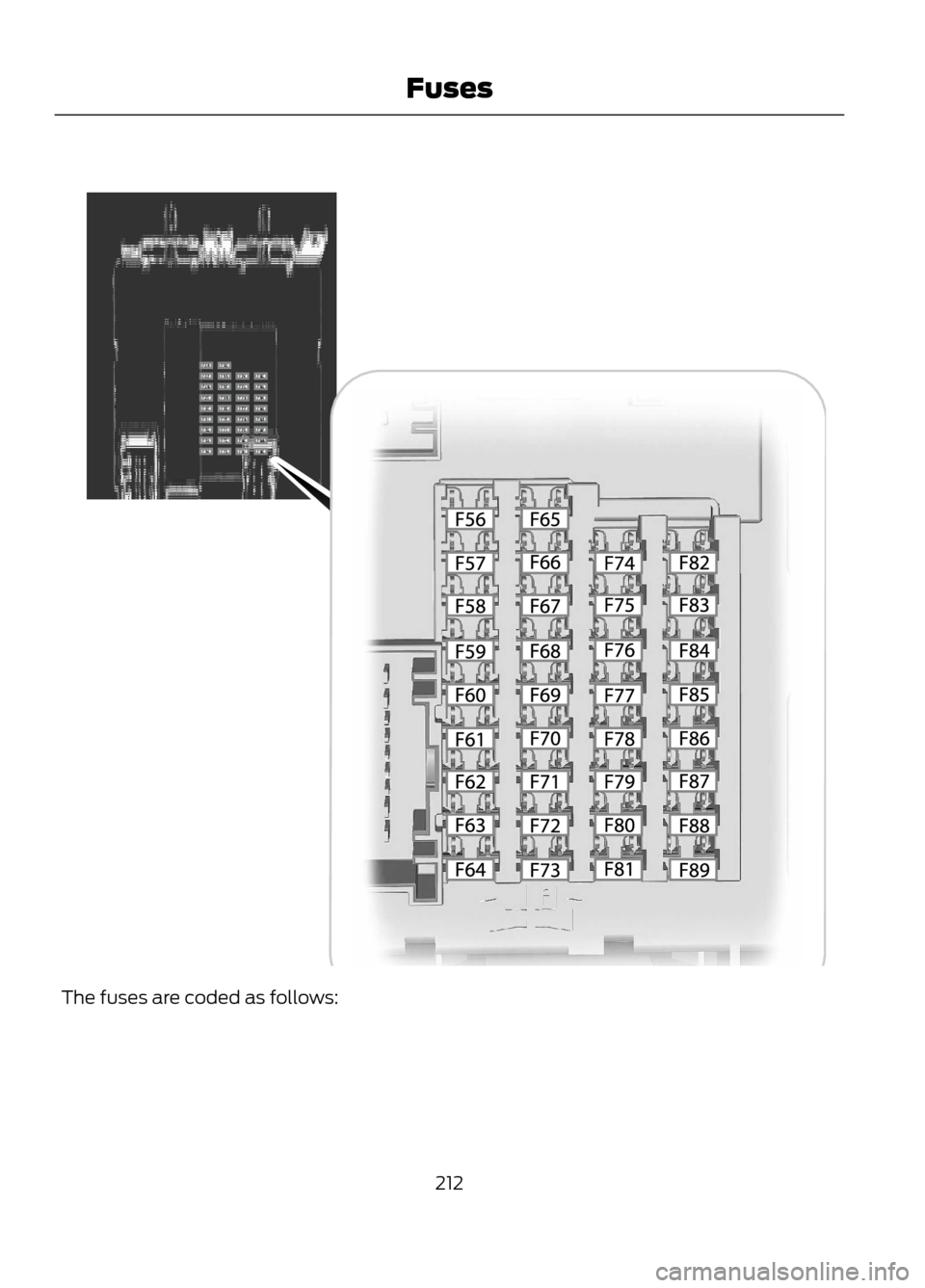

Passenger Compartment Fuse
Panel
The fuse panel is located on the right side
below the glove box.
211
Fuses

The fuses are coded as follows:212
Fuses
E129926

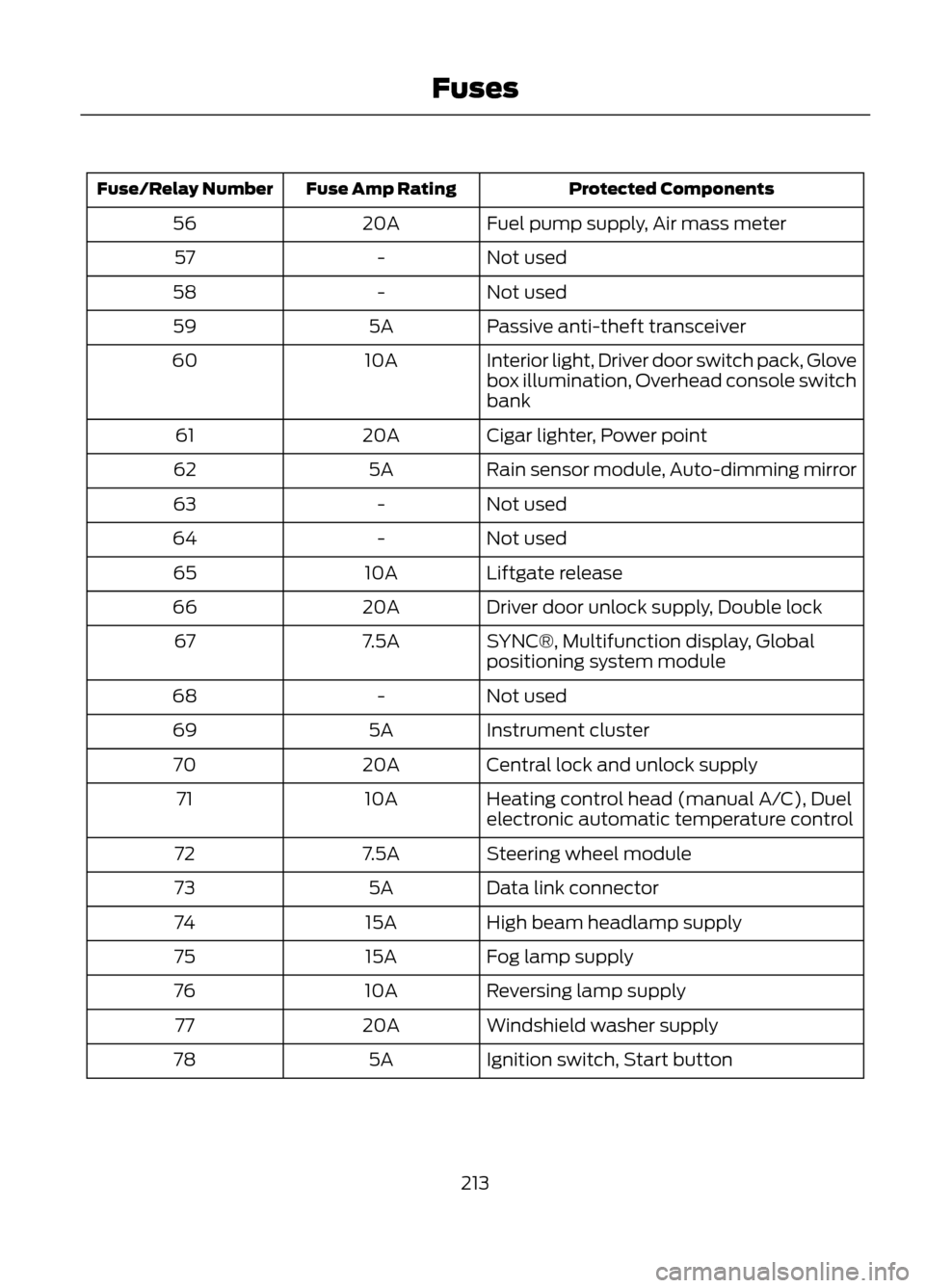

Protected Components
Fuse Amp Rating
Fuse/Relay Number
Fuel pump supply, Air mass meter
20A
56
Not used
-
57
Not used
-
58
Passive anti-theft transceiver
5A
59
Interior light, Driver door switch pack, Glove
box illumination, Overhead console switch
bank
10A
60
Cigar lighter, Power point
20A
61
Rain sensor module, Auto-dimming mirror
5A
62
Not used
-
63
Not used
-
64
Liftgate release
10A
65
Driver door unlock supply, Double lock
20A
66
SYNC®, Multifunction display, Global
positioning system module
7.5A
67
Not used
-
68
Instrument cluster
5A
69
Central lock and unlock supply
20A
70
Heating control head (manual A/C), Duel
electronic automatic temperature control
10A
71
Steering wheel module
7.5A
72
Data link connector
5A
73
High beam headlamp supply
15A
74
Fog lamp supply
15A
75
Reversing lamp supply
10A
76
Windshield washer supply
20A
77
Ignition switch, Start button
5A
78
213
Fuses

Protected Components
Fuse Amp Rating
Fuse/Relay Number
Radio, Navigation DVD player, Touch
screen, Hazard light switch, Door lock
switch
15A
79
Moonroof supply
20A
80
Radio frequency receiver
5A
81
Windshield washer relay
20A
82
Central locking
20A
83
Drive door unlock supply, Double lock
20A
84
Electronic 15 feed
7.5A
85
Air bag module, Occupant classification
system, Passenger air bag deactivation
indicator
10A
86
Not used
-
87
Not used
-
88
Not used
-
89

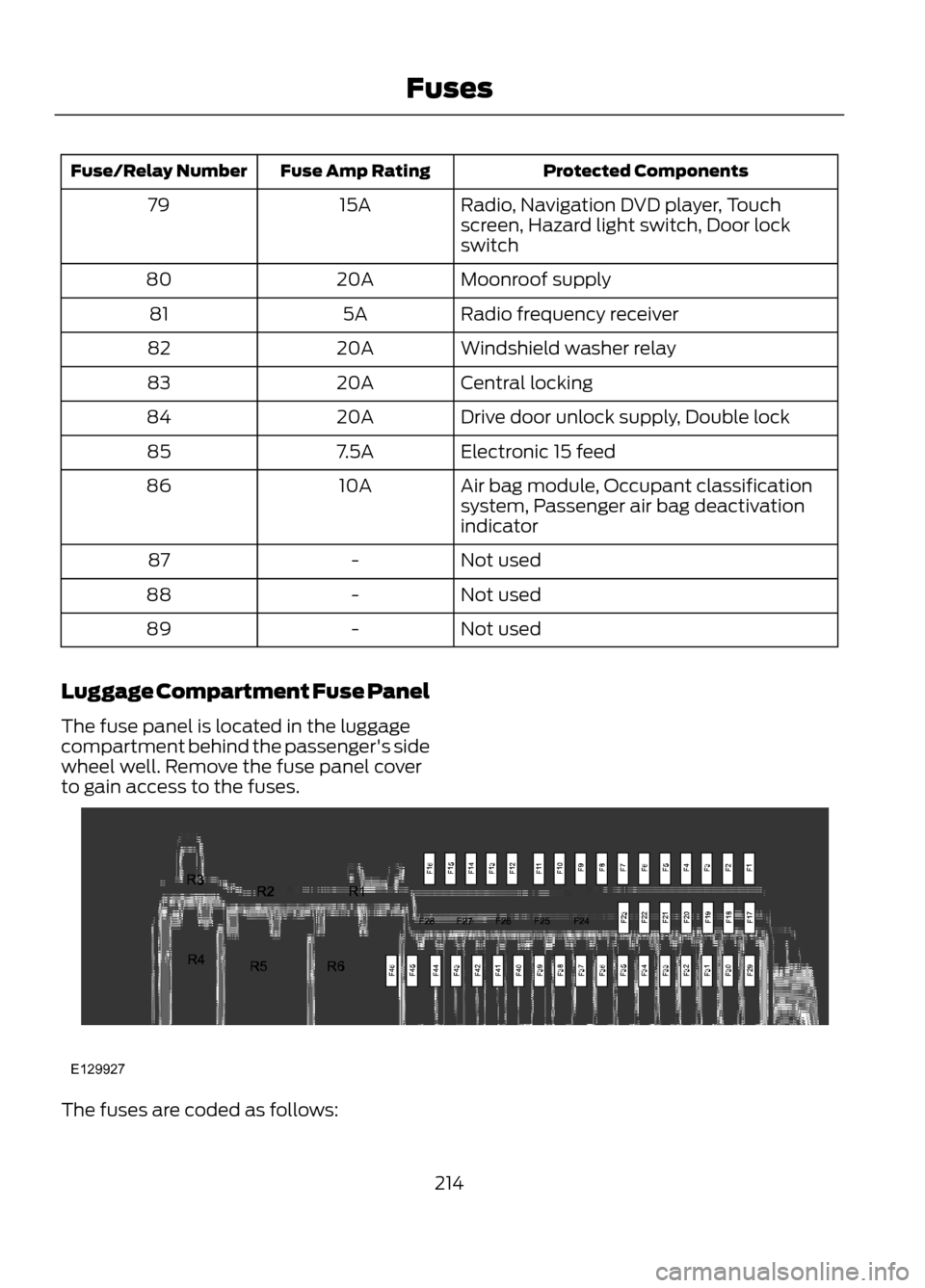

Luggage Compartment Fuse Panel
The fuse panel is located in the luggage
compartment behind the passenger's side
wheel well. Remove the fuse panel cover
to gain access to the fuses.
The fuses are coded as follows:
214
Fuses
E129927

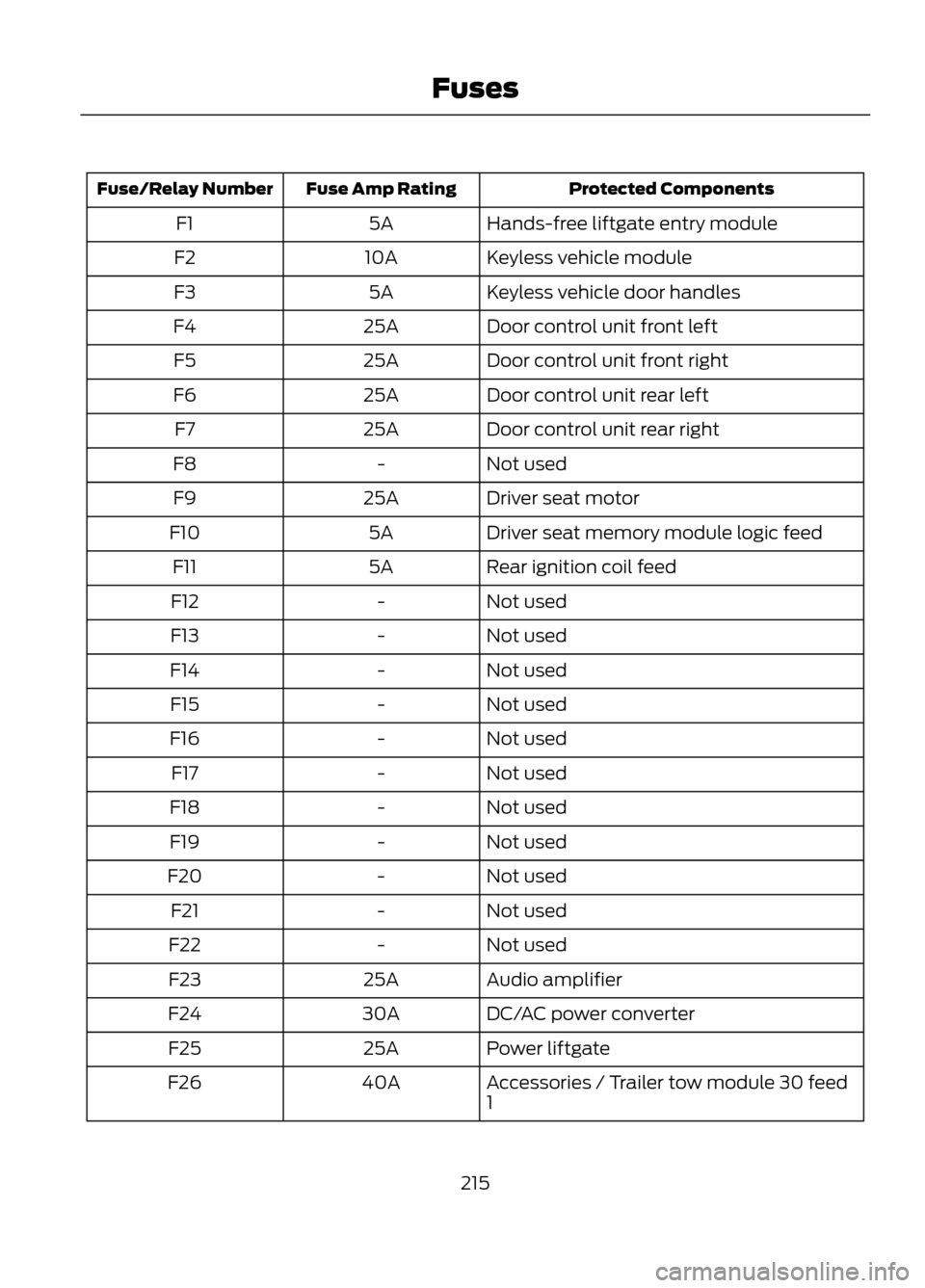

Protected Components
Fuse Amp Rating
Fuse/Relay Number
Hands-free liftgate entry module
5A
F1
Keyless vehicle module
10A
F2
Keyless vehicle door handles
5A
F3
Door control unit front left
25A
F4
Door control unit front right
25A
F5
Door control unit rear left
25A
F6
Door control unit rear right
25A
F7
Not used
-
F8
Driver seat motor
25A
F9
Driver seat memory module logic feed
5A
F10
Rear ignition coil feed
5A
F11
Not used
-
F12
Not used
-
F13
Not used
-
F14
Not used
-
F15
Not used
-
F16
Not used
-
F17
Not used
-
F18
Not used
-
F19
Not used
-
F20
Not used
-
F21
Not used
-
F22
Audio amplifier
25A
F23
DC/AC power converter
30A
F24
Power liftgate
25A
F25
Accessories / Trailer tow module 30 feed
1
40A
F26
215
Fuses

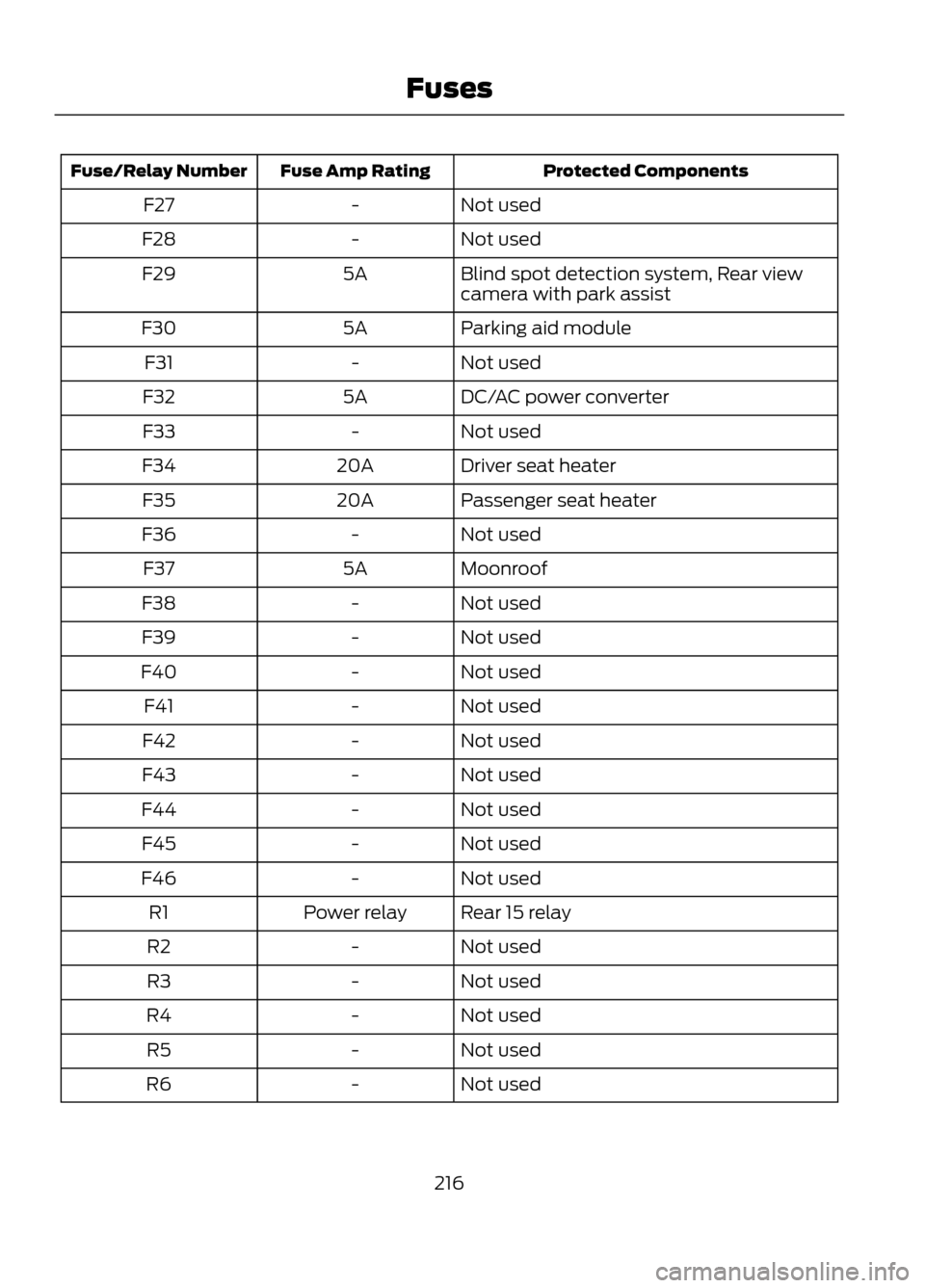

Protected Components
Fuse Amp Rating
Fuse/Relay Number
Not used
-
F27
Not used
-
F28
Blind spot detection system, Rear view
camera with park assist
5A
F29
Parking aid module
5A
F30
Not used
-
F31
DC/AC power converter
5A
F32
Not used
-
F33
Driver seat heater
20A
F34
Passenger seat heater
20A
F35
Not used
-
F36
Moonroof
5A
F37
Not used
-
F38
Not used
-
F39
Not used
-
F40
Not used
-
F41
Not used
-
F42
Not used
-
F43
Not used
-
F44
Not used
-
F45
Not used
-
F46
Rear 15 relay
Power relay
R1
Not used
-
R2
Not used
-
R3
Not used
-
R4
Not used
-
R5
Not used
-
R6
216
Fuses

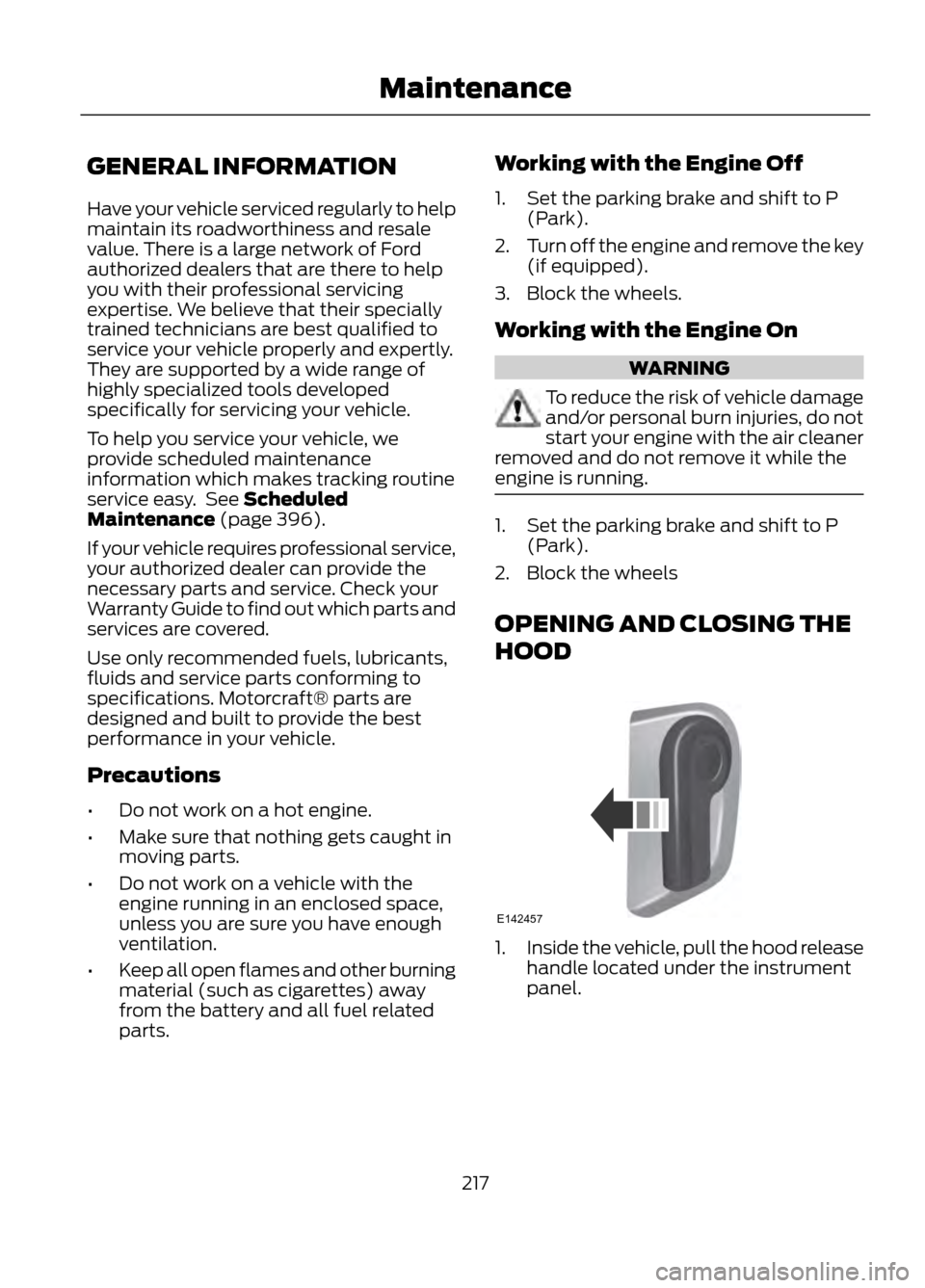

GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of Ford
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.
To help you service your vehicle, we
provide scheduled maintenance
information which makes tracking routine
service easy. See Scheduled
Maintenance (page 396).
If your vehicle requires professional service,
your authorized dealer can provide the
necessary parts and service. Check your
Warranty Guide to find out which parts and
services are covered.
Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.
Precautions
•Do not work on a hot engine.
• Make sure that nothing gets caught in
moving parts.
• Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.
• Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts. Working with the Engine Off
1. Set the parking brake and shift to P
(Park).
2. Turn off the engine and remove the key
(if equipped).
3. Block the wheels.
Working with the Engine On
WARNING
To reduce the risk of vehicle damage
and/or personal burn injuries, do not
start your engine with the air cleaner
removed and do not remove it while the
engine is running.
1. Set the parking brake and shift to P (Park).
2. Block the wheels
OPENING AND CLOSING THE
HOOD
1. Inside the vehicle, pull the hood release
handle located under the instrument
panel.
217
Maintenance
E142457

2. Go to the front of the vehicle andlocate the auxiliary latch located under
the front of the hood (left of center)
and then release it by pushing the
auxiliary latch to the right.
3. Open the hood and support it with the
prop rod.
To close the hood, lower the hood and
allow it to drop from under its own weight
for the last 8-11 inches (20-30
centimeters).
Note: Make sure that the hood is closed
properly.

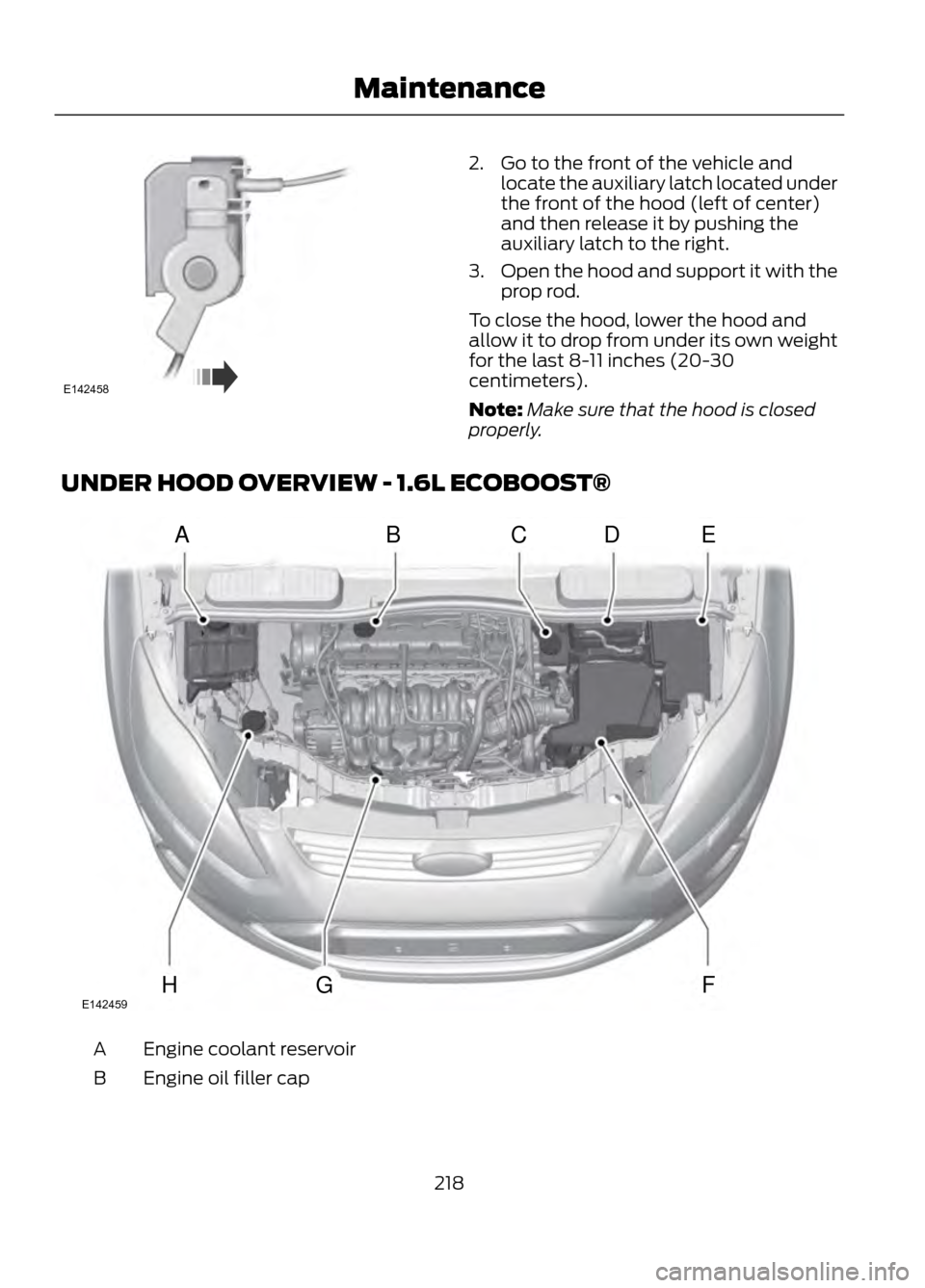

UNDER HOOD OVERVIEW - 1.6L ECOBOOST®
Engine coolant reservoir
A
Engine oil filler cap
B
218
Maintenance
E142458
AB C D E
F
G
HE142459

Brake fluid reservoir
C
Battery
D
Power distribution box
E
Air filter assembly
F
Engine oil dipstick
G
Windshield washer fluid reservoir
H

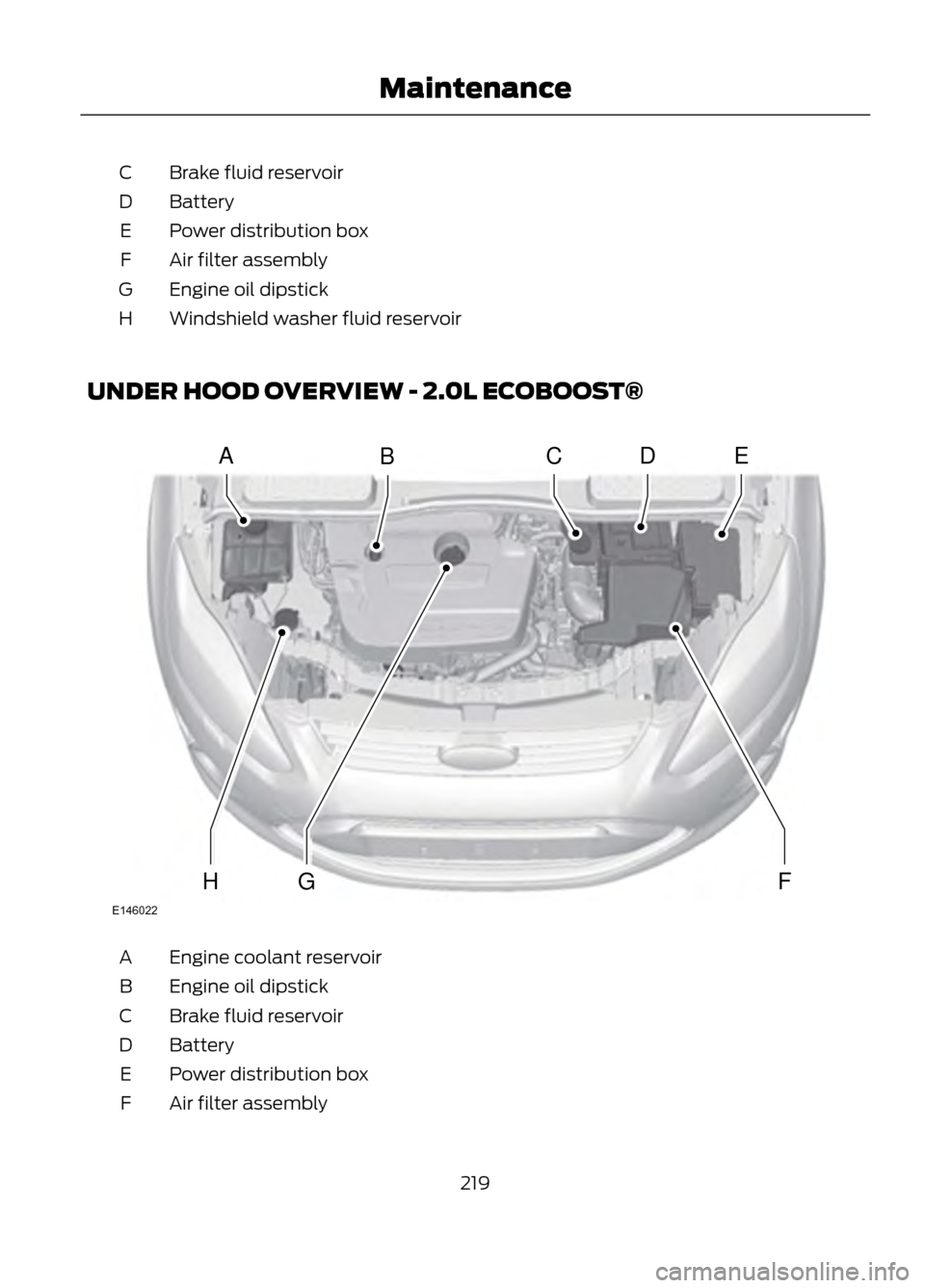

UNDER HOOD OVERVIEW - 2.0L ECOBOOST®
Engine coolant reservoir
A
Engine oil dipstick
B
Brake fluid reservoir
C
Battery
D
Power distribution box
E
Air filter assembly
F
219
Maintenance
ABCDE
FGH
E146022

Engine oil filler cap
G
Windshield washer fluid reservoir
H

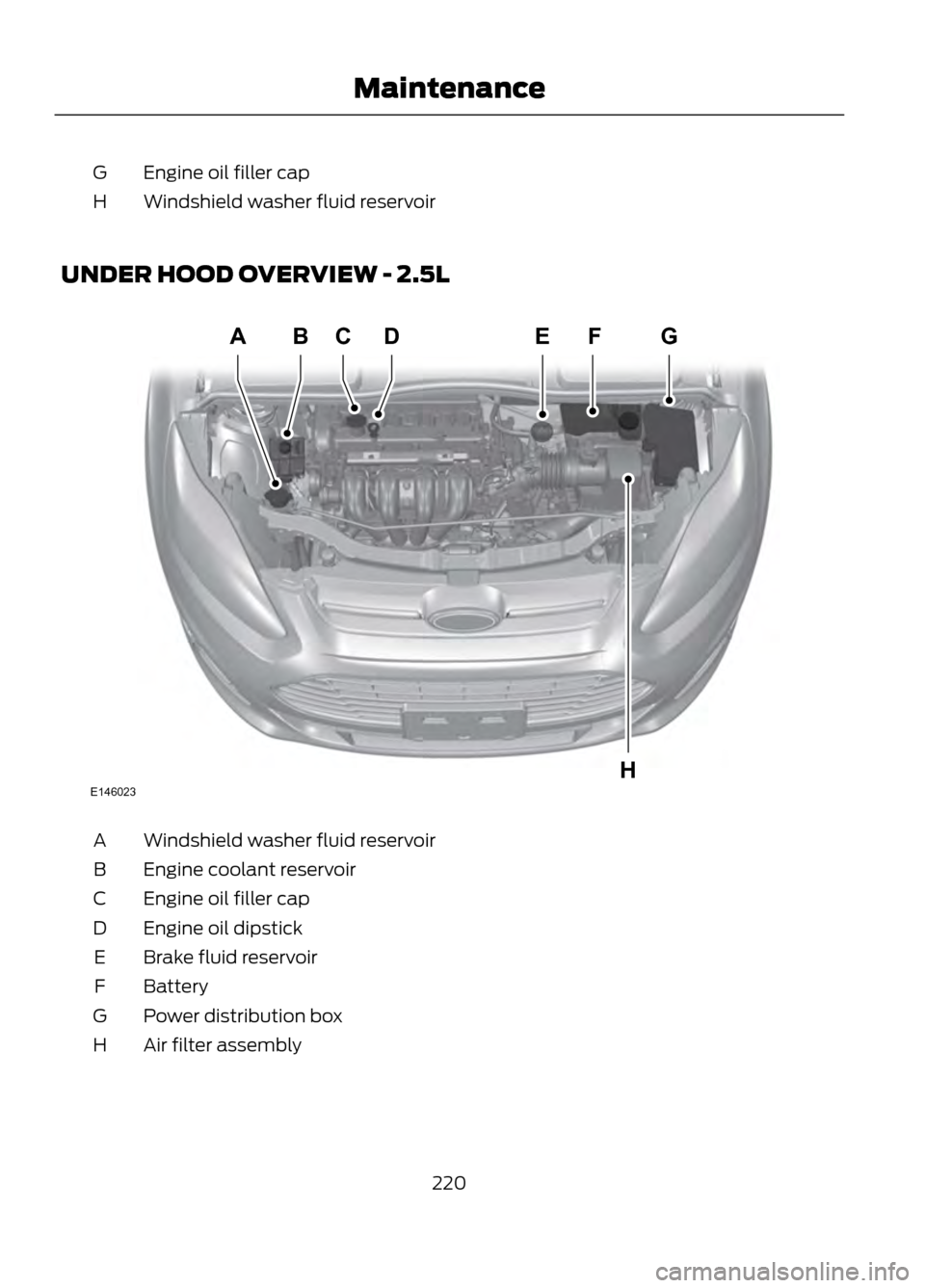

UNDER HOOD OVERVIEW - 2.5L
Windshield washer fluid reservoir
A
Engine coolant reservoir
B
Engine oil filler cap
C
Engine oil dipstick
D
Brake fluid reservoir
E
Battery
F
Power distribution box
G
Air filter assembly
H
220
Maintenance
ACBDEGF
HE146023
