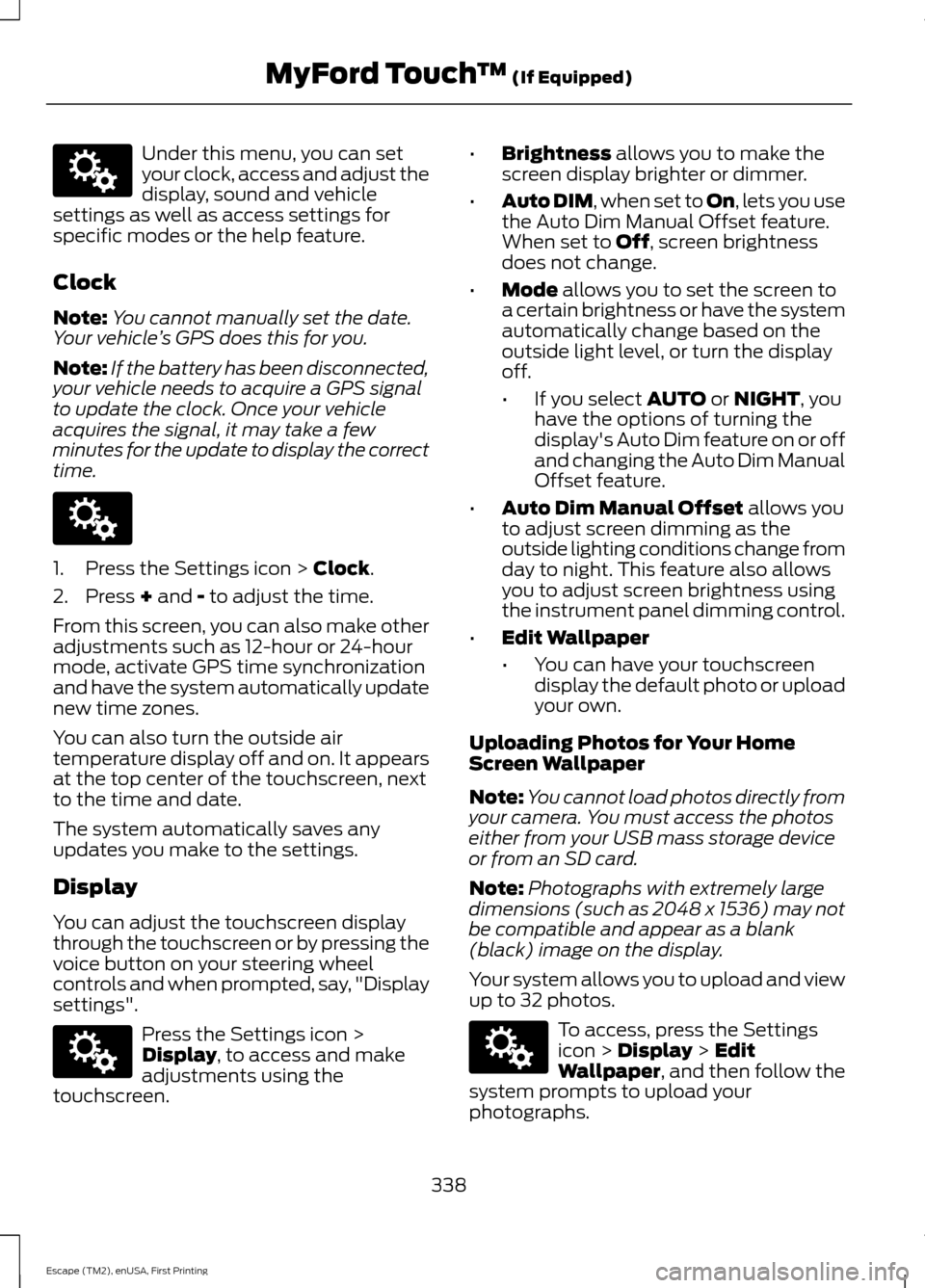

set clock FORD ESCAPE 2015 3.G User Guide

Under this menu, you can set
your clock, access and adjust the
display, sound and vehicle
settings as well as access settings for
specific modes or the help feature.
Clock
Note: You cannot manually set the date.
Your vehicle ’s GPS does this for you.
Note: If the battery has been disconnected,
your vehicle needs to acquire a GPS signal
to update the clock. Once your vehicle
acquires the signal, it may take a few
minutes for the update to display the correct
time. 1. Press the Settings icon > Clock.
2. Press
+ and - to adjust the time.
From this screen, you can also make other
adjustments such as 12-hour or 24-hour
mode, activate GPS time synchronization
and have the system automatically update
new time zones.
You can also turn the outside air
temperature display off and on. It appears
at the top center of the touchscreen, next
to the time and date.
The system automatically saves any
updates you make to the settings.
Display
You can adjust the touchscreen display
through the touchscreen or by pressing the
voice button on your steering wheel
controls and when prompted, say, "Display
settings". Press the Settings icon >
Display
, to access and make
adjustments using the
touchscreen. •
Brightness
allows you to make the
screen display brighter or dimmer.
• Auto DIM
, when set to On, lets you use
the Auto Dim Manual Offset feature.
When set to
Off, screen brightness
does not change.
• Mode
allows you to set the screen to
a certain brightness or have the system
automatically change based on the
outside light level, or turn the display
off.
• If you select
AUTO or NIGHT, you
have the options of turning the
display's Auto Dim feature on or off
and changing the Auto Dim Manual
Offset feature.
• Auto Dim Manual Offset
allows you
to adjust screen dimming as the
outside lighting conditions change from
day to night. This feature also allows
you to adjust screen brightness using
the instrument panel dimming control.
• Edit Wallpaper
•You can have your touchscreen
display the default photo or upload
your own.
Uploading Photos for Your Home
Screen Wallpaper
Note: You cannot load photos directly from
your camera. You must access the photos
either from your USB mass storage device
or from an SD card.
Note: Photographs with extremely large
dimensions (such as 2048 x 1536) may not
be compatible and appear as a blank
(black) image on the display.
Your system allows you to upload and view
up to 32 photos. To access, press the Settings
icon >
Display > Edit
Wallpaper, and then follow the
system prompts to upload your
photographs.
338
Escape (TM2), enUSA, First Printing MyFord Touch
™
(If Equipped)E142607 E142607 E142607 E142607

Safety Belts.......................................................31
Principle of Operation.......................................... 31
Safety Belt Warning Lamp and Indicator Chime...............................................................35
Conditions of operation..................................... 35
Safety Canopy ™
............................................44
Safety Precautions........................................131
Satellite Radio..............................................286
Satellite Radio Electronic Serial Number
(ESN)................................................................. 287
Satellite Radio Reception Factors...............287
SIRIUS® Satellite Radio Service.................. 287
Troubleshooting................................................. 288
Scheduled Maintenance Record...........429
Scheduled Maintenance
..........................420
Seats....................................................................111
Security..............................................................67
Settings............................................................337 Clock....................................................................... 338
Display................................................................... 338
Settings................................................................. 340
Sound..................................................................... 339
Vehicle................................................................... 339
Side Airbags
.....................................................43
Sitting in the Correct Position....................111
Snow Chains See: Using Snow Chains................................. 254
Special Notices................................................12 New Vehicle Limited Warranty......................... 12
Notice to Owners of Pickup Trucks and Utility Type Vehicles........................................ 12
Special Instructions.............................................. 12
Using Your Vehicle as an Ambulance............12
Using Your Vehicle With a Snowplow............12
Special Operating Conditions Scheduled Maintenance..............................................426
Exceptions............................................................ 427
Speed Control See: Cruise Control............................................. 161
Stability Control
............................................150
Principle of Operation...................................... 150
Starter Switch See: Ignition Switch........................................... 125Starting a Gasoline Engine
.......................126
Automatic Engine Shutdown......................... 127
Failure to Start...................................................... 127
Guarding Against Exhaust Fumes................129
Important Ventilating Information...............129
Stopping the Engine When Your Vehicle is Moving............................................................... 128
Stopping the Engine When Your Vehicle is Stationary......................................................... 128
Vehicles with an Ignition Key.......................... 126
Vehicles with Keyless Start............................. 126
Starting and Stopping the Engine
..........125
General Information.......................................... 125
Steering............................................................166 Electric Power Steering.................................... 166
Steering Wheel
...............................................69
Storage Compartments.............................124
Sunroof See: Moonroof....................................................... 83
Sun Visors
.........................................................82
Illuminated Vanity Mirror................................... 82
Supplementary Restraints System
.........39
Principle of Operation........................................ 39
Symbols Glossary
.............................................7
SYNC™ Applications and Services........................................................306
911 Assist.............................................................. 306
SYNC AppLink...................................................... 312
SYNC Services: Traffic, Directions & Information (TDI) (If Equipped, Unites
States Only)................................................... 309
Vehicle Health Report..................................... 308
SYNC™.............................................................291 General Information.......................................... 291
SYNC™ Troubleshooting
...........................321
T
Tailgate See: Manual Liftgate........................................... 62
See: Power Liftgate............................................. 63
Technical Specifications See: Capacities and Specifications............264
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................196
444
Escape (TM2), enUSA, First Printing Index
