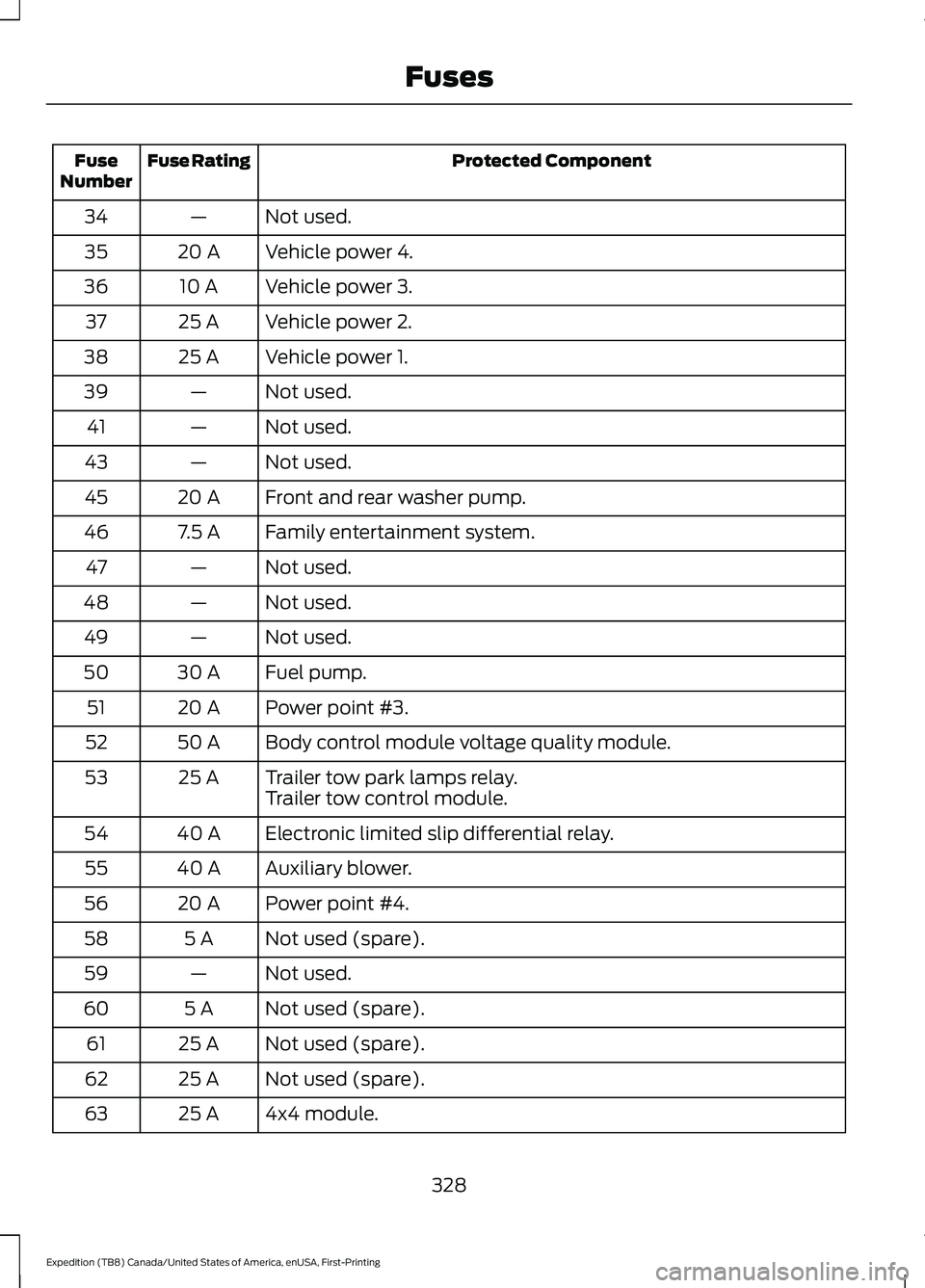

FORD EXPEDITION 2021 Owners Manual

Protected Component
Fuse Rating
Fuse
Number
Not used.
—
34
Vehicle power 4.
20 A
35
Vehicle power 3.
10 A
36
Vehicle power 2.
25 A
37
Vehicle power 1.
25 A
38
Not used.
—
39
Not used.
—
41
Not used.
—
43
Front and rear washer pump.
20 A
45
Family entertainment system.
7.5 A
46
Not used.
—
47
Not used.
—
48
Not used.
—
49
Fuel pump.
30 A
50
Power point #3.
20 A
51
Body control module voltage quality module.
50 A
52
Trailer tow park lamps relay.
25 A
53
Trailer tow control module.
Electronic limited slip differential relay.
40 A
54
Auxiliary blower.
40 A
55
Power point #4.
20 A
56
Not used (spare).
5 A
58
Not used.
—
59
Not used (spare).
5 A
60
Not used (spare).
25 A
61
Not used (spare).
25 A
62
4x4 module.
25 A
63
328
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Fuses

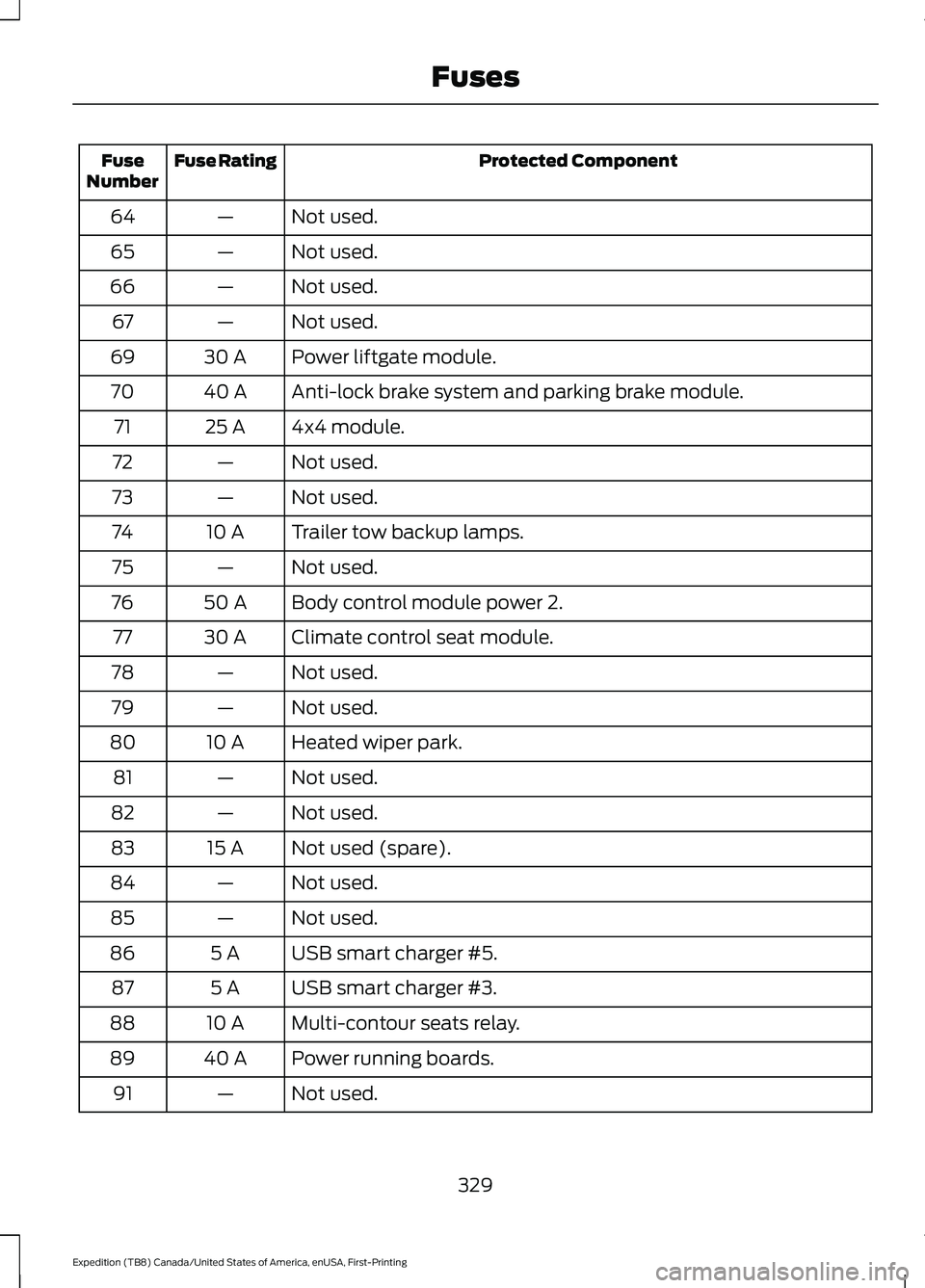

Protected Component
Fuse Rating
Fuse
Number
Not used.
—
64
Not used.
—
65
Not used.
—
66
Not used.
—
67
Power liftgate module.
30 A
69
Anti-lock brake system and parking brake module.
40 A
70
4x4 module.
25 A
71
Not used.
—
72
Not used.
—
73
Trailer tow backup lamps.
10 A
74
Not used.
—
75
Body control module power 2.
50 A
76
Climate control seat module.
30 A
77
Not used.
—
78
Not used.
—
79
Heated wiper park.
10 A
80
Not used.
—
81
Not used.
—
82
Not used (spare).
15 A
83
Not used.
—
84
Not used.
—
85
USB smart charger #5.
5 A
86
USB smart charger #3.
5 A
87
Multi-contour seats relay.
10 A
88
Power running boards.
40 A
89
Not used.
—
91
329
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Fuses

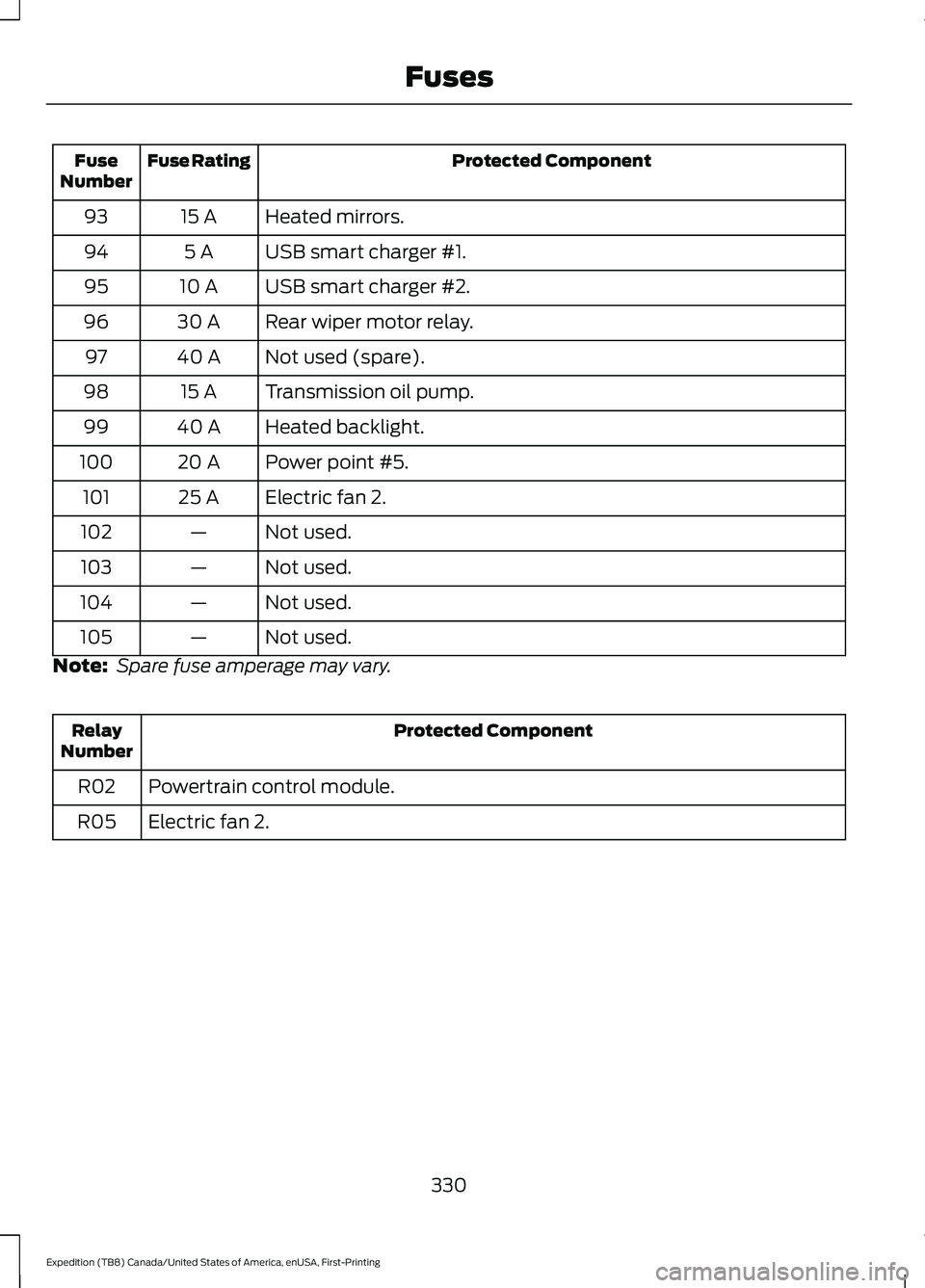

Protected Component
Fuse Rating
Fuse
Number
Heated mirrors.
15 A
93
USB smart charger #1.
5 A
94
USB smart charger #2.
10 A
95
Rear wiper motor relay.
30 A
96
Not used (spare).
40 A
97
Transmission oil pump.
15 A
98
Heated backlight.
40 A
99
Power point #5.
20 A
100
Electric fan 2.
25 A
101
Not used.
—
102
Not used.
—
103
Not used.
—
104
Not used.
—
105
Note: Spare fuse amperage may vary. Protected Component
Relay
Number
Powertrain control module.
R02
Electric fan 2.
R05
330
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Fuses

Passenger Compartment Fuse Box
Protected Component
Fuse Rating
Fuse
Number
Not used.
—
1
Driver seat switch.
10 A
2
Driver door unlock.
7.5 A
3
Speaker amplifier.
20 A
4
Not used.
—
5
Smart datalink connector logic.
10 A
6
Rear audio control module.
10 A
7
Wireless accessory charger.
5 A
8
Hands-free liftgate module.
Keypad.
5 A
9
Combined sensor module.
Not used.
—
10
Not used.
—
11
Instrument cluster.
7.5 A
12
331
Expedition (TB8) Canada/United States of America, enUSA, First-Printing FusesE145984

Protected Component
Fuse Rating
Fuse
Number
Steering column control module.
7.5 A
13
Smart datalink connector logic.
Climate control module.
Gear shift module.
Brake switch.
15 A
14
SYNC.
15 A
15
Not used.
—
16
Not used.
—
17
Gear shift module.
7.5 A
18
Column shifter.
Telematics control unit module.
5 A
19
Ignition switch.
5 A
20
In-vehicle temperature and humidity sensor.
5 A
21
Electrochromic mirror.
5 A
22
Second row heated seat module.
Power window switch.
30 A
23
Power mirror switch.
Left-hand front door zone module.
Moonroof logic.
30 A
24
Speaker amplifier 2.
20 A
25
Right-hand front door zone module.
30 A
26
Left-hand rear door zone module.
30 A
27
Right-hand rear door zone module.
30 A
28
Adjustable pedals.
15 A
29
Trailer tow control module.
5 A
30
Rear climate control module.
10 A
31
Drive mode switch module.
Terrain management switch.
Radio frequency transceiver module.
4x4 switch.
Audio control module.
20 A
32
332
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Fuses

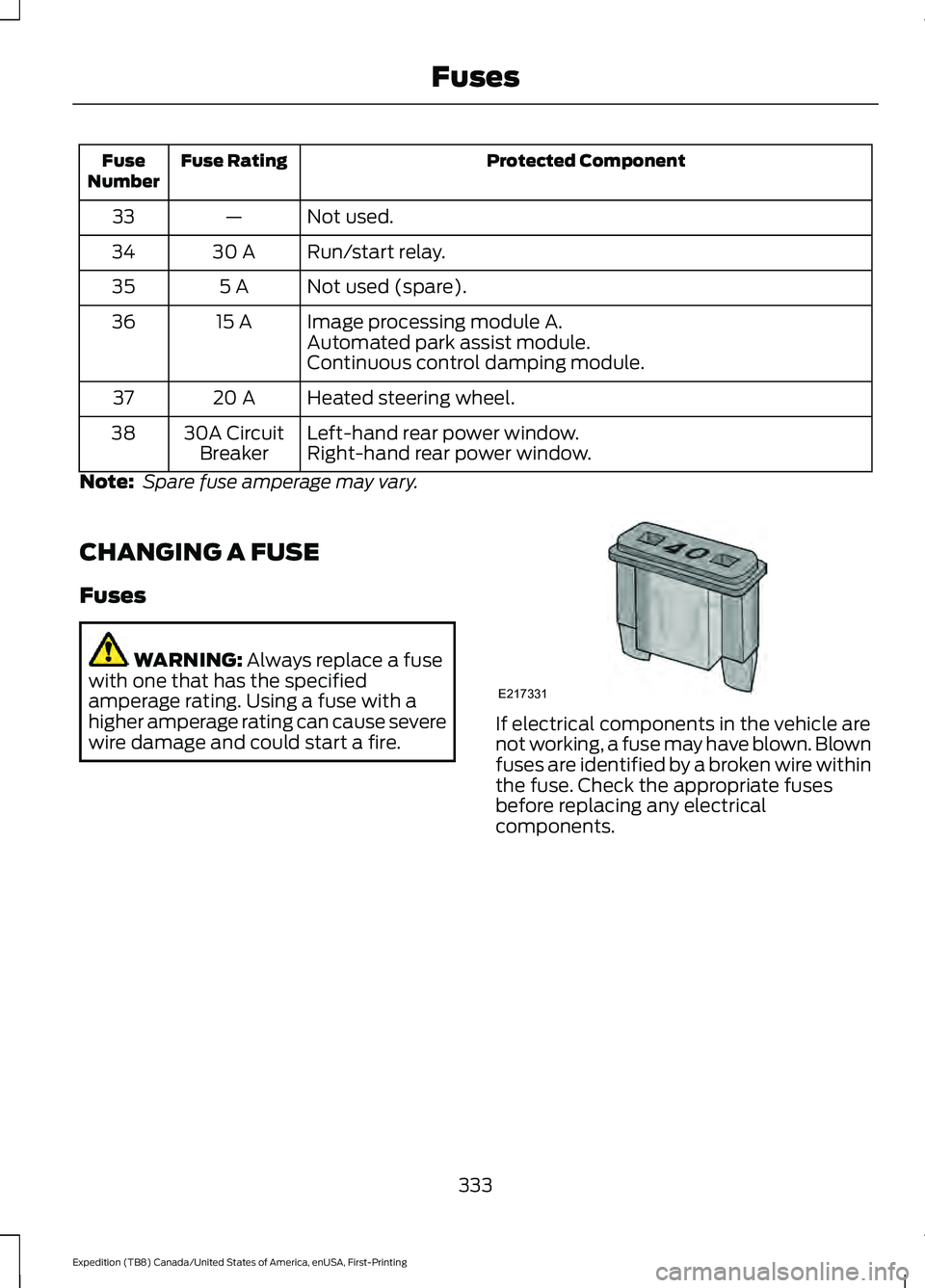

Protected Component
Fuse Rating
Fuse
Number
Not used.
—
33
Run/start relay.
30 A
34
Not used (spare).
5 A
35
Image processing module A.
15 A
36
Automated park assist module.
Continuous control damping module.
Heated steering wheel.
20 A
37
Left-hand rear power window.
30A Circuit
Breaker
38
Right-hand rear power window.
Note: Spare fuse amperage may vary.
CHANGING A FUSE
Fuses WARNING: Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
333
Expedition (TB8) Canada/United States of America, enUSA, First-Printing FusesE217331

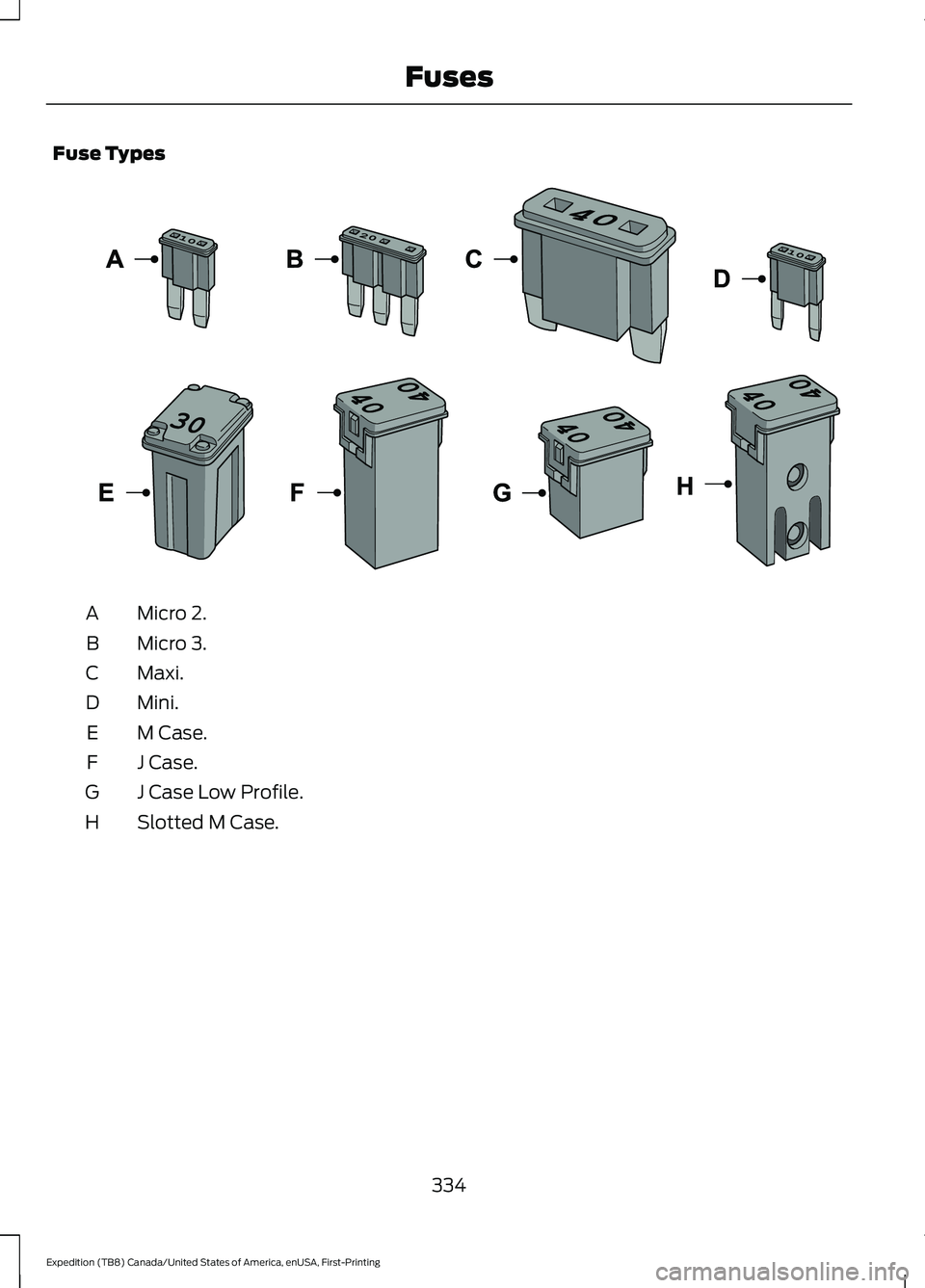

Fuse Types
Micro 2.
A
Micro 3.
B
Maxi.
C
Mini.
D
M Case.
E
J Case.
F
J Case Low Profile.
G
Slotted M Case.
H
334
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Fuses E267379

GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.
If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.
Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.
Precautions
•
Do not work on a hot engine.
• Make sure that nothing gets caught in
moving parts.
• Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.
• Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts.
Working with the Engine Off
1. Set the parking brake and shift the transmission to park (P).
2. Switch off the engine.
3. Block the wheels. Working with the Engine On WARNING: To reduce the risk of
vehicle damage and personal burn
injuries, do not start your engine with the
air cleaner removed and do not remove
it while the engine is running.
1. Set the parking brake and shift the transmission to park (P).
2. Block the wheels.
OPENING AND CLOSING THE
HOOD
1. Inside the vehicle, pull the hood release
handle located under the left hand side
of the instrument panel. 2. Go to the front of your vehicle and
locate the secondary release lever
under the front of the hood near the
center of your vehicle.
335
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Maintenance E166491

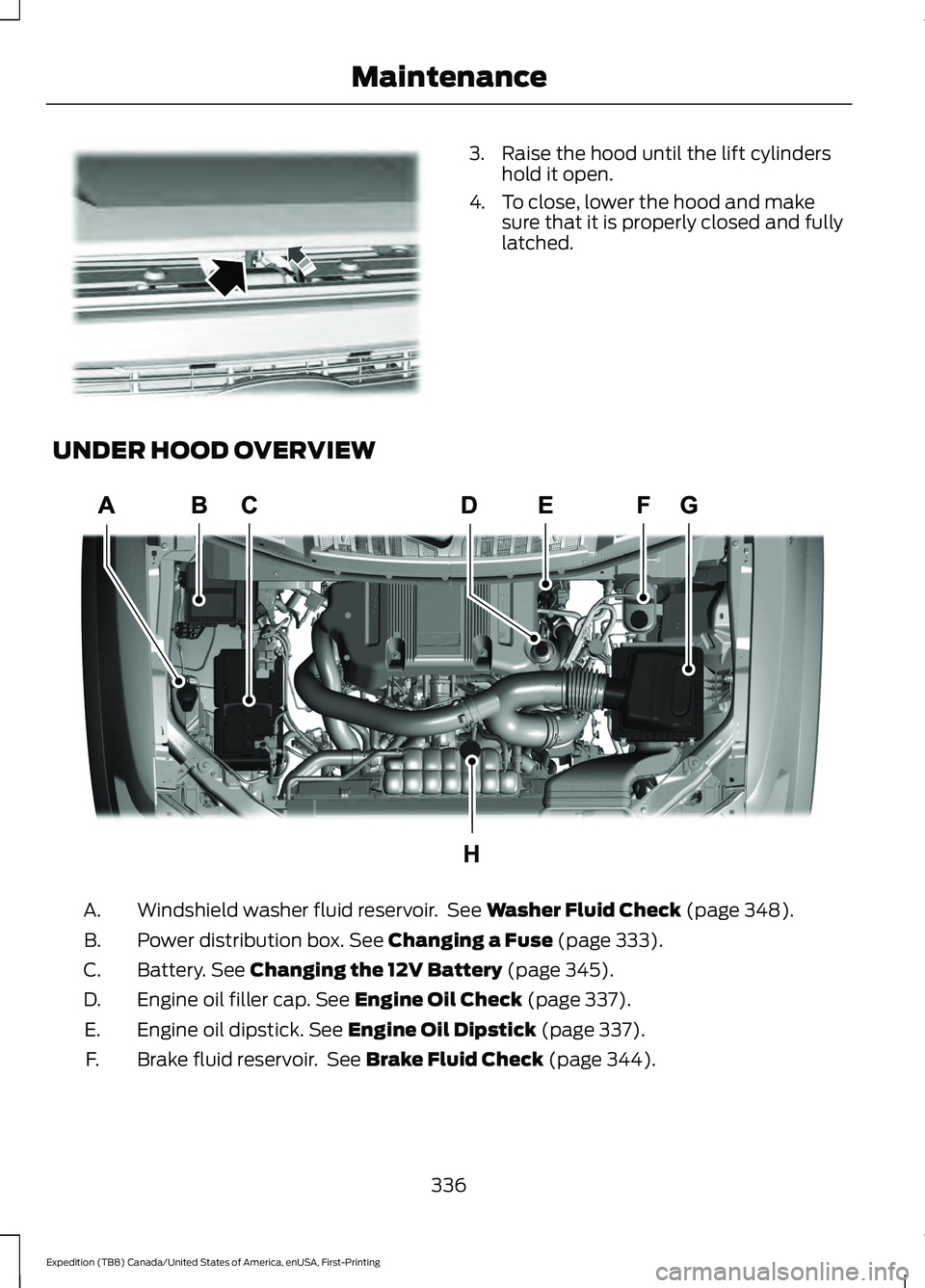

3. Raise the hood until the lift cylinders
hold it open.
4. To close, lower the hood and make sure that it is properly closed and fully
latched.
UNDER HOOD OVERVIEW Windshield washer fluid reservoir. See Washer Fluid Check (page 348).
A.
Power distribution box.
See Changing a Fuse (page 333).
B.
Battery.
See Changing the 12V Battery (page 345).
C.
Engine oil filler cap.
See Engine Oil Check (page 337).
D.
Engine oil dipstick.
See Engine Oil Dipstick (page 337).
E.
Brake fluid reservoir. See
Brake Fluid Check (page 344).
F.
336
Expedition (TB8) Canada/United States of America, enUSA, First-Printing MaintenanceE190266 E258054

Air filter. See Changing the Engine Air Filter (page 339).
G.
Engine coolant reservoir. See
Engine Coolant Check (page 339).
H.
ENGINE OIL DIPSTICK MINA
MAX
B
ENGINE OIL CHECK
To check the engine oil level consistently
and accurately, do the following:
1. Make sure the parking brake is on. Make
sure the transmission is in park (P) or
neutral (N).
2. Run the engine until it reaches normal operating temperature.
3. Make sure that your vehicle is on level ground.
4. Switch the engine off and wait 15 minutes for the oil to drain into the oil
pan. Checking the engine oil level too
soon after you switch the engine off
may result in an inaccurate reading.
5. Open the hood. See
Opening and
Closing the Hood (page 335). 6. Remove the dipstick and wipe it with
a clean, lint-free cloth. See
Under
Hood Overview (page 336).
7. Reinstall the dipstick and remove it again to check the oil level. See
Engine Oil Dipstick
(page 337).
8. Make sure that the oil level is between
the maximum and minimum marks. If
the oil level is at the minimum mark,
add oil immediately. See
Capacities
and Specifications (page 392).
9. If the oil level is correct, replace the dipstick and make sure it is fully seated.
Note: Do not remove the dipstick when the
engine is running.
Note: If the oil level is between the
maximum and minimum marks, the oil level
is acceptable. Do not add oil.
Note: The oil consumption of new engines
reaches its normal level after approximately
3,000 mi (5,000 km)
.
Adding Engine Oil WARNING: Do not remove the filler
cap when the engine is running.
Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by the vehicle Warranty.
337
Expedition (TB8) Canada/United States of America, enUSA, First-Printing MaintenanceE146429
