FORD EXPLORER 1996 2.G Owners Manual

Driving Your Explorer
261
*
[DR20900(ALL)11/89]
When climbing a steep hill, start in a lower gear, rather than
finding it necessary to downshift from a higher gear after the
ascent has started. This reduces strain on the engine and the
possibility of stalling.
*
[DR21000(ALL)11/89]
When descending a steep hill avoid sudden braking. Rapid
pumping of the brake pedal will help slow the vehicle and still
maintain steering control.
*
[DR21101(ALL)11/89]
Driving on Snow or Ice
*
[DR21200(ALL)12/95]
A four-wheel drive or all-wheel drive vehicle has advantages
over two-wheel drive vehicles in snow and ice but can skid like
any other vehicle. If so equipped, keep the vehicle in four-wheel
drive if icy or slippery conditions exist.
*
[DR21300(ALL)11/89]
Avoid sudden applications of power and quick changes of
direction on snow or ice. Apply the accelerator slowly and
steadily when starting from a full stop.
*
[DR21310(ALL)05/95]
All utility-type and Four-Wheel Drive vehicles have special
design and equipment features to make them capable of
performing in a wide variety of off-road applications. Specific
design characteristics give them higher centers of gravity than
ordinary passenger cars.
*
[DR21325(ALL)08/95]
RWARNING
Utility and four-wheel drive vehicles are NOT designed
for cornering at speeds as high as passenger cars any
more than low-slung sports cars are designed to perform
satisfactorily under off-road conditions. Avoid sharp
turns or abrupt maneuvers in these vehicles.
%*
[DR21400(ALL)03/95]
Brakes
*
[DR21500(ALL)01/93]
Front Disc Brakes
*
[DR21600(ALL)06/95]
The front disc brakes are self-adjusting. They do not require
service other than periodic inspection for pad wear.
File:10undrx.ex
Update:Thu Feb 29 09:12:36 1996

262
*
[DR21700( X)07/93]
Rear Disc Brakes
[DR21800( X)06/94]
The rear disc brakes are self-adjusting. They do not require any
service other than periodic inspection for pad wear.
*
[DR22100(ALL)11/89]
Hydraulic Power Brakes
[DR22200(ALL)08/94]
The hydraulic brake system is made up of two independent
hydraulic circuits. One hydraulic circuit supplies fluid to the
front disc brakes and the other hydraulic circuit supplies fluid
to the rear drum or disc brakes. These two circuits are supplied
by a common hydraulic brake fluid reservoir, with a fluid level
sensor.
*
[DR22300(ALL)11/89]
The brake light in the instrument cluster will light for low brake
fluid in the common brake fluid reservoir.
*
[DR22400(ALL)05/95]
RWARNING
An increase in pedal travel will result in reduced braking
capability. The brake system should be checked
immediately.
[DR22905(ALL)10/94]
Four Wheel Anti-lock Brake System
*
[DR22910( X)08/94]
Your vehicle is equipped with a Four Wheel Anti-lock Braking
System (4WABS). The 4WABS helps the driver to maintain
vehicle control by preventing wheel lockup during hard
braking.
*
[DR22915(ALL)03/94]
The 4WABS operates with a computer that is able to optimize
vehicle control during braking on varying tire and road
conditions by modulating the brake pressure at each of the front
wheels and the rear axle. This ªpumping actionº is similar to
the driver ªpumpingº the brakes but happens at a much faster
rate.
File:10undrx.ex
Update:Thu Feb 29 09:12:36 1996

Driving Your Explorer
263
*
[DR22920(ALL)05/95]
RWARNING
The Anti-lock system does NOT assist the vehicle in
stopping quickly on wet or icy surfaces. Heavy braking
combined with poor road conditions could cause you to
lose steering control of your vehicle.
*
[DR22925(ALL)10/94]
Using anti-lock brakes
*
[DR22930(ALL)05/94]
The operation of a vehicle with 4WABS is not similar to the
operation of normal brakes. Some differences exist and are listed
below:
*
[DR22935(ALL)10/94]
n
Apply the brake steadily. In the event of a panic stop, do
NOT ªpumpº the brakes. ªPumpingº the brakes during an
Anti-lock stop will diminish braking effectiveness.
%*
[DR22940(ALL)10/94]
n
During an Anti-lock stop, the driver will notice a brake
pedal pulsation and hear some noise from the engine
compartment. This is an indication that the 4WABS system is
working correctly and is normal.
*
[DR22945(ALL)05/95]
RWARNING
The Anti-lock system does NOT decrease the time
necessary to apply the brakes. Always leave enough room
between the vehicle in front of you and your vehicle.
*
[DR22950(ALL)05/95]
4WABS driver warning light
[DR22955(ALL)10/94]
The 4WABS computer continuously monitors the system while
driving for any electrical faults or system malfunctions. In
addition, the 4WABS computer performs an initial system check
called bulb proveout when the vehicle ignition is switched on.
During bulb proveout, the ABS light on the instrument cluster
will momentarily illuminate and then go out.
*
[DR22960(ALL)09/95]
NOTE: After starting the vehicle and upon initial drive-off,
the driver may notice a single pulse of the brake
pedal and a noise from the engine compartment. This
is part of the initial system check and is normal.
File:10undrx.ex
Update:Thu Feb 29 09:12:36 1996

264
[DR22965(ALL)05/95]
Should a malfunction in the 4WABS system occur, the ABS light
on the instrument cluster will come on and stay on indicating
that the anti-lock system has been shut down and the vehicle
needs to be serviced. Normal braking is not affected unless the
brake warning light is also illuminated.
*
[DR22970(ALL)09/95]
NOTE: It is important to note that when the ABS Warning
Light is illuminated the ABS system is disabled. The
vehicle must be serviced immediately to restore the
benefits of the Anti-lock system.
*
[DR22975(ALL)09/95]
NOTE: Mobile phones or radio transmitters not installed by
Ford Motor Company may interfere with the Anti-lock
System. Should the Anti-lock system activate
unexpectedly or the Anti-lock Warning Light
illuminate after installation of such a unit, have the
installation of the unit checked.
%*
[DR23000(ALL)12/89]
If Brakes Do Not Grip Well or Pedal is ªLowº
*
[DR23250(ALL)11/89]
If during normal operation the brake pedal seems ªlowº, it may
indicate the need for a brake system inspection and/or service.
You should have your brakes checked as soon as possible.
*
[DR23300(X)07/95]
Occasional brake squeal during light to moderate stops does not
affect the function of the brake system and is normal. However,
if the squeal becomes louder or more frequent, have your
brakes inspected by your dealer or a qualified service technician.
*
[DR23400(ALL)11/89]
RWARNING
Modifications to the suspension spring rates and/or
vehicle ride height may adversely affect vehicle stopping
ability.
File:10undrx.ex
Update:Thu Feb 29 09:12:36 1996

Driving Your Explorer
265
*
[DR23500(ALL)07/92]
If Brakes Pull
*
[DR23600(ALL)05/95]
n
Check tire pressure.
[DR23710( X)07/95]
n
If pull occurs during the first 500 miles (800 km), make 10
moderatley fast stops from 40 mph (64 km/h). It may be
necessary to repeat this operation to properly seat new
brakes.
*
[DR23800(ALL)05/95]
If pull occurs during the first 500 miles (800 km), make 10
moderately fast stops from 40 mph (65 km/h) and then
perform the self-adjustment procedure above. It may be
necessary to repeat this operation to properly seat new brake
linings and pads.
%*
[DR24000(ALL)01/93]
Stopping Distances
*
[DR24100(ALL)11/89]
Stopping distances vary with different loads and driving
conditions. Use caution when encountering new conditions and
acquaint yourself with vehicle performance. Take full advantage
of engine braking power when slowing down.
%*
[DR24200(ALL)01/95]
Applying the Brakes
*
[DR24300(ALL)05/95]
Apply the brake pedal gradually. Use the ªsqueezeº technique
Ð push on the brake pedal with a steadily increasing force. This
allows the wheels to continue to roll while you are slowing
down, which lets you steer properly.
*
[DR24400(ALL)07/95]
Do not drive with your foot resting on the brake pedal. This
will increase your vehicle's stopping distance and may also
cause brake damage.
*
[DR24500(ALL)05/95]
RWARNING
If you are driving down a long or steep hill, shift to a
lower gear. Do not apply your brakes continuously, as
they may overheat and become less effective.
File:10undrx.ex
Update:Thu Feb 29 09:12:36 1996

266
%*
[DR24600(ALL)03/95]
Using the Parking Brake
*
[DR24650(ALL)01/95]
The parking brake should be used whenever you park your
vehicle.
*
[DR24800(ALL)12/91]

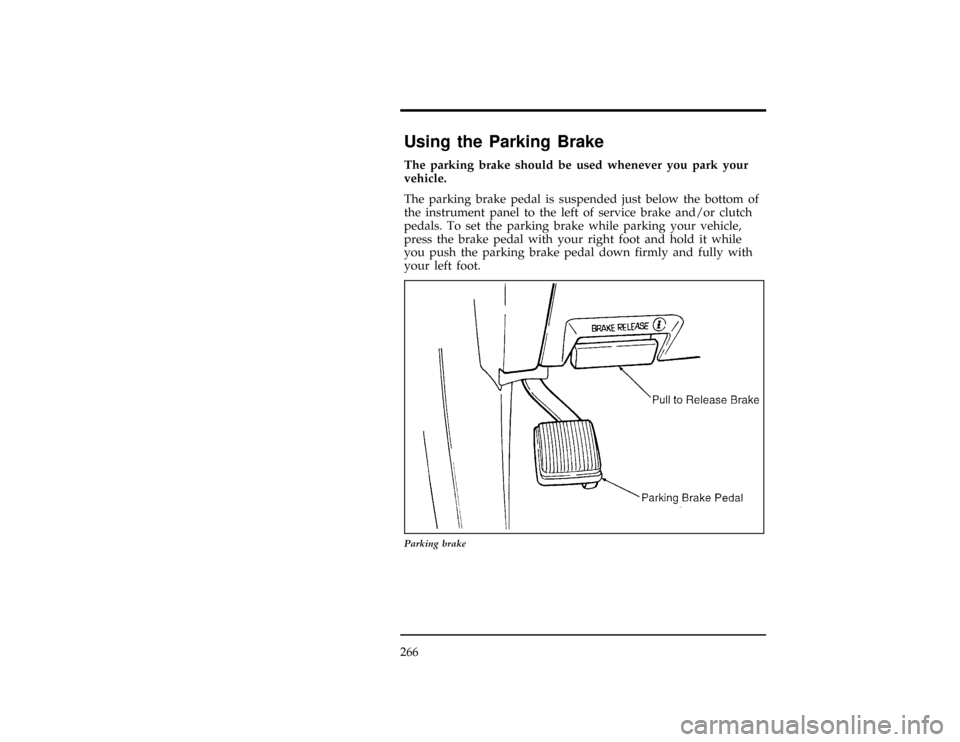

The parking brake pedal is suspended just below the bottom of
the instrument panel to the left of service brake and/or clutch
pedals. To set the parking brake while parking your vehicle,
press the brake pedal with your right foot and hold it while
you push the parking brake pedal down firmly and fully with
your left foot.
[DR24930(ALL)05/95]
17-1/2 pica
art:0020568-D
Parking brake
File:10undrx.ex
Update:Thu Feb 29 09:12:36 1996

Driving Your Explorer
267
*
[DR24950(ALL)03/95]
RWARNING
When parking, do not use the gearshift in place of the
parking brake. Turn the key to LOCK whenever you
leave your vehicle. Always set the parking brake fully
and make sure that the gearshift is securely latched in P
(Park) (automatic transmission) or in 1 (First) (manual
transmission). Never leave your vehicle unattended while
it is running. If you do not take these precautions, your
vehicle may move unexpectedly and injure someone.
[DR25015(ALL)03/93]
To release the parking brake, press the service brake pedal with
your right foot and hold the parking brake pedal down with
your left foot while you pull the parking brake release lever.
Lift your foot from the parking brake pedal after it is released.
*
[DR25050(ALL)01/93]
RWARNING
If the parking brake is fully released, but the Brake
System light remains on, have the brakes checked
immediately. They may not be working properly.
*
[DR25100(ALL)06/95]
The parking brake is not designed to stop a moving vehicle, but
you can use the parking brake to stop your vehicle in an
emergency if the normal brakes fail. However, since the parking
brake applies only the rear brakes, the stopping distance will
increase greatly and the handling of your vehicle will be
adversely affected.
%*
[DR25200(ALL)01/95]
Driving Under Special Conditions
%*
[DR25250(ALL)01/95]
Tips for Safe Driving
*
[DR25301(ALL)07/95]
As with any new vehicle, yours may drive and handle
differently from your previous vehicle. Use care until you
become accustomed to its various features and driving
characteristics.
File:10undrx.ex
Update:Thu Feb 29 09:12:36 1996

268
*
[DR25350(ALL)03/95]
Operate your vehicle within reasonable limits. Sudden
acceleration, deceleration, turning, or combinations of these
maneuvers can cause a vehicle to behave differently than
anticipated.
*
[DR25501(ALL)02/95]
Wheel Spin
*
[DR25550(ALL)11/92]
n
Extreme acceleration can cause the rear wheels to spin,
perhaps resulting in reduced steering control.
[DR26350(ALL)12/92]
If the wheels spin, use 2 (Second gear) to gain traction. Move
forward slowly and evenly. If this does not work, try rocking
the vehicle.
*
[DR26401(ALL)05/91]
For 4x4 vehicles, engage 4WD, and try to drive away.
%*
[DR26550(ALL)05/90]
High Speed Driving
*
[DR26590(ALL)07/95]
Ford Motor Company recommends obeying posted speed limits.
*
[DR26601(ALL)05/95]
RWARNING
Driving too fast for conditions creates the possibility of
loss of vehicle control. Driving at very high speeds for
extended periods of time may result in damage to vehicle
components.
*
[DR26625(ALL)12/91]
Speed limiter
[DR26652(ALL)01/95]
All models are equipped with a Powertrain Control Module
(PCM) which limits the maximum engine speed and thus road
speed in top gear. Vehicle operation is normal since the
controlled maximum speed is above posted highway speeds in
North America.
File:10undrx.ex
Update:Thu Feb 29 09:12:36 1996

Driving Your Explorer
269
%*
[DR26701(ALL)01/95]
Driving in Bad Weather
%*
[DR26750(ALL)01/95]
Slippery roads
*
[DR26801(ALL)03/95]
Drive cautiously on wet or snowy roads:
*
[DR26850(ALL)03/95]
n
Do not quickly move the steering wheel unless necessary.
*
[DR26901(ALL)01/95]
n
Drive slower than you normally would.
*
[DR26951(ALL)01/95]
n
Give your vehicle more distance to stop.
[DR27001(ALL)01/95]
n
Pump the brake pedal steadily and evenly to avoid locking
your front wheels (except with 4WABS).
[DR27025(ALL)05/95]
n
To stop on ice, shift to N (Neutral) below 10 mph (15 km/h)
and gently pump brakes (except with 4WABS).
*
[DR27050(ALL)02/93]
n
Consider using one of the lower gears.
*
[DR27101(ALL)05/91]
n
For 4x4 vehicles, engage 4WD, and try to drive slowly away.
*
[DR27150(ALL)05/95]
RWARNING
To avoid losing control on slippery roads, do not
downshift into Low with the automatic transmission
when moving faster than 20 mph (32 km/h). Do not
downshift into First with the manual transmission when
moving faster than 5 mph (8 km/h).
%*
[DR27450(ALL)03/95]
Traction-Lok Rear Axle (If equipped)
*
[DR27501(ALL)03/95]
This axle provides added drive away traction on slippery
surfaces, particularly when one or more wheels are on a surface
with poor traction.
*
[DR27550(ALL)03/93]
Extended use of other than matching size tires on a
Traction-Lok rear axle could result in a permanent reduction in
effectiveness. This loss of effectiveness does not affect normal
driving and should not be noticeable to the driver.
File:10undrx.ex
Update:Thu Feb 29 09:12:36 1996

270
*
[DR27601(ALL)05/95]
RWARNING
To avoid injury, never run the engine with one wheel off
the ground, such as when changing a tire.
%*
[DR27651(ALL)01/95]
High water
*
[DR27675(ALL)06/92]
Never attempt to cross water that is fast flowing or of unknown
depth.
*
[DR27701(ALL)05/90]
Do not drive through flooded areas unless you are sure that the
water is below the bottom of the wheel hubs.
*
[DR27750(ALL)04/94]
If you must drive through high water, drive slowly. You may
have limited traction or wet brakes, so allow extra stopping
distance because your vehicle will not stop as quickly as usual.
*
[DR27801(ALL)01/95]
After you drive through the standing water, apply your brakes
gently several times as your vehicle moves slowly. This helps to
dry the brakes.
*
[DR27820(ALL)06/95]
NOTE: If the transmission and transfer case is submerged in
water, their fluids should be checked and changed, if
necessary.
*
[DR27825(ALL)03/93]
NOTE: All rear axle lube quantities must be replaced every
100,000 miles (160,000 km) or if the axle has been
submerged in water. Otherwise, the lube should not
be checked or changed unless a leak is suspected or
repair required.
*
[DR27850(ALL)11/89]
Rocking the vehicle
*
[DR27901(ALL)05/90]
For 4x4 vehicles, engage 4WD LOW, when the vehicle gets
stuck and try to drive away.
*
[DR27950(ALL)05/95]
If your vehicle gets stuck (for example, in mud or snow), you
may rock it out of the spot. Shift in a steady rhythm between
forward and reverse gears. Allow the transmission to fully
engage, then press lightly on the accelerator. Do not rock the
vehicle for more than a few minutes. This may overheat the
File:10undrx.ex
Update:Thu Feb 29 09:12:36 1996
