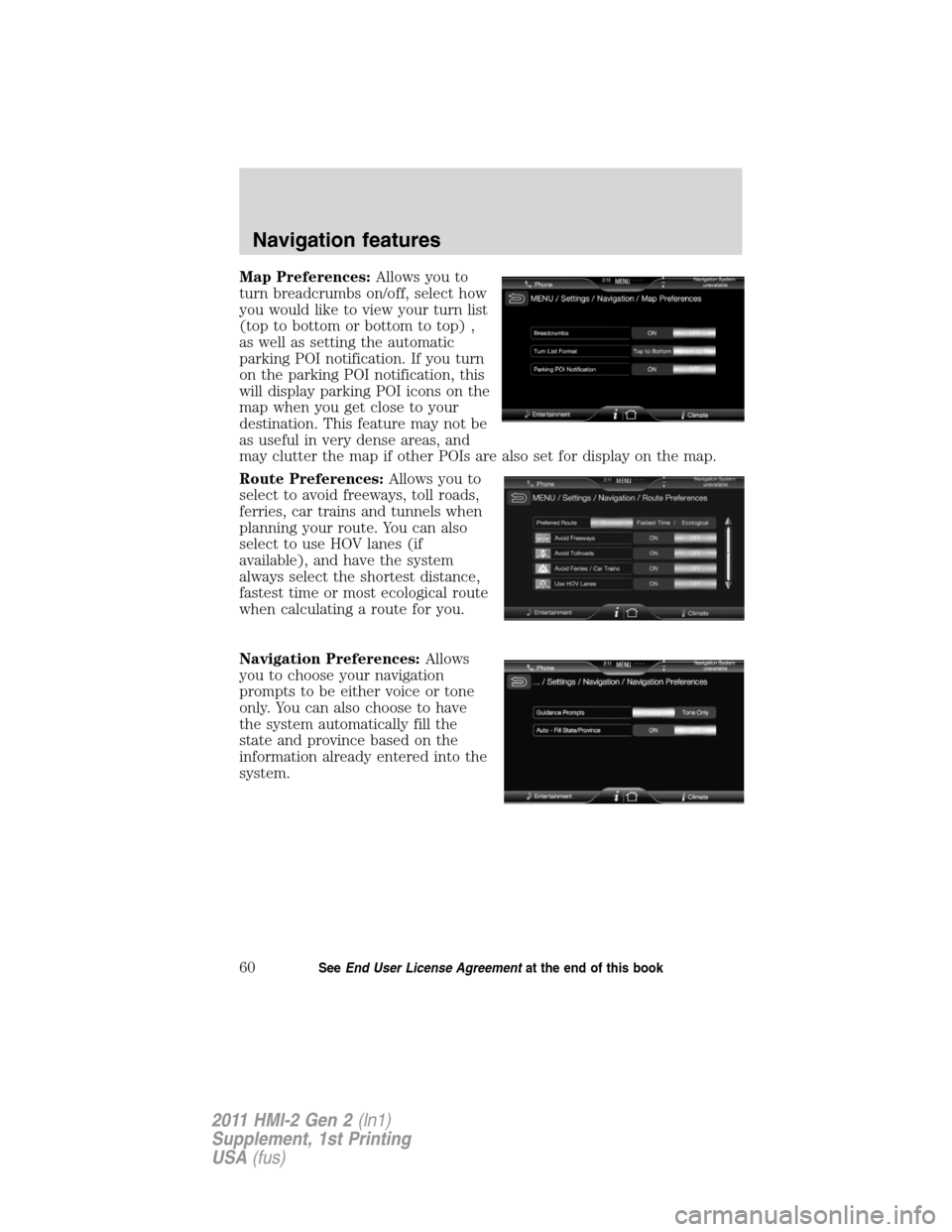

Map Preferences:Allows you to
turn breadcrumbs on/off, select how
you would like to view your turn list
(top to bottom or bottom to top) ,
as well as setting the automatic
parking POI notification. If you turn
on the parking POI notification, this
will display parking POI icons on the
map when you get close to your
destination. This feature may not be
as useful in very dense areas, and
may clutter the map if other POIs are also set for display on the map.
Route Preferences:Allows you to
select to avoid freeways, toll roads,
ferries, car trains and tunnels when
planning your route. You can also
select to use HOV lanes (if
available), and have the system
always select the shortest distance,
fastest time or most ecological route
when calculating a route for you.
Navigation Preferences:Allows
you to choose your navigation
prompts to be either voice or tone
only. You can also choose to have
the system automatically fill the
state and province based on the
information already entered into the
system.
Navigation features
60SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

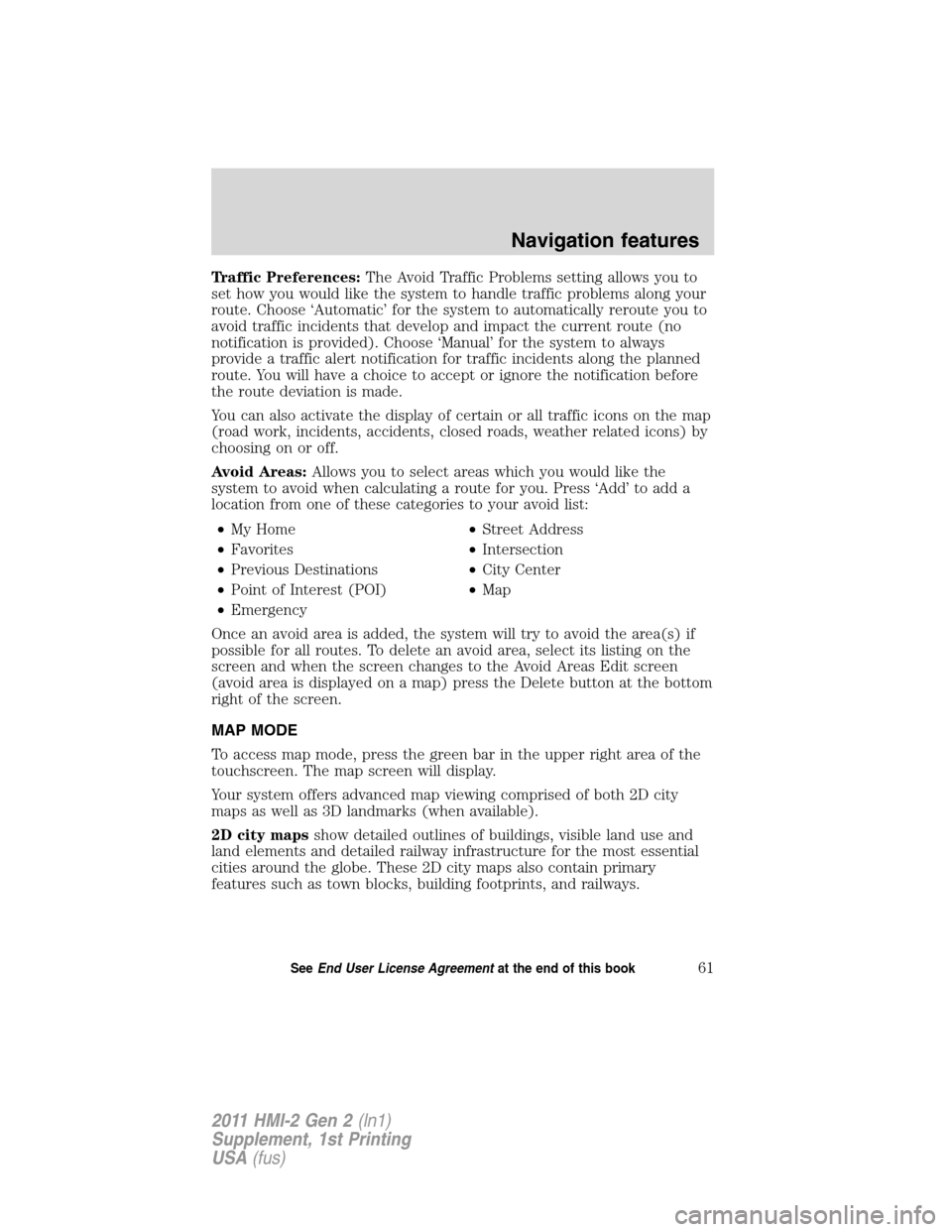

Traffic Preferences:The Avoid Traffic Problems setting allows you to
set how you would like the system to handle traffic problems along your
route. Choose ‘Automatic’ for the system to automatically reroute you to
avoid traffic incidents that develop and impact the current route (no
notification is provided). Choose ‘Manual’ for the system to always
provide a traffic alert notification for traffic incidents along the planned
route. You will have a choice to accept or ignore the notification before
the route deviation is made.
You can also activate the display of certain or all traffic icons on the map
(road work, incidents, accidents, closed roads, weather related icons) by
choosing on or off.
Avoid Areas:Allows you to select areas which you would like the
system to avoid when calculating a route for you. Press ‘Add’ to add a
location from one of these categories to your avoid list:
•My Home•Street Address
•Favorites•Intersection
•Previous Destinations•City Center
•Point of Interest (POI)•Map
•Emergency
Once an avoid area is added, the system will try to avoid the area(s) if
possible for all routes. To delete an avoid area, select its listing on the
screen and when the screen changes to the Avoid Areas Edit screen
(avoid area is displayed on a map) press the Delete button at the bottom
right of the screen.
MAP MODE
To access map mode, press the green bar in the upper right area of the
touchscreen. The map screen will display.
Your system offers advanced map viewing comprised of both 2D city
maps as well as 3D landmarks (when available).
2D city mapsshow detailed outlines of buildings, visible land use and
land elements and detailed railway infrastructure for the most essential
cities around the globe. These 2D city maps also contain primary
features such as town blocks, building footprints, and railways.
Navigation features
61SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

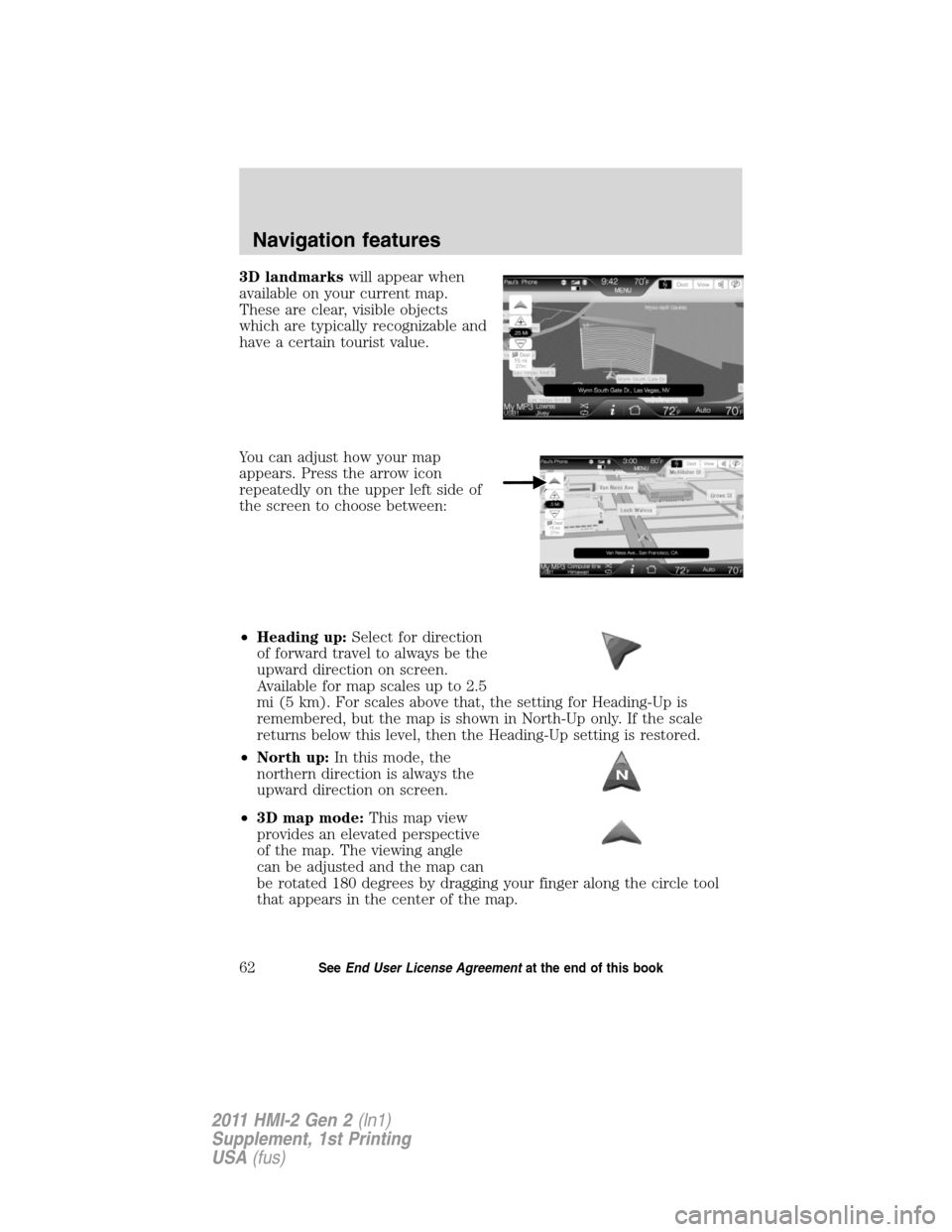

3D landmarkswill appear when
available on your current map.
These are clear, visible objects
which are typically recognizable and
have a certain tourist value.
You can adjust how your map
appears. Press the arrow icon
repeatedly on the upper left side of
the screen to choose between:
•Heading up:Select for direction
of forward travel to always be the
upward direction on screen.
Available for map scales up to 2.5
mi (5 km). For scales above that, the setting for Heading-Up is
remembered, but the map is shown in North-Up only. If the scale
returns below this level, then the Heading-Up setting is restored.
•North up:In this mode, the
northern direction is always the
upward direction on screen.
•3D map mode:This map view
provides an elevated perspective
of the map. The viewing angle
can be adjusted and the map can
be rotated 180 degrees by dragging your finger along the circle tool
that appears in the center of the map.
Navigation features
62SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

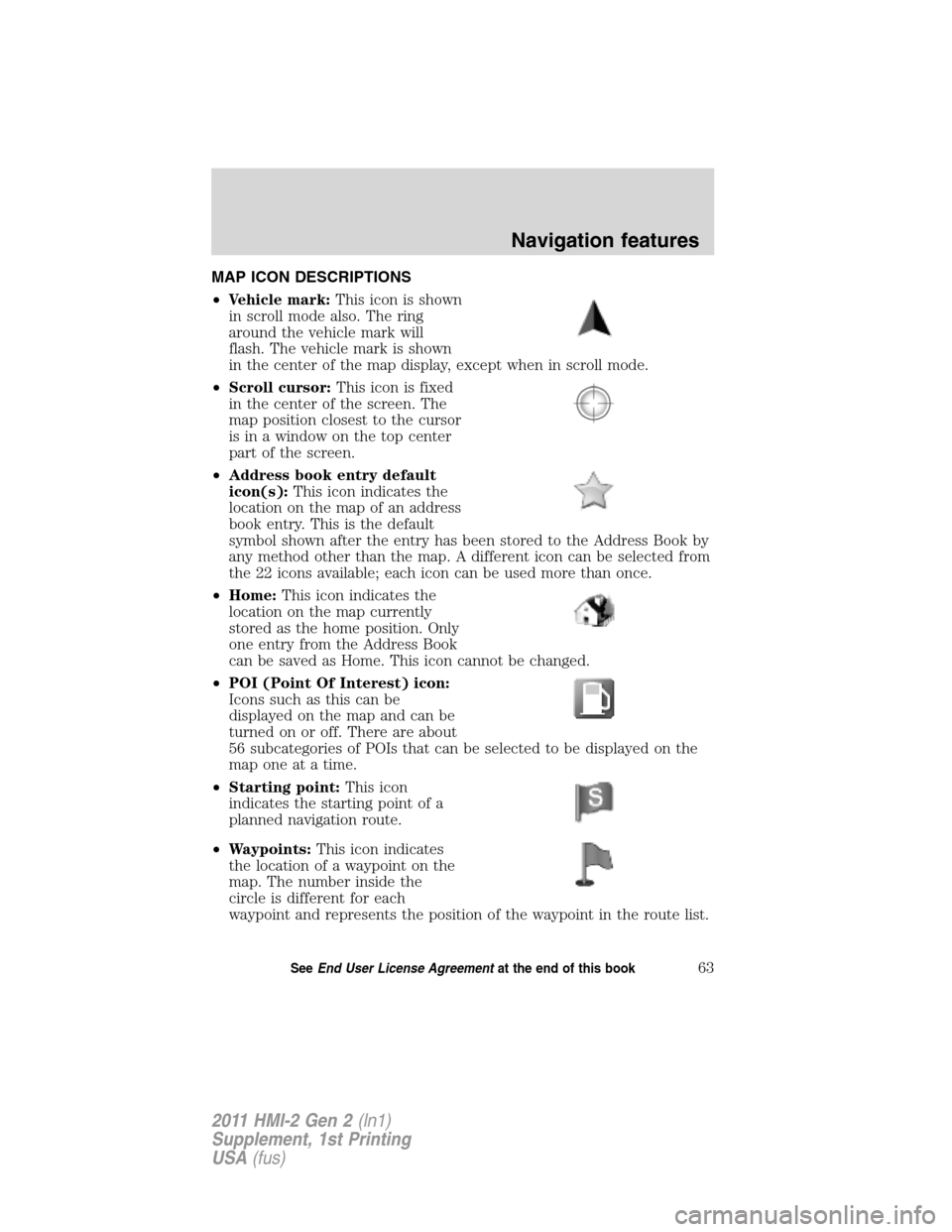

MAP ICON DESCRIPTIONS
•Vehicle mark:This icon is shown
in scroll mode also. The ring
around the vehicle mark will
flash. The vehicle mark is shown
in the center of the map display, except when in scroll mode.
•Scroll cursor:This icon is fixed
in the center of the screen. The
map position closest to the cursor
is in a window on the top center
part of the screen.
•Address book entry default
icon(s):This icon indicates the
location on the map of an address
book entry. This is the default
symbol shown after the entry has been stored to the Address Book by
any method other than the map. A different icon can be selected from
the 22 icons available; each icon can be used more than once.
•Home:This icon indicates the
location on the map currently
stored as the home position. Only
one entry from the Address Book
can be saved as Home. This icon cannot be changed.
•POI (Point Of Interest) icon:
Icons such as this can be
displayed on the map and can be
turned on or off. There are about
56 subcategories of POIs that can be selected to be displayed on the
map one at a time.
•Starting point:This icon
indicates the starting point of a
planned navigation route.
•Waypoints:This icon indicates
the location of a waypoint on the
map. The number inside the
circle is different for each
waypoint and represents the position of the waypoint in the route list.
Navigation features
63SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

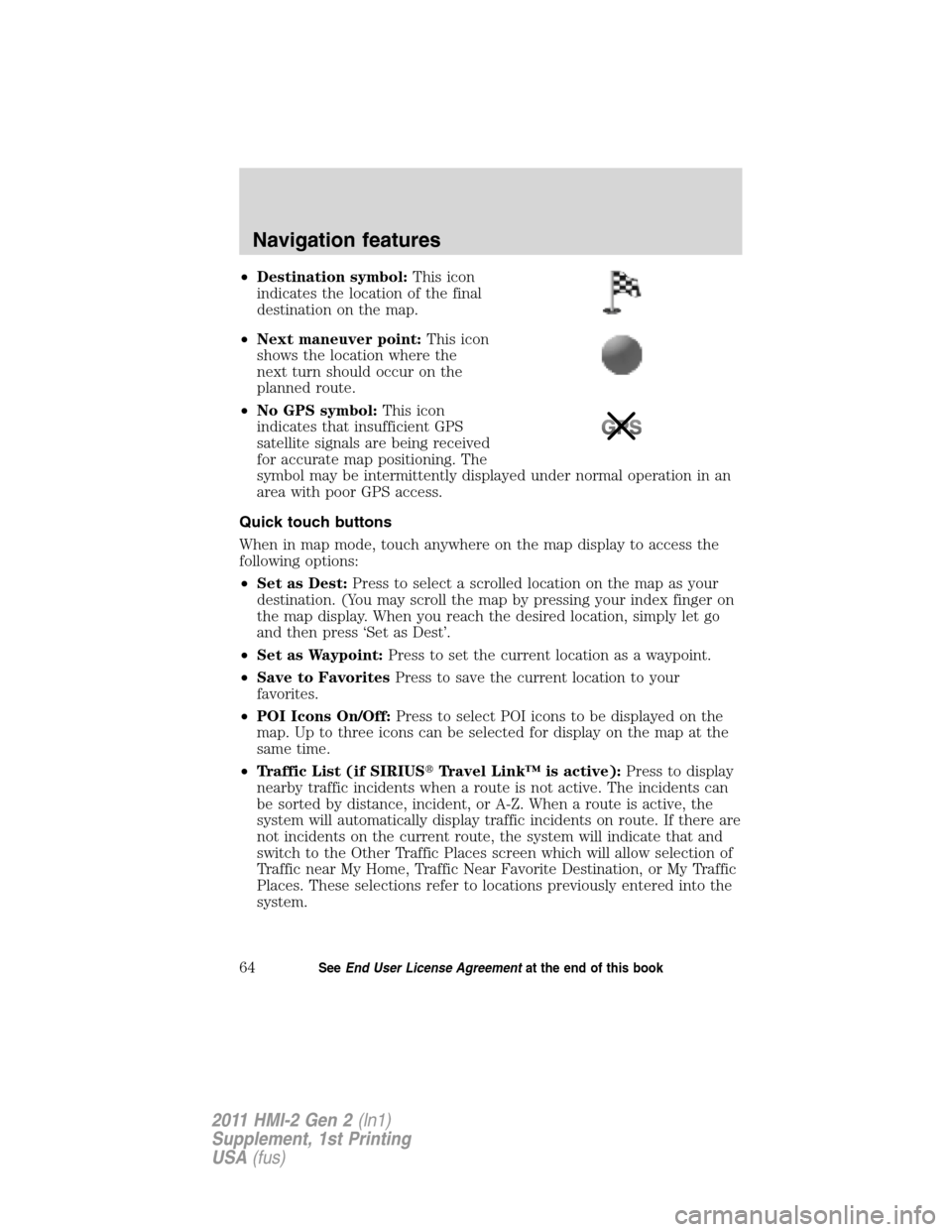

•Destination symbol:This icon
indicates the location of the final
destination on the map.
•Next maneuver point:This icon
shows the location where the
next turn should occur on the
planned route.
•No GPS symbol:This icon
indicates that insufficient GPS
satellite signals are being received
for accurate map positioning. The
symbol may be intermittently displayed under normal operation in an
area with poor GPS access.
Quick touch buttons
When in map mode, touch anywhere on the map display to access the
following options:
•Set as Dest:Press to select a scrolled location on the map as your
destination. (You may scroll the map by pressing your index finger on
the map display. When you reach the desired location, simply let go
and then press ‘Set as Dest’.
•Set as Waypoint:Press to set the current location as a waypoint.
•Save to FavoritesPress to save the current location to your
favorites.
•POI Icons On/Off:Press to select POI icons to be displayed on the
map. Up to three icons can be selected for display on the map at the
same time.
•Traffic List (if SIRIUSTravel Link™ is active):Press to display
nearby traffic incidents when a route is not active. The incidents can
be sorted by distance, incident, or A-Z. When a route is active, the
system will automatically display traffic incidents on route. If there are
not incidents on the current route, the system will indicate that and
switch to the Other Traffic Places screen which will allow selection of
Traffic near My Home, Traffic Near Favorite Destination, or My Traffic
Places. These selections refer to locations previously entered into the
system.
Navigation features
64SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

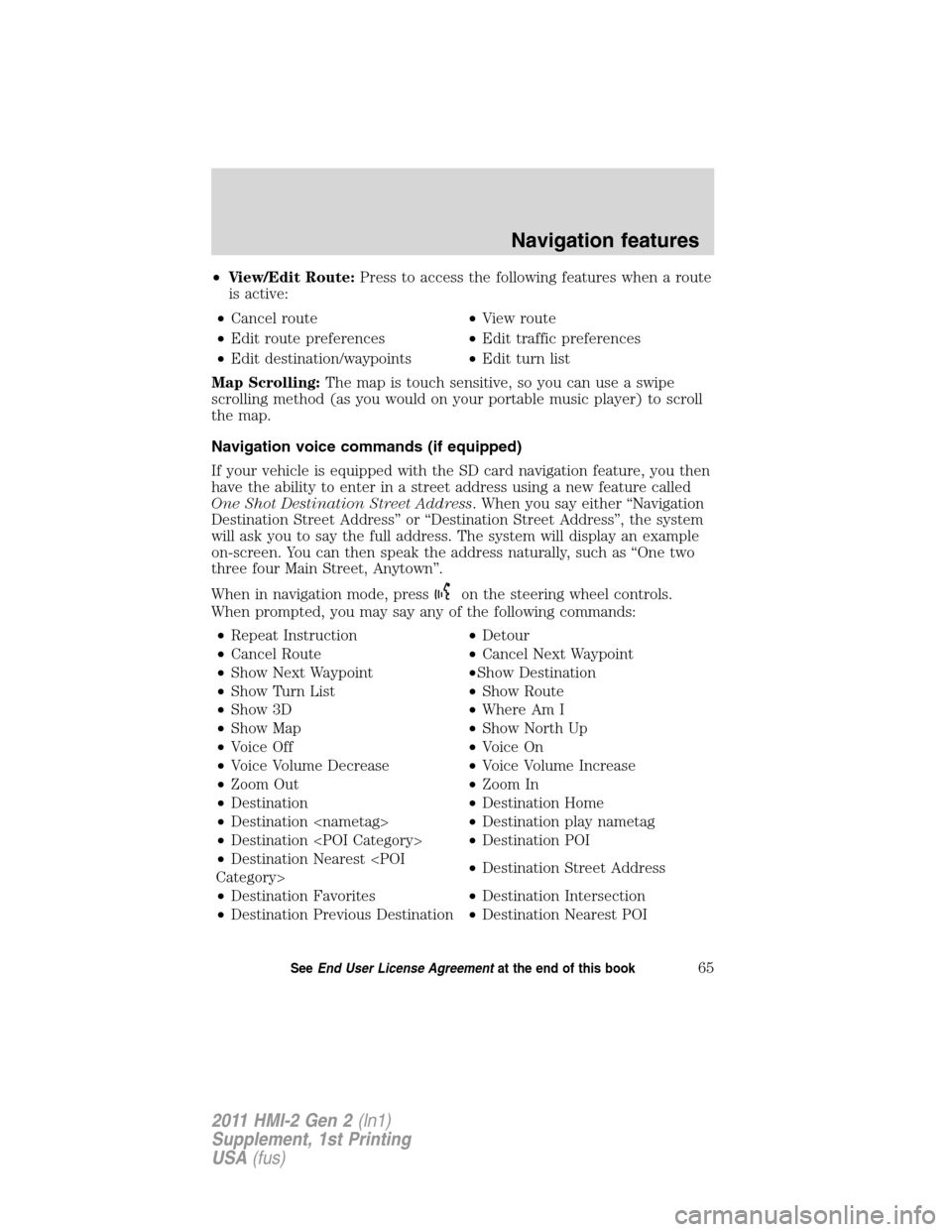

•View/Edit Route:Press to access the following features when a route
is active:
•Cancel route•View route
•Edit route preferences•Edit traffic preferences
•Edit destination/waypoints•Edit turn list
Map Scrolling:The map is touch sensitive, so you can use a swipe
scrolling method (as you would on your portable music player) to scroll
the map.
Navigation voice commands (if equipped)
If your vehicle is equipped with the SD card navigation feature, you then
have the ability to enter in a street address using a new feature called
One Shot Destination Street Address. When you say either “Navigation
Destination Street Address” or “Destination Street Address”, the system
will ask you to say the full address. The system will display an example
on-screen. You can then speak the address naturally, such as “One two
three four Main Street, Anytown”.
When in navigation mode, press
on the steering wheel controls.
When prompted, you may say any of the following commands:
•Repeat Instruction•Detour
•Cancel Route•Cancel Next Waypoint
•Show Next Waypoint•Show Destination
•Show Turn List•Show Route
•Show 3D•Where Am I
•Show Map•Show North Up
•Voice Off•Voice On
•Voice Volume Decrease•Voice Volume Increase
•Zoom Out•Zoom In
•Destination•Destination Home
•Destination •Destination play nametag
•Destination •Destination POI
•Destination Nearest Category>•Destination Street Address
•Destination Favorites•Destination Intersection
•Destination Previous Destination•Destination Nearest POI
Navigation features
65SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

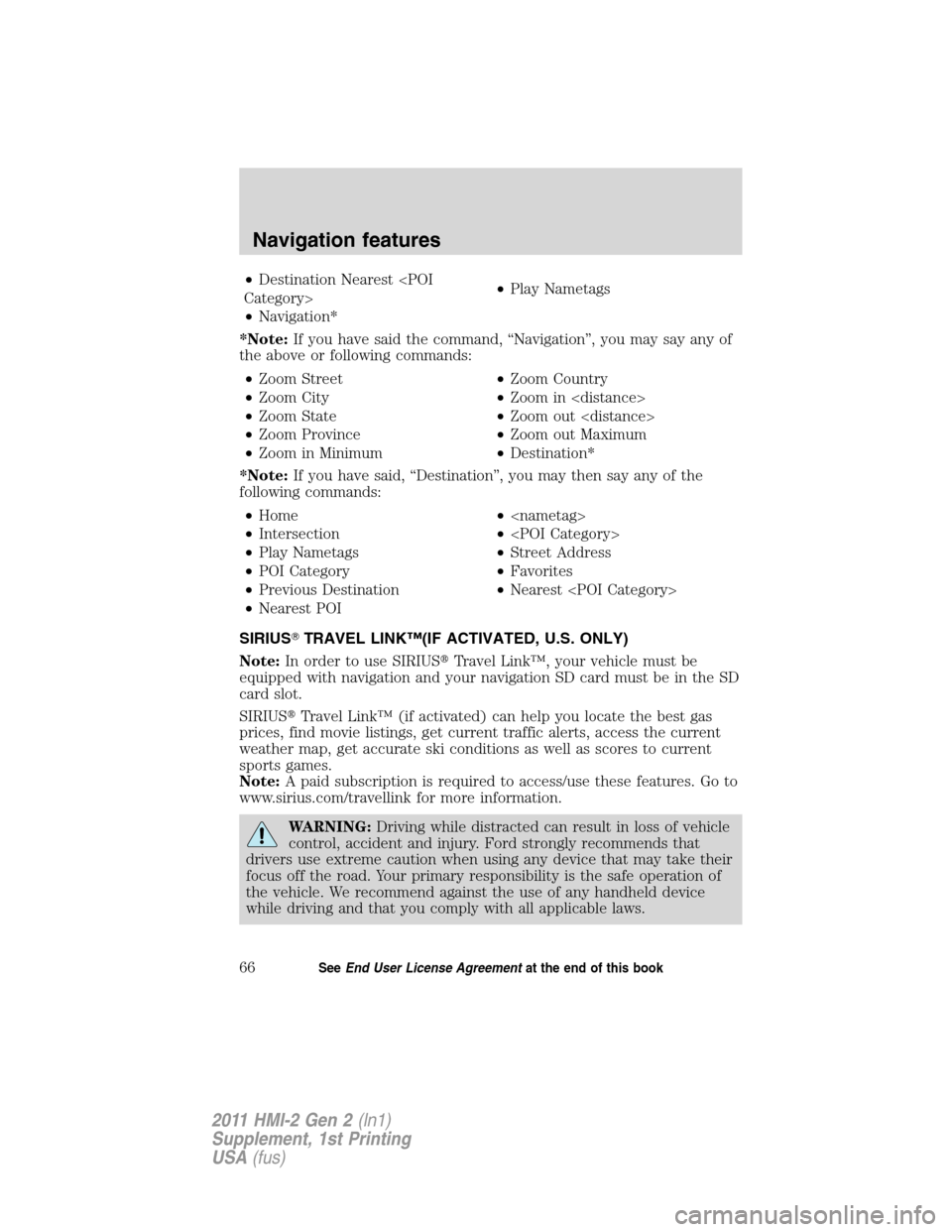

•Destination Nearest Category>•Play Nametags
•Navigation*
*Note:If you have said the command, “Navigation”, you may say any of
the above or following commands:
•Zoom Street•Zoom Country
•Zoom City•Zoom in
•Zoom State•Zoom out
•Zoom Province•Zoom out Maximum
•Zoom in Minimum•Destination*
*Note:If you have said, “Destination”, you may then say any of the
following commands:
•Home•
•Intersection•
•Play Nametags•Street Address
•POI Category•Favorites
•Previous Destination•Nearest
•Nearest POI
SIRIUSTRAVEL LINK™(IF ACTIVATED, U.S. ONLY)
Note:In order to use SIRIUSTravel Link™, your vehicle must be
equipped with navigation and your navigation SD card must be in the SD
card slot.
SIRIUSTravel Link™ (if activated) can help you locate the best gas
prices, find movie listings, get current traffic alerts, access the current
weather map, get accurate ski conditions as well as scores to current
sports games.
Note:A paid subscription is required to access/use these features. Go to
www.sirius.com/travellink for more information.
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. Your primary responsibility is the safe operation of
the vehicle. We recommend against the use of any handheld device
while driving and that you comply with all applicable laws.
Navigation features
66SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

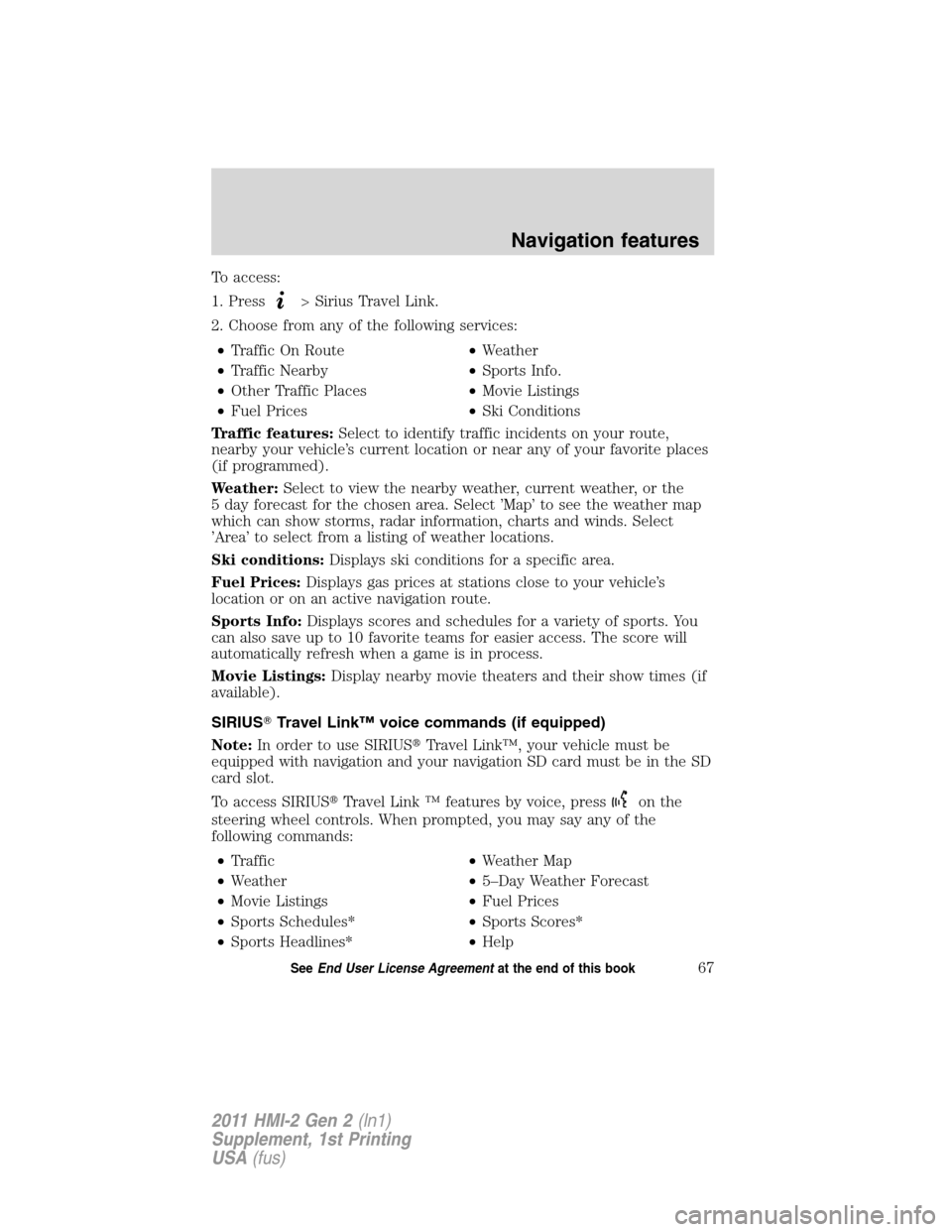

To access:
1. Press
> Sirius Travel Link.
2. Choose from any of the following services:
•Traffic On Route•Weather
•Traffic Nearby•Sports Info.
•Other Traffic Places•Movie Listings
•Fuel Prices•Ski Conditions
Traffic features:Select to identify traffic incidents on your route,
nearby your vehicle’s current location or near any of your favorite places
(if programmed).
Weather:Select to view the nearby weather, current weather, or the
5 day forecast for the chosen area. Select ’Map’ to see the weather map
which can show storms, radar information, charts and winds. Select
’Area’ to select from a listing of weather locations.
Ski conditions:Displays ski conditions for a specific area.
Fuel Prices:Displays gas prices at stations close to your vehicle’s
location or on an active navigation route.
Sports Info:Displays scores and schedules for a variety of sports. You
can also save up to 10 favorite teams for easier access. The score will
automatically refresh when a game is in process.
Movie Listings:Display nearby movie theaters and their show times (if
available).
SIRIUSTravel Link™ voice commands (if equipped)
Note:In order to use SIRIUSTravel Link™, your vehicle must be
equipped with navigation and your navigation SD card must be in the SD
card slot.
To access SIRIUSTravel Link ™ features by voice, press
on the
steering wheel controls. When prompted, you may say any of the
following commands:
•Traffic•Weather Map
•Weather•5–Day Weather Forecast
•Movie Listings•Fuel Prices
•Sports Schedules*•Sports Scores*
•Sports Headlines*•Help
Navigation features
67SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

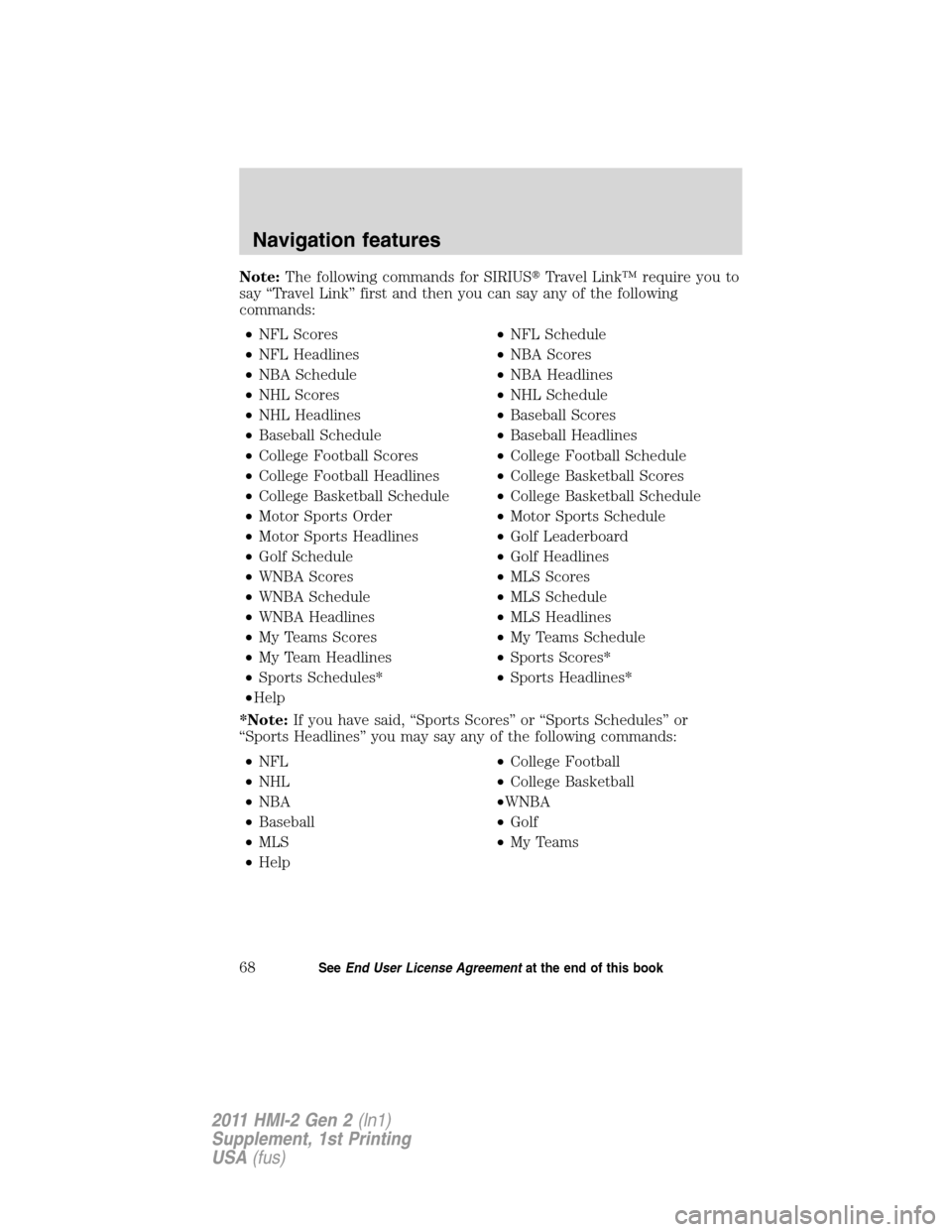

Note:The following commands for SIRIUSTravel Link™ require you to
say “Travel Link” first and then you can say any of the following
commands:
•NFL Scores•NFL Schedule
•NFL Headlines•NBA Scores
•NBA Schedule•NBA Headlines
•NHL Scores•NHL Schedule
•NHL Headlines•Baseball Scores
•Baseball Schedule•Baseball Headlines
•College Football Scores•College Football Schedule
•College Football Headlines•College Basketball Scores
•College Basketball Schedule•College Basketball Schedule
•Motor Sports Order•Motor Sports Schedule
•Motor Sports Headlines•Golf Leaderboard
•Golf Schedule•Golf Headlines
•WNBA Scores•MLS Scores
•WNBA Schedule•MLS Schedule
•WNBA Headlines•MLS Headlines
•My Teams Scores•My Teams Schedule
•My Team Headlines•Sports Scores*
•Sports Schedules*•Sports Headlines*
•Help
*Note:If you have said, “Sports Scores” or “Sports Schedules” or
“Sports Headlines” you may say any of the following commands:
•NFL•College Football
•NHL•College Basketball
•NBA•WNBA
•Baseball•Golf
•MLS•
My Teams
•Help
Navigation features
68SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

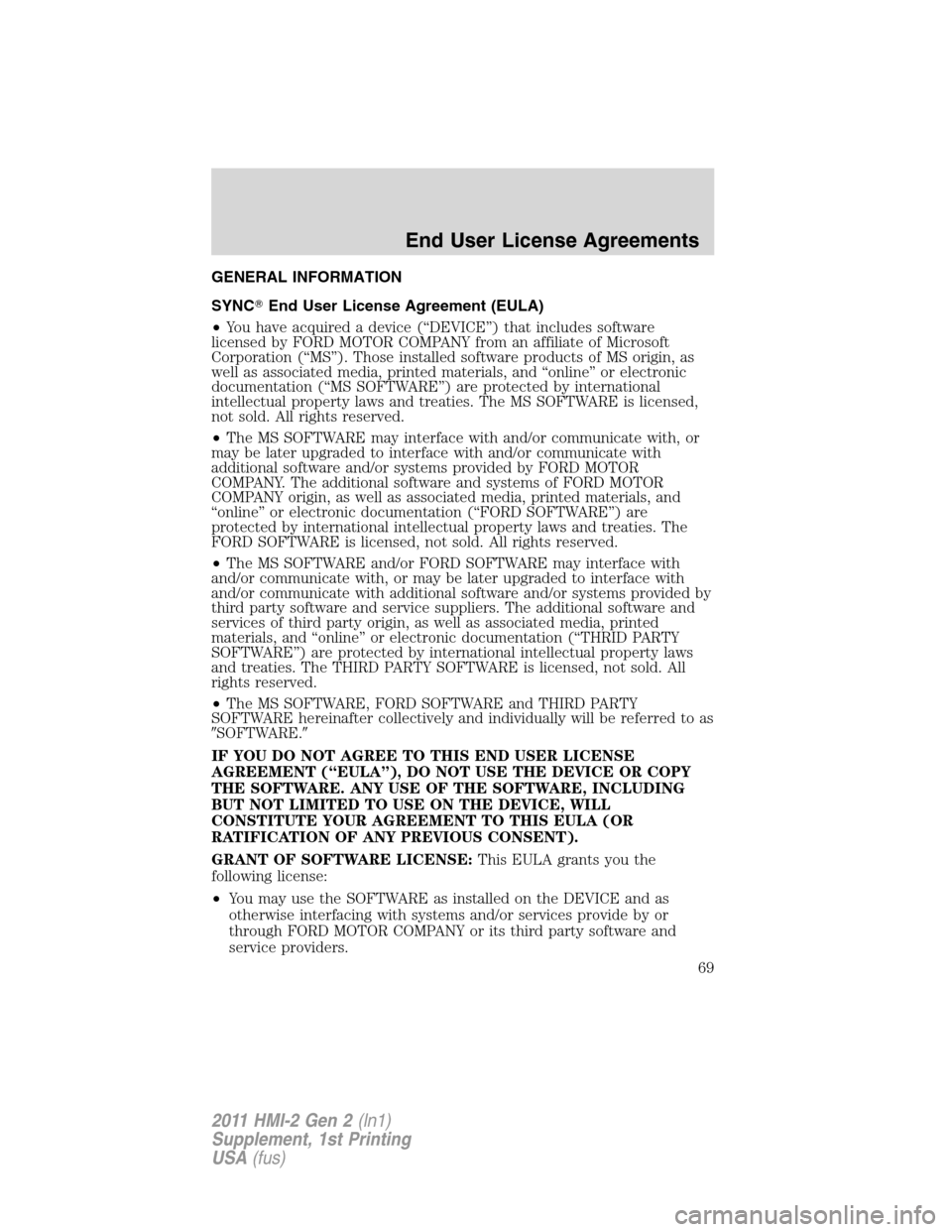

GENERAL INFORMATION
SYNCEnd User License Agreement (EULA)
•You have acquired a device (“DEVICE”) that includes software
licensed by FORD MOTOR COMPANY from an affiliate of Microsoft
Corporation (“MS”). Those installed software products of MS origin, as
well as associated media, printed materials, and “online” or electronic
documentation (“MS SOFTWARE”) are protected by international
intellectual property laws and treaties. The MS SOFTWARE is licensed,
not sold. All rights reserved.
•The MS SOFTWARE may interface with and/or communicate with, or
may be later upgraded to interface with and/or communicate with
additional software and/or systems provided by FORD MOTOR
COMPANY. The additional software and systems of FORD MOTOR
COMPANY origin, as well as associated media, printed materials, and
“online” or electronic documentation (“FORD SOFTWARE”) are
protected by international intellectual property laws and treaties. The
FORD SOFTWARE is licensed, not sold. All rights reserved.
•The MS SOFTWARE and/or FORD SOFTWARE may interface with
and/or communicate with, or may be later upgraded to interface with
and/or communicate with additional software and/or systems provided by
third party software and service suppliers. The additional software and
services of third party origin, as well as associated media, printed
materials, and “online” or electronic documentation (“THRID PARTY
SOFTWARE”) are protected by international intellectual property laws
and treaties. The THIRD PARTY SOFTWARE is licensed, not sold. All
rights reserved.
•The MS SOFTWARE, FORD SOFTWARE and THIRD PARTY
SOFTWARE hereinafter collectively and individually will be referred to as
SOFTWARE.
IF YOU DO NOT AGREE TO THIS END USER LICENSE
AGREEMENT (“EULA”), DO NOT USE THE DEVICE OR COPY
THE SOFTWARE. ANY USE OF THE SOFTWARE, INCLUDING
BUT NOT LIMITED TO USE ON THE DEVICE, WILL
CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR
RATIFICATION OF ANY PREVIOUS CONSENT).
GRANT OF SOFTWARE LICENSE:This EULA grants you the
following license:
•You may use the SOFTWARE as installed on the DEVICE and as
otherwise interfacing with systems and/or services provide by or
through FORD MOTOR COMPANY or its third party software and
service providers.
End User License Agreements
69
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
