FORD F-650/750 2022 Manual PDF

Powertrain Malfunction/Reduced
Power/Electronic Throttle Control
(If Equipped)
Illuminates in the event of a
powertrain fault. Have your
vehicle checked as soon as
possible.
Service Engine Soon If it illuminates when the engine
is running, the on-board
diagnostics system notifies you
that the emission control system requires
service.
If it flashes, engine misfire may be
occurring. An increase in exhaust gas
temperatures can damage the catalytic
converter or other vehicle components.
Avoid heavy acceleration and deceleration
and have your vehicle immediately
serviced.
It illuminates when you switch the ignition
on prior to engine start to check the bulb
and to indicate whether your vehicle is
ready for Inspection and Maintenance
(I/M) testing.
Normally, it illuminates until the engine is
cranked and turns off if no malfunctions
are present. However, if after 15 seconds
it flashes eight times, this indicates that
your vehicle is not ready for inspection and
maintenance (I/M) testing.
See Catalytic Converter (page 116).
Stability Control Indicator (If Equipped) Flashes during operation.
If it does not illuminate when you switch
the ignition on, or remains on when the
engine is running, this indicates a
malfunction. Have your vehicle checked
as soon as possible. Traction Control Indicator Flashes during a traction control
event.
If it does not illuminate when you switch
the ignition on, or remains on when the
engine is running, this indicates a
malfunction. Have your vehicle checked
as soon as possible.
Traction Control System Off Illuminates when you switch the
system off.
Trailer Anti-Lock Brake System
(ABS) Briefly illuminates when you
switch on the ignition, and only
when you connect a PLC trailer
or a PLC diagnostic tool. If the light fails to
illuminate, remains on after you start the
vehicle or continues to flash, have the
system immediately serviced.
Transmission Tow/Haul Illuminates when you switch on
tow/haul. If the light steadily
flashes, have the system
immediately serviced, damage to the
transmission could occur.
Two Speed Axle (If Equipped) The two speed axle indicator
comes on when you switch the
low axle range on.
Wait to Start
(If Equipped) Illuminates when you switch the
ignition on as part of the
pre-start system. Wait until the
wait to start indicator turns off before
attempting to start vehicle.
68
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Instrument Cluster E138639 E138639 E194301 E209040 E246592 E208809

WARNING: Do not use starting
fluid, for example ether, in the air intake
system. Such fluid could cause
immediate explosive damage to the
engine and possible personal injury.
Water in Fuel
(If Equipped) Illuminates when the fuel
filter/water separator has a
significant quantity of water in
it.
If the light illuminates when the engine is
running, stop the vehicle as soon as safely
possible, shut off the engine, then drain the
fuel filter/water separator.
Allowing water to stay in the system could
result in extensive damage to, or failure of,
the fuel injection system. WARNING:
Do not drain the
water-in-fuel separator while the engine
is running. Failure to follow this warning
may result in fire, serious injury, death or
property damage.
AUDIBLE WARNINGS AND
INDICATORS
Headlamps On Warning Chime
Sounds when you remove the key from the
ignition and open the driver's door and you
have left the headlamps or parking lamps
on.
Key in Ignition Warning Chime
Sounds when you open the driver's door
and you have left the key in the ignition. Parking Brake On Warning Chime
Sounds when you have left the parking
brake on and drive your vehicle. If the
warning chime remains on after you have
released the parking brake, have the
system checked by your authorized dealer
immediately.
69
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Instrument Cluster

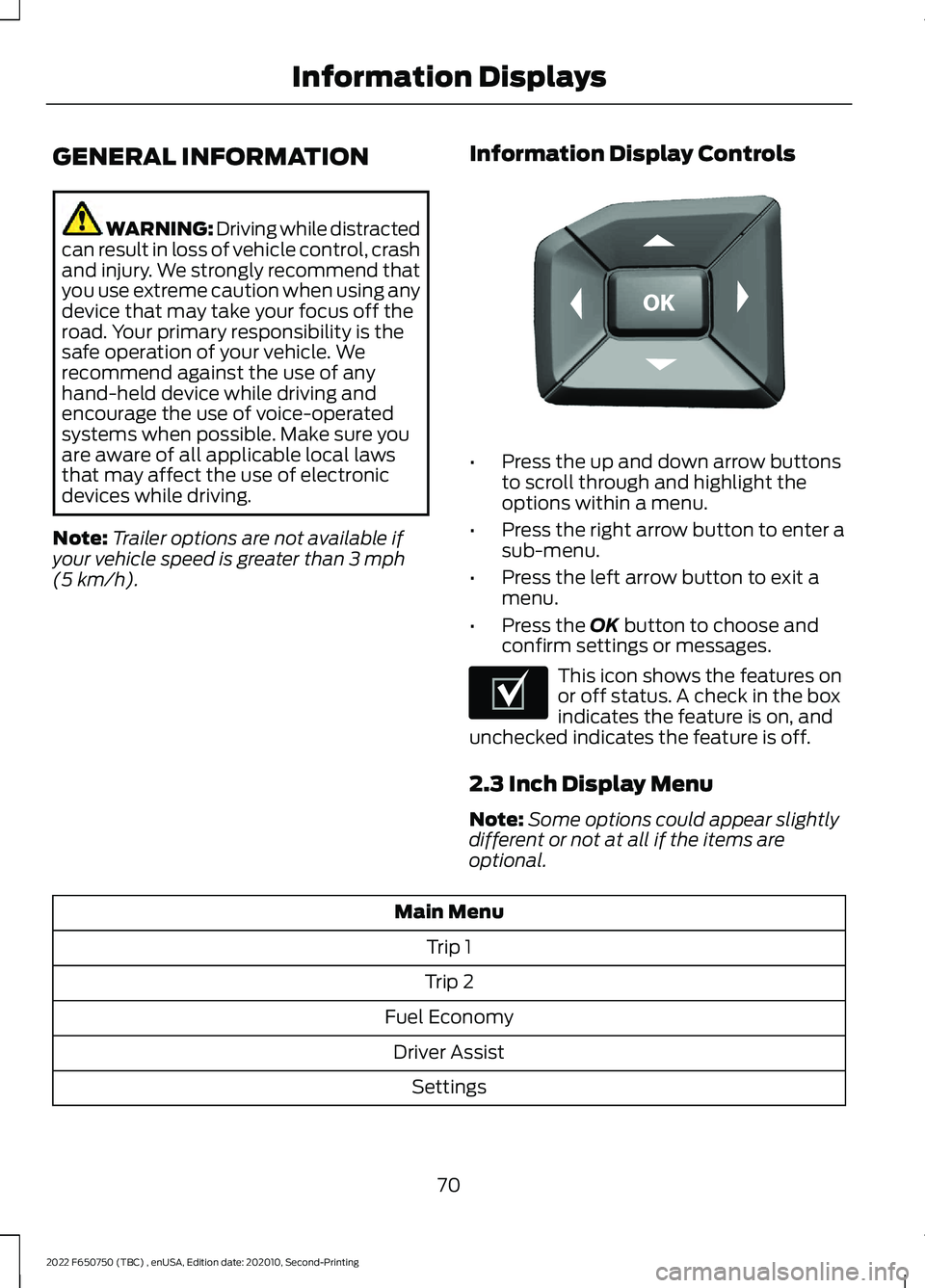

GENERAL INFORMATION
WARNING: Driving while distracted
can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.
Note: Trailer options are not available if
your vehicle speed is greater than 3 mph
(5 km/h). Information Display Controls •
Press the up and down arrow buttons
to scroll through and highlight the
options within a menu.
• Press the right arrow button to enter a
sub-menu.
• Press the left arrow button to exit a
menu.
• Press the
OK button to choose and
confirm settings or messages. This icon shows the features on
or off status. A check in the box
indicates the feature is on, and
unchecked indicates the feature is off.
2.3 Inch Display Menu
Note: Some options could appear slightly
different or not at all if the items are
optional. Main Menu
Trip 1
Trip 2
Fuel Economy Driver Assist Settings
70
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Information DisplaysE184451 E204495

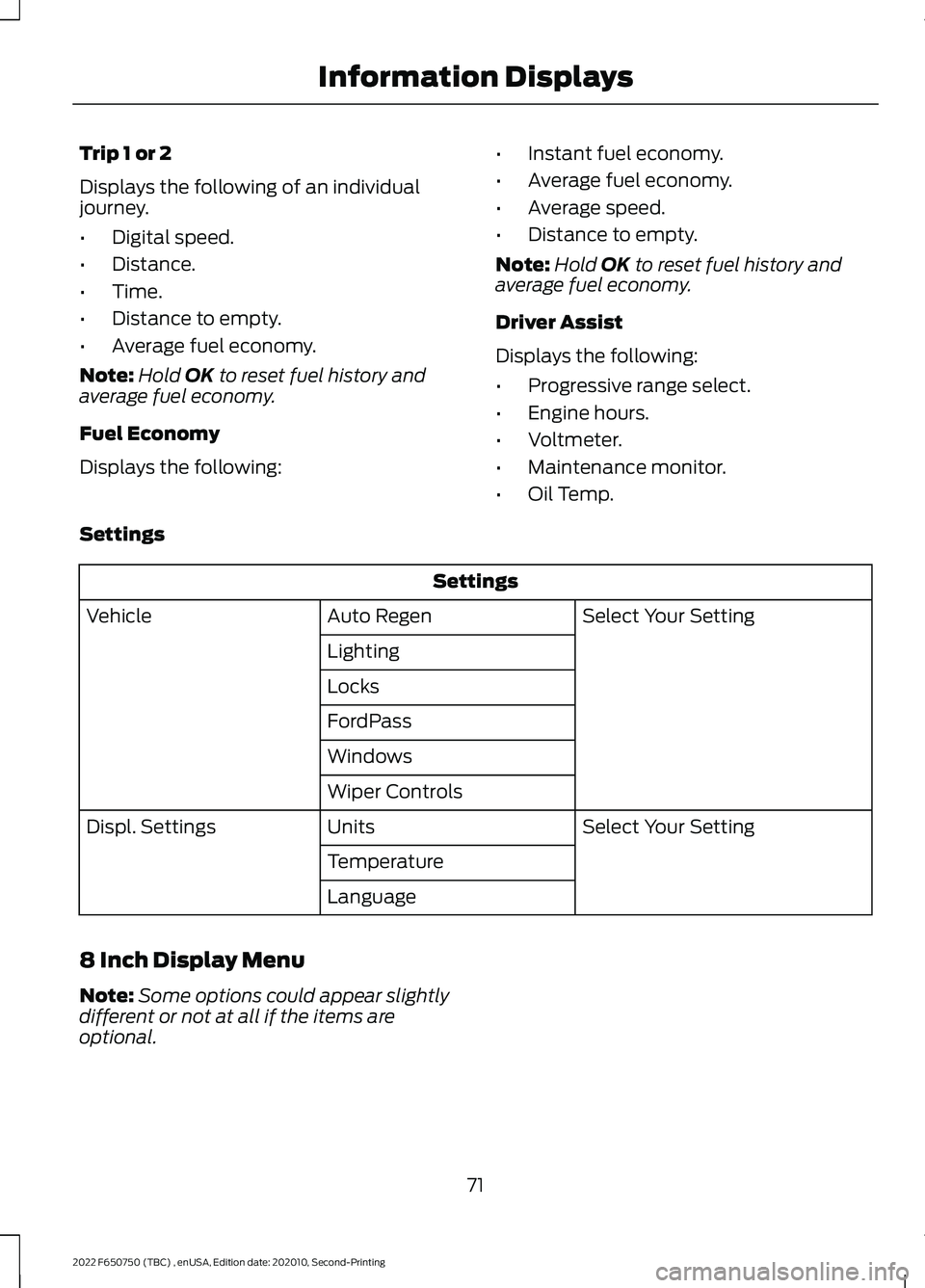

Trip 1 or 2
Displays the following of an individual
journey.
•
Digital speed.
• Distance.
• Time.
• Distance to empty.
• Average fuel economy.
Note: Hold OK to reset fuel history and
average fuel economy.
Fuel Economy
Displays the following: •
Instant fuel economy.
• Average fuel economy.
• Average speed.
• Distance to empty.
Note: Hold
OK to reset fuel history and
average fuel economy.
Driver Assist
Displays the following:
• Progressive range select.
• Engine hours.
• Voltmeter.
• Maintenance monitor.
• Oil Temp.
Settings Settings
Select Your Setting
Auto Regen
Vehicle
Lighting
Locks
FordPass
Windows
Wiper Controls Select Your Setting
Units
Displ. Settings
Temperature
Language
8 Inch Display Menu
Note: Some options could appear slightly
different or not at all if the items are
optional.
71
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Information Displays

Main Menu
MyView
Trip/Fuel
Truck Info Settings
MyView MyView
Trip 1
Fuel Economy For more options, press the OK button.
Configure MyView
Trip/Fuel Trip/Fuel
Trip 1
Trip 2
Fuel Economy
Fuel History
Trip 1 or 2
Displays the following of an individual
journey.
• Trip timer.
• Distance to empty.
• Trip odometer.
• Average fuel economy.
Note: Hold
OK to reset fuel history and
average fuel economy. Fuel Economy
Displays your instantaneous fuel usage as
a bar graph and average mpg.
Fuel History
Displays your fuel usage based on time.
The graph is updated each minute with the
fuel economy that you achieved during 30
minutes of driving.
72
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Information Displays

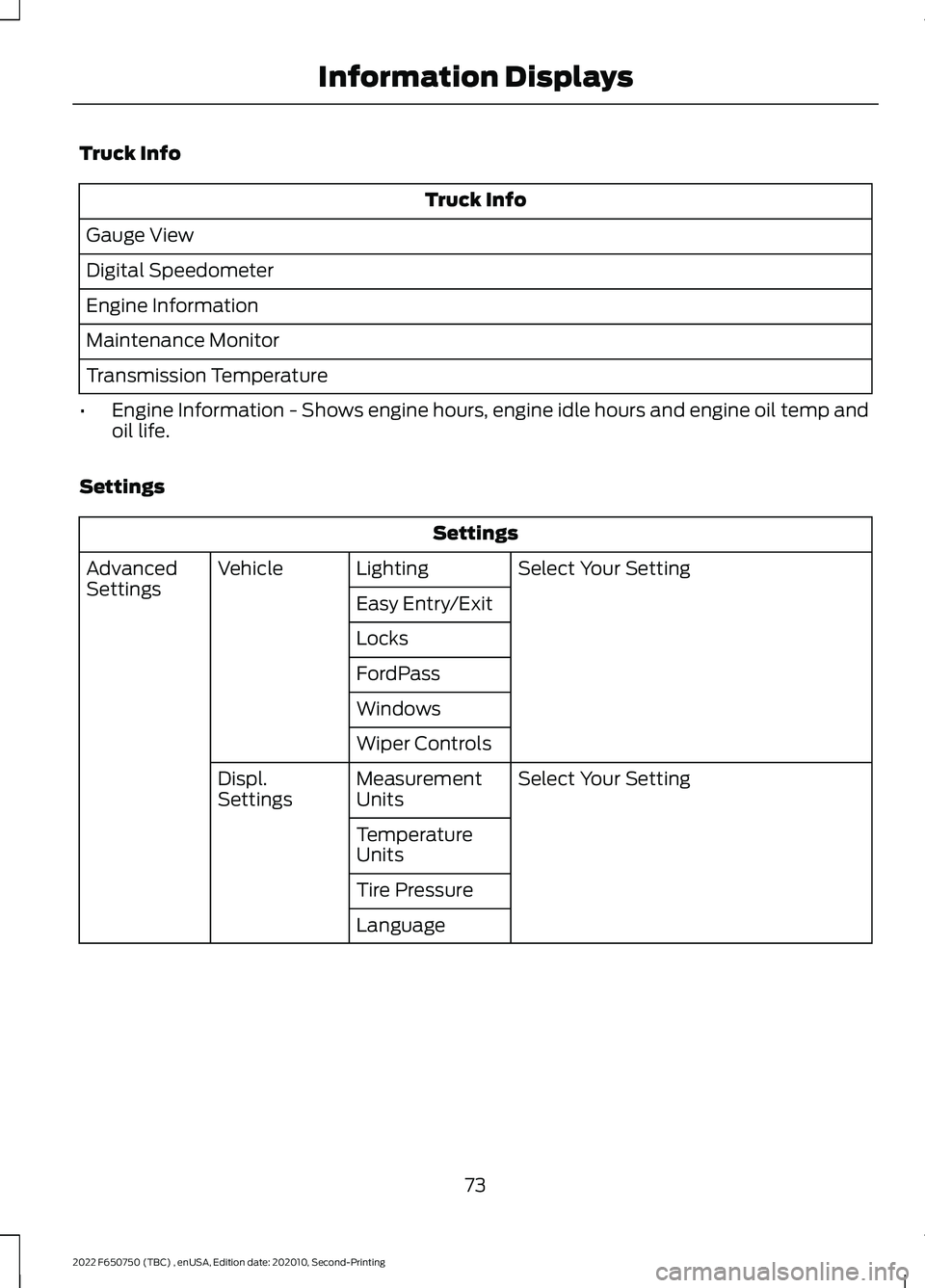

Truck Info
Truck Info
Gauge View
Digital Speedometer
Engine Information
Maintenance Monitor
Transmission Temperature
• Engine Information - Shows engine hours, engine idle hours and engine oil temp and
oil life.
Settings Settings
Select Your Setting
Lighting
Vehicle
Advanced
Settings
Easy Entry/Exit
Locks
FordPass
Windows
Wiper Controls
Select Your Setting
Measurement
Units
Displ.
Settings
Temperature
Units
Tire Pressure
Language
73
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Information Displays

INFORMATION MESSAGES
Note:
Not all messages will display or be
available depending on your vehicle options
and instrument cluster type. The
information display may abbreviate or
shorten certain messages. Press the OK button to acknowledge and
remove some messages from the
information display. The information
display will automatically remove other
messages after a short period of time.
You need to confirm certain messages
before you can access the menus.
Adaptive Cruise Control Action
Message
The radar requires service and is preventingthe adaptive cruise control from engaging.
Adaptive Cruise Malfunction
A condition exists such that the adaptivecruise cannot function properly.
Adaptive Cruise Not Available
You have a blocked sensor due to
inclement weather, ice, mud or water in
front of the radar sensor. You can typically clean the sensor to resolve.
Adaptive Cruise Not Available Sensor
Blocked See Manual
The system has disabled the automaticbraking. Verify the system is on, if the
message continues to display have the system checked as soon as possible.
Normal Cruise Active Adaptive Braking Off
The radar requires service and is preventingthe adaptive cruise control from engaging.
Front Sensor Not Aligned
74
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Information DisplaysE184451

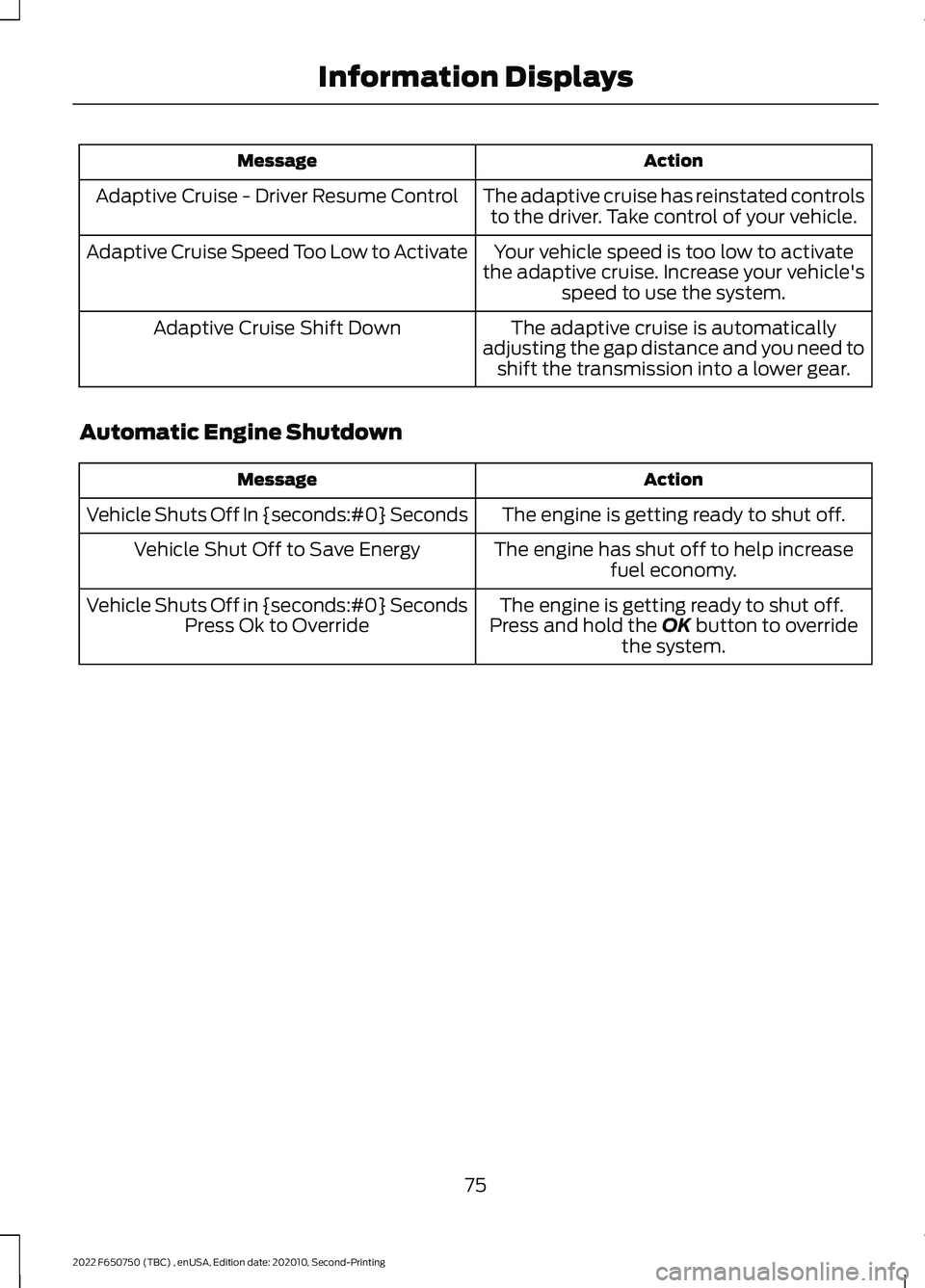

Action
Message
The adaptive cruise has reinstated controlsto the driver. Take control of your vehicle.
Adaptive Cruise - Driver Resume Control
Your vehicle speed is too low to activate
the adaptive cruise. Increase your vehicle's speed to use the system.
Adaptive Cruise Speed Too Low to Activate
The adaptive cruise is automatically
adjusting the gap distance and you need to shift the transmission into a lower gear.
Adaptive Cruise Shift Down
Automatic Engine Shutdown Action
Message
The engine is getting ready to shut off.
Vehicle Shuts Off In {seconds:#0} Seconds
The engine has shut off to help increasefuel economy.
Vehicle Shut Off to Save Energy
The engine is getting ready to shut off.
Press and hold the OK button to override
the system.
Vehicle Shuts Off in {seconds:#0} Seconds
Press Ok to Override
75
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Information Displays

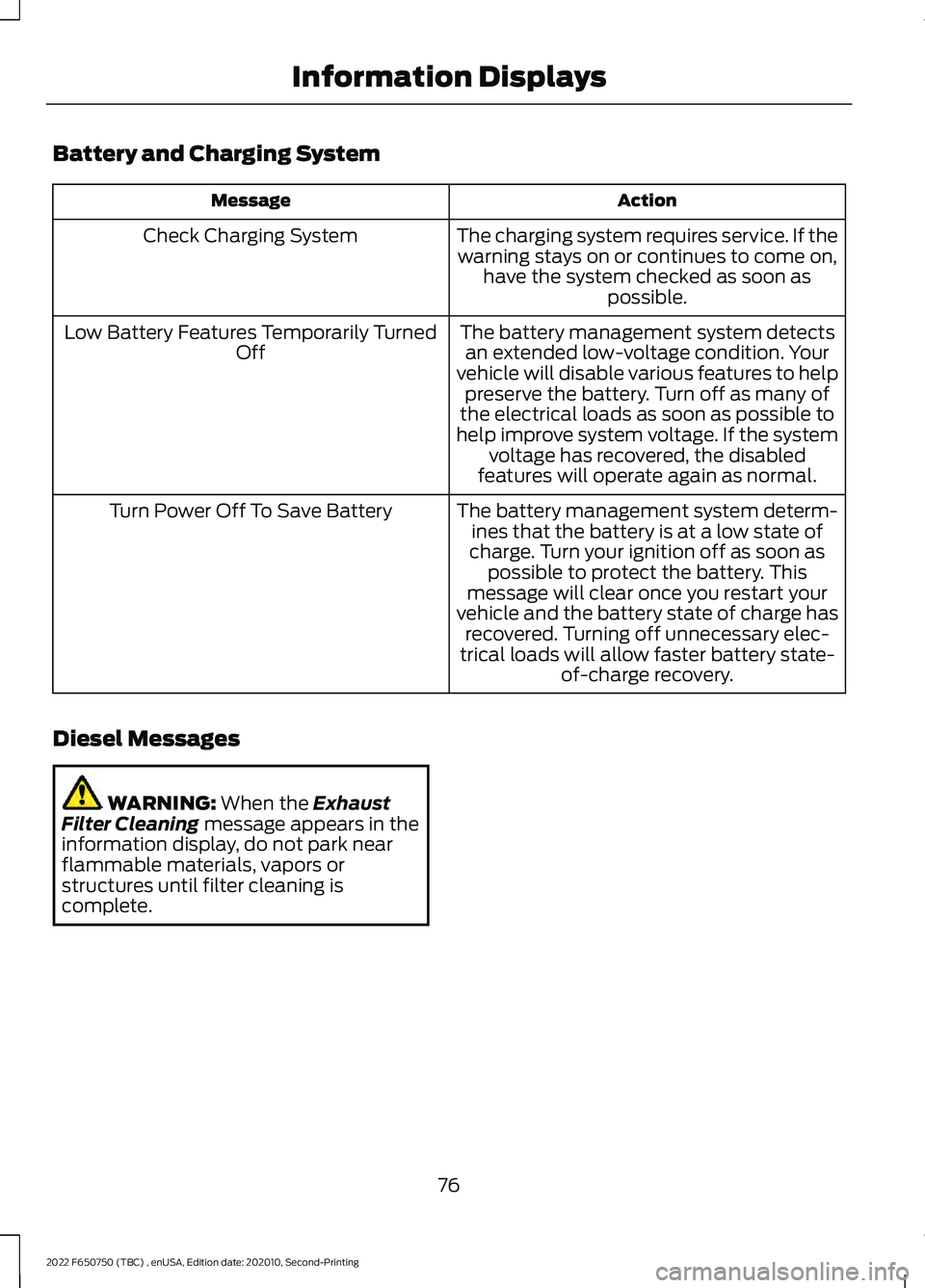

Battery and Charging System
Action
Message
The charging system requires service. If thewarning stays on or continues to come on, have the system checked as soon as possible.
Check Charging System
The battery management system detectsan extended low-voltage condition. Your
vehicle will disable various features to help preserve the battery. Turn off as many of
the electrical loads as soon as possible to
help improve system voltage. If the system voltage has recovered, the disabled
features will operate again as normal.
Low Battery Features Temporarily Turned
Off
The battery management system determ-ines that the battery is at a low state of
charge. Turn your ignition off as soon as possible to protect the battery. This
message will clear once you restart your
vehicle and the battery state of charge has recovered. Turning off unnecessary elec-
trical loads will allow faster battery state- of-charge recovery.
Turn Power Off To Save Battery
Diesel Messages WARNING: When the Exhaust
Filter Cleaning message appears in the
information display, do not park near
flammable materials, vapors or
structures until filter cleaning is
complete.
76
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Information Displays

Action
Message
Your vehicle has entered the cleaning
mode. Various engine actions raises the
exhaust temperature in the diesel particu- late filter system to burn off the particles,exhaust soot. After the vehicle burns the particles off, the exhaust temperature returns to normal levels.
Exhaust Filter Cleaning
The diesel particulate filter is full of
particles, exhaust soot, and you are not operating the vehicle in a manner that
allows normal cleaning. Drive the vehicle
above 30 mph (48 km/h) until the message clears.
Exhaust Filter Overloaded Drive to Clean
Exhaust Filter Overloaded Clean Now Exhaust Filter at Limit Clean Now
Exhaust Filter at Limit Drive to Clean Now The exhaust system temperature exceeded
the intended operating range. If this warning
occurs, a tone sounds, followed by reduced
engine power. The engine shuts down whenyour vehicle speed is below 3 mph
(5 km/h). Stop the vehicle as soon as safely
possible. Have the system checked as soon as possible.
Exhaust System Overheated Stop Safely
NOW
In extremely cold weather, typically below
-15°F (-26°C) and if the engine block heater is not utilized, your engine will not respond
to accelerator pedal movement for a short period of time. This restriction allows your
engine to properly circulate the oil to avoid engine damage.
Engine Warming Please Wait {seconds:00}
sec
The diesel particulate filter is clean.
Exhaust Filter Drive Complete
The diesel filter is clean, operatorcommanded regeneration only.
Exhaust Filter Cleaned
The manual regeneration process has
stopped, operator commanded regenera- tion only.
Exhaust Filter Cleaning Stopped
The distance you can travel before
depleting the remaining diesel exhaust fluid.
DEF Level Low Range: distance
imperial:###0 mi Refill Now
DEF Level Low Range: distance metric:###0 km Refill Now
77
2022 F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Information Displays
