FORD F150 1996 10.G Owners Manual

332 %
*
[SV24500(BEF )03/95]
Wiper Blades
*
[SV24600(BEF )03/95]
Check the windshield wiper blades at least twice
a year. Also check them whenever they seem
less effective than usual. Such substances as tree
sap and some hot wax treatments used by
commercial car washes reduce the effectiveness
of wiper blades.
*
[SV24700(BEF )03/95]
If the blades do not wipe properly, clean both
the windshield and the wiper blades. Use
undiluted windshield washer solution or a mild
detergent. Rinse thoroughly with clear water. Do
not use fuel, kerosene, paint thinner, or other
solvents to clean your wiper blades. These will
damage your blades.
*
[SV24800(BEF )02/95]
To make reaching the wiper blades easy, simply
turn the ignition switch to ACC and turn your
wipers on. Wait for them to reach a vertical
position and turn the ignition to OFF. Do not
move the wipers manually. Moving the wipers
manually may damage them.
*
[SV24900(BEF )03/01]
Wiper blade replacement
*
[SV25000(BEF )03/95]
If the wiper blades still do not work properly
after you clean them, you may need to replace
the wiper blade assembly or the blade element.
When replacing the wiper blade assembly, blade
refill, or wiper arm always use a Motorcraft part
or equivalent. To replace the blades, follow the
instructions that come with them.
*
[SV25200( ALL)03/95]
Tires
*
[SV25300( ALL)03/95]
Look at your tires each time you fill your fuel
tank. If one tire looks lower than the others,
check the pressure in all of them. Always follow
these precautions:
*
[SV25400( ALL)04/95]
q
Keep your tires inflated to the pressures that
are recommended.(SeeChecking the pressure
of the tireslater in this chapter.)
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

333
*
[SV25500(BEF )02/95]
q
Stay within the recommended load limits (see
Load limitsin the Index).
*
[SV25600( ALL)02/95]
q
Make sure the weight of your load is evenly
distributed.
*
[SV25700( ALL)10/89]
q
Drive at safe speeds.
*
[SV25800( ALL)01/95]
If you do not take these precautions, your tires
may fail or go flat.
*
[SV25875( ALL)05/95]
Ford Motor Company recommends obeying
posted speed limits.
*
[SV25900( ALL)05/95]
RWARNING
Driving too fast for conditions creates the
possibility of loss of vehicle control.
Driving at very high speeds for extended
periods of time may result in damage to
vehicle components.
*
[SV26000( ALL)03/95]
Checking the pressure of the tires
*
[SV26100( ALL)11/89]
At least once a month, check the pressure in all
your vehicle's tires, including the spare. Use an
accurate tire pressure gauge. Check the tire
pressure when tires are cold, that is, after the
vehicle has been parked for at least one hour or
has been driven less than 3 miles (5 km). You
can find the proper cold pressure on the Safety
Compliance Certification Label.
*
[SV26150( ALL)05/95]
RWARNING
Improperly inflated tires can affect vehicle
handling and can fail suddenly, possibly
resulting in loss of vehicle control.
*
[SV26200( ALL)02/95]
Tire inspection and maintenance
*
[SV26300( ALL)02/95]
Inspect the tire treads, and remove stones, nails,
glass or other objects that may be wedged in the
tread grooves. Check for holes or cuts that may
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

334permit air to leak from the tire, and make the
necessary repairs.
*
[SV26400( ALL)10/89]
Inspect the tire side walls for cuts, bruises and
other damage. If you suspect internal damage to
the tire, have it demounted and checked. You
may need to repair or replace it.
*
[SV26410( ALL)11/89]
Wheel inspection and maintenance
*
[SV26420( ALL)11/89]
Check for damage that would affect the runout
of the wheels. Wobble or shimmy will eventually
damage the wheel bearings.
*
[SV26430( ALL)06/93]
Front wheel bearings require periodic repacking
and adjustment as specified in theMaintenance
Schedule and Recordbooklet. Loose or worn front
wheel bearings tend to let the vehicle wander or
shimmy, and can eventually cause excessive tire
wear.
[SV26435( ALL)05/95]
Whenever a wheel is removed and then
re-installed, always remove any corrosion that
may be present on the mounting surface of the
wheel and/or the surface of the hub, drum or
rotor that contacts the wheel.
*
[SV26440( ALL)05/95]
RWARNING
Installing wheels without good
metal-to-metal contact at the wheel
mounting surface can cause the wheel lug
nuts to loosen and could allow the wheel
to come off while the vehicle is in motion.
*
[SV26445( EFM)05/90]
Also retighten at 500 miles (800 km) after
any wheel change or any time the lug
nuts are loosened.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

335
*
[SV26450(BEF )03/95]
Traction-Lok Rear Axle (If equipped)
*
[SV26460(BEF )03/95]
This axle provides added drive away traction on
slippery surfaces, particularly when one or more
wheels are on a surface with poor traction.
*
[SV26470(BEF )05/95]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground, such as
when changing a tire.
%*
[SV26500( ALL)02/95]
Tire Rotation
*
[SV26600( ALL)03/95]
Because your vehicle's front and rear tires
perform different jobs, they often wear
differently. To make sure your tires wear evenly
and last longer, rotate them at the mileage
shown in theMaintenance Schedule and Record
booklet which came with your vehicle.
*
[SV26625( F )03/93]
For F-250 (over 8500 GVWR [3,855 kg]), F-350
and Super Duty vehicles, rotate the tires at 5,000
miles (8,000 km), then at 15,000 miles
(24,000 km), and then every 15,000 miles
(24,000 km) thereafter.
*
[SV26660( EF )03/94]
If your light truck has dual rear wheels, you can
rotate the front tires side to side without
disturbing the rear tires.
*
[SV26700(BEF )07/92]
Rotate the tires according to the following
diagram. If you notice that the tires wear
unevenly, have them checked. If your light truck
has a temporary spare tire, do not include it in
the tire rotation pattern.
*
[SV26750(BEF )03/90]
In situations where the tires differ from front to
rear (snow/traction), simply rotate using a side
to side pattern.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

336
*
[SV26800(BEF )06/93]

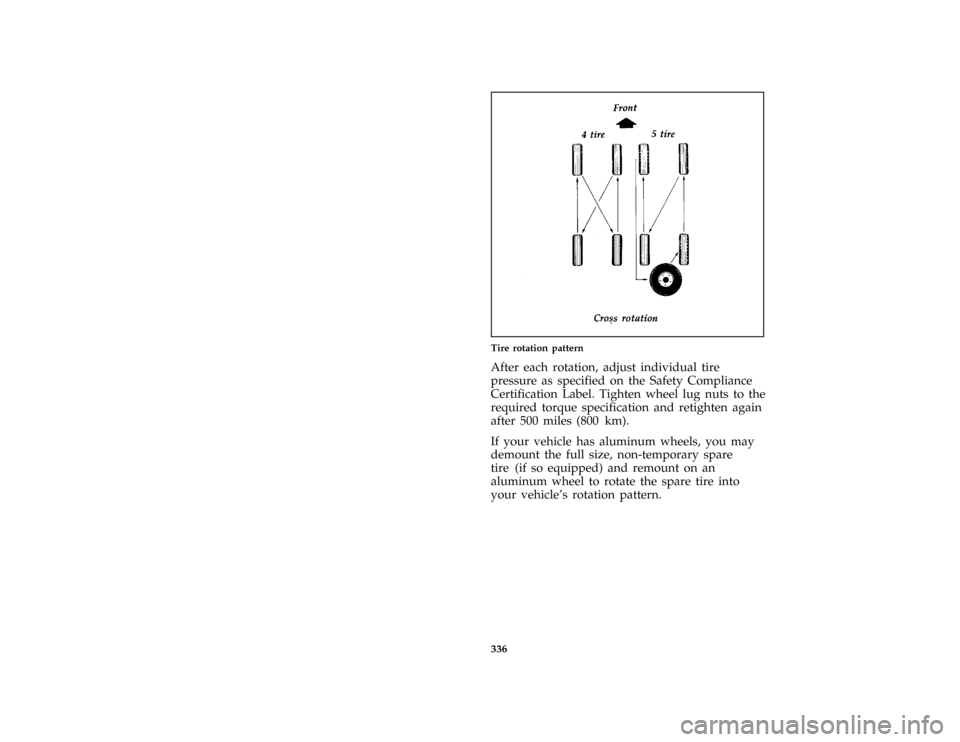

half page art:0020364-A
Tire rotation pattern
*
[SV26900(BEF )10/89]
After each rotation, adjust individual tire
pressure as specified on the Safety Compliance
Certification Label. Tighten wheel lug nuts to the
required torque specification and retighten again
after 500 miles (800 km).
*
[SV27000(BEF )10/94]
If your vehicle has aluminum wheels, you may
demount the full size, non-temporary spare
tire (if so equipped) and remount on an
aluminum wheel to rotate the spare tire into
your vehicle's rotation pattern.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

337 %
*
[SV27300( ALL)04/95]
Replacing the Tires
*
[SV27400( ALL)01/95]
Replace any tires that show wear bands. When
your tire shows a wear band, it has only 1/16
inch (1.59 mm) of tread left.
*
[SV27500( ALL)10/89]
quarter page art:0060006-A
Wear band
*
[SV27600( ALL)01/95]
Because your vehicle's tires may wear unevenly,
you may need to replace them before a wear
band appears across the entire tread. Some spots
wear more heavily than others.
*
[SV27700( ALL)03/90]
Your wheels and tires are match-mounted for
improved ride. Before you begin to repair a tire,
mark the wheel and tire so that they are
properly aligned when remounted. This will
ensure that the tires will continue to give you
the same ride level.
*
[SV27851( ALL)01/95]
RWARNING
When replacing full size tires, never mix
radial, bias-belted, or bias-type tires. Use
only the tire sizes that are listed on the
tire pressure decal. Make sure that all tires
are the same size, speed rating, and
load-carrying capacity. Use only the tire
combinations recommended on the decal.
If you do not follow these precautions,
your vehicle may not drive properly and
safely.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

338
*
[SV27860( ALL)03/90]
RWARNING
Make sure that all replacement tires are of
the same size, type, load-carrying capacity,
and tread design (e.g. ªAll Terrainº, etc.),
as originally offered by Ford.
*
[SV27885( ALL)04/95]
RWARNING
Do not replace your tires with ªhigh
performanceº tires or larger size tires.
*
[SV27892( EF )05/95]
RWARNING
Use of aftermarket wheel assemblies may
damage your vehicle or cause accidents
resulting in serious injuries.
*
[SV27895( ALL)05/95]
RWARNING
Failure to follow these precautions may
adversely affect the handling of the
vehicle and make it easier to lose control
and roll over.
*
[SV27900( ALL)01/95]
Tires that are larger or smaller than your
vehicle's original tires may also affect the
accuracy of your speedometer.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

339
*
[SV28500( FM)05/89]

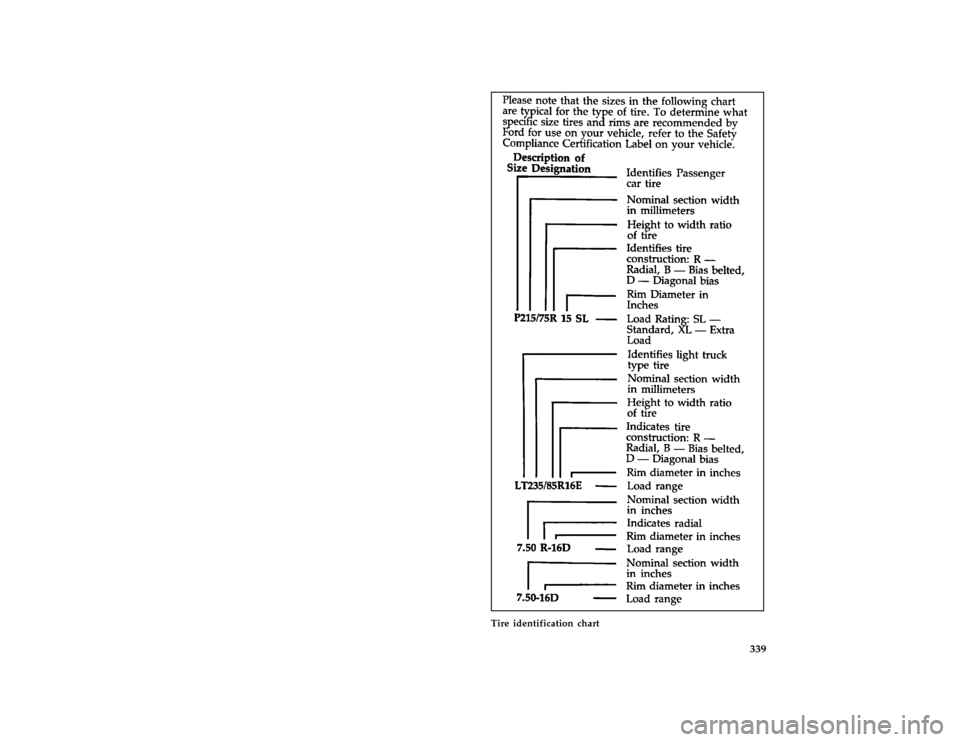

full page art:0020370-C
Tire identification chart
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

340
*
[SV28750( EF )11/90]
RWARNING
To avoid possible serious or fatal bodily
injury while mounting tires, mount LT
Metric 16-inch radial tires only on 16-inch
rims and not 16.5-inch rims. In addition,
mount radial tires only on wheels
approved for radial tires.
*
[SV28800( ALL)04/95]
Wheel and Tire Matching
*
[SV28900( ALL)03/95]
See an authorized tire dealer for proper
servicing procedures. Wheels and tires must be
properly removed, matched and remounted to
maintain the best possible ride.
%*
[SV31100(BEF )04/95]
Snow Tires and Chains
*
[SV31200(BEF )01/95]
The tires on your vehicle have all-weather treads
that provide traction in rain or snow. However,
during the winter months in some climates, you
may need to use snow tires and occasionally
chains for your tires.
*
[SV31300(BEF )05/95]
RWARNING
Snow tires must be the same size and
grade as the tires you currently have on
your vehicle.
*
[SV31400(BEF )02/95]
Use chains on the tires only in an emergency or
if the law requires them where you live. If you
choose to use chains on your vehicle's tires, be
aware of the following:
*
[SV31500(BEF )01/95]
q
Make sure the chains are the right size for
your tires. Use only SAE Class ªSº chains.
Other types may damage your vehicle.
*
[SV31600(BEF )01/95]
q
Put the chains on tightly with the ends held
down securely. Verify that no chain touches
any wiring, brake lines, or fuel lines. Follow
the chain manufacturer's instructions.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

341
*
[SV31700(BEF )01/95]
q
Drive slowly. If you can hear the chains rub
or bang against your vehicle, stop the vehicle
and tighten the chains. If you continue to
hear the chains rub or bang against your
vehicle, remove the chains to prevent damage
to your vehicle.
*
[SV31800(BEF )10/94]
q
Avoid fully loading your vehicle if possible.
*
[SV31900(BEF )05/94]
q
Remove tire chains at the first opportunity
after using them on snow and ice. Do not use
the chains on dry roads.
*
[SV31950(BEF )05/91]
q
Make sure your suspension insulation and
bumpers are not missing or worn to avoid
damage to your vehicle.
%*
[SV31975(BEF )04/95]
Cleaning the Wheels
*
[SV31980(BEF )05/95]
Wash the wheels with the same detergent you
use to wash your vehicle's body. Do not use
acid-based wheel cleaners, steel wool, abrasives,
fuel, or strong detergents. These substances will
damage protective coatings. Use tar and road oil
remover to remove grease and tar.
*
[SV31985(BEF )04/95]
NOTE: Before going to a car wash, find out if
the brushes are abrasive.
*
[SV31987( F )04/95]
Cleaning F-350 Aluminum Dual Rear Wheels
*
[SV31989( F )04/95]
If you have factory-installed Forged Aluminum
Wheels on your F-350, you may use the cleaning
instructions below to help provide optimum
appearance season after season.
*
[SV31991( F )04/95]
1. Keep your F-350 Forged Aluminum Wheels
looking great with simple care. Wash the
wheels with steam or high pressure water
from a hose, and a mild detergent, such as
Ford's Premium Car Wash Concentrate, or
equivalent. Do not use harsh alkaline
cleaners.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996
