Checking and Replacing Fuses
*
[SV42300( ALL)02/95]
If you need to check a fuse, follow these steps:
*
[SV42800(B F )03/91]
1. In order to find the fuse panel, you must
first remove the cover from the lower edge
of the instrument panel. You can do this by
pulling on handle to disengage the fasteners.
*
[SV42900(B F )03/91]
one third page art:0020475-B

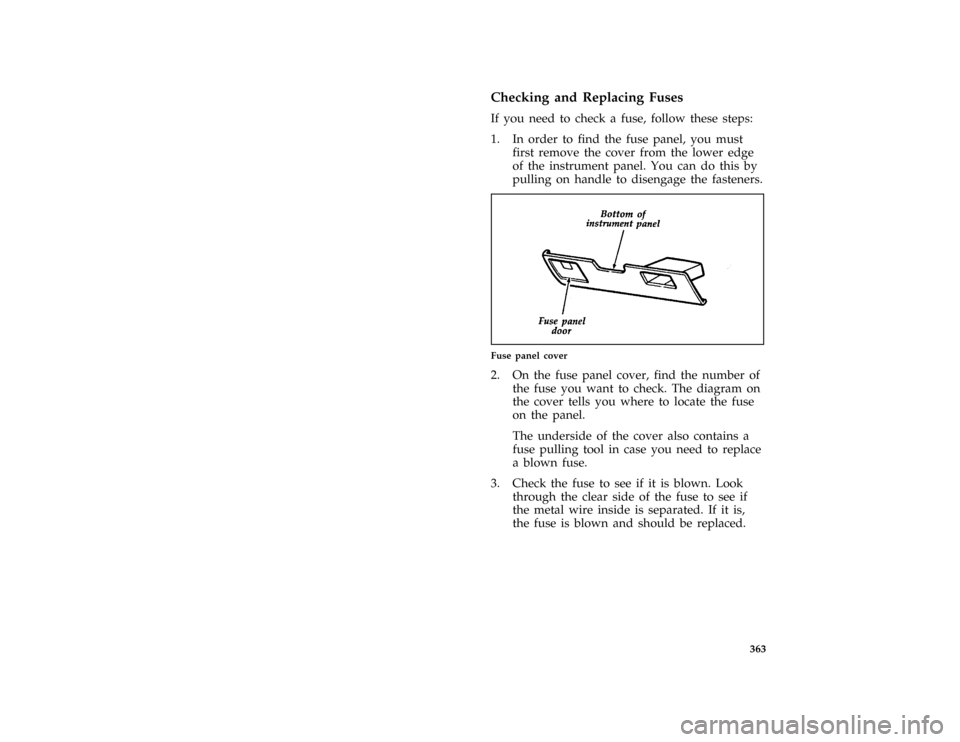

Fuse panel cover
*
[SV43300( ALL)10/94]
2. On the fuse panel cover, find the number of
the fuse you want to check. The diagram on
the cover tells you where to locate the fuse
on the panel.
*
[SV43350(B FM)10/92]
The underside of the cover also contains a
fuse pulling tool in case you need to replace
a blown fuse.
*
[SV43400( ALL)10/92]
3. Check the fuse to see if it is blown. Look
through the clear side of the fuse to see if
the metal wire inside is separated. If it is,
the fuse is blown and should be replaced.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

364
*
[SV43500( ALL)10/92]
quarter page art:0020405-A
The side view of a fuse
*
[SV43600( ALL)10/92]

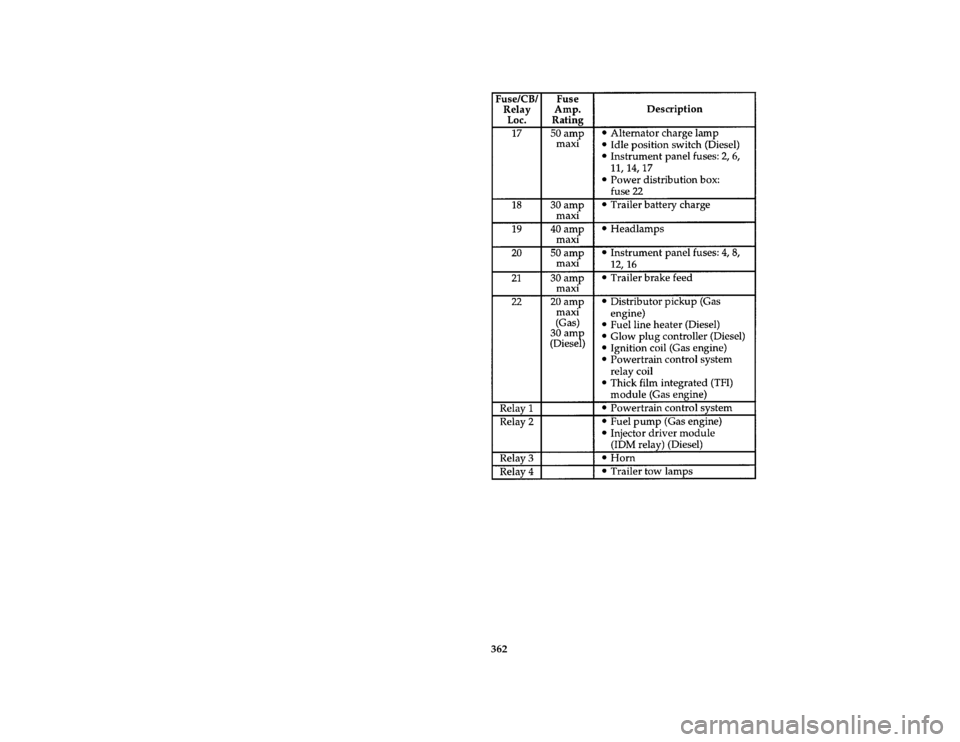

4. Replace the fuse with one that has the right
amperage rating (see previous chart).
*
[SV43700( ALL)05/95]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
*
[SV43800( ALL)10/92]
5. Put the fuse panel cover back on.
*
[SV44000( ALL)05/93]
Even after you replace a fuse, it will continue to
blow if you do not find what caused the
overload. If the fuse continues to blow, have
your electrical system checked.
%*
[SV44100( ALL)03/95]
Circuit Breakers
*
[SV44200(BEF )03/95]
If you need to check a circuit breaker on the
fuse panel, seeChecking and replacing fusesto
find out how to locate the fuse panel. Otherwise,
locate the circuit breaker according to the
instructions on the charts given earlier in this
chapter.
*
[SV44300( ALL)02/95]
Since you need diagnostic equipment to check
whether a circuit breaker works and such
equipment comes with instructions, we do not
discuss how to check circuit breakers.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

365
*
[SV44400( ALL)10/92]
However, you should know that the circuit
breakers will reset themselves and allow the
electrical parts to work again once the overload
on the circuit is removed. If the circuit breakers
continue to cut off electricity, have your vehicle's
electrical system checked.
*
[SV44500( ALL)02/95]
If you replace a circuit breaker, use one with the
same amperage rating. To remove a circuit
breaker mounted in the fuse panel, grip it with
your finger and thumb and pull it straight out
of its socket.
%
*
[SV44600(BEF )03/95]
Lights and Bulb Replacement
*
[SV44700(BEF )01/95]
It is a good idea to check the operation of the
following lights frequently:
*
[SV44800(BEF )01/95]
q
headlamps
*
[SV44900(BEF )01/95]
q
tail lamps
*
[SV45000(BEF )01/95]
q
brakelamps
*
[SV45050(BEF )02/95]
q
high-mount brakelamp
*
[SV45100(BEF )01/95]
q
hazard flasher
*
[SV45200(BEF )01/95]
q
turn signals
*
[SV45300(BEF )01/95]
q
license plate lamp
%*
[SV45400(BEF )01/95]
The alignment of your headlamps should be
checked if:
*
[SV45500(BEF )01/95]
q
oncoming motorists frequently signal you to
turn off your vehicle's high beams when you
do not have the high beams on
*
[SV45600(BEF )01/95]
q
the headlamps do not seem to give you
enough light to see clearly at night
*
[SV45700(BEF )01/95]
q
the headlamp beams are pointed substantially
away from a position slightly down and to
the right
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

366
*
[SV45800(BEF )03/95]
Headlamp Bulb
*
[SV45900(BEF )01/95]
The headlamps on your vehicle use replaceable
bulbs. When the lamp burns out, simply replace
the bulb, rather than the whole lamp.
*
[SV46000(BEF )05/95]
RWARNING
Handle a halogen headlamp bulb carefully
and keep out of children's reach. Grasp
the bulb only by its plastic base and do
not touch the glass. The oil from your
hand could cause the bulb to break the
next time the headlamps are operated.
*
[SV46050(BEF )12/91]
NOTE: If the bulb is accidently touched, it
should be cleaned with rubbing
alcohol before being used.
*
[SV46100(BEF )01/95]
Do not remove the burned-out bulb unless you
can immediately replace it with a new one. If a
bulb is removed for an extended period of time,
contaminants may enter the headlamp housing
and affect its performance.
*
[SV46200(BEF )03/91]
one third page art:0020406-B

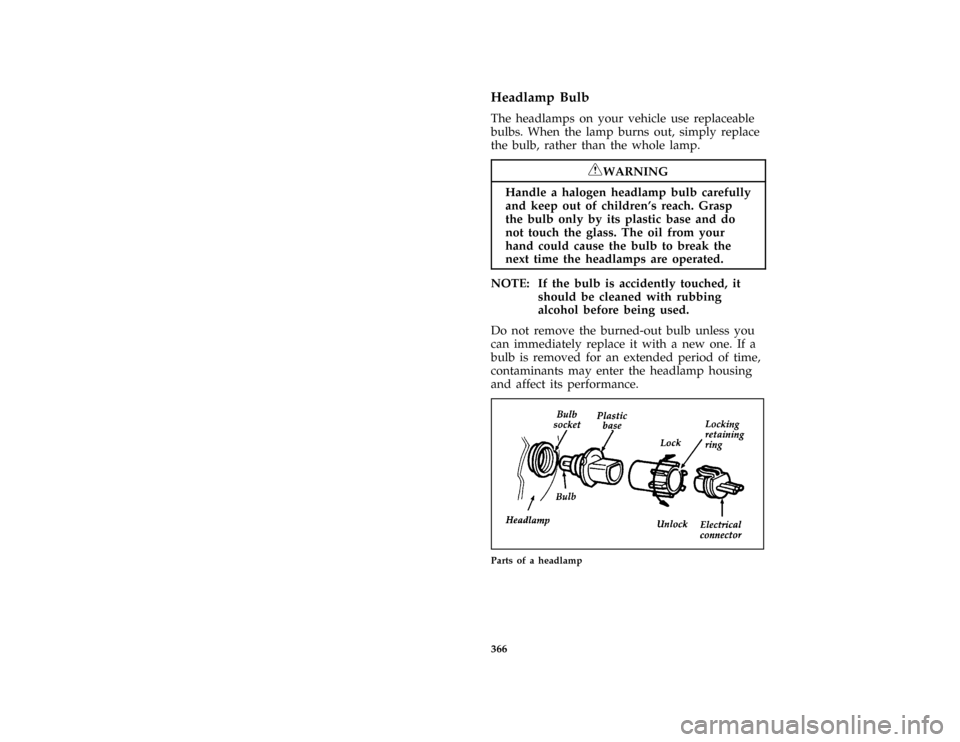

Parts of a headlamp
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

367
*
[SV46300(BEF )03/95]
Removing the headlamp bulb
*
[SV46400(BEF )01/95]
1. Make sure that the headlamp switch on the
instrument panel is in the OFF position.
*
[SV46501(B F )12/91]
2. Lift the hood and behind the headlamp
remove the electrical connector by grasping
the wires and pulling rearward.
*
[SV46700(B F )04/95]
3. Remove the bulb retaining ring by turning it
1/8 of a turn to free it from the socket. Then
slide the ring off the plastic base. Keep the
ring.You must use it again to hold the new
bulb in place.
*
[SV46800(B F )04/95]
4. Carefully remove the bulb assembly from its
socket by gently pulling it rearward without
turning.
*
[SV46900(BEF )03/95]
Installing the headlamp bulb
*
[SV47000(BEF )02/95]
1. With the flat side of the bulb's plastic base
facing upward, insert the glass end of the
bulb into the socket. You may need to turn
the bulb left or right to line up the grooves
in the plastic base with the tabs in the
socket. When the grooves are aligned, push
the bulb into the socket until the plastic base
contacts the rear of the socket.
*
[SV47100(BEF )02/95]
2. Slip the bulb retaining ring over the plastic
base until it contacts the rear of the socket.
Lock the ring into the socket by rotating it
clockwise until you feel a ªstopº.
*
[SV47200(B F )02/95]
3. Push the electrical connector into the rear of
the plastic base until it snaps, locking it into
position.
*
[SV47300(BEF )02/95]
4. Turn the headlamps on and make sure that
they work properly. If the headlamp was
correctly aligned before you changed the
bulb, you should not need to align it again.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

368
*
[SV47310(B F )02/95]
High-Mount Brakelamp Bulbs
*
[SV47320(B F )03/95]
To remove the brakelamp:
*
[SV47330(B F )03/93]
1. Remove the two screws from the surface of
the lens.
*
[SV47340(B F )03/93]
2. After removing the screws, remove the lamp
assembly.
*
[SV47350(B F )03/93]
3. Remove the socket by rotating it 45Ê and
pulling it out of the lamp that contains the
burned-out bulb and replace the bulb.
*
[SV47360(B F )02/95]
To install the high-mount brakelamp:
*
[SV47365(B F )03/93]
1. Push the bulb socket into the lamp assembly
and rotate45Ê.
*
[SV47370(B F )03/93]
2. Position the lamp assembly on vehicle.
*
[SV47375(B F )03/93]
3. Secure with two screws.
*
[SV47382(B F )07/93]
half page art:0020849-C

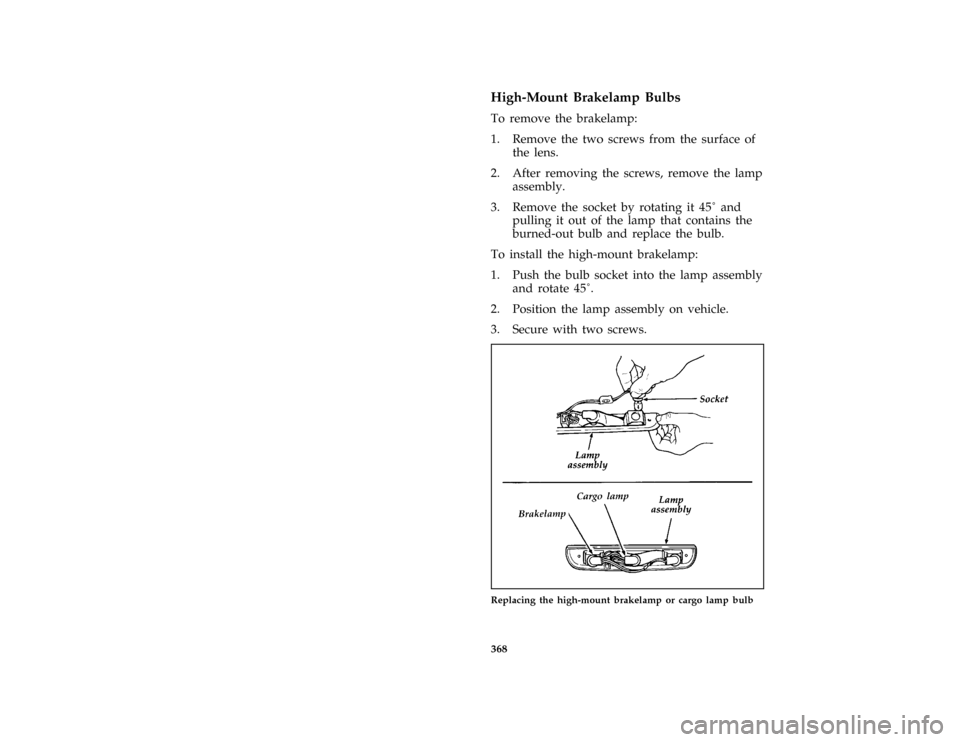

Replacing the high-mount brakelamp or cargo lamp bulb
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

369 %
*
[SV47625(BEF )02/95]
Bulb specifications
*
[SV48000( F )02/95]

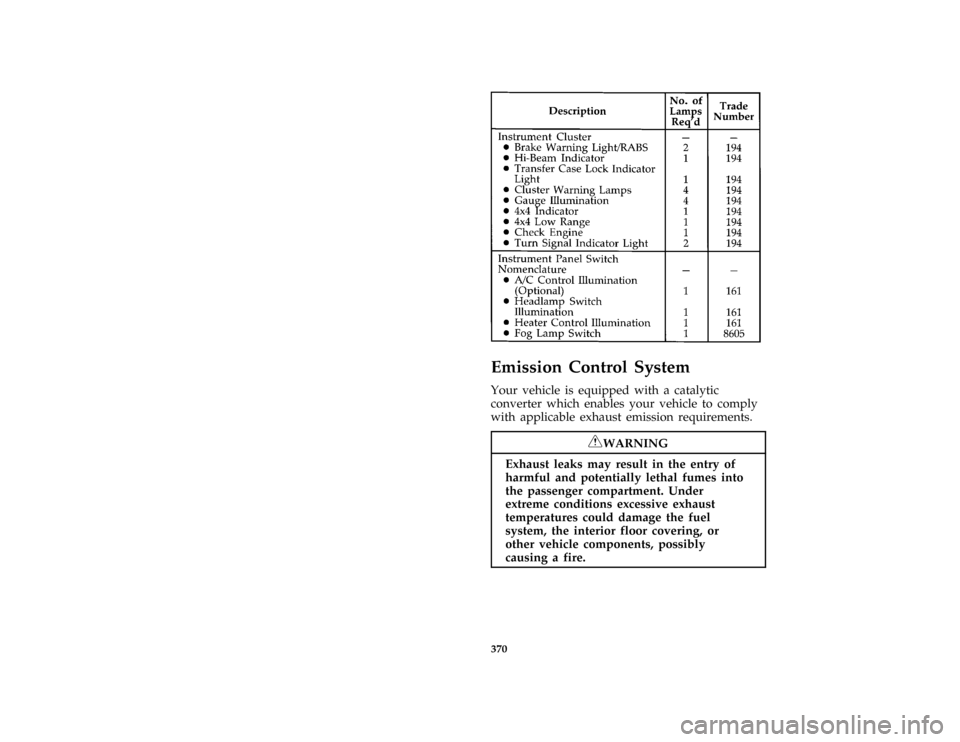

thirty-six pica chart:0020412-I
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

370
*
[SV48100( F )06/92]

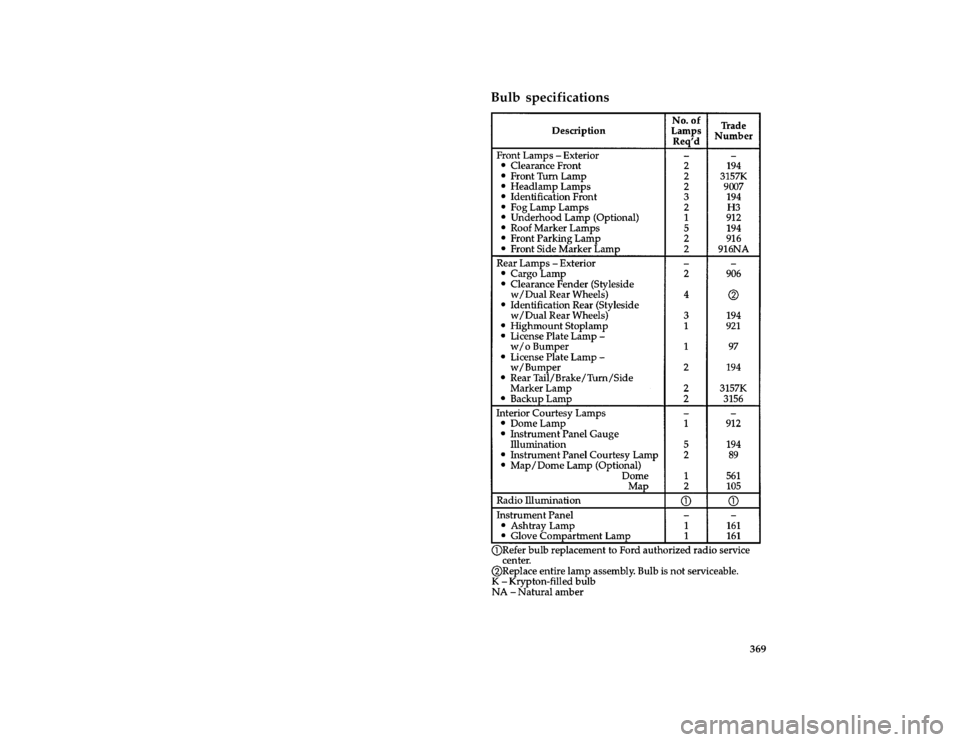

eighteen pica chart:0020413-F
%*
[SV48600( ALL)03/95]
Emission Control System
*
[SV48700(BEF )05/95]
Your vehicle is equipped with a catalytic
converter which enables your vehicle to comply
with applicable exhaust emission requirements.
*
[SV48725(ALL )05/95]
RWARNING
Exhaust leaks may result in the entry of
harmful and potentially lethal fumes into
the passenger compartment. Under
extreme conditions excessive exhaust
temperatures could damage the fuel
system, the interior floor covering, or
other vehicle components, possibly
causing a fire.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

371
*
[SV48800(BEF )05/95]
To make sure that the catalytic converter and the
other emission control parts continue to work
properly:
*
[SV48900( ALL)01/95]
q
Use only unleaded fuel.
*
[SV49000( ALL)01/95]
q
Avoid running out of fuel.
*
[SV49100( ALL)01/95]
q
Do not turn off the ignition while your
vehicle is moving, especially at high speeds.
*
[SV49200( ALL)03/95]
q
Have the services listed in theMaintenance
Schedule and Recordbooklet performed
according to the specified schedule. The
scheduled maintenance services are required
because they are considered essential to the
life and performance of your vehicle and to
its emissions system.
*
[SV49250( ALL)03/95]
In general, maintenance, replacement, or service
of the emissions control devices or systems in
your new Ford Motor Company vehicle or
engine may be performed at your expense by
any automotive repair establishment or
individual using automotive parts equivalent to
those which your vehicle or engine was
originally equipped.
*
[SV49300( ALL)05/95]
RWARNING
Do not park, idle, or drive your vehicle in
dry grass or other dry ground cover. The
emission system heats up the engine
compartment and exhaust system, which
can start a fire.
*
[SV49400(BEF )05/95]
RWARNING
On vehicles without original equipment
floor covering or insulation, do not let
passengers ride in your truck in a manner
that allows contact between skin and the
metal floor.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996
