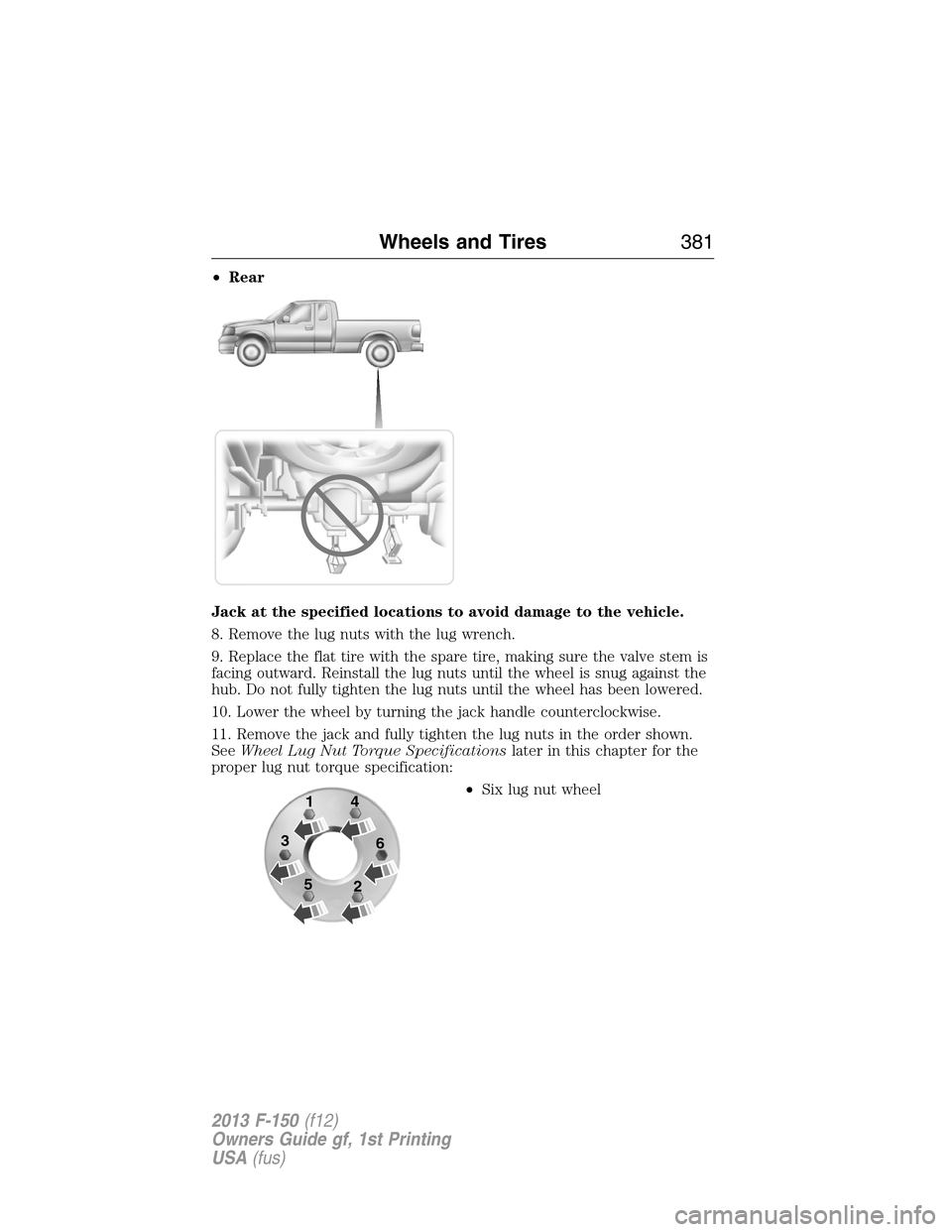

•Rear
Jack at the specified locations to avoid damage to the vehicle.
8. Remove the lug nuts with the lug wrench.
9. Replace the flat tire with the spare tire, making sure the valve stem is
facing outward. Reinstall the lug nuts until the wheel is snug against the
hub. Do not fully tighten the lug nuts until the wheel has been lowered.
10. Lower the wheel by turning the jack handle counterclockwise.
11. Remove the jack and fully tighten the lug nuts in the order shown.
SeeWheel Lug Nut Torque Specificationslater in this chapter for the
proper lug nut torque specification:
•Six lug nut wheel
1
3
54
6
2
Wheels and Tires381
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

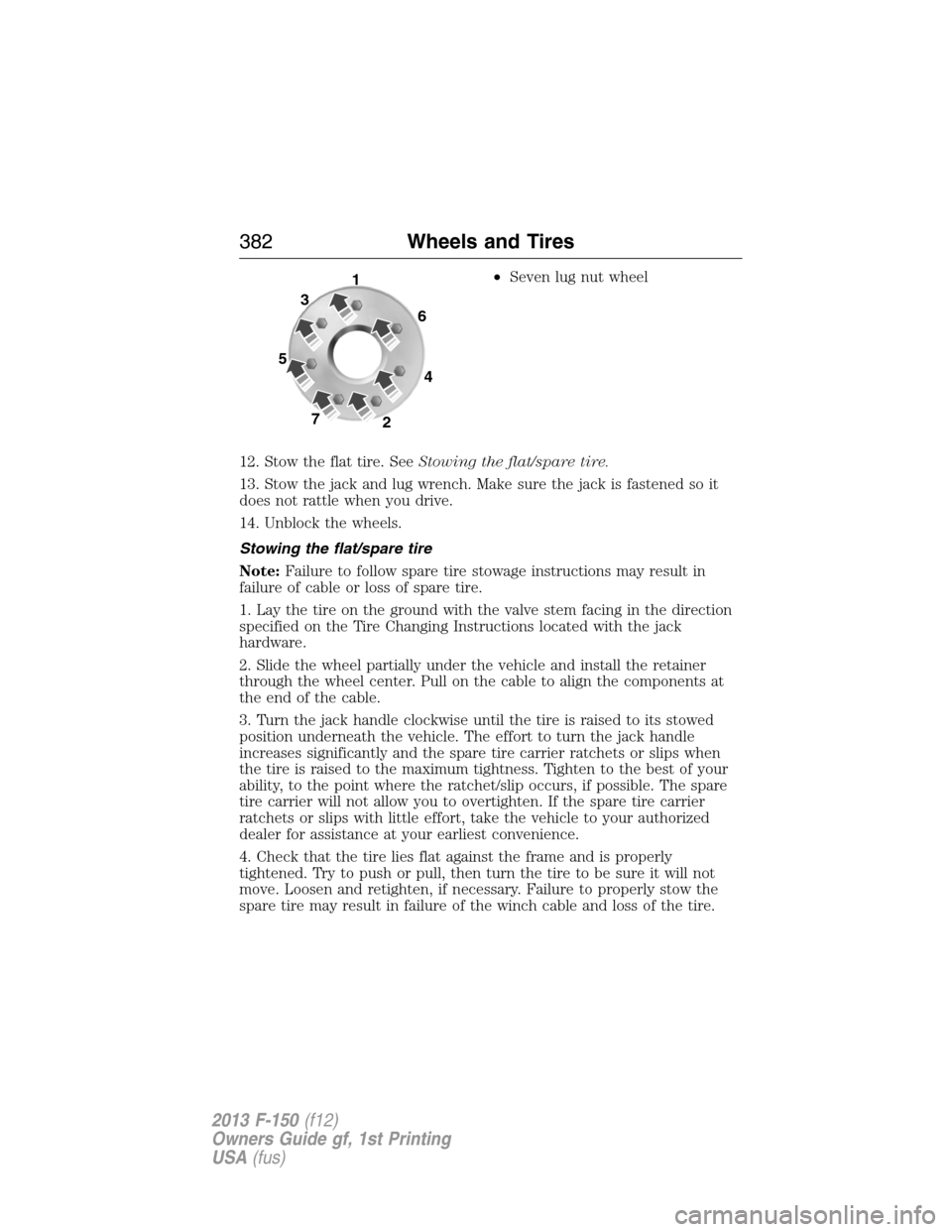

•Seven lug nut wheel
12. Stow the flat tire. SeeStowing the flat/spare tire.
13. Stow the jack and lug wrench. Make sure the jack is fastened so it
does not rattle when you drive.
14. Unblock the wheels.
Stowing the flat/spare tire
Note:Failure to follow spare tire stowage instructions may result in
failure of cable or loss of spare tire.
1. Lay the tire on the ground with the valve stem facing in the direction
specified on the Tire Changing Instructions located with the jack
hardware.
2. Slide the wheel partially under the vehicle and install the retainer
through the wheel center. Pull on the cable to align the components at
the end of the cable.
3. Turn the jack handle clockwise until the tire is raised to its stowed
position underneath the vehicle. The effort to turn the jack handle
increases significantly and the spare tire carrier ratchets or slips when
the tire is raised to the maximum tightness. Tighten to the best of your
ability, to the point where the ratchet/slip occurs, if possible. The spare
tire carrier will not allow you to overtighten. If the spare tire carrier
ratchets or slips with little effort, take the vehicle to your authorized
dealer for assistance at your earliest convenience.
4. Check that the tire lies flat against the frame and is properly
tightened. Try to push or pull, then turn the tire to be sure it will not
move. Loosen and retighten, if necessary. Failure to properly stow the
spare tire may result in failure of the winch cable and loss of the tire.1
3
5
76
4
2
382Wheels and Tires
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

5. Repeat this tightness check procedure when servicing the spare tire
pressure (every six months, as per yourscheduled maintenance
information),or at any time that the spare tire is disturbed through
service of other components.
6. If removed, install the spare tire lock (if equipped) into the bumper
drive tube with the spare tire lock key (if equipped) and jack handle.

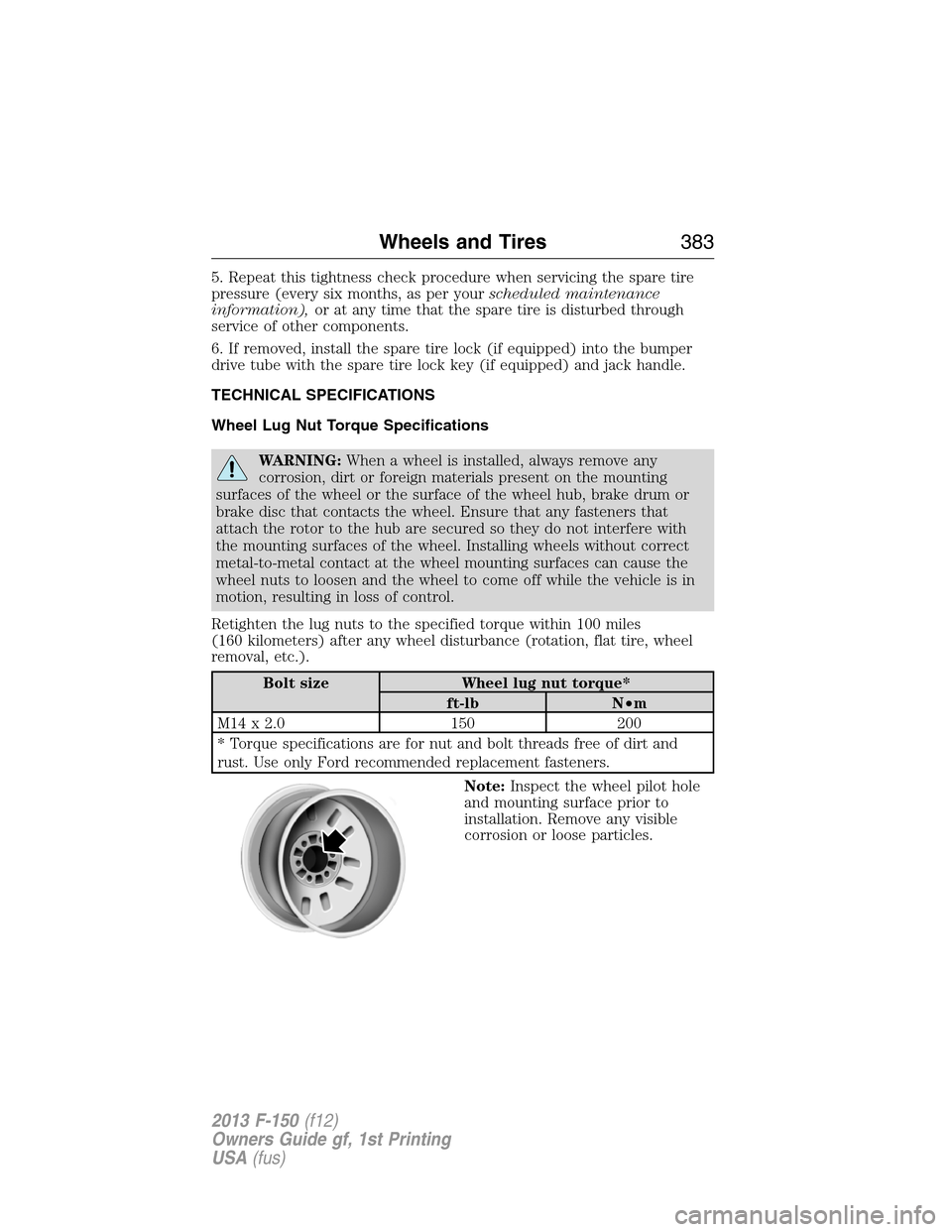

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING:When a wheel is installed, always remove any
corrosion, dirt or foreign materials present on the mounting
surfaces of the wheel or the surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Ensure that any fasteners that
attach the rotor to the hub are secured so they do not interfere with
the mounting surfaces of the wheel. Installing wheels without correct
metal-to-metal contact at the wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to come off while the vehicle is in
motion, resulting in loss of control.
Retighten the lug nuts to the specified torque within 100 miles
(160 kilometers) after any wheel disturbance (rotation, flat tire, wheel
removal, etc.).
Bolt size Wheel lug nut torque*
ft-lb N•m
M14 x 2.0 150 200
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
Note:Inspect the wheel pilot hole
and mounting surface prior to
installation. Remove any visible
corrosion or loose particles.
Wheels and Tires383
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

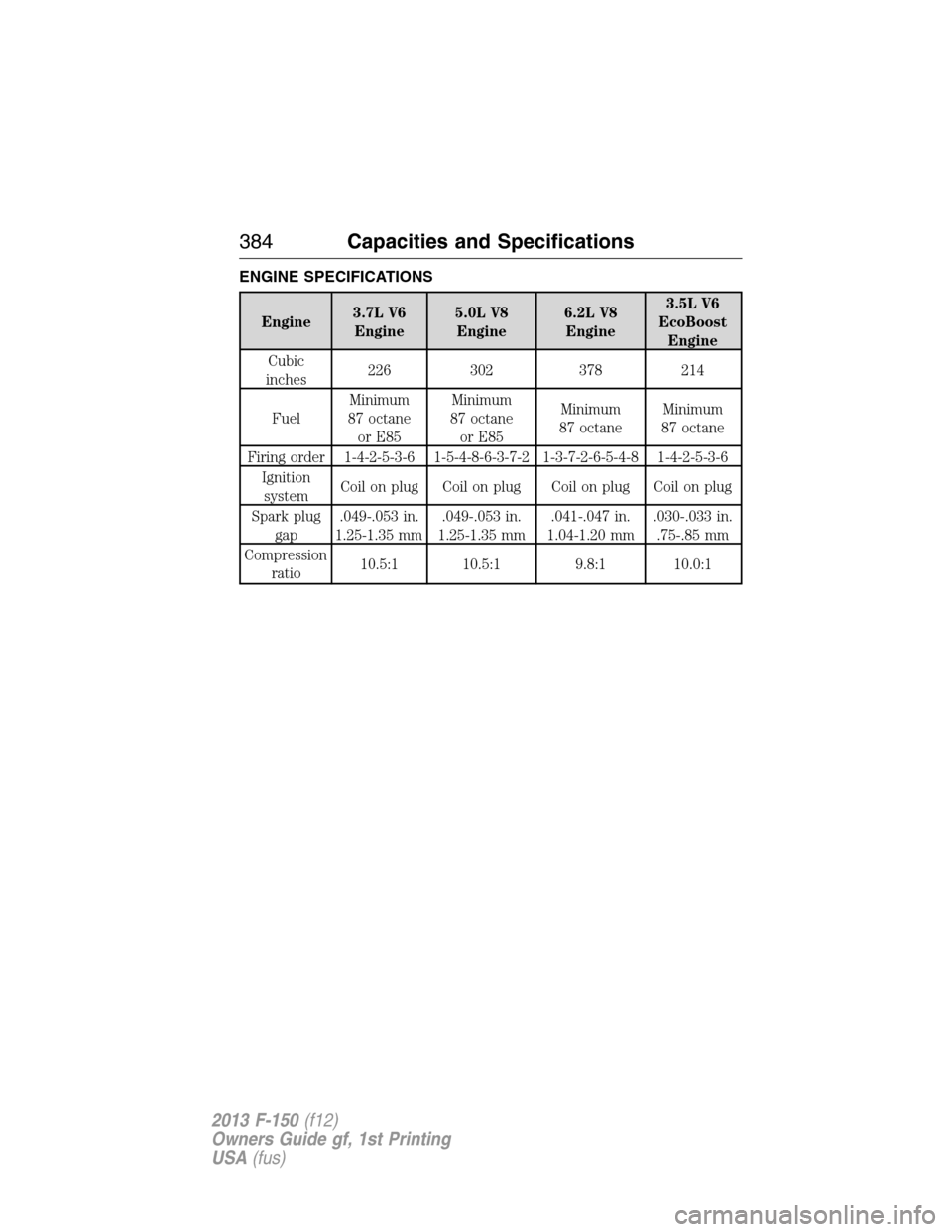

ENGINE SPECIFICATIONS
Engine3.7L V6
Engine5.0L V8
Engine6.2L V8
Engine3.5L V6
EcoBoost
Engine
Cubic
inches226 302 378 214
FuelMinimum
87 octane
or E85Minimum
87 octane
or E85Minimum
87 octaneMinimum
87 octane
Firing order 1-4-2-5-3-6 1-5-4-8-6-3-7-2 1-3-7-2-6-5-4-8 1-4-2-5-3-6
Ignition
systemCoil on plug Coil on plug Coil on plug Coil on plug
Spark plug
gap.049-.053 in.
1.25-1.35 mm.049-.053 in.
1.25-1.35 mm.041-.047 in.
1.04-1.20 mm.030-.033 in.
.75-.85 mm
Compression
ratio10.5:1 10.5:1 9.8:1 10.0:1
384Capacities and Specifications
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

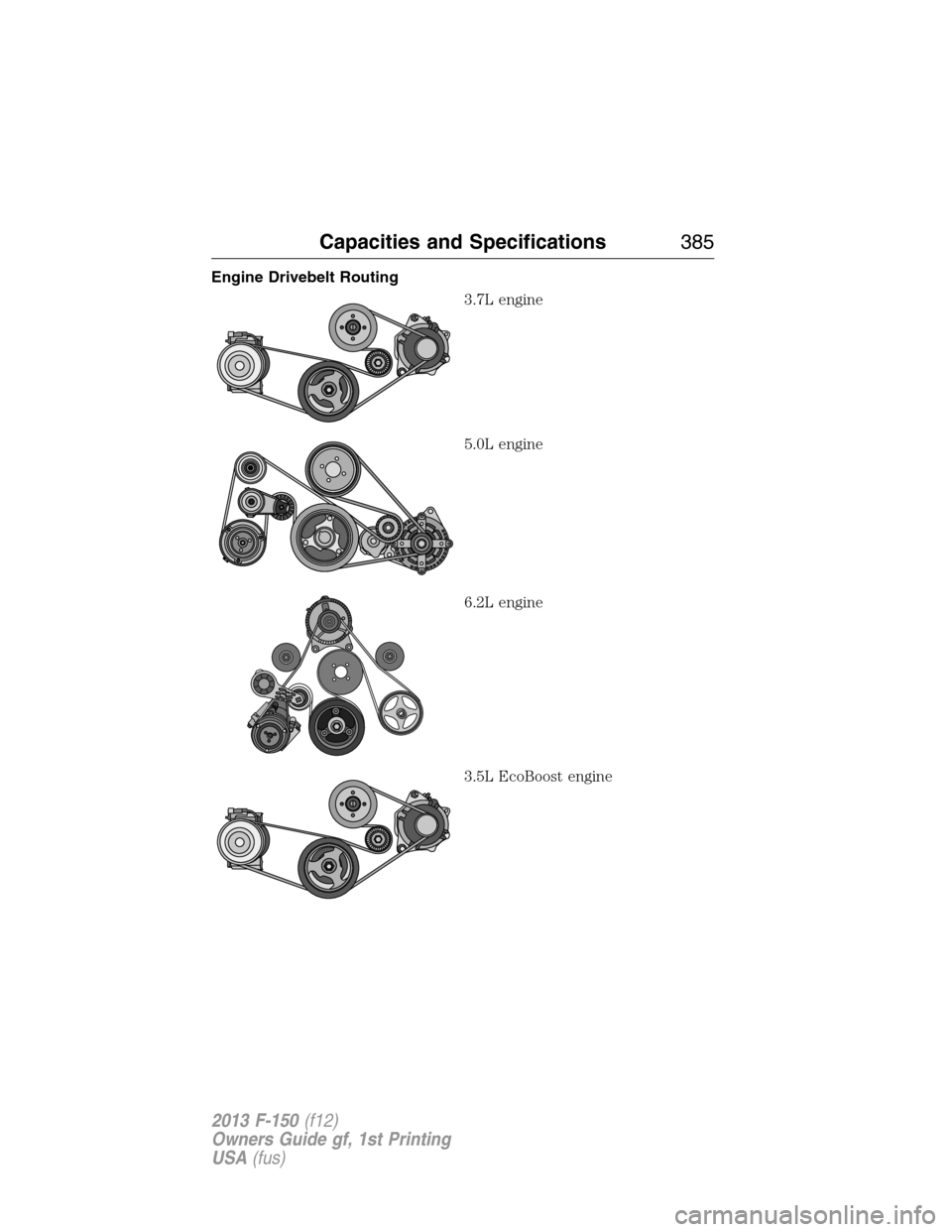

Engine Drivebelt Routing
3.7L engine
5.0L engine
6.2L engine
3.5L EcoBoost engine
Capacities and Specifications385
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

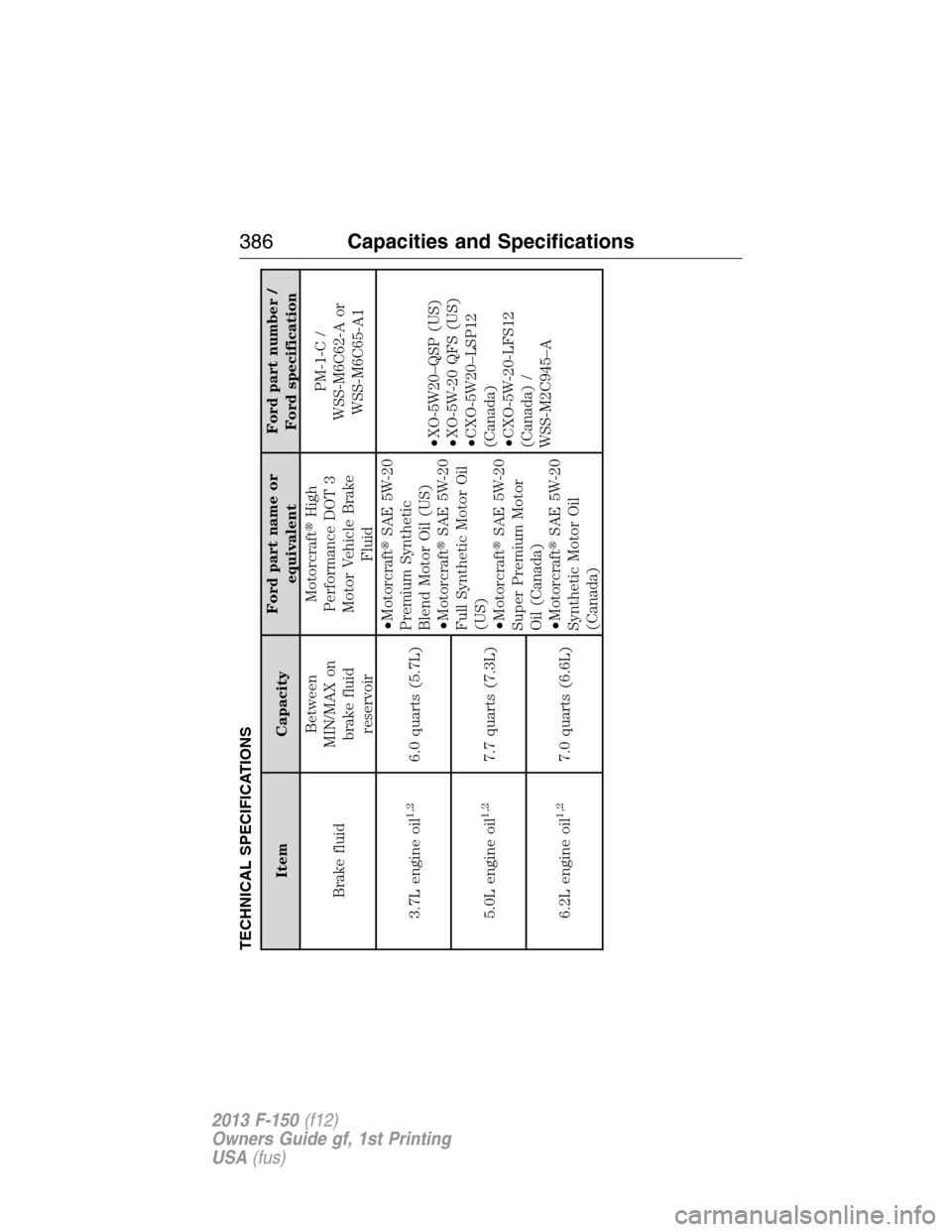

TECHNICAL SPECIFICATIONS
Item CapacityFord part name or
equivalentFord part number /
Ford specification
Brake fluidBetween
MIN/MAX on
brake fluid
reservoirMotorcraftHigh
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
3.7L engine oil
1,2
6.0 quarts (5.7L)•MotorcraftSAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
•MotorcraftSAE 5W-20
Full Synthetic Motor Oil
(US)
•MotorcraftSAE 5W-20
Super Premium Motor
Oil (Canada)
•MotorcraftSAE 5W-20
Synthetic Motor Oil
(Canada)•XO-5W20–QSP (US)
•XO-5W-20 QFS (US)
•CXO-5W20–LSP12
(Canada)
•CXO-5W-20-LFS12
(Canada) /
WSS-M2C945–A 5.0L engine oil
1,2
7.7 quarts (7.3L)
6.2L engine oil
1,2
7.0 quarts (6.6L)
386Capacities and Specifications
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

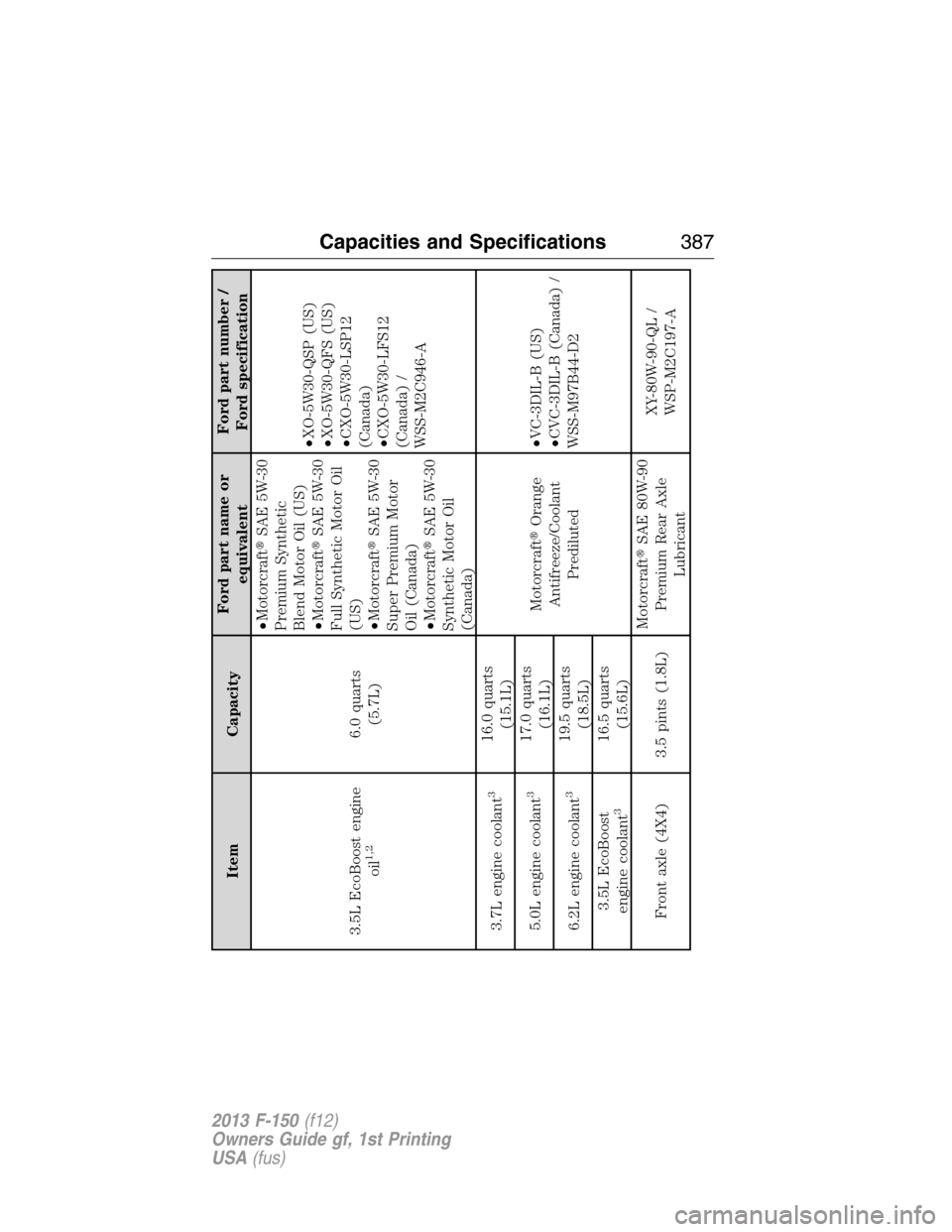

Item CapacityFord part name or
equivalentFord part number /
Ford specification
3.5L EcoBoost engine
oil
1,2
6.0 quarts
(5.7L)•MotorcraftSAE 5W-30
Premium Synthetic
Blend Motor Oil (US)
•MotorcraftSAE 5W-30
Full Synthetic Motor Oil
(US)
•MotorcraftSAE 5W-30
Super Premium Motor
Oil (Canada)
•MotorcraftSAE 5W-30
Synthetic Motor Oil
(Canada)•XO-5W30-QSP (US)
•XO-5W30-QFS (US)
•CXO-5W30-LSP12
(Canada)
•CXO-5W30-LFS12
(Canada) /
WSS-M2C946-A
3.7L engine coolant
3
16.0 quarts
(15.1L)
MotorcraftOrange
Antifreeze/Coolant
Prediluted•VC-3DIL-B (US)
•CVC-3DIL-B (Canada) /
WSS-M97B44-D2 5.0L engine coolant
3
17.0 quarts
(16.1L)
6.2L engine coolant
3
19.5 quarts
(18.5L)
3.5L EcoBoost
engine coolant
3
16.5 quarts
(15.6L)
Front axle (4X4) 3.5 pints (1.8L)MotorcraftSAE 80W-90
Premium Rear Axle
LubricantXY-80W-90-QL /
WSP-M2C197-A
Capacities and Specifications387
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

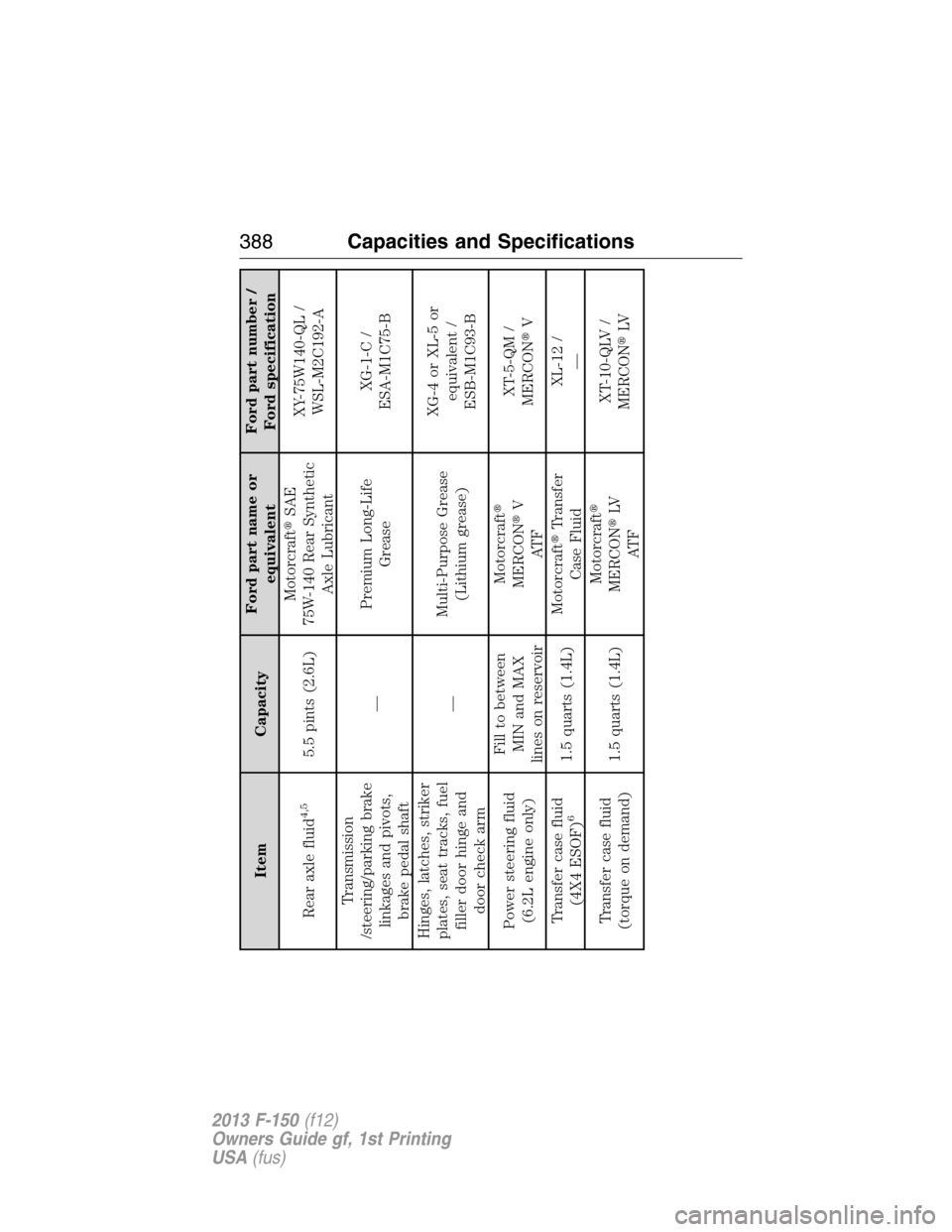

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Rear axle fluid
4,5
5.5 pints (2.6L)MotorcraftSAE
75W-140 Rear Synthetic
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
Transmission
/steering/parking brake
linkages and pivots,
brake pedal shaft—Premium Long-Life
GreaseXG-1-C /
ESA-M1C75-B
Hinges, latches, striker
plates, seat tracks, fuel
filler door hinge and
door check arm—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESB-M1C93-B
Power steering fluid
(6.2L engine only)Fill to between
MIN and MAX
lines on reservoirMotorcraft
MERCONV
AT FXT-5-QM /
MERCONV
Transfer case fluid
(4X4 ESOF)
6
1.5 quarts (1.4L)MotorcraftTransfer
Case FluidXL-12 /
—
Transfer case fluid
(torque on demand)1.5 quarts (1.4L)Motorcraft
MERCONLV
AT FXT-10-QLV /
MERCONLV
388Capacities and Specifications
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

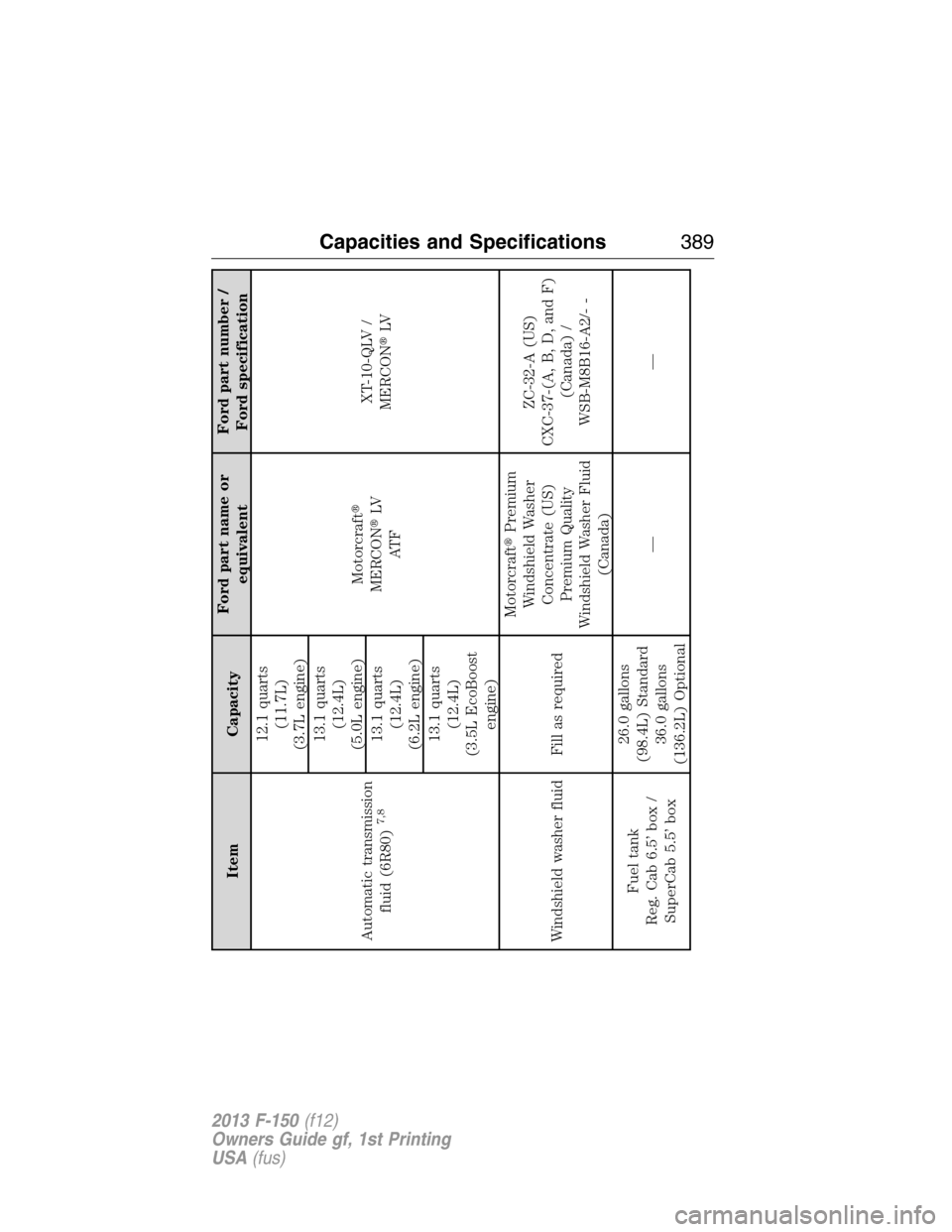

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Automatic transmission
fluid (6R80)
7,8
12.1 quarts
(11.7L)
(3.7L engine)
Motorcraft
MERCONLV
AT FXT-10-QLV /
MERCONLV 13.1 quarts
(12.4L)
(5.0L engine)
13.1 quarts
(12.4L)
(6.2L engine)
13.1 quarts
(12.4L)
(3.5L EcoBoost
engine)
Windshield washer fluid Fill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank
Reg. Cab 6.5’ box /
SuperCab 5.5’ box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
Capacities and Specifications389
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Fuel tank SuperCrew
5.5’ box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
Fuel tank SuperCrew
6.5’ box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
Fuel tank
Reg. Cab 8’ box /
SuperCab 6.5’ box /
SuperCab 8’ box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C946-A, SAE 5W-30 (3.5L EcoBoost engine), or
WSS-M2C945-A, SAE 5W-20 (3.7L, 5.0L, and 6.2L engines), and display the API Certification Mark.2Your engine has been designed to be used with Ford engine oil, which gives a fuel economy
benefit while maintaining the durability of your engine. Using oils other than the one specified can
result in longer engine cranking periods, reduced engine performance, reduced fuel economy and
increased emission levels.3Add the coolant type originally equipped in your vehicle.4Service refill capacity is determined by filling the axle to 1/4-9/16 inch (6-14 mm) below the
bottom of the filler hole with the vehicle on a level surface.
Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A, for complete fill of 8.8 inch Traction-Lok axles.
390Capacities and Specifications
