Page 331 of 642

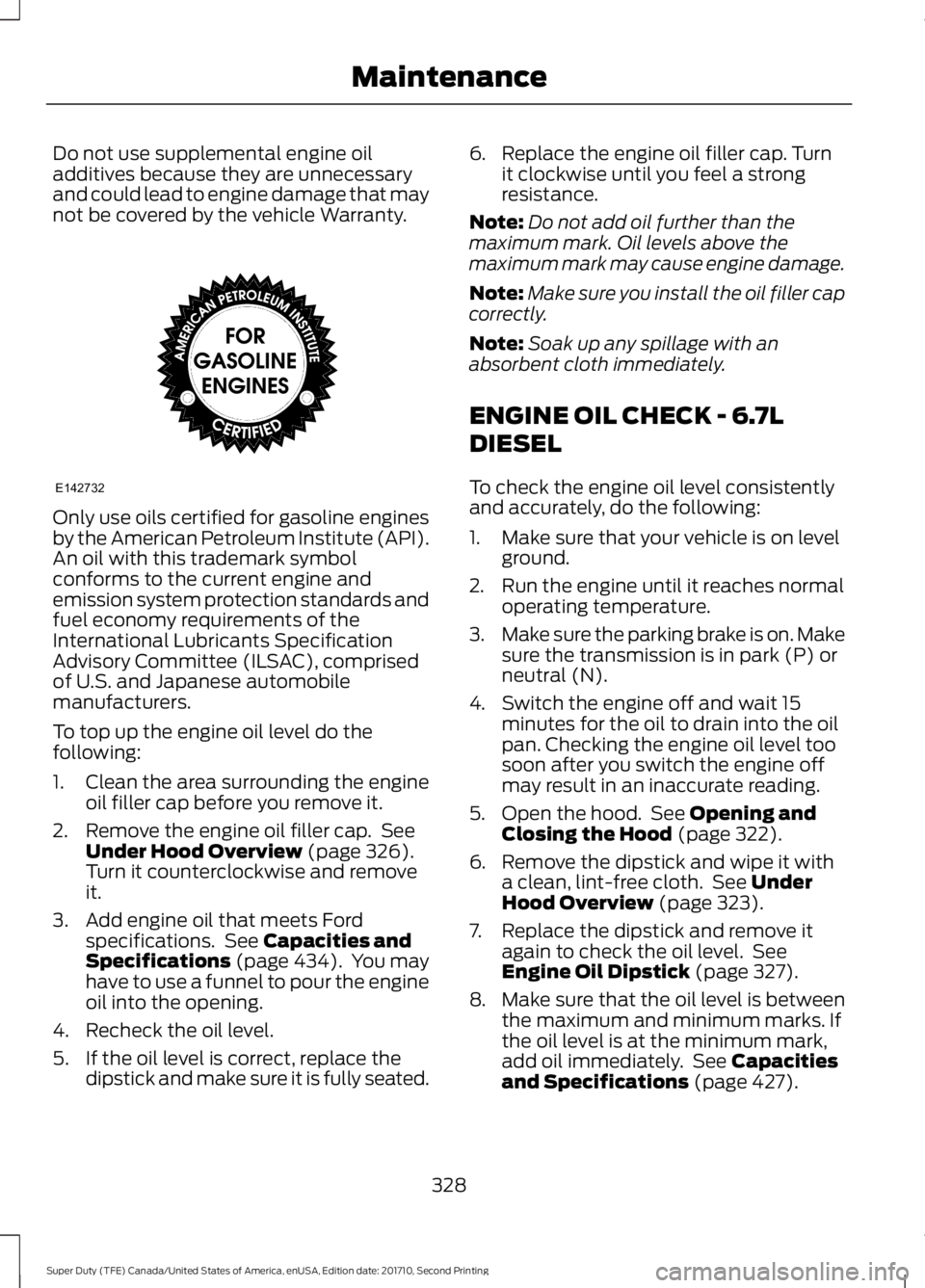

FORD F250 SUPER DUTY 2017  Owners Manual Do not use supplemental engine oiladditives because they are unnecessaryand could lead to engine damage that maynot be covered by the vehicle Warranty.
Only use oils certified for gasoline enginesby t

Page 332 of 642

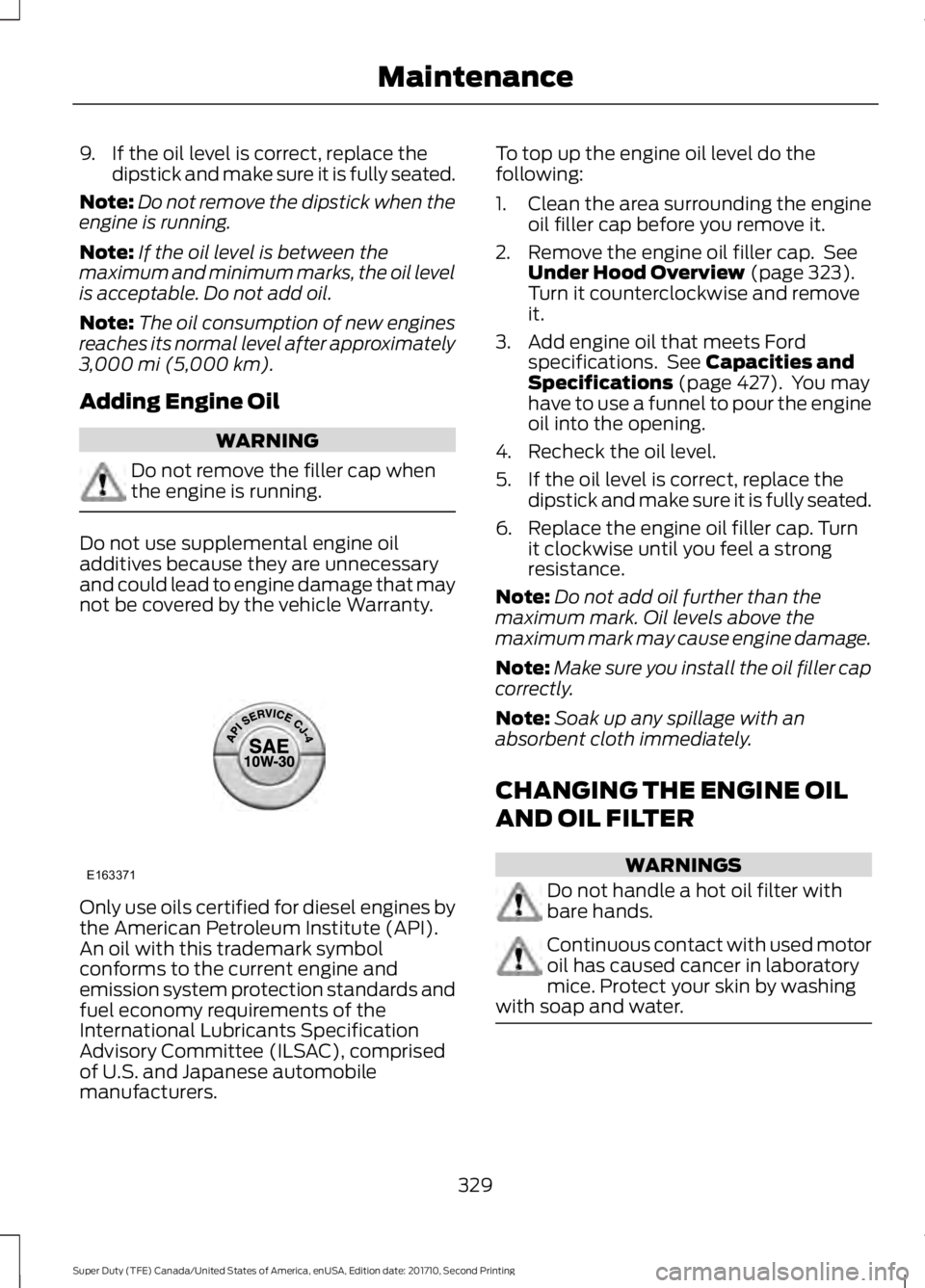

FORD F250 SUPER DUTY 2017  Owners Manual 9. If the oil level is correct, replace thedipstick and make sure it is fully seated.
Note:Do not remove the dipstick when theengine is running.
Note:If the oil level is between themaximum and minimum

Page 333 of 642

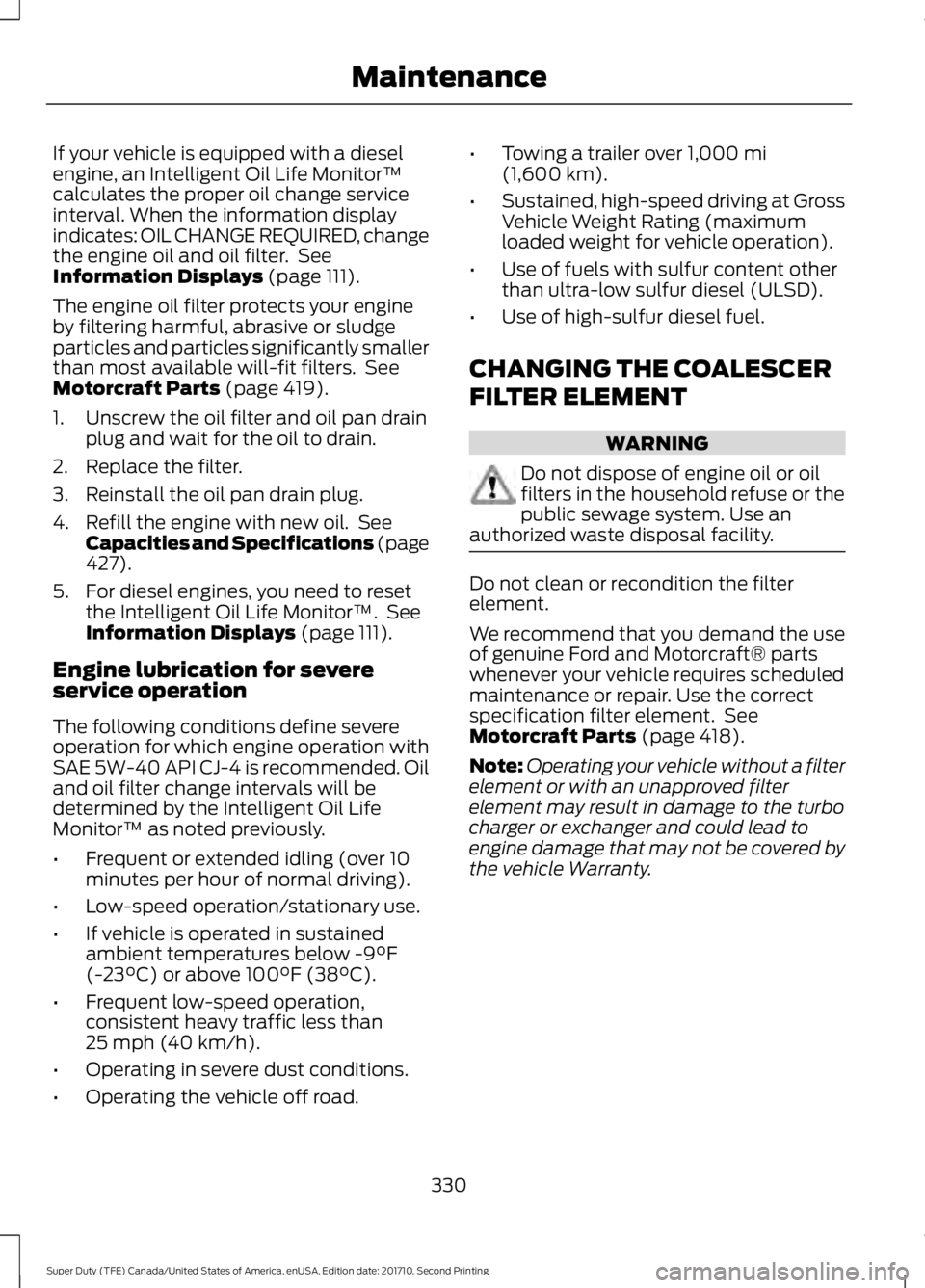

FORD F250 SUPER DUTY 2017  Owners Manual If your vehicle is equipped with a dieselengine, an Intelligent Oil Life Monitor™calculates the proper oil change serviceinterval. When the information displayindicates: OIL CHANGE REQUIRED, changet

Page 334 of 642

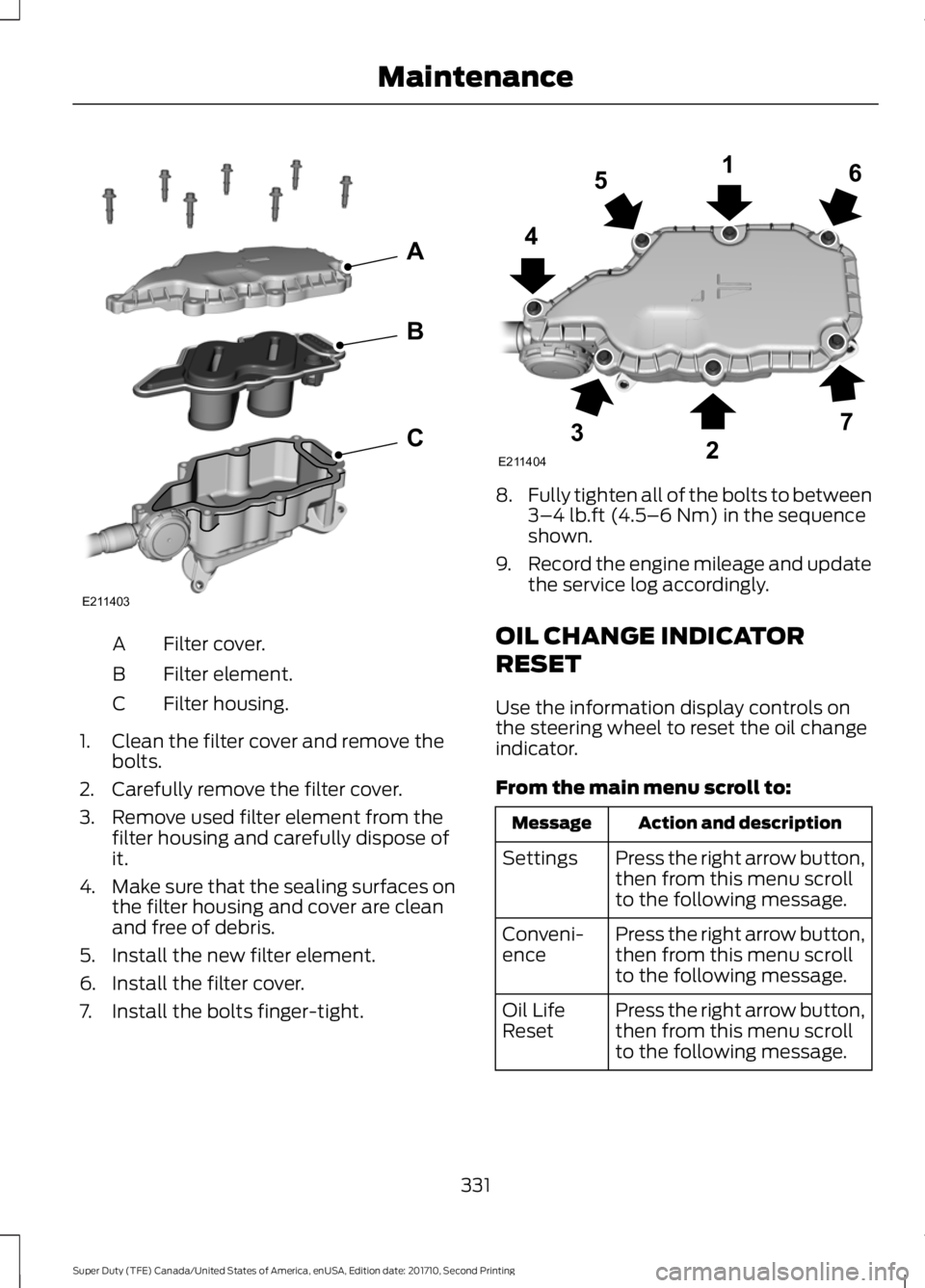

FORD F250 SUPER DUTY 2017  Owners Manual Filter cover.A
Filter element.B
Filter housing.C
1. Clean the filter cover and remove thebolts.
2. Carefully remove the filter cover.
3. Remove used filter element from thefilter housing and carefully

Page 335 of 642

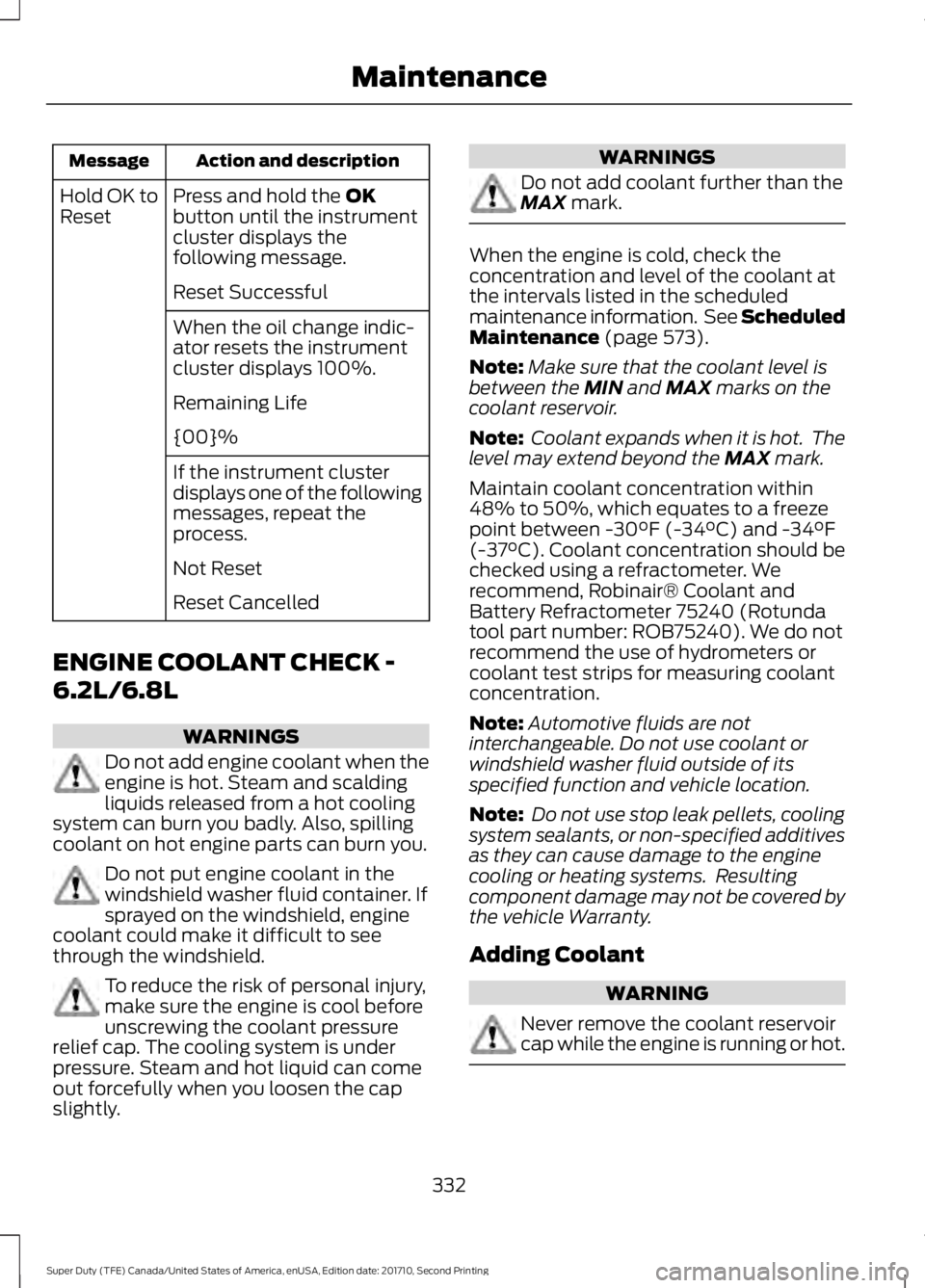

FORD F250 SUPER DUTY 2017  Owners Manual Action and descriptionMessage
Press and hold the OKbutton until the instrumentcluster displays thefollowing message.
Hold OK toReset
Reset Successful
When the oil change indic-ator resets the instrume

Page 336 of 642

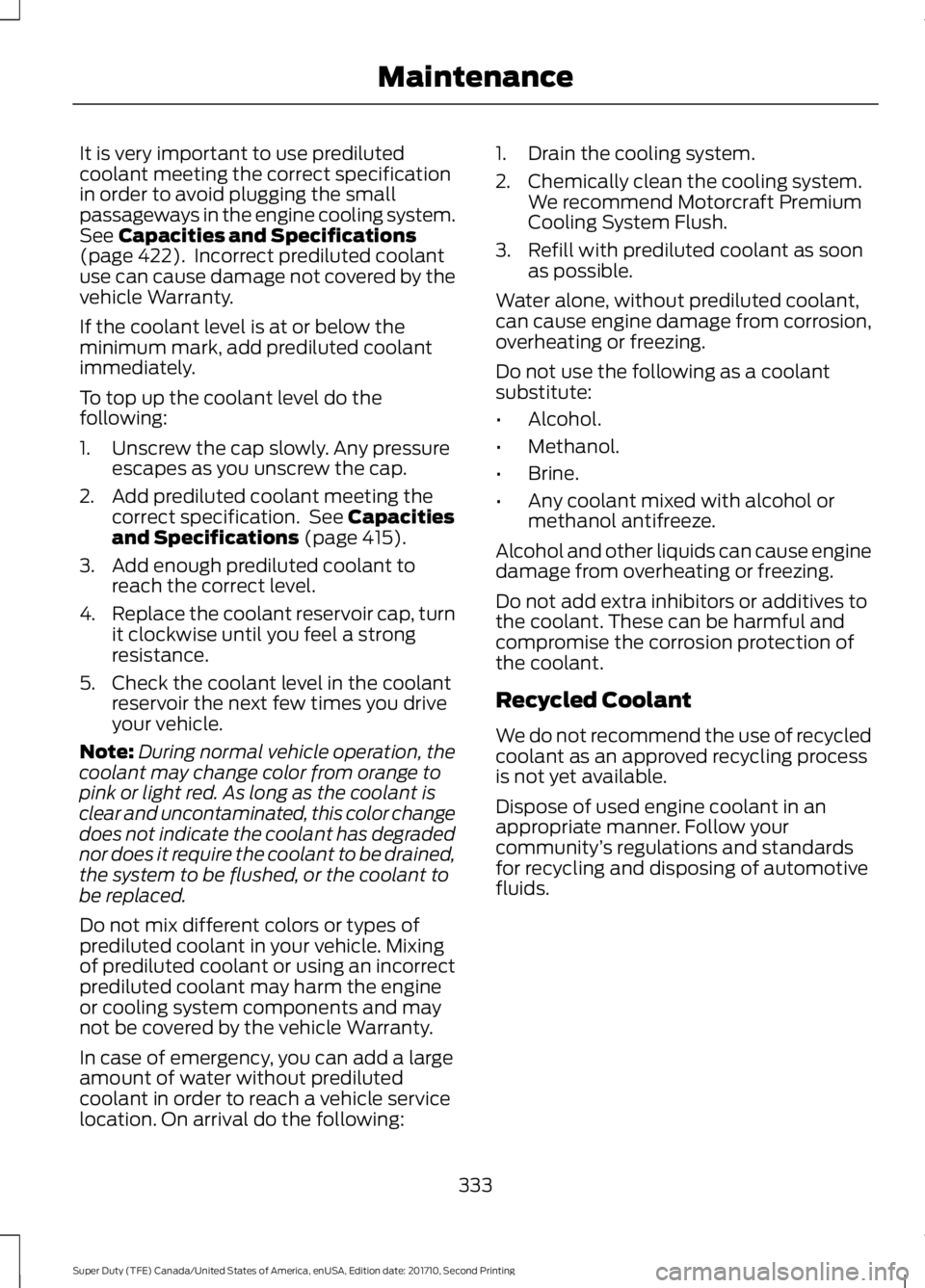

FORD F250 SUPER DUTY 2017  Owners Manual It is very important to use predilutedcoolant meeting the correct specificationin order to avoid plugging the smallpassageways in the engine cooling system.See Capacities and Specifications(page 422).

Page 337 of 642

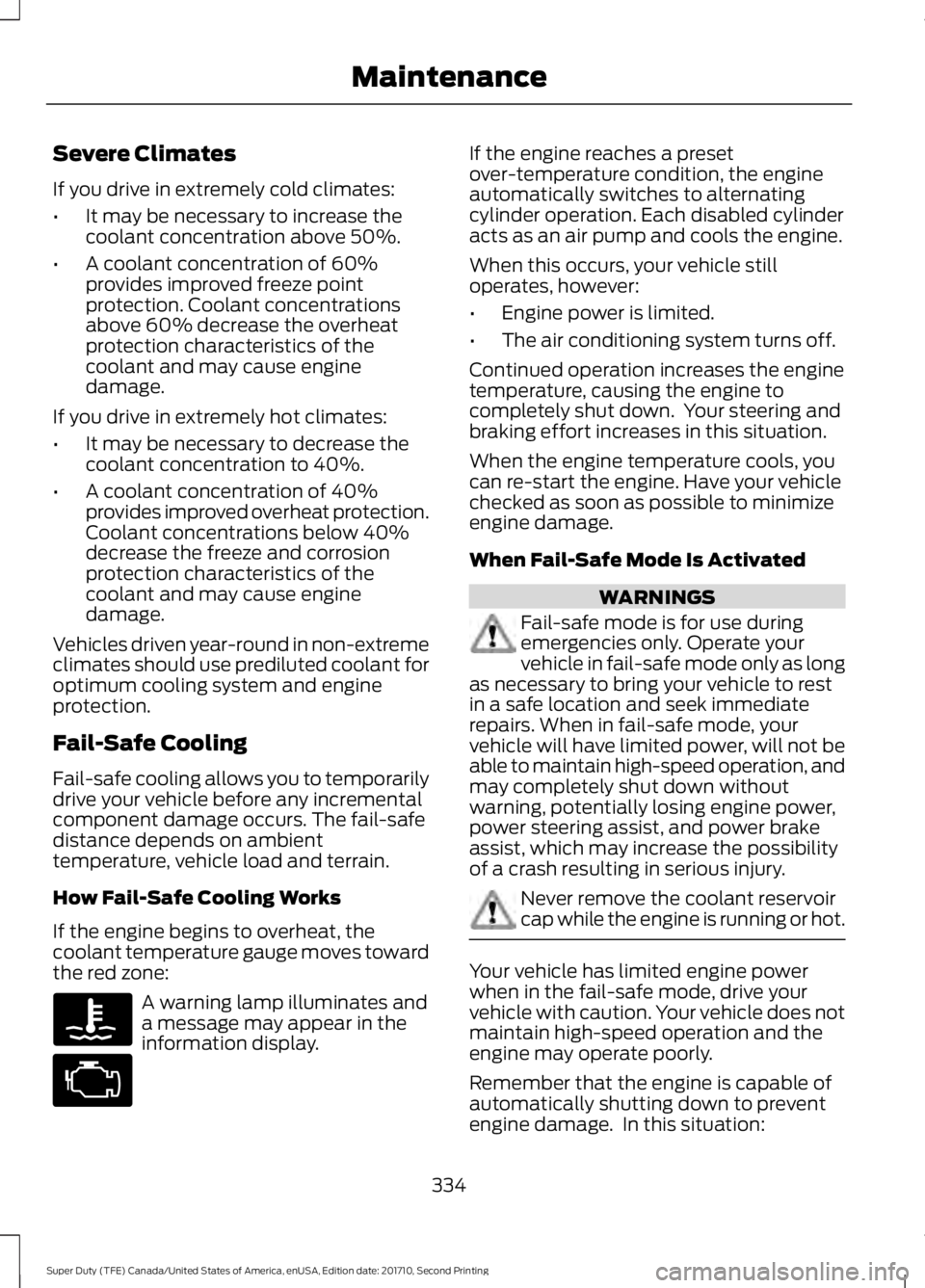

FORD F250 SUPER DUTY 2017  Owners Manual Severe Climates
If you drive in extremely cold climates:
•It may be necessary to increase thecoolant concentration above 50%.
•A coolant concentration of 60%provides improved freeze pointprotectio

Page 338 of 642

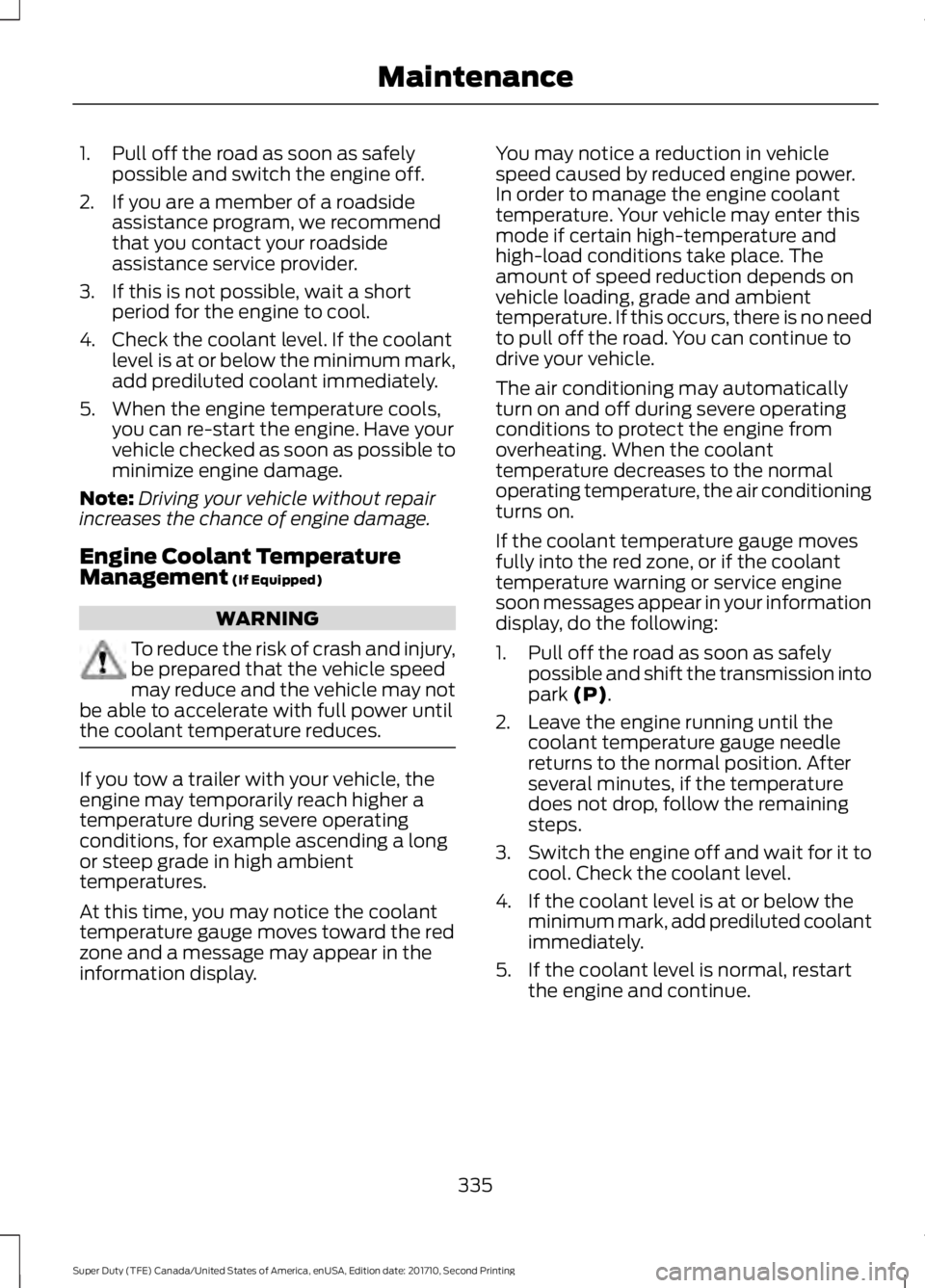

FORD F250 SUPER DUTY 2017  Owners Manual 1. Pull off the road as soon as safelypossible and switch the engine off.
2. If you are a member of a roadsideassistance program, we recommendthat you contact your roadsideassistance service provider.

Page 339 of 642

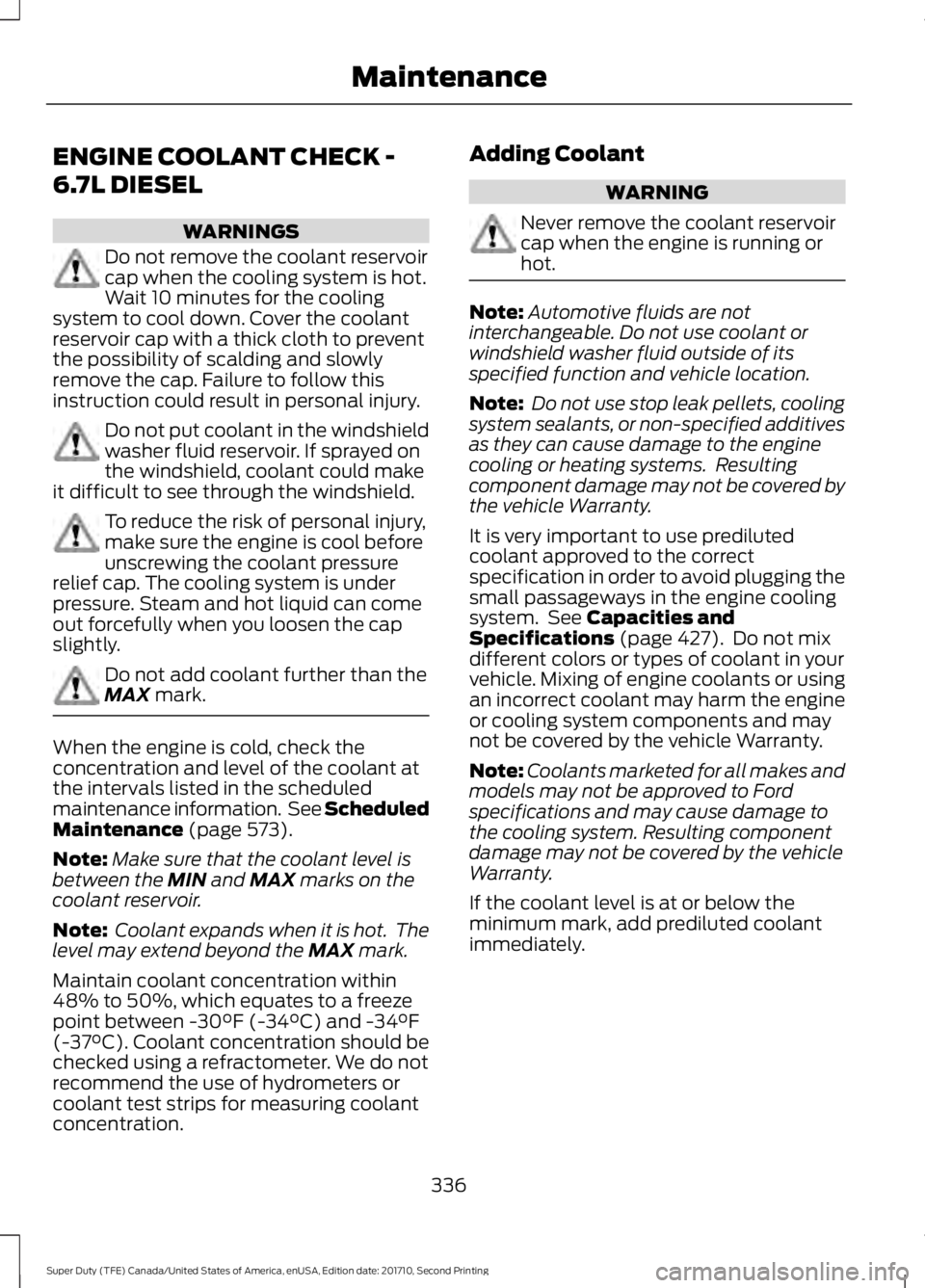

FORD F250 SUPER DUTY 2017  Owners Manual ENGINE COOLANT CHECK -
6.7L DIESEL
WARNINGS
Do not remove the coolant reservoircap when the cooling system is hot.Wait 10 minutes for the coolingsystem to cool down. Cover the coolantreservoir cap wit

Page 340 of 642

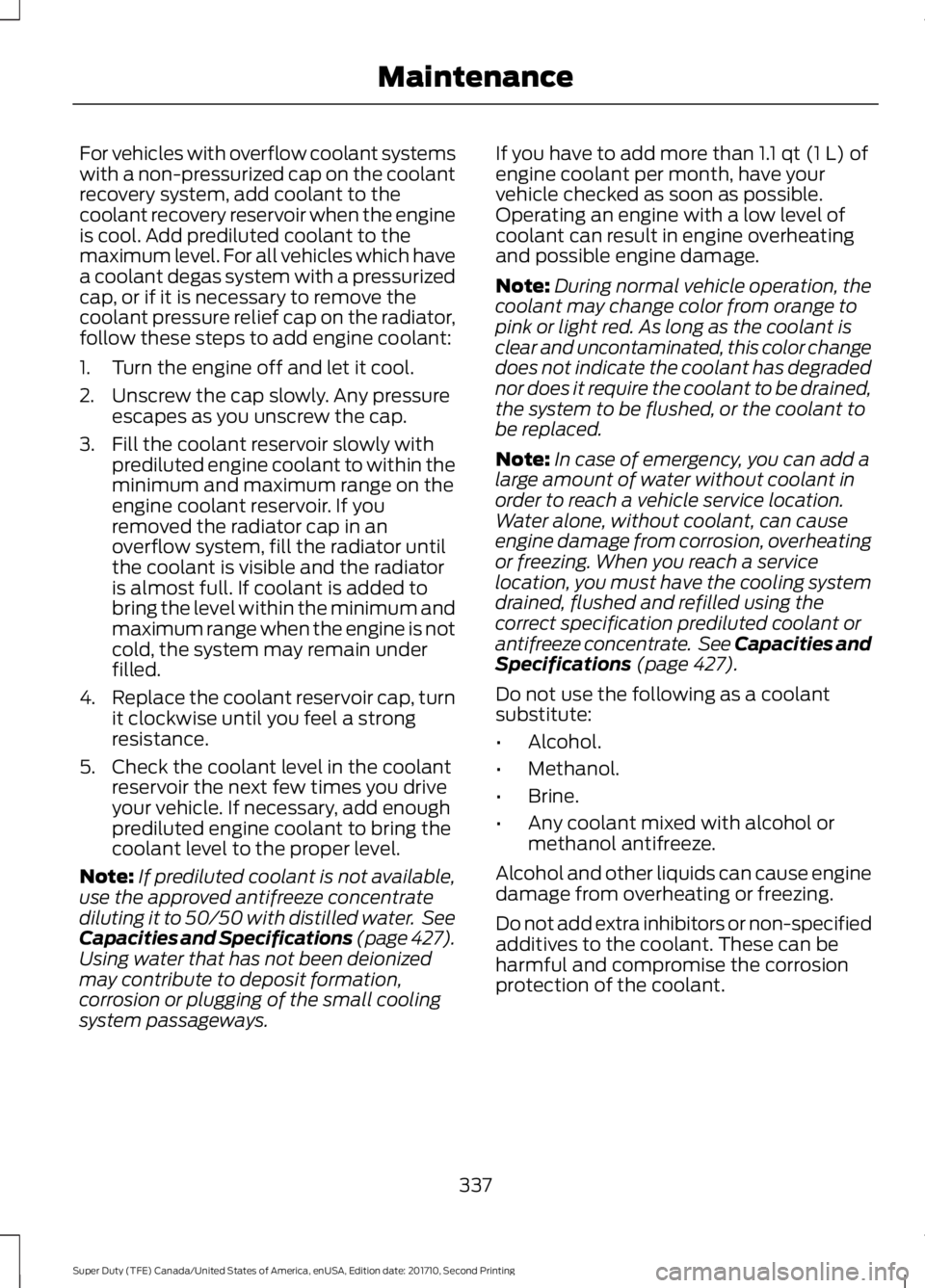

FORD F250 SUPER DUTY 2017  Owners Manual For vehicles with overflow coolant systemswith a non-pressurized cap on the coolantrecovery system, add coolant to thecoolant recovery reservoir when the engineis cool. Add prediluted coolant to thema
