FORD F250 SUPER DUTY 2017 Owners Manual

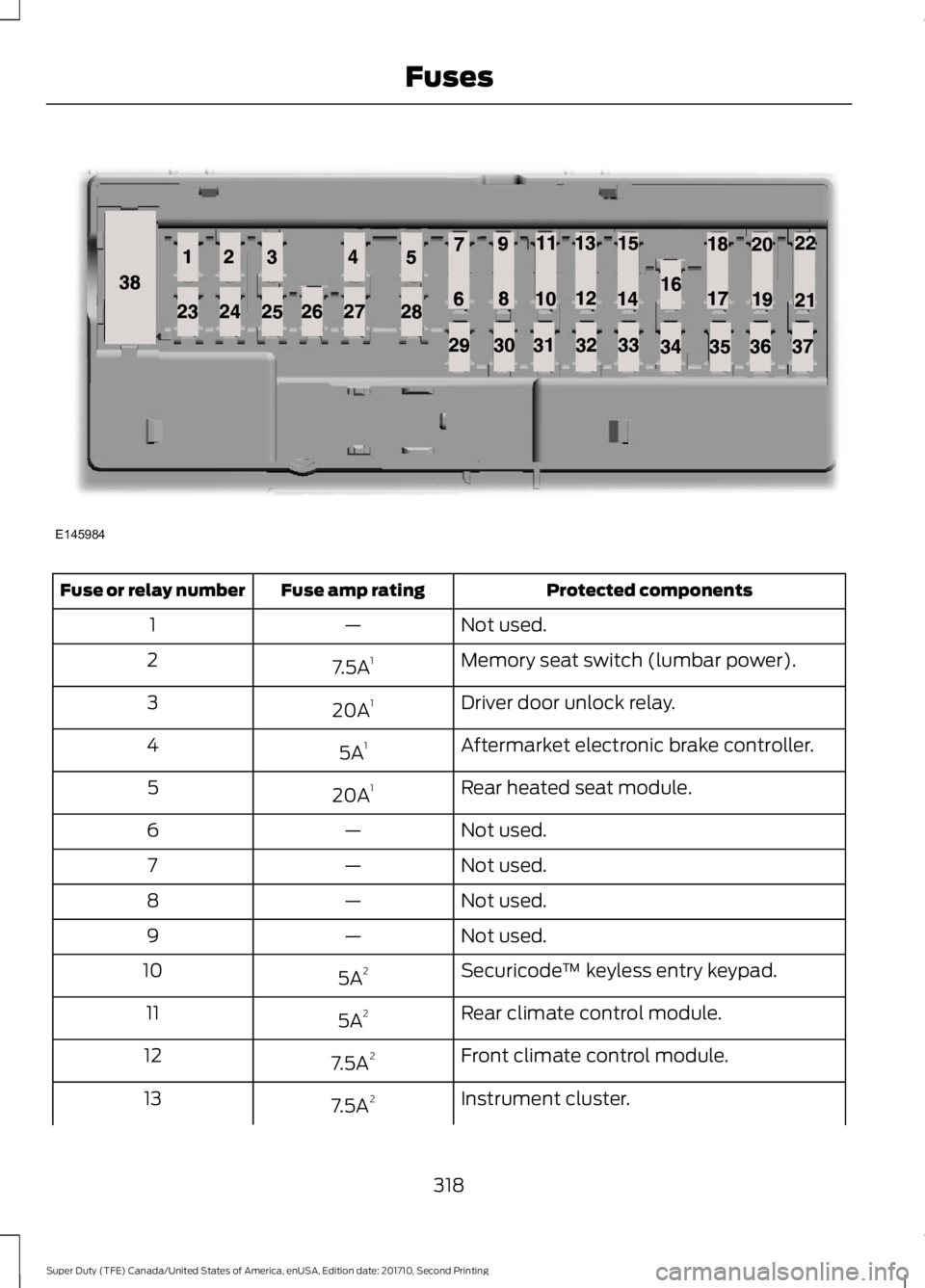

Protected componentsFuse amp ratingFuse or relay number
Not used.—1
Memory seat switch (lumbar power).7.5A12
Driver door unlock relay.20A13
Aftermarket electronic brake controller.5A14
Rear heated seat module.20A15
Not used.—6
Not used.—7
Not used.—8
Not used.—9
Securicode™ keyless entry keypad.5A210
Rear climate control module.5A211
Front climate control module.7.5A212
Instrument cluster.7.5A213
318
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
FusesE145984

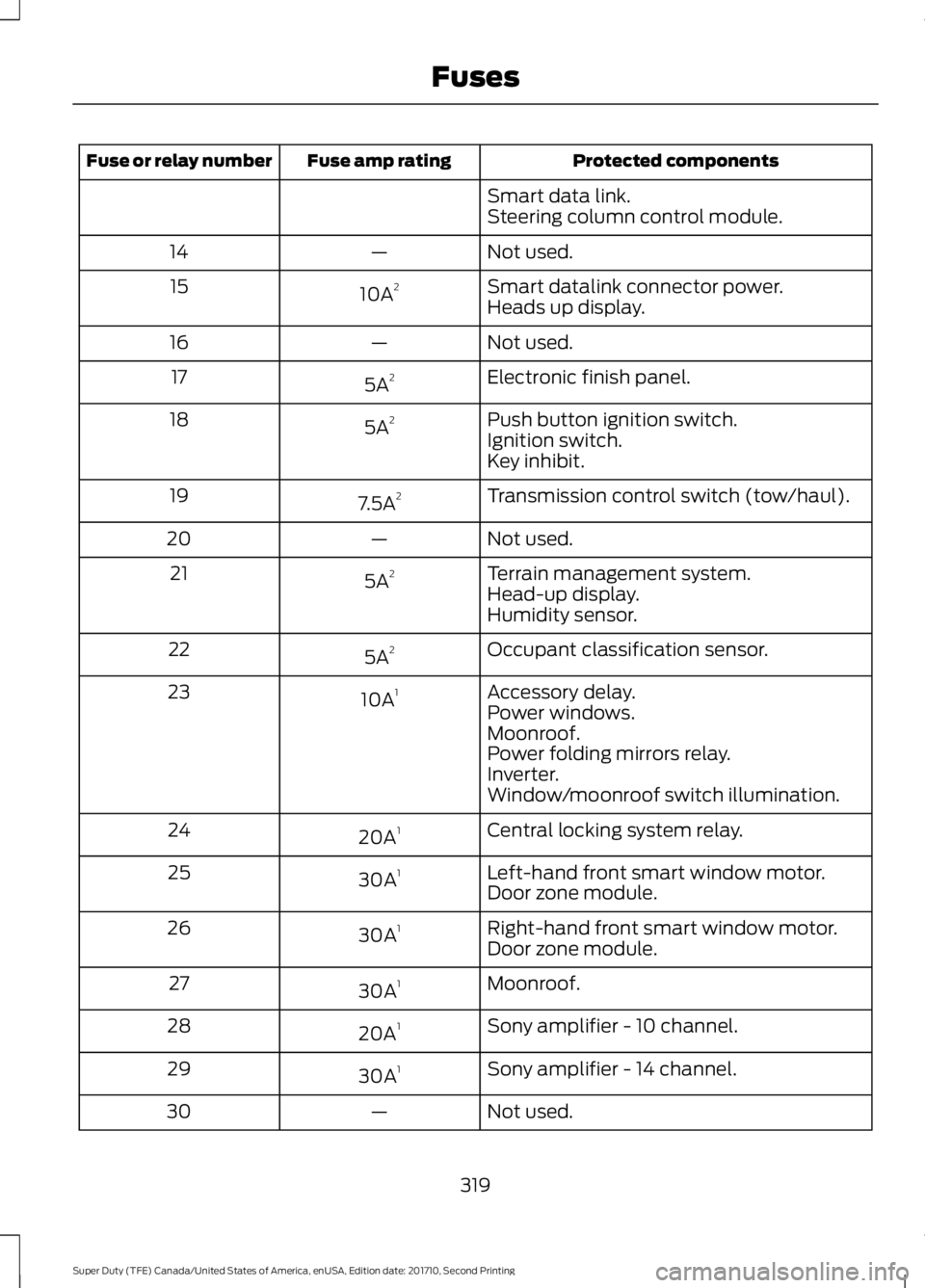

Protected componentsFuse amp ratingFuse or relay number
Smart data link.Steering column control module.
Not used.—14
Smart datalink connector power.10A215Heads up display.
Not used.—16
Electronic finish panel.5A217
Push button ignition switch.5A218Ignition switch.Key inhibit.
Transmission control switch (tow/haul).7.5A219
Not used.—20
Terrain management system.5A221Head-up display.Humidity sensor.
Occupant classification sensor.5A222
Accessory delay.10A123Power windows.Moonroof.Power folding mirrors relay.Inverter.Window/moonroof switch illumination.
Central locking system relay.20A124
Left-hand front smart window motor.30A125Door zone module.
Right-hand front smart window motor.30A126Door zone module.
Moonroof.30A127
Sony amplifier - 10 channel.20A128
Sony amplifier - 14 channel.30A129
Not used.—30
319
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Fuses

Protected componentsFuse amp ratingFuse or relay number
Not used.—31
SYNC.10A132GPS module.Display.Radio frequency receiver.
Radio.20A133
Run-start relay.30A134
Restraints control module.5A135
Lane keeping system.15A136Automatic high beam control.Auto-dimming mirrors.Rear heated seats.
Heated steering wheel.20A137
Left-hand front window motor.30A 338Rear power window motors.
1Micro fuse.2Dual micro fuse.3Circuit breaker.
CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one thathas the specified amperage rating.Using a fuse with a higher amperagerating can cause severe wire damage andcould start a fire.If electrical components in the vehicle arenot working, a fuse may have blown. Blownfuses are identified by a broken wire withinthe fuse. Check the appropriate fusesbefore replacing any electricalcomponents.
320
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
FusesE217331

FuseTypes
Fuse TypeCallout
Micro 2A
Micro 3B
MaxiC
MiniD
M CaseE
J CaseF
J Case Low ProfileG
321
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
FusesE207206

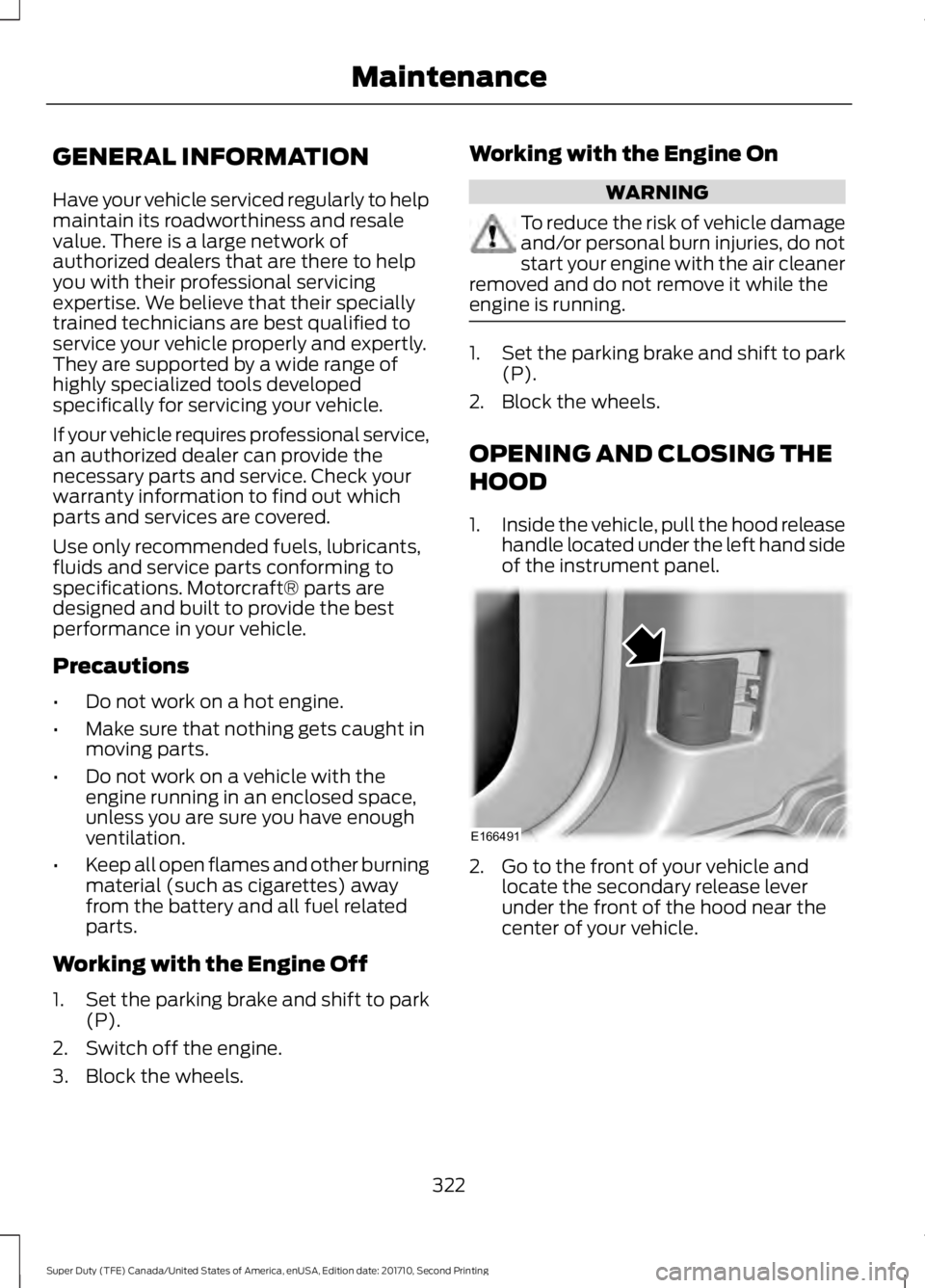

GENERAL INFORMATION
Have your vehicle serviced regularly to helpmaintain its roadworthiness and resalevalue. There is a large network ofauthorized dealers that are there to helpyou with their professional servicingexpertise. We believe that their speciallytrained technicians are best qualified toservice your vehicle properly and expertly.They are supported by a wide range ofhighly specialized tools developedspecifically for servicing your vehicle.
If your vehicle requires professional service,an authorized dealer can provide thenecessary parts and service. Check yourwarranty information to find out whichparts and services are covered.
Use only recommended fuels, lubricants,fluids and service parts conforming tospecifications. Motorcraft® parts aredesigned and built to provide the bestperformance in your vehicle.
Precautions
•Do not work on a hot engine.
•Make sure that nothing gets caught inmoving parts.
•Do not work on a vehicle with theengine running in an enclosed space,unless you are sure you have enoughventilation.
•Keep all open flames and other burningmaterial (such as cigarettes) awayfrom the battery and all fuel relatedparts.
Working with the Engine Off
1.Set the parking brake and shift to park(P).
2. Switch off the engine.
3. Block the wheels.
Working with the Engine On
WARNING
To reduce the risk of vehicle damageand/or personal burn injuries, do notstart your engine with the air cleanerremoved and do not remove it while theengine is running.
1.Set the parking brake and shift to park(P).
2. Block the wheels.
OPENING AND CLOSING THE
HOOD
1.Inside the vehicle, pull the hood releasehandle located under the left hand sideof the instrument panel.
2. Go to the front of your vehicle andlocate the secondary release leverunder the front of the hood near thecenter of your vehicle.
322
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
MaintenanceE166491

3. Raise the hood until the lift cylindershold it open.
4. To close, lower the hood and makesure that it is closed properly and fullylatched.

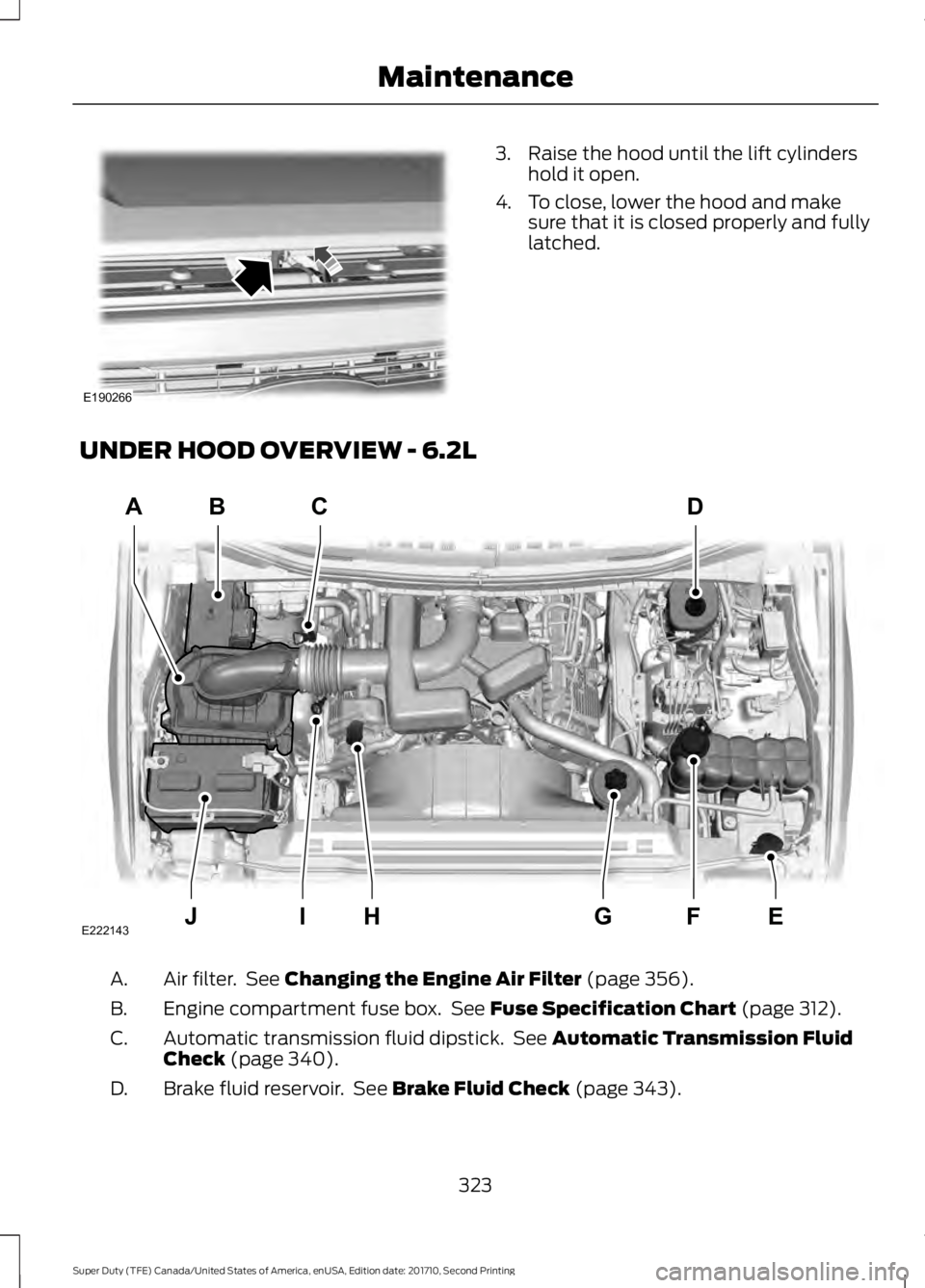

UNDER HOOD OVERVIEW - 6.2L
Air filter. See Changing the Engine Air Filter (page 356).A.
Engine compartment fuse box. See Fuse Specification Chart (page 312).B.
Automatic transmission fluid dipstick. See Automatic Transmission FluidCheck (page 340).C.
Brake fluid reservoir. See Brake Fluid Check (page 343).D.
323
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
MaintenanceE190266 ABC
JEFHI
D
E222143
G

Windshield washer fluid reservoir. See Washer Fluid Check (page 344).E.
Engine coolant reservoir. See Engine Coolant Check (page 332).F.
Power steering fluid reservoir. See Power Steering Fluid Check (page 344).G.
Engine oil filler cap. See Engine Oil Check (page 327).H.
Engine oil dipstick. See Engine Oil Dipstick (page 327).I.
Battery. See Changing the 12V Battery (page 346).J.

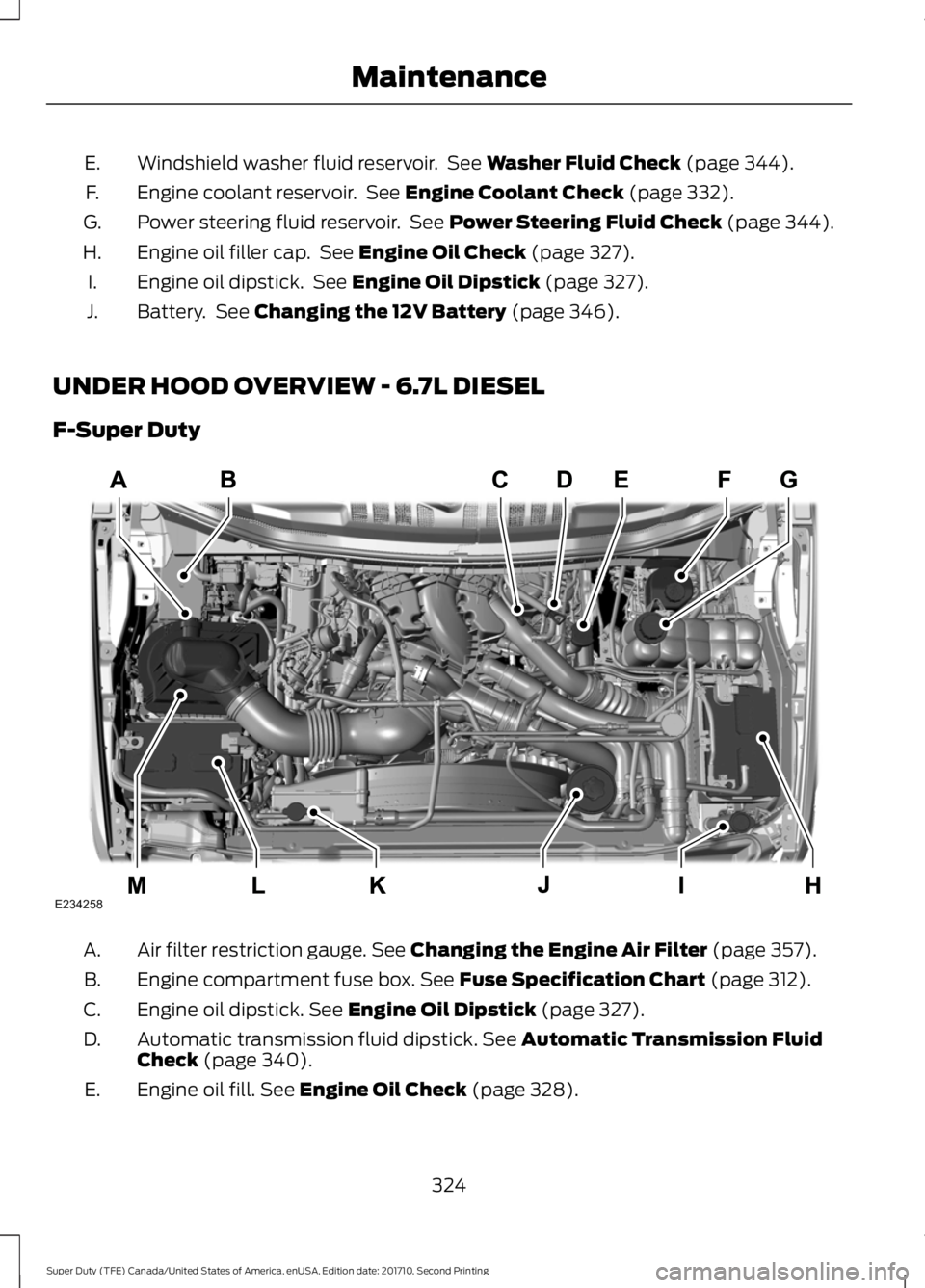

UNDER HOOD OVERVIEW - 6.7L DIESEL
F-Super Duty
Air filter restriction gauge. See Changing the Engine Air Filter (page 357).A.
Engine compartment fuse box. See Fuse Specification Chart (page 312).B.
Engine oil dipstick. See Engine Oil Dipstick (page 327).C.
Automatic transmission fluid dipstick. See Automatic Transmission FluidCheck (page 340).D.
Engine oil fill. See Engine Oil Check (page 328).E.
324
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
MaintenanceE234258

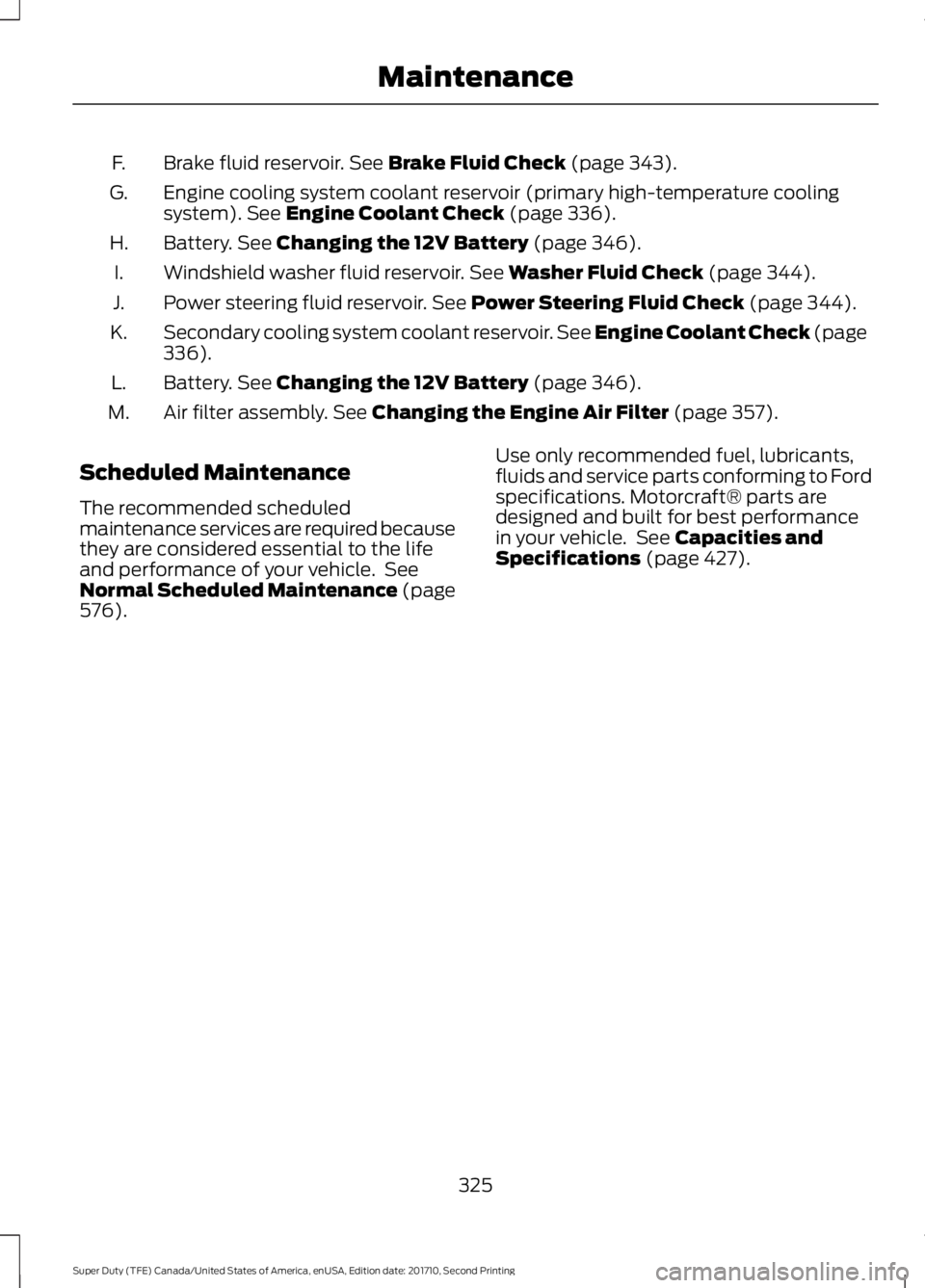

Brake fluid reservoir. See Brake Fluid Check (page 343).F.
Engine cooling system coolant reservoir (primary high-temperature coolingsystem). See Engine Coolant Check (page 336).G.
Battery. See Changing the 12V Battery (page 346).H.
Windshield washer fluid reservoir. See Washer Fluid Check (page 344).I.
Power steering fluid reservoir. See Power Steering Fluid Check (page 344).J.
Secondary cooling system coolant reservoir. See Engine Coolant Check (page336).K.
Battery. See Changing the 12V Battery (page 346).L.
Air filter assembly. See Changing the Engine Air Filter (page 357).M.
Scheduled Maintenance
The recommended scheduledmaintenance services are required becausethey are considered essential to the lifeand performance of your vehicle. SeeNormal Scheduled Maintenance (page576).
Use only recommended fuel, lubricants,fluids and service parts conforming to Fordspecifications. Motorcraft® parts aredesigned and built for best performancein your vehicle. See Capacities andSpecifications (page 427).
325
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Maintenance

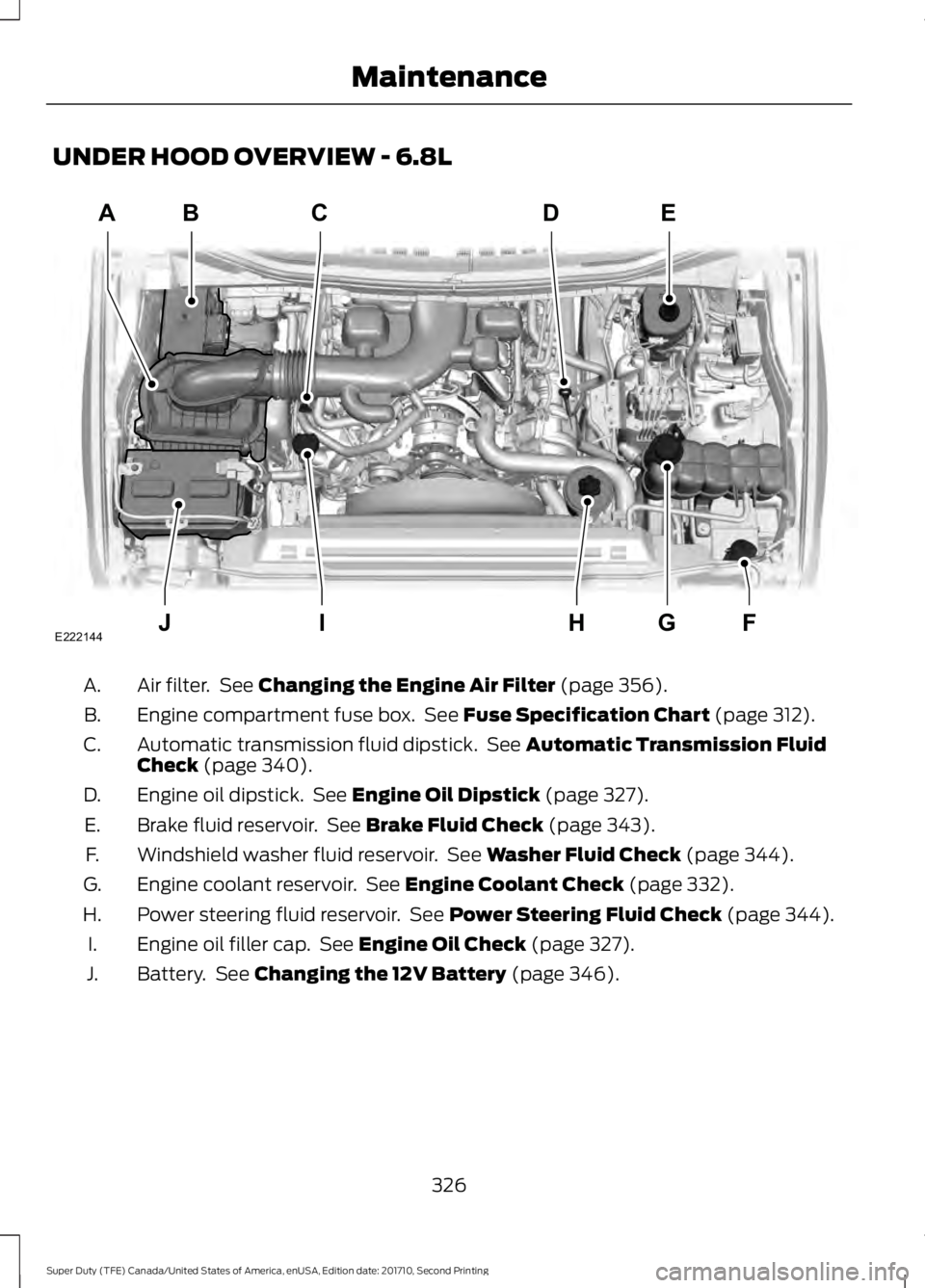

UNDER HOOD OVERVIEW - 6.8L
Air filter. See Changing the Engine Air Filter (page 356).A.
Engine compartment fuse box. See Fuse Specification Chart (page 312).B.
Automatic transmission fluid dipstick. See Automatic Transmission FluidCheck (page 340).C.
Engine oil dipstick. See Engine Oil Dipstick (page 327).D.
Brake fluid reservoir. See Brake Fluid Check (page 343).E.
Windshield washer fluid reservoir. See Washer Fluid Check (page 344).F.
Engine coolant reservoir. See Engine Coolant Check (page 332).G.
Power steering fluid reservoir. See Power Steering Fluid Check (page 344).H.
Engine oil filler cap. See Engine Oil Check (page 327).I.
Battery. See Changing the 12V Battery (page 346).J.
326
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
MaintenanceABC
JFGI
ED
E222144
H

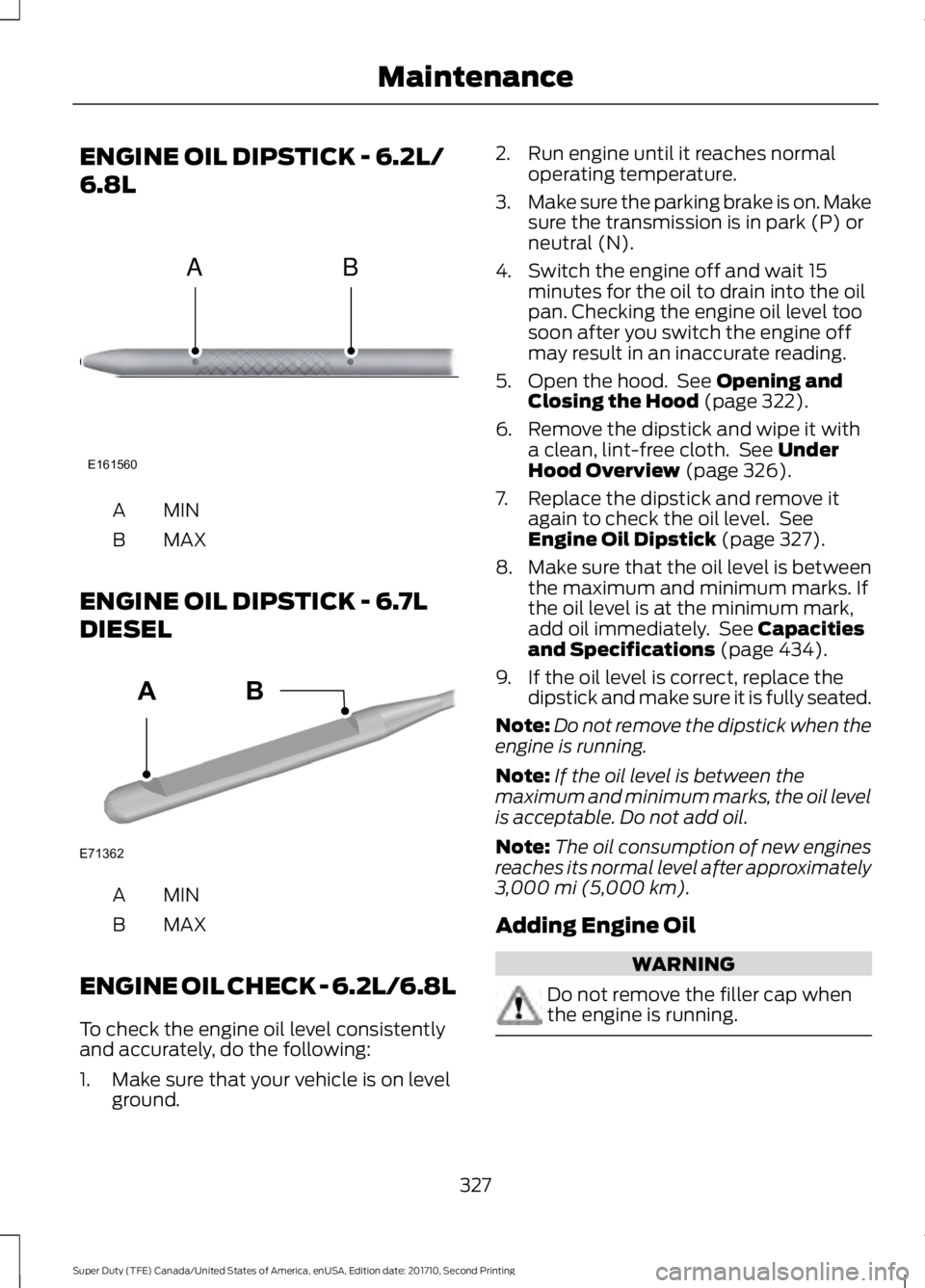

ENGINE OIL DIPSTICK - 6.2L/
6.8L
MINA
MAXB
ENGINE OIL DIPSTICK - 6.7L
DIESEL
MINA
MAXB
ENGINE OIL CHECK - 6.2L/6.8L
To check the engine oil level consistentlyand accurately, do the following:
1. Make sure that your vehicle is on levelground.
2. Run engine until it reaches normaloperating temperature.
3.Make sure the parking brake is on. Makesure the transmission is in park (P) orneutral (N).
4. Switch the engine off and wait 15minutes for the oil to drain into the oilpan. Checking the engine oil level toosoon after you switch the engine offmay result in an inaccurate reading.
5. Open the hood. See Opening andClosing the Hood (page 322).
6. Remove the dipstick and wipe it witha clean, lint-free cloth. See UnderHood Overview (page 326).
7. Replace the dipstick and remove itagain to check the oil level. SeeEngine Oil Dipstick (page 327).
8.Make sure that the oil level is betweenthe maximum and minimum marks. Ifthe oil level is at the minimum mark,add oil immediately. See Capacitiesand Specifications (page 434).
9. If the oil level is correct, replace thedipstick and make sure it is fully seated.
Note:Do not remove the dipstick when theengine is running.
Note:If the oil level is between themaximum and minimum marks, the oil levelis acceptable. Do not add oil.
Note:The oil consumption of new enginesreaches its normal level after approximately3,000 mi (5,000 km).
Adding Engine Oil
WARNING
Do not remove the filler cap whenthe engine is running.
327
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
MaintenanceE161560
AB E71362
AB
