FORD F750 2015 13.G Owners Manual

Meritor
Axle Model Capacity - Pints (Liters)*
RS-17–140 28.6 (13.5)
RS-17–144 32.0 (15.0)
RS-17–145 33.6 (15.9)
RS-17–220 30.7 (14.5)
RS-17–224 29.0 (13.0)
RS-19–144 32.0 (15.0)
RS-19–145 33.2 (15.7)
RS-19–220 30.0 (14.0)
RS-19–223 29.0 (13.0)
RS-21–145 32.3 (15.3)
RS-21–160 39.0 (18.0)
RS-21–230 38.9 (18.4)
RS-23–160 39.5 (18.7)
RS-23–161 37.2 (17.6)
RS-23–180/186 47.3 (22.4)
RS-23–240 37.4 (17.7)
RS-23–380 63.6 (30.1)
*Oil capacities are for standard track axles measured at various common
drive pinion angles. The quantities listed include enough oil for both
wheel ends. These capacities change if the track or the drive pinion
angle is different.
Power Steering
Note:Capacities may be higher if the vehicle is equipped with a cooler.
Always check to make sure the fluid level is in the acceptable range.
Steering Gear Capacity - Pints (Liters)
TAS40 17.6 (8.3)
TAS66 18.4 (8.7)
270Capacities and Specifications
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

Air Conditioner Refrigerant
WARNING:The air conditioning refrigerant system contains
refrigerant R-134a under high pressure. Opening the air
conditioning refrigerant system can cause personal injury. Only qualified
personnel should service the air conditioning refrigerant system.
Item Capacity Ford part
nameFord part
number / Ford
specification
Air conditioning
refrigerant2.38 lb (1.08 kg) Mortorcraft
R-134a
RefrigerantYN-19 (US) /
CYN-16-R
(Canada) /
WSH-M17B19-A
Air conditioning
compressor oil9.0floz
(266.2 mL)Motorcraft
Heavy Truck
PAG Refrigerant
Compressor OilYN-24 /
WST-M1C231-B2
Note:This system uses mineral-based refrigerant oil to lubricate O-rings
and fittings.
Note:Torque the captured washer nut to 170–190 inch-pounds (19–21
Newton-meters) after servicing.
Fuel Tanks
Gasoline engine
Tank Type Capacity - Gallons (Liters)
Single, steel rectangular 42 (159)
60 (227)
Diesel engine
Tank Type Capacity - Gallons (Liters)
Single, steel rectangular 35 (132)
Single, steel rectangular 45 (170)
Single, steel rectangular 65 (246)
Single, steel D-style 65 (246)
Single, steel D-style 80 (303)
Capacities and Specifications271
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

Diesel engine
Tank Type Capacity - Gallons (Liters)
Dual, steel rectangular 35 (RH)/45 (LH)
(132 [RH]/170 [LH])
Dual, steel rectangular 45/45 (170/170)
Dual, steel D-style 50/50 (189/189)
Dual, steel D-style 65 (RH)/45 (LH)
(246 [RH]/170 [LH])
Dual, steel rectangular 65/65 (246/246)
Dual, steel D-style 80/65 (303/246)
MOTORCRAFT® PART NUMBERS
Component 6.8L V10 Engine
Air filter element FA-1889
Oil filter FL-820-S
Battery BH-31-DC (700 CCA)
BH-31-XT (950 CCA)
Spark plugs-platinum
*HJFS–24P/SP–509
Wiper blade WW–2236
*For spark plug replacement, see an authorized dealer. See the
Scheduled Maintenancechapter for the appropriate intervals for
changing the spark plugs.
Note:Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or equivalent
replacement parts. The customer warranty may be void for any damage
to the engine if such spark plugs are not used.
VEHICLE IDENTIFICATION NUMBER
The VIN is on the Vehicle Rating Decal attached to the vehicle on the
edge of the driver’s door or B-Pillar. The VIN also serves as the warranty
number. If you ever find it necessary to communicate with Ford Motor
Company about your vehicle, always include the VIN in your
communication.
272Capacities and Specifications
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

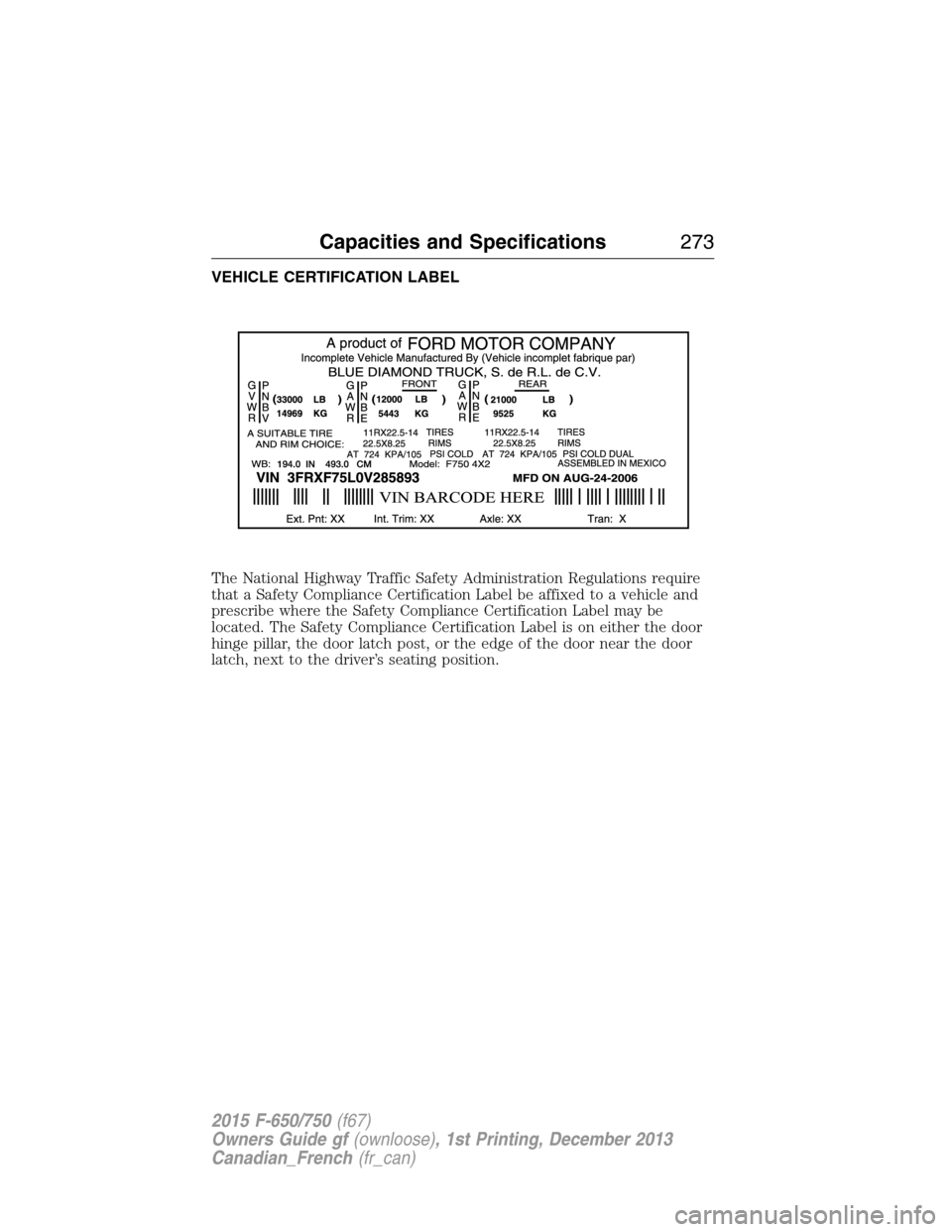

VEHICLE CERTIFICATION LABEL
The National Highway Traffic Safety Administration Regulations require
that a Safety Compliance Certification Label be affixed to a vehicle and
prescribe where the Safety Compliance Certification Label may be
located. The Safety Compliance Certification Label is on either the door
hinge pillar, the door latch post, or the edge of the door near the door
latch, next to the driver’s seating position.
Capacities and Specifications273
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

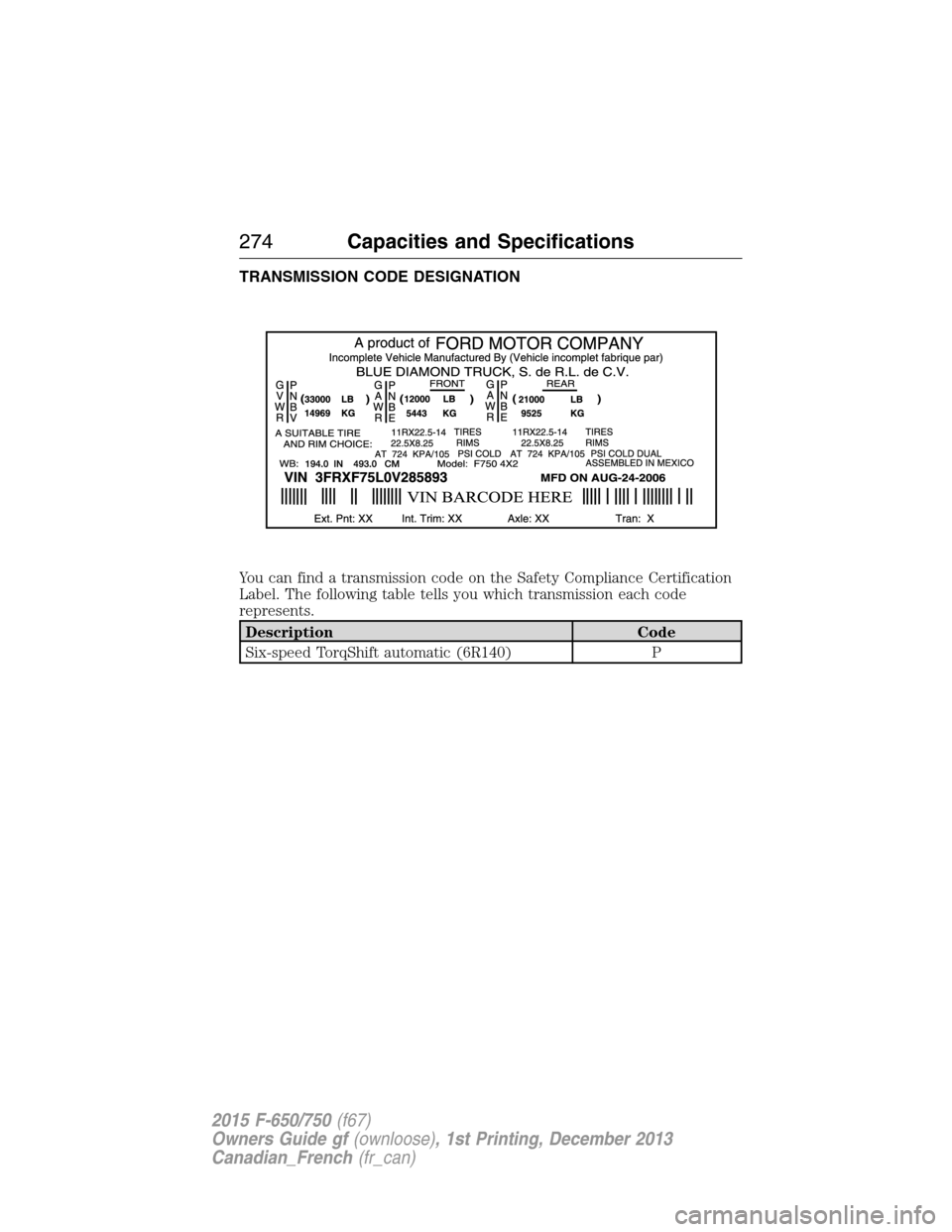

TRANSMISSION CODE DESIGNATION
You can find a transmission code on the Safety Compliance Certification
Label. The following table tells you which transmission each code
represents.
Description Code
Six-speed TorqShift automatic (6R140) P
274Capacities and Specifications
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

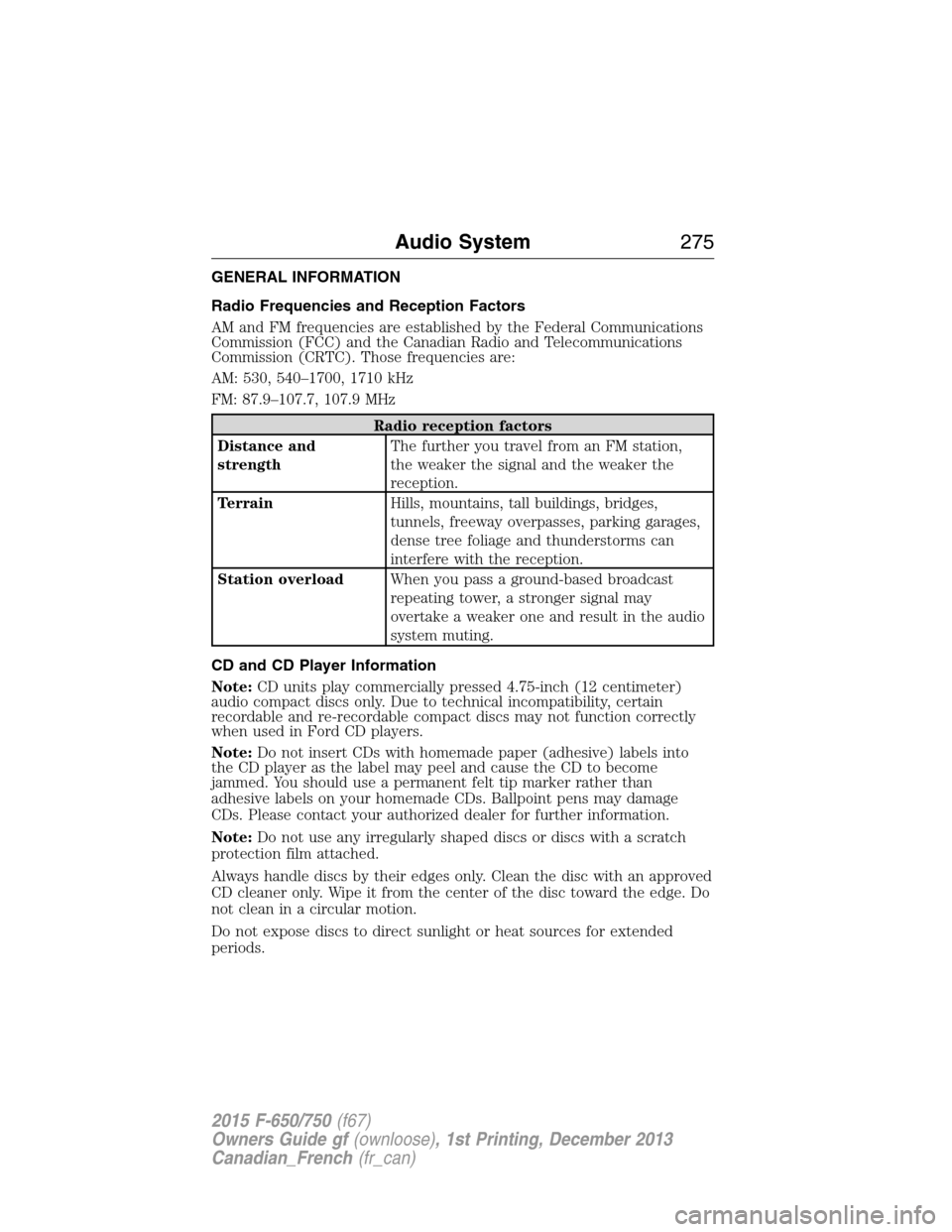

GENERAL INFORMATION
Radio Frequencies and Reception Factors
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.9–107.7, 107.9 MHz
Radio reception factors
Distance and
strengthThe further you travel from an FM station,
the weaker the signal and the weaker the
reception.
TerrainHills, mountains, tall buildings, bridges,
tunnels, freeway overpasses, parking garages,
dense tree foliage and thunderstorms can
interfere with the reception.
Station overloadWhen you pass a ground-based broadcast
repeating tower, a stronger signal may
overtake a weaker one and result in the audio
system muting.
CD and CD Player Information
Note:CD units play commercially pressed 4.75-inch (12 centimeter)
audio compact discs only. Due to technical incompatibility, certain
recordable and re-recordable compact discs may not function correctly
when used in Ford CD players.
Note:Do not insert CDs with homemade paper (adhesive) labels into
the CD player as the label may peel and cause the CD to become
jammed. You should use a permanent felt tip marker rather than
adhesive labels on your homemade CDs. Ballpoint pens may damage
CDs. Please contact your authorized dealer for further information.
Note:Do not use any irregularly shaped discs or discs with a scratch
protection film attached.
Always handle discs by their edges only. Clean the disc with an approved
CD cleaner only. Wipe it from the center of the disc toward the edge. Do
not clean in a circular motion.
Do not expose discs to direct sunlight or heat sources for extended
periods.
Audio System275
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

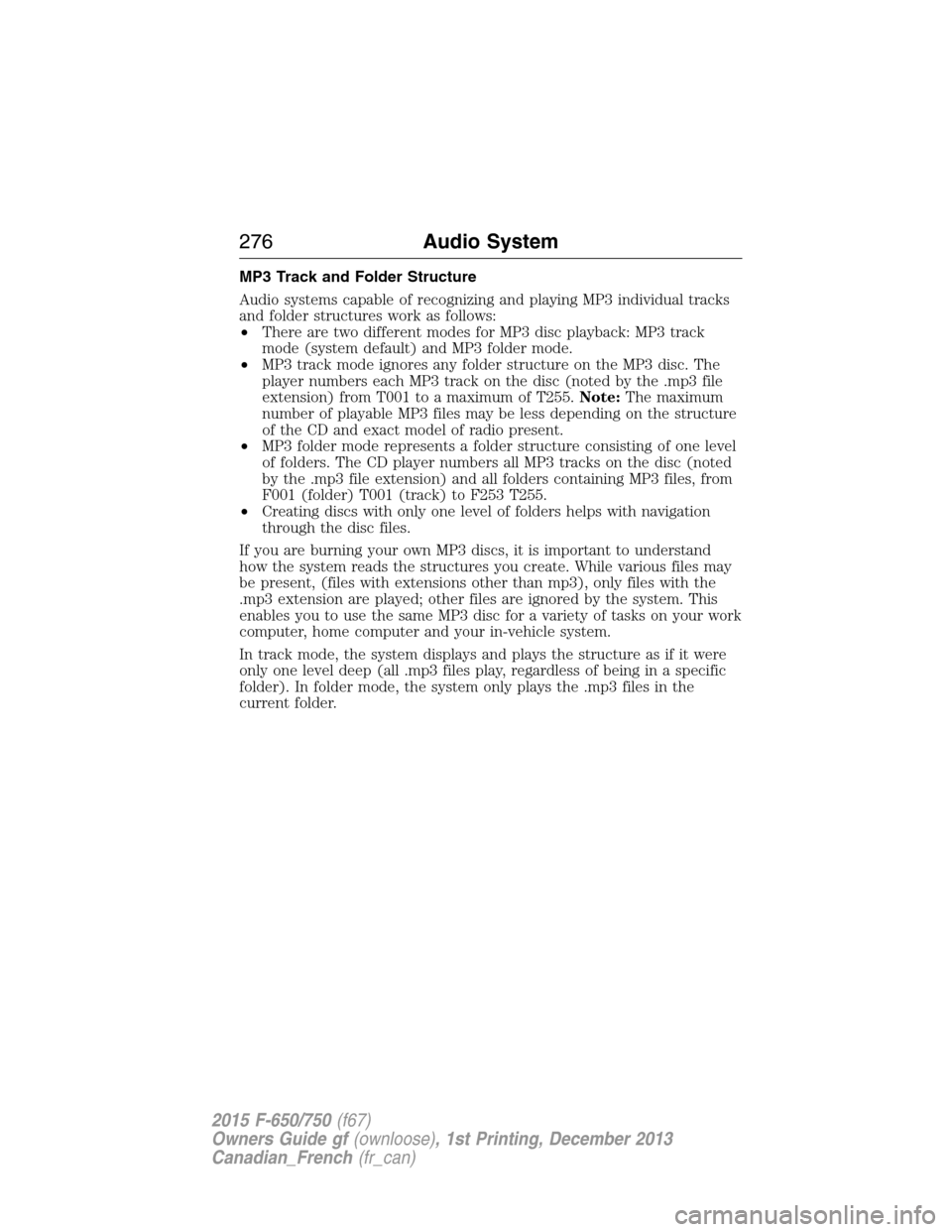

MP3 Track and Folder Structure
Audio systems capable of recognizing and playing MP3 individual tracks
and folder structures work as follows:
•There are two different modes for MP3 disc playback: MP3 track
mode (system default) and MP3 folder mode.
•MP3 track mode ignores any folder structure on the MP3 disc. The
player numbers each MP3 track on the disc (noted by the .mp3 file
extension) from T001 to a maximum of T255.Note:The maximum
number of playable MP3 files may be less depending on the structure
of the CD and exact model of radio present.
•MP3 folder mode represents a folder structure consisting of one level
of folders. The CD player numbers all MP3 tracks on the disc (noted
by the .mp3 file extension) and all folders containing MP3 files, from
F001 (folder) T001 (track) to F253 T255.
•Creating discs with only one level of folders helps with navigation
through the disc files.
If you are burning your own MP3 discs, it is important to understand
how the system reads the structures you create. While various files may
be present, (files with extensions other than mp3), only files with the
.mp3 extension are played; other files are ignored by the system. This
enables you to use the same MP3 disc for a variety of tasks on your work
computer, home computer and your in-vehicle system.
In track mode, the system displays and plays the structure as if it were
only one level deep (all .mp3 files play, regardless of being in a specific
folder). In folder mode, the system only plays the .mp3 files in the
current folder.
276Audio System
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

AM/FM
WARNING:Driving while distracted can result in loss of vehicle
control, crash and injury. We strongly recommend that you use
extreme caution when using any device that may take your focus off
the road. Your primary responsibility is the safe operation of your
vehicle. We recommend against the use of any hand-held device while
driving and encourage the use of voice-operated systems when possible.
Make sure you are aware of all applicable local laws that may affect the
use of electronic devices while driving.
A.CLK:Press this button to switch the display between the clock and
radio frequency. To set the time:
1. Press and holdCLKuntil the hours start to flash.
2. Press the arrow buttons to adjust the hours. Repeat Steps 1 and 2 to
set the minutes.
3. PressCLKagain to exit clock mode.
B.Tune:Press these arrow buttons to manually search through the radio
frequency band. Press and hold for a fast search. In AUDIO mode, press
the buttons to adjust different sound settings.
C.AUDIO:Press this button to access settings for Treble, Middle, Bass,
Fade and Balance.
D.SEEK:Press this button to go to the previous or next strong station
on the frequency band.
CLK
AUDIOC
EG
F
BA
D
Audio System277
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

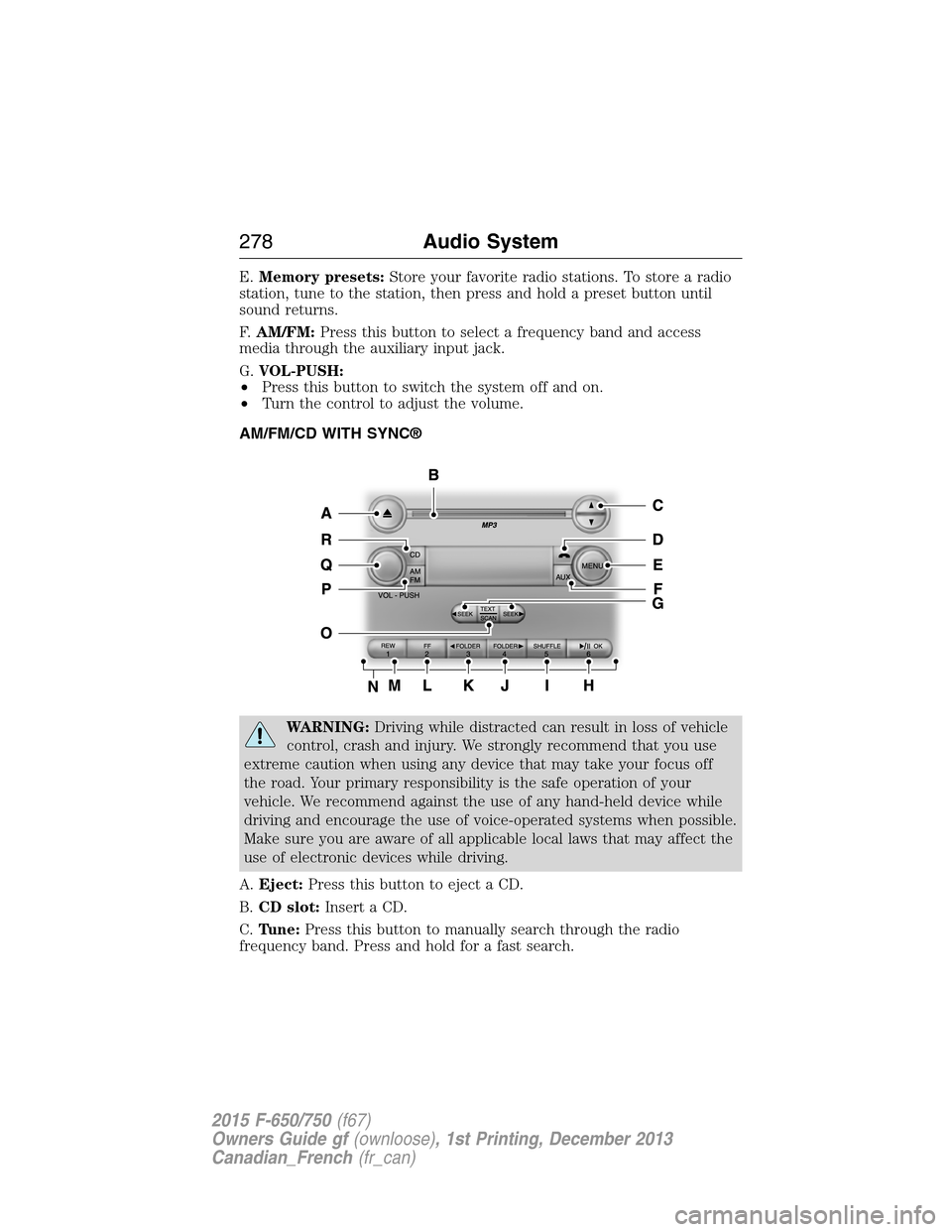

E.Memory presets:Store your favorite radio stations. To store a radio
station, tune to the station, then press and hold a preset button until
sound returns.
F.AM/FM:Press this button to select a frequency band and access
media through the auxiliary input jack.
G.VOL-PUSH:
•Press this button to switch the system off and on.
•Turn the control to adjust the volume.
AM/FM/CD WITH SYNC®
WARNING:Driving while distracted can result in loss of vehicle
control, crash and injury. We strongly recommend that you use
extreme caution when using any device that may take your focus off
the road. Your primary responsibility is the safe operation of your
vehicle. We recommend against the use of any hand-held device while
driving and encourage the use of voice-operated systems when possible.
Make sure you are aware of all applicable local laws that may affect the
use of electronic devices while driving.
A.Eject:Press this button to eject a CD.
B.CD slot:Insert a CD.
C.Tune:Press this button to manually search through the radio
frequency band. Press and hold for a fast search.
278Audio System
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

D.Phone:Press this button to access the phone features of the SYNC®
system. See theSYNC®chapter for more information.
E.MENU:Press this button to access different audio system features.
•If your vehicle is equipped with satellite radio, you can access
different menus by pressingOK.
•Set the time by pressingMENUuntilSET HOURSorSET
MINUTESappears and using the arrow buttons to adjust the time.
•Set the strongest stations on the radio frequency by pressingMENU
untilAUTOSETappears.AUTOSETdoes not override your original
presets.
•RBDSdisplays text transmitted by certain radio stations and
searches for music categories. To search for music categories, turn on
RBDS (by using theSEEKbuttons whenRBDS ON/OFFappears).
Press the up and down arrow buttons to scroll through categories,
then use theSEEKbuttons to begin the search.
•SPEEDVOL(speed compensated volume) allows you to adjust radio
volume to compensate for noise levels when vehicle speed increases.
•Track/Folderis only available on MP3 files when in CD mode. In
track mode, pressing theSEEKarrows allows you to scroll through
all the tracks on the disc. In folder mode, pressing theSEEKarrows
allows you to scroll through all the tracks within the selected folder.
Press theFOLDERbuttons to access other folders.
•COMPRESS(Compression) is only available in CD and MP3 modes.
Switching compression on brings the soft and loud passages together
for a more consistent listening level. Use theSEEKbuttons and up
and down arrow buttons to switch it on and off.
F.AUX:Press this button to access the media features of the SYNC®
system. See theSYNC®chapter for more information.
G.SEEK:
•In radio mode, press and release these buttons to go to the next (or
previous) preset radio station or disc track.
•In CD and MP3 modes, press these buttons to select the next (or
previous) track, or press and hold to advance (or reverse) within the
same track.
H.Play, Pause and OK:
•Play and Pause allow you to play or pause a track when listening to a
CD.
•OKallows you to confirm commands with phone and media features
of the SYNC system. See theSYNC®chapter for more information.
I.SHUFFLE:Play music on the selected CD or MP3 folder in random
order.
Audio System279
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)
