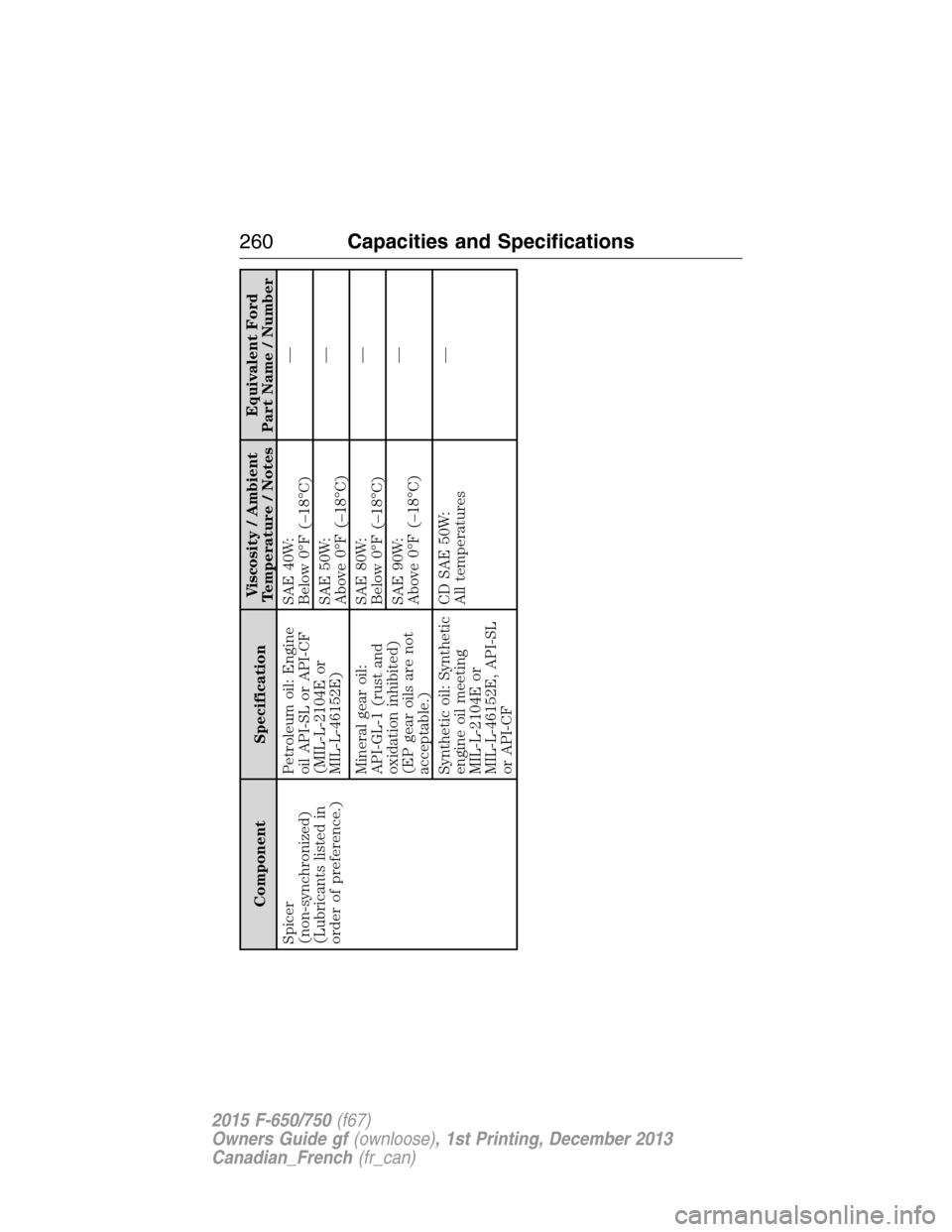

Component SpecificationViscosity / Ambient
Temperature / NotesEquivalent Ford
Part Name / Number
Spicer
(non-synchronized)
(Lubricants listed in
order of preference.)Petroleum oil: Engine
oil API-SL or API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 40W:
Below 0°F (–18°C)—
SAE 50W:
Above 0°F (–18°C)—
Mineral gear oil:
API-GL-1 (rust and
oxidation inhibited)
(EP gear oils are not
acceptable.)SAE 80W:
Below 0°F (–18°C)—
SAE 90W:
Above 0°F (–18°C)—
Synthetic oil: Synthetic
engine oil meeting
MIL-L-2104E or
MIL-L-46152E, API-SL
or API-CFCD SAE 50W:
All temperatures—
260Capacities and Specifications
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

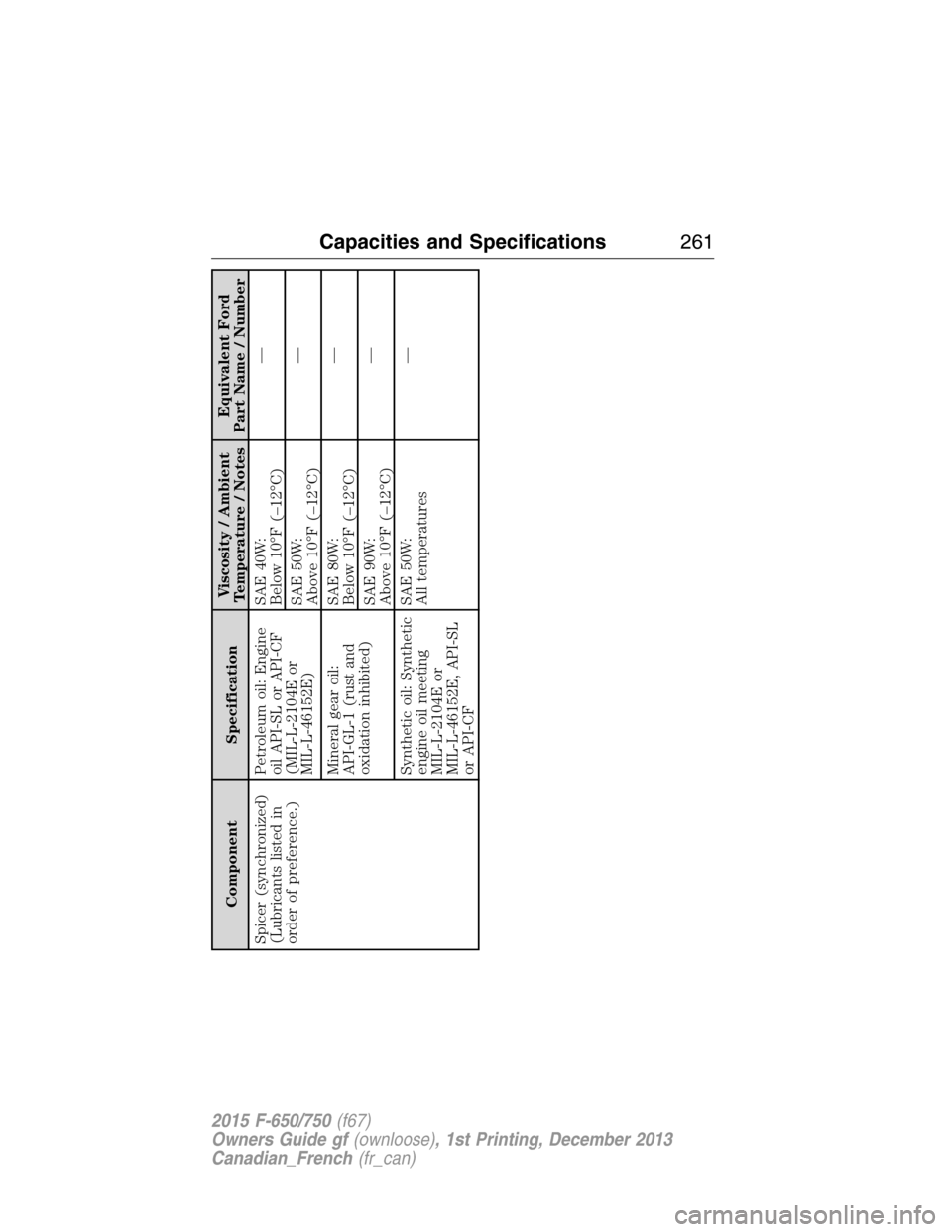

Component SpecificationViscosity / Ambient
Temperature / NotesEquivalent Ford
Part Name / Number
Spicer (synchronized)
(Lubricants listed in
order of preference.)Petroleum oil: Engine
oil API-SL or API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 40W:
Below 10°F (–12°C)—
SAE 50W:
Above 10°F (–12°C)—
Mineral gear oil:
API-GL-1 (rust and
oxidation inhibited)SAE 80W:
Below 10°F (–12°C)—
SAE 90W:
Above 10°F (–12°C)—
Synthetic oil: Synthetic
engine oil meeting
MIL-L-2104E or
MIL-L-46152E, API-SL
or API-CFSAE 50W:
All temperatures—
Capacities and Specifications261
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

Component SpecificationViscosity / Ambient
Temperature / NotesEquivalent Ford
Part Name / Number
Meritor Petroleum oil: Heavy
Duty Engine Oil
MIL-L-2104E or API-SL
or API-CF (previous
API designations
acceptable)SAE 30W:
Below 10°F (–12°C)Motorcraft SAE 30
Super Duty Motor Oil /
XO-30-QSD
SAE 40W or SAE 50W:
Above 10°F (–12°C)—
Mineral gear oil with
rust and oxidation
inhibitor API-GL-1.Do
not use multi-weight
and GL-5 EP gear
oils; they may cause
transmission failure
or damage.SAE 80W:
Below 10°F (–12°C)—
SAE 90W:
Above 10°F (–12°C)—
Synthetic oil:
MIL-L-2104E or
MIL-L-46152D.Do not
use multi-weight and
GL-5 EP gear oils;
they may cause
transmission failure
or damage.SAE 50W:
All temperatures—
Allison See transmission operator’s manual
262Capacities and Specifications
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

Component SpecificationViscosity / Ambient
Temperature / NotesEquivalent Ford
Part Name / Number
Rear Axle
Eaton-Spicer -
two-speed axleRHEOLUBE 362 (or
equivalent) (Eaton
part number 113741)——
Eaton - single-speed
axleGeneric lubricant SAE 75W:
–40°F to –15°F
(–40°C to –26°C)Motorcraft SAE
75W-140 Synthetic
Rear Axle Lubricant /
XY–75W140–QL
SAE 75W-80:
–40°F to 80°F
(–40°C to 27°C)
SAE 75W-140:
–40°F and above
(–40°C and above)
SAE 80W-140:
–15°F and above
(–26°C and above)
SAE 85W-140:
10°F and above
(–12°C and above)
SAE 80W-90:
–15°F to 100°F
(–26°C to 38°C)Motorcraft SAE
80W-90 Premium Rear
Axle Lubricant /
XY-80W90-QL
Capacities and Specifications263
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

Component SpecificationViscosity / Ambient
Temperature / NotesEquivalent Ford
Part Name / Number
Spicer - single-speed
axleMultipurpose EP gear
lube of API GL-5
quality meeting
MIL-PRF-2105E
specifications including
synthetic lubricantsSAE 75W:
–40°F to 32°F
(–40°C to 0°C)Motorcraft SAE
75W-140 Synthetic
Rear Axle Lubricant /
XY–75W140–QL
SAE 75W-140:
–40°F and above
(–40°C and above)
SAE 80W:
–15°F to 70°F
(–26°C to 21°C)
SAE 80W-140:
–15°F and above
(–26°C and above)
SAE 85W-140:
10°F and above
(–12°C and above)
SAE 140W:
40°F and above
(4°C and above)
SAE 90W:
10°F to 100°F
(–12°C to 38°C)Motorcraft SAE
80W-90 Premium Rear
Axle Lubricant /
XY–80W90–QL
264Capacities and Specifications
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

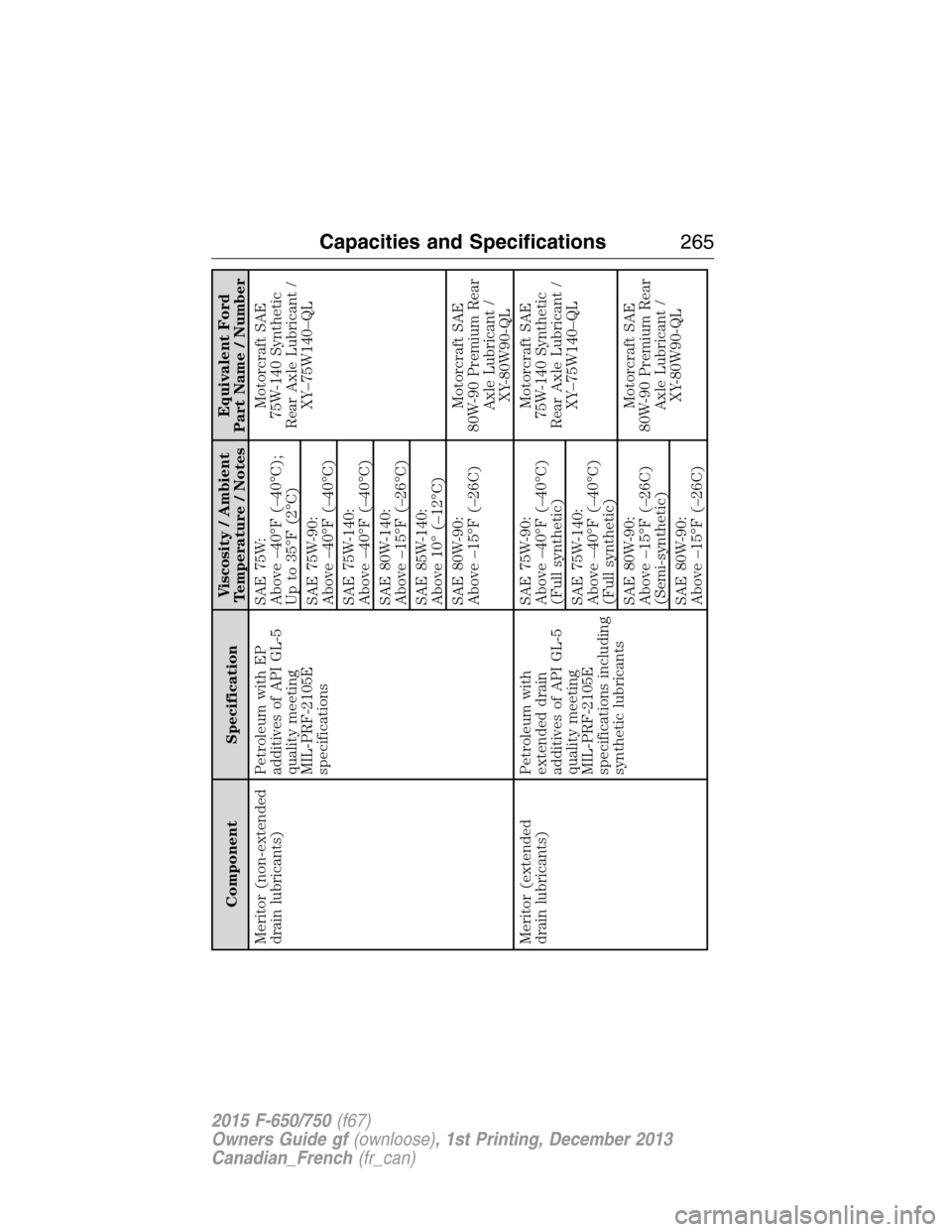

Component SpecificationViscosity / Ambient
Temperature / NotesEquivalent Ford
Part Name / Number
Meritor (non-extended
drain lubricants)Petroleum with EP
additives of API GL-5
quality meeting
MIL-PRF-2105E
specificationsSAE 75W:
Above –40°F (–40°C);
Up to 35°F (2°C)Motorcraft SAE
75W-140 Synthetic
Rear Axle Lubricant /
XY–75W140–QL
SAE 75W-90:
Above –40°F (–40°C)
SAE 75W-140:
Above –40°F (–40°C)
SAE 80W-140:
Above –15°F (–26°C)
SAE 85W-140:
Above 10° (–12°C)
SAE 80W-90:
Above –15°F (–26C)Motorcraft SAE
80W-90 Premium Rear
Axle Lubricant /
XY-80W90-QL
Meritor (extended
drain lubricants)Petroleum with
extended drain
additives of API GL-5
quality meeting
MIL-PRF-2105E
specifications including
synthetic lubricantsSAE 75W-90:
Above –40°F (–40°C)
(Full synthetic)Motorcraft SAE
75W-140 Synthetic
Rear Axle Lubricant /
XY–75W140–QL
SAE 75W-140:
Above –40°F (–40°C)
(Full synthetic)
SAE 80W-90:
Above –15°F (–26C)
(Semi-synthetic)Motorcraft SAE
80W-90 Premium Rear
Axle Lubricant /
XY-80W90-QL
SAE 80W-90:
Above –15°F (–26C)
Capacities and Specifications265
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

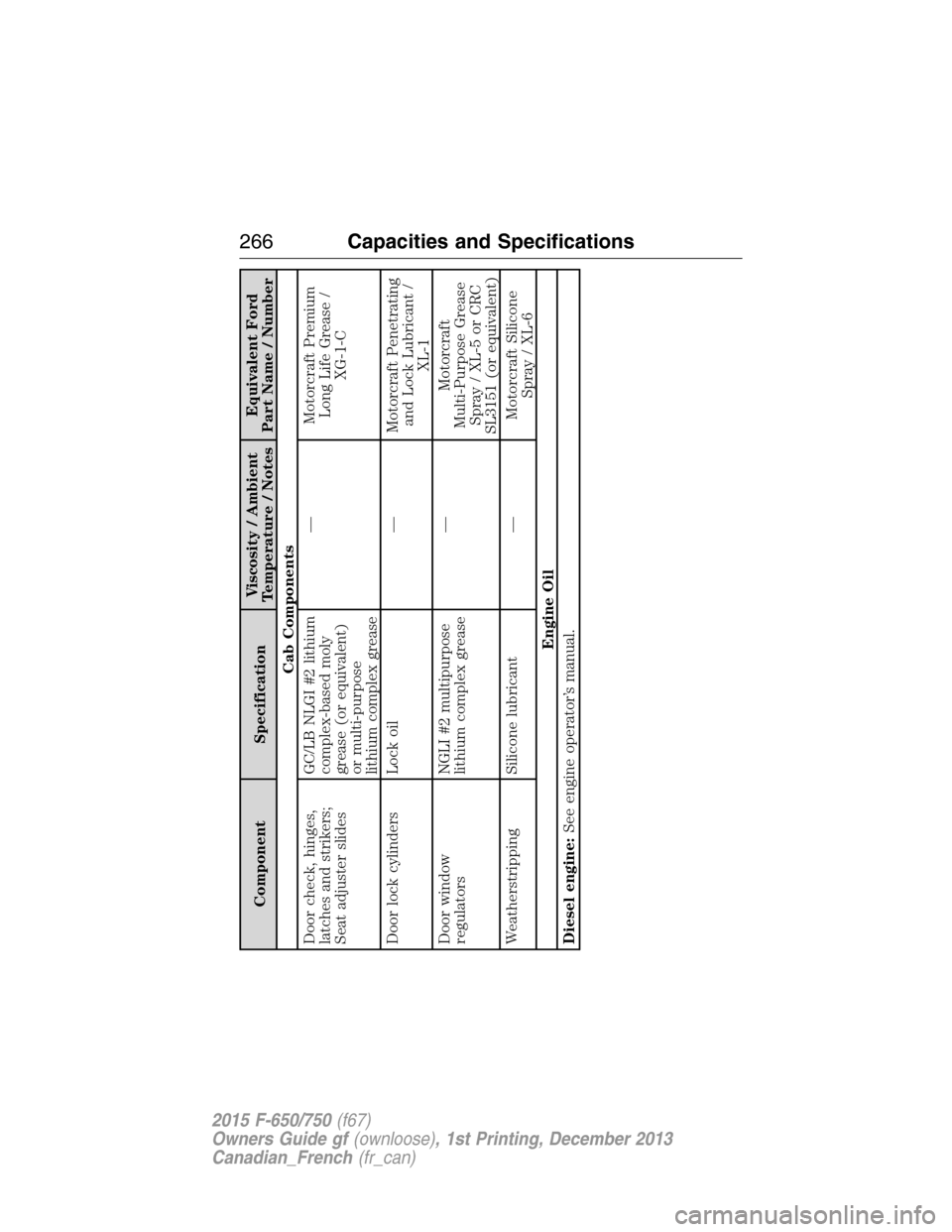

Component SpecificationViscosity / Ambient
Temperature / NotesEquivalent Ford
Part Name / Number
Cab Components
Door check, hinges,
latches and strikers;
Seat adjuster slidesGC/LB NLGI #2 lithium
complex-based moly
grease (or equivalent)
or multi-purpose
lithium complex grease— Motorcraft Premium
Long Life Grease /
XG-1-C
Door lock cylinders Lock oil — Motorcraft Penetrating
and Lock Lubricant /
XL-1
Door window
regulatorsNGLI #2 multipurpose
lithium complex grease— Motorcraft
Multi-Purpose Grease
Spray / XL-5 or CRC
SL3151 (or equivalent)
Weatherstripping Silicone lubricant — Motorcraft Silicone
Spray / XL-6
Engine Oil
Diesel engine:See engine operator’s manual.
266Capacities and Specifications
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

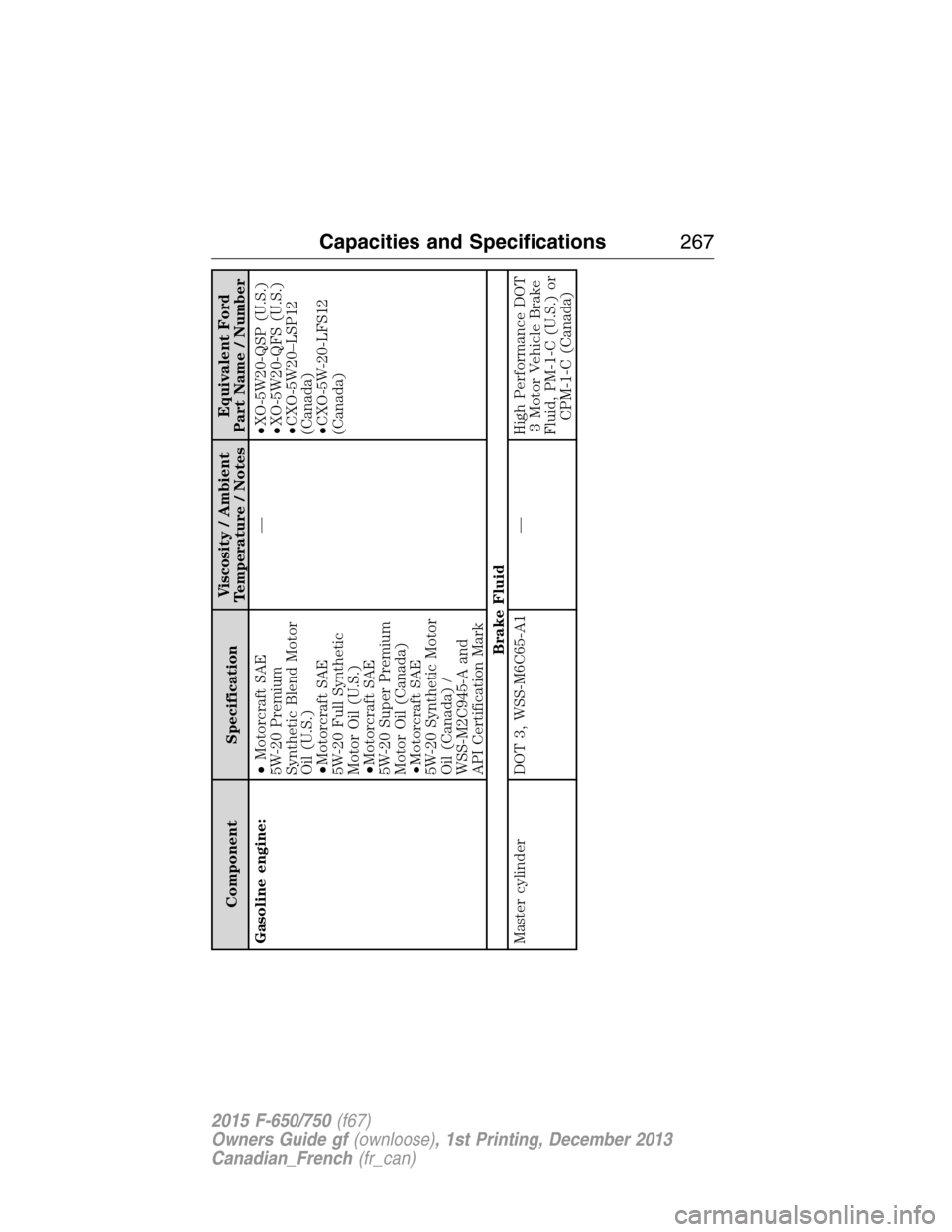

Component SpecificationViscosity / Ambient
Temperature / NotesEquivalent Ford
Part Name / Number
Gasoline engine:•Motorcraft SAE
5W-20 Premium
Synthetic Blend Motor
Oil (U.S.)
•Motorcraft SAE
5W-20 Full Synthetic
Motor Oil (U.S.)
•Motorcraft SAE
5W-20 Super Premium
Motor Oil (Canada)
•Motorcraft SAE
5W-20 Synthetic Motor
Oil (Canada) /
WSS-M2C945-A and
API Certification Mark—•XO-5W20-QSP (U.S.)
•XO-5W20-QFS (U.S.)
•CXO-5W20–LSP12
(Canada)
•CXO-5W-20-LFS12
(Canada)
Brake Fluid
Master cylinder DOT 3, WSS-M6C65-A1 — High Performance DOT
3 Motor Vehicle Brake
Fluid, PM-1-C (U.S.) or
CPM-1-C (Canada)
Capacities and Specifications267
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

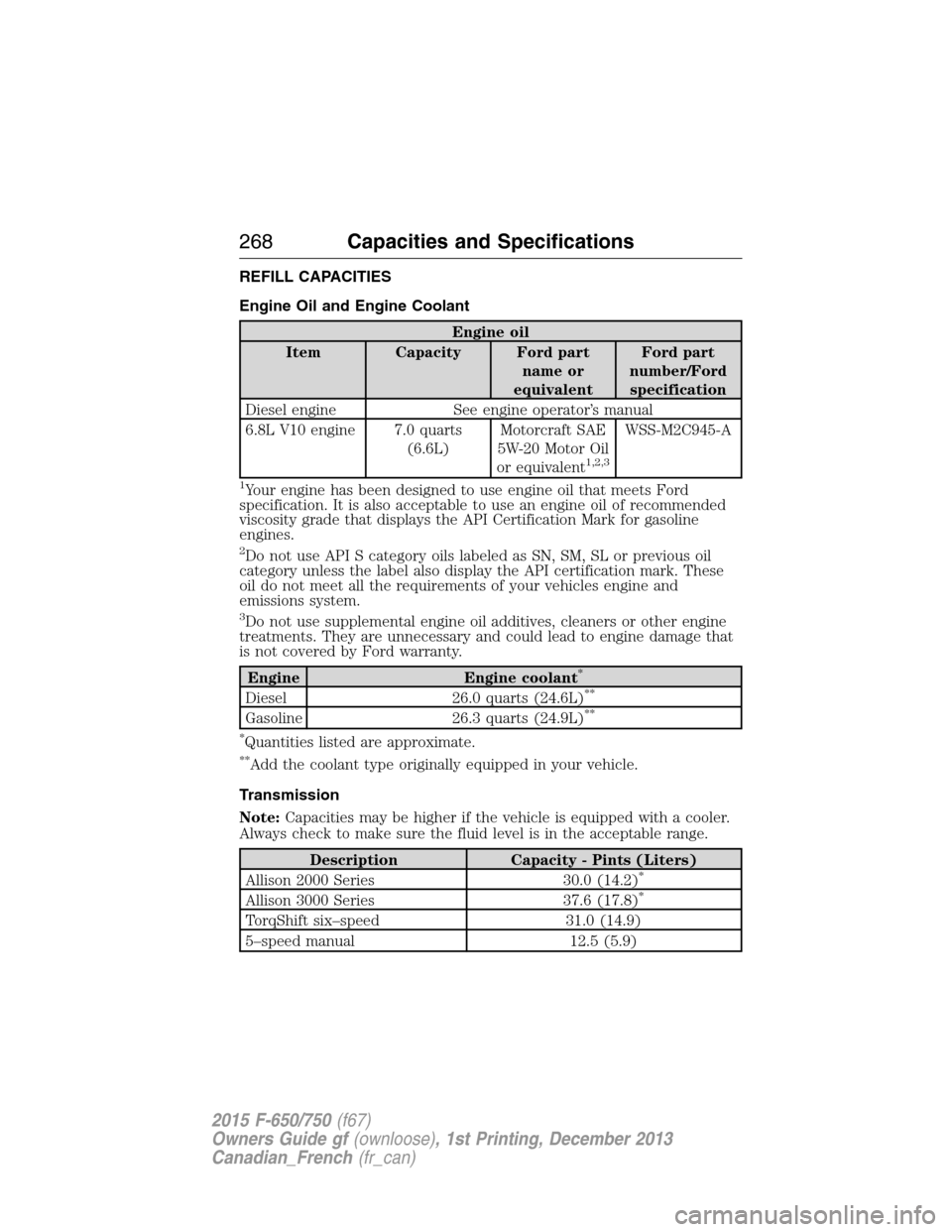

REFILL CAPACITIES
Engine Oil and Engine Coolant
Engine oil
Item Capacity Ford part
name or
equivalentFord part
number/Ford
specification
Diesel engine See engine operator’s manual
6.8L V10 engine 7.0 quarts
(6.6L)Motorcraft SAE
5W-20 Motor Oil
or equivalent
1,2,3
WSS-M2C945-A
1Your engine has been designed to use engine oil that meets Ford
specification. It is also acceptable to use an engine oil of recommended
viscosity grade that displays the API Certification Mark for gasoline
engines.
2Do not use API S category oils labeled as SN, SM, SL or previous oil
category unless the label also display the API certification mark. These
oil do not meet all the requirements of your vehicles engine and
emissions system.
3Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Engine Engine coolant*
Diesel 26.0 quarts (24.6L)**
Gasoline 26.3 quarts (24.9L)**
*
Quantities listed are approximate.
**Add the coolant type originally equipped in your vehicle.
Transmission
Note:Capacities may be higher if the vehicle is equipped with a cooler.
Always check to make sure the fluid level is in the acceptable range.
Description Capacity - Pints (Liters)
Allison 2000 Series 30.0 (14.2)*
Allison 3000 Series 37.6 (17.8)*
TorqShift six–speed 31.0 (14.9)
5–speed manual 12.5 (5.9)
268Capacities and Specifications
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

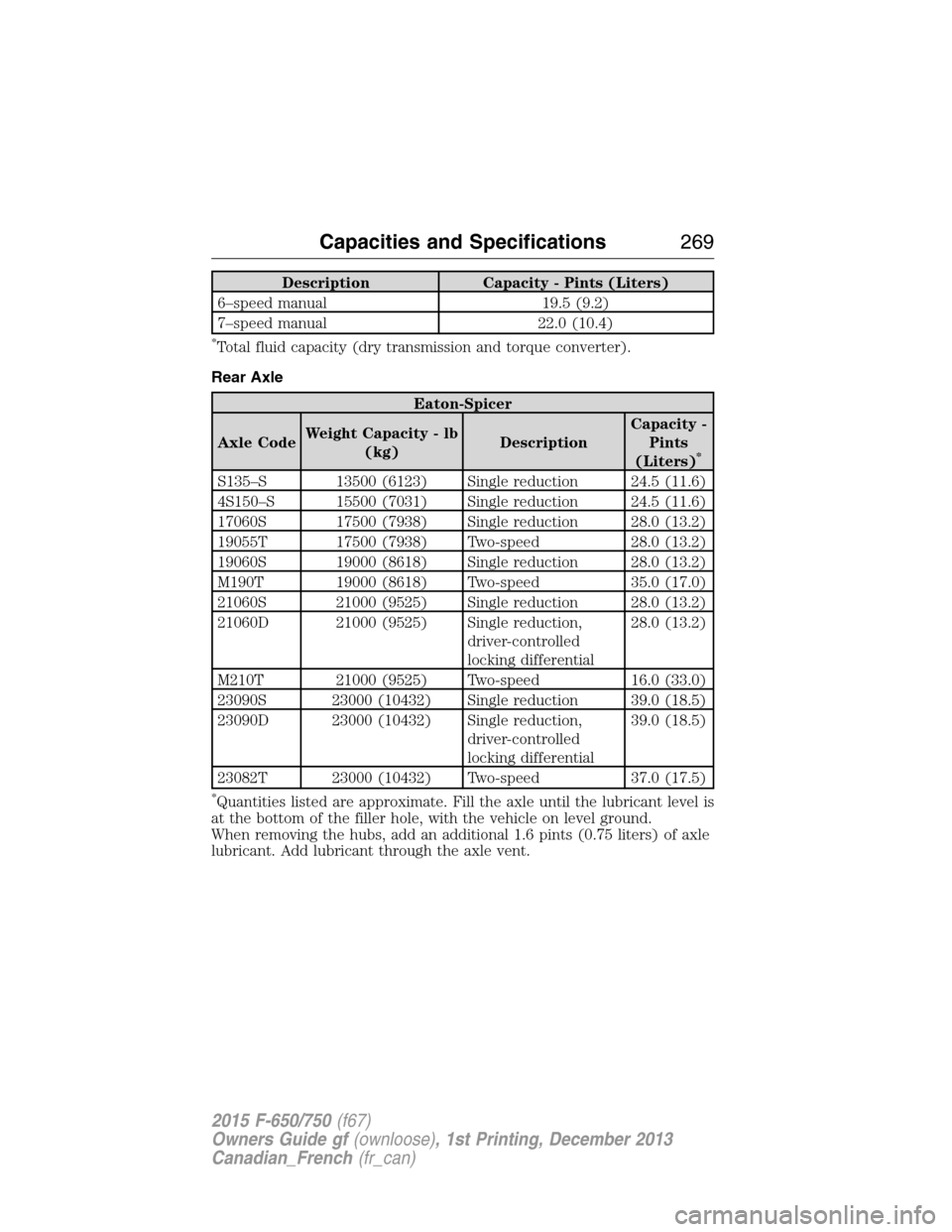

Description Capacity - Pints (Liters)
6–speed manual 19.5 (9.2)
7–speed manual 22.0 (10.4)
*Total fluid capacity (dry transmission and torque converter).
Rear Axle
Eaton-Spicer
Axle CodeWeight Capacity - lb
(kg)DescriptionCapacity -
Pints
(Liters)
*
S135–S 13500 (6123) Single reduction 24.5 (11.6)
4S150–S 15500 (7031) Single reduction 24.5 (11.6)
17060S 17500 (7938) Single reduction 28.0 (13.2)
19055T 17500 (7938) Two-speed 28.0 (13.2)
19060S 19000 (8618) Single reduction 28.0 (13.2)
M190T 19000 (8618) Two-speed 35.0 (17.0)
21060S 21000 (9525) Single reduction 28.0 (13.2)
21060D 21000 (9525) Single reduction,
driver-controlled
locking differential28.0 (13.2)
M210T 21000 (9525) Two-speed 16.0 (33.0)
23090S 23000 (10432) Single reduction 39.0 (18.5)
23090D 23000 (10432) Single reduction,
driver-controlled
locking differential39.0 (18.5)
23082T 23000 (10432) Two-speed 37.0 (17.5)
*Quantities listed are approximate. Fill the axle until the lubricant level is
at the bottom of the filler hole, with the vehicle on level ground.
When removing the hubs, add an additional 1.6 pints (0.75 liters) of axle
lubricant. Add lubricant through the axle vent.
Capacities and Specifications269
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)
