31 0-01 -3 Fuel Tank and Lines 31 0-01 -3
DESCRIPTION AND OPERATION
Fuel Tank and Lines - 1.25L Duratec-1 6V (Sigma)/l.4L
Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)

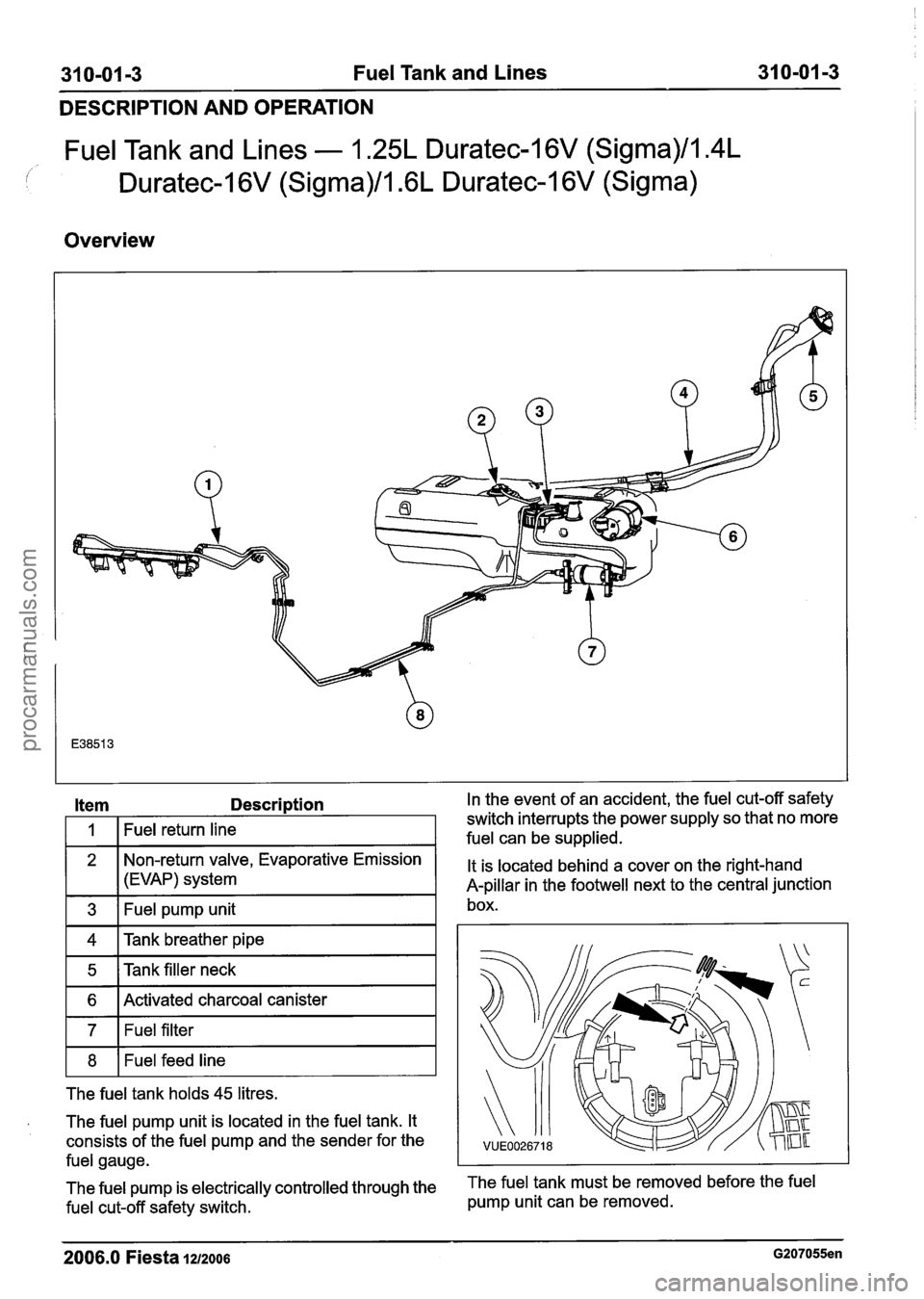

Overview
Item Description In the
event of an accident, the fuel cut-off safety
11 Tank breather pipe I
1
2
3
1 5 1Tankfiller neck I
Fuel return line
1 6 I Activated charcoal canister I
switch interrupts the power supply so that no more
fuel can be supplied.
Non-return valve, Evaporative Emission
(EVAP) system
Fuel pump unit
1 7 1 Fuel filter I
It is located behind a cover on the right-hand
A-pillar in the footwell next to the central junction
box.
1 8 1 Fuel feed line I
The fuel tank holds 45 litres.
a The fuel pump unit is located in the fuel tank. It
consists of the fuel pump and the sender for the
fuel gauge.
The fuel pump is electrically controlled through the
The fuel tank must be removed before the fuel
fuel cut-off safety switch. pump
unit can be removed.
2006.0 Fiesta 1212006 G207055en
procarmanuals.com
Page 1202 of 1226

31 0-01 4 Fuel Tank and Lines 31 0-01 -4 --
DESCRIPTION AND OPERATION

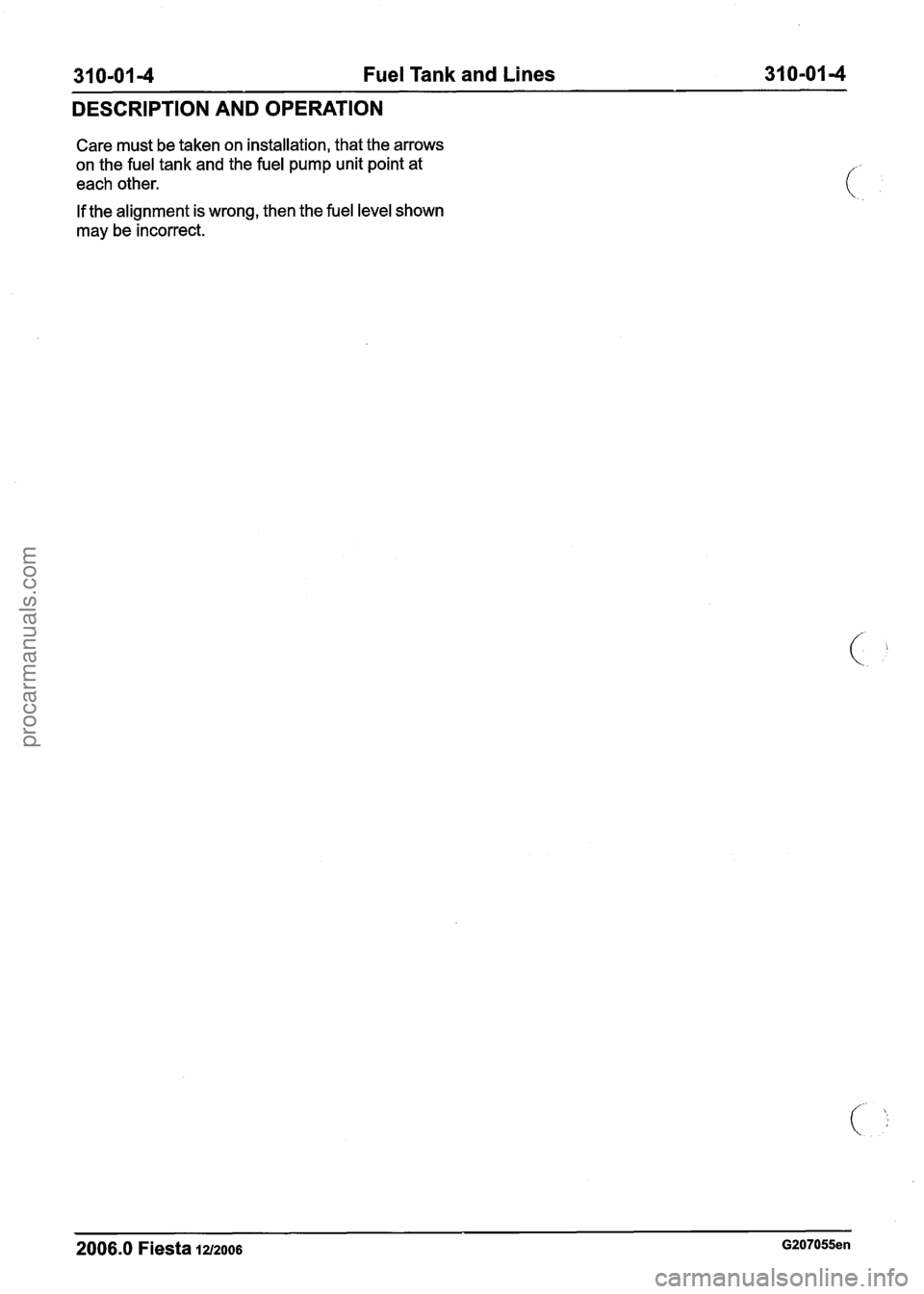

Care must be taken on installation, that the arrows
on the fuel tank and the fuel pump unit point at
each other.
If the alignment is wrong, then the fuel level shown
may be incorrect.
2006.0 Fiesta 1212006 G207055en
procarmanuals.com
Page 1203 of 1226

31 0-01 -5 Fuel Tank and Lines 31 0-01 -5
DIAGNOSIS AND TESTING
Fuel Tank and Lines
All except vehicles with diesel engine,
REFER to:
Fuel System - 1.3L Duratec-8V
(Rocam)/l.25L Duratec-1 6V (Sigma)/Z.OL
Duratec-HE (M14)/1.4L Duratec-1 6V (Sigma)/l .6L
Duratec-1 6V (Sigma) (31 0-00 Fuel System -
General Information, Diagnosis and Testing).
Vehicles with diesel engine,
REFER to:
Fuel System - 1.4L Duratorq-TDCi (DV)
Dieselll.6L Duratorq-TDCi (DV) Diesel (31 0-00
Fuel System - General Information, Diagnosis
and Testing).
2006.0 Fiesta 1212006 G453196en
procarmanuals.com
Page 1204 of 1226

31 0-01 -6 Fuel Tank and Lines 31 0-01 -6
REMOVAL AND INSTALLATION
Fuel Tank(23 554 0)
Special Tool(s)
I I Wrench, Sender Unit, Fuel
General Equipment
I Transmission jack I
Removal
All vehicles
WARNINGS:
A Do not smoke or carry lighted tobacco or
open flame of any type when working on
or near fuel related components. Highly
flammable vapors are always present and
may ignite. Failure to follow these
instructions may result in personal injury.
A This procedure involves fuel handling. Be
prepared for fuel spillage at all times and
always observe fuel handling precautions.
Failure to follow these instructions may
4. Remove the floor panel crossmember. (
5. Detach the exhaust system from the center
exhaust hanger insulator.
result in personal injury.
I
1. Release the fuel system pressure. For 6. N0TE:When detaching the exhaust system
additional information, refer to
allow the system to be supported by the rear
Section
31 0-00 [Fuel System - General
suspension assembly.
Information].
. Detach the exhaust system from the rear 2. Drain the fuel tank. For additional
exhaust hanger insulator.
information, refer to Section
31 0-00 [Fuel
System
- General Information].
3. Raise and support the vehicle. For additional
information, refer to Section
100-02 [Jacking
and Lifting].
2006.0 Fiesta 1212006 GI 89084en
procarmanuals.com
Page 1205 of 1226

31 0-01 -7 Fuel Tank and Lines 31 0-01 -7
REMOVAL AND INSTALLATION

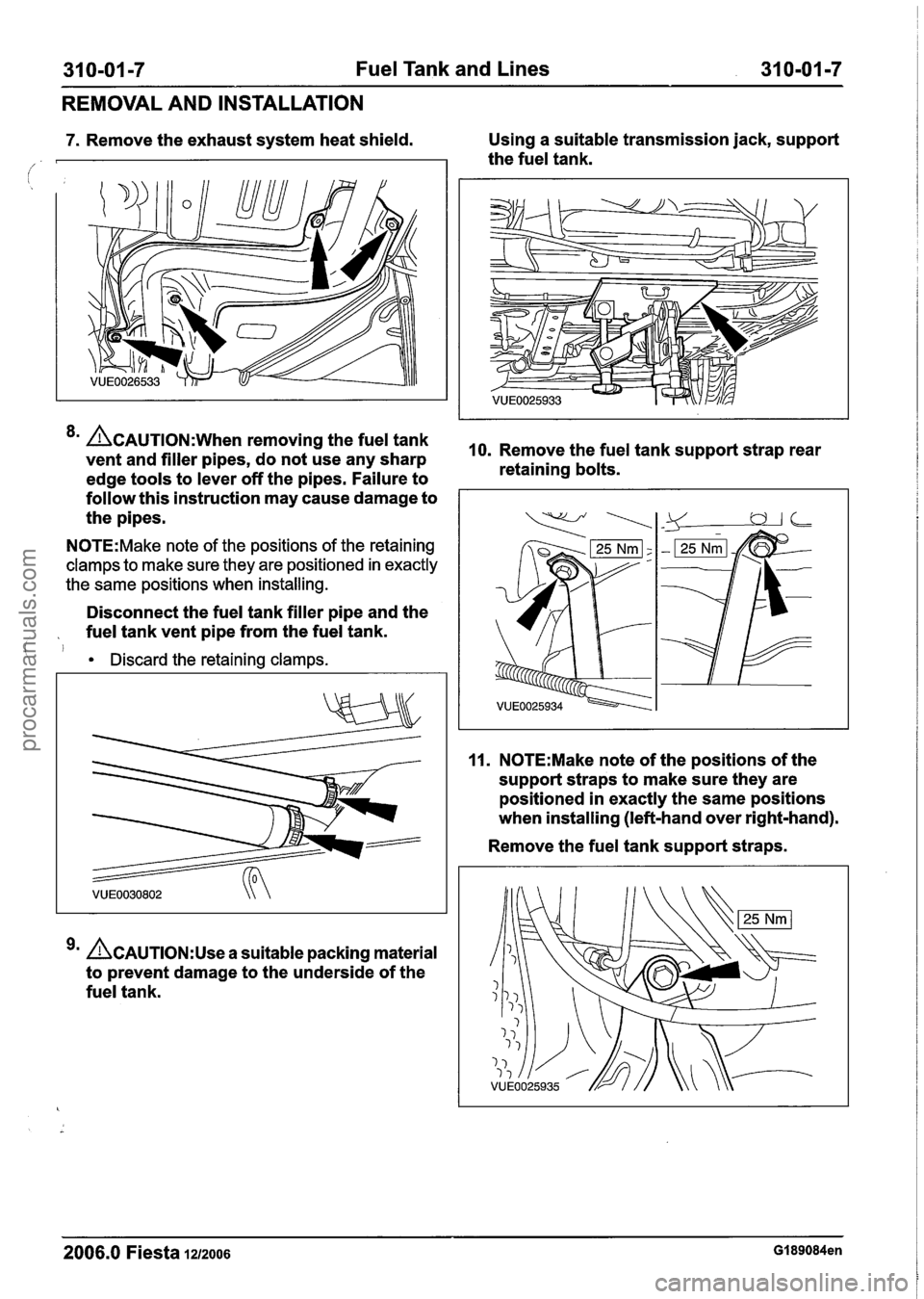

7. Remove the exhaust system heat shield. Using
