FORD FIESTA 2007 Workshop Manual
Manufacturer: FORD, Model Year: 2007, Model line: FIESTA, Model: FORD FIESTA 2007Pages: 1226, PDF Size: 61.26 MB
Page 591 of 1226

Engine - 1.25L Dura
303-01A-115 Duratec-1 6V (Sigma)ll.(
tec-16V (Sigma)ll.4L
iL Duratec-1 6V (Sigma) 303-01A-I15
ASSEMBLY
Install the camshaft timing pulleys.
io 37. Install the crankshaft timing belt pulley.
38. N0TE:lnstall a new timing belt.
N0TE:lnstall the timing belt, beginning with the
crankshaft timing pulley working counterclockwise.
Install the timing belt.
39. Remove the blanking plug and install the
special tool.
Carefully turn the crankshaft against the
,I special tool.
40. Measuring the depth of the threaded hole
in the crankshaft.
Depth of the threaded = 42 mm: Use an
MI 2x29 mm crankshaft pulley center bolt. Depth
of the threaded
= 52 mm: Use an
M12x44,5 mm crankshaft pulley center bolt.
41. Install the timing belt lower cover.
42. N0TE:lnstall a new crankshaft pulley
retaining bolt.
Install the crankshaft pulley.
Tighten the crankshaft pulley retaining bolt
in two stages.
Stage 1: 45 Nm.
2006.0 Fiesta 1212006 GI 54225en
procarmanuals.com
Page 592 of 1226

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-I 16 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
303-01 A-1 16
ASSEMBLY
Stage 2: 90 degrees.
Engines with eccentric cam timing belt
tensioner
43. Install the timing belt tensioner.
44. Tension the timing belt.
Tension the timing belt by turning the
tensioner counterclockwise until the arrow
points at the mark and tighten the bolt.
Engines with slotted bracket timing belt
tensioner
45. Install the timing belt tensioner and tension
the timing belt.
Install the bolts finger tight.
Tension the timing belt by turning the
tensioner clockwise until the arrow points in
line with the center of the rectangular hole
(
and tighten the bolts.
Vehicles built 0912003 onwards
46' AWARNING:D~ not remove the special
tool, until the timing belt is correctly
positioned. Failure to follow this instruction
may result in personal injury, or may
damage the timing belt tensioner.
Install the timing belt tensioner.
f,
47. Tension the timing belt.
Remove the special tool.
2006.0 Fiesta 1212006 GI 54225en
procarmanuals.com
Page 593 of 1226

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-1 17 Duratec-1 6V (Sigma)ll .6L
Duratec-1 6V (Sigma) 303-01 A-1 17
ASSEMBLY
Vehicles built 0412005 onwards Using the special tool, tighten the camshaft
! P8' AWARNING:D~ not remove the special
tool, until the timing belt is correctly
positioned. Failure to follow this instruction
may result in personal injury, or may
damage the timing belt tensioner.
Install the timing belt tensioner.
49. Tension the timing belt.
Remove the special tool.
All vehicles
50. CAUTIONS:
nlnstall a hose (order no. E890438S) to
the special tool studs, to prevent damage
to the camshaft pulleys. pulleys.
51. Remove the special tool.
52. Remove the special tool.
ADO not tighten the camshaft pulley bolts
against the timing plate. 53. N0TE:Only turn
the crankshaft in its normal
direction of rotation.
Turn the crankshaft two revolutions.
54. Install the special tool.
2006.0 Fiesta 1212006 GI 54225en
procarmanuals.com
Page 594 of 1226

Engine - 1.25L Duratec-I 6V (Sigma)ll.4L
303-01 A-1 18 Duratec-1 6V (Sigma)ll .6L Duratec-1 6V (Sigma) 303-01 A-I 18
ASSEMBLY
Carefully turn the crankshaft against the
special tool.
55. Check the valve timing.
If necessary loosen the camshaft pulleys and
correct the camshaft alignment.
56. Remove the special tools.
57. Install the blanking plug.
58. Check the valve clearances, adjust if
necessary.
f:
For additional information, refer to: Valve (.
Clearance Adjustment (303-01 Engine -
1.25L Duratec-1 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)ll .6L Duratec-1 6V
(Sigma), General Procedures).
59. Using the
special tool, install the spark
plugs.
Apply grease to the spark plug threads.
60. N0TE:lnstall the stud bolts to positions 5
and 6.
Install the valve cover. (
Tighten the bolts in the sequence shown in
three stages.
Stage I : Tighten bolt 1 by 3 to 4 turns.
Stage
2: Tighten bolts I through 13 to 3 Nm.
Stage
3: Tighten bolts 1 through 13 to 9 Nm.
'Irn CAUTION: Use a suitable blunt object
to avoid damage to the spark
plug
connector gasket. Coat the inside of the
spark
plug connector with silicone grease
to a depth of 5-10 mm. C
2006.0 Fiesta 1212006 GI 54225en
procarmanuals.com
Page 595 of 1226

Engine - 1.25L Duratec-1 6V (Sigma)llm4L
303-OIA-119 Duratec-1 6V (Sigma)llI6L Duratec-1 6V (Sigma) 303-01 A-1 19
ASSEMBLY
Connect the spark plug electrical connectors 63. Install the timing belt upper cover.
and attach the wires to the valve cover.
I
62. Install the engine front mount bracket.
Tighten the bolts in the indicated order in
three stages.
Stage 1 : Hand tighten bolt 1.
Stage 2: Tighten bolts 2 to 55 Nm.
Stage 3: Tighten bolt 3 to 55 Nm.
64. Install the coolant pump pulley.
2006.0 Fiesta 1~1zoo6 GI 54225en
procarmanuals.com
Page 596 of 1226

Engine - 1.25L Duratec-1 6V (Sigma)llm4L
303-01 A-I 20 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
303-01 A-I 20
ASSEMBLY
65. Install the generator.
66. N0TE:lnstall a new oil filter.
Install the oil filter.
67. Install the engine wiring harness.
69. Remove the special tools.
70. N0TE:lnstall a new exhaust manifold gasket
and new exhaust manifold retaining nuts.
N0TE:Do not fully tighten the nuts and bolt at this
stage.
Install the exhaust manifold.
68. Using the special tool attach the engine to
an engine hoist.
71. Tighten the exhaust manifold upper
retaining nuts and bolt in the sequence
shown in two stages.
Stage
I: 20 Nm.
Stage 2: 55 Nm.
2006.0 Fiesta 1212006 GI 54225en
procarmanuals.com
Page 597 of 1226

Engine - 1.25L Duratec-1 6V (Sigma)lIa4L
Duratec-1 6V (Sigma)ll .6L Duratec-1 6V (Sigma)
ASSEMBLY
72. Tighten the exhaust manifold lower 75, Install the exhaust manifold lower heat
. retaining bolts. shield left-hand retaining bolts. I
73. Install the exhaust manifold upper heat
shield.
74. Install the exhaust manifold lower heat
shield right-hand retaining bolts.
2006.0 Fiesta 1212006 GI 54225en
procarmanuals.com
Page 598 of 1226

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-I 22 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
303-01 A-1 22
INSTALLATION
Engine
Special Tool(s) 2. Install the transaxle lower retaining bolts. \.,
622
I I Remover/lnstaller, Hose
Wrench,
Hydraulic Line Union
"-269 (I 3-027)
- --
21 068A
Clamp
303-397 (24-003)
ift tins racket, Engine
303-1 22 (2 1 -068A)
General Equipment
I Securing straps I
I Workshop table I
I Engine hoist I
Installation
All vehicles
A WARN1NG:Do not smoke or carry lighted
tobacco or open flame of any type when
working on or near any fuel related
components. Highly flammable mixtures
are always present and may ignite. Failure
to follow these instructions may result in
personal injury.
I' ACAUTION:M~~~ sure that the two locating
dowels are installed.
Install the transaxle to the engine.
3m AWARNING:S~~~~~~ the engine and
transaxle assembly on wooden blocks and
secure
it with suitable securing straps.
Using the special tool and the engine hoist
position the engine and transaxle assembly
on the workshop table.
4. lnstall the transaxle right-hand retaining bolt.
2006.0 Fiesta 1212006 GII 3164en
procarmanuals.com
Page 599 of 1226

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01A-123 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma) 303-01 A-I 23
INSTALLATION

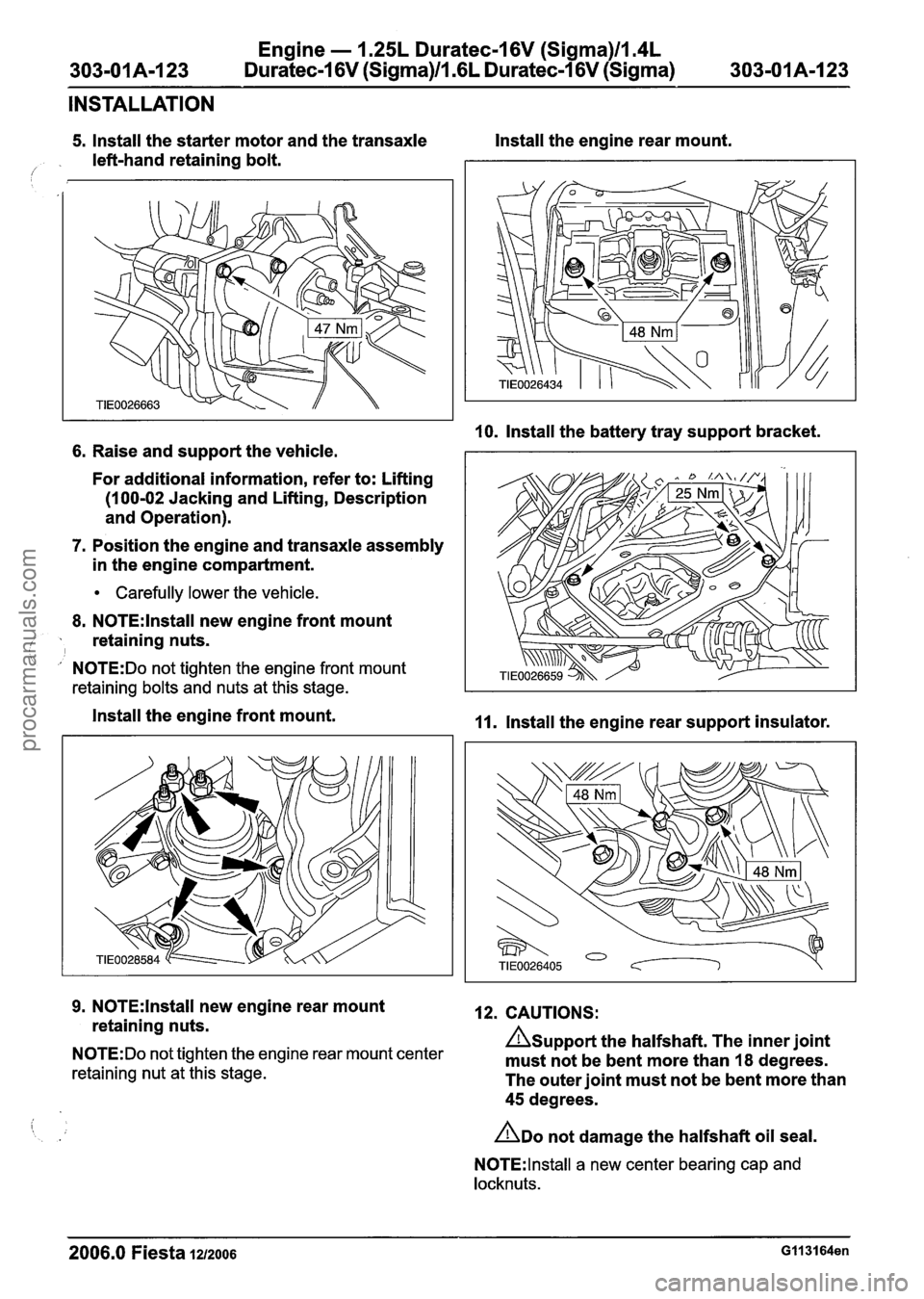

5. Install the starter motor and the transaxle Install the engine rear mount.
left-hand retaining bolt.
/'
10. lnstall the battery tray support bracket.
6. Raise and support the vehicle.
For additional information, refer to: Lifting
(1 00-02 Jacking and Lifting, Description
and Operation).
7. Position the engine and transaxle assembly
in the engine compartment.
Carefully lower the vehicle.
8.
N0TE:lnstall new engine front mount
, retaining nuts. ' I ' N0TE:Do not tighten the engine front mount
retaining bolts and nuts at this stage.
Install the engine front mount. 11. Install the engine rear support insulator.
9.
N0TE:lnstall new engine rear mount 12. CAUTIONS:
retaining nuts.
Asupport the halfshaft. The inner joint N0TE:Do not tighten the engine rear mount center must not be bent more than 18 degrees. retaining nut at this stage. The outer joint must not be bent more than
45 degrees.
ADO not damage the halfshaft oil seal.
N0TE:lnstall a new center bearing cap and
locknuts.
2006.0 Fiesta 1212006 GII 31 64en
procarmanuals.com
Page 600 of 1226

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-I 24 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
303-01 A-1 24
INSTALLATION
Attach the right-hand halfshaft and the Install the heat shield.
intermediate shaft to the transaxle.
13. CAUTIONS:
Asupport the halfshaft. The inner joint
must not be bent more than
18 degrees.
The outer joint must not be bent more than
45 degrees.
ADO not damage the halfshaft oil seal.
A~ake sure the snap ring is correctly
seated.
N0TE:lnstall a new snap ring.
Attach the left-hand halfshaft to the
transaxle.
14. Attach the lower arm to the wheel knuckle
on both sides (right-hand side shown).
15. Using the special tool, connect the coolant
hose to the distribution pipe
16. Using the special tool, connect the coolant
hose to the radiator.
2006.0 Fiesta 1212006 Gll3164en
procarmanuals.com
