Page 694 of 1226
303-01 B-72 Engine - 2.OL Duratec-HE (M14) 303-01 B-72
IN-VEHICLE REPAIR
Check the valve clearance and adjust if 9. Using the special tool, connect the coolant
necessary. hose to the EGR valve.
/
For additional information, refer to: Valve
Clearance Adjustment
(303-01 Engine - 2.OL
Duratec-HE (M14), General Procedures).
6. Connect the engine coolant temperature
(ECT) sensor electrical connector.
7. Using the special tool, connect the coolant
hoses to the coolant outlet connector.
8. Connect the exhaust gas recirculation (EGR)
valve electrical connector. 10.
N0TE:lnstall a
new exhaust manifold gasket
and nuts.
Tighten the exhaust manifold retaining nuts
(engine shown removed for clarity).
11. Install the exhaust manifold lower heat
shield (engine shown removed for clarity).
2006.0 Fiesta 1212006 G451308en
procarmanuals.com

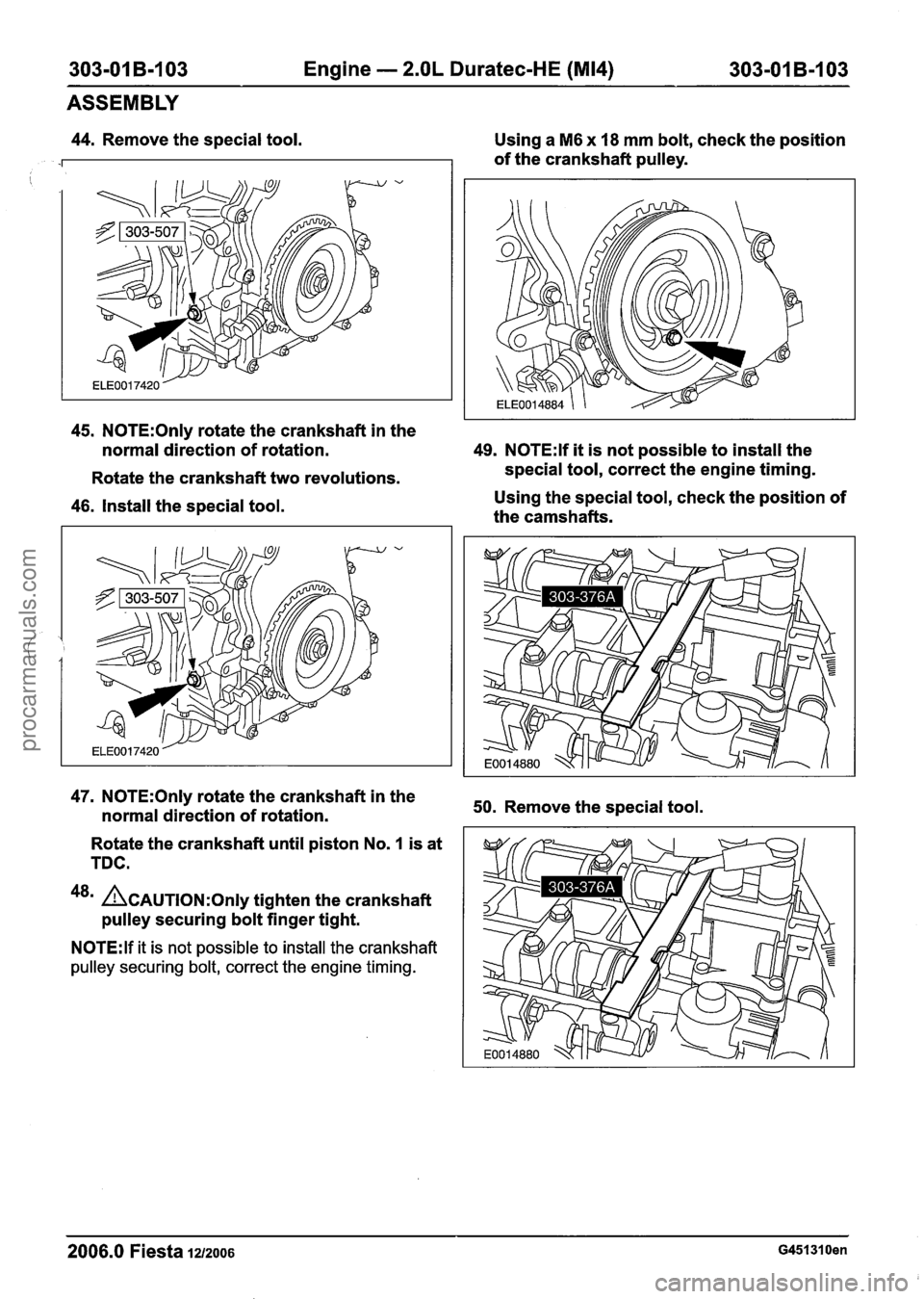

Page 725 of 1226
303-01 B-103 Engine - 2.OL Duratec-HE (M14) 303-01 B-I 03
ASSEMBLY
44. Remove the special tool.
Using a M6 x 18 mm bolt, check the position
of the crankshaft pulley.
45. N0TE:Only rotate the crankshaft in the
normal direction of rotation.
49. N0TE:lf it is not possible to install the
Rotate the crankshaft two revolutions. special tool,
correct the engine timing.
46. Install the special tool. Using the special tool,
check the position of
the camshafts.
47. N0TE:Only rotate the crankshaft in the
normal direction of rotation. 50. Remove the special tool.
Rotate the crankshaft until piston No.
I is at
TDC.
48m ACAUTION:O~I~ tighten the crankshaft
pulley securing bolt finger tight.
N0TE:lf it is not possible to install the crankshaft
pulley securing bolt, correct the engine timing.
2006.0 Fiesta 1212006 G451310en
procarmanuals.com

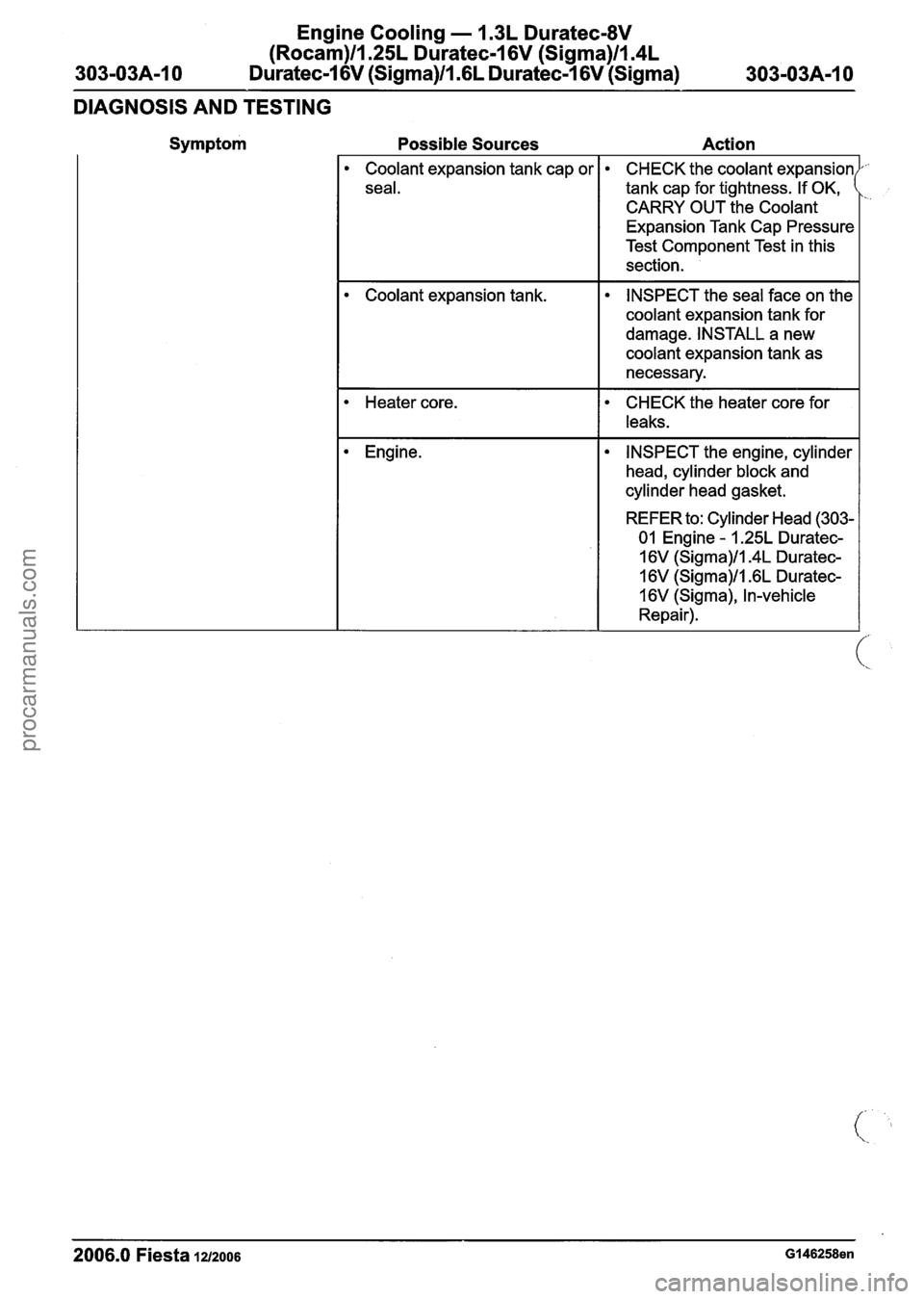

Page 752 of 1226
Engine Cooling - 1.3L Duratec-8V
(Rocam)llI25L Duratec-1 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
DIAGNOSIS AND TESTING
Symptom
Possible Sources Action
Coolant expansion tank cap or
seal.
Coolant expansion tank.
Heater core.
Engine. CHECK
the
coolant expansion
tank cap for tightness. If OK,
I
CARRY OUT the Coolant
Expansion Tank Cap Pressure
Test Component Test in this
section.
INSPECT the seal face on the
coolant expansion tank for
damage. INSTALL a new
coolant expansion tank as
necessary.
CHECK the heater core for
leaks.
INSPECT the engine, cylinder
head, cylinder block and
cylinder head gasket.
REFER to:
Cylinder Head (303-
01 Engine
- I .25L Duratec-
16V
(Sigma)/l.4L Duratec-
16V
(Sigma)/l .6L Duratec-
16V (Sigma),
In-vehicle
Repair).
2006.0 Fiesta 1212006 GI 46258en
procarmanuals.com

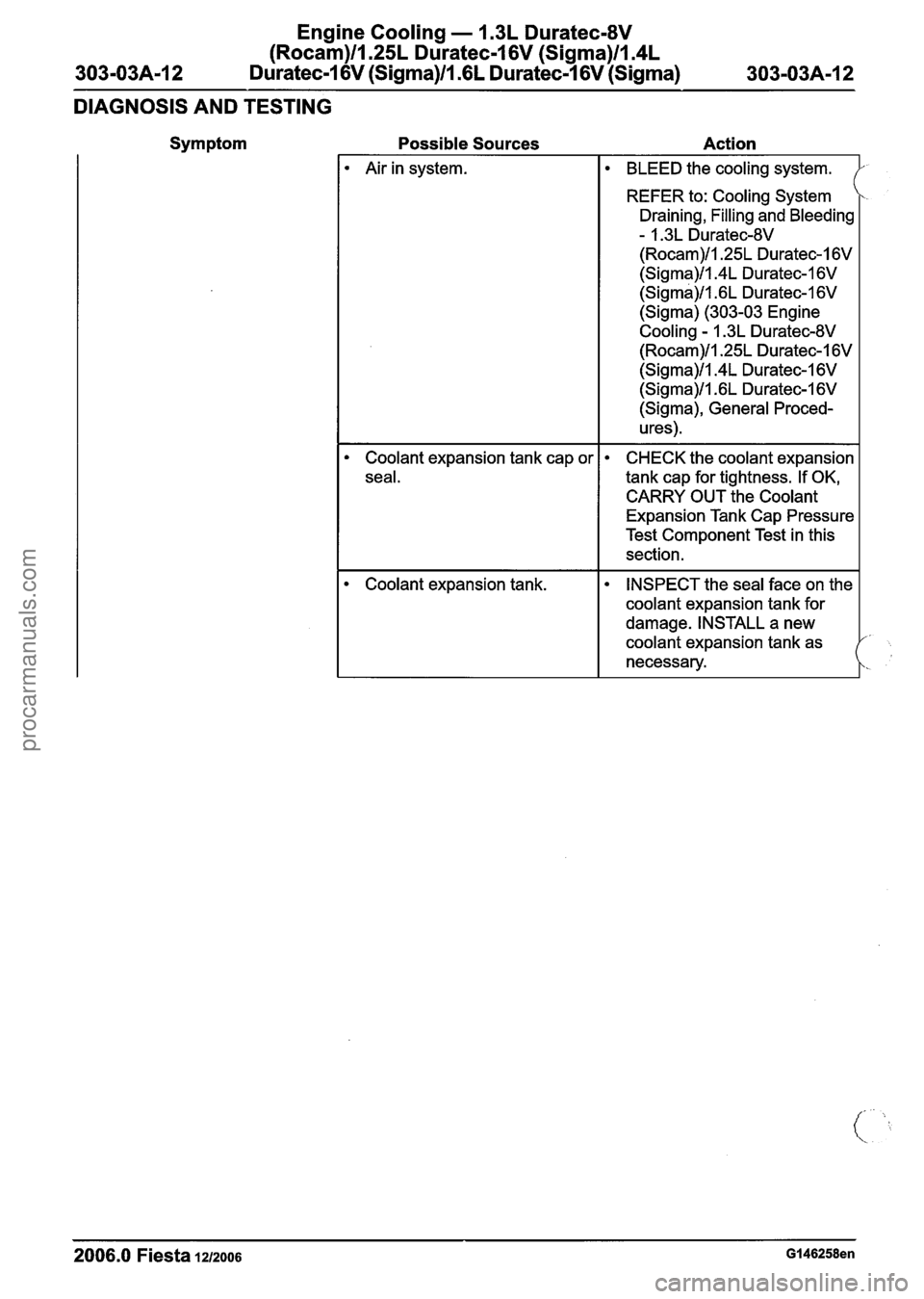

Page 754 of 1226
Engine Cooling - 1.3L Duratec-8V
(Rocam)ll.25L Duratec-1 6V (Sigma)llI4L
303-03A-I 2 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma) 303-03A-12
DIAGNOSIS AND TESTING
Symptom Possible Sources Action
2006.0 Fiesta 1212006 Gl46258en
Air in system.
Coolant expansion tank cap or
seal.
Coolant expansion tank.
BLEED the cooling system.
REFER to:
Cooling System
Draining,
Filling and Bleeding
- 1.3L Duratec-8V
(Rocam)/l.25L Duratec-1 6V
(Sigma)/l.4L Duratec-I 6V
(Sigma)/l .6L Duratec-1 6V
(Sigma) (303-03 Engine
Cooling - 1.3L Duratec-8V
(Rocam)/l.25L Duratec-1 6V
(Sigma)/l.4L Duratec-1 6V
(Sigma)/l .6L Duratec-1 6V
(Sigma), General Proced-
u res)
.
CHECK the coolant expansion
tank cap for tightness. If OK,
CARRY OUT the
Coolant
Expansion Tank Cap Pressure
Test Component Test in this
section.
INSPECT the seal face on the
coolant expansion tank for
damage. INSTALL a new
coolant expansion tank as
necessary.
procarmanuals.com

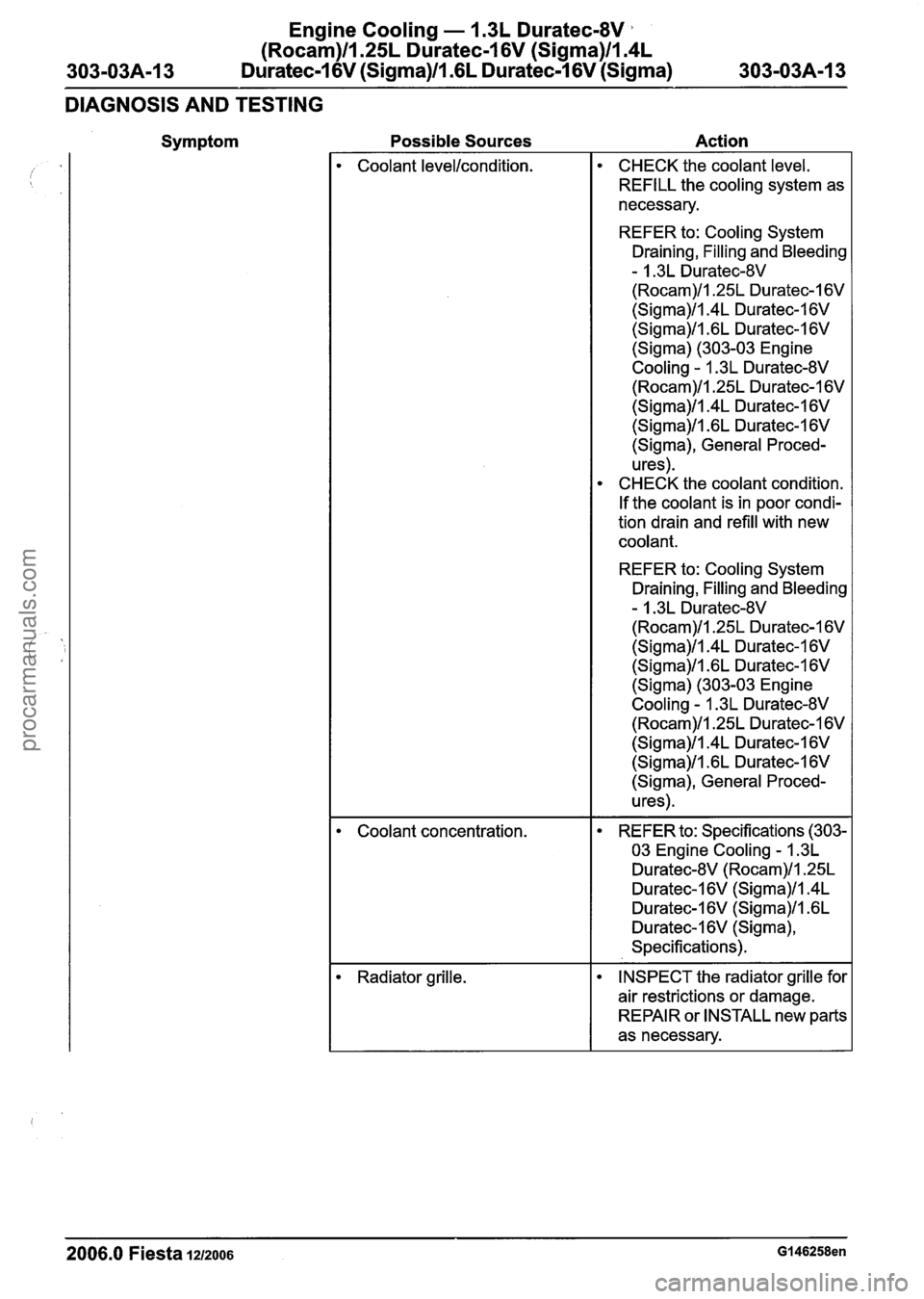

Page 755 of 1226
Engine Cooling - 1.3L Duratec-8V
(Rocam)ll.25L Duratec-1 6V (Sigma)ll.4L
303-03A-I 3 Duratec-1 6V (Sigma)ll.GL Duratec-1 6V (Sigma) 303-03A-I 3
DIAGNOSIS AND TESTING
Symptom Possible Sources Action
2006.0 Fiesta 1212006 GI 46258en
Coolant levellcondition.
Coolant concentration.
Radiator grille. CHECK
the coolant level.
REFILL the cooling system as
necessary.
REFER to: Cooling System
Draining, Filling and Bleeding
- 1.3L Duratec-8V
(Rocam)ll.25L Duratec-1 6V
(Sigma)ll.4L Duratec-1 6V
(Sigma)ll .6L Duratec-1 6V
(Sigma) (303-03 Engine
Cooling
- 1.3L Duratec-8V
(Rocam)/l.25L Duratec-1 6V
(Sigma)ll.4L Duratec-1 6V
(Sigma)ll .6L Duratec-1 6V
(Sigma), General Proced-
u res).
CHECK the coolant condition.
If the coolant is in poor condi-
tion drain and refill with new
coolant.
REFER to: Cooling System
Draining, Filling and Bleeding
- 1.3L Duratec-8V
(Rocam)/l.25L Duratec-1 6V
(Sigma)ll.4L Duratec-1 6V
(Sigma)ll .6L Duratec-1 6V
(Sigma) (303-03 Engine
Cooling
- 1.3L Duratec-8V
(Rocam)ll.25L Duratec-1 6V
(Sigma)ll.4L Duratec-1 6V
(Sigma)/l.6L Duratec-1 6V
(Sigma), General Proced-
u res).
REFER to: Specifications (303-
03 Engine Cooling
- 1.3L
Duratec-8V (Rocam)ll.25L
Duratec-16V (Sigma)ll.4L
Duratec-1 6V (Sigma)/l .6L
Duratec-16V (Sigma),
Specifications).
INSPECT the radiator grille for
air restrictions or damage.
REPAIR or INSTALL new parts
as necessary.
procarmanuals.com

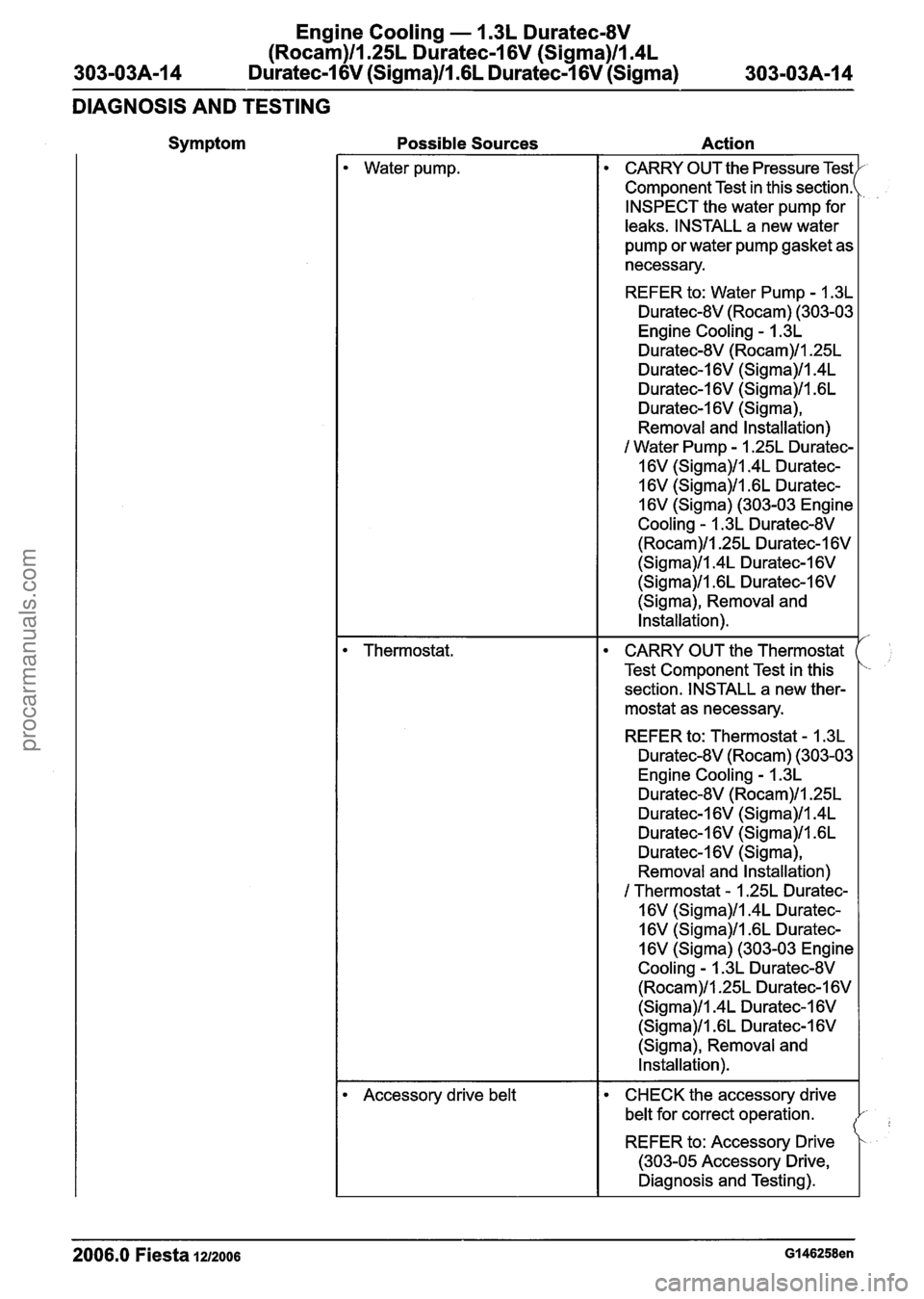

Page 756 of 1226
Engine Cooling - 1.3L Duratec-8V
(Rocam)llI25L Duratec-1 6V (Sigma)llm4L
303-03A-I 4 Duratec-I 6V (Sigma)ll .6L Duratec-1 6V (Sigma) 303-03A-I 4
DIAGNOSIS AND TESTING
Symptom Possible Sources
Action
2006.0 Fiesta 1212006 GI 46258en
Water pump.
Thermostat.
Accessory drive belt
CARRY OUT the Pressure Te
Component Test in this section.
INSPECT the water pump for
leaks. INSTALL a new water
pump or water pump gasket as
necessary.
REFER to: Water Pump
- I .3L
Duratec-8V (Rocam) (303-03
Engine
Cooling - I .3L
Duratec-8V
(Rocam)/l.25L
Duratec-1 6V (Sigma)/l.4L
Duratec-I 6V (Sigma)/l .6L
Duratec-I 6V (Sigma),
Removal and Installation)
/ Water Pump - 1.25L Duratec-
16V
(Sigma)/l.4L Duratec-
16V
(Sigma)/l.GL Duratec-
16V (Sigma) (303-03 Engine
Cooling - 1.3L Duratec-8V
(Rocam)/l.25L Duratec-1 6V
(Sigma)/l.4L Duratec-1 6V
(Sigma)/l.GL Duratec-1 6V
(Sigma), Removal and
Installation).
CARRY OUT the Thermostat
Test Component Test in this
section. INSTALL a new ther-
mostat as necessary.
REFER to: Thermostat
- 1.3L
Duratec-8V (Rocam) (303-03
Engine
Cooling - 1.3L
Duratec-8V (Rocam)/l.25L
Duratec-1 6V (Sigma)/l.4L
Duratec-1 6V (Sigma)/l.GL
Duratec-1 6V (Sigma),
Removal and Installation)
/ Thermostat - 1.25L Duratec-
16V
(Sigma)/l.4L Duratec-
16V
(Sigma)/l.GL Duratec-
16V (Sigma) (303-03 Engine
Cooling - 1.3L Duratec-8V
(Rocam)/l.25L Duratec-1 6V
(Sigma)/l.4L Duratec-1 6V
(Sigma)ll .6L Duratec-1 6V
(Sigma), Removal and
Installation).
CHECK the accessory drive
belt for correct operation.
,'
REFER to: Accessory Drive '
(303-05 Accessory Drive,
Diagnosis and Testing).
procarmanuals.com
Page 757 of 1226
Engine Cooling - 1.3L Duratec-8V
(Rocam)llI25L Duratec-1 6V (Sigma)llI4L
303-03A-I 5 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma) 303-0344-15
DIAGNOSIS AND TESTING
Symptom Possible Sources Action
Cooling fan motor. CHECK the operation of the
cooling fan motor. REFER to
WDS.
Engine. INSPECT
the engine, cylinder
head, cylinder block and
cylinder head gasket.
REFER to: Cylinder Head (303-
01 Engine - 1.25L Duratec-
16V (Sigma)/l.4L Duratec-
16V (Sigma)/l.GL Duratec-
16V (Sigma), In-vehicle
Repair).
, The engine does not reach
normal operating temperature. ECT sensor. CHECK the ECT sensor.
I REFER to WDS.
Temperature gauge. CHECK
the instrument cluster
engine temperature gauge.
REFER to: lnstrument Cluster
- Vehicles Built Up To:
1012005 (41 3-01 lnstrument
Cluster, Diagnosis and
Testing)
I lnstrument Cluster - Vehicles
Built From:
1012005 (41 3-01
lnstrument Cluster, Diagnosis
and Testing).
Thermostat. CARRY OUT the Thermostat
Test Component Test in this
section. INSTALL a new ther-
mostat as necessary.
REFER to: Thermostat
- I .3L
Duratec-8V
(Rocam) (303-03
Engine Cooling
- 1.3L
Duratec-8V (Rocam)ll.25L
Duratec-16V (Sigma)/l.4L
Duratec-1 6V (Sigma)ll .6L
Duratec-16V (Sigma),
Removal and Installation)
I Thermostat - 1.25L Duratec-
16V (Sigma)/l.4L Duratec-
16V (Sigma)ll .6L Duratec-
16V (Sigma) (303-03 Engine
Cooling
- 1.3L Duratec-8V
(Rocam)ll.25L Duratec-1 6V
(Sigma)ll.4L Duratec-1 6V
(Sigma)/l .6L Duratec-I 6V
(Sigma), Removal and
Installation).
2006.0 Fiesta 1212oo6 GI 46258en
procarmanuals.com
Page 758 of 1226
Engine Cooling - 1.3L Duratec-8V
(Rocam)ll.25L Duratec-I 6V (Sigma)ll.4L
303-03A-16 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma) 303-03A-16
DIAGNOSIS AND TESTING
Component Tests
Pressure Test
A WARNING:When releasing the system
pressure, cover the expansion tank cap
with a thick cloth to prevent the possibility
of coolant scalding, Failure to follow this
instruction may result in personal injury.
1. Remove the coolant expansion tank cap.
2.
Install the special tools to the coolant expansion
tank.
3. Pressurize the system to the
coolant expansion
tank cap
release pressure.
REFER to: Specifications (303-03 Engine
Cooling - 1.3L Duratec-8V (Rocam)/l.25L
Duratec-I 6V (Sigma)/l.4L Duratec-1 6V
(Sigma)/l .6L Duratec-1 6V (Sigma),
Specifications).
4. Observe the
cooling system pressure tester
gauge reading for
approximately two minutes.
The pressure
should not drop during this time.
If the system holds pressure, proceed to step
6.
If the system does not hold pressure, check
it
thoroughly for coolant leaks.
5. Check the engine for coolant leaks. Drain the
cooling system, repair any coolant leaks found
and
fill and bleed the cooling system as
necessary.
REFER to:
Cooling System Draining, Filling and
Bleeding - 1.3L Duratec-8V (Rocam)/l.25L
Duratec-I 6V (Sigma)/l.4L Duratec-1 6V
(Sigma)/l .6L Duratec-1 6V (Sigma) (303-03
Engine
Cooling - 1.3L Duratec-8V
(Rocam)/l.25L Duratec-1 6V (Sigma)/l.4L
Duratec-1 6V (Sigma)/l .6L Duratec-1 6V
(Sigma), General Procedures).
Clean the radiator thoroughly before leak testing
it, to prevent contamination of the water in the test
tank. Leak test the radiator in
clean water with 138(
kpa (20 psi) air pressure. Check it thoroughly for
air
leaks. INSTALL a new radiator if necessary.
REFER to: Radiator (303-03 Engine
Cooling - 1.3L
Duratec-8V (Rocam)/l.25L Duratec-I 6V
(Sigma)/l.4L Duratec-I 6V (Sigma)ll .6L
Duratec-I 6V (Sigma), Removal and Installation).
Coolant Expansion Tank Cap Pressure Test
A WARNING:When releasing the system
pressure, cover the expansion tank cap
with a thick cloth to prevent the possibility
of coolant scalding, Failure to follow this
instruction may result in personal injury.
1. Remove the coolant expansion tank cap.
2. Use water to clean the area of the rubber seal
and pressure relief valve. Install the pressure
tester and adapter and immerse the
coolant
expansion tank cap in water .
N0TE:lf the plunger of the pump is depressed too
quickly, an erroneous pressure reading will result. l-
3. Slowly depress the plunger of the pressure test
pump until the pressure gauge reading stops
increasing, and note the highest pressure
reading obtained.
4.
Release pressure by turning the pressure relief
screw counterclockwise. Tighten the pressure
relief screw and repeat step 3 at least twice to
make sure the pressure test reading is
repeatable and within acceptable gauge reading
limits of the coolant expansion tank cap.
5.
If the pressure test gauge readings are not
within the
acceptable gauge reading limits,
INSTALL a new coolant expansion tank cap.
6. Recheck the system by repeating steps 3 and
4 at least twice.
Thermostat Test
Radiator Leak Test, Removed From Vehicle
A CAUTI0N:Radiator internal pressure must
not exceed
130 kpa (20 psi) or damage may
result.
1. Connect the WDS to the data link connector
(DLC).
2. Using the WDS
datalogger function, SELECT
the
following sensors (as applicable to the
application):
IAT - intake air temperature (IAT) sensor
ECT
- engine coolant temperature (ECT) sensort
CHT - cylinder head temperature (CHT) sensori
LOAD - engine load
VSS - vehicle speed sensor (VSS)
2006.0 Fiesta 1212006 GI 46258en
procarmanuals.com
Page 760 of 1226
Engine Cooling - 1.3L Duratec-8V
(Rocam)ll125L Duratec-1 6V (Sigma)ll14L
3-03A-18 Duratec-I 6V (Sigma)ll.GL Duratec-1 6V (Sigma) 303-03A-18
DIAGNOSIS AND TESTING
N0TE:The results from the test are more thermostats may increase the coolant temperature
conclusive if the engine is cold when the test is up to 1
OO°C (212OF) under light engine load
started. conditions.
Carry out a road test. The
engine should start cleanly and the ECT value
REFER to:
RoadlRoller Testing (1 00-00 General
Information, Description and Operation).
4. Drive the vehicle at a constant throttle opening
and set speed until the ECT value settles into
a shallow rise and fall signal, close to a straight
line. This indicates that the thermostat is
functioning correctly.
N0TE:Some thermostats indicate the
temperature(s) in Celsius and Fahrenheit.
The graphic below shows the location and an
example of the opening temperature
(88OC) and
fully open temperature (1
02OC) of a thermostat. will
risequite quickly with smooth progression.
If
the ECT signal appears unstable or erratic, the
ECT sensor, electrical connector and wiring
harness to the PCM need to be visually inspected
for damage, chafing or water ingress.
The temperature should rise to approximately
90°C
for a thermostat that has an 88OC value. The signal
value will then fall as cooler coolant enters the
engine.
If the ECT value fails to maintain a constant value
and falls back to lower figures, typically between
60°C (140°F) and 70°C (1 50°F), the thermostat
and its sealing function within the thermostat
housing must be checked.
5. INSTALL a new thermostat.
REFER to: Thermostat
- 1.3L Duratec-8V
(Rocam) (303-03 Engine Cooling - 1.3L
Duratec-8V (Rocam)ll.25L Duratec-I 6V
(Sigma)ll.4L Duratec-I 6V (Sigma)ll .6L
Duratec-1
6V (Sigma), Removal and
Installation)
I Thermostat - 1.25L Duratec-I 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)ll .6L Duratec-1 6V
(Sigma) (303-03 Engine Cooling - 1.3L
Duratec-8V (Rocam)ll.25L Duratec-I 6V
The graphic below shows an alternative method (Sigma)/l.4L Duratec-1 6V (Sigma)ll .6L
used to show the opening temperature
(88OC) and Duratec-1 6V (Sigma), Removal
and
fully open temperature (1
12OC) of a thermostat. Installation).
6. Carry out another road test from step 1 using
the same criteria to confirm that the concern
has been rectified.
7. Using the WDS, clear the PCM keep alive
memory (KAM) or electrically erasable
programmable read only memory (EEPROM)
so that new drive values can be learnt.
Item Description
I A 1 Opening temperature I
I B I Fully open temperature I
NOTE:Generally, most thermostats maintain a
coolant temperature between
88OC (1 90°F) and
92OC (1 98OF) although dual stage electric
2006.0 Fiesta 1212006 GI 46258en
procarmanuals.com
Page 777 of 1226
303-03B-7 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-7
DESCRIPTION AND OPERATION
Oil Cooler
Item Description
I I I Oil cooler I
1 2 1 Oil filter adaptor I
1 3 1 Oil filter I
The oil cooler is an oil to water type and is a full
flow system.
The oil cooler and oil filter are fitted to an adaptor
which is mounted on the cylinder block.
The coolant supply for the oil cooler is through the
thermostat by-pass hose.
Coolant Recovery System
A pressurized coolant expansion tank system is
used which continuously separates the air from the
cooling system and replenishes the system through
the coolant expansion tank outlet hose.
A continuous vent from the engine and radiator to
I the coolant expansion tank prevents air locks from
forming in the cooling system.
No manual bleed points are provided on the
system. The coolant expansion tank serves
as the location
for:
Service fill.
Coolant expansion during warm-up.
Air separation during operation.
System pressurization by the coolant pressure
cap.
Coolant
A WARN1NG:Coolant contains monoethylene
glycol and other constituents which are
toxic if taken internally and can be
absorbed into the skin after prolonged
contact. Failure to follow this instruction
may result in personal injury.
Coolant concentration should be checked through
the neck of the expansion tank with a hydrometer.
The acceptable range of specific gravity (sg) of
correctly balanced fluids is between
1.06 and
1.07kg/l, which represents a coolant concentration
between 40% and 55%. If the concentration falls
below 40% there is insufficient low temperature
protection and the corrosion resistance will be
inadequate. In such cases the concentration must
be brought back to specification.
The coolant used is the orange-colored Motorcraft
Super Plus 2000. Motorcraft Super Plus 2000 is a
non silicated organic acid technology (OAT)
coolant, and must not be mixed with other coolant
types. For cooling system top up, only use coolant
which meets the correct specification and is
compatible with the existing coolant.
Changing Coolant
A WARN1NG:When releasing the cooling
system pressure, cover the coolant
expansion tank cap with a thick cloth to
prevent the possibility of coolant scalding.
Failure to follow this instruction may result
in personal injury.
A CAUTI0N:When draining the coolant or
changing any cooling system components,
it is imperative that no coolant comes into
contact with the camshaft drive belt or
accessory drive belt. If necessary the belt
should be removed. Contamination of the
belt may result in premature belt failure.
N0TE:Providing the coolant has not been
contaminated with other fluids or foreign matter,
the robust corrosion resistance properties of this
2006.0 Fiesta 1212006 G421219en
procarmanuals.com
