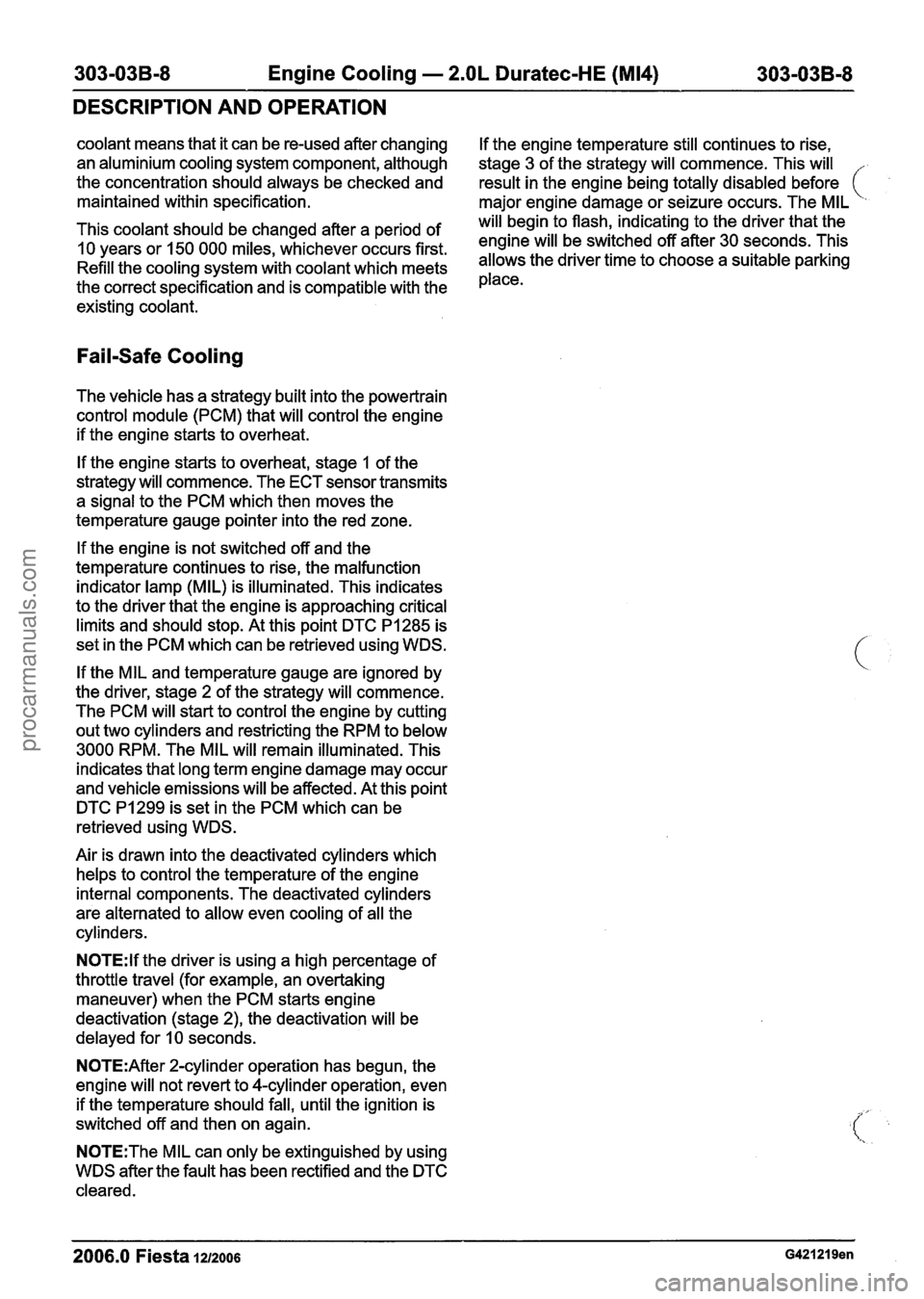

303-03B-8 Engine Cooling - 2.OL Duratec-HE (M14) 303-038-8
DESCRIPTION AND OPERATION
coolant means that it can be re-used after changing If the engine temperature still continues to rise,
an aluminium cooling system component, although
stage
3 of the strategy will commence. This will
the concentration should always be checked and
result in the engine being totally disabled before
(
maintained within specification.
major engine damage or seizure occurs. The MIL .
This coolant should be changed after a period of will begin-to
flash, indicating to the driver that the
10 years or 150 000 miles, whichever occurs first. engine will
be switched off after 30 seconds. This
Refill the cooling system with coolant which meets allows the driver time to choose a suitable parking
the correct specification and is compatible with the place.
existing coolant.
Fail-Safe Cooling
The vehicle has a strategy built into the powertrain
control module (PCM) that will control the engine
if the engine starts to overheat.
If the engine starts to overheat, stage
1 of the
strategy will commence. The ECT sensor transmits
a signal to the PCM which then moves the
temperature gauge pointer into the red zone.
If the engine is not switched off and the
temperature continues to rise, the malfunction
indicator lamp (MIL) is illuminated. This indicates
to the driver that the engine is approaching critical
limits and should stop. At this point DTC
PI285 is
set in the PCM which can be retrieved using WDS.
If the MIL and temperature gauge are ignored by
the driver, stage 2 of the strategy will commence.
The PCM will start to control the engine by cutting
out two cylinders and restricting the RPM to below
3000 RPM. The MIL will remain illuminated. This
indicates that long term engine damage may occur
and vehicle emissions will be affected. At this point
DTC
PI299 is set in the PCM which can be
retrieved using WDS.
Air is drawn into the deactivated cylinders which
helps to control the temperature of the engine
internal components. The deactivated cylinders
are alternated to allow even cooling of all the
cylinders.
N0TE:lf the driver is using a high percentage of
throttle travel (for example, an overtaking
maneuver) when the PCM starts engine
deactivation (stage 2), the deactivation will be
delayed for 10 seconds.
N0TE:After 2-cylinder operation has begun, the
engine will not revert to 4-cylinder operation, even
if the temperature should fall, until the ignition is
switched off and then on again.
N0TE:The MIL can only be extinguished by using
WDS after the fault has been rectified and the DTC
cleared.
2006.0 Fiesta 1212006 G421219en
procarmanuals.com

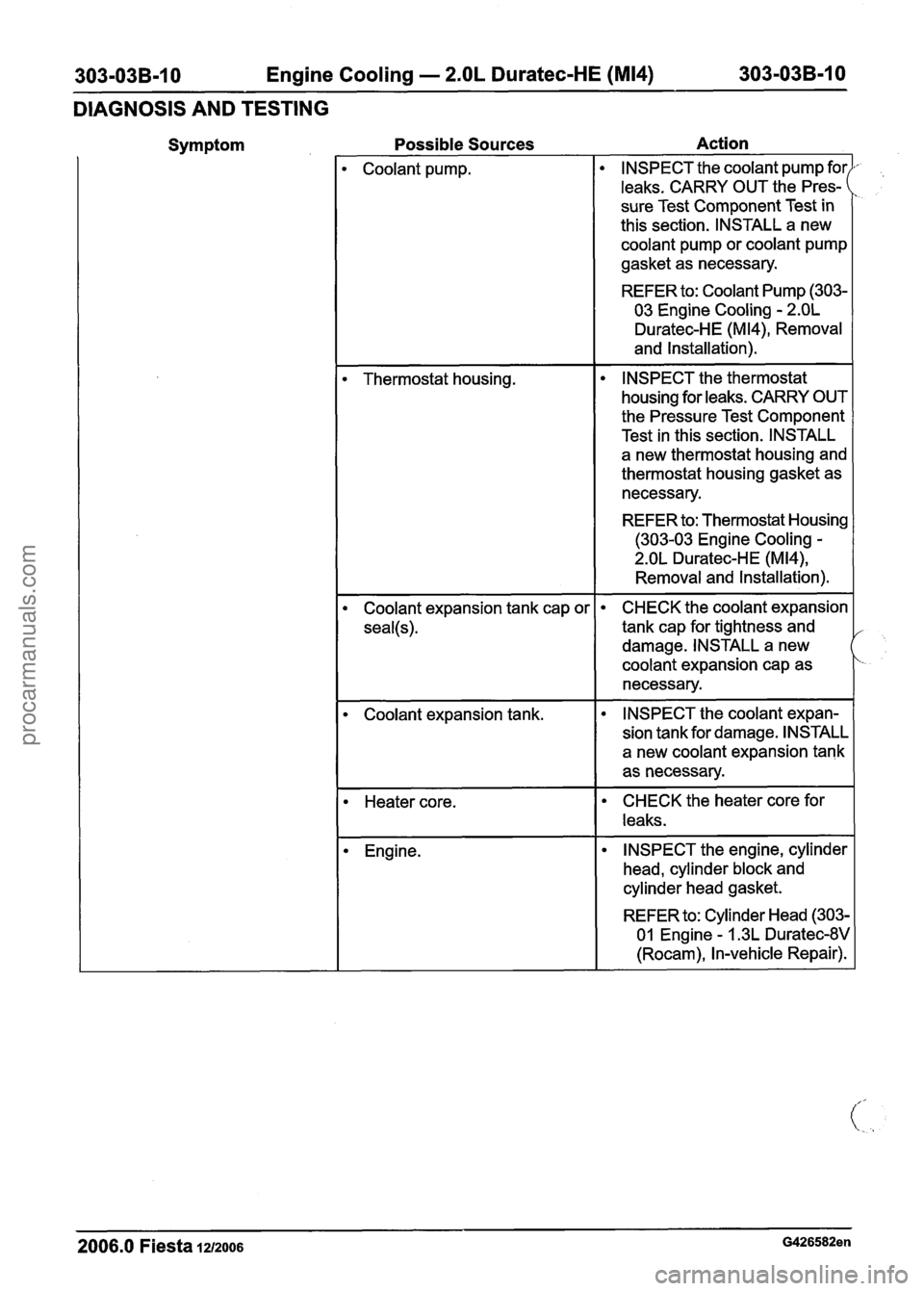

Engine Cooling - 2.OL Duratec-HE (M14)
DIAGNOSIS AND TESTING
Symptom Possible Sources Action
Coolant
pump.
Thermostat housing.
Coolant expansion tank cap or
seal(s).
- -
Coolant expansion tank.
Heater core.
Engine. INSPECT the
coolant pump
leaks. CARRY OUT the Pres-
sure Test Component Test in
this section. INSTALL a new
gasket as necessary.
REFER to: Coolant Pump (303-
03 Engine Cooling
- 2.OL
Duratec-HE (M14), Removal
and Installation).
INSPECT the thermostat
housing for leaks. CARRY OUT
the Pressure Test Component
Test in this section. INSTALL
a new thermostat housing and
thermostat housing gasket as
necessary.
REFER to: Thermostat Housing
(303-03 Engine Cooling
-
2.OL Duratec-HE (M14),
Removal and Installation).
CHECK the coolant expansion
tank cap for tightness and
damage. INSTALL a new
coolant expansion cap as
necessary.
INSPECT the coolant expan-
sion tank for damage. INSTALL
a new coolant expansion tank
as necessary.
CHECK the heater core for
leaks.
INSPECT the engine, cylinder
head, cylinder block and
cylinder head gasket.
REFER to: Cylinder Head (303-
01 Engine
- 1.3L Duratec-8V
(Rocam), In-vehicle Repair).
2006.0 Fiesta lu2006 G426582en
procarmanuals.com

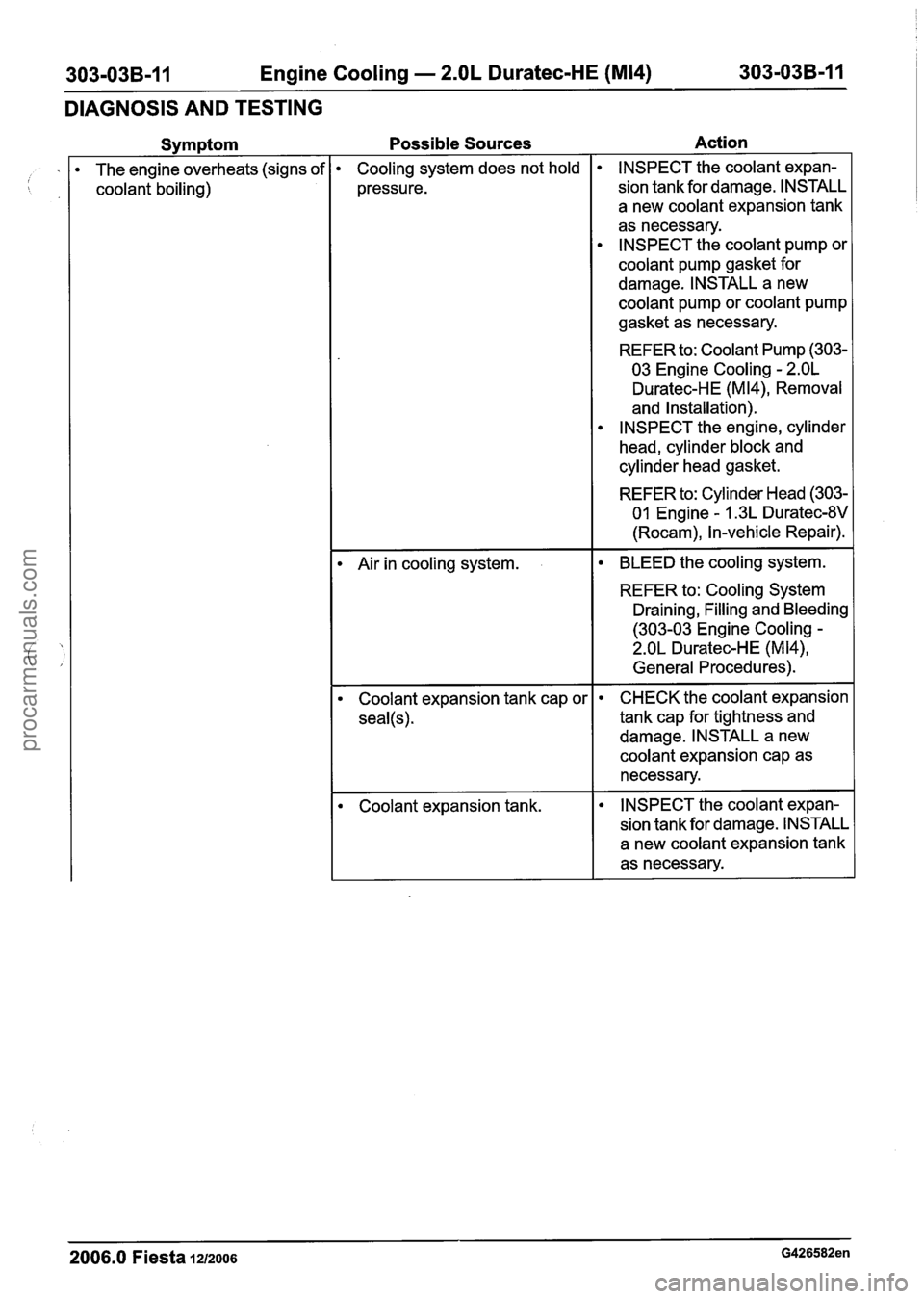

303-03B-11 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-1 I
DIAGNOSIS AND TESTING
Symptom
The engine overheats (signs of
coolant boiling)
Possible Sources Action
Cooling system does not hold
pressure. INSPECT
the coolant expan-
sion tank for damage. INSTALL
a new coolant expansion tank
as necessary. INSPECT the coolant pump or
coolant pump gasket for
damage. INSTALL a new
coolant pump or coolant pump
gasket as necessary.
REFER to: Coolant Pump (303-
03 Engine Cooling
- 2.OL
Duratec-HE (M14), Removal
and Installation).
INSPECT the engine, cylinder
head, cylinder block and
cylinder head gasket.
REFER to: Cylinder Head (303-
01 Engine - 1.3L Duratec-8V
(Rocam), In-vehicle Repair). -
Air in cooling system. BLEED the cooling system.
REFER to: Cooling System
Draining, Filling and Bleeding
(303-03 Engine Cooling
-
2.OL Duratec-HE (M14),
General Procedures).
Coolant expansion tank cap or
seal(s).
CHECK the coolant expansion
tank cap for tightness and damage. INSTALL a new
coolant expansion cap as
necessary.
Coolant expansion tank. INSPECT
the coolant expan-
sion tank for damage. INSTALL
a new coolant expansion tank
as necessary.
2006.0 Fiesta 1212006 G426582en
procarmanuals.com

303-03B-12 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-I 2
DIAGNOSIS AND TESTING
Symptom Possible
Sources Action
Coolant level or condition.
Radiator grille.
Coolant pump.
Thermostat. CHECK
the coolant level.
REFILL the cooling system as
necessary.
REFER to: Cooling System
Draining, Filling and Bleeding
(303-03 Engine Cooling
-
2.OL Duratec-HE (M14),
General Procedures).
CHECK the coolant condition
and concentration
REFER to: Specifications (303-
03 Engine Cooling
- 2.OL
Duratec-HE (M14), Specifica-
tions).
If the coolant is contaminated
or the concentration is below
specifications, drain and refill
with new coolant.
REFER to: Cooling System
Draining, Filling and Bleeding
(303-03 Engine Cooling
-
2.OL Duratec-HE (M14),
General Procedures).
INSPECT the radiator grille for
air restrictions or damage.
REPAIR or INSTALL new parts
as necessary.
CARRY OUT the Pressure Test
Component Test in this section.
INSPECT the coolant pump for
leaks. INSTALL a new coolant
pump or coolant pump gasket
as necessary.
REFER to: Coolant Pump (303-
03 Engine Cooling
- 2.OL
Duratec-HE (M14), Removal
and Installation).
CARRY OUT the Thermostat
Test Component Test in this
section. INSTALL a new ther-
mostat housing and thermostat
housing gasket as necessary.
2006.0 Fiesta 1212006 G426582en
REFER to: Thermostat Housing
(303-03 Engine Cooling
-
2.OL Duratec-HE (M14),
Removal and Installation). ,,
procarmanuals.com

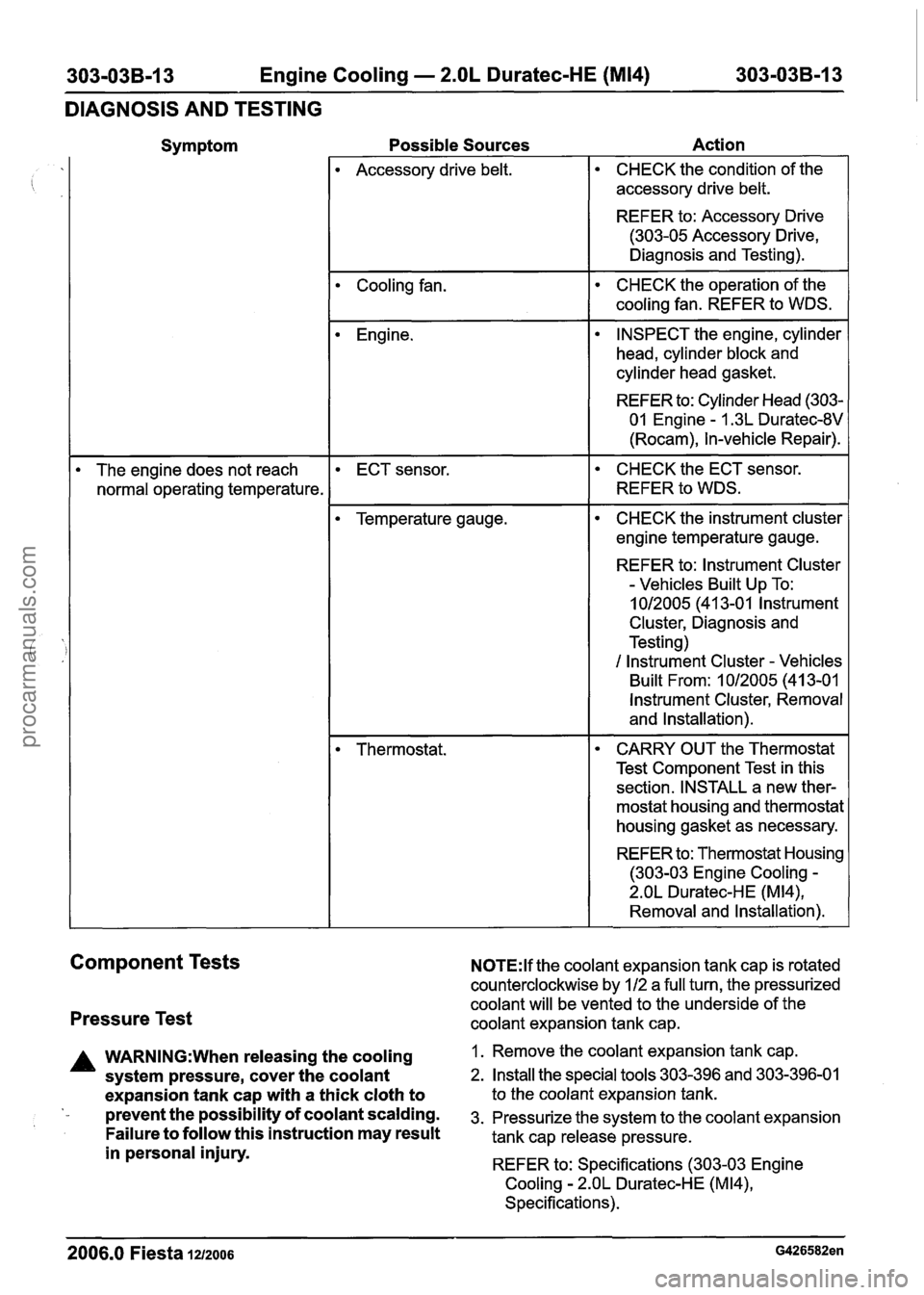

Engine Cooling - 2.OL Duratec-HE (M14)
DIAGNOSIS AND TESTING
Symptom Possible Sources
Action
I Accessory drive belt. CHECK the condition of the
accessory drive belt.
REFER to: Accessory Drive
(303-05 Accessory Drive,
Diagnosis and Testing).
Cooling fan.
CHECK the operation of the
I cooling fan. REFER to WDS.
Engine. INSPECT the engine, cylinder
head, cylinder block and
cylinder head gasket.
REFER to: Cylinder Head
(303-
01 Engine - I .3L Duratec-8V
(Rocam), I n-vehicle Repair).
The engine does not reach
normal operating temperature. CHECK the ECT sensor.
I REFER to WDS.
Temperature gauge. CHECK the instrument cluster
engine temperature gauge.
REFER to: lnstrument Cluster
- Vehicles Built Up To:
1012005 (41 3-01 lnstrument
Cluster, Diagnosis and
Testing)
I lnstrument Cluster - Vehicles
Built From:
1012005 (41 3-01
lnstrument Cluster, Removal
and Installation).
Thermostat. CARRY OUT the Thermostat
Test Component Test in this
section. INSTALL a new ther-
mostat housing and thermostat
housing gasket as necessary.
REFER to: Thermostat Housing (303-03 Engine Cooling
-
2.OL Duratec-HE (M14),
Removal and Installation).
Component Tests
Pressure Test
A WARNING:When releasing the cooling
system pressure, cover the coolant
expansion tank cap with a thick cloth to
- prevent the possibility of coolant scalding.
Failure to follow this instruction may result
in personal injury.
N0TE:lf the coolant expansion tank cap is rotated
counterclockwise by 1 12 a full turn, the pressurized
coolant will be vented to the underside of the
coolant expansion tank cap.
1. Remove the coolant expansion tank cap.
2. Install the special tools 303-396 and 303-396-01
to the coolant expansion tank.
3. Pressurize the system to the coolant expansion
tank cap release pressure.
REFER to: Specifications (303-03 Engine
Cooling
- 2.OL Duratec-HE (M14),
Specifications).
2006.0 Fiesta 1212006 G426582en
procarmanuals.com

303-03B-14 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-14
DIAGNOSIS AND TESTING
4. Observe the cooling system pressure tester make sure the pressure test reading
is
gauge reading for approximately two minutes. repeatable
and within acceptable gauge reading
The pressure should not drop during this time. limits of
the coolant expansion tank cap.
( If the system holds Pressure, proceed to Step 5. If the pressure test gauge readings are not 7. If the system does not hold pressure, check
within the acceptable gauge reading limits,
it thoroughly for coolant leaks.
INSTALL a new coolant expansion tank cap.
5. Check the engine for coolant leaks. Drain the
cooling system, repair any coolant leaks found
and fill and bleed the cooling system as
Thermostat Test
necessaw.
REFER to: Cooling System Draining, Filling and
Bleeding (303-03 Engine Cooling
- 2.OL
Duratec-HE (M14), General Procedures).
.Recheck the system by repeating Steps 3 and
4 at least twice.
Radiator Leak Test, Removed From Vehicle
CAUTI0N:Radiator internal pressure must
not exceed
130 kpa (20 psi) or damage may
result.
Clean the radiator thoroughly before leak testing
it, to prevent contamination of the water in the test
tank. Leak test the radiator in clean water with 138
kpa (20 psi) air pressure. Check it thoroughly for
air leaks. INSTALL a new radiator if necessary.
REFER to: Radiator (303-03 Engine Cooling
- 2.OL
Duratec-HE (M14), Removal and Installation).
Coolant Expansion Tank Cap Pressure Test
A WARNING:When releasing the system
pressure, cover the expansion tank cap
with a thick cloth to prevent the possibility
of coolant scalding, Failure to follow this
instruction may result in personal injury.
1. Remove the coolant expansion tank cap.
2. Use water to clean the area of the rubber seal
and pressure relief valve. Install the pressure
tester and adapter and immerse the coolant
-
expansion tank cap in water.
N0TE:lf the plunger of the pump is depressed too
quickly, an erroneous pressure reading will result.
3. Slowly depress the plunger of the pressure test
pump until the pressure gauge reading stops
increasing, and note the highest pressure
reading obtained.
4. Release pressure by turning the pressure relief
screw counterclockwise. Tighten the pressure
relief screw and repeat step 3 at least twice to
I. Connect the WDS to the data link connector
(DLC).
2. Using the WDS datalogger function, SELECT
the following sensors (as applicable to the
application):
IAT
- intake air temperature (IAT) sensor
ECT
- engine coolant temperature (ECT) sensor
CHT
- cylinder head temperature (CHT) sensor
LOAD
- engine load
VSS
- vehicle speed sensor (VSS)
RPM
- engine speed
DSRPM
- desired engine speed
The IAT sensor output is useful if the engine being
tested is cold or after an over-night cold soak. The
ECT sensor or CHT sensor and the IAT sensor
(
should either indicate the same value or be within
1 to 2 degrees Celsius of each other.
The ECT sensor output is important to display as
it indicates the engine warm-up and opening
temperature for the thermostat. It will initially
indicate a slightly higher reading just before the
thermostat opens and then drops back before
settling to a near flat line output (see graphic
below).
Item Description 1'. .
) A 1 Thermostat opens I\
B Thermostat settles into a cyclic open and
I I closure pattern
2006.0 Fiesta 1212006 G426582en
procarmanuals.com

303-03B-16 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-16
DIAGNOSIS AND TESTING
Item Description
I A 1 Opening temperature I
I B I Fully open temperature I
NOTE:Generally, most thermostats maintain a
coolant temperature between
88OC (1 90°F) and
92OC (1 98OF) although dual stage electric
thermostats may increase the coolant temperature
up to
100°C (212OF) under light engine load
conditions.
The engine should start cleanly and the ECT value
will rise quite quickly with smooth progression. If
the ECT signal appears unstable or erratic, the
ECT sensor, electrical connector and wiring
harness to the PCM need to be visually inspected
for damage, chafing or water ingress.
The temperature should rise to approximately
90°C
for a thermostat that has an 88OC value. The signal
value will then fall as cooler coolant enters the
engine.
If the ECT value fails to maintain a constant value
and falls back to lower figures, typically between
60°C (140°F) and 70°C (1 50°F), the thermostat
and its sealing function within the thermostat
housing must be checked.
5, INSTALL a new thermostat housing and
thermostat housing gasket as necessary.
REFER to: Thermostat Housing (303-03 Engine
Cooling
- 2.OL Duratec-HE (M14), Removal
and Installation).
6. Carry out another road test from step 1 using
the same criteria to confirm that the concern
has been rectified.
7. Using the WDS, clear the PCM keep alive
memory (KAM) or electrically erasable
programmable read only memory (EEPROM)
so that new drive values can be learnt.
2006.0 Fiesta 1212006 G426582en
procarmanuals.com

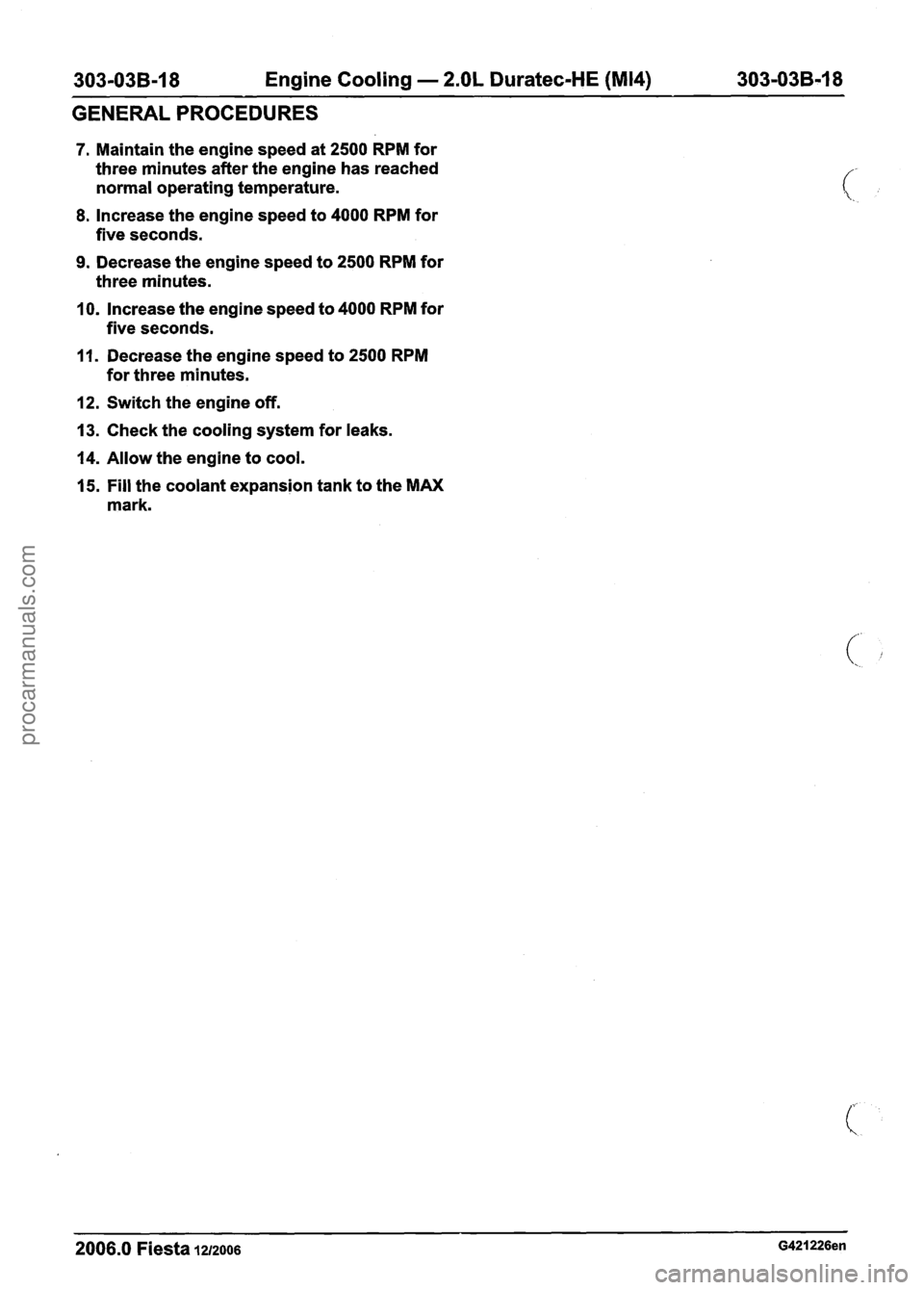

303-038-1 8 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-18
GENERAL PROCEDURES
7. Maintain the engine speed at 2500 RPM for
three minutes after the engine has reached
normal operating temperature.
8. lncrease the engine speed to 4000 RPM for
five seconds.
9. Decrease the engine speed to 2500 RPM for
three minutes.
10. lncrease the engine speed to 4000 RPM for
five seconds.
11. Decrease the engine speed to 2500 RPM
for three minutes.
12. Switch the engine off.
13. Check the cooling system for leaks.
14. Allow the engine to cool.
15. Fill the coolant expansion tank to the MAX
mark.
2006.0 Fiesta 1212006 G421226en
procarmanuals.com

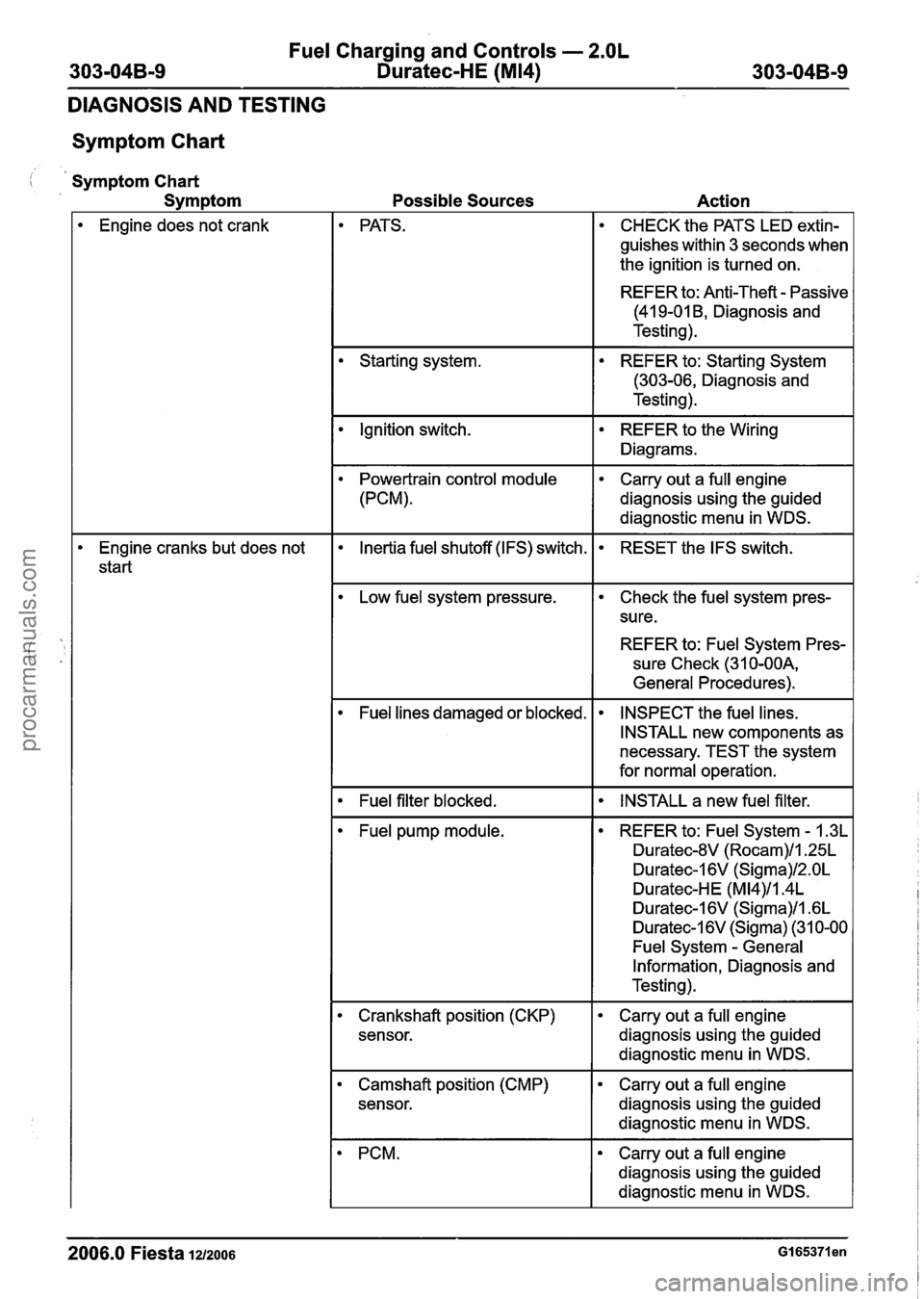

Fuel Charging and Controls - 2.OL
303-04B-9 Duratec-HE (M14) 303-04B-9
DIAGNOSIS AND TESTING
Symptom Chart
Symptom Chart
Symptom
Possible Sources Action
Engine does not crank
Engine cranks but does not
start PATS. CHECK
the PATS LED extin-
guishes within 3 seconds when
the ignition is turned on.
REFER to: Anti-Theft
- Passive
(41 9-01
8, Diagnosis and
Testing).
Starting system.
REFER to: Starting System
(303-06, Diagnosis and
Testing).
Ignition switch. REFER to the Wiring
Diagrams.
Powertrain control module
(PCM).
Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
Low fuel system pressure.
Inertia fuel shutoff (IFS) switch.
Check the fuel system pres-
sure.
REFER to: Fuel System Pres-
sure Check (31
0-OOA,
General Procedures).
RESET the IFS switch.
Fuel lines damaged or blocked.
INSPECT the fuel lines.
INSTALL new components as
necessary. TEST the system
for normal operation.
I Fuel filter blocked. I INSTALL a new fuel filter. I
Fuel pump module. REFER to: Fuel System - 1.3L
Duratec-8V (Rocam)/l.25L
Duratec-1 6V (Sigma)/2.OL
Duratec-HE (M14)/1.4L
Duratec-1 6V (Sigma)/l .6L
Duratec-1
6V (Sigma) (31 0-00
Fuel System
- General
Information, Diagnosis and
Testing).
Crankshaft position (CKP)
sensor. Carry out a
full engine
diagnosis using the guided
diagnostic menu in WDS.
Camshaft position (CMP)
sensor. Carry out a
full engine
diagnosis using the guided
diagnostic menu in WDS.
PCM. Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
2006.0 Fiesta 1212006 GI 65371 en
procarmanuals.com

Fuel Charging and Controls - 2.OL
303-048-1 0 Duratec-HE (M14) 303-04B-10
DIAGNOSIS AND TESTING
Symptom Possible Sources Action
Fuel rail fuel pressure sensor. Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
Fuel injectors. INSPECT
the fuel injectors.
CLEAN the fuel injectors or
INSTALL a new set of injectors
as required only after the
checks have been carried out.
I Incorrect valve timing. I CHECK the valve timing. I
Poor starting
Low cylinder compression.
Low fuel system pressure.
TEST the cylinder compres-
sion.
Check the fuel system pres-
sure.
REFER to: Fuel System Pres-
sure Check (31
0-OOA,
General Procedures).
Fuel system leak. CHECK the system for fuel
leak(s). REPAIR the system as
necessary.
Fuel system restriction. INSPECT the
fuel system.
INSTALL new components as
necessary. TEST the system
for normal operation.
I Fuel filter blocked. I INSTALL a new fuel filter. I
lncorrect engine oil.
Air
cleaner element blocked.
INSTALL a new engine oil filter
and engine oil.
INSTALL a new air cleaner
element.
lncorrect power steering fluid. DRAIN and REFILL the
power
steering system with the correct
fluid.
REFER to: Power Steering
System Flushing
- Vehicles
With: Electro-Hydraulic Power
Steering (EHPS) (21 1-00,
General Procedures).
2006.0 Fiesta 1212006 GI 65371 en
CKP sensor.
Engine coolant temperature
(ECT) sensor. Carry out a
full engine
diagnosis using the guided
diagnostic menu in WDS.
Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
procarmanuals.com
