FORD FIESTA 2007 Workshop Manual

303-03B-21 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-21
REMOVAL AND INSTALLATION
Thermostat Housing
Special Tool(s) 2. Lower the vehicle.
I Remover/lnstaller, Coolant 1 3. Remove the right-hand headlamp assembly.
1. Drain the cooling system.
I
For additional information, refer to: Cooling
System Draining, Filling and Bleeding
(303-03 Engine Cooling
- 2.OL Duratec-HE
(M14), General Procedures).
Hose Clamp
303-397 For additional information, refer to:
Headlamp Assembly (41 7-01 Exterior
Lighting, Removal and Installation).
4. Remove the components in the order
indicated in the following
illustration(s) and
table(s).
2006.0 Fiesta 1212006 G426583en
procarmanuals.com

303-03B-22 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-22
REMOVAL AND INSTALLATION
Item Description Item Description
I 1 coolant hose
Removal Details
2
2006.0 Fiesta 1212006 G426583en
1
3
Thermostat housing to coolant expansion
tank and heater core return coolant hose
See Removal Detail
Radiator lower to thermostat housing See
Removal Detail
Thermostat housing
5. To install, reverse the removal procedure.
procarmanuals.com

303-03B-23 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-23
REMOVAL AND INSTALLATION
Item 1 Thermostat housing to coolant expansion
tank and heater core return coolant hose
' . I. Using the special tool, disconnect the
thermostat housing to coolant expansion
tank and heater core return coolant hose.
Item 2 Radiator lower to thermostat housing
coolant hose
1. Using the special tool, disconnect the
radiator lower to thermostat housing coolant
hose.
2006.0 Fiesta 1212006 G426583en
procarmanuals.com

303-03B-24 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-24
REMOVAL AND INSTALLATION
Coolant Outlet Connector
Removal
1. Remove the air cleaner.
For additional information, refer to: Air
Cleaner
- 2.OL Duratec-HE (M14) (303-12
Intake Air Distribution and Filtering,
Removal and Installation).
2. Disconnect the spark plug wires from the
ignition coil pack.
4. Remove the ignition coil pack.
5. Drain the cooling system.
For additional information, refer to: Cooling
System Draining, Filling and Bleeding
(303-03 Engine Cooling
- 2.OL Duratec-HE
(M14), General Procedures).
6. Disconnect the engine coolant temperature
3. Disconnect the ignition coil pack electrical
(ECT) sensor electrical connector.
connector.
2006.0 Fiesta 1212006 G421228en
procarmanuals.com

303-03B-25 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-25
REMOVAL AND INSTALLATION
7. Disconnect the radiator hose and the heater Discard the gasket.
hose from the coolant outlet connector. ,
Installation
8. Disconnect the coolant expansion tank hose
from the coolant outlet connector. 1. N0TE:lnstall a new coolant outlet connector
gasket.
9. Disconnect the thermostat housing coolant
hose from the coolant outlet connector. To
install, reverse the removal procedure.
10. Remove the coolant outlet connector.
2006.0 Fiesta 1212006 G421228en
procarmanuals.com

303-03B-26 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-26
REMOVAL AND INSTALLATION
Removal 2. Push the cooling fan motor and shroud l.
upwards and then downwards to remove.
1. Disconnect the battery ground cable. I
For additional information, refer to: Battery
Disconnect
(414-01 Battery, Mounting and
Cables, General Procedures).
2. Drain the cooling system.
For additional information, refer to: Cooling
System Draining, Filling and Bleeding
(303-03 Engine Cooling - 2.OL Duratec-HE
(M14), General Procedures).
3. Disconnect the cooling fan motor and
cooling fan resistor electrical connectors.
4. Remove
the air cleaner intake pipe resonator.
5. Remove the cooling fan motor and shroud.
1. Release the cooling fan motor and shroud
from the retaining brackets.
6. Disconnect the radiator upper hose.
1. Pull out the quick release spring clip.
2. Pull the radiator upper hose from the quick
release connector.
7. Disconnect the radiator degas hose from the
radiator.
Release the locking tangs.
8. Remove the radiator retainers.
2006.0 Fiesta 1212006 G457934en
procarmanuals.com

303-03B-27 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-27
REMOVAL AND INSTALLATION
I. Remove the radiator retainer locking screws.
2. Remove the radiator retainers and grommets.
9. Detach the radiator and the air conditioning
(NC) condenser from the support panel.
Om ACAUTION:S~~~~~~ the AIC condenser
by positioning it on the support panel.
Slide the
NC condenser to detach it from the
radiator
, 11. Remove the radiator. I
Installation
I. To install, reverse the removal procedure.
2006.0 Fiesta 1212006 G457934en
procarmanuals.com

procarmanuals.com

Fuel Charging and Controls - 1.25L
Duratec-1 6V (Sigma)ll.4L Duratec-I 6V
-04A-1 (Sigma)lI.GL Duratec-I 6V (Sigma) 303-04A-1

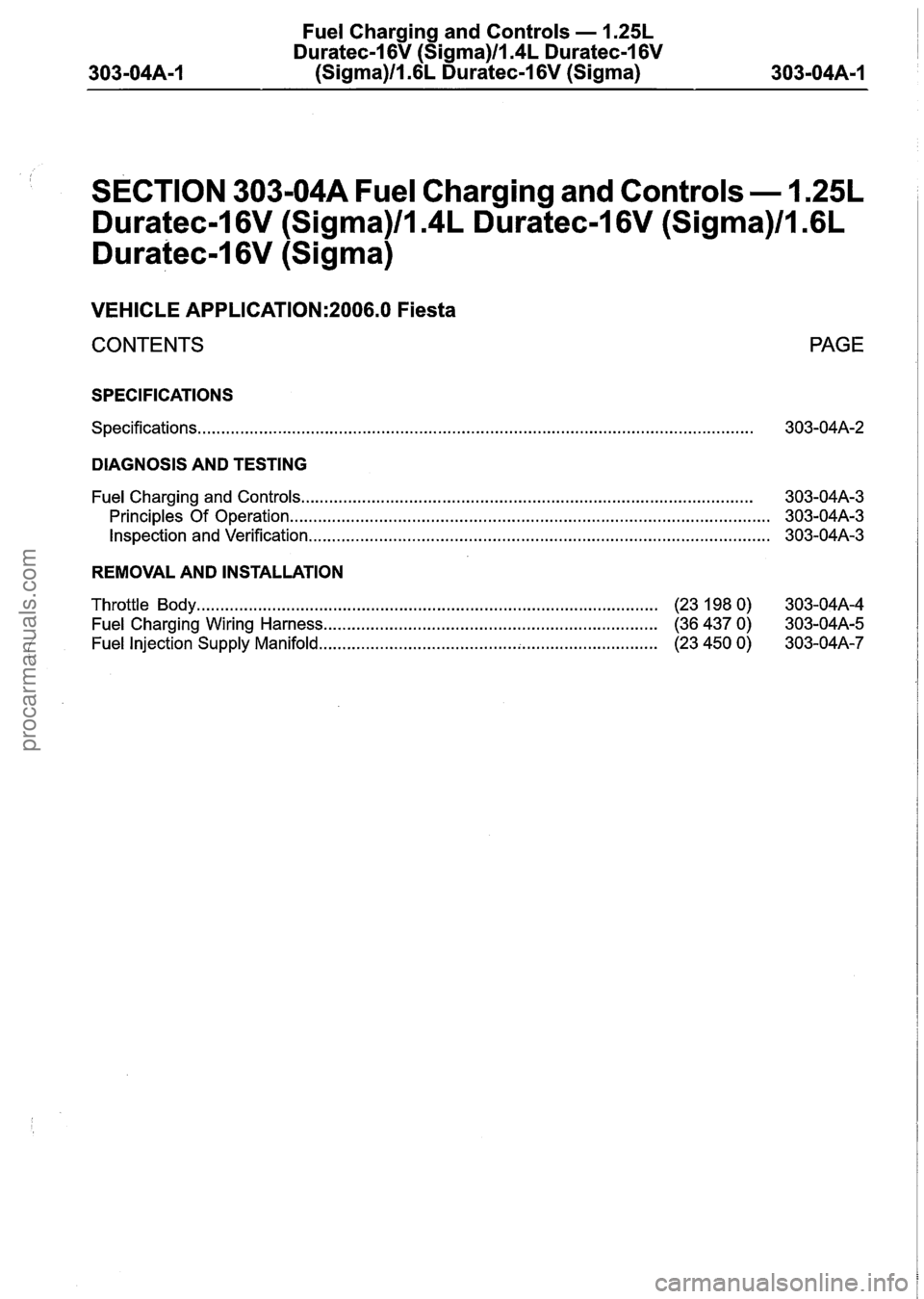

SECTION 303-04A Fuel Charging and Controls - 1.25L
Duratec-1 6V (Sigma)/l.4L Duratec-1 6V (Sigma)/l .6L
Duratec-I 6V (Sigma)
VEHICLE APPLICATION:2006.0 Fiesta
CONTENTS
PAGE
SPECIFICATIONS
Specifications
........................................................................\
.............................................. 303-04A-2
DIAGNOSIS AND TESTING
Fuel Charging and Controls
........................................................................\
.................. 303-04A-3
Principles Of Operation ........................................................................\
............................ 303-04A-3
Inspection and Verification ........................................................................\
.......................... 303-04A-3
REMOVAL AND INSTALLATION
Throttle Body
........... ........................................................................\
............... (23 198 0) 303-04A-4
Fuel Charging Wiring Harness ....................................................................... \
(36 437 0) 303-04A-5
Fuel Injection Supply Manifold ......................................... .......................... (23 450 0) 303-04A-7
procarmanuals.com

Fuel Charging and Controls - 1.25L
Duratec-1 6V (Sigma)llI4L Duratec-1 6V
(Sigma)ll .6L Duratec-1 6V (Sigma)

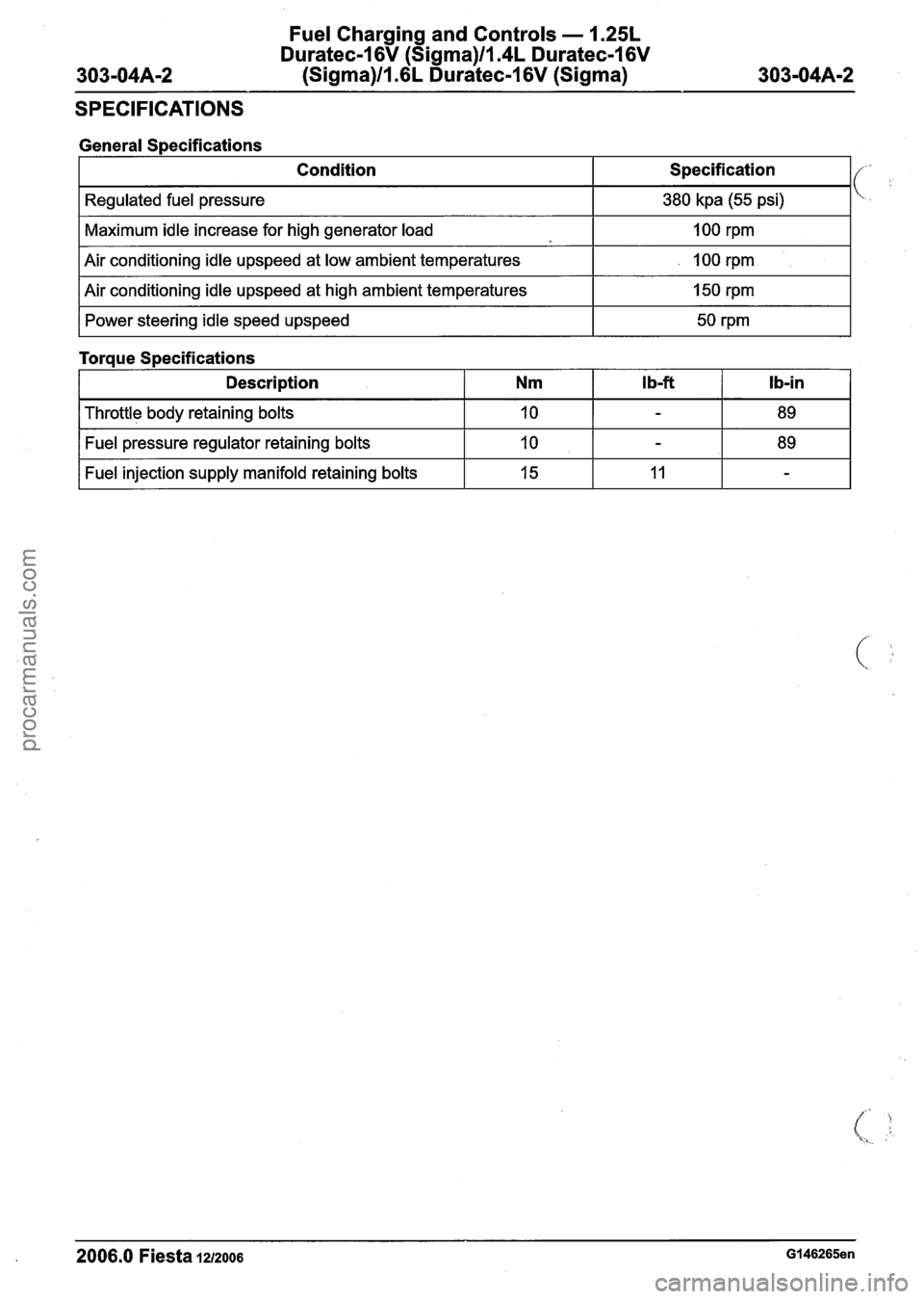

SPECIFICATIONS
General Specifications
I Maximum idle increase for high generator load I I00 rpm I
Condition
Regulated fuel pressure
l~ir conditioning idle upspeed at low ambient temperatures I 100 rpm I
Specification
380 kpa (55 psi)
I Air conditioning idle upspeed at high ambient temperatures I 150 rpm I
I Power steering idle speed upspeed I 50 rpm I
Toraue S~ecifications
Description Nm I b-ft Ib-in
I Throttle body retaining bolts I 10 1 - I 89 I
I Fuel pressure regulator retaining bolts I 10 I - I 89 I
I Fuel injection supply manifold retaining bolts I 15 I 11 I - I
2006.0 Fiesta 1212006 GI 46265en
