FORD FLEX 2013 1.G Owners Manual
Manufacturer: FORD, Model Year: 2013, Model line: FLEX, Model: FORD FLEX 2013 1.GPages: 558, PDF Size: 6.28 MB
Page 171 of 558

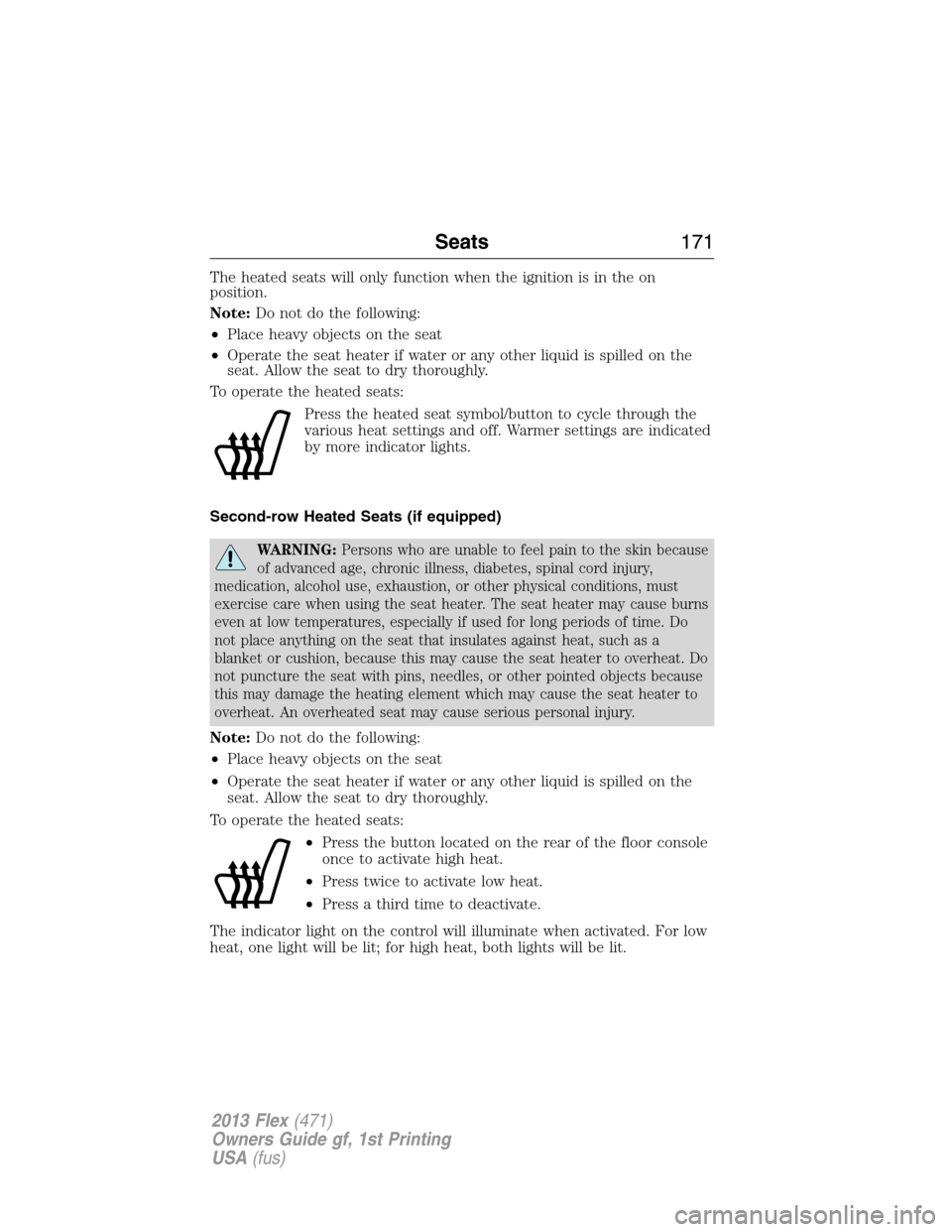

The heated seats will only function when the ignition is in the on
position.
Note:Do not do the following:
•Place heavy objects on the seat
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
To operate the heated seats:
Press the heated seat symbol/button to cycle through the
various heat settings and off. Warmer settings are indicated
by more indicator lights.
Second-row Heated Seats (if equipped)
WARNING:Persons who are unable to feel pain to the skin because
of advanced age, chronic illness, diabetes, spinal cord injury,
medication, alcohol use, exhaustion, or other physical conditions, must
exercise care when using the seat heater. The seat heater may cause burns
even at low temperatures, especially if used for long periods of time. Do
not place anything on the seat that insulates against heat, such as a
blanket or cushion, because this may cause the seat heater to overheat. Do
not puncture the seat with pins, needles, or other pointed objects because
this may damage the heating element which may cause the seat heater to
overheat. An overheated seat may cause serious personal injury.
Note:Do not do the following:
•Place heavy objects on the seat
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
To operate the heated seats:
•Press the button located on the rear of the floor console
once to activate high heat.
•Press twice to activate low heat.
•Press a third time to deactivate.
The indicator light on the control will illuminate when activated. For low
heat, one light will be lit; for high heat, both lights will be lit.
Seats171
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 172 of 558

HEATED AND COOLED SEATS (IF EQUIPPED)
Heated seats
WARNING:Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical conditions,
must exercise care when using the seat heater. The seat heater may
cause burns even at low temperatures, especially if used for long
periods of time. Do not place anything on the seat that insulates against
heat, such as a blanket or cushion, because this may cause the seat
heater to overheat. Do not puncture the seat with pins, needles, or
other pointed objects because this may damage the heating element
which may cause the seat heater to overheat. An overheated seat may
cause serious personal injury.
The heated seats will only function when the engine is running.
Note:Do not do the following:
•Place heavy objects on the seat
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
To operate the heated seats:
Press the heated seat symbol/button to cycle through the
various heat settings and off. Warmer settings are indicated
by more indicator lights.
If the engine falls below 350 rpm while the heated seats are on, the
feature will turn itself off and will need to be reactivated.
Cooled seats
The cooled seats will only function when the engine is running.
To operate the cooled seats:
Press the cooled seat symbol/button to cycle through the
various cooling settings and off. Cooler settings are
indicated by more indicator lights.
A/C
172Seats
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 173 of 558

If the engine falls below 350 rpm while the cooled seats are on, the
feature will turn itself off and will need to be reactivated.
Note:When the heated/cooled front seat is active, you will be able to
hear the fan operating inside the seat. This is normal.
Heated and cooled seat air filter replacement (if equipped)
The climate controlled seat system includes air filters that must be
replaced periodically. Refer toScheduled maintenance information.
The filters are located under each front seat and can be accessed from
the 2nd row foot-well area. Move the front seats all the way forward and
to the full up positions to ease access.
To remove an air filter:
1. Turn the vehicle off.
2. Push up on the outside rigid edge
of the filter and rotate
counterclockwise once the tabs are
released, then remove the filter.
To install a filter:
1. First, position the filter in its
housing making sure that the far
forward end is all the way up in the
housing.
2. Push in on the center of the
outside edge of the filter and rotate
up into the housing until it clips into
position.
Seats173
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 174 of 558

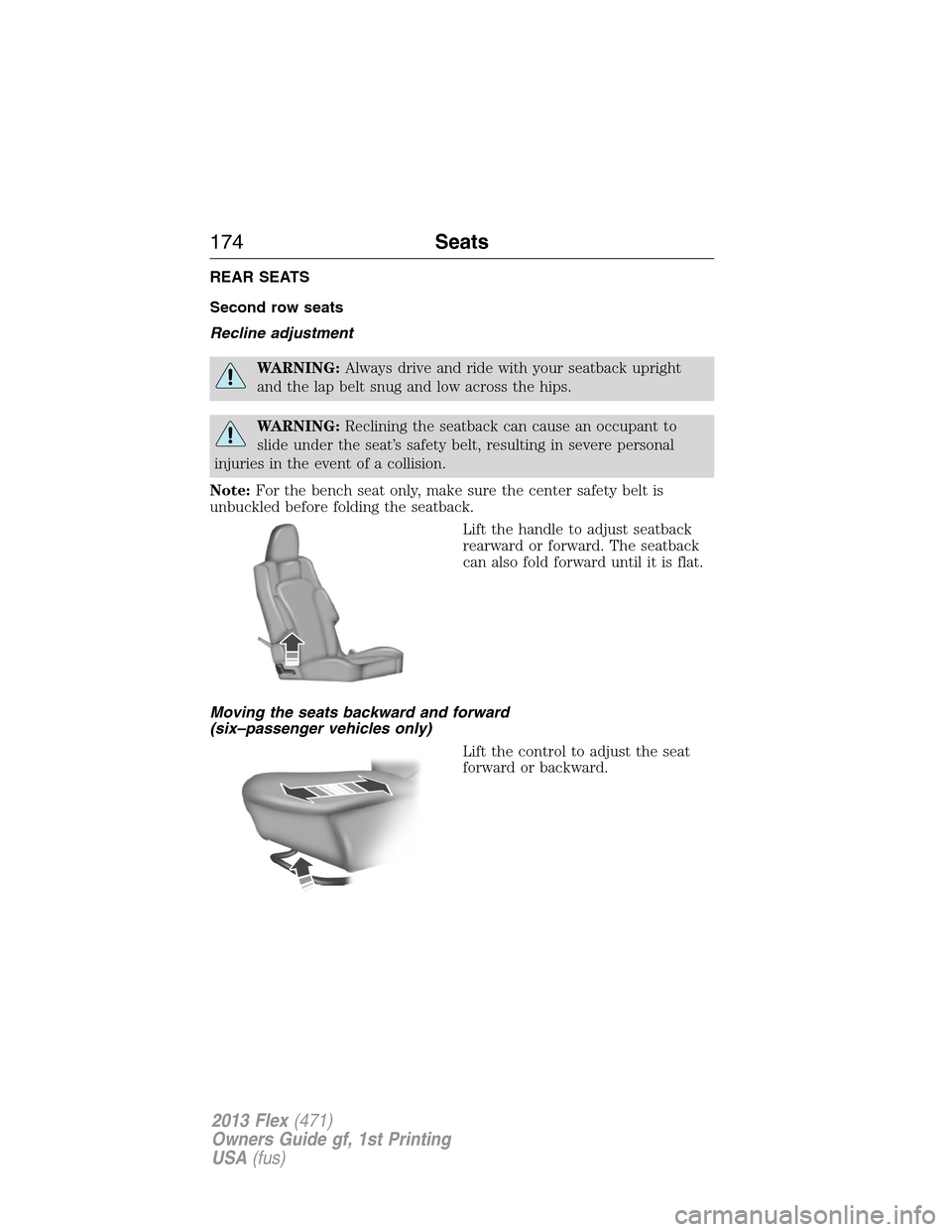

REAR SEATS
Second row seats
Recline adjustment
WARNING:Always drive and ride with your seatback upright
and the lap belt snug and low across the hips.
WARNING:Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
Note:For the bench seat only, make sure the center safety belt is
unbuckled before folding the seatback.
Lift the handle to adjust seatback
rearward or forward. The seatback
can also fold forward until it is flat.
Moving the seats backward and forward
(six–passenger vehicles only)
Lift the control to adjust the seat
forward or backward.
174Seats
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 175 of 558

Power fold and tumble seat
WARNING:Ensure that the seat is unoccupied when folding it
down. Folding the seat while occupied could result in occupant
injury or damage to the seat.
This feature is available for the right-hand seat on seven-passenger
vehicles and on both sides for six-passenger vehicles.
Press the control located at the
back of the rear door opening one
time to fold the seat back down and
tumble the seat forward for access
to the 3rd row.
Note:When the ignition is in turned off, the power fold feature will work
until the battery saver will turns it off after 10 minutes. You can
reactivate the power seats by pressing the unlock button on the remote
entry key fob or by using the unlock procedure on the keyless entry
keypad. Refer to theLocks and Securitychapter. Keeping the key in
accessory or run positions will prevent the feature from timing out.
Third row seats
Third row seat access
Fold and tumble the second row seat to access the third row. Remove
items from the second row seat and ensure that no bulky objects such as
purses or briefcases are on the floor in front of the second row seats
before tumbling them. For second row bench seats, make sure the center
safety belt is unbuckled before folding the seatback.
Note:You may have to move the front row seat forward to allow the
second row seat to be fully tumbled.
Seats175
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 176 of 558

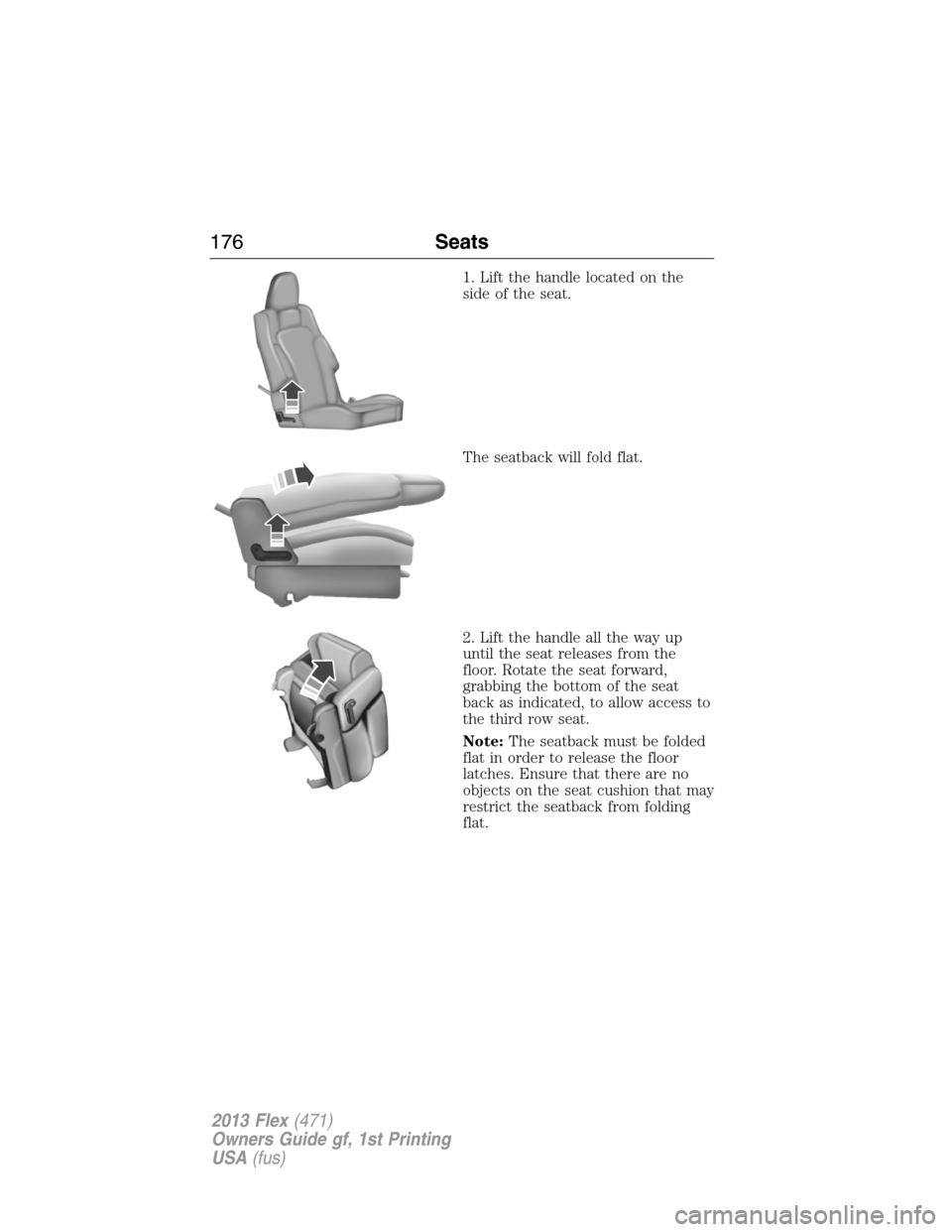

1. Lift the handle located on the
side of the seat.
The seatback will fold flat.
2. Lift the handle all the way up
until the seat releases from the
floor. Rotate the seat forward,
grabbing the bottom of the seat
back as indicated, to allow access to
the third row seat.
Note:The seatback must be folded
flat in order to release the floor
latches. Ensure that there are no
objects on the seat cushion that may
restrict the seatback from folding
flat.
176Seats
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 177 of 558

3. To return the seatback to the
floor from tumbled position, rotate
the seat down until you hear it
latching to the floor.
4. To return the seatback to the
upright position
•Lift the seatback toward the rear
of the vehicle, and
•Rotate the seatback until you
hear a click, locking it in the
upright position.
Note:The seatback will not raise if the rear latch hooks are not properly
engaged to the floor striker. If the seatback does not raise, then repeat
steps 3 and 4.
WARNING:Before returning the seatback to its original position,
make sure that cargo or any objects are not trapped behind the
seatback. After returning the seatback to its original position, pull on
the seatback to ensure that it has fully latched. An unlatched seat may
become dangerous in the event of a sudden stop or collision.
Seats177
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 178 of 558

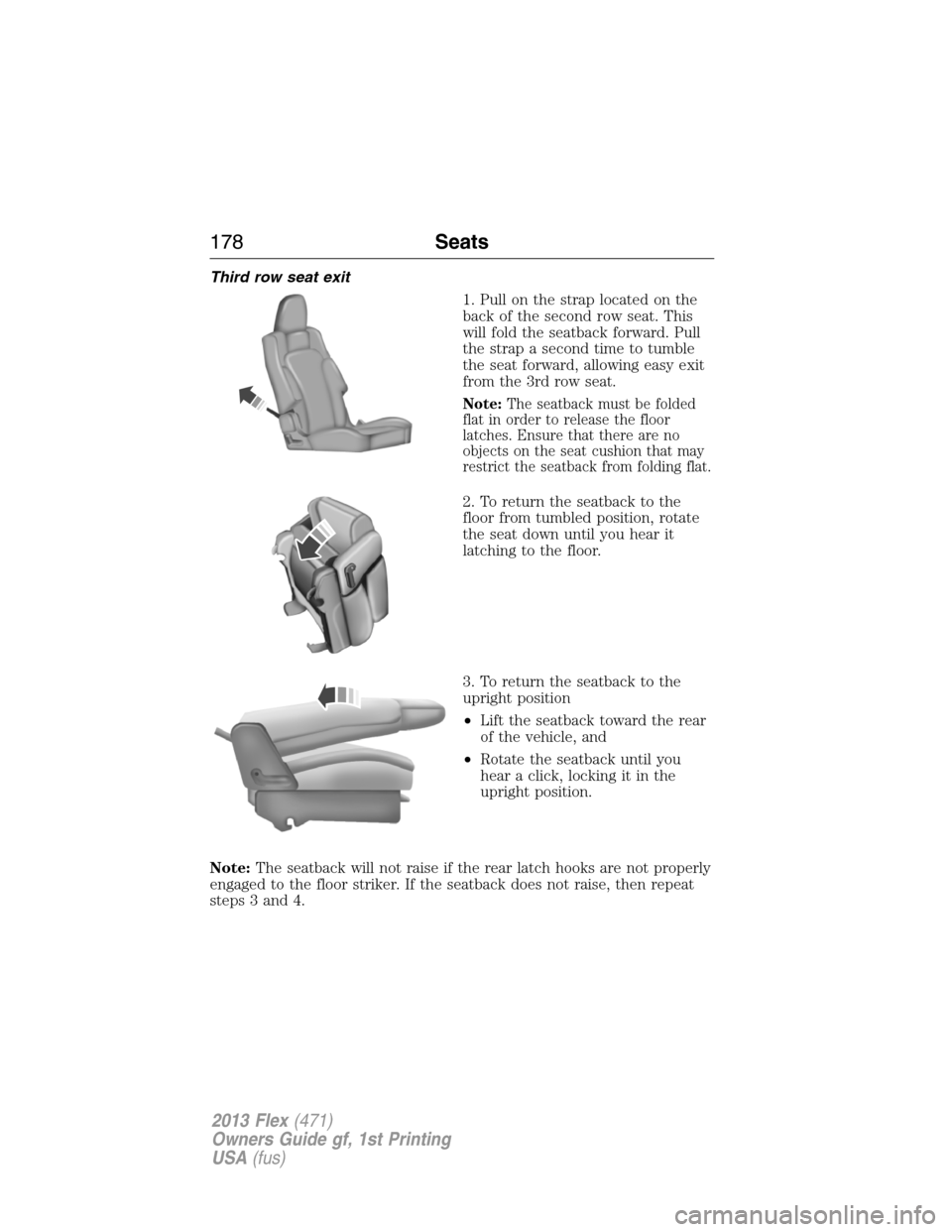

Third row seat exit
1. Pull on the strap located on the
back of the second row seat. This
will fold the seatback forward. Pull
the strap a second time to tumble
the seat forward, allowing easy exit
from the 3rd row seat.
Note:The seatback must be folded
flat in order to release the floor
latches. Ensure that there are no
objects on the seat cushion that may
restrict the seatback from folding flat.
2. To return the seatback to the
floor from tumbled position, rotate
the seat down until you hear it
latching to the floor.
3. To return the seatback to the
upright position
•Lift the seatback toward the rear
of the vehicle, and
•Rotate the seatback until you
hear a click, locking it in the
upright position.
Note:The seatback will not raise if the rear latch hooks are not properly
engaged to the floor striker. If the seatback does not raise, then repeat
steps 3 and 4.
178Seats
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 179 of 558

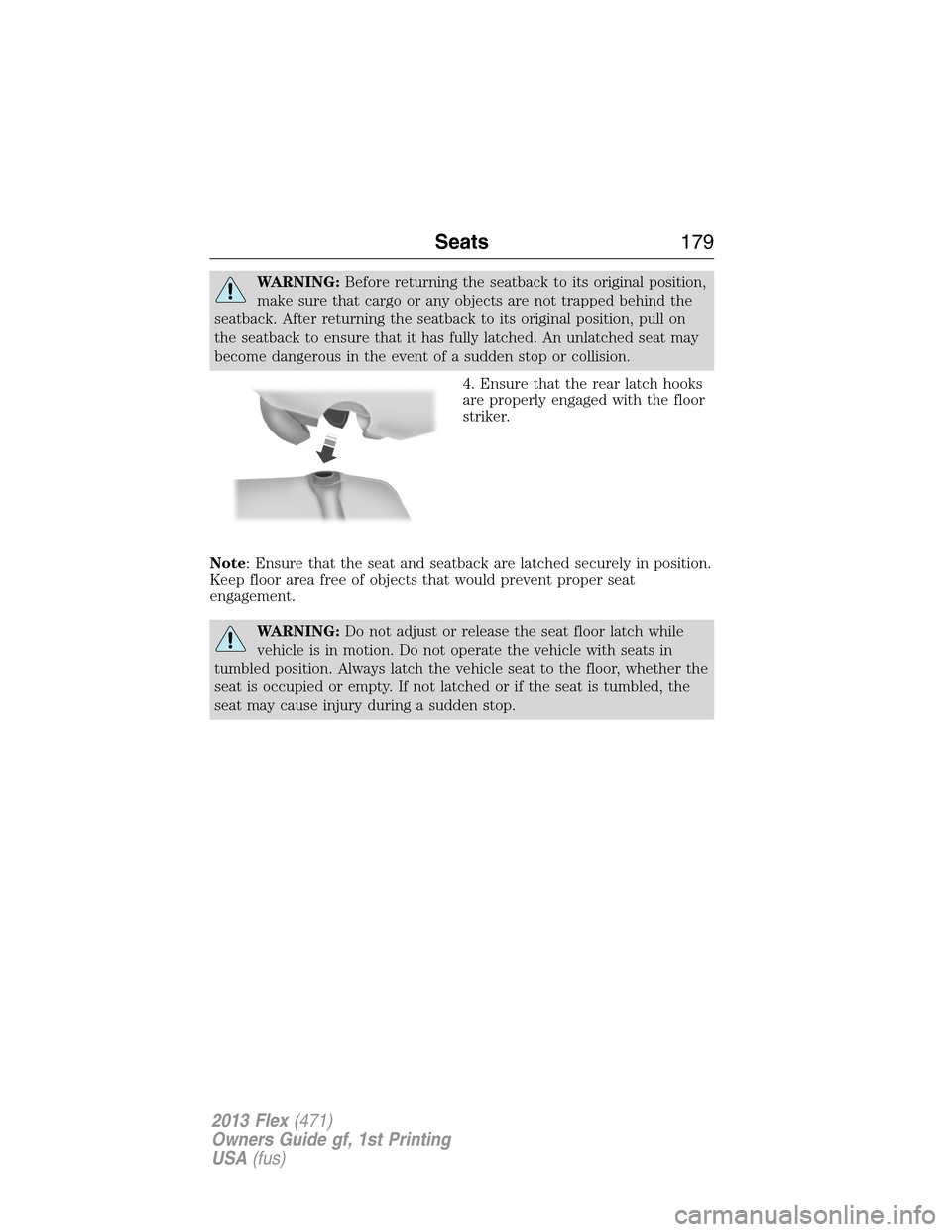

WARNING:Before returning the seatback to its original position,
make sure that cargo or any objects are not trapped behind the
seatback. After returning the seatback to its original position, pull on
the seatback to ensure that it has fully latched. An unlatched seat may
become dangerous in the event of a sudden stop or collision.
4. Ensure that the rear latch hooks
are properly engaged with the floor
striker.
Note: Ensure that the seat and seatback are latched securely in position.
Keep floor area free of objects that would prevent proper seat
engagement.
WARNING:Do not adjust or release the seat floor latch while
vehicle is in motion. Do not operate the vehicle with seats in
tumbled position. Always latch the vehicle seat to the floor, whether the
seat is occupied or empty. If not latched or if the seat is tumbled, the
seat may cause injury during a sudden stop.
Seats179
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
Page 180 of 558

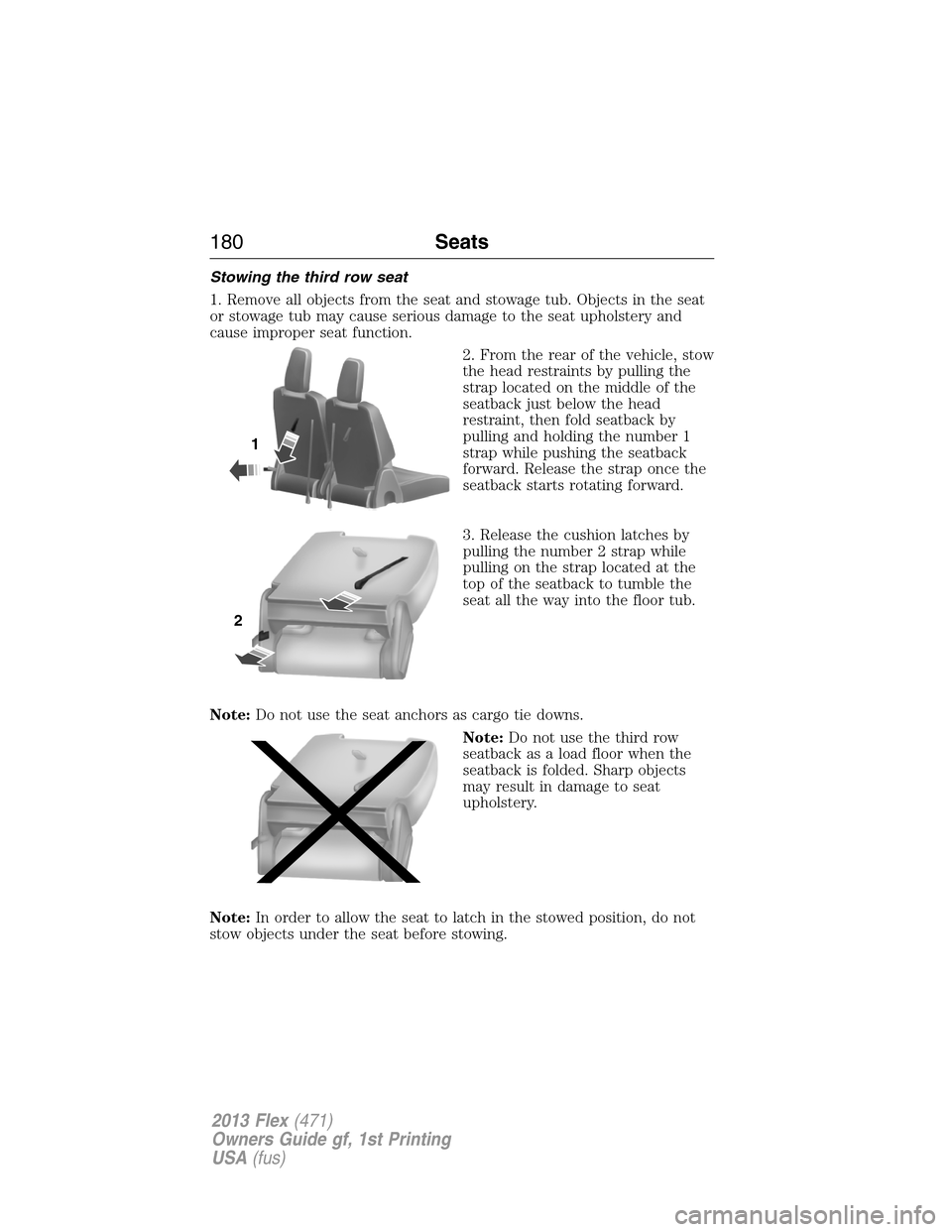

Stowing the third row seat
1. Remove all objects from the seat and stowage tub. Objects in the seat
or stowage tub may cause serious damage to the seat upholstery and
cause improper seat function.
2. From the rear of the vehicle, stow
the head restraints by pulling the
strap located on the middle of the
seatback just below the head
restraint, then fold seatback by
pulling and holding the number 1
strap while pushing the seatback
forward. Release the strap once the
seatback starts rotating forward.
3. Release the cushion latches by
pulling the number 2 strap while
pulling on the strap located at the
top of the seatback to tumble the
seat all the way into the floor tub.
Note:Do not use the seat anchors as cargo tie downs.
Note:Do not use the third row
seatback as a load floor when the
seatback is folded. Sharp objects
may result in damage to seat
upholstery.
Note:In order to allow the seat to latch in the stowed position, do not
stow objects under the seat before stowing.
2
180Seats
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
