FORD FOCUS 2012 3.G Owners Manual

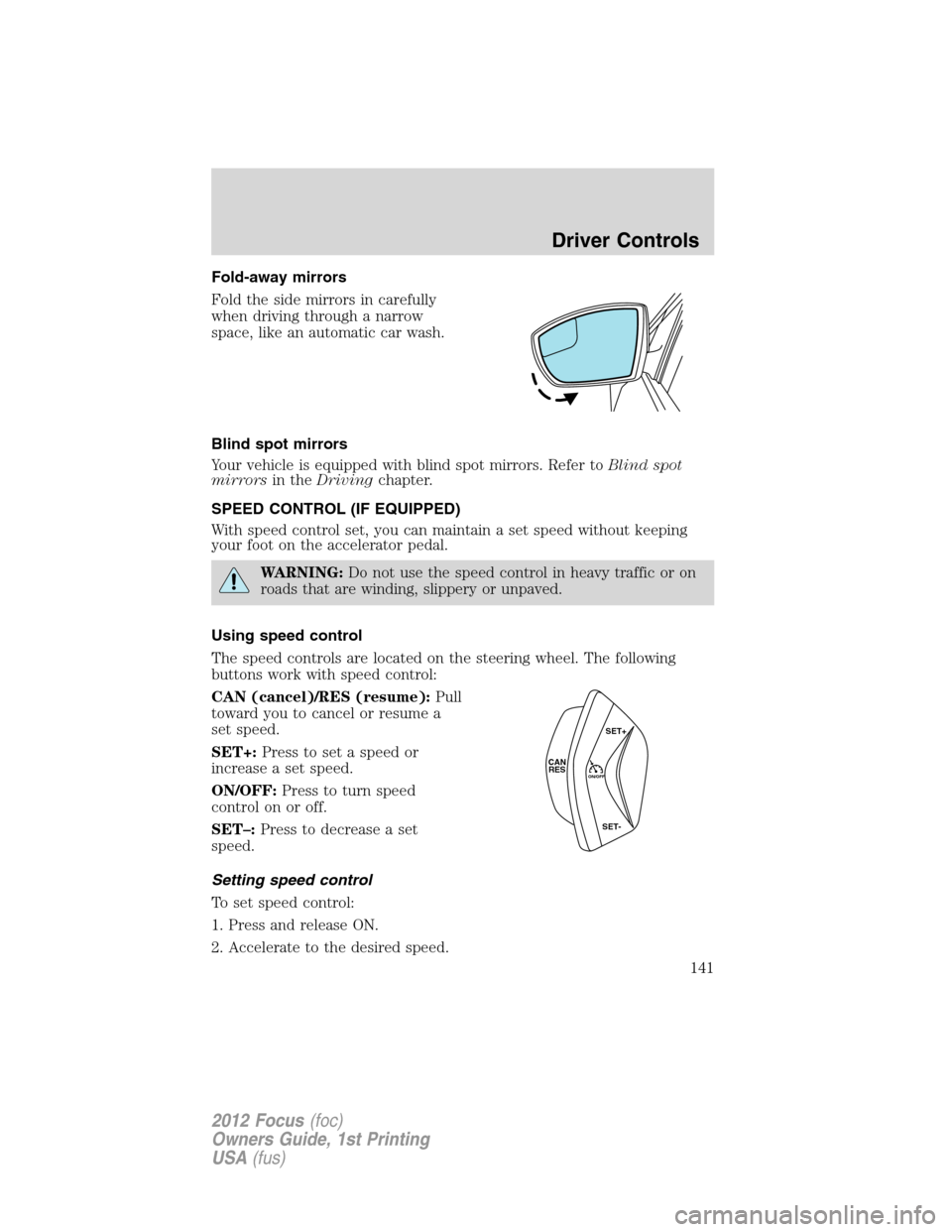

Fold-away mirrors
Fold the side mirrors in carefully
when driving through a narrow
space, like an automatic car wash.
Blind spot mirrors
Your vehicle is equipped with blind spot mirrors. Refer toBlind spot
mirrorsin theDrivingchapter.
SPEED CONTROL (IF EQUIPPED)
With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery or unpaved.
Using speed control
The speed controls are located on the steering wheel. The following
buttons work with speed control:
CAN (cancel)/RES (resume):Pull
toward you to cancel or resume a
set speed.
SET+:Press to set a speed or
increase a set speed.
ON/OFF:Press to turn speed
control on or off.
SET–:Press to decrease a set
speed.
Setting speed control
To set speed control:
1. Press and release ON.
2. Accelerate to the desired speed.
CAN
RESON/OFF
SET+
SET-
Driver Controls
141
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

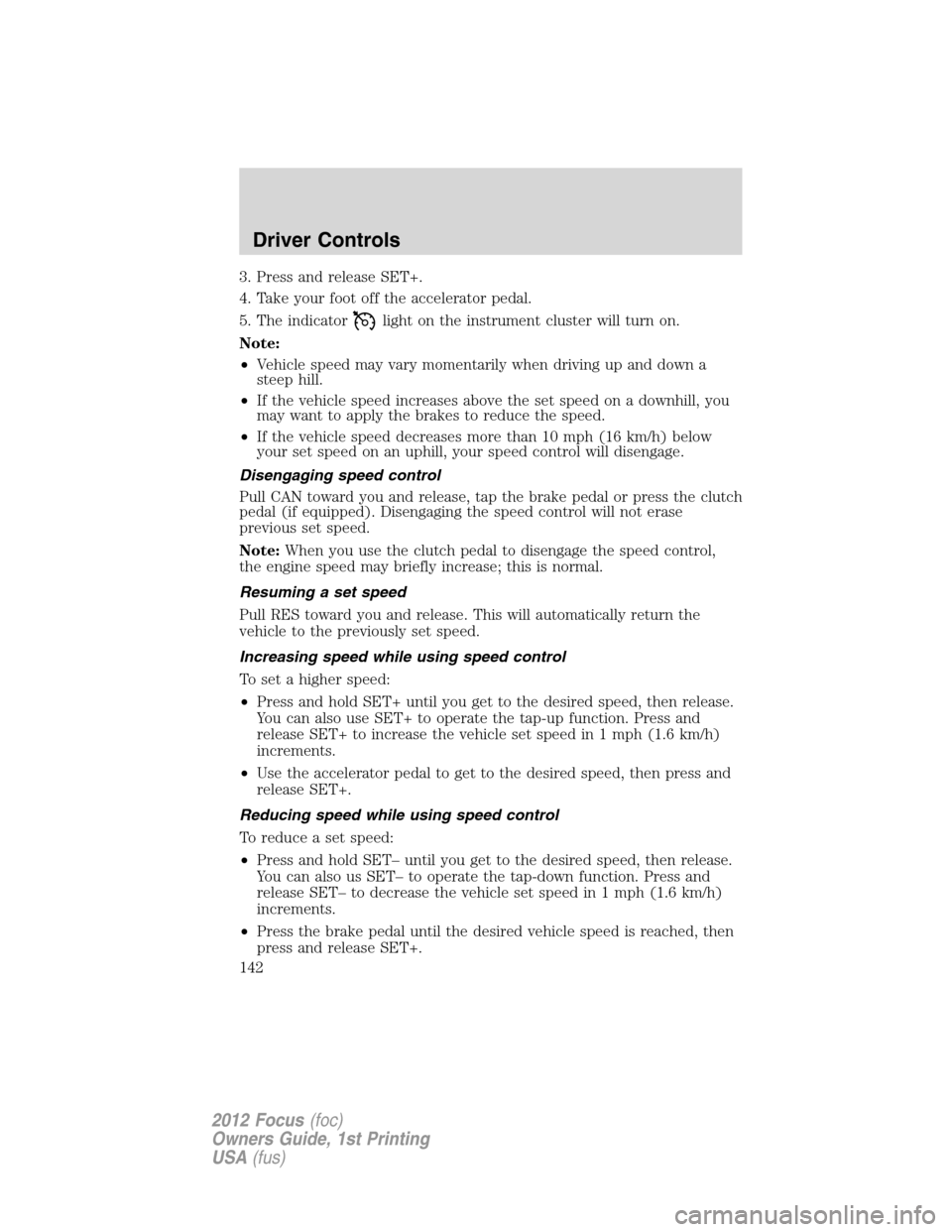

3. Press and release SET+.
4. Take your foot off the accelerator pedal.
5. The indicator
light on the instrument cluster will turn on.
Note:
•Vehicle speed may vary momentarily when driving up and down a
steep hill.
•If the vehicle speed increases above the set speed on a downhill, you
may want to apply the brakes to reduce the speed.
•If the vehicle speed decreases more than 10 mph (16 km/h) below
your set speed on an uphill, your speed control will disengage.
Disengaging speed control
Pull CAN toward you and release, tap the brake pedal or press the clutch
pedal (if equipped). Disengaging the speed control will not erase
previous set speed.
Note:When you use the clutch pedal to disengage the speed control,
the engine speed may briefly increase; this is normal.
Resuming a set speed
Pull RES toward you and release. This will automatically return the
vehicle to the previously set speed.
Increasing speed while using speed control
To set a higher speed:
•Press and hold SET+ until you get to the desired speed, then release.
You can also use SET+ to operate the tap-up function. Press and
release SET+ to increase the vehicle set speed in 1 mph (1.6 km/h)
increments.
•Use the accelerator pedal to get to the desired speed, then press and
release SET+.
Reducing speed while using speed control
To reduce a set speed:
•Press and hold SET– until you get to the desired speed, then release.
You can also us SET– to operate the tap-down function. Press and
release SET– to decrease the vehicle set speed in 1 mph (1.6 km/h)
increments.
•Press the brake pedal until the desired vehicle speed is reached, then
press and release SET+.
Driver Controls
142
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

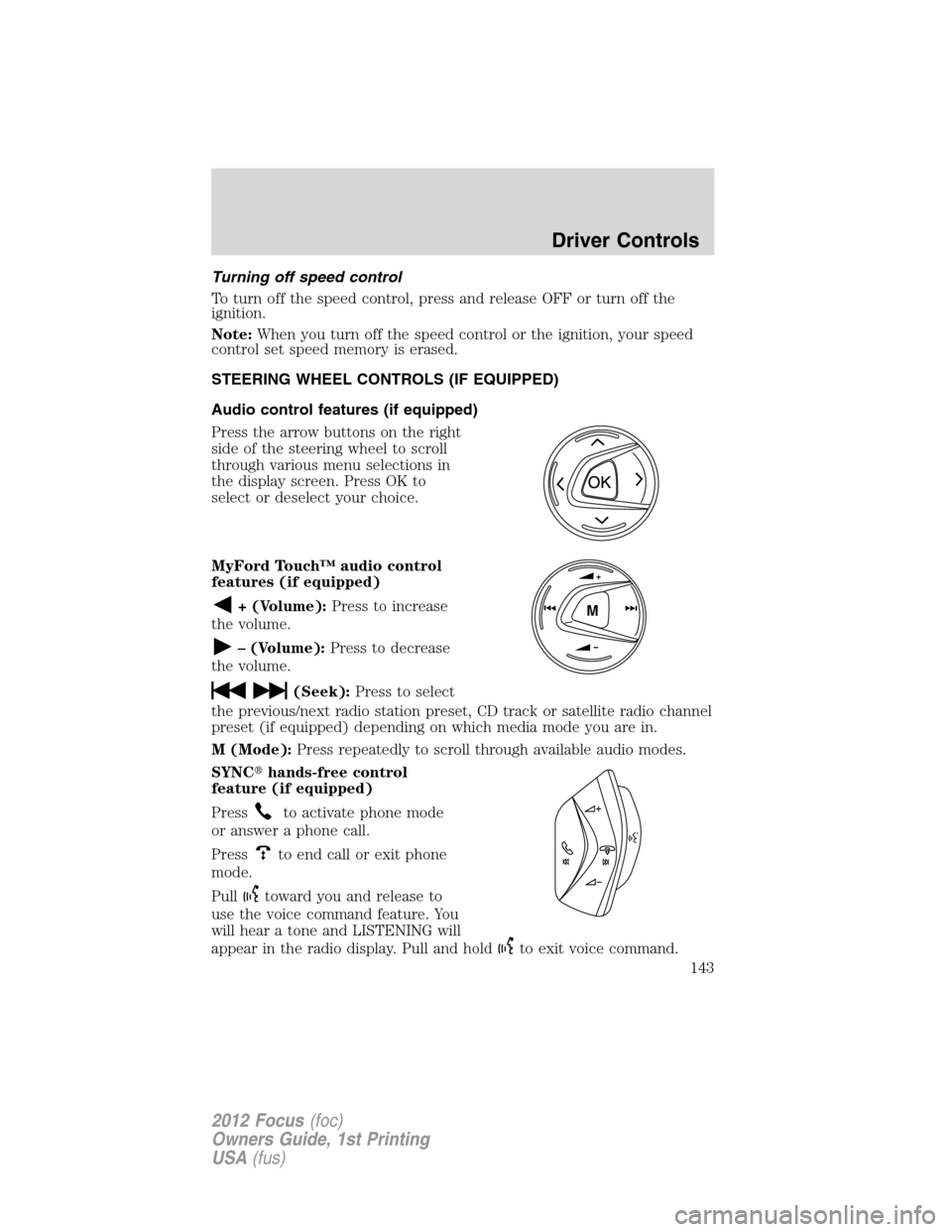

Turning off speed control
To turn off the speed control, press and release OFF or turn off the
ignition.
Note:When you turn off the speed control or the ignition, your speed
control set speed memory is erased.
STEERING WHEEL CONTROLS (IF EQUIPPED)
Audio control features (if equipped)
Press the arrow buttons on the right
side of the steering wheel to scroll
through various menu selections in
the display screen. Press OK to
select or deselect your choice.
MyFord Touch™ audio control
features (if equipped)
+ (Volume):Press to increase
the volume.
– (Volume):Press to decrease
the volume.
(Seek):Press to select
the previous/next radio station preset, CD track or satellite radio channel
preset (if equipped) depending on which media mode you are in.
M (Mode):Press repeatedly to scroll through available audio modes.
SYNChands-free control
feature (if equipped)
Press
to activate phone mode
or answer a phone call.
Press
to end call or exit phone
mode.
Pull
toward you and release to
use the voice command feature. You
will hear a tone and LISTENING will
appear in the radio display. Pull and hold
to exit voice command.
M
+
-
Driver Controls
143
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

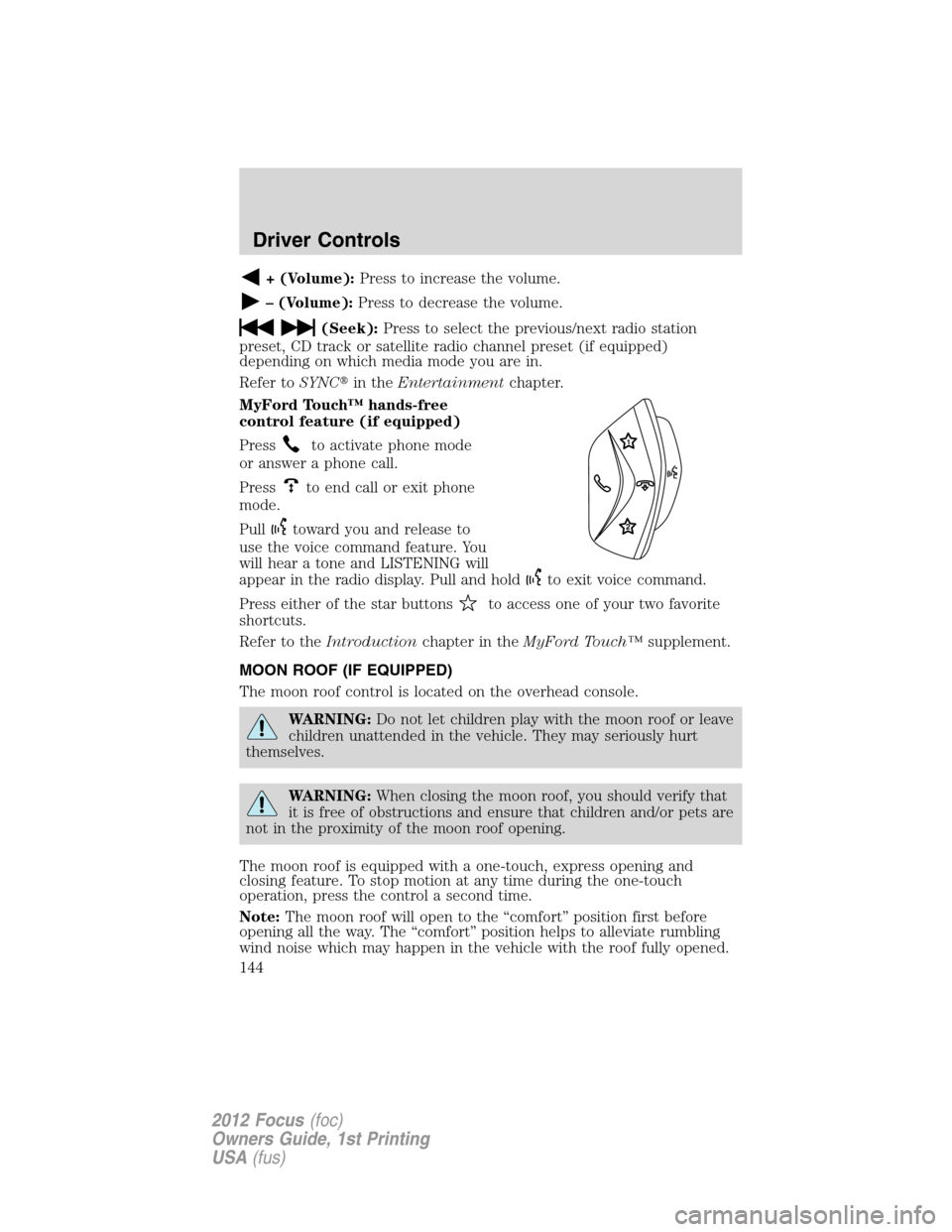

+ (Volume):Press to increase the volume.
– (Volume):Press to decrease the volume.
(Seek):Press to select the previous/next radio station
preset, CD track or satellite radio channel preset (if equipped)
depending on which media mode you are in.
Refer toSYNCin theEntertainmentchapter.
MyFord Touch™ hands-free
control feature (if equipped)
Press
to activate phone mode
or answer a phone call.
Press
to end call or exit phone
mode.
Pull
toward you and release to
use the voice command feature. You
will hear a tone and LISTENING will
appear in the radio display. Pull and hold
to exit voice command.
Press either of the star buttons
to access one of your two favorite
shortcuts.
Refer to theIntroductionchapter in theMyFord Touch™supplement.
MOON ROOF (IF EQUIPPED)
The moon roof control is located on the overhead console.
WARNING:Do not let children play with the moon roof or leave
children unattended in the vehicle. They may seriously hurt
themselves.
WARNING:When closing the moon roof, you should verify that
it is free of obstructions and ensure that children and/or pets are
not in the proximity of the moon roof opening.
The moon roof is equipped with a one-touch, express opening and
closing feature. To stop motion at any time during the one-touch
operation, press the control a second time.
Note:The moon roof will open to the “comfort” position first before
opening all the way. The “comfort” position helps to alleviate rumbling
wind noise which may happen in the vehicle with the roof fully opened.
2
Driver Controls
144
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

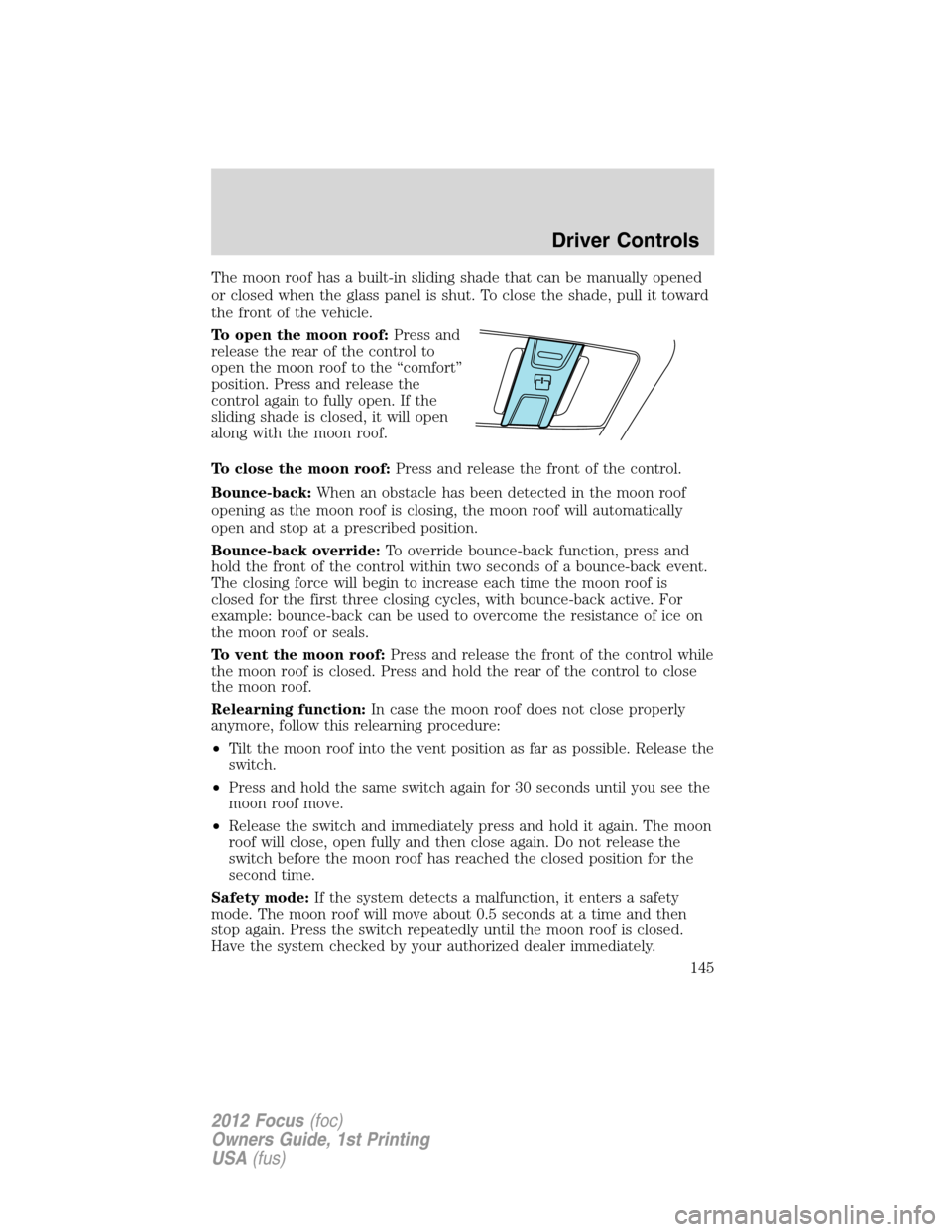

The moon roof has a built-in sliding shade that can be manually opened
or closed when the glass panel is shut. To close the shade, pull it toward
the front of the vehicle.
To open the moon roof:Press and
release the rear of the control to
open the moon roof to the “comfort”
position. Press and release the
control again to fully open. If the
sliding shade is closed, it will open
along with the moon roof.
To close the moon roof:Press and release the front of the control.
Bounce-back:When an obstacle has been detected in the moon roof
opening as the moon roof is closing, the moon roof will automatically
open and stop at a prescribed position.
Bounce-back override:To override bounce-back function, press and
hold the front of the control within two seconds of a bounce-back event.
The closing force will begin to increase each time the moon roof is
closed for the first three closing cycles, with bounce-back active. For
example: bounce-back can be used to overcome the resistance of ice on
the moon roof or seals.
To vent the moon roof:Press and release the front of the control while
the moon roof is closed. Press and hold the rear of the control to close
the moon roof.
Relearning function:In case the moon roof does not close properly
anymore, follow this relearning procedure:
•Tilt the moon roof into the vent position as far as possible. Release the
switch.
•Press and hold the same switch again for 30 seconds until you see the
moon roof move.
•Release the switch and immediately press and hold it again. The moon
roof will close, open fully and then close again. Do not release the
switch before the moon roof has reached the closed position for the
second time.
Safety mode:If the system detects a malfunction, it enters a safety
mode. The moon roof will move about 0.5 seconds at a time and then
stop again. Press the switch repeatedly until the moon roof is closed.
Have the system checked by your authorized dealer immediately.
Driver Controls
145
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

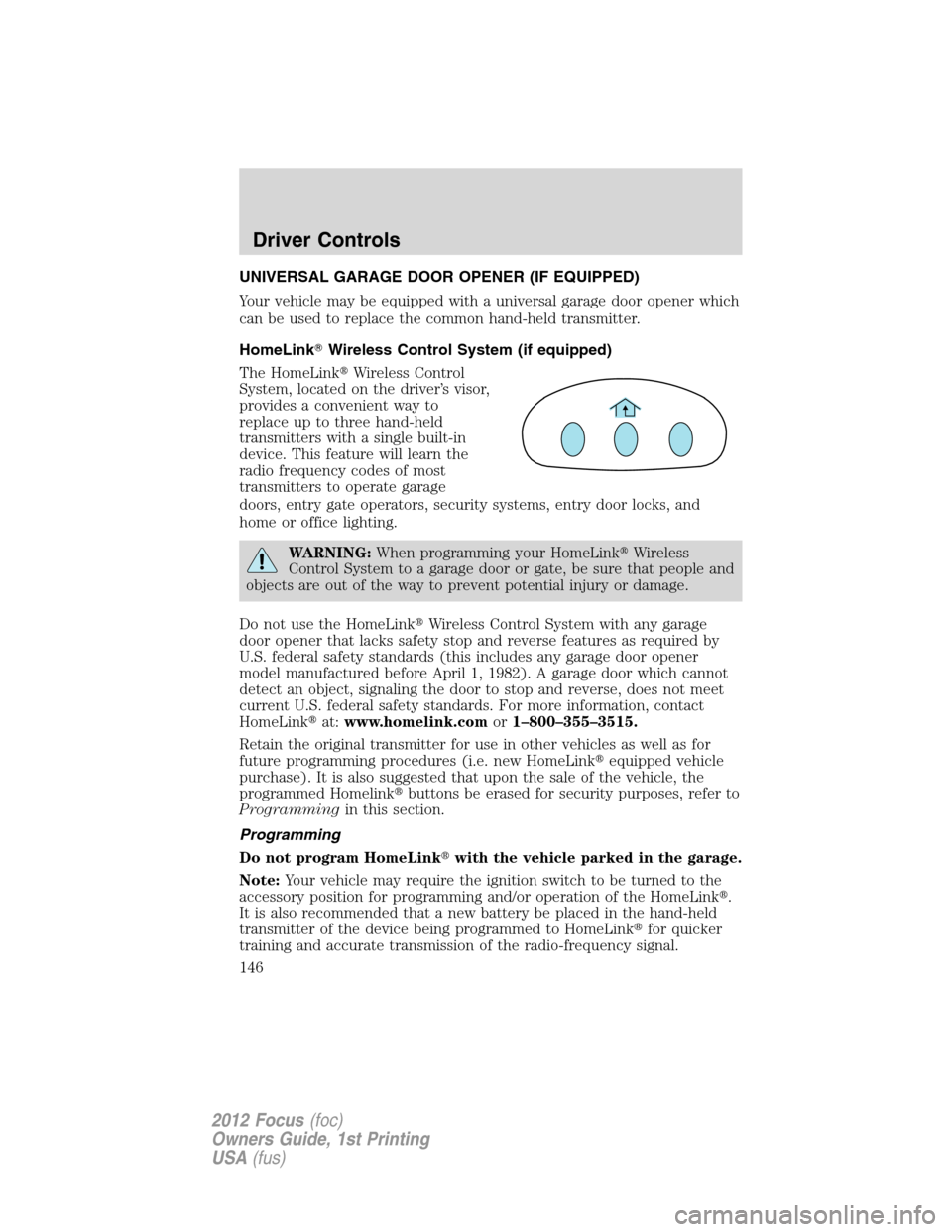

UNIVERSAL GARAGE DOOR OPENER (IF EQUIPPED)
Your vehicle may be equipped with a universal garage door opener which
can be used to replace the common hand-held transmitter.
HomeLinkWireless Control System (if equipped)
The HomeLinkWireless Control
System, located on the driver’s visor,
provides a convenient way to
replace up to three hand-held
transmitters with a single built-in
device. This feature will learn the
radio frequency codes of most
transmitters to operate garage
doors, entry gate operators, security systems, entry door locks, and
home or office lighting.
WARNING:When programming your HomeLinkWireless
Control System to a garage door or gate, be sure that people and
objects are out of the way to prevent potential injury or damage.
Do not use the HomeLinkWireless Control System with any garage
door opener that lacks safety stop and reverse features as required by
U.S. federal safety standards (this includes any garage door opener
model manufactured before April 1, 1982). A garage door which cannot
detect an object, signaling the door to stop and reverse, does not meet
current U.S. federal safety standards. For more information, contact
HomeLinkat:www.homelink.comor1–800–355–3515.
Retain the original transmitter for use in other vehicles as well as for
future programming procedures (i.e. new HomeLinkequipped vehicle
purchase). It is also suggested that upon the sale of the vehicle, the
programmed Homelinkbuttons be erased for security purposes, refer to
Programmingin this section.
Programming
Do not program HomeLinkwith the vehicle parked in the garage.
Note:Your vehicle may require the ignition switch to be turned to the
accessory position for programming and/or operation of the HomeLink.
It is also recommended that a new battery be placed in the hand-held
transmitter of the device being programmed to HomeLinkfor quicker
training and accurate transmission of the radio-frequency signal.
Driver Controls
146
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

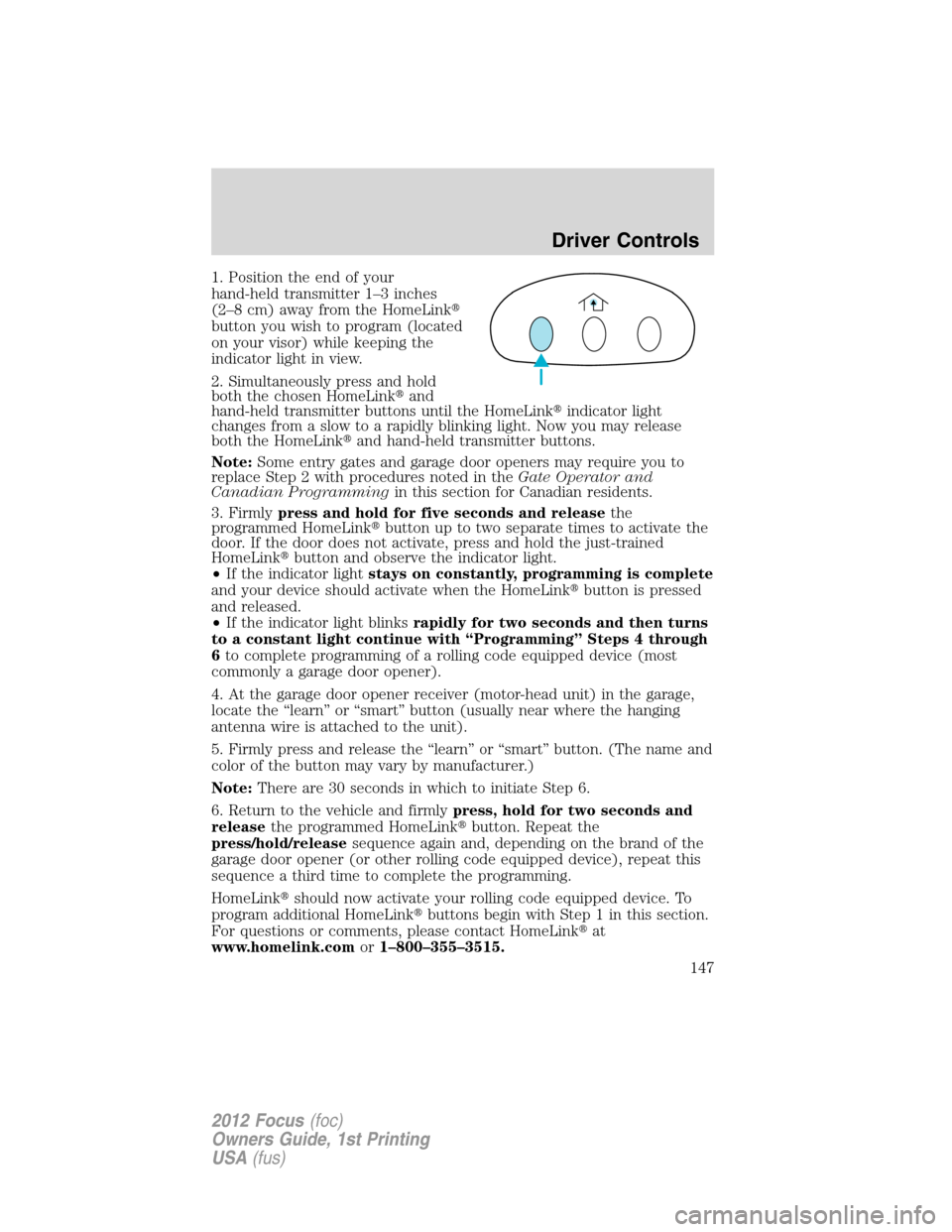

1. Position the end of your
hand-held transmitter 1–3 inches
(2–8 cm) away from the HomeLink
button you wish to program (located
on your visor) while keeping the
indicator light in view.
2. Simultaneously press and hold
both the chosen HomeLinkand
hand-held transmitter buttons until the HomeLinkindicator light
changes from a slow to a rapidly blinking light. Now you may release
both the HomeLinkand hand-held transmitter buttons.
Note:Some entry gates and garage door openers may require you to
replace Step 2 with procedures noted in theGate Operator and
Canadian Programmingin this section for Canadian residents.
3. Firmlypress and hold for five seconds and releasethe
programmed HomeLinkbutton up to two separate times to activate the
door. If the door does not activate, press and hold the just-trained
HomeLinkbutton and observe the indicator light.
•If the indicator lightstays on constantly, programming is complete
and your device should activate when the HomeLinkbutton is pressed
and released.
•If the indicator light blinksrapidly for two seconds and then turns
to a constant light continue with “Programming” Steps 4 through
6to complete programming of a rolling code equipped device (most
commonly a garage door opener).
4. At the garage door opener receiver (motor-head unit) in the garage,
locate the “learn” or “smart” button (usually near where the hanging
antenna wire is attached to the unit).
5. Firmly press and release the “learn” or “smart” button. (The name and
color of the button may vary by manufacturer.)
Note:There are 30 seconds in which to initiate Step 6.
6. Return to the vehicle and firmlypress, hold for two seconds and
releasethe programmed HomeLinkbutton. Repeat the
press/hold/releasesequence again and, depending on the brand of the
garage door opener (or other rolling code equipped device), repeat this
sequence a third time to complete the programming.
HomeLinkshould now activate your rolling code equipped device. To
program additional HomeLinkbuttons begin with Step 1 in this section.
For questions or comments, please contact HomeLinkat
www.homelink.comor1–800–355–3515.
Driver Controls
147
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

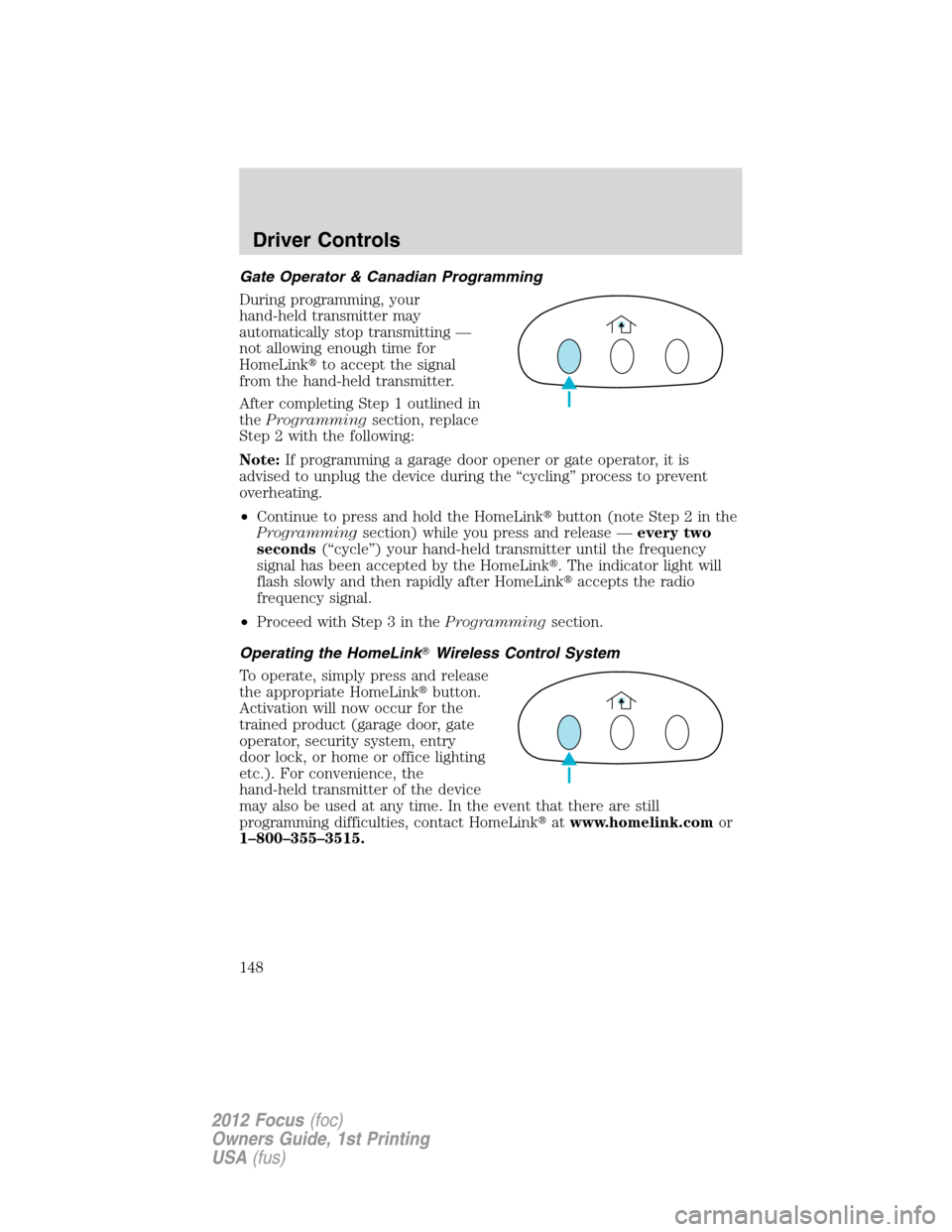

Gate Operator & Canadian Programming
During programming, your
hand-held transmitter may
automatically stop transmitting —
not allowing enough time for
HomeLinkto accept the signal
from the hand-held transmitter.
After completing Step 1 outlined in
theProgrammingsection, replace
Step 2 with the following:
Note:If programming a garage door opener or gate operator, it is
advised to unplug the device during the “cycling” process to prevent
overheating.
•Continue to press and hold the HomeLinkbutton (note Step 2 in the
Programmingsection) while you press and release —every two
seconds(“cycle”) your hand-held transmitter until the frequency
signal has been accepted by the HomeLink. The indicator light will
flash slowly and then rapidly after HomeLinkaccepts the radio
frequency signal.
•Proceed with Step 3 in theProgrammingsection.
Operating the HomeLinkWireless Control System
To operate, simply press and release
the appropriate HomeLinkbutton.
Activation will now occur for the
trained product (garage door, gate
operator, security system, entry
door lock, or home or office lighting
etc.). For convenience, the
hand-held transmitter of the device
may also be used at any time. In the event that there are still
programming difficulties, contact HomeLinkatwww.homelink.comor
1–800–355–3515.
Driver Controls
148
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

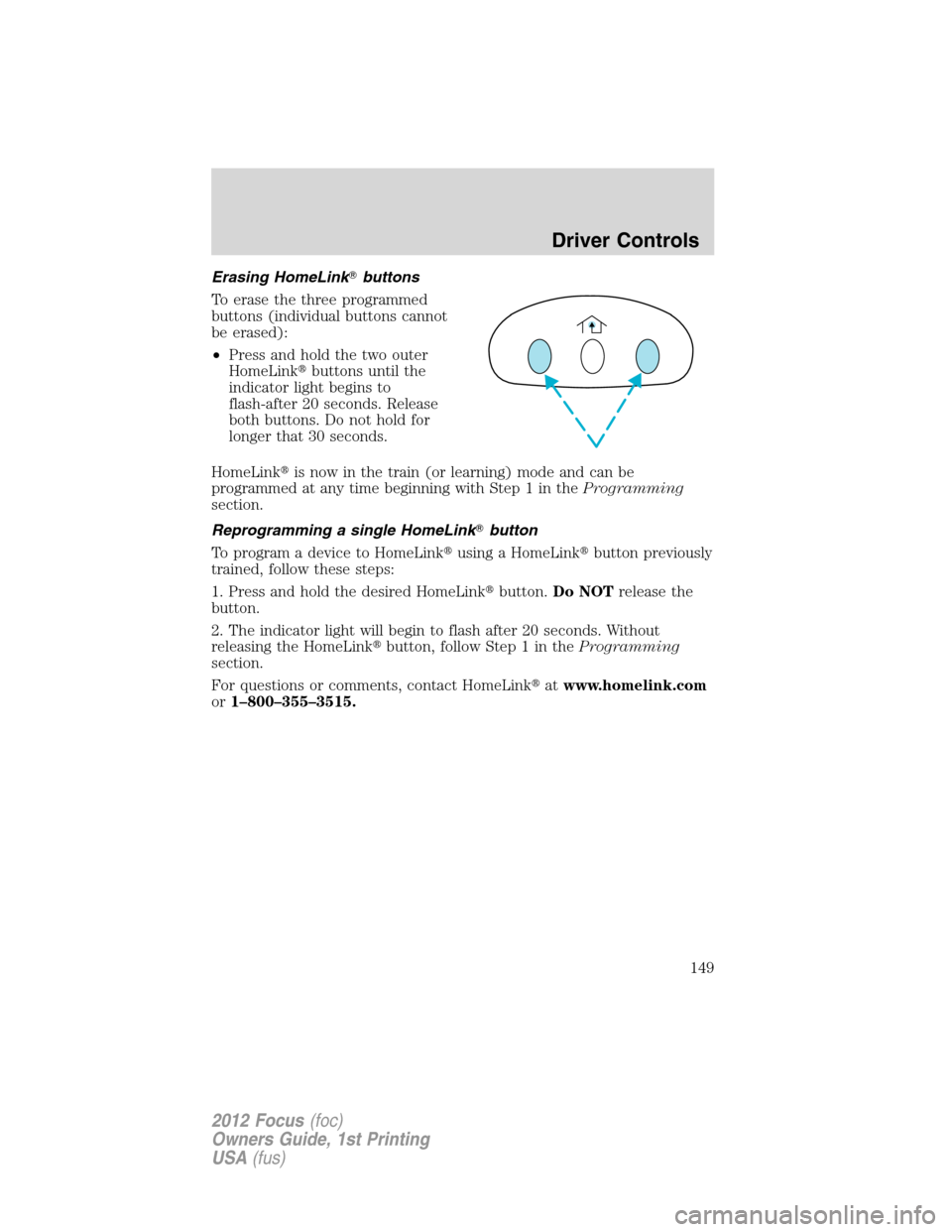

Erasing HomeLinkbuttons
To erase the three programmed
buttons (individual buttons cannot
be erased):
•Press and hold the two outer
HomeLinkbuttons until the
indicator light begins to
flash-after 20 seconds. Release
both buttons. Do not hold for
longer that 30 seconds.
HomeLinkis now in the train (or learning) mode and can be
programmed at any time beginning with Step 1 in theProgramming
section.
Reprogramming a single HomeLinkbutton
To program a device to HomeLinkusing a HomeLinkbutton previously
trained, follow these steps:
1. Press and hold the desired HomeLinkbutton.Do NOTrelease the
button.
2. The indicator light will begin to flash after 20 seconds. Without
releasing the HomeLinkbutton, follow Step 1 in theProgramming
section.
For questions or comments, contact HomeLinkatwww.homelink.com
or1–800–355–3515.
Driver Controls
149
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

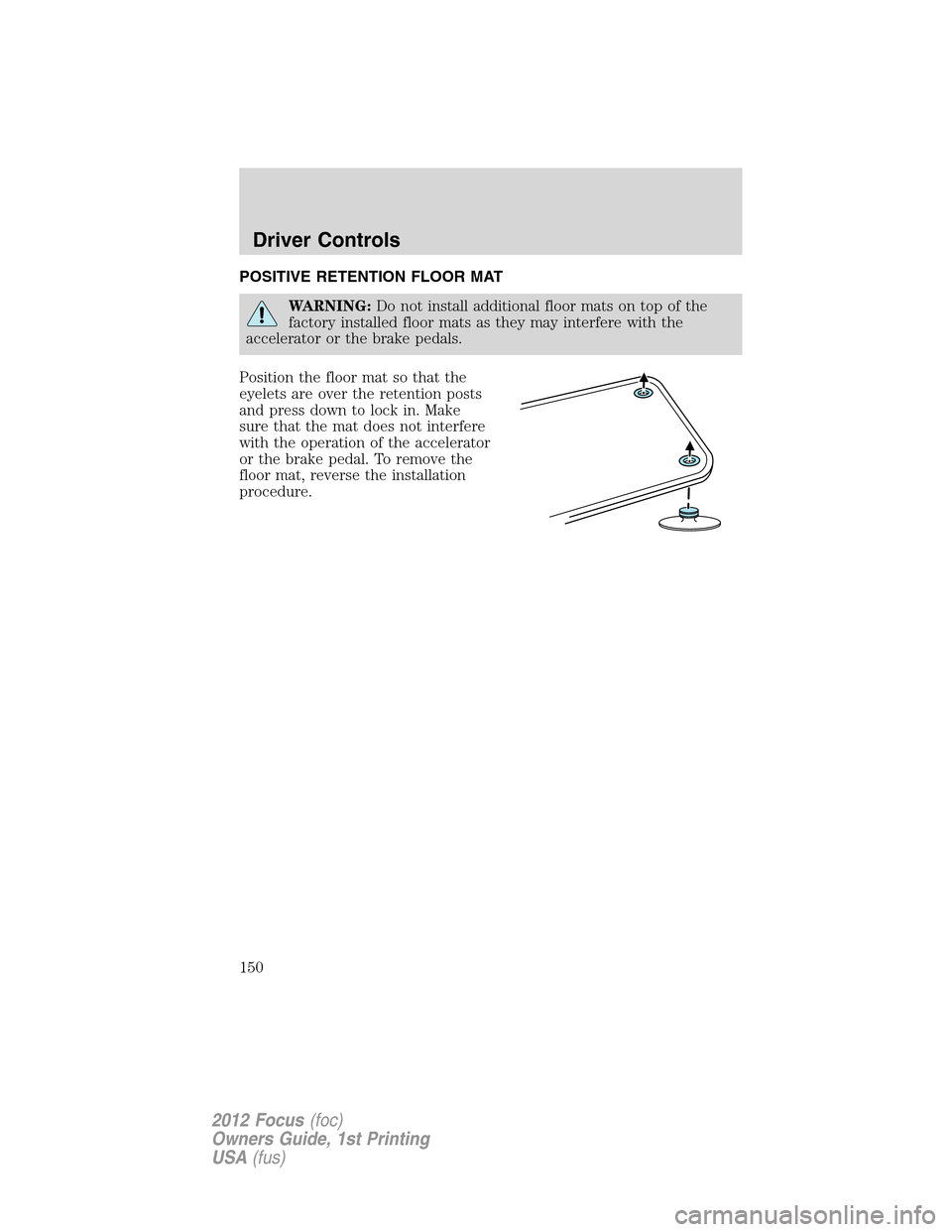

POSITIVE RETENTION FLOOR MAT
WARNING:Do not install additional floor mats on top of the
factory installed floor mats as they may interfere with the
accelerator or the brake pedals.
Position the floor mat so that the
eyelets are over the retention posts
and press down to lock in. Make
sure that the mat does not interfere
with the operation of the accelerator
or the brake pedal. To remove the
floor mat, reverse the installation
procedure.
Driver Controls
150
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
