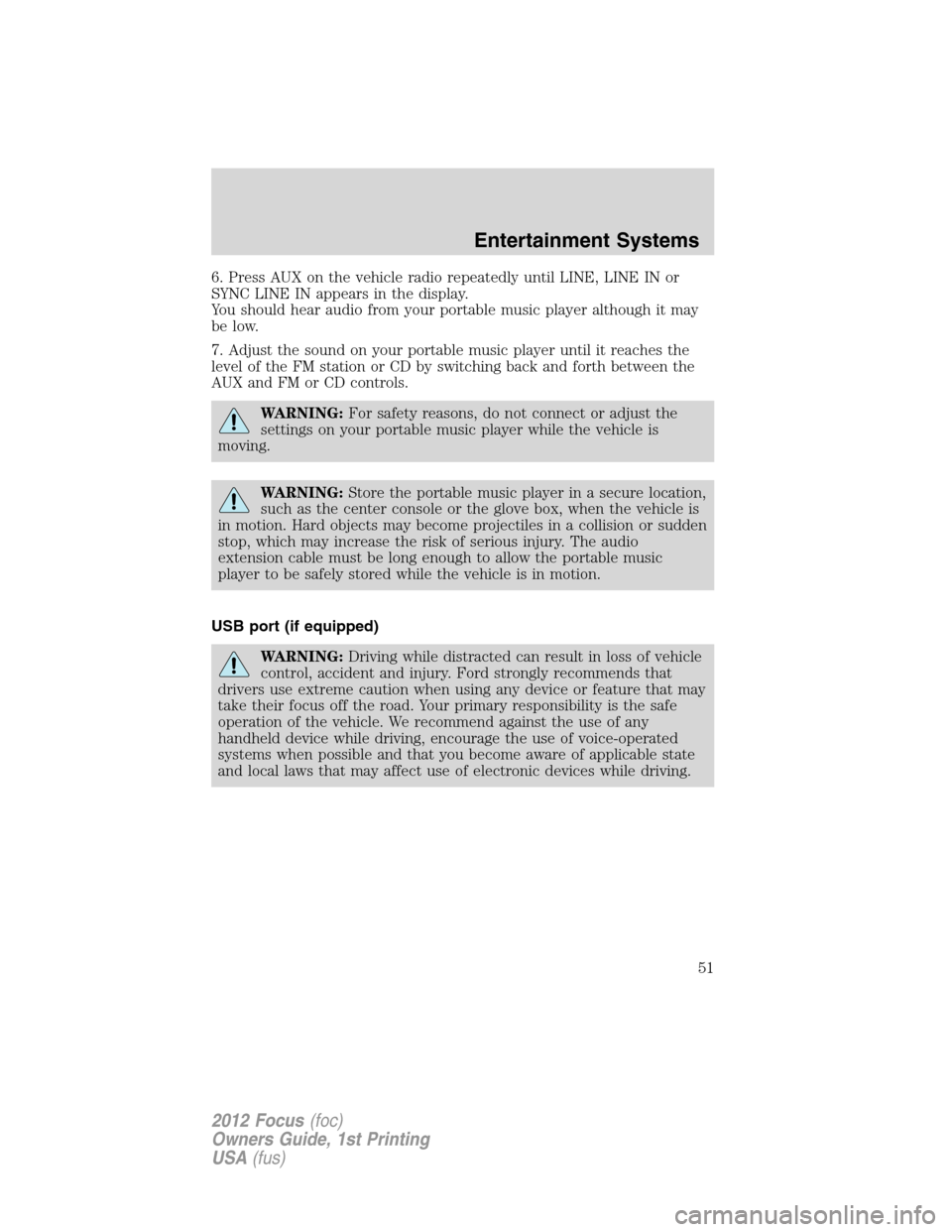

6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or
SYNC LINE IN appears in the display.
You should hear audio from your portable music player although it may
be low.
7. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between the
AUX and FM or CD controls.
WARNING:For safety reasons, do not connect or adjust the
settings on your portable music player while the vehicle is
moving.
WARNING:Store the portable music player in a secure location,
such as the center console or the glove box, when the vehicle is
in motion. Hard objects may become projectiles in a collision or sudden
stop, which may increase the risk of serious injury. The audio
extension cable must be long enough to allow the portable music
player to be safely stored while the vehicle is in motion.
USB port (if equipped)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Entertainment Systems
51
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

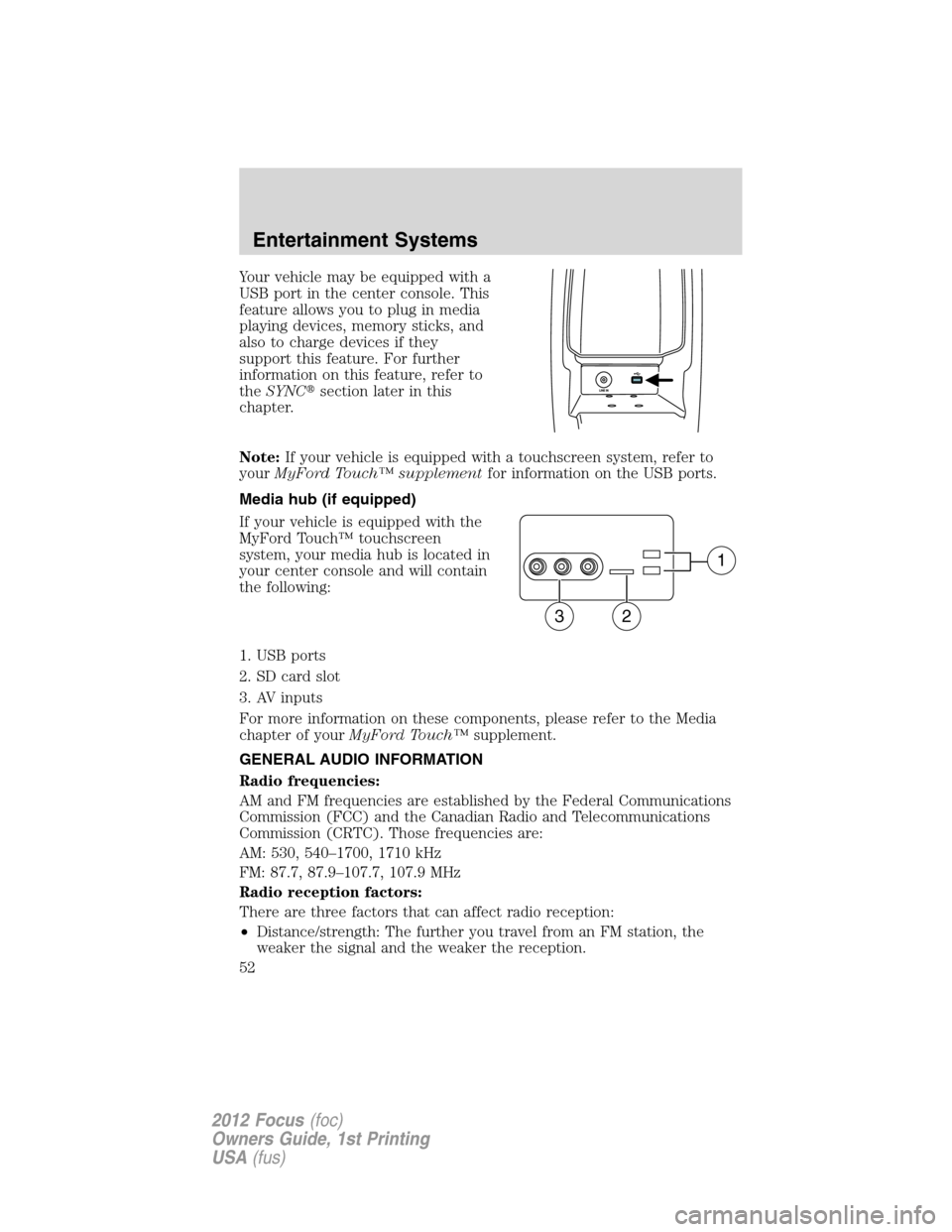

Your vehicle may be equipped with a
USB port in the center console. This
feature allows you to plug in media
playing devices, memory sticks, and
also to charge devices if they
support this feature. For further
information on this feature, refer to
theSYNCsection later in this
chapter.
Note:If your vehicle is equipped with a touchscreen system, refer to
yourMyFord Touch™ supplementfor information on the USB ports.
Media hub (if equipped)
If your vehicle is equipped with the
MyFord Touch™ touchscreen
system, your media hub is located in
your center console and will contain
the following:
1. USB ports
2. SD card slot
3. AV inputs
For more information on these components, please refer to the Media
chapter of yourMyFord Touch™supplement.
GENERAL AUDIO INFORMATION
Radio frequencies:
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.7, 87.9–107.7, 107.9 MHz
Radio reception factors:
There are three factors that can affect radio reception:
•Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.
1
32
Entertainment Systems
52
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

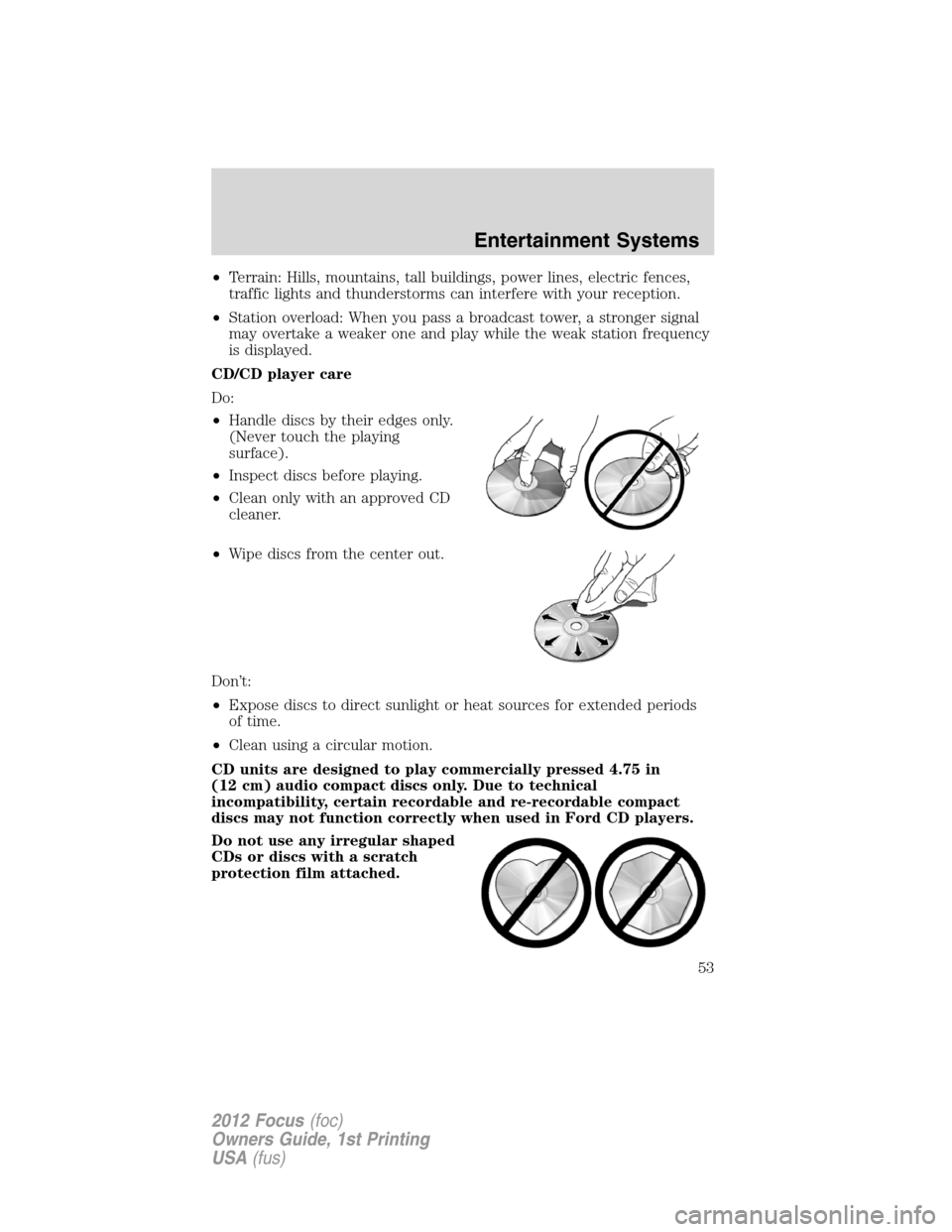

•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
CD/CD player care
Do:
•Handle discs by their edges only.
(Never touch the playing
surface).
•Inspect discs before playing.
•Clean only with an approved CD
cleaner.
•Wipe discs from the center out.
Don’t:
•Expose discs to direct sunlight or heat sources for extended periods
of time.
•Clean using a circular motion.
CD units are designed to play commercially pressed 4.75 in
(12 cm) audio compact discs only. Due to technical
incompatibility, certain recordable and re-recordable compact
discs may not function correctly when used in Ford CD players.
Do not use any irregular shaped
CDs or discs with a scratch
protection film attached.
Entertainment Systems
53
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

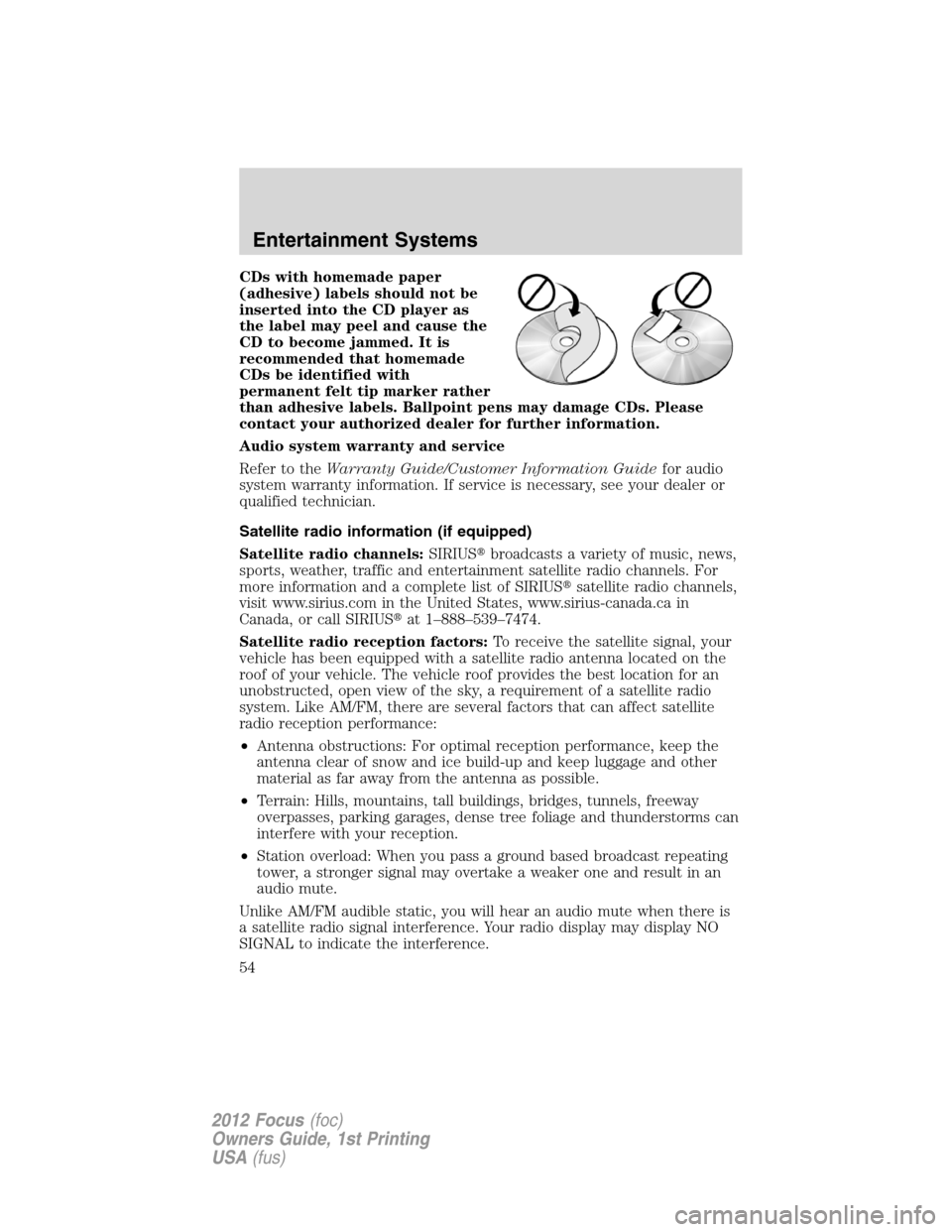

CDs with homemade paper
(adhesive) labels should not be
inserted into the CD player as
the label may peel and cause the
CD to become jammed. It is
recommended that homemade
CDs be identified with
permanent felt tip marker rather
than adhesive labels. Ballpoint pens may damage CDs. Please
contact your authorized dealer for further information.
Audio system warranty and service
Refer to theWarranty Guide/Customer Information Guidefor audio
system warranty information. If service is necessary, see your dealer or
qualified technician.
Satellite radio information (if equipped)
Satellite radio channels:SIRIUSbroadcasts a variety of music, news,
sports, weather, traffic and entertainment satellite radio channels. For
more information and a complete list of SIRIUSsatellite radio channels,
visit www.sirius.com in the United States, www.sirius-canada.ca in
Canada, or call SIRIUSat 1–888–539–7474.
Satellite radio reception factors:To receive the satellite signal, your
vehicle has been equipped with a satellite radio antenna located on the
roof of your vehicle. The vehicle roof provides the best location for an
unobstructed, open view of the sky, a requirement of a satellite radio
system. Like AM/FM, there are several factors that can affect satellite
radio reception performance:
•Antenna obstructions: For optimal reception performance, keep the
antenna clear of snow and ice build-up and keep luggage and other
material as far away from the antenna as possible.
•Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and thunderstorms can
interfere with your reception.
•Station overload: When you pass a ground based broadcast repeating
tower, a stronger signal may overtake a weaker one and result in an
audio mute.
Unlike AM/FM audible static, you will hear an audio mute when there is
a satellite radio signal interference. Your radio display may display NO
SIGNAL to indicate the interference.
Entertainment Systems
54
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

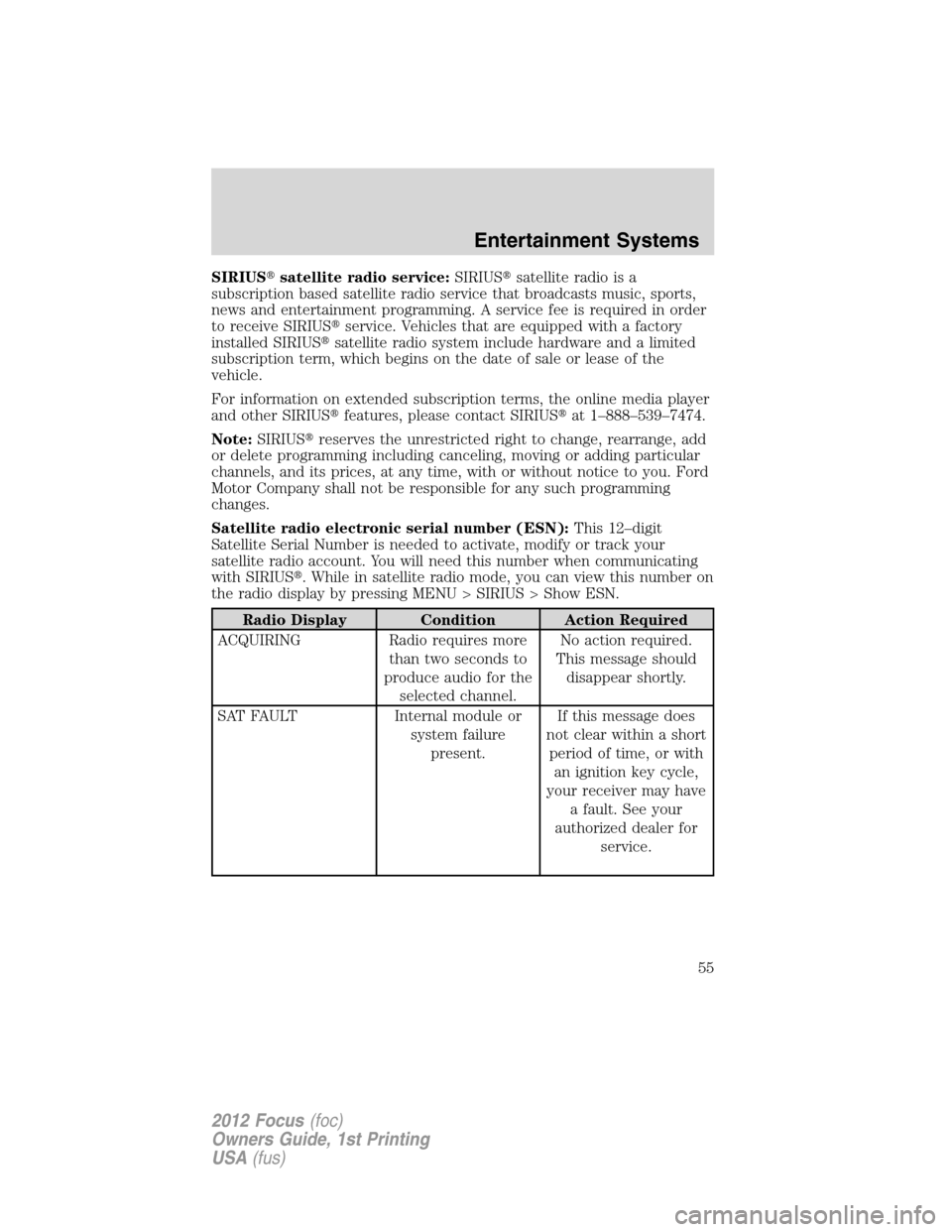

SIRIUSsatellite radio service:SIRIUSsatellite radio is a
subscription based satellite radio service that broadcasts music, sports,
news and entertainment programming. A service fee is required in order
to receive SIRIUSservice. Vehicles that are equipped with a factory
installed SIRIUSsatellite radio system include hardware and a limited
subscription term, which begins on the date of sale or lease of the
vehicle.
For information on extended subscription terms, the online media player
and other SIRIUSfeatures, please contact SIRIUSat 1–888–539–7474.
Note:SIRIUSreserves the unrestricted right to change, rearrange, add
or delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming
changes.
Satellite radio electronic serial number (ESN):This 12–digit
Satellite Serial Number is needed to activate, modify or track your
satellite radio account. You will need this number when communicating
with SIRIUS. While in satellite radio mode, you can view this number on
the radio display by pressing MENU > SIRIUS > Show ESN.
Radio Display Condition Action Required
ACQUIRING Radio requires more
than two seconds to
produce audio for the
selected channel.No action required.
This message should
disappear shortly.
SAT FAULT Internal module or
system failure
present.If this message does
not clear within a short
period of time, or with
an ignition key cycle,
your receiver may have
a fault. See your
authorized dealer for
service.
Entertainment Systems
55
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

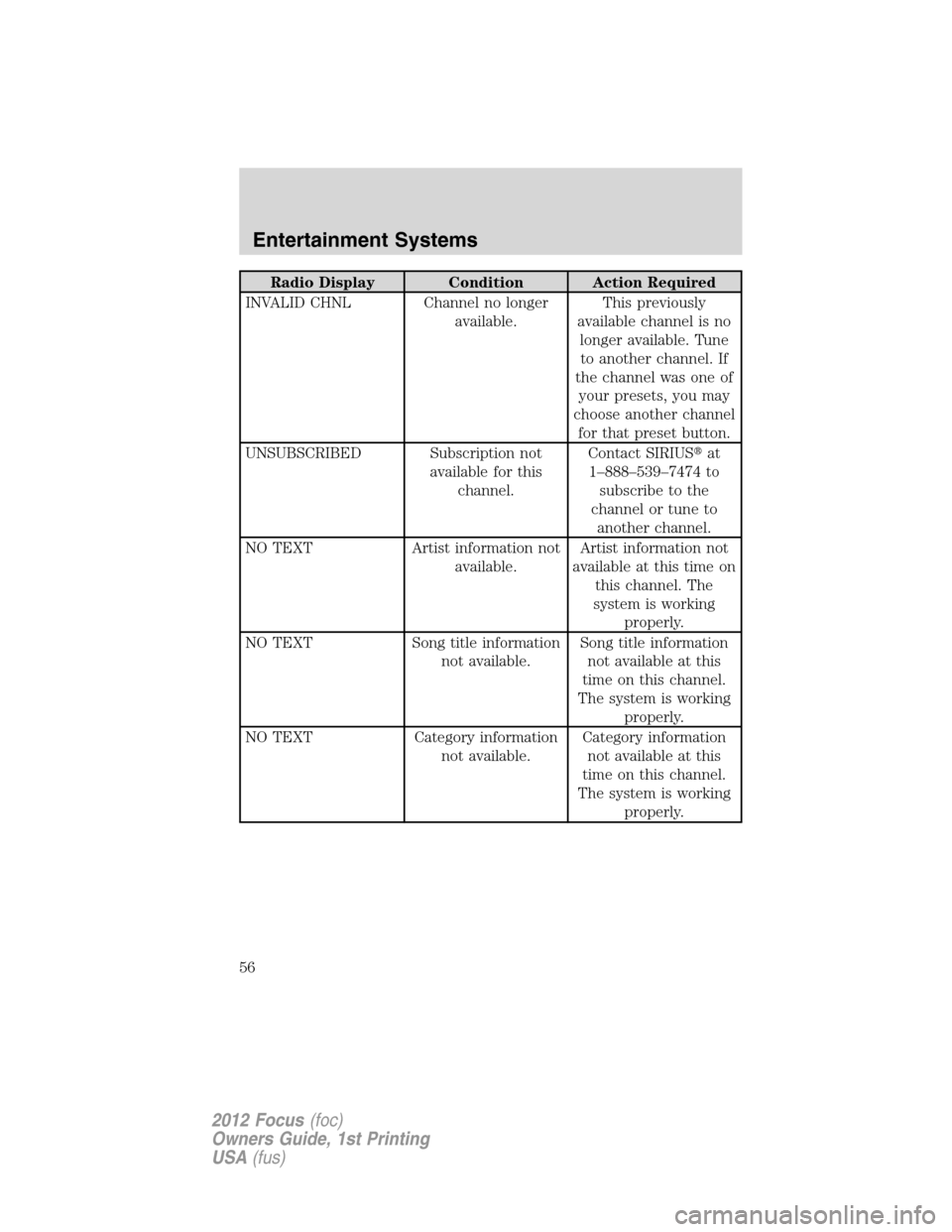

Radio Display Condition Action Required
INVALID CHNL Channel no longer
available.This previously
available channel is no
longer available. Tune
to another channel. If
the channel was one of
your presets, you may
choose another channel
for that preset button.
UNSUBSCRIBED Subscription not
available for this
channel.Contact SIRIUSat
1–888–539–7474 to
subscribe to the
channel or tune to
another channel.
NO TEXT Artist information not
available.Artist information not
available at this time on
this channel. The
system is working
properly.
NO TEXT Song title information
not available.Song title information
not available at this
time on this channel.
The system is working
properly.
NO TEXT Category information
not available.Category information
not available at this
time on this channel.
The system is working
properly.
Entertainment Systems
56
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

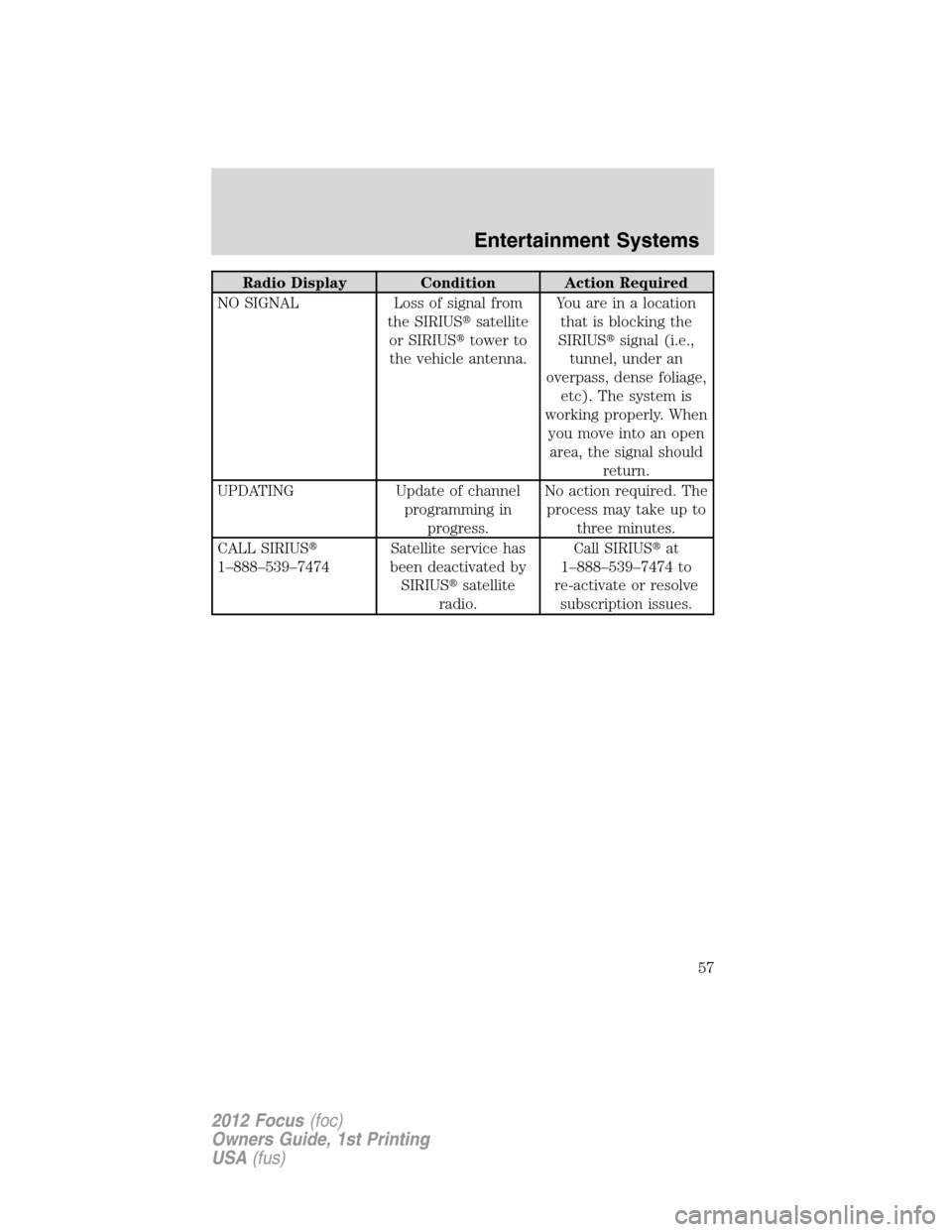

Radio Display Condition Action Required
NO SIGNAL Loss of signal from
the SIRIUSsatellite
or SIRIUStower to
the vehicle antenna.You are in a location
that is blocking the
SIRIUSsignal (i.e.,
tunnel, under an
overpass, dense foliage,
etc). The system is
working properly. When
you move into an open
area, the signal should
return.
UPDATING Update of channel
programming in
progress.No action required. The
process may take up to
three minutes.
CALL SIRIUS
1–888–539–7474Satellite service has
been deactivated by
SIRIUSsatellite
radio.Call SIRIUSat
1–888–539–7474 to
re-activate or resolve
subscription issues.
Entertainment Systems
57
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

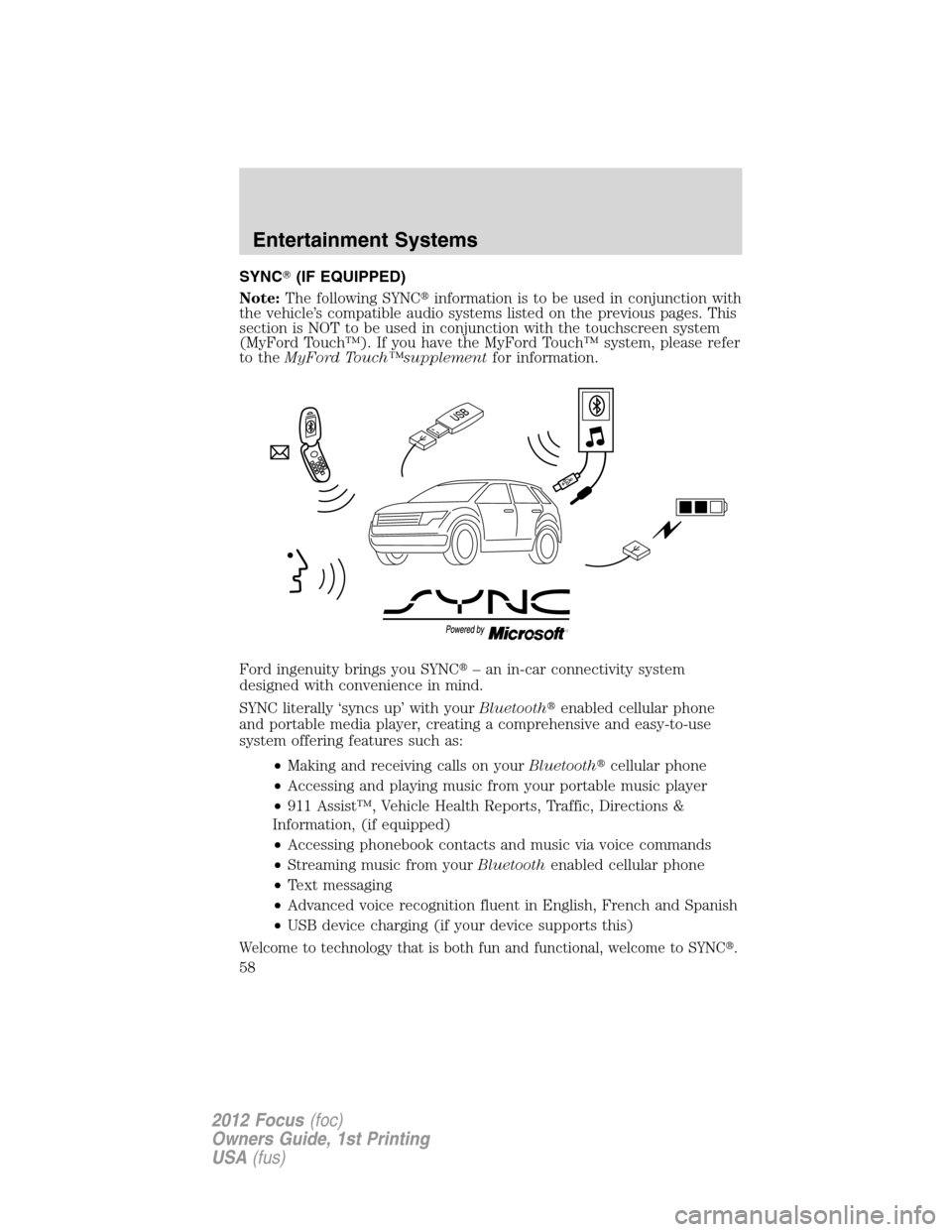

SYNC(IF EQUIPPED)
Note:The following SYNCinformation is to be used in conjunction with
the vehicle’s compatible audio systems listed on the previous pages. This
section is NOT to be used in conjunction with the touchscreen system
(MyFord Touch™). If you have the MyFord Touch™ system, please refer
to theMyFord Touch™supplementfor information.
Ford ingenuity brings you SYNC– an in-car connectivity system
designed with convenience in mind.
SYNC literally ‘syncs up’ with yourBluetoothenabled cellular phone
and portable media player, creating a comprehensive and easy-to-use
system offering features such as:
•Making and receiving calls on yourBluetoothcellular phone
•Accessing and playing music from your portable music player
•911 Assist™, Vehicle Health Reports, Traffic, Directions &
Information, (if equipped)
•Accessing phonebook contacts and music via voice commands
•Streaming music from yourBluetoothenabled cellular phone
•Text messaging
•Advanced voice recognition fluent in English, French and Spanish
•USB device charging (if your device supports this)
Welcome to technology that is both fun and functional, welcome to SYNC.
Entertainment Systems
58
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

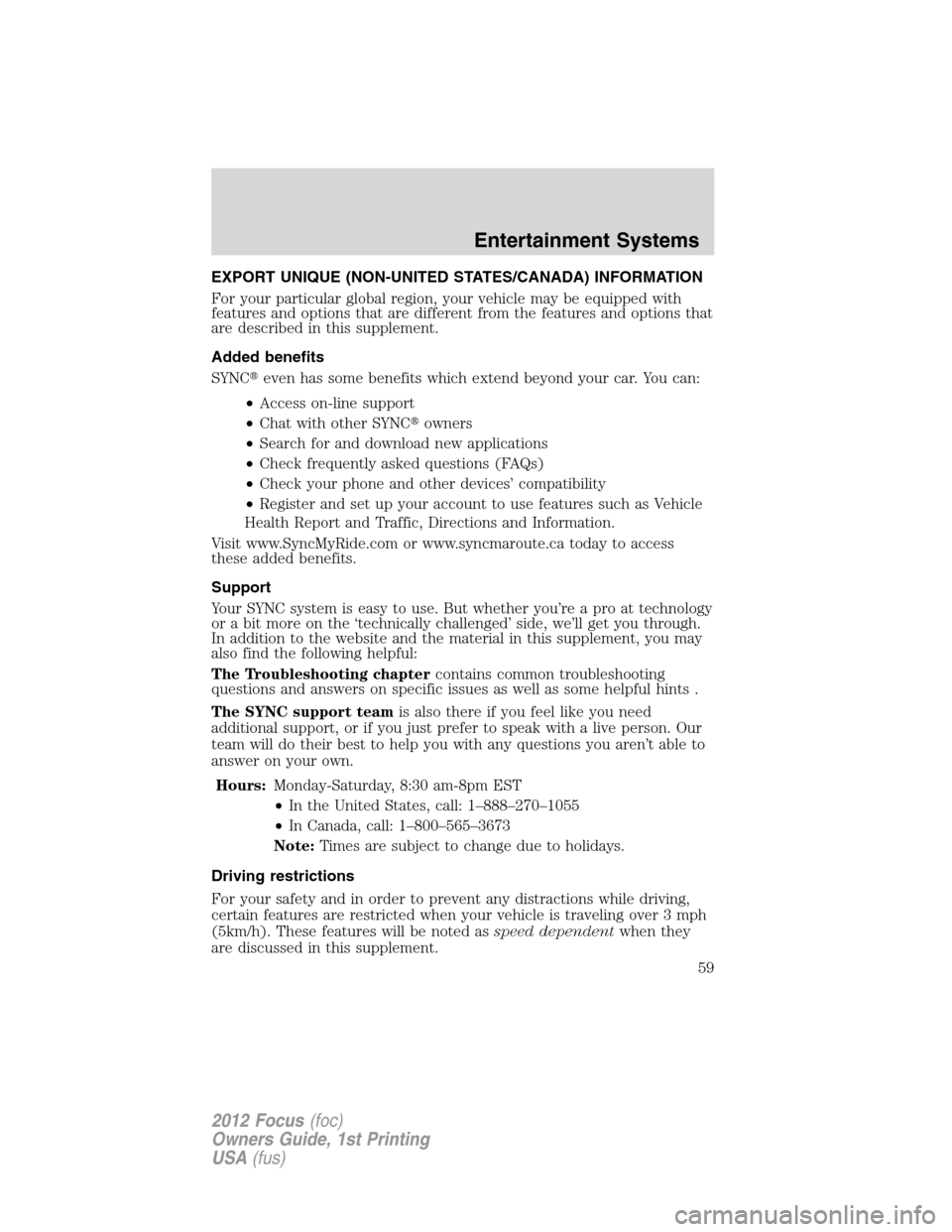

EXPORT UNIQUE (NON-UNITED STATES/CANADA) INFORMATION
For your particular global region, your vehicle may be equipped with
features and options that are different from the features and options that
are described in this supplement.
Added benefits
SYNCeven has some benefits which extend beyond your car. You can:
•Access on-line support
•Chat with other SYNCowners
•Search for and download new applications
•Check frequently asked questions (FAQs)
•Check your phone and other devices’ compatibility
•Register and set up your account to use features such as Vehicle
Health Report and Traffic, Directions and Information.
Visit www.SyncMyRide.com or www.syncmaroute.ca today to access
these added benefits.
Support
Your SYNC system is easy to use. But whether you’re a pro at technology
or a bit more on the ‘technically challenged’ side, we’ll get you through.
In addition to the website and the material in this supplement, you may
also find the following helpful:
The Troubleshooting chaptercontains common troubleshooting
questions and answers on specific issues as well as some helpful hints .
The SYNC support teamis also there if you feel like you need
additional support, or if you just prefer to speak with a live person. Our
team will do their best to help you with any questions you aren’t able to
answer on your own.
Hours:Monday-Saturday, 8:30 am-8pm EST
•In the United States, call: 1–888–270–1055
•In Canada, call: 1–800–565–3673
Note:Times are subject to change due to holidays.
Driving restrictions
For your safety and in order to prevent any distractions while driving,
certain features are restricted when your vehicle is traveling over 3 mph
(5km/h). These features will be noted asspeed dependentwhen they
are discussed in this supplement.
Entertainment Systems
59
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

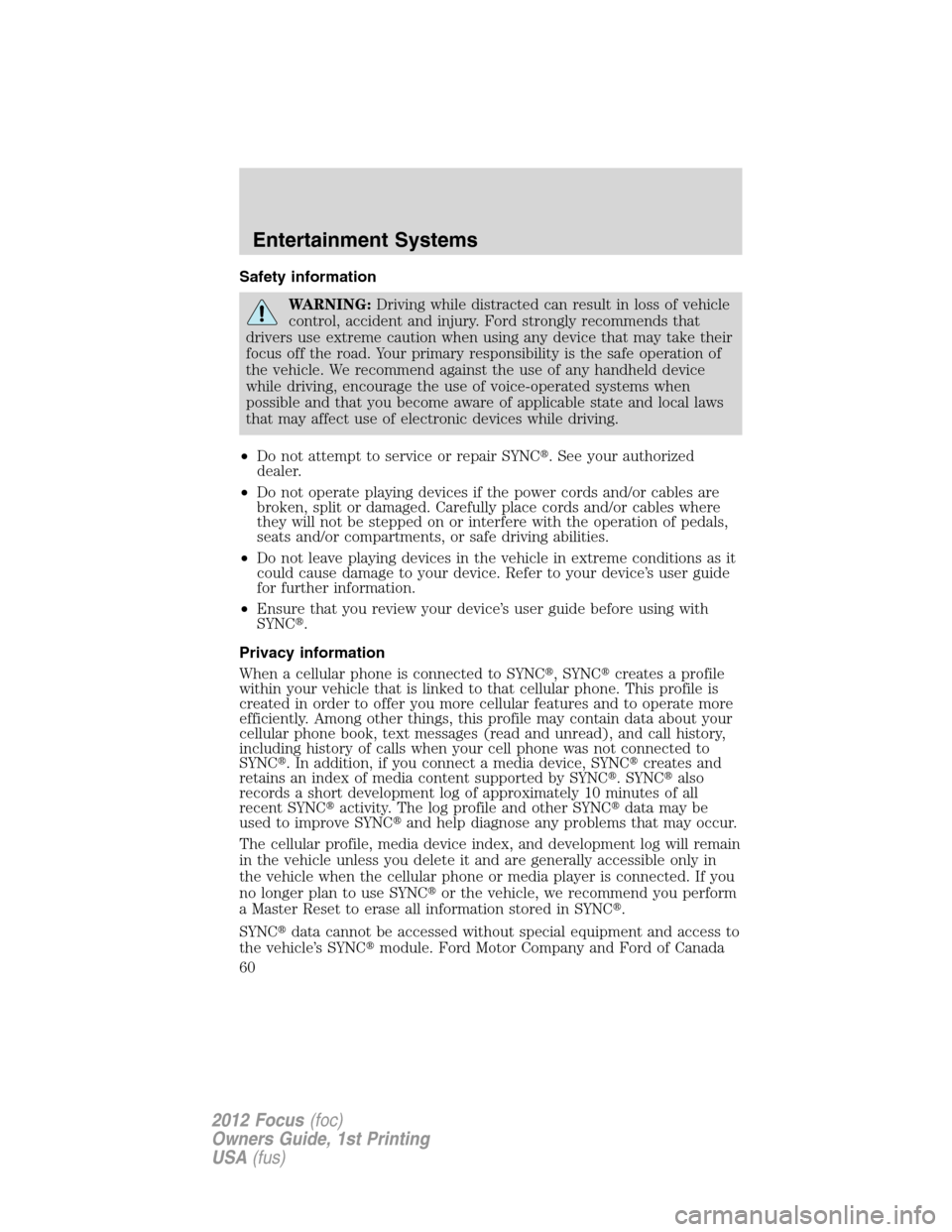

Safety information
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. Your primary responsibility is the safe operation of
the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
•Do not attempt to service or repair SYNC. See your authorized
dealer.
•Do not operate playing devices if the power cords and/or cables are
broken, split or damaged. Carefully place cords and/or cables where
they will not be stepped on or interfere with the operation of pedals,
seats and/or compartments, or safe driving abilities.
•Do not leave playing devices in the vehicle in extreme conditions as it
could cause damage to your device. Refer to your device’s user guide
for further information.
•Ensure that you review your device’s user guide before using with
SYNC.
Privacy information
When a cellular phone is connected to SYNC, SYNCcreates a profile
within your vehicle that is linked to that cellular phone. This profile is
created in order to offer you more cellular features and to operate more
efficiently. Among other things, this profile may contain data about your
cellular phone book, text messages (read and unread), and call history,
including history of calls when your cell phone was not connected to
SYNC. In addition, if you connect a media device, SYNCcreates and
retains an index of media content supported by SYNC. SYNCalso
records a short development log of approximately 10 minutes of all
recent SYNCactivity. The log profile and other SYNCdata may be
used to improve SYNCand help diagnose any problems that may occur.
The cellular profile, media device index, and development log will remain
in the vehicle unless you delete it and are generally accessible only in
the vehicle when the cellular phone or media player is connected. If you
no longer plan to use SYNCor the vehicle, we recommend you perform
a Master Reset to erase all information stored in SYNC.
SYNCdata cannot be accessed without special equipment and access to
the vehicle’s SYNCmodule. Ford Motor Company and Ford of Canada
Entertainment Systems
60
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
