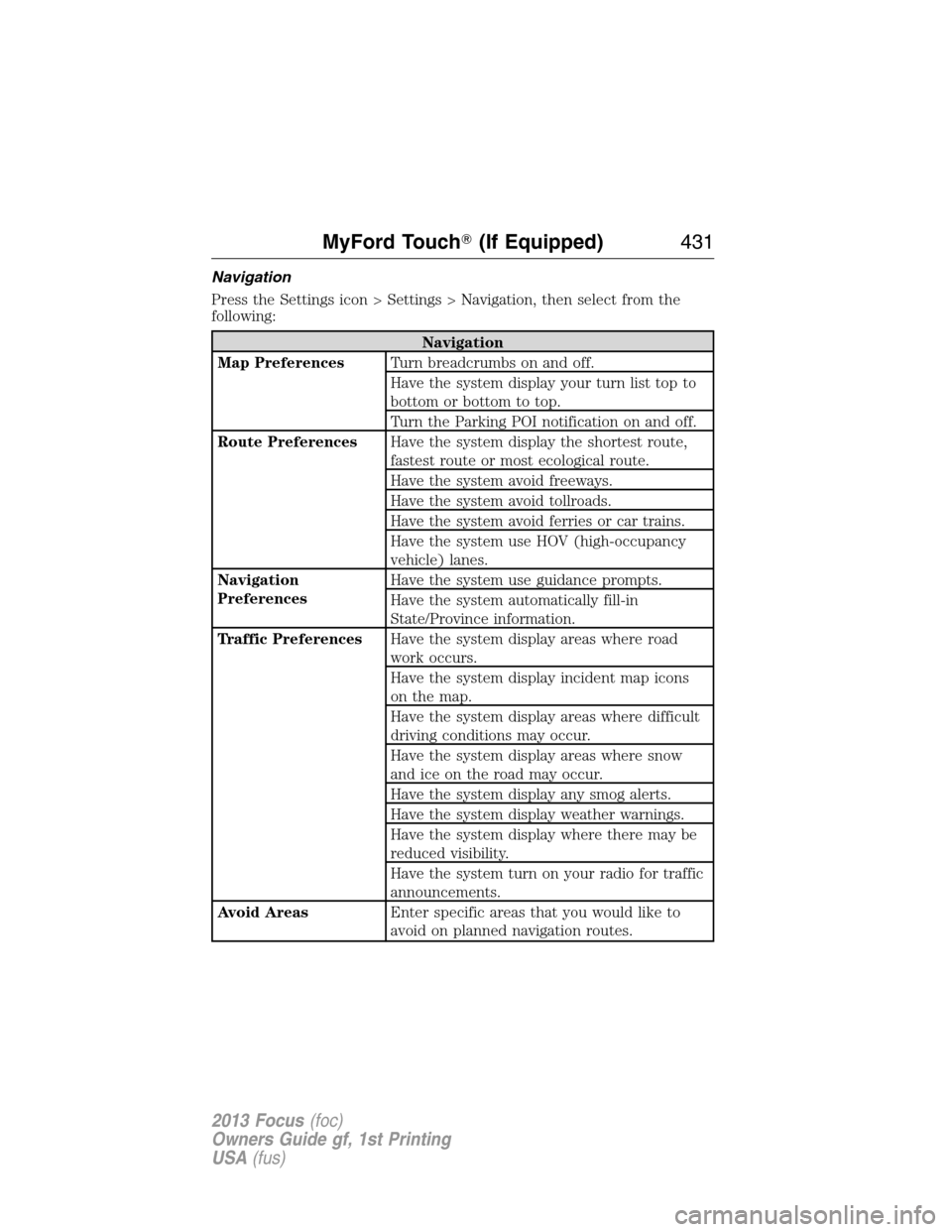

Navigation
Press the Settings icon > Settings > Navigation, then select from the
following:
Navigation
Map PreferencesTurn breadcrumbs on and off.
Have the system display your turn list top to
bottom or bottom to top.
Turn the Parking POI notification on and off.
Route PreferencesHave the system display the shortest route,
fastest route or most ecological route.
Have the system avoid freeways.
Have the system avoid tollroads.
Have the system avoid ferries or car trains.
Have the system use HOV (high-occupancy
vehicle) lanes.
Navigation
PreferencesHave the system use guidance prompts.
Have the system automatically fill-in
State/Province information.
Traffic PreferencesHave the system display areas where road
work occurs.
Have the system display incident map icons
on the map.
Have the system display areas where difficult
driving conditions may occur.
Have the system display areas where snow
and ice on the road may occur.
Have the system display any smog alerts.
Have the system display weather warnings.
Have the system display where there may be
reduced visibility.
Have the system turn on your radio for traffic
announcements.
Avoid AreasEnter specific areas that you would like to
avoid on planned navigation routes.
MyFord Touch(If Equipped)431
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

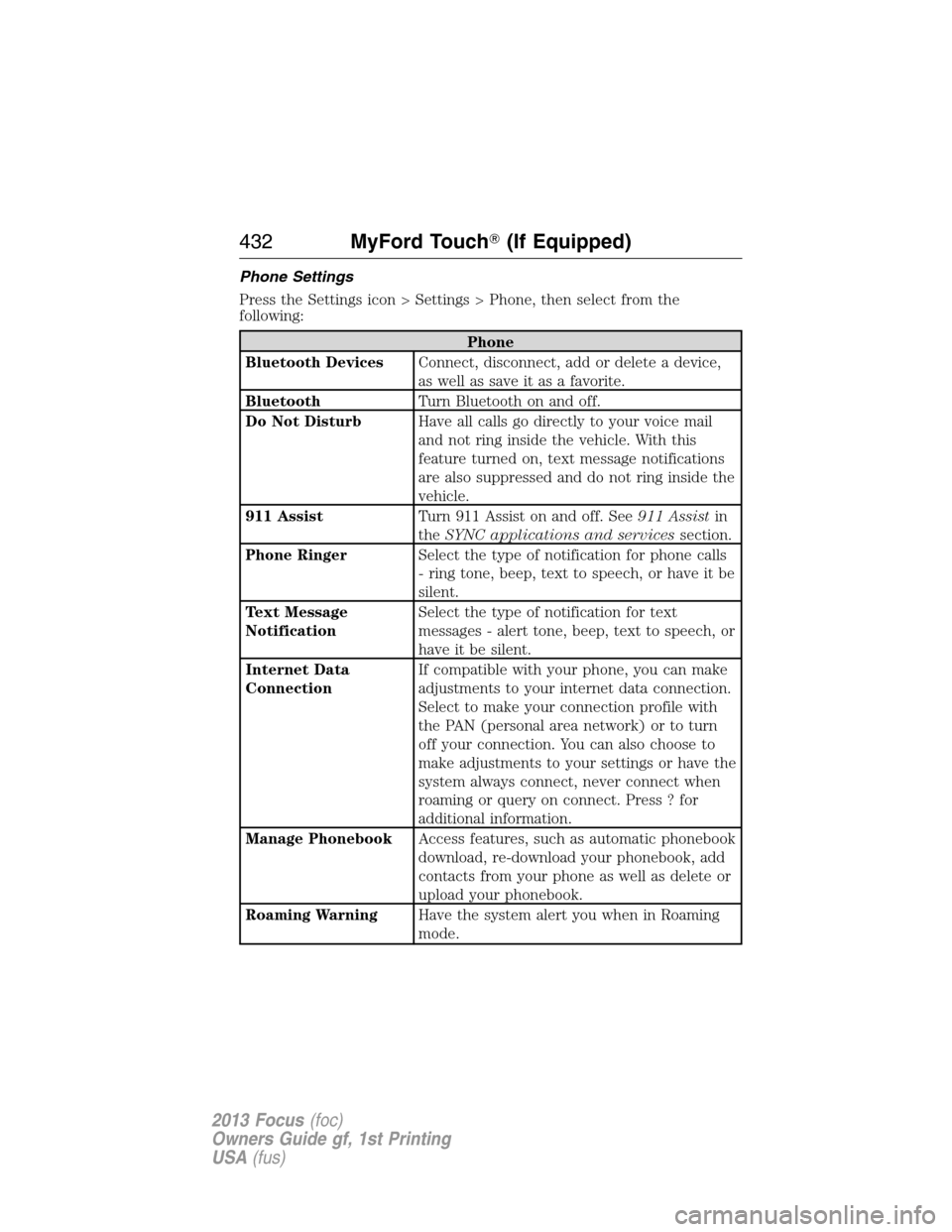

Phone Settings
Press the Settings icon > Settings > Phone, then select from the
following:
Phone
Bluetooth DevicesConnect, disconnect, add or delete a device,
as well as save it as a favorite.
BluetoothTurn Bluetooth on and off.
Do Not DisturbHave all calls go directly to your voice mail
and not ring inside the vehicle. With this
feature turned on, text message notifications
are also suppressed and do not ring inside the
vehicle.
911 AssistTurn 911 Assist on and off. See911 Assistin
theSYNC applications and servicessection.
Phone RingerSelect the type of notification for phone calls
- ring tone, beep, text to speech, or have it be
silent.
Text Message
NotificationSelect the type of notification for text
messages - alert tone, beep, text to speech, or
have it be silent.
Internet Data
ConnectionIf compatible with your phone, you can make
adjustments to your internet data connection.
Select to make your connection profile with
the PAN (personal area network) or to turn
off your connection. You can also choose to
make adjustments to your settings or have the
system always connect, never connect when
roaming or query on connect. Press ? for
additional information.
Manage PhonebookAccess features, such as automatic phonebook
download, re-download your phonebook, add
contacts from your phone as well as delete or
upload your phonebook.
Roaming WarningHave the system alert you when in Roaming
mode.
432MyFord Touch(If Equipped)
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

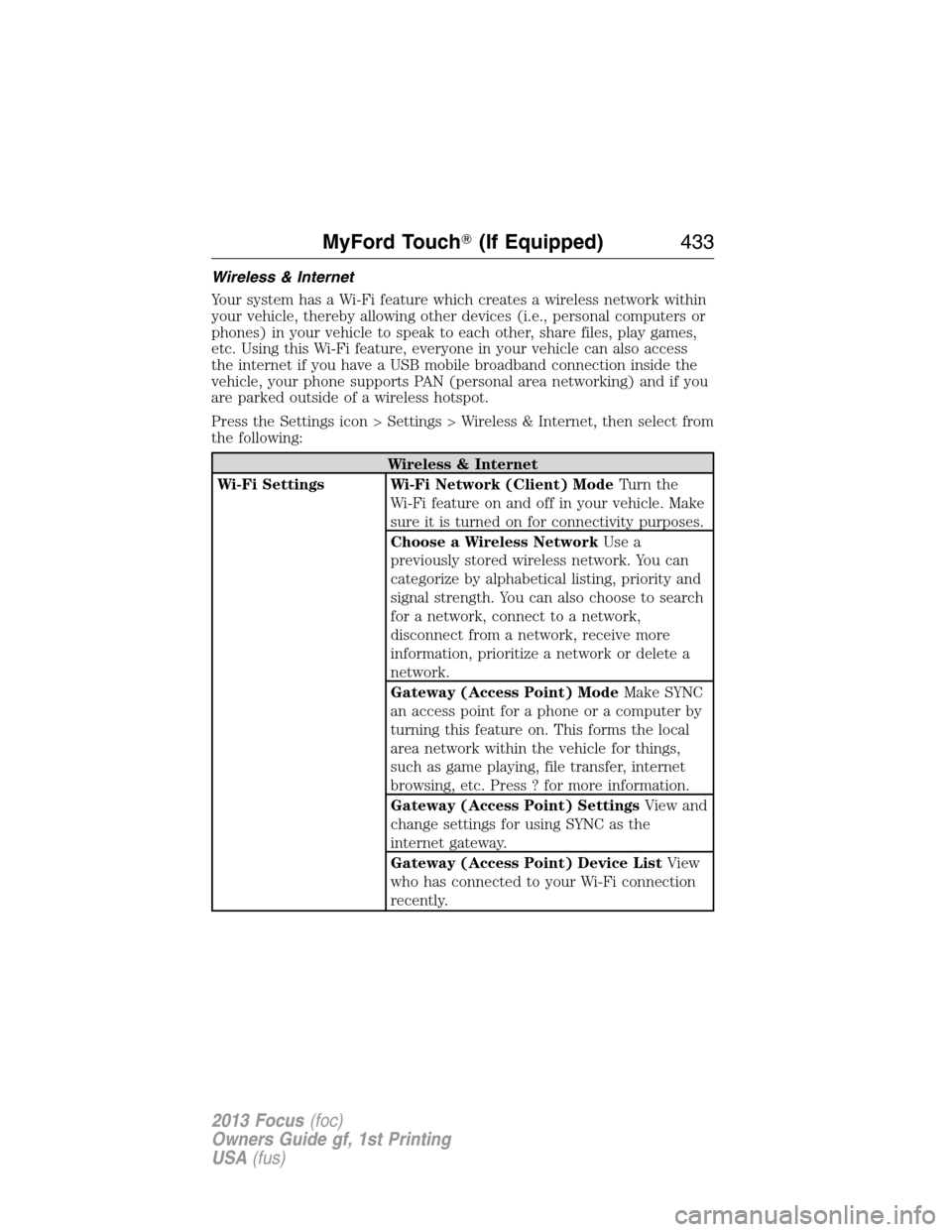

Wireless & Internet
Your system has a Wi-Fi feature which creates a wireless network within
your vehicle, thereby allowing other devices (i.e., personal computers or
phones) in your vehicle to speak to each other, share files, play games,
etc. Using this Wi-Fi feature, everyone in your vehicle can also access
the internet if you have a USB mobile broadband connection inside the
vehicle, your phone supports PAN (personal area networking) and if you
are parked outside of a wireless hotspot.
Press the Settings icon > Settings > Wireless & Internet, then select from
the following:
Wireless & Internet
Wi-Fi Settings Wi-Fi Network (Client) ModeTurn the
Wi-Fi feature on and off in your vehicle. Make
sure it is turned on for connectivity purposes.
Choose a Wireless NetworkUse a
previously stored wireless network. You can
categorize by alphabetical listing, priority and
signal strength. You can also choose to search
for a network, connect to a network,
disconnect from a network, receive more
information, prioritize a network or delete a
network.
Gateway (Access Point) ModeMake SYNC
an access point for a phone or a computer by
turning this feature on. This forms the local
area network within the vehicle for things,
such as game playing, file transfer, internet
browsing, etc. Press ? for more information.
Gateway (Access Point) SettingsView and
change settings for using SYNC as the
internet gateway.
Gateway (Access Point) Device ListView
who has connected to your Wi-Fi connection
recently.
MyFord Touch(If Equipped)433
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

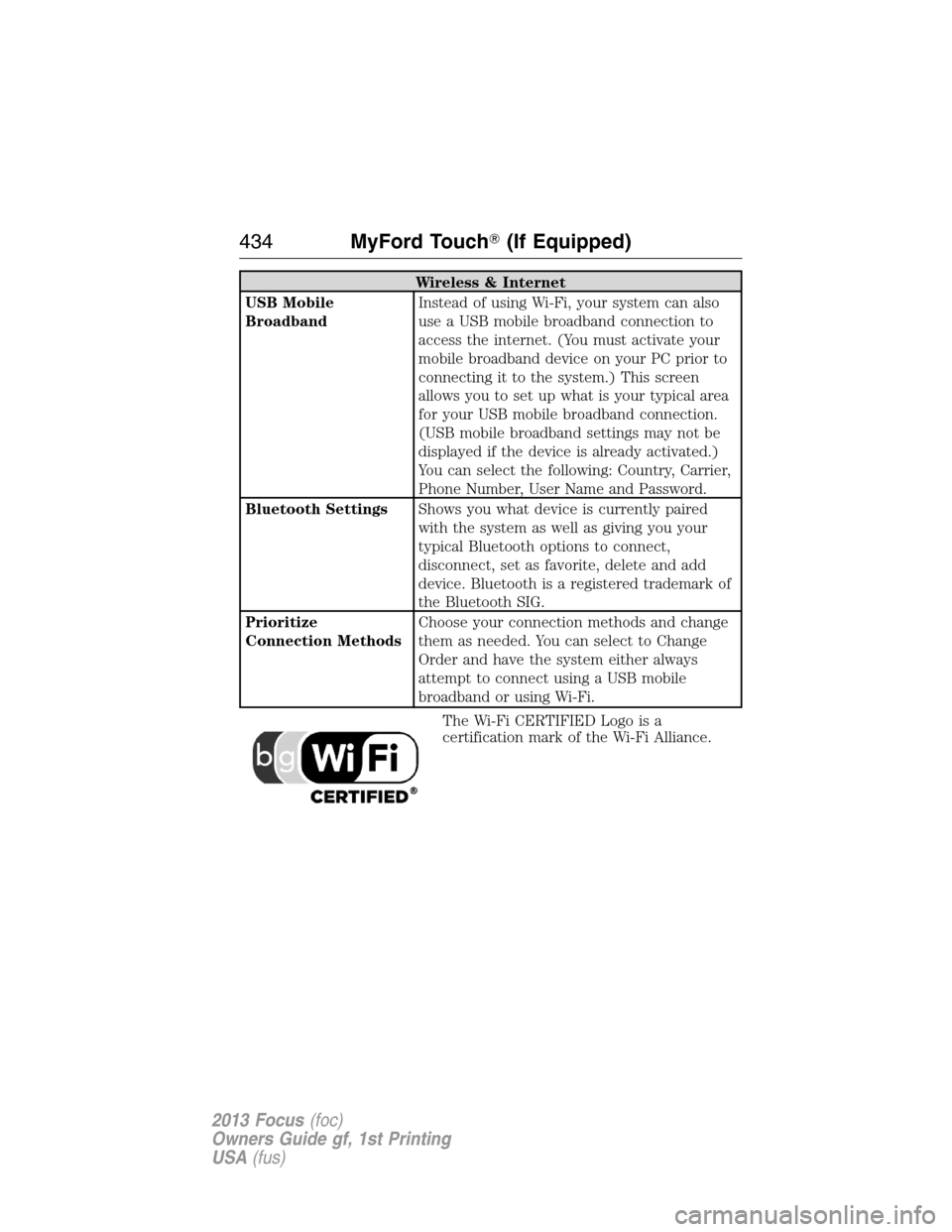

Wireless & Internet
USB Mobile
BroadbandInstead of using Wi-Fi, your system can also
use a USB mobile broadband connection to
access the internet. (You must activate your
mobile broadband device on your PC prior to
connecting it to the system.) This screen
allows you to set up what is your typical area
for your USB mobile broadband connection.
(USB mobile broadband settings may not be
displayed if the device is already activated.)
You can select the following: Country, Carrier,
Phone Number, User Name and Password.
Bluetooth SettingsShows you what device is currently paired
with the system as well as giving you your
typical Bluetooth options to connect,
disconnect, set as favorite, delete and add
device. Bluetooth is a registered trademark of
the Bluetooth SIG.
Prioritize
Connection MethodsChoose your connection methods and change
them as needed. You can select to Change
Order and have the system either always
attempt to connect using a USB mobile
broadband or using Wi-Fi.
The Wi-Fi CERTIFIED Logo is a
certification mark of the Wi-Fi Alliance.
434MyFord Touch(If Equipped)
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

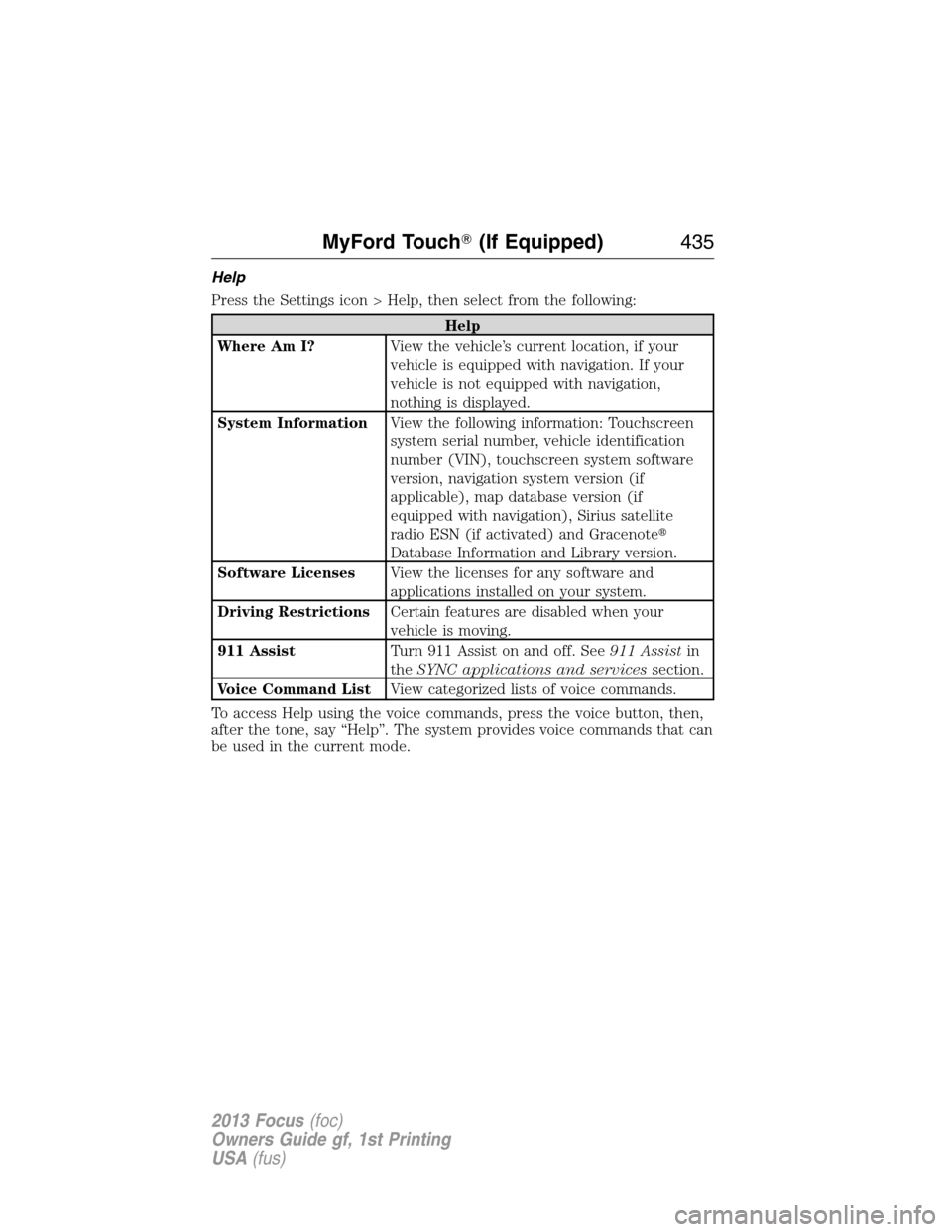

Help
Press the Settings icon > Help, then select from the following:
Help
Where Am I?View the vehicle’s current location, if your
vehicle is equipped with navigation. If your
vehicle is not equipped with navigation,
nothing is displayed.
System InformationView the following information: Touchscreen
system serial number, vehicle identification
number (VIN), touchscreen system software
version, navigation system version (if
applicable), map database version (if
equipped with navigation), Sirius satellite
radio ESN (if activated) and Gracenote
Database Information and Library version.
Software LicensesView the licenses for any software and
applications installed on your system.
Driving RestrictionsCertain features are disabled when your
vehicle is moving.
911 AssistTurn 911 Assist on and off. See911 Assistin
theSYNC applications and servicessection.
Voice Command ListView categorized lists of voice commands.
To access Help using the voice commands, press the voice button, then,
after the tone, say “Help”. The system provides voice commands that can
be used in the current mode.
MyFord Touch(If Equipped)435
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

CLIMATE CONTROLS
Depending on your vehicle line and option package, your
climate screen may look different than what is shown here.
A.Power:Touch to turn the system on and off. Outside air cannot enter
the vehicle when the system is off.
B.Passenger settings:Touch + or – to adjust the temperature.
C.Fan speed:Touch + or – to adjust fan speed.
D.DUAL:Touch to turn on the passenger side temperature control.
E.Recirculated air:Touch to turn the recirculated air on or off which:
•May reduce the amount of time needed to cool down the interior.
•May help reduce odors from reaching the interior.
•Engages automatically when MAX A/C or MAX defrost is selected.
•May be engaged manually in any airflow mode except defrost.
•May turn off in all airflow modes except MAX A/C and MAX defrost
to reduce fog potential.
F.MAX A/C:Touch to cool the vehicle with recirculated air. Touch again
for normal A/C operation. MAX A/C:
•Distributes air through instrument panel vents.
•Is more economical and efficient than normal A/C mode.
•May help reduce odors from entering the vehicle.
G.A/C:Touch to turn the air conditioning on or off.
•
Use with recirculated air to improve cooling performance and efficiency.
•Engages automatically in MAX A/C, defrost and floor/defrost.
A
JB
IC
HGFED
436MyFord Touch(If Equipped)
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

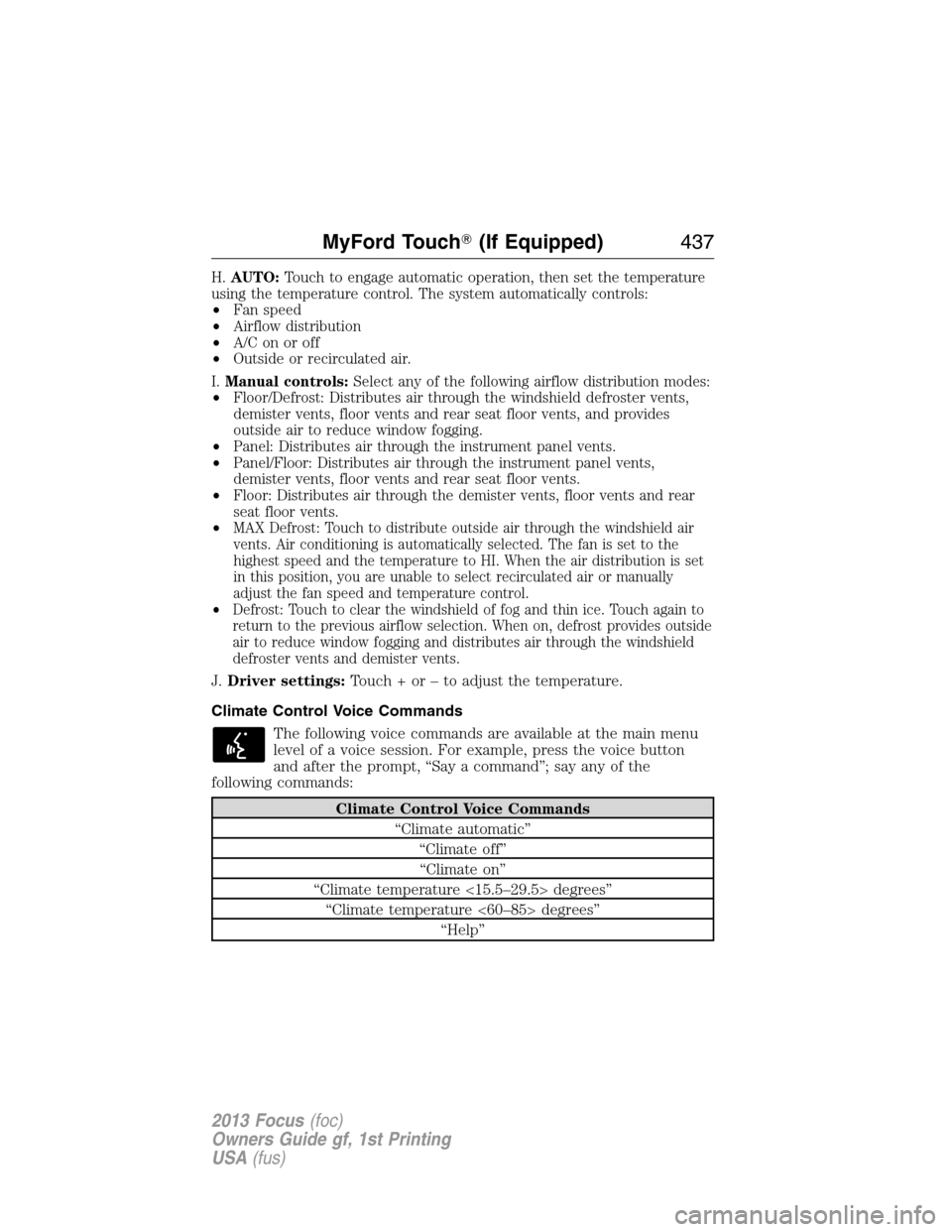

H.AUTO:Touch to engage automatic operation, then set the temperature
using the temperature control. The system automatically controls:
•Fan speed
•Airflow distribution
•A/Conoroff
•Outside or recirculated air.
I.Manual controls:Select any of the following airflow distribution modes:
•Floor/Defrost: Distributes air through the windshield defroster vents,
demister vents, floor vents and rear seat floor vents, and provides
outside air to reduce window fogging.
•Panel: Distributes air through the instrument panel vents.
•Panel/Floor: Distributes air through the instrument panel vents,
demister vents, floor vents and rear seat floor vents.
•Floor: Distributes air through the demister vents, floor vents and rear
seat floor vents.
•
MAX Defrost: Touch to distribute outside air through the windshield air
vents. Air conditioning is automatically selected. The fan is set to the
highest speed and the temperature to HI. When the air distribution is set
in this position, you are unable to select recirculated air or manually
adjust the fan speed and temperature control.
•Defrost: Touch to clear the windshield of fog and thin ice. Touch again to
return to the previous airflow selection. When on, defrost provides outside
air to reduce window fogging and distributes air through the windshield
defroster vents and demister vents.
J.Driver settings:Touch + or – to adjust the temperature.
Climate Control Voice Commands
The following voice commands are available at the main menu
level of a voice session. For example, press the voice button
and after the prompt, “Say a command”; say any of the
following commands:
Climate Control Voice Commands
“Climate automatic”
“Climate off”
“Climate on”
“Climate temperature <15.5–29.5> degrees”
“Climate temperature <60–85> degrees”
“Help”
MyFord Touch(If Equipped)437
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

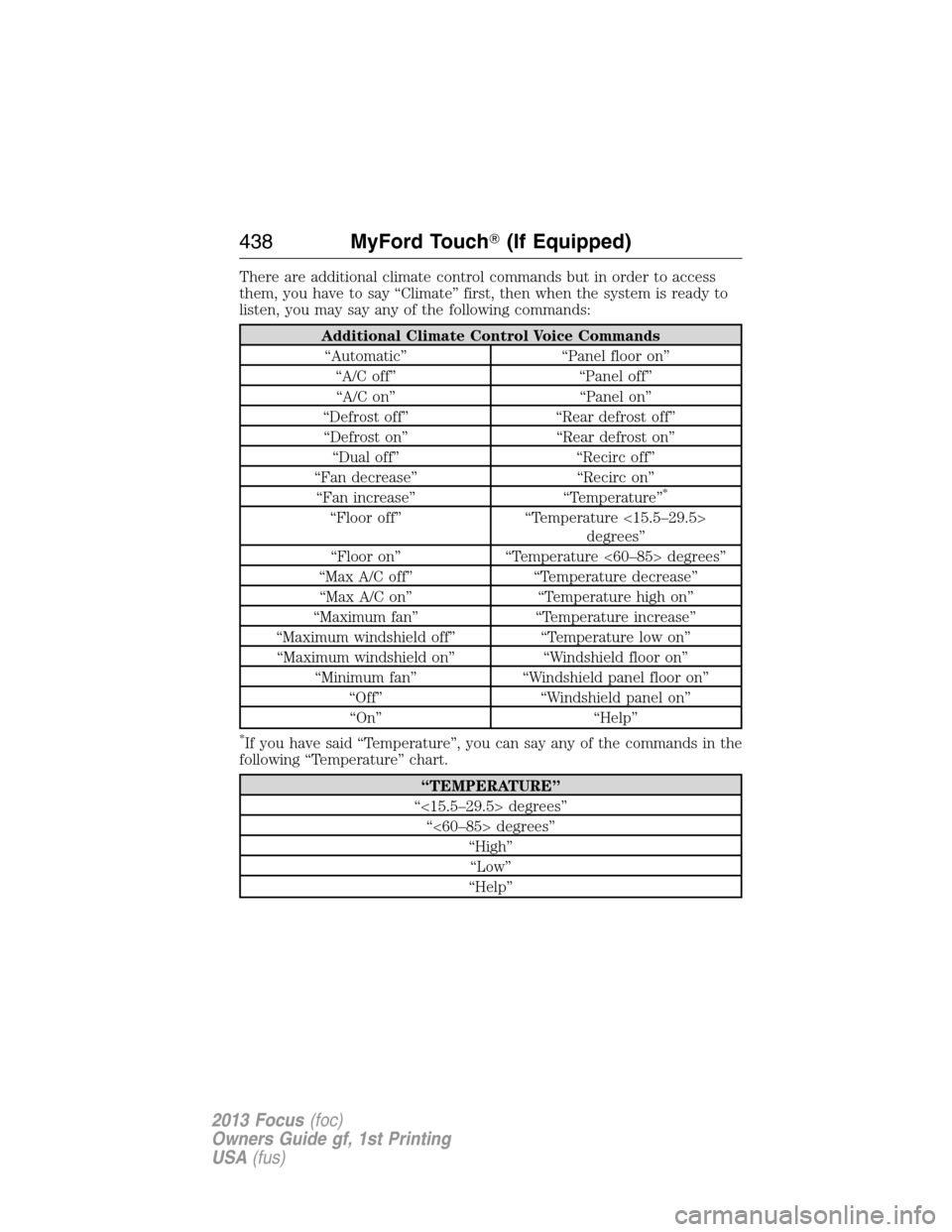

There are additional climate control commands but in order to access
them, you have to say “Climate” first, then when the system is ready to
listen, you may say any of the following commands:
Additional Climate Control Voice Commands
“Automatic” “Panel floor on”
“A/C off” “Panel off”
“A/C on” “Panel on”
“Defrost off” “Rear defrost off”
“Defrost on” “Rear defrost on”
“Dual off” “Recirc off”
“Fan decrease” “Recirc on”
“Fan increase” “Temperature”
*
“Floor off” “Temperature <15.5–29.5>
degrees”
“Floor on” “Temperature <60–85> degrees”
“Max A/C off” “Temperature decrease”
“Max A/C on” “Temperature high on”
“Maximum fan” “Temperature increase”
“Maximum windshield off” “Temperature low on”
“Maximum windshield on” “Windshield floor on”
“Minimum fan” “Windshield panel floor on”
“Off” “Windshield panel on”
“On” “Help”
*If you have said “Temperature”, you can say any of the commands in the
following “Temperature” chart.
“TEMPERATURE”
“<15.5–29.5> degrees”
“<60–85> degrees”
“High”
“Low”
“Help”
438MyFord Touch(If Equipped)
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

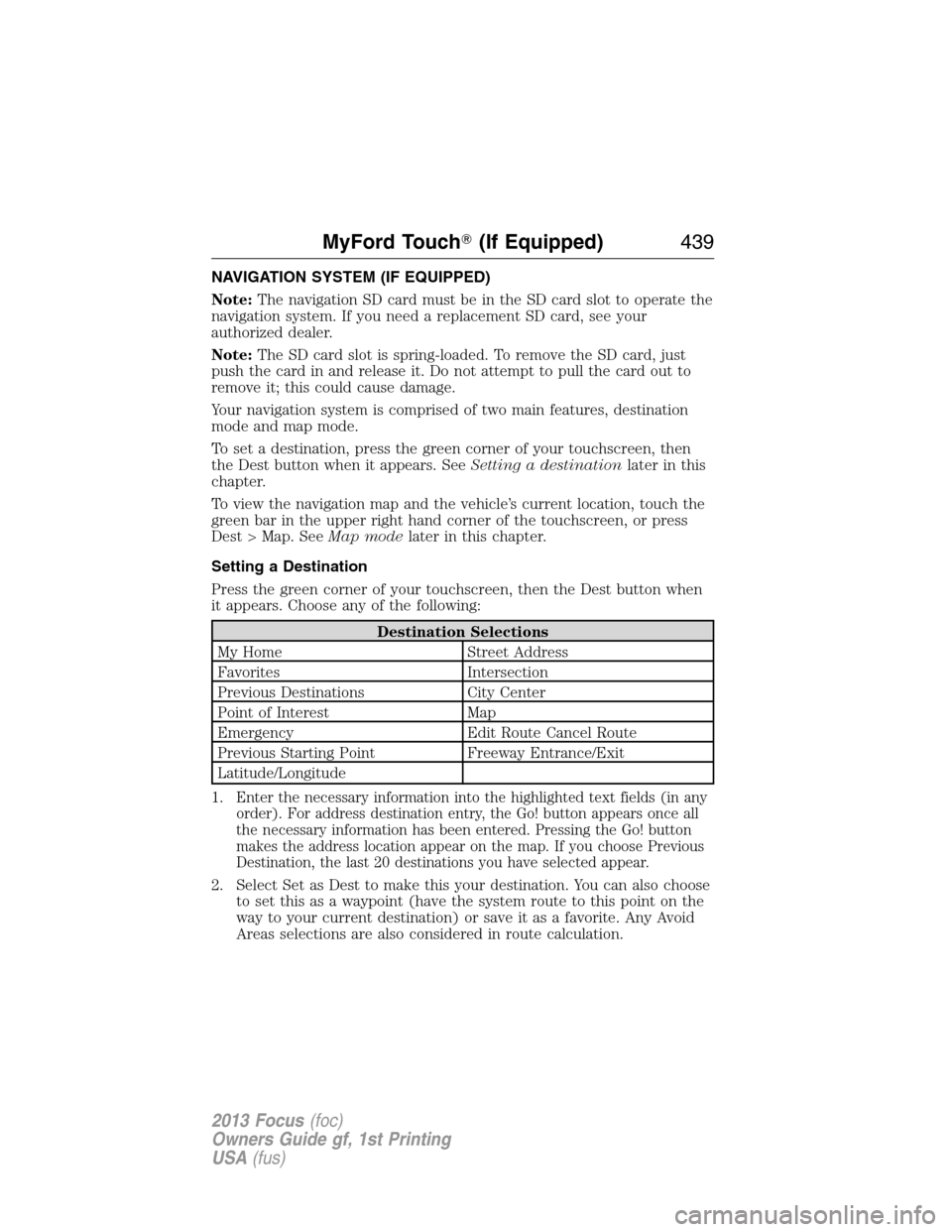

NAVIGATION SYSTEM (IF EQUIPPED)
Note:The navigation SD card must be in the SD card slot to operate the
navigation system. If you need a replacement SD card, see your
authorized dealer.
Note:The SD card slot is spring-loaded. To remove the SD card, just
push the card in and release it. Do not attempt to pull the card out to
remove it; this could cause damage.
Your navigation system is comprised of two main features, destination
mode and map mode.
To set a destination, press the green corner of your touchscreen, then
the Dest button when it appears. SeeSetting a destinationlater in this
chapter.
To view the navigation map and the vehicle’s current location, touch the
green bar in the upper right hand corner of the touchscreen, or press
Dest > Map. SeeMap modelater in this chapter.
Setting a Destination
Press the green corner of your touchscreen, then the Dest button when
it appears. Choose any of the following:
Destination Selections
My Home Street Address
Favorites Intersection
Previous Destinations City Center
Point of Interest Map
Emergency Edit Route Cancel Route
Previous Starting Point Freeway Entrance/Exit
Latitude/Longitude
1.
Enter the necessary information into the highlighted text fields (in any
order). For address destination entry, the Go! button appears once all
the necessary information has been entered. Pressing the Go! button
makes the address location appear on the map. If you choose Previous
Destination, the last 20 destinations you have selected appear.
2. Select Set as Dest to make this your destination. You can also choose
to set this as a waypoint (have the system route to this point on the
way to your current destination) or save it as a favorite. Any Avoid
Areas selections are also considered in route calculation.
MyFord Touch(If Equipped)439
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

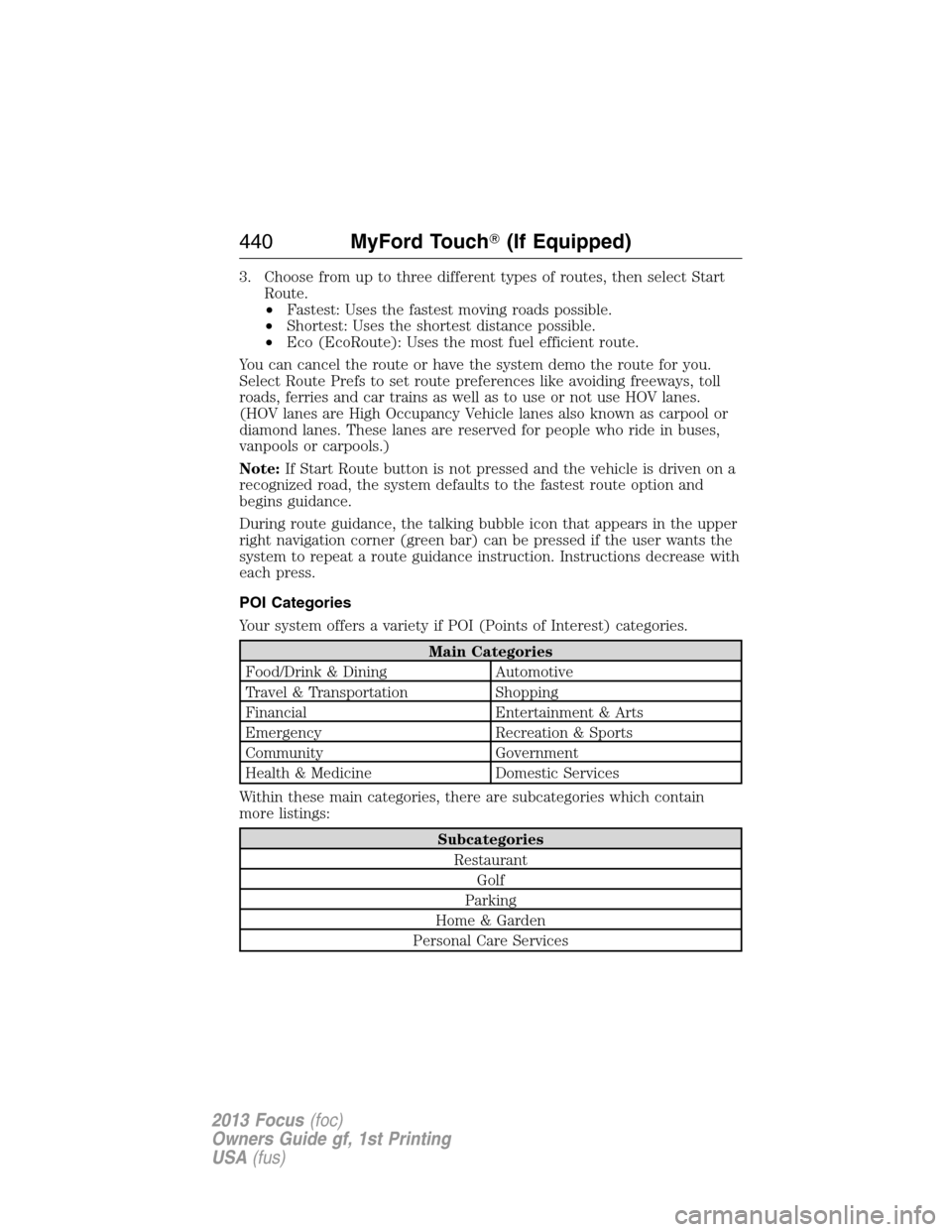

3. Choose from up to three different types of routes, then select Start
Route.
•Fastest: Uses the fastest moving roads possible.
•Shortest: Uses the shortest distance possible.
•Eco (EcoRoute): Uses the most fuel efficient route.
You can cancel the route or have the system demo the route for you.
Select Route Prefs to set route preferences like avoiding freeways, toll
roads, ferries and car trains as well as to use or not use HOV lanes.
(HOV lanes are High Occupancy Vehicle lanes also known as carpool or
diamond lanes. These lanes are reserved for people who ride in buses,
vanpools or carpools.)
Note:If Start Route button is not pressed and the vehicle is driven on a
recognized road, the system defaults to the fastest route option and
begins guidance.
During route guidance, the talking bubble icon that appears in the upper
right navigation corner (green bar) can be pressed if the user wants the
system to repeat a route guidance instruction. Instructions decrease with
each press.
POI Categories
Your system offers a variety if POI (Points of Interest) categories.
Main Categories
Food/Drink & Dining Automotive
Travel & Transportation Shopping
Financial Entertainment & Arts
Emergency Recreation & Sports
Community Government
Health & Medicine Domestic Services
Within these main categories, there are subcategories which contain
more listings:
Subcategories
Restaurant
Golf
Parking
Home & Garden
Personal Care Services
440MyFord Touch(If Equipped)
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
