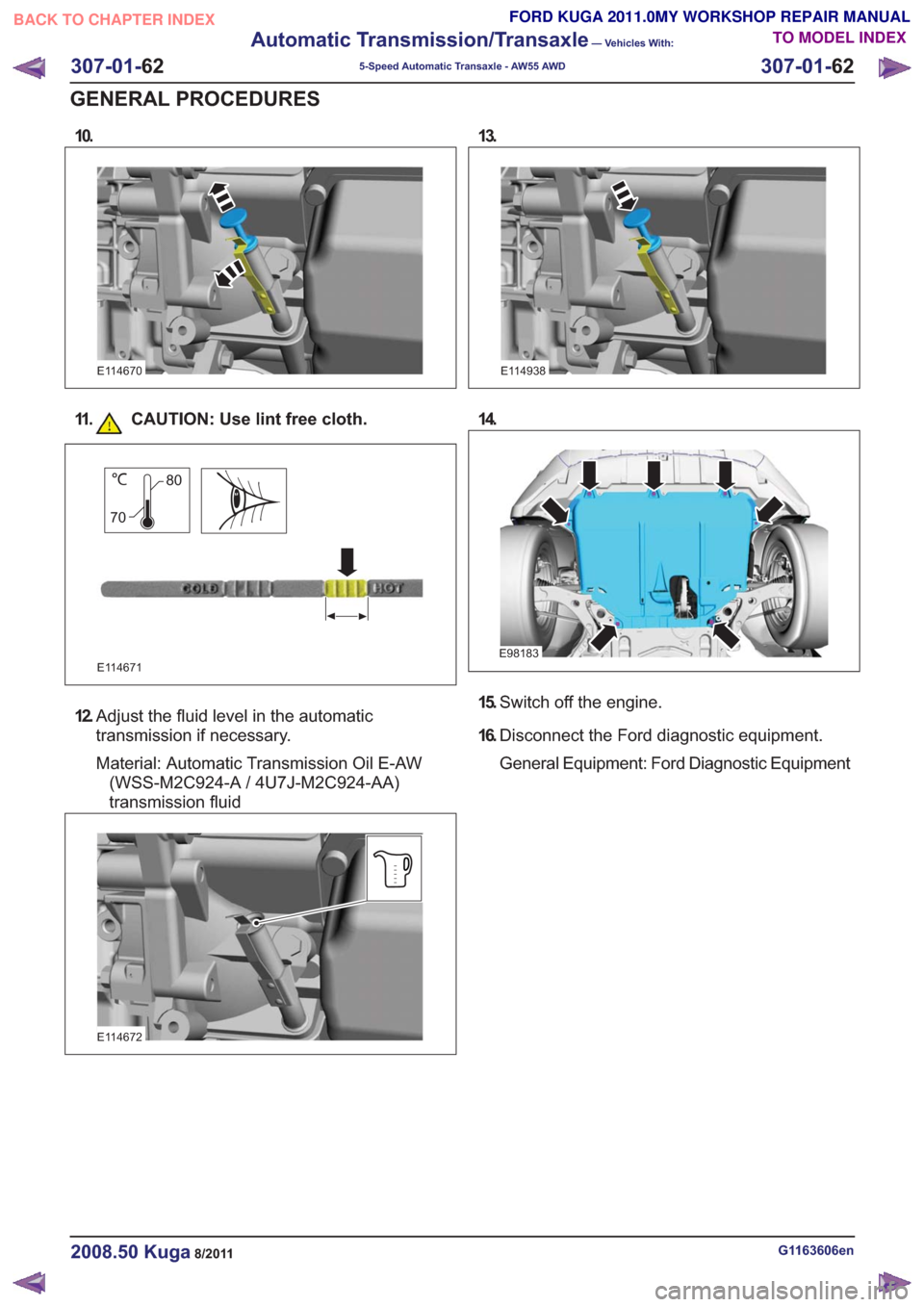

Page 1883 of 2057
10.
E114670
11. CAUTION: Use lint free cloth.
E114671
80
70
12. Adjust the fluid level in the automatic
transmission if necessary.
Material: Automatic Transmission Oil E-AW
(WSS-M2C924-A / 4U7J-M2C924-AA)
transmission fluid
E114672
13.
E114938
14.
E98183
15. Switch off the engine.
16. Disconnect the Ford diagnostic equipment.
General Equipment: Ford Diagnostic Equipment
G1163606en2008.50 Kuga8/2011
307-01- 62
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 62
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1884 of 2057

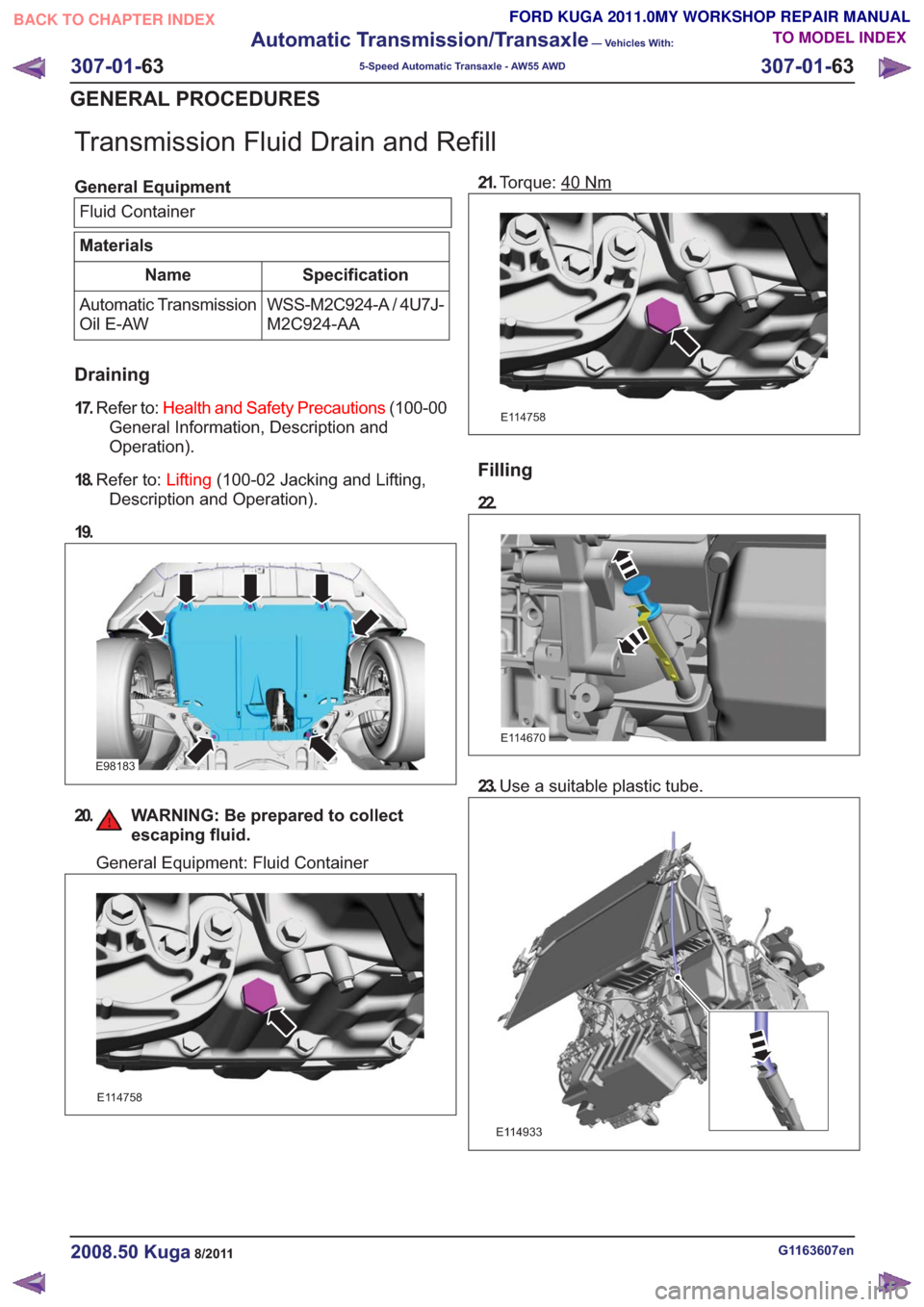

Transmission Fluid Drain and Refill
General EquipmentFluid Container
Materials
Specification
Name
WSS-M2C924-A / 4U7J-
M2C924-AA
Automatic Transmission
Oil E-AW
Draining
17.
Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
18. Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
19.
E98183
20. WARNING: Be prepared to collect escaping fluid.
General Equipment: Fluid Container
E114758
21.Torque: 40Nm
E114758
Filling
22.
E114670
23.Use a suitable plastic tube.
E114933
G1163607en2008.50 Kuga8/2011
307-01- 63
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 63
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1885 of 2057

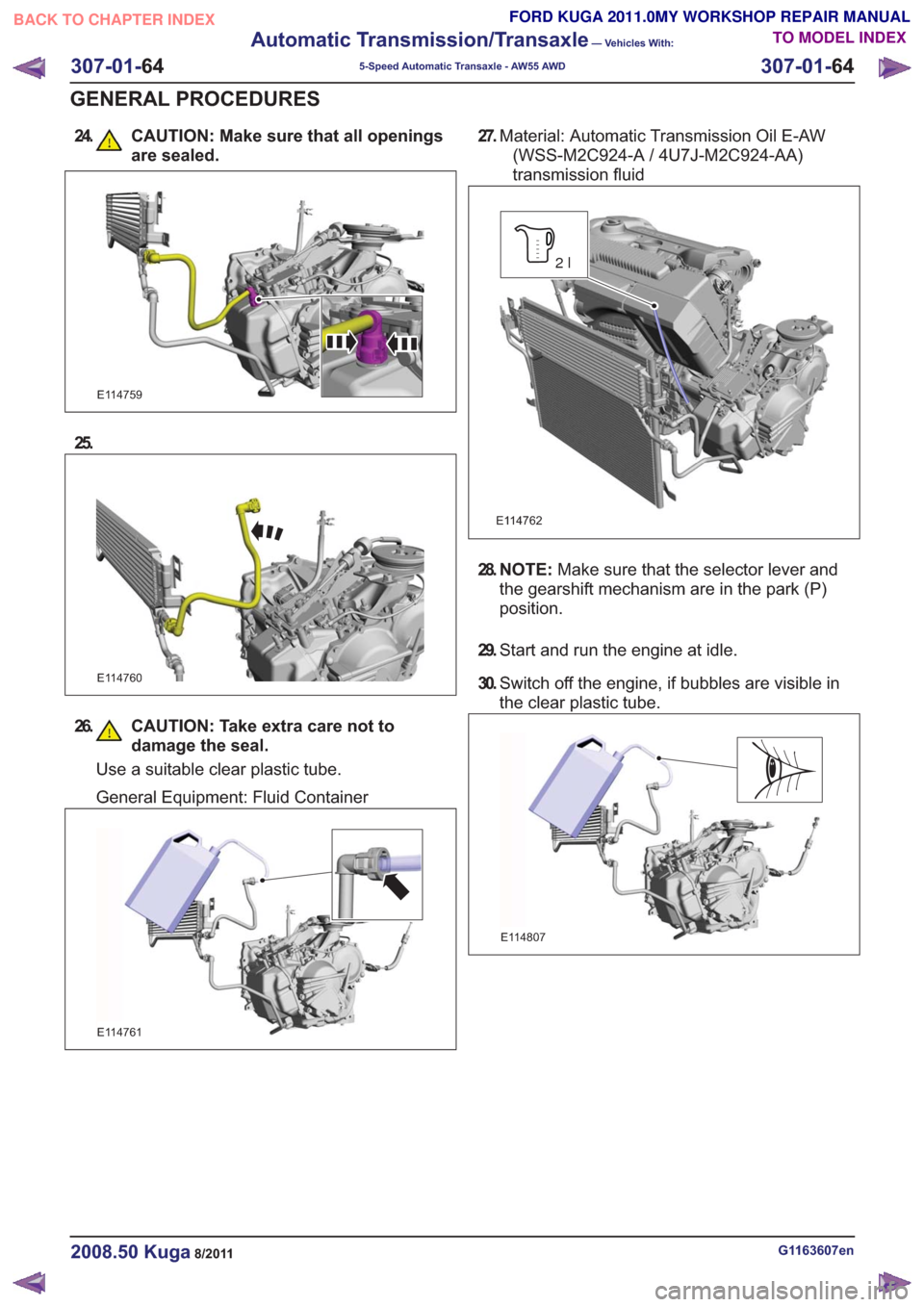

24. CAUTION: Make sure that all openingsare sealed.
E114759
25.
E114760
26. CAUTION: Take extra care not todamage the seal.
Use a suitable clear plastic tube.
General Equipment: Fluid Container
E114761
27.Material: Automatic Transmission Oil E-AW
(WSS-M2C924-A / 4U7J-M2C924-AA)
transmission fluid
E114762
2l
28. N O T E : Make sure that the selector lever and
the gearshift mechanism are in the park (P)
position.
29. Start and run the engine at idle.
30. Switch off the engine, if bubbles are visible in
the clear plastic tube.
E114807
G1163607en2008.50 Kuga8/2011
307-01- 64
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 64
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1886 of 2057

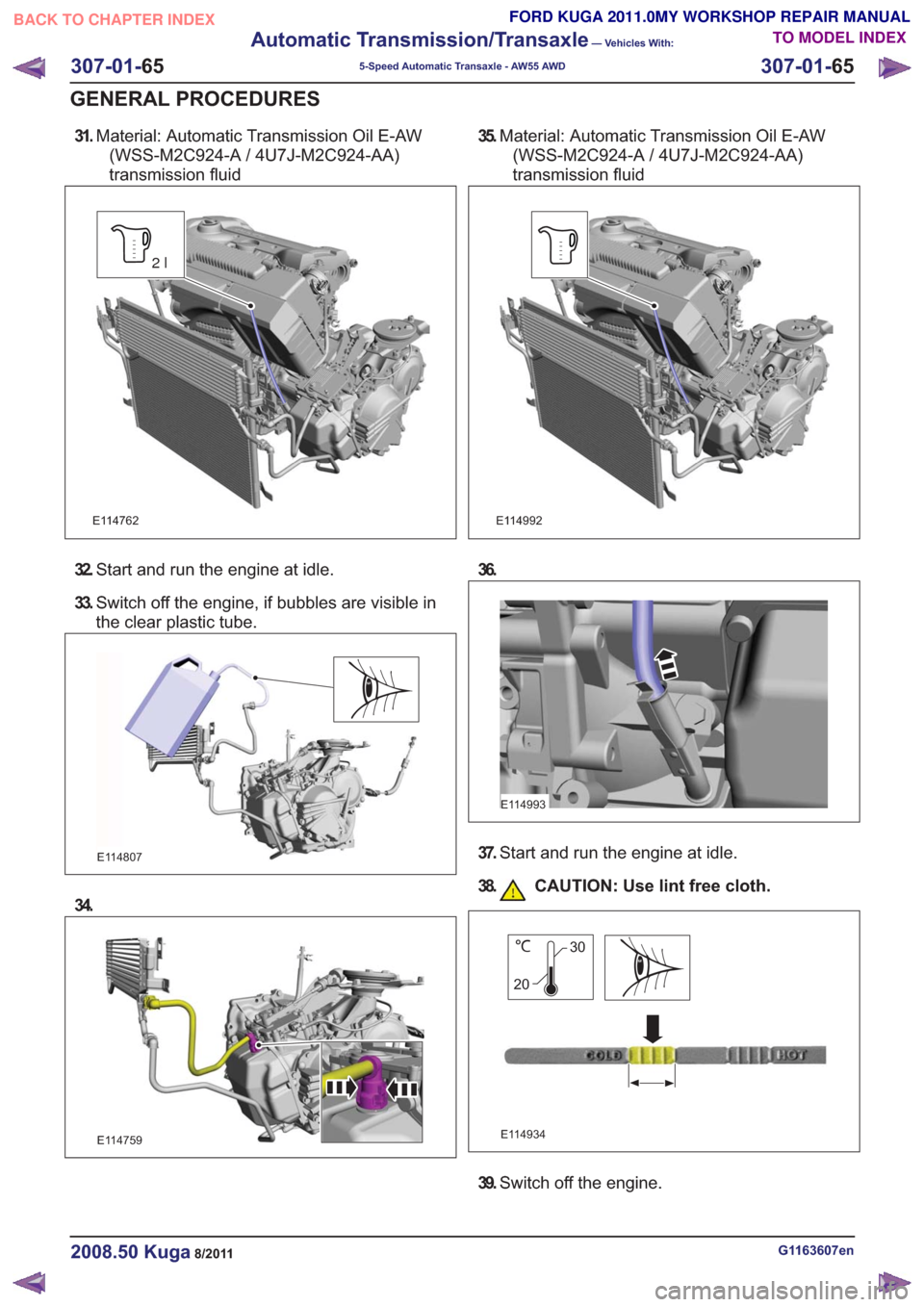

31.Material: Automatic Transmission Oil E-AW
(WSS-M2C924-A / 4U7J-M2C924-AA)
transmission fluid
E114762
2l
32. Start and run the engine at idle.
33. Switch off the engine, if bubbles are visible in
the clear plastic tube.
E114807
34.
E114759
35.Material: Automatic Transmission Oil E-AW
(WSS-M2C924-A / 4U7J-M2C924-AA)
transmission fluid
E114992
36.
E114993
37. Start and run the engine at idle.
38. CAUTION: Use lint free cloth.
E114934
30
20
39. Switch off the engine.
G1163607en2008.50 Kuga8/2011
307-01- 65
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 65
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1887 of 2057

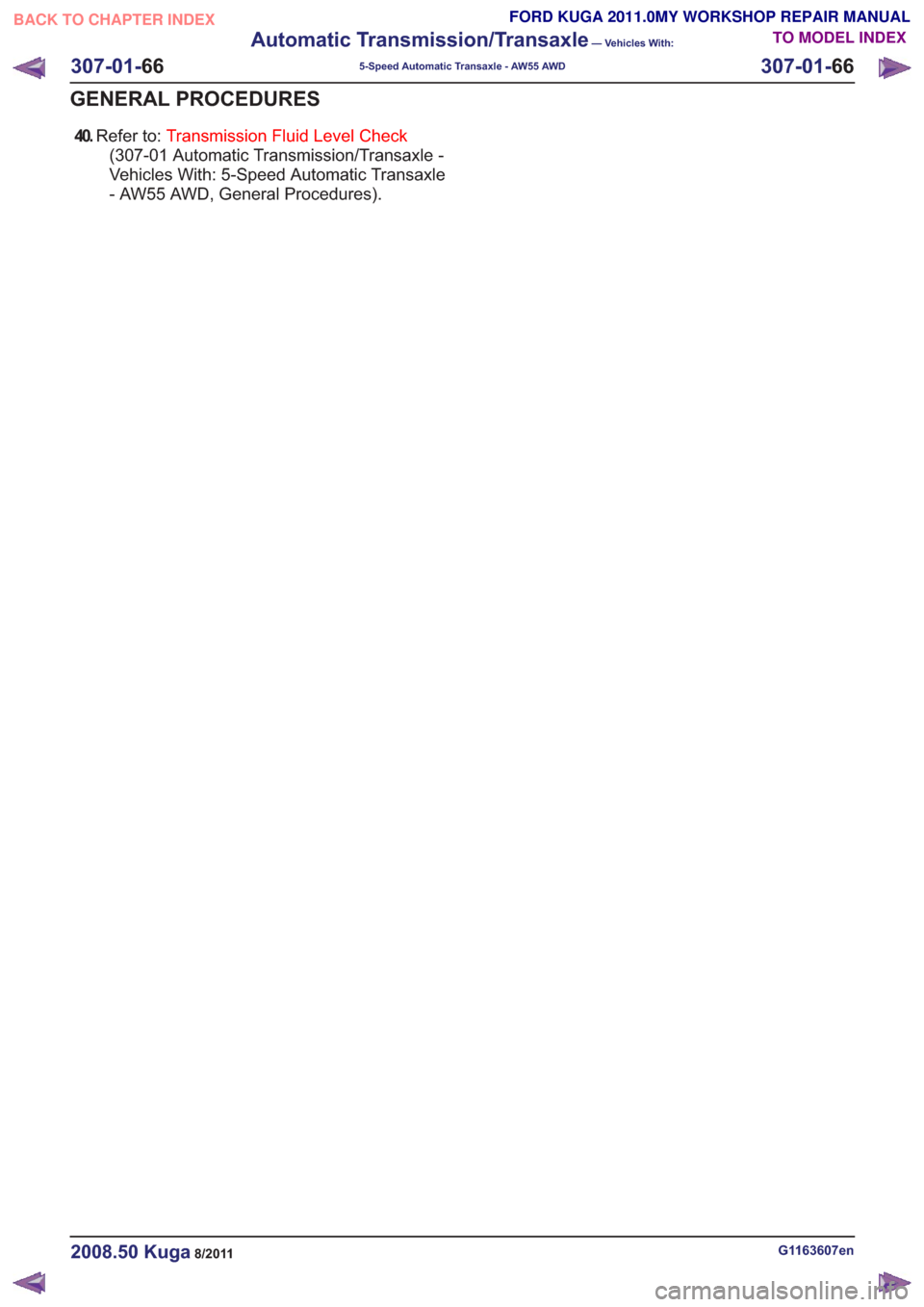

40.Refer to: Transmission Fluid Level Check
(307-01 Automatic Transmission/Transaxle -
Vehicles With: 5-Speed Automatic Transaxle
- AW55 AWD, General Procedures).
G1163607en2008.50 Kuga8/2011
307-01- 66
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 66
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1888 of 2057

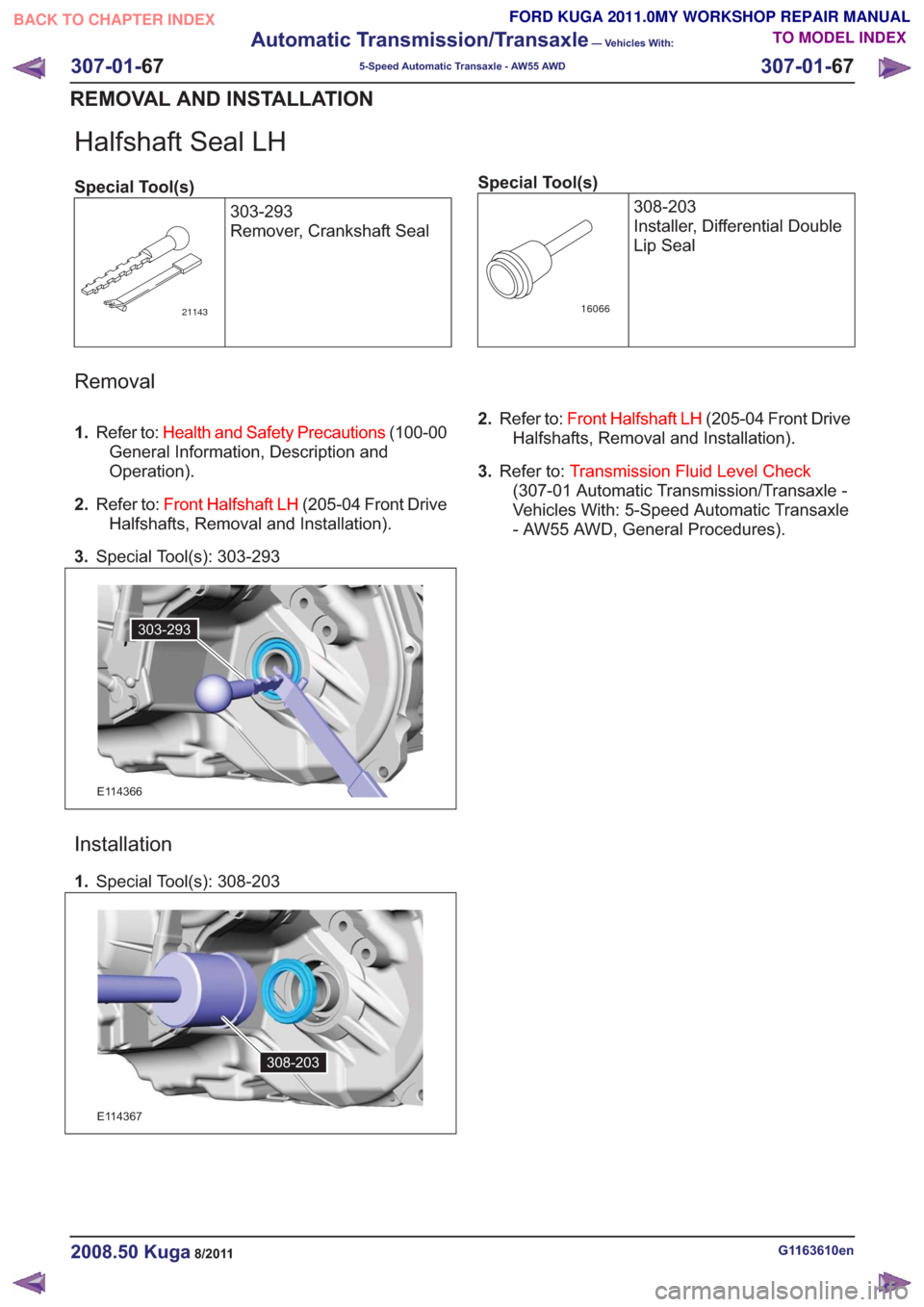

Halfshaft Seal LH
Special Tool(s)303-293
Remover, Crankshaft Seal
21143
Special Tool(s)308-203
Installer, Differential Double
Lip Seal
16066
Removal
1.Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2. Refer to: Front Halfshaft LH (205-04 Front Drive
Halfshafts, Removal and Installation).
3. Special Tool(s): 303-293
303-293303-293
E114366
Installation
1.Special Tool(s): 308-203
308-203308-203
E114367
2.Refer to: Front Halfshaft LH (205-04 Front Drive
Halfshafts, Removal and Installation).
3. Refer to: Transmission Fluid Level Check
(307-01 Automatic Transmission/Transaxle -
Vehicles With: 5-Speed Automatic Transaxle
- AW55 AWD, General Procedures).
G1163610en2008.50 Kuga8/2011
307-01- 67
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 67
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1889 of 2057

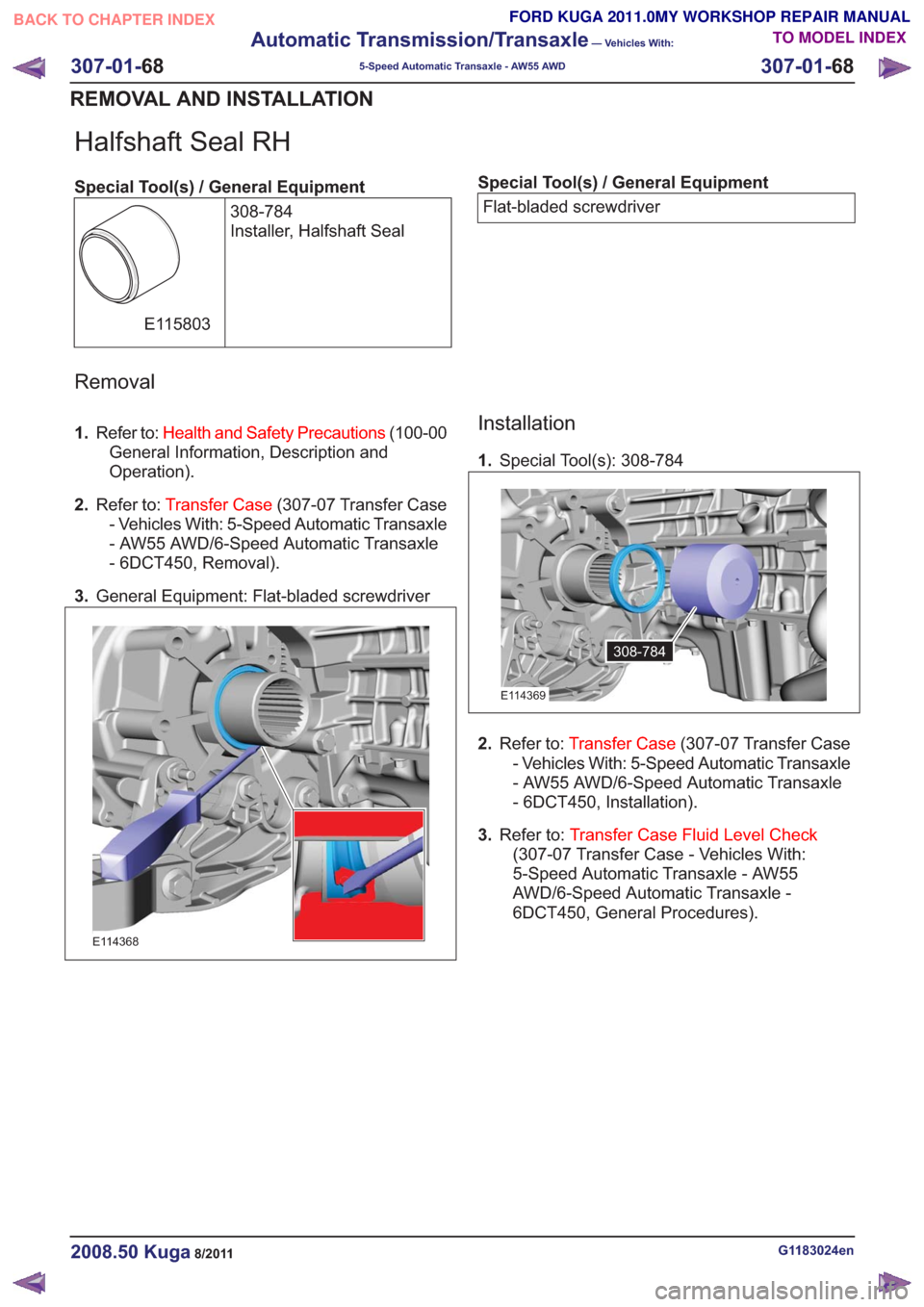

Halfshaft Seal RH
Special Tool(s) / General Equipment308-784
Installer, Halfshaft Seal
E115803
Special Tool(s) / General EquipmentFlat-bladed screwdriver
Removal
1. Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2. Refer to: Transfer Case (307-07 Transfer Case
- Vehicles With: 5-Speed Automatic Transaxle
- AW55 AWD/6-Speed Automatic Transaxle
- 6DCT450, Removal).
3. General Equipment: Flat-bladed screwdriver
E114368
Installation
1.Special Tool(s): 308-784
308-784308-784
E114369
2.Refer to: Transfer Case (307-07 Transfer Case
- Vehicles With: 5-Speed Automatic Transaxle
- AW55 AWD/6-Speed Automatic Transaxle
- 6DCT450, Installation).
3. Refer to: Transfer Case Fluid Level Check
(307-07 Transfer Case - Vehicles With:
5-Speed Automatic Transaxle - AW55
AWD/6-Speed Automatic Transaxle -
6DCT450, General Procedures).
G1183024en2008.50 Kuga8/2011
307-01- 68
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 68
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1890 of 2057

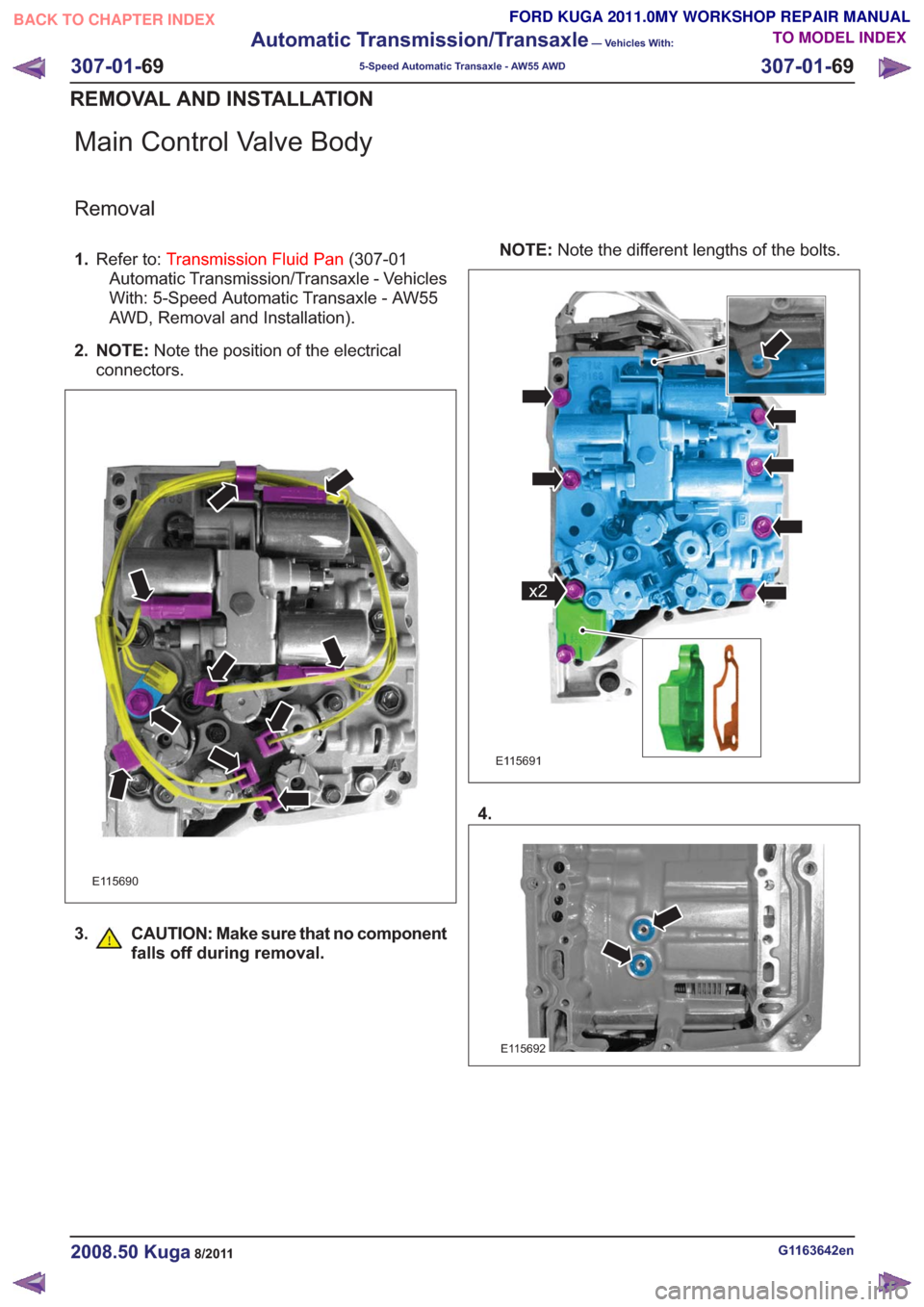

Main Control Valve Body
Removal
1.Refer to: Transmission Fluid Pan (307-01
Automatic Transmission/Transaxle - Vehicles
With: 5-Speed Automatic Transaxle - AW55
AWD, Removal and Installation).
2. NOTE: Note the position of the electrical
connectors.
E115690
3. CAUTION: Make sure that no component falls off during removal.
NOTE: Note the different lengths of the bolts.
E115691
x2
4.
E115692
G1163642en2008.50 Kuga8/2011
307-01- 69
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 69
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1891 of 2057

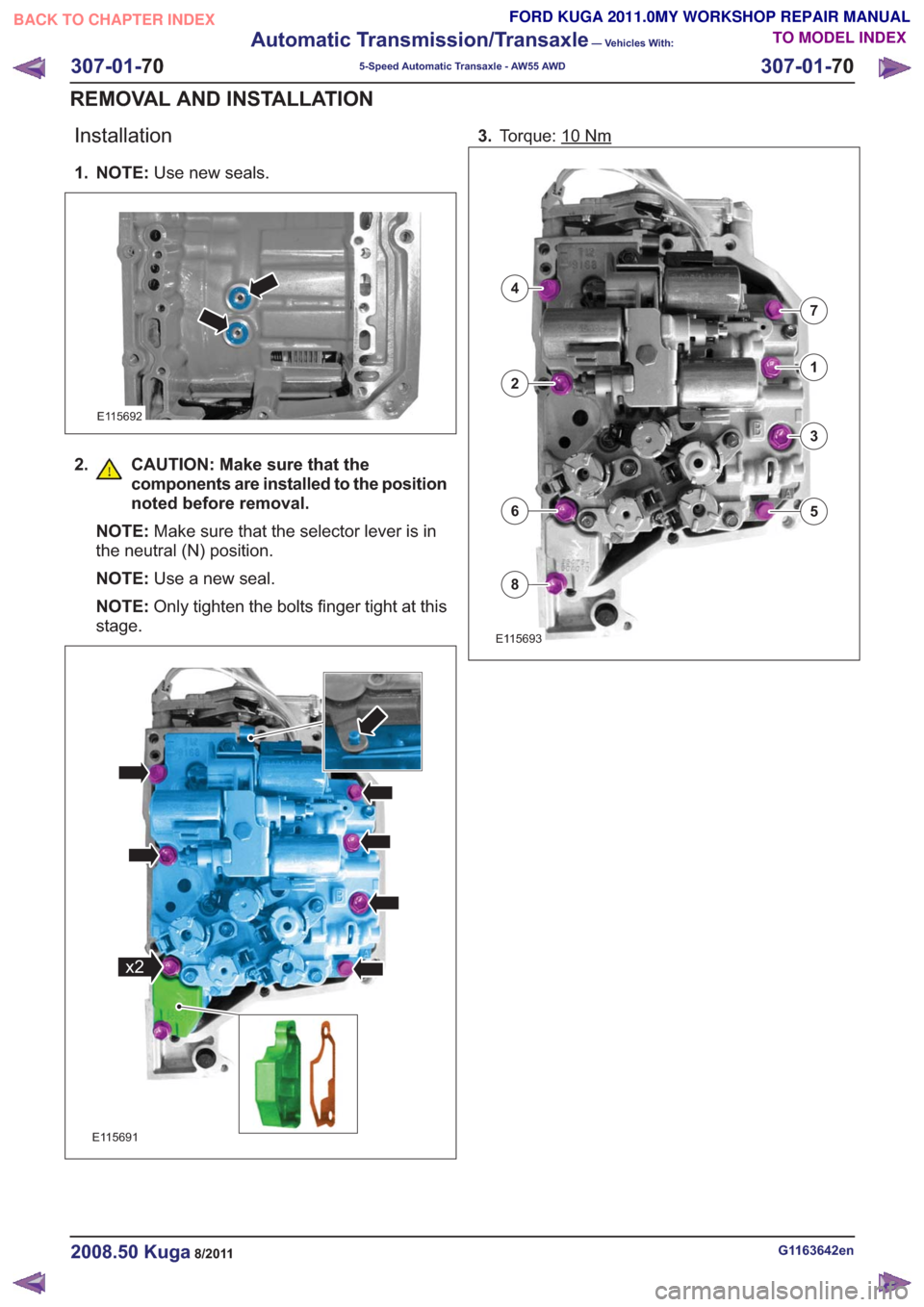

Installation
1. NOTE:Use new seals.
E115692
2. CAUTION: Make sure that the
components are installed to the position
noted before removal.
NOTE: Make sure that the selector lever is in
the neutral (N) position.
NOTE: Use a new seal.
NOTE: Only tighten the bolts finger tight at this
stage.
E115691
x2
3. Torque: 10Nm
E115693
1
3
7
5
2
8
6
4
G1163642en2008.50 Kuga8/2011
307-01- 70
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 70
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1892 of 2057

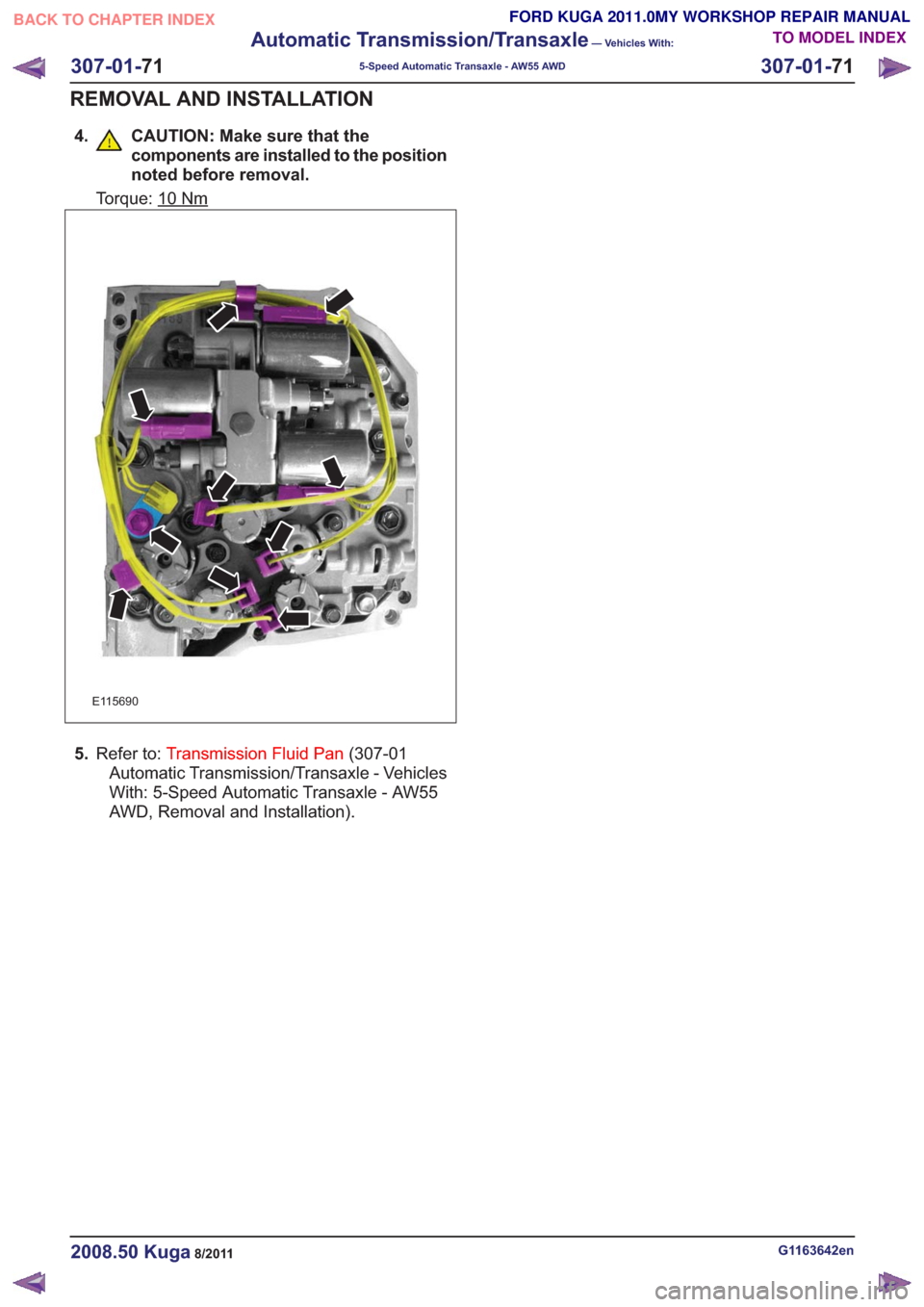

4. CAUTION: Make sure that thecomponents are installed to the position
noted before removal.
Torque: 10Nm
E115690
5.Refer to: Transmission Fluid Pan (307-01
Automatic Transmission/Transaxle - Vehicles
With: 5-Speed Automatic Transaxle - AW55
AWD, Removal and Installation).
G1163642en2008.50 Kuga8/2011
