Index FORD KUGA 2011 1.G Workshop Manual

Transmission Cooling – Component Location
1
2
3
4
E112583
Description
Item
The transmission fluid cooler.
1
Push connect fittings
2Description
Item
From transmission fluid cooler to
transmission
3
From transmission to transmission fluid
cooler
4
G1163663en2008.50 Kuga8/2011
307-02-
2
Transmission/Transaxle Cooling
— Vehicles With: 5-Speed
Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450
307-02- 2
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Transmission Cooling – Overview
Overview
The transmission fluid cooler is secured on the
radiator.
The transmission fluid cooler operates according
to the heat exchanger principle. The ram air
passing through the radiator withdraws heat from
the transmission fluid.
G1163664en2008.50 Kuga8/2011
307-02-3
Transmission/Transaxle Cooling
— Vehicles With: 5-Speed
Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450
307-02- 3
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Transmission Fluid Cooler — Vehicles With: 5-Speed AutomaticTransaxle - AW55 AWD
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2.
x2
x4
x2
x4
E114921
3.
x4x4
E114919
4. If equipped.
2.
1212
E114920
5.
G1163667en2008.50 Kuga8/2011
307-02- 4
Transmission/Transaxle Cooling
— Vehicles With: 5-Speed
Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450
307-02- 4
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

E114922
7.Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
8.
E98184
G1163667en2008.50 Kuga8/2011
307-02- 5
Transmission/Transaxle Cooling
— Vehicles With: 5-Speed
Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450
307-02- 5
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

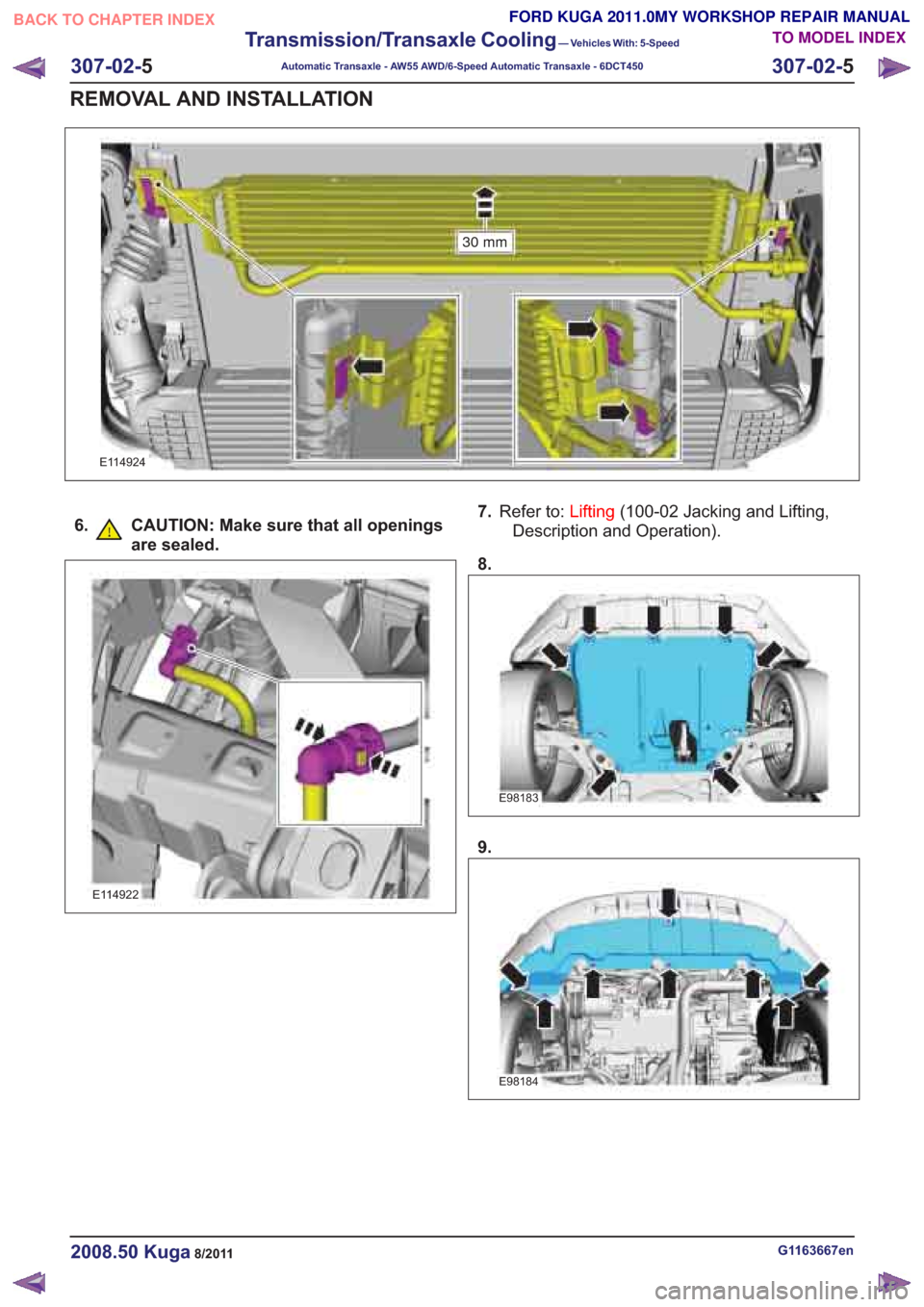

E114924
6. CAUTION: Make sure that all openings
are sealed.
9.
30 mm
E98183

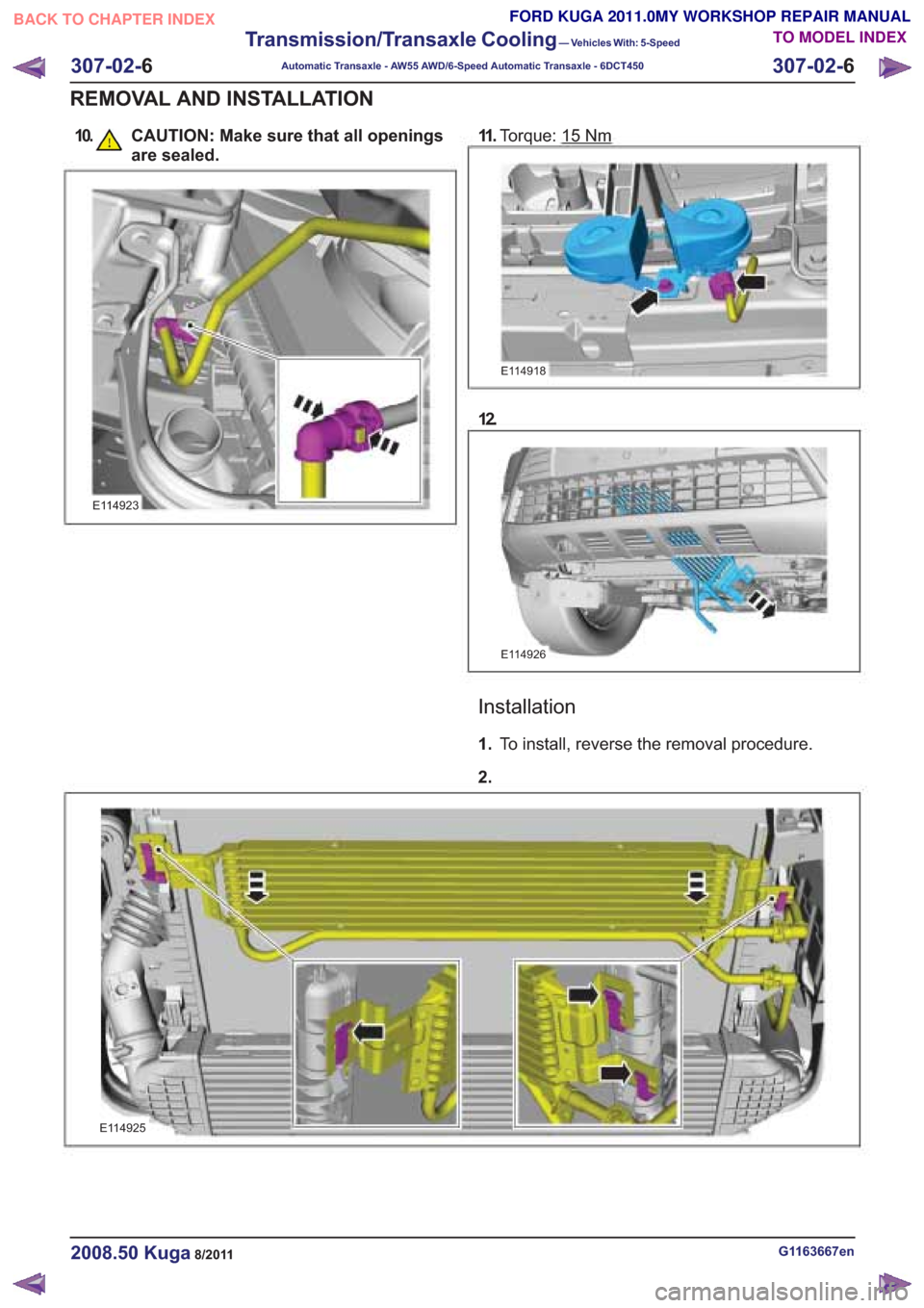

10. CAUTION: Make sure that all openingsare sealed.
E114923
11 .Torque: 15Nm
307-02- 6
Transmission/Transaxle Cooling
— Vehicles With: 5-Speed
Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450
307-02- 6
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
E114918
12.
E114926
Installation
1.
To install, reverse the removal procedure.
2.
G1163667en2008.50 Kuga8/2011
E114925

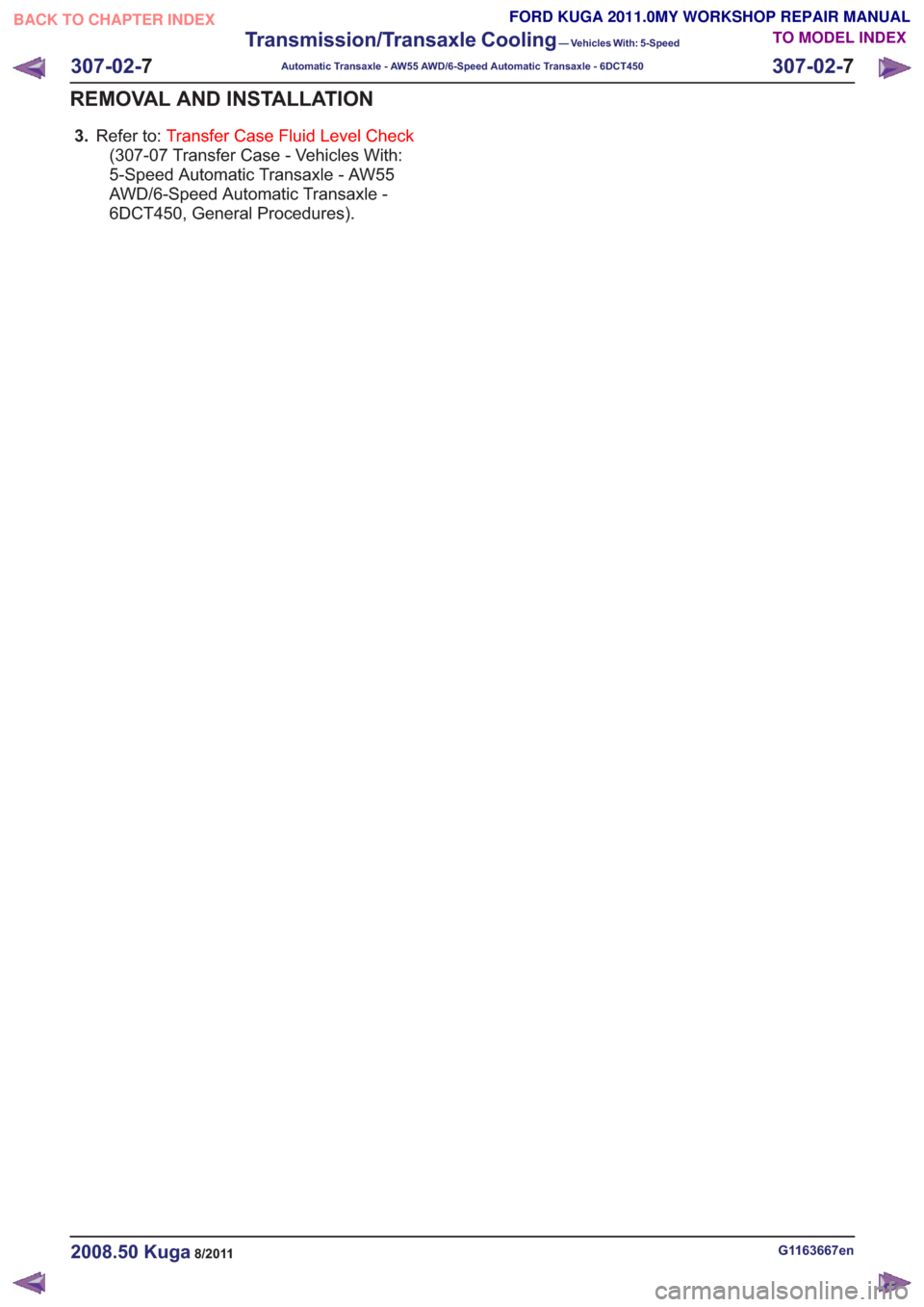

3.Refer to: Transfer Case Fluid Level Check
(307-07 Transfer Case - Vehicles With:
5-Speed Automatic Transaxle - AW55
AWD/6-Speed Automatic Transaxle -
6DCT450, General Procedures).
G1163667en2008.50 Kuga8/2011
307-02- 7
Transmission/Transaxle Cooling
— Vehicles With: 5-Speed
Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450
307-02- 7
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

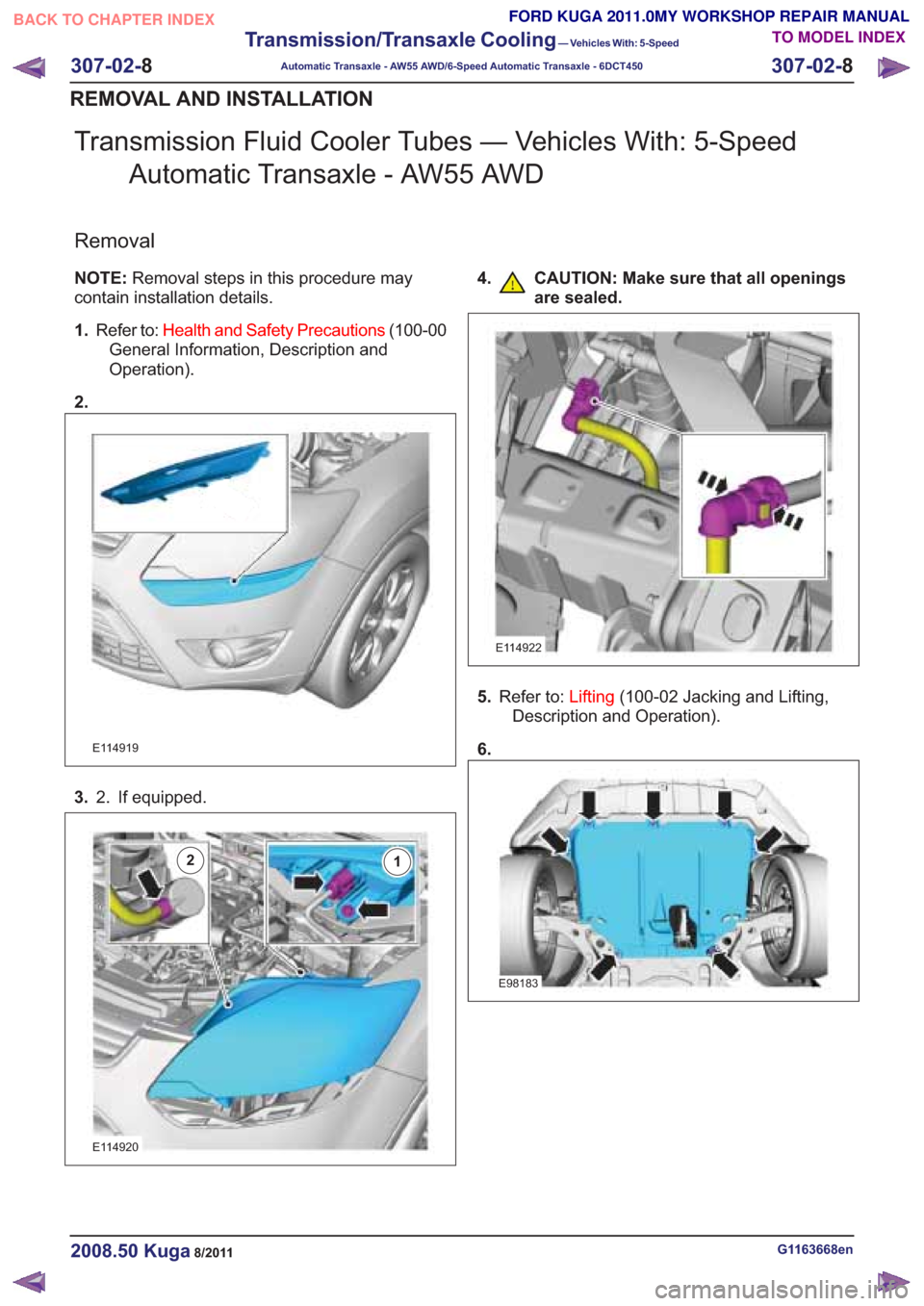

Transmission Fluid Cooler Tubes — Vehicles With: 5-SpeedAutomatic Transaxle - AW55 AWD
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2.
x4x4
E114919
3. If equipped.
2.
1212
E114920
4. CAUTION: Make sure that all openings
are sealed.
E114922
5.Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
6.
E98183
G1163668en2008.50 Kuga8/2011
307-02- 8
Transmission/Transaxle Cooling
— Vehicles With: 5-Speed
Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450
307-02- 8
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

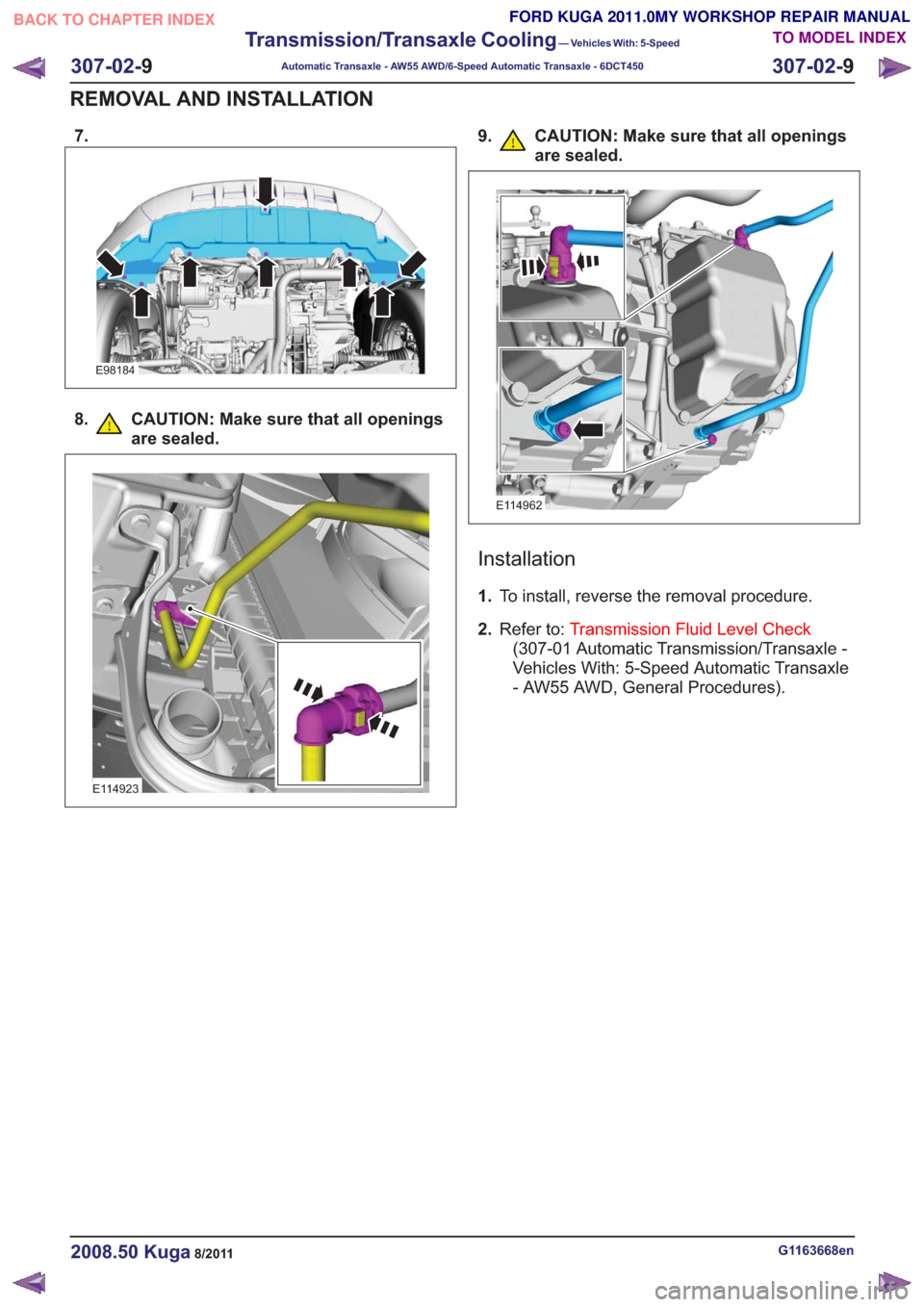

7.
E98184
8. CAUTION: Make sure that all openingsare sealed.
E114923
9. CAUTION: Make sure that all openingsare sealed.
E114962
Installation
1.To install, reverse the removal procedure.
2. Refer to: Transmission Fluid Level Check
(307-01 Automatic Transmission/Transaxle -
Vehicles With: 5-Speed Automatic Transaxle
- AW55 AWD, General Procedures).
G1163668en2008.50 Kuga8/2011
307-02- 9
Transmission/Transaxle Cooling
— Vehicles With: 5-Speed
Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450
307-02- 9
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

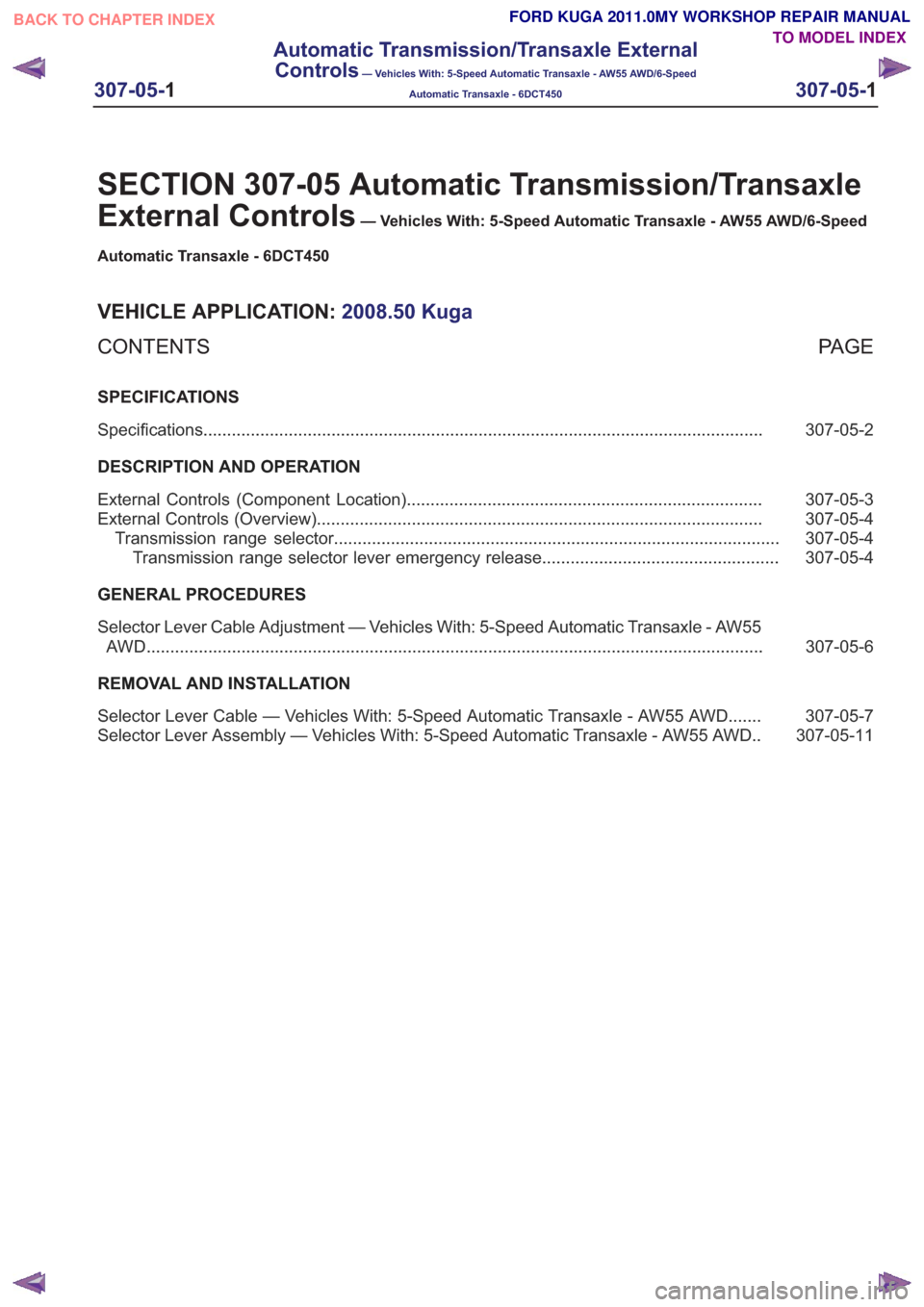

SECTION 307-05 Automatic Transmission/Transaxle
External Controls
— Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed
Automatic Transaxle - 6DCT450
VEHICLE APPLICATION: 2008.50 Kuga
PA G E
CONTENTS
SPECIFICATIONS
307-05-2
Specifications ........................................................................\
..............................................
DESCRIPTION AND OPERATION 307-05-3
External Controls (Component Location) ........................................................................\
...
307-05-4
External Controls (Overview) ........................................................................\
......................
307-05-4
Transmission range selector ........................................................................\
......................
307-05-4
Transmission range selector lever emergency release ..................................................
GENERAL PROCEDURES
307-05-6
Selector Lever Cable Adjustment — Vehicles With: 5-Speed Automatic Transaxle - AW55
AWD ........................................................................\
..........................................................
REMOVAL AND INSTALLATION 307-05-7
Selector Lever Cable — Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD .......
307-05-11
Selector Lever Assembly — Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD ..
307-05-1
Automatic Transmission/Transaxle External
Controls
— Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed
Automatic Transaxle - 6DCT450
307-05-1
.
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

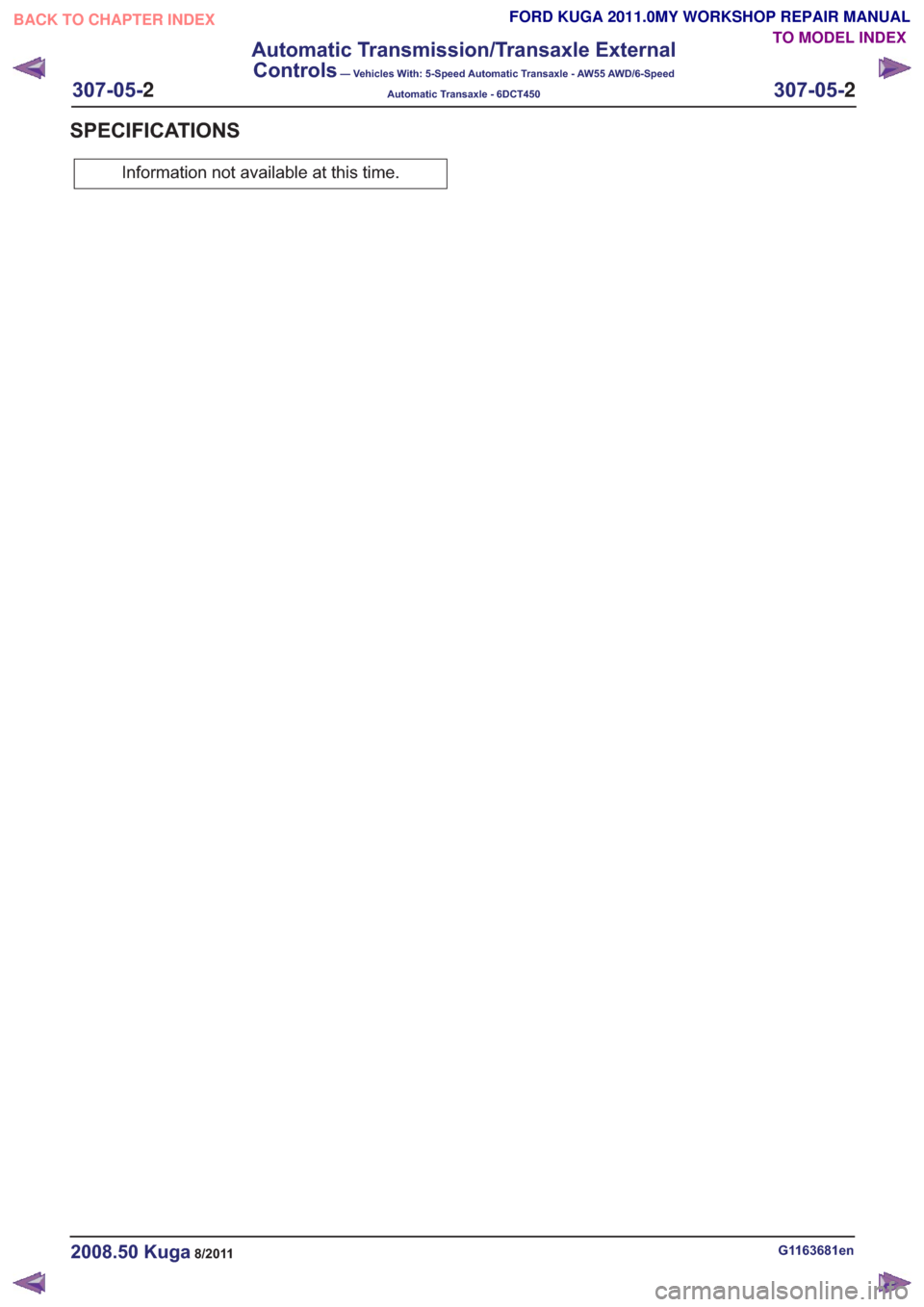

Information not available at this time.
