FORD KUGA 2011 1.G Workshop Manual
Page 1903 of 2057
Transmission
Removal
Special Tool(s) / General Equipment303-290-01
Adapter for 303-290A
2114001
303-290-03A
Adapter for 303-290A
30329003A
303-290-05A
Adapter for 303-290A
30329005A
Special Tool(s) / General Equipment303-290A
Support Bar, Engine
303290A
303-290A-14
Adapter for 303-290A
303290A14
Cable Ties
Transmission Jack
Wooden Block
1. Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2. Refer to: Cowl Panel Grille (501-02 Front End
Body Panels, Removal and Installation).
3.
E114689
G1163644en2008.50 Kuga8/2011
307-01- 82
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 82
REMOVAL
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1904 of 2057
4.On both sides.
Loosen: 3
turn(s)
E99147
x3
5.Refer to: Battery(414-01 Battery, Mounting and
Cables, Removal and Installation).
6.
E101006
7. Refer to: Air Cleaner (303-12 Intake Air
Distribution and Filtering - 2.5L Duratec
(147kW/200PS) - VI5, Removal and
Installation).
8. NOTE: Only tighten the bolts finger tight at this
stage.
E114727
9.
G1163644en2008.50 Kuga8/2011
307-01- 83
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 83
REMOVAL
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1905 of 2057

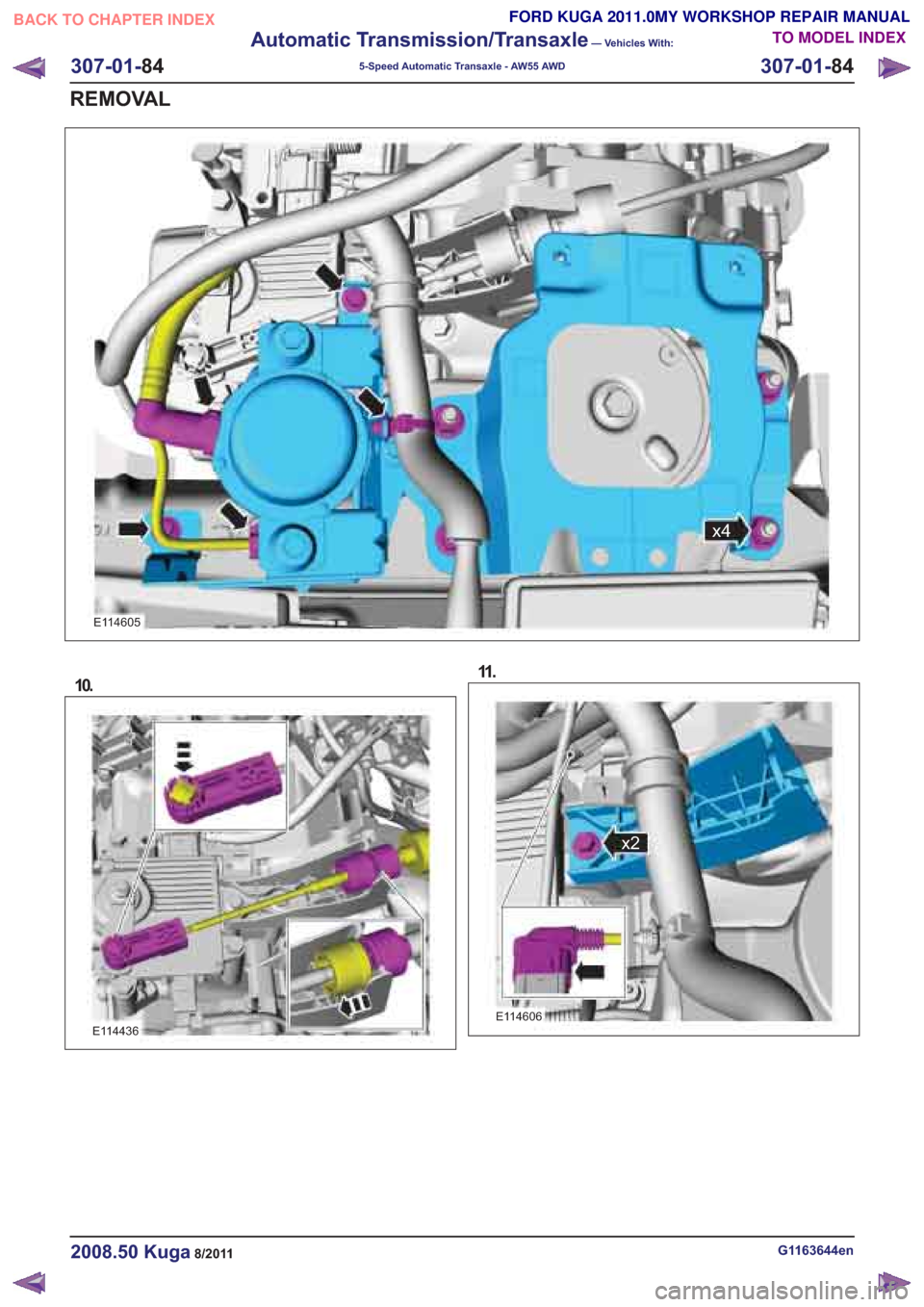

E114605
10.
E114436
11 .
E114606
G1163644en2008.50 Kuga8/2011
307-01-84
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 84
REMOVAL
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
x4
x2
Page 1906 of 2057

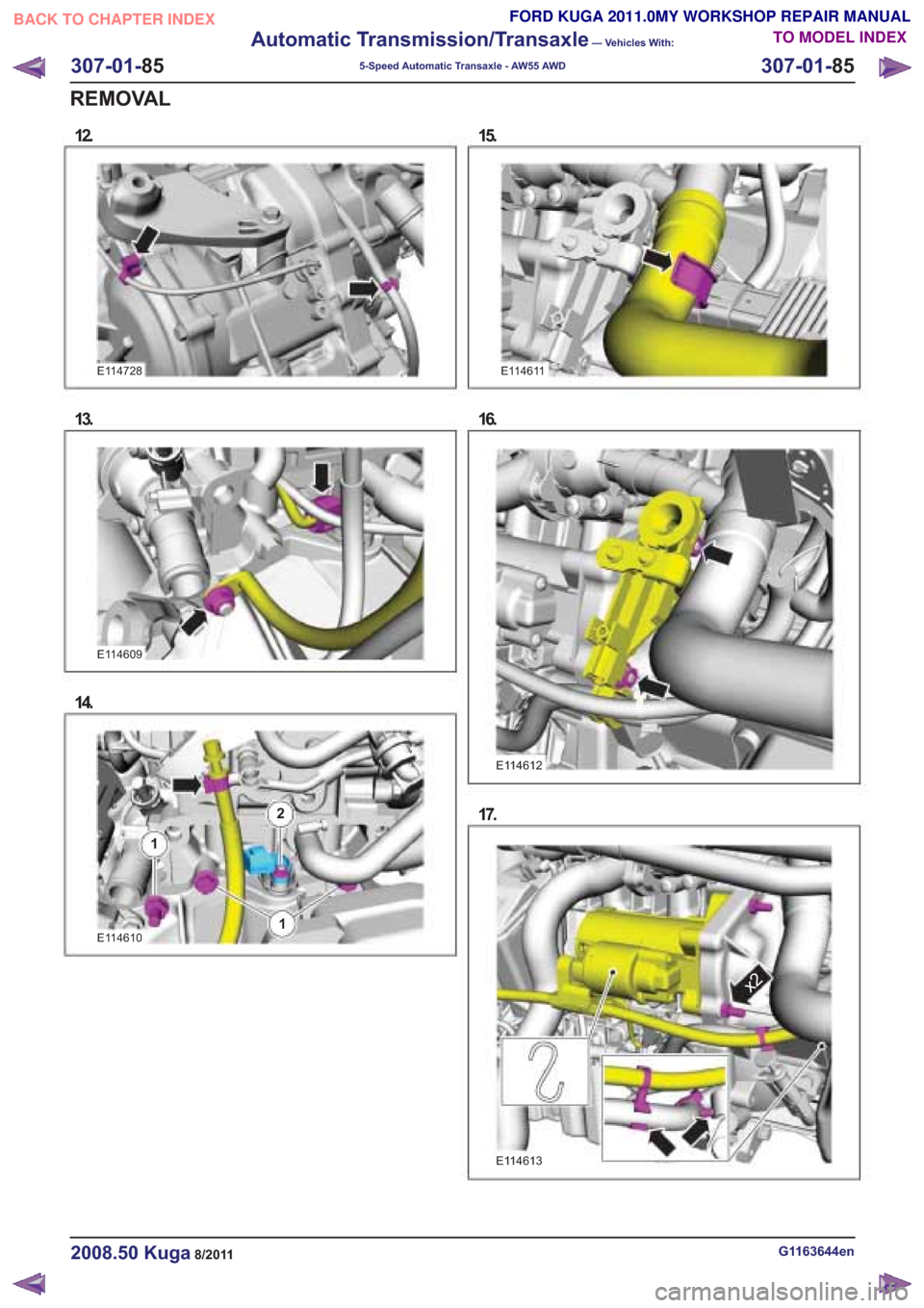

12.
E114610
15.
G1163644en2008.50 Kuga8/2011
307-01-85
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 85
REMOVAL
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
E114728
13.
E114609
14.
E114611
16.
E114612
17.
E114613
1
1
2
x2
Page 1907 of 2057

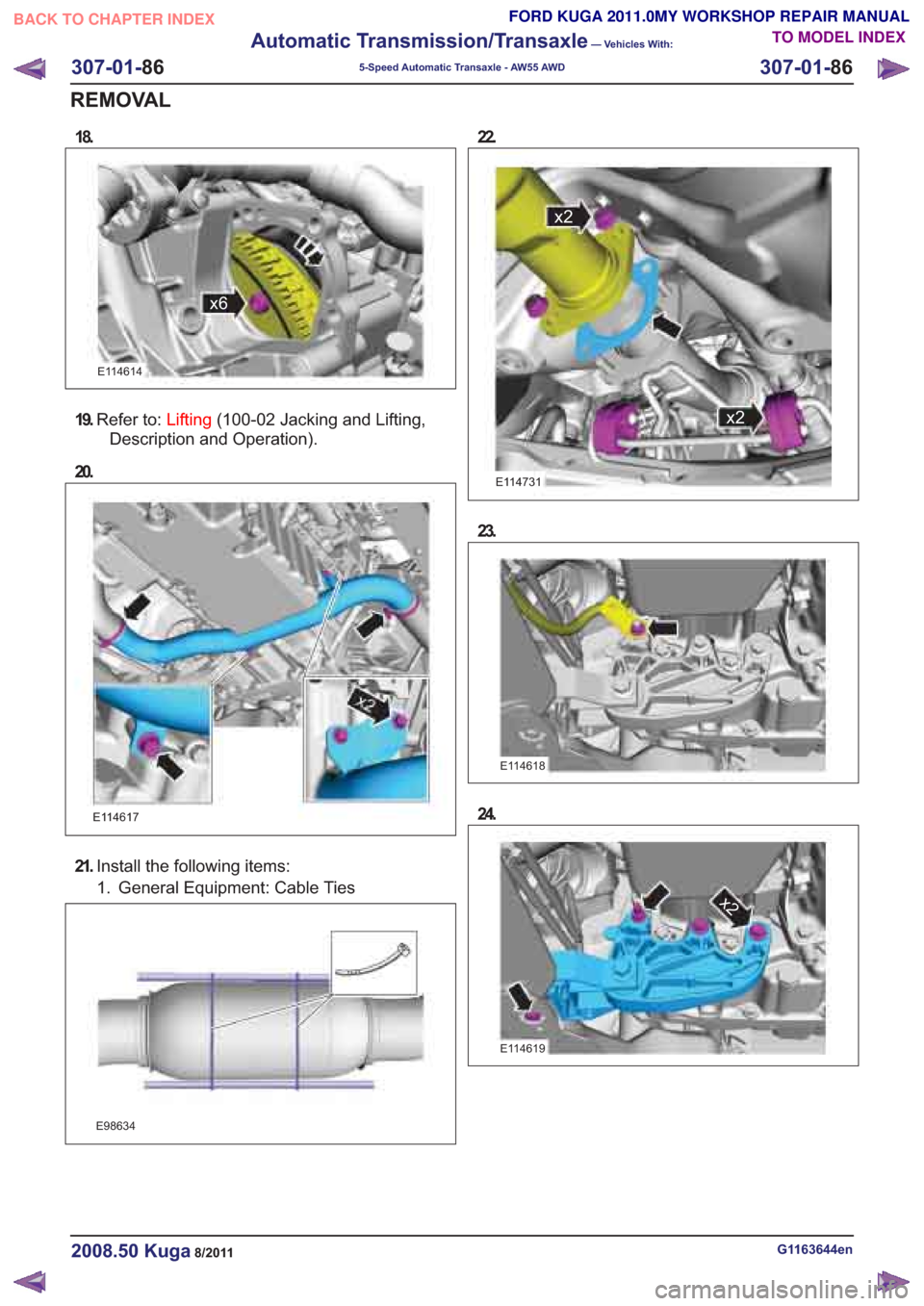

18.
E114614
19.Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
20.
E114617
21. Install the following items:
1. General Equipment: Cable Ties
E98634
22.
x2
E114731
23.
E114618
24.
x2
E114619
G1163644en2008.50 Kuga8/2011
307-01- 86
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 86
REMOVAL
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
TO MODEL INDEX
BACK TO CHAPTER INDEX
x2
x6
Page 1908 of 2057

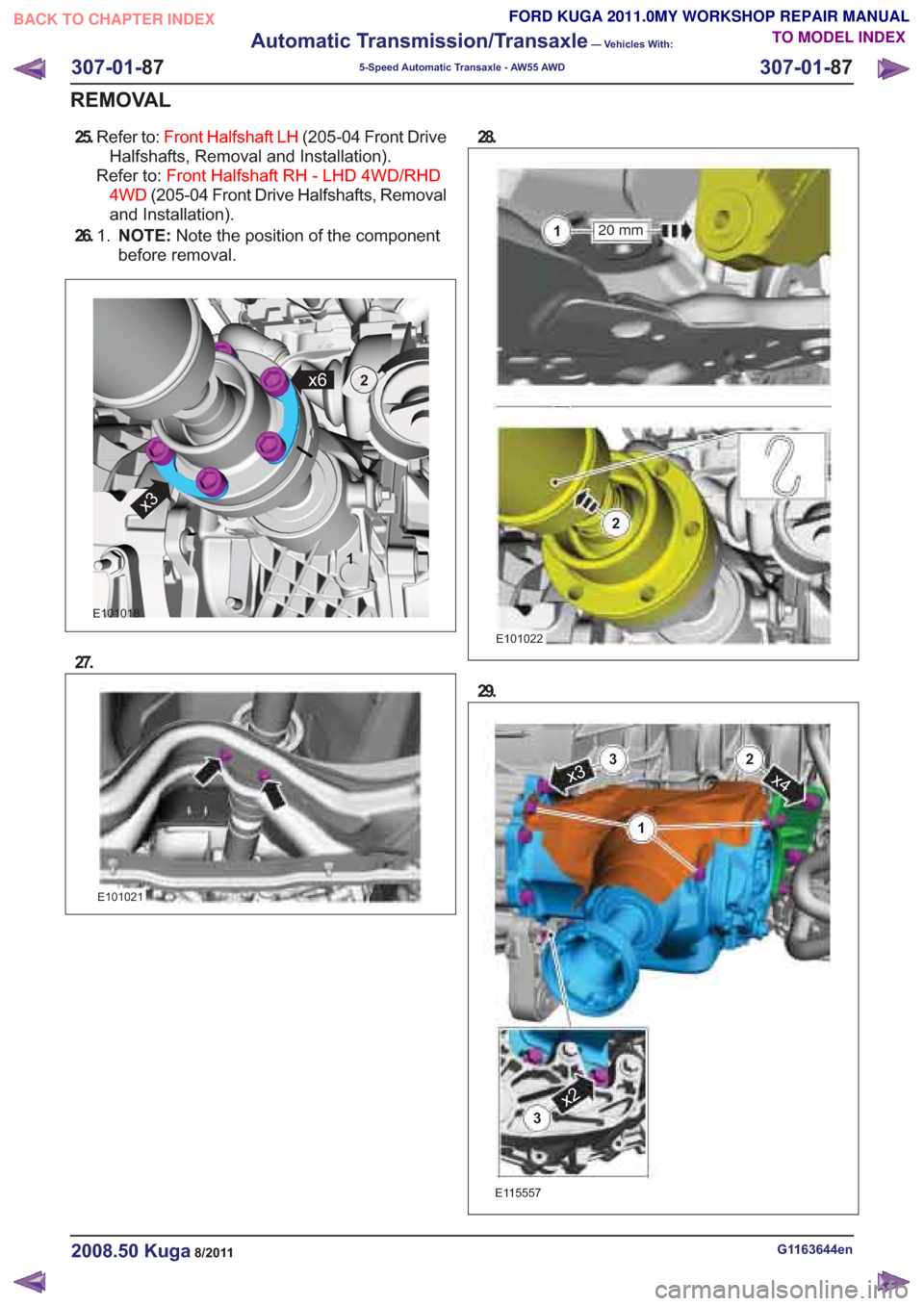

25.Refer to: Front Halfshaft LH (205-04 Front Drive
Halfshafts, Removal and Installation).
Refer to: Front Halfshaft RH - LHD 4WD/RHD
4WD (205-04 Front Drive Halfshafts, Removal
and Installation).
26. NOTE: Note the position of the component
before removal.
1.
E101018
27.
E101021
28.
E115557
G1163644en2008.50 Kuga8/2011
307-01-
87
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 87
REMOVAL
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUALBACK TO CHAPTER INDEX
TO MODEL INDEX
20 mm
1
2
x3
1
2
x4
3
x2
3
x3
1
2
E101022
29.
x6
x3
Page 1909 of 2057

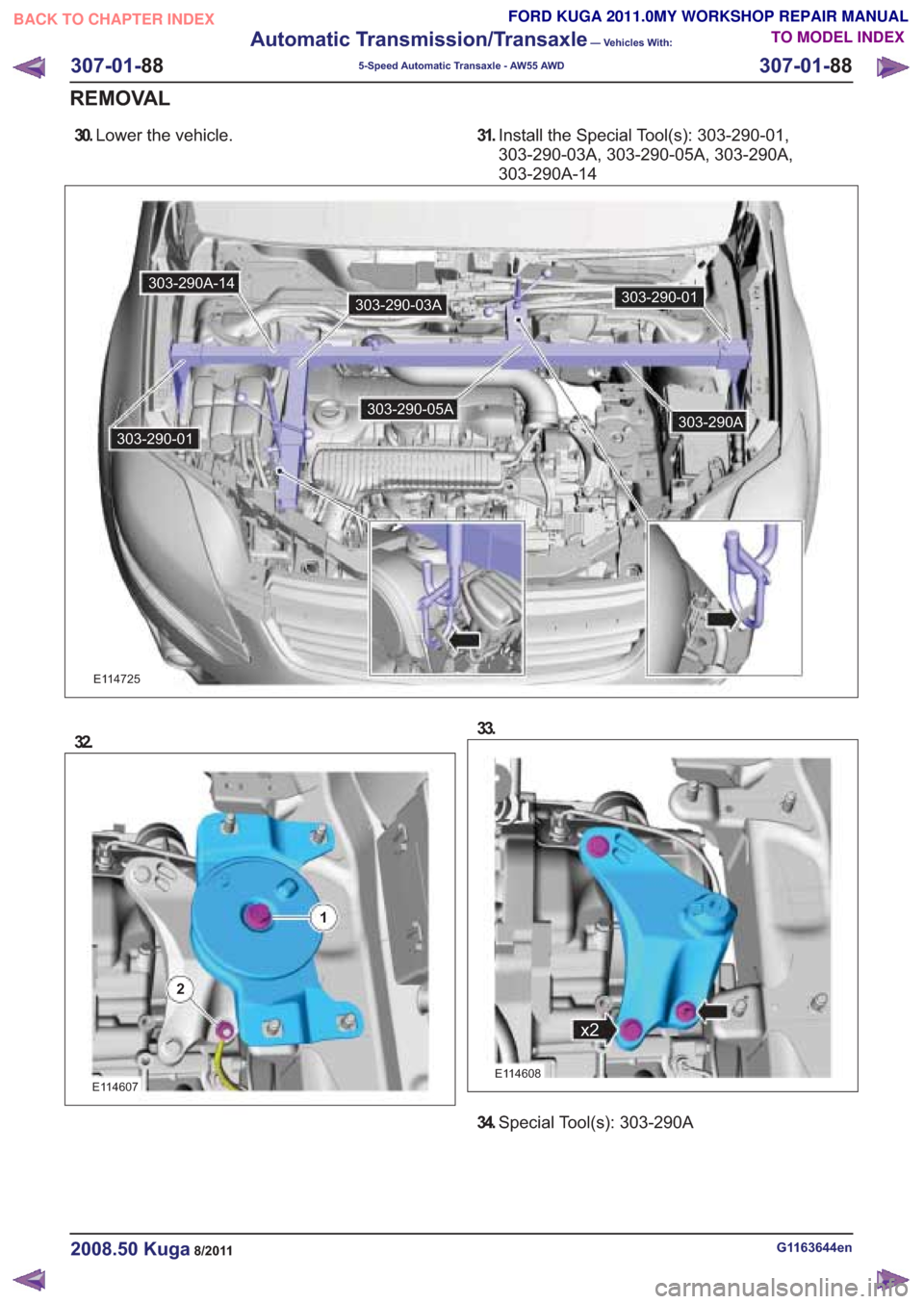

30.Lower the vehicle. 31.Install the Special Tool(s): 303-290-01,
303-290-03A, 303-290-05A, 303-290A,
303-290A-14
307-01- 88
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 88
REMOVAL
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
E114725
32.
E114607
33.
G1163644en2008.50 Kuga8/2011
303-290A
303-290-01
303-290-05A
303-290-03A303-290-01303-290A-14
1
2
x2
E114608
34.
Special Tool(s): 303-290A
Page 1910 of 2057

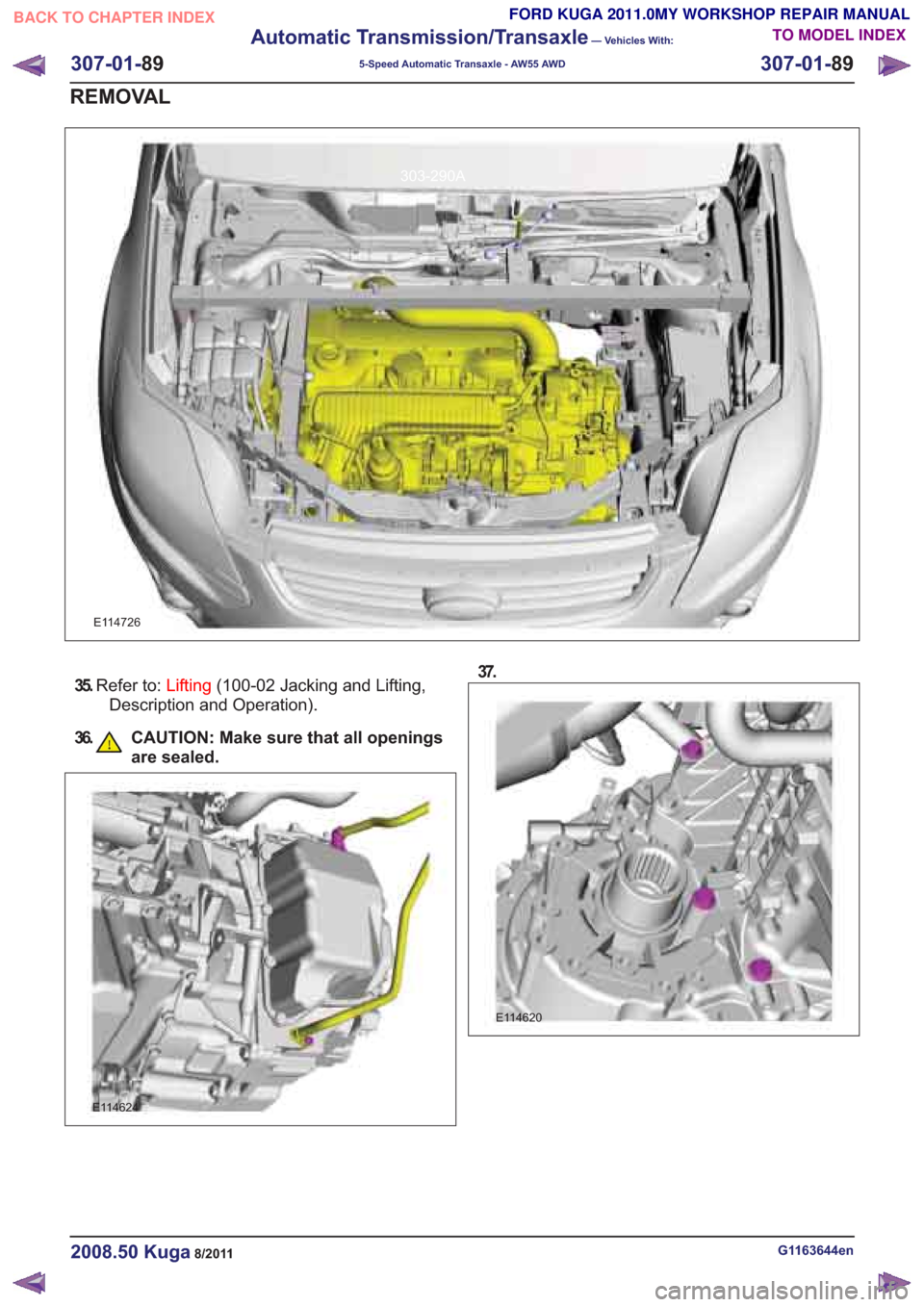

E114726
35.Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
36. CAUTION: Make sure that all openings are sealed.
E114624
37.
G1163644en2008.50 Kuga8/2011
307-01-89
AutomaticTransmission/Transaxle—VehiclesWith:
5-SpeedAutomaticTransaxle-AW55AWD307-01-89
REMOVAL
TO MODEL INDEX
BACK TO CHAPTER INDEXFORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
303-290A
x2
E114620
Page 1911 of 2057
38.
E114622
39.Install the following items:
1. General Equipment: Wooden Block General Equipment: Transmission Jack
E114733
40.
E114621
41.
x2x2
E114623
42. WARNING: This step requires the aid of another technician.
General Equipment: Transmission Jack
x2x2
E114734
G1163644en2008.50 Kuga8/2011
307-01- 90
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 90
REMOVAL
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
Page 1912 of 2057
Transmission
Installation
Special Tool(s) / General Equipment303-290-01
Adapter for 303-290A
2114001
303-290-03A
Adapter for 303-290A
30329003A
303-290-05A
Adapter for 303-290A
30329005A
303-290A
Support Bar, Engine
303290A
303-290A-14
Adapter for 303-290A
303290A14
Cable Ties
Round-Ended Steel Rule
Transmission Jack
Wooden Block
Materials
Specification
Name
ESD-M1C220-A /
A88SX1C220AA
Grease K-HT
SA-M1C9107-A / YS5J-
M1C9107-AA
Grease KS-PS
1. Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2. Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
3. General Equipment: Round-Ended Steel Rule
14 mm14 mm
E114801
4. WARNING: This step requires the aid of
another technician.
CAUTIONS:
Make sure that the locating dowels
remain installed.
G1163646en2008.50 Kuga8/2011
307-01- 91
Automatic Transmission/Transaxle
— Vehicles With:
5-Speed Automatic Transaxle - AW55 AWD
307-01- 91
INSTALLATION
