jacking FORD KUGA 2011 1.G User Guide

DETAILS/RESULTS/ACTIONS
TEST CONDITIONS
4 Carry out the Strut or Shock Absorber Testing
component test in this procedure.
• Are any of the strut and spring assemblies or shock absorber components damaged?
zYe s
INSTALL new components as necessary.
REFER to:
Front Strut and Spring Assembly (204-01 Front
Suspension, Removal and Installation),
Spring (204-02 Rear Suspension, Removal and
Installation).
zNo
REINSTALL the strut and spring assemblies
or shock absorbers. GO to C1.
PINPOINT TEST C : VEHICLE LEAN
DETAILS/RESULTS/ACTIONS
TEST CONDITIONS
C1: VEHICLE LEAN
1 Detach the load levelling shock absorbers from
the wheel knuckles.
• Does the vehicle lean?
zYe s Install new rear springs.
REFER to: Spring(204-02 Rear Suspension,
Removal and Installation).
TEST the system for normal operation.
zNo
CARRY OUT the Load-Levelling Shock
Absorber Component Test in this section.
Component Tests
Raise and support the vehicle. REFER to: (100-02
Jacking and Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
Ball Joint Inspection
1. Firmly grasp the outer end of the suspension
lower arm and try to move it up and down,
watching and feeling for any movement. Free
movement will usually be accompanied by an
audible "click''. There should be no free
movement. 2. If there is any free movement install a new lower
arm.
REFER to: Lower Arm (204-01 Front
Suspension, Removal and Installation).
G1080717en2008.50 Kuga8/2011
204-00- 12
Suspension System - General Information
204-00- 12
DIAGNOSIS AND TESTING
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Rear Toe Adjustment(15 211 3)
General EquipmentWheel Alignment System
NOTE: Make sure that the vehicle is standing on
a level surface.
1. Check the toe setting.
Refer to: Specifications (204-02 Rear
Suspension, Specifications).
General Equipment: Wheel Alignment System
2. Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
3. Loosen the rear lower arm adjustment cam nut
on both sides.
Torque: 18
Nm
E69309
4.Lower the vehicle.
5. Bounce the vehicle to make sure that the
suspension is in its normal resting position.
6. Adjust the toe setting.
E69678
7. NOTE: Only tighten the nuts and bolts when the
suspension is in the normal drive position.
Torque: 90
Nm
E69309
G1000722en2008.50 Kuga8/2011
204-00- 16
Suspension System - General Information
204-00- 16
GENERAL PROCEDURES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Wheel and Tire
Removal
CAUTION: Do not use heat to loosen a
seized wheel nut.
1. Loosen: 360°
E74933
x5
2.Refer to: Jacking(100-02 Jacking and Lifting,
Description and Operation).
Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
3.
E74934
x5
Installation
1. WARNING: Make sure that the mating faces are clean and free of corrosion
and foreign material
NOTE: Only tighten the nuts finger tight at this
stage.
E74934
x5
2. Lower the vehicle.
3. Tighten the wheel nuts in the sequence shown.
Torque: 130
Nm
E74931
1
43
25
G1000251en2008.50 Kuga8/2011
204-04- 11
Wheels and Tires
204-04- 11
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Driveshaft(15 514 0)
Removal
All vehicles
1.Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2. Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
3.
E98543
x7
Vehicles with 2.0L diesel engine
4.
E114034
Vehicles with 2.5L engine
5.
E114375
All vehicles
6.
x2
x2
x2
x2
x2
x2
E114188
G1070580en2008.50 Kuga8/2011
205-01- 2
Driveshaft
205-01- 2
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Active On-Demand Coupling Module
MaterialsSpecification
Name
8U7J-8708687-AA
Transmission Oil AWD
Removal
All vehicles
1. Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2. Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
Vehicles with 2.0L diesel engine
3.
x2x2
E102531
4.
1
2x6x3
1
2x6x3
E101687
5.
x4
x2
x4
x2
E102544
G1076971en2008.50 Kuga8/2011
205-02- 25
Rear Drive Axle/Differential
205-02- 25
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Differential Input Shaft Seal
Special Tool(s) / General Equipment204-093
Remover/Installer, Lower Arm
Bushing
14032
205-072
Universal Flange Holding
Wrench
15030A
205-078
Remover, Drive Pinion Seal
15048
Special Tool(s) / General Equipment205-078-01
Adapter for 205-078 (Thrust
Pad)
1504801
303-249
Remover, Crankshaft Timing
Pulley
21132
Puller
Removal
All vehicles
1.Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2. Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
3.
E98543
x7
4.
E114034
5.
G1076972en2008.50 Kuga8/2011
205-02- 32
Rear Drive Axle/Differential
205-02- 32
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

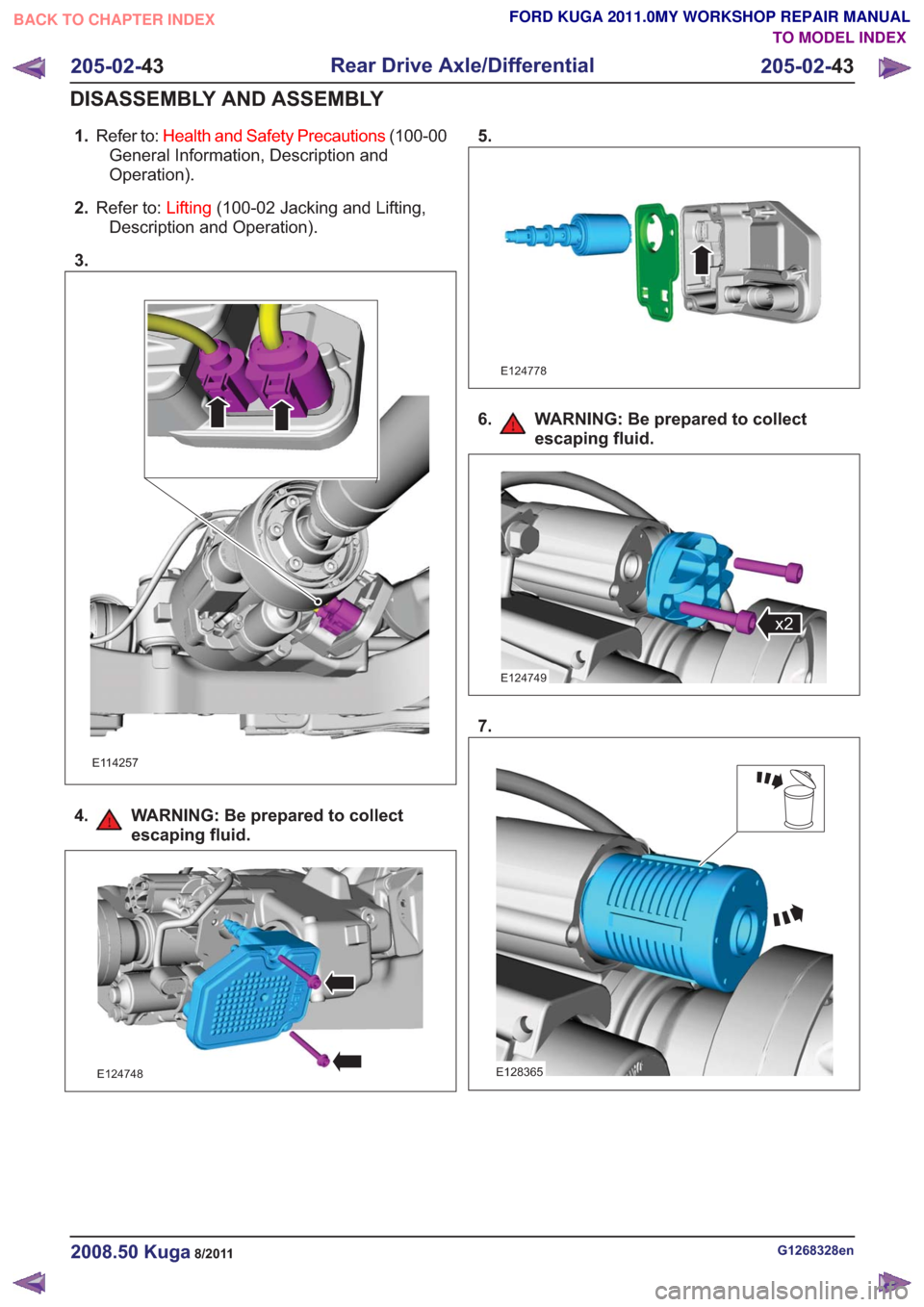

1.Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
2. Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
3.
E114257
4. WARNING: Be prepared to collect escaping fluid.
E124748
5.
E124778
6. WARNING: Be prepared to collectescaping fluid.
x2x2
E124749
7.
E128365
G1268328en2008.50 Kuga8/2011
205-02- 43
Rear Drive Axle/Differential
205-02- 43
DISASSEMBLY AND ASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

2.Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
Refer to: Wheel and Tire (204-04 Wheels and
Tires, Removal and Installation).
3. NOTE: This step is only necessary when
installing a new component.
E99269
4.
E101039
5. WARNING: Make sure that no load is placed on the brake hose.
E100801
G1076961en2008.50 Kuga8/2011
205-04- 6
Front Drive Halfshafts
205-04- 6
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Front Halfshaft RH — LHD 4WD/RHD 4WD(14 321 0)
Special Tool(s) / General Equipment204-159
Lever, Wheel Knuckle
14039
204-602
Installer, Halfshaft
E62067
204-605
Separator, Lower Arm Ball
Joint
E63772
204-609
Protection Cap, Ball Joint
Gaiter
E75372
205-071-01
Adapter for 205-071 (Thrust
Pad)
15026A01
211-020
Separator, Ball Joint
13006
Puller
Removal
1. NOTE:This step is only necessary when
installing a new component.
E99184
2. Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
Refer to: Wheel and Tire (204-04 Wheels and
Tires, Removal and Installation).
3. NOTE: This step is only necessary when
installing a new component.
E102112
G1076962en2008.50 Kuga8/2011
205-04- 16
Front Drive Halfshafts
205-04- 16
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Rear Halfshaft
Special Tool(s) / General Equipment308-759
Remover, Rear Driveshaft
E100143
Cable Ties
Special Tool(s) / General EquipmentTire Lever
Transmission Jack
Materials
Specification
Name
WSK-M2G349-A8 /
9U7J-M2G349-AA
Sealant LGN
Removal
1.
On both sides.
Refer to: Wheel and Tire (204-04 Wheels and
Tires, Removal and Installation).
2. On both sides.
E101661
3.Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
4. WARNING: Make sure that no load is placed on the brake hose.
On both sides.
General Equipment: Cable Ties
E100132
5.On both sides.
Refer to: Spring(204-02 Rear Suspension,
Removal and Installation).
6. On both sides.
x4x4
E101639
7.On both sides.
E101640
G1058429en2008.50 Kuga8/2011
205-05- 2
Rear Drive Halfshafts
205-05- 2
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
