Index FORD KUGA 2011 1.G Workshop Manual

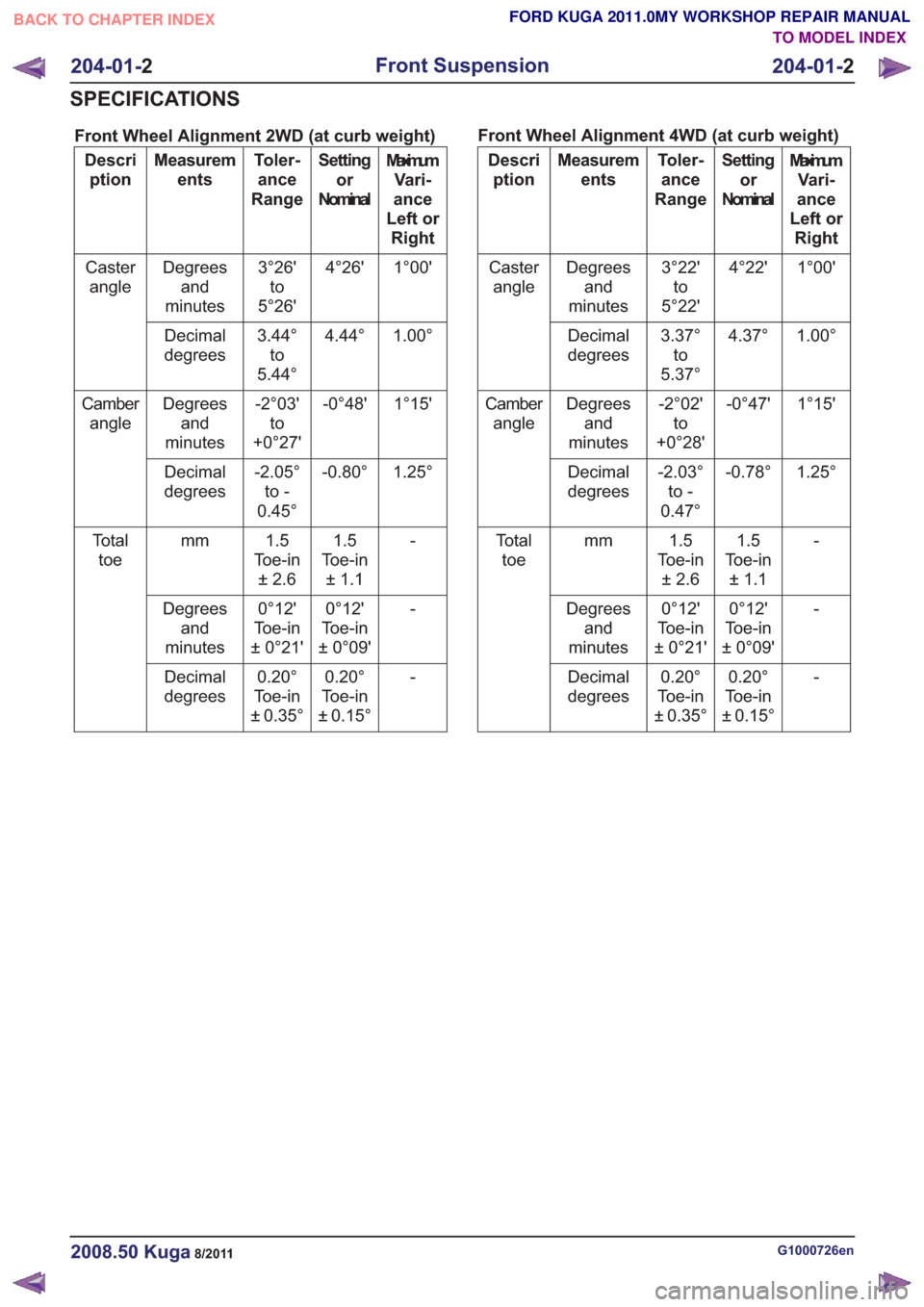

Front Wheel Alignment 2WD (at curb weight)
MaximumVari-
ance
Left or Right
Setting
or
Nominal
Toler-
ance
Range
Measurem
ents
Descri
ption
1°00'
4°26'
3°26'
to
5°26'
Degrees
and
minutes
Caster
angle
1.00°
4.44°
3.44°
to
5.44°
Decimal
degrees
1°15'
-0°48'
-2°03'
to
+0°27'
Degrees
and
minutes
Camber
angle
1.25°
-0.80°
-2.05°
to -
0.45°
Decimal
degrees
-1.5
Toe-in ±1.1
1.5
Toe-in ±2.6
mm
To t a l
toe
-
0°12'
Toe-in
± 0°09'
0°12'
Toe-in
± 0°21'
Degrees
and
minutes
-
0.20°
Toe-in
± 0.15°
0.20°
Toe-in
± 0.35°
Decimal
degrees Front Wheel Alignment 4WD (at curb weight)Maximum
Vari-
ance
Left or Right
Setting
or
Nominal
Toler-
ance
Range
Measurem
ents
Descri
ption
1°00'
4°22'
3°22'
to
5°22'
Degrees
and
minutes
Caster
angle
1.00°
4.37°
3.37°
to
5.37°
Decimal
degrees
1°15'
-0°47'
-2°02'
to
+0°28'
Degrees
and
minutes
Camber
angle
1.25°
-0.78°
-2.03°
to -
0.47°
Decimal
degrees
-1.5
Toe-in ±1.1
1.5
To e - i n ±2.6
mm
To t a l
toe
-
0°12'
Toe-in
± 0°09'
0°12'
To e - i n
±0°21'
Degrees
and
minutes
-
0.20°
Toe-in
± 0.15°
0.20°
To e - i n
±0.35°
Decimal
degrees
G1000726en2008.50 Kuga8/2011
204-01- 2
Front Suspension
204-01- 2
SPECIFICATIONS
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Front Suspension – Component Location
E98521
G1055776en2008.50 Kuga8/2011
204-01-3
Front Suspension
204-01- 3
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

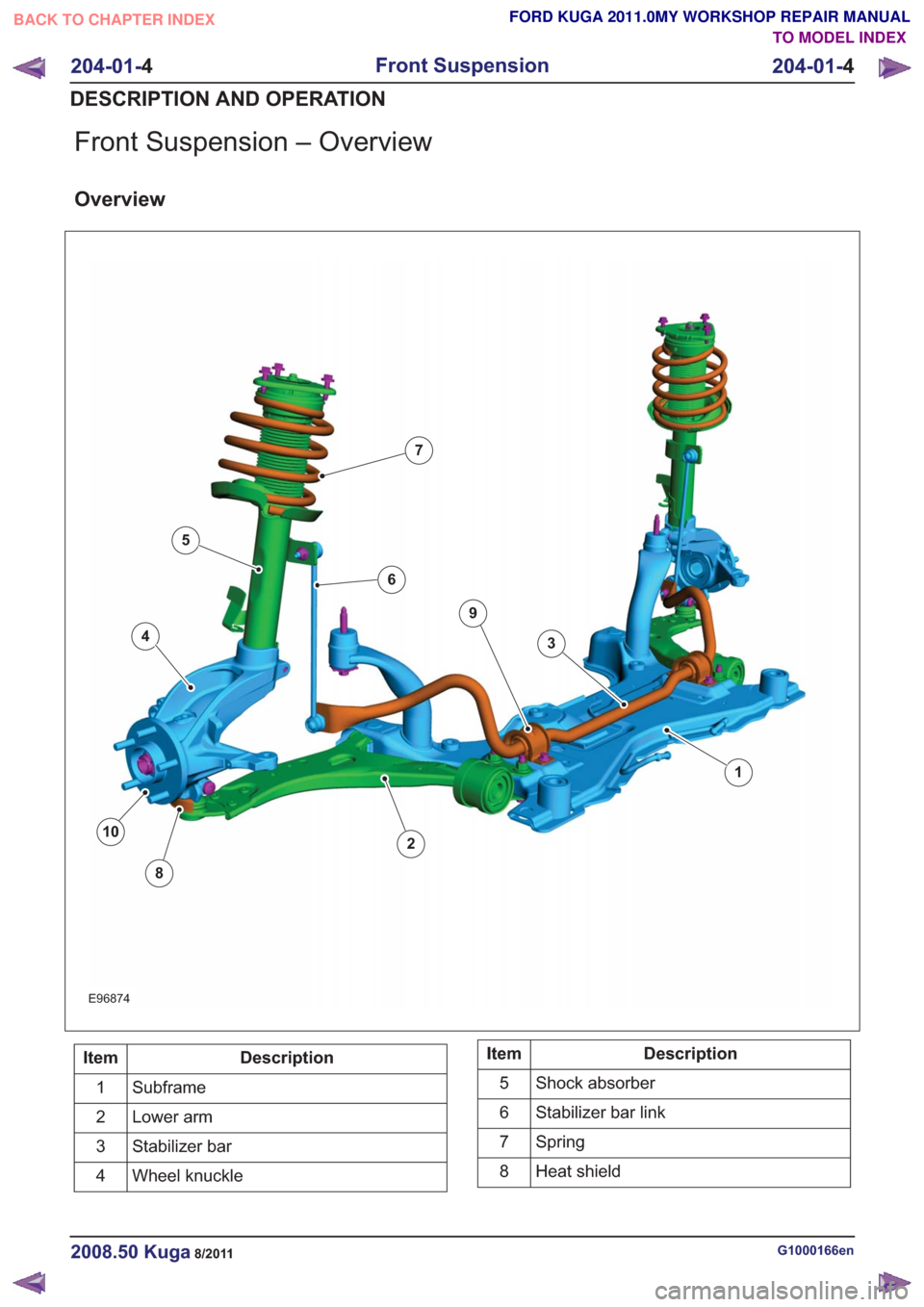

Front Suspension – Overview
Overview
E96874
1
2
34
5
6
7
10
8
9
Description
Item
Subframe
1
Lower arm
2
Stabilizer bar
3
Wheel knuckle
4Description
Item
Shock absorber
5
Stabilizer bar link
6
Spring
7
Heat shield
8
G1000166en2008.50 Kuga8/2011
204-01- 4
Front Suspension
204-01- 4
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Description
Item
Stabilizer bar bushes and bracket
9Description
Item
10 Wheel hub

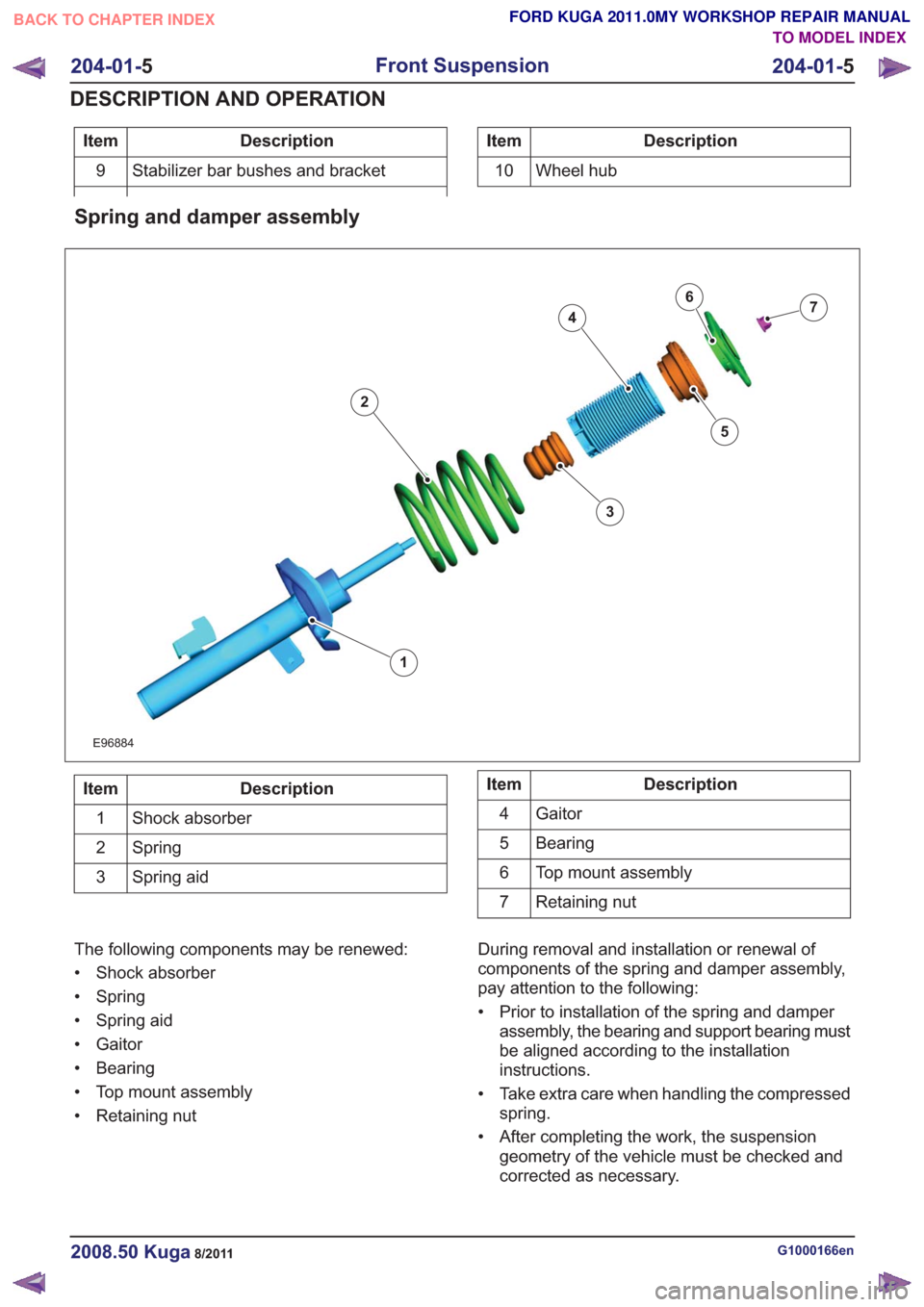

Spring and damper assembly
E96884
1
2
3
4
5
67
Description
Item
Shock absorber
1
Spring
2
Spring aid
3Description
Item
Gaitor
4
Bearing
5
Top mount assembly
6
Retaining nut
7
The following components may be renewed:
• Shock absorber
• Spring
• Spring aid
• Gaitor
• Bearing
• Top mount assembly
• Retaining nut During removal and installation or renewal of
components of the spring and damper assembly,
pay attention to the following:
• Prior to installation of the spring and damper
assembly, the bearing and support bearing must
be aligned according to the installation
instructions.
• Take extra care when handling the compressed spring.
• After completing the work, the suspension geometry of the vehicle must be checked and
corrected as necessary.
G1000166en2008.50 Kuga8/2011
204-01- 5
Front Suspension
204-01- 5
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

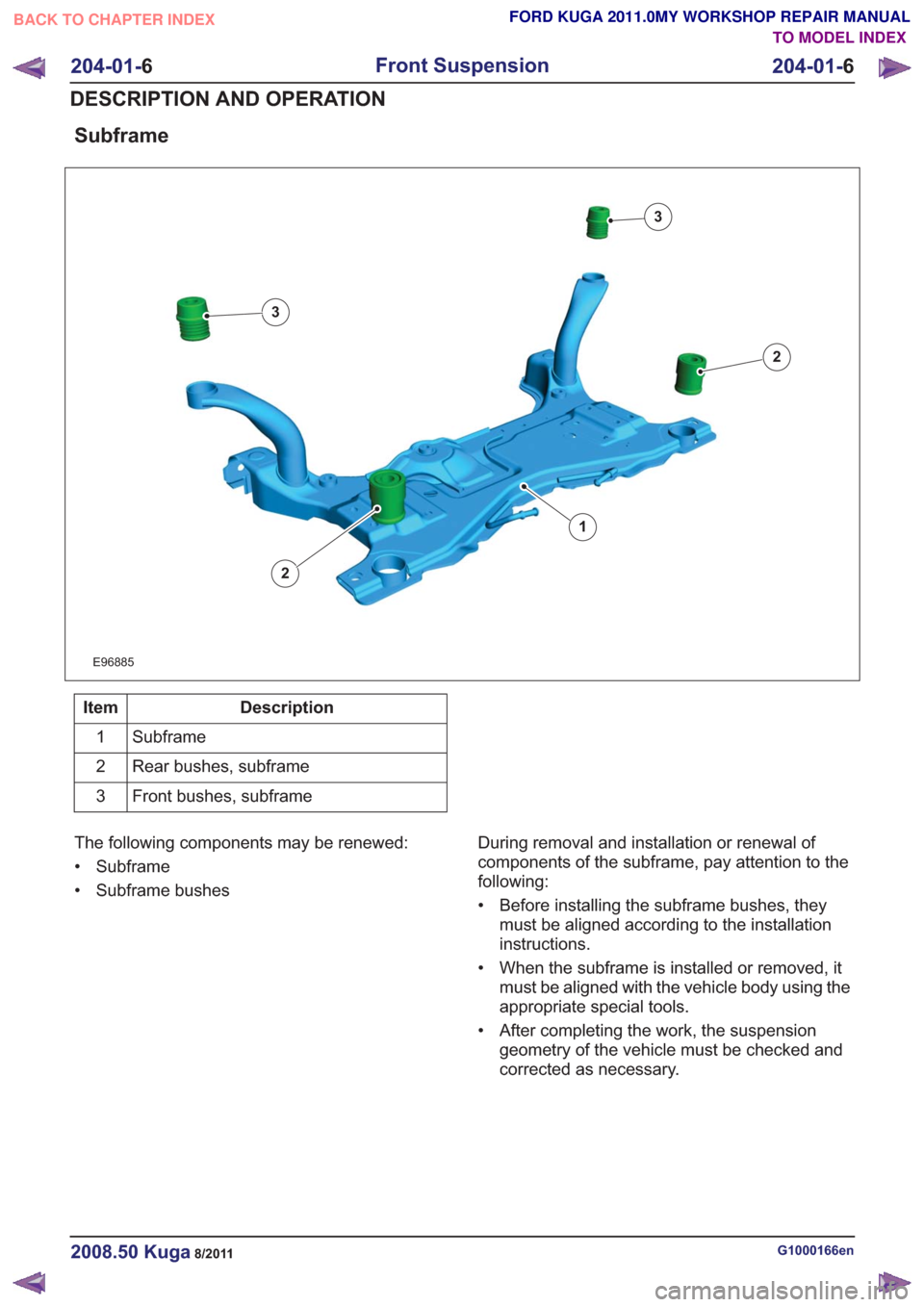

Subframe
E96885
1
2
2
3
3
Description
Item
Subframe
1
Rear bushes, subframe
2
Front bushes, subframe
3
The following components may be renewed:
• Subframe
• Subframe bushes During removal and installation or renewal of
components of the subframe, pay attention to the
following:
• Before installing the subframe bushes, they
must be aligned according to the installation
instructions.
• When the subframe is installed or removed, it must be aligned with the vehicle body using the
appropriate special tools.
• After completing the work, the suspension geometry of the vehicle must be checked and
corrected as necessary.
G1000166en2008.50 Kuga8/2011
204-01- 6
Front Suspension
204-01- 6
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

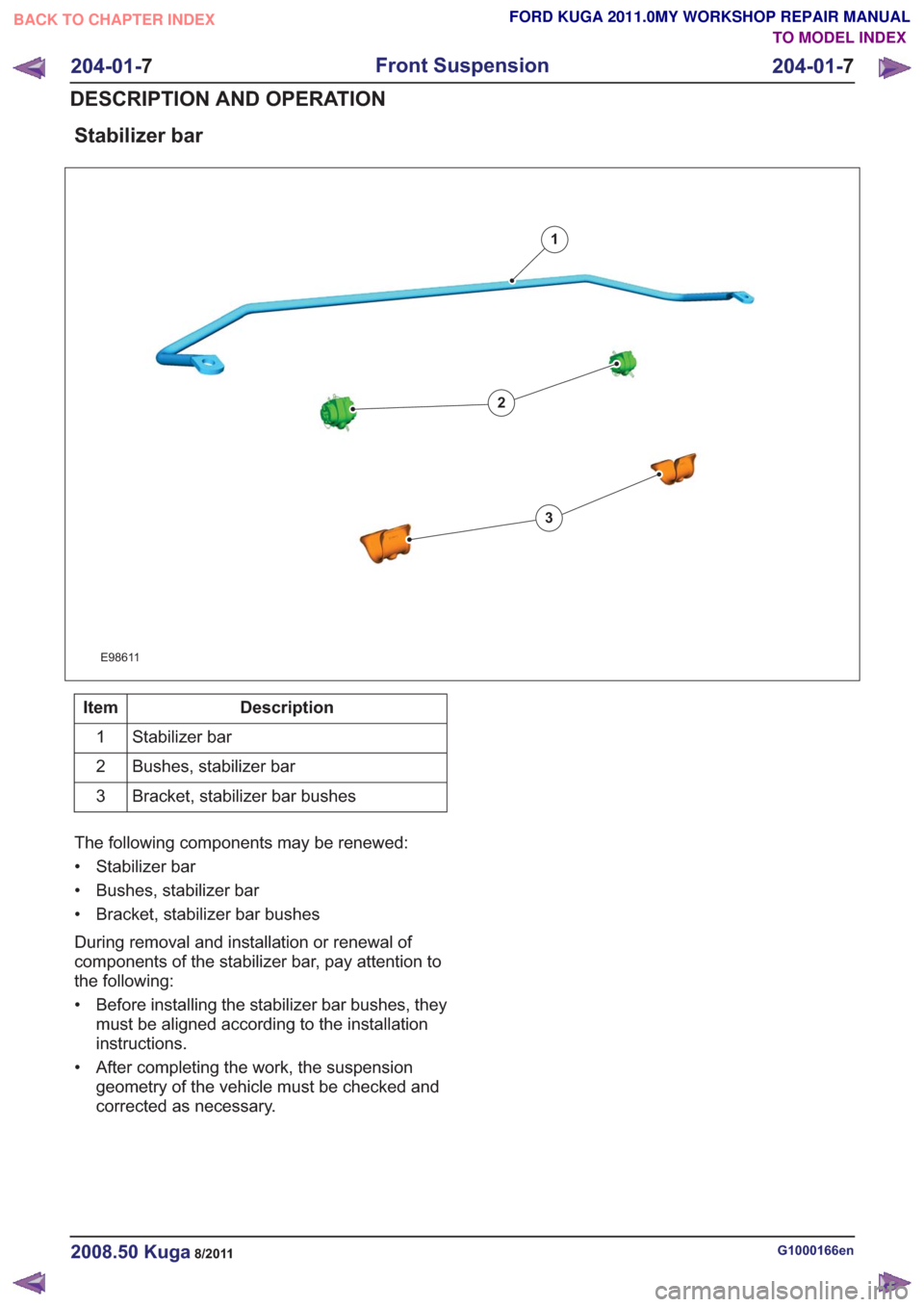

Stabilizer bar
E98611
1
2
3
Description
Item
Stabilizer bar
1
Bushes, stabilizer bar
2
Bracket, stabilizer bar bushes
3
The following components may be renewed:
• Stabilizer bar
• Bushes, stabilizer bar
• Bracket, stabilizer bar bushes
During removal and installation or renewal of
components of the stabilizer bar, pay attention to
the following:
• Before installing the stabilizer bar bushes, they must be aligned according to the installation
instructions.
• After completing the work, the suspension geometry of the vehicle must be checked and
corrected as necessary.
G1000166en2008.50 Kuga8/2011
204-01- 7
Front Suspension
204-01- 7
DESCRIPTION AND OPERATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

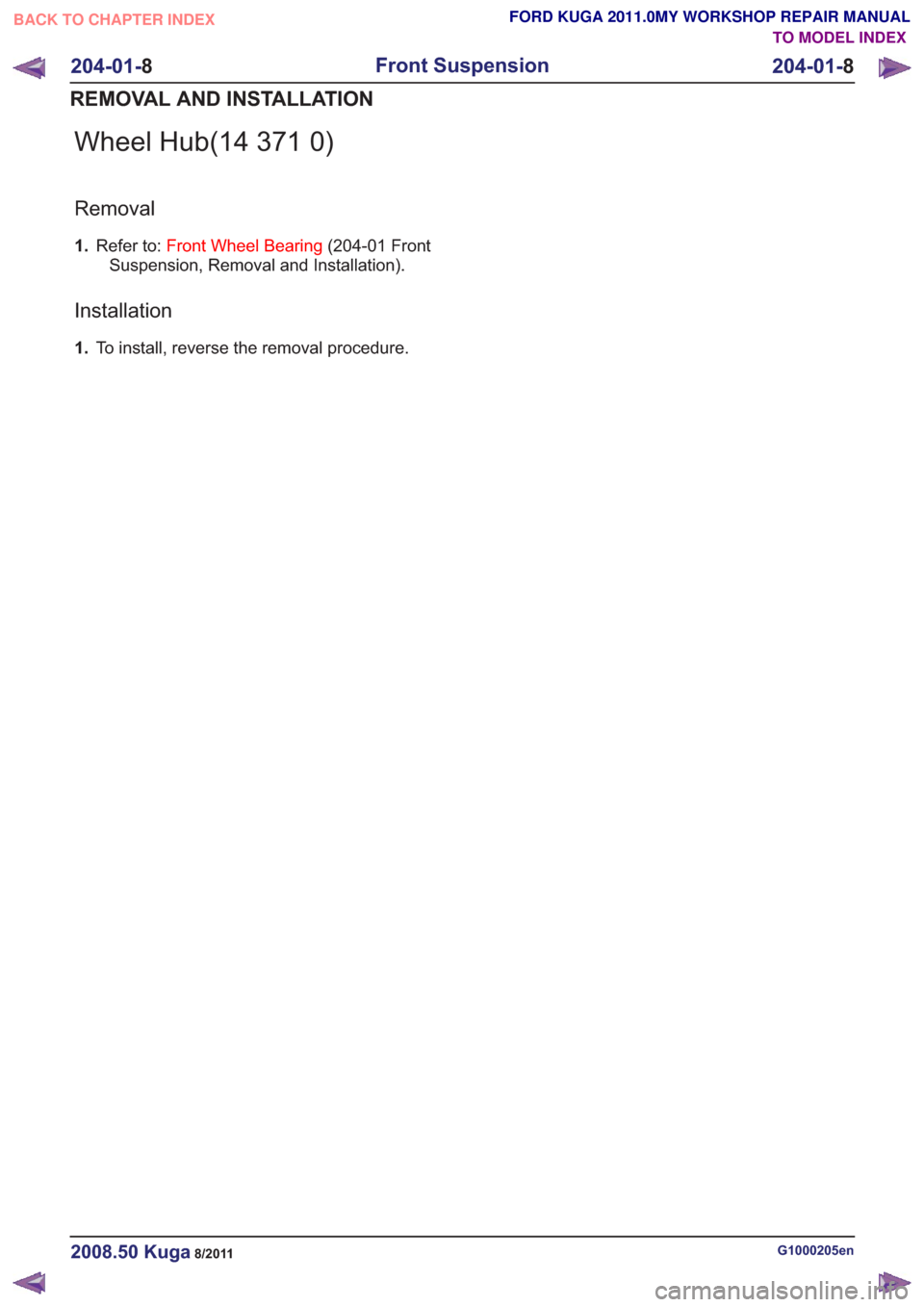

Wheel Hub(14 371 0)
Removal
1.Refer to: Front Wheel Bearing (204-01 Front
Suspension, Removal and Installation).
Installation
1. To install, reverse the removal procedure.
G1000205en2008.50 Kuga8/2011
204-01- 8
Front Suspension
204-01- 8
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

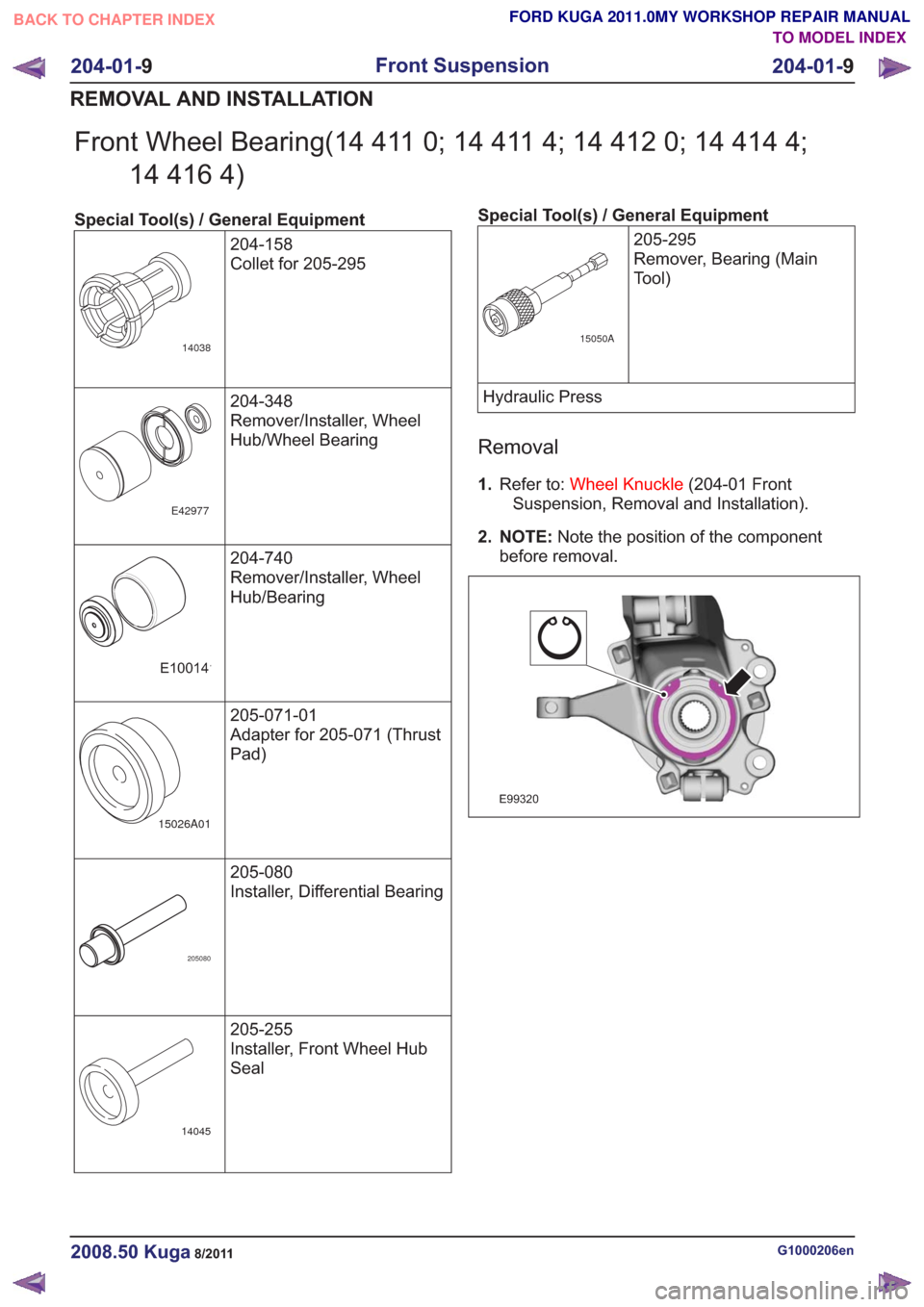

Front Wheel Bearing(14 411 0; 14 411 4; 14 412 0; 14 414 4;14 416 4)
Special Tool(s) / General Equipment
204-158
Collet for 205-295
14038
204-348
Remover/Installer, Wheel
Hub/Wheel Bearing
E42977
204-740
Remover/Installer, Wheel
Hub/Bearing
E100141
205-071-01
Adapter for 205-071 (Thrust
Pad)
15026A01
205-080
Installer, Differential Bearing
205080
205-255
Installer, Front Wheel Hub
Seal
14045
Special Tool(s) / General Equipment205-295
Remover, Bearing (Main
Tool)
15050A
Hydraulic Press
Removal
1.Refer to: Wheel Knuckle (204-01 Front
Suspension, Removal and Installation).
2. NOTE: Note the position of the component
before removal.
E99320
G1000206en2008.50 Kuga8/2011
204-01- 9
Front Suspension
204-01- 9
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

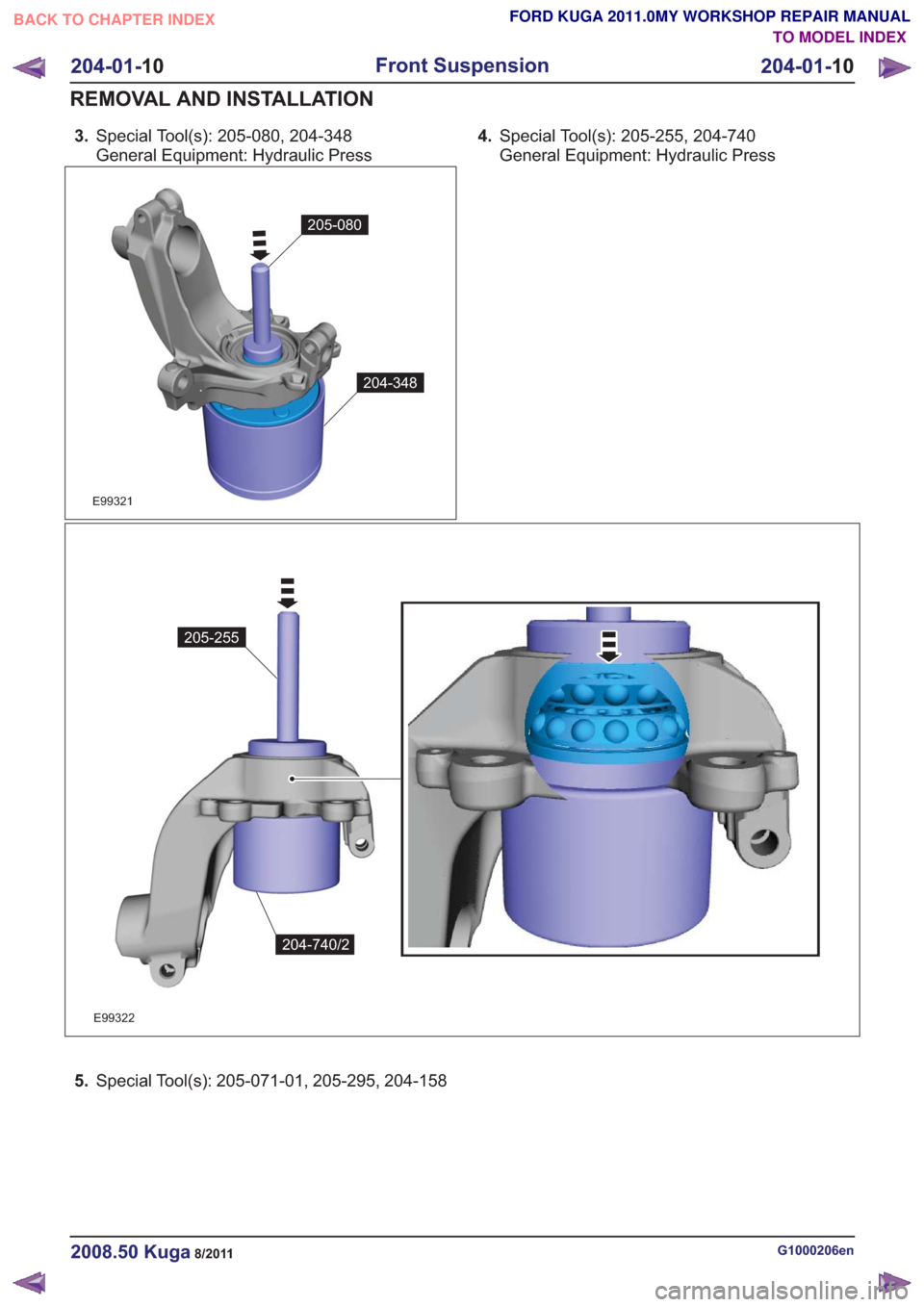

3.Special Tool(s): 205-080, 204-348
General Equipment: Hydraulic Press
E99321
205-080
204-348
4.Special Tool(s): 205-255, 204-740
General Equipment: Hydraulic Press
E99322
205-255
204-740/2
5.Special Tool(s): 205-071-01, 205-295, 204-158
G1000206en2008.50 Kuga8/2011
204-01- 10
Front Suspension
204-01- 10
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

E99400
205-071-01
204-158205-295
6.
E103391
Installation
1. NOTE:Make sure that the sensor ring is
correctly located.
