Index FORD KUGA 2011 1.G Workshop Manual

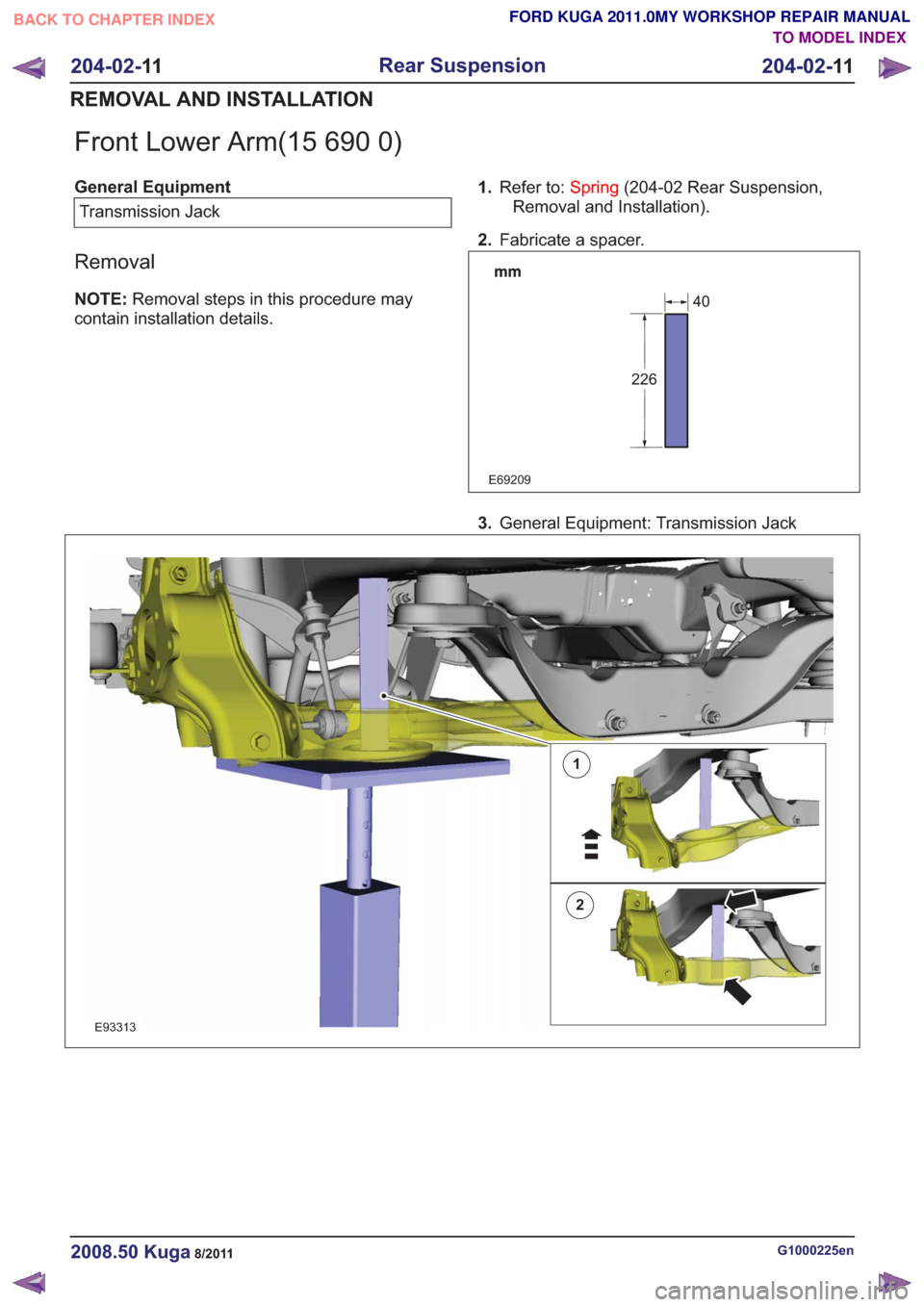

Front Lower Arm(15 690 0)
General EquipmentTransmission Jack
Removal
NOTE: Removal steps in this procedure may
contain installation details. 1.
Refer to: Spring(204-02 Rear Suspension,
Removal and Installation).
2. Fabricate a spacer.
E69209
226
40
3.General Equipment: Transmission Jack
1
2
E93313
G1000225en2008.50 Kuga8/2011
204-02- 11
Rear Suspension
204-02- 11
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

4.Torque: 115Nm
E67810
Installation
1.To install, reverse the removal procedure.
2. Refer to: Rear Toe Adjustment (204-00
Suspension System - General Information,
General Procedures).
G1000225en2008.50 Kuga8/2011
204-02- 12
Rear Suspension
204-02- 12
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

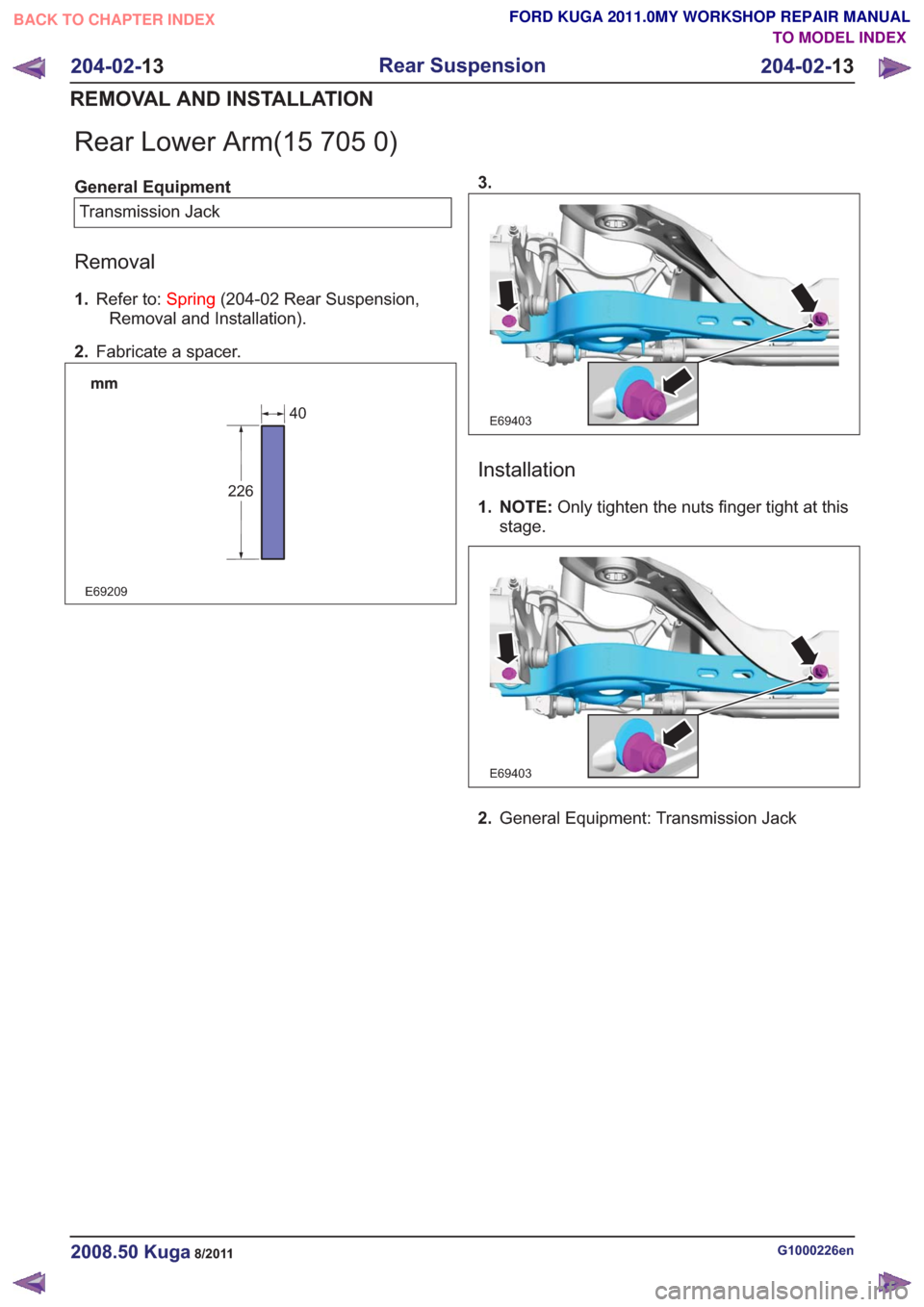

Rear Lower Arm(15 705 0)
General EquipmentTransmission Jack
Removal
1. Refer to: Spring(204-02 Rear Suspension,
Removal and Installation).
2. Fabricate a spacer.
E69209
226
40
3.
E69403E69403
Installation
1. NOTE: Only tighten the nuts finger tight at this
stage.
E69403E69403
2. General Equipment: Transmission Jack
G1000226en2008.50 Kuga8/2011
204-02- 13
Rear Suspension
204-02- 13
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

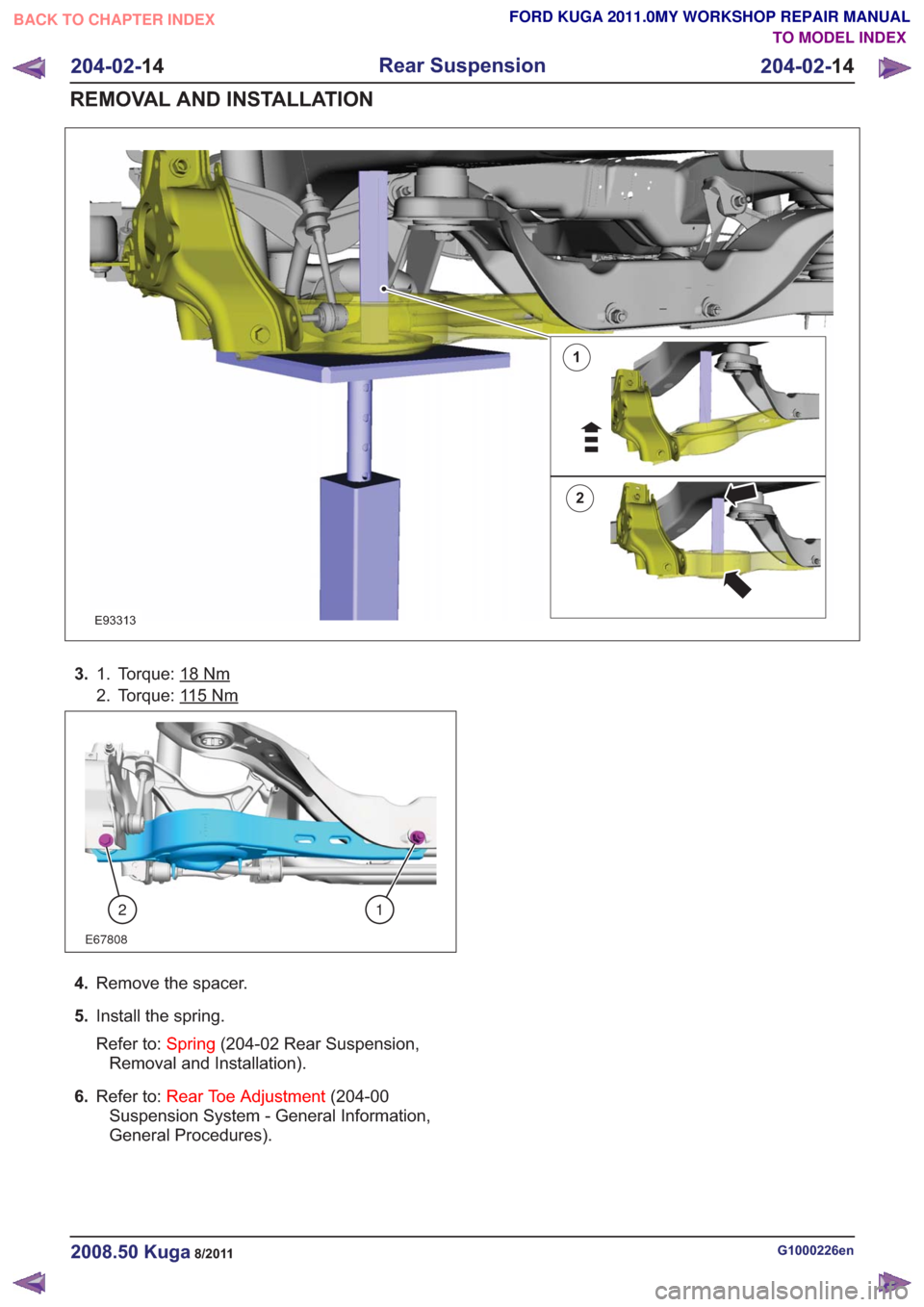

1
2
E93313
3.Torque: 18Nm1.
2. Torque: 1
15Nm
E67808
21
4.Remove the spacer.
5. Install the spring.
Refer to: Spring(204-02 Rear Suspension,
Removal and Installation).
6. Refer to: Rear Toe Adjustment (204-00
Suspension System - General Information,
General Procedures).
G1000226en2008.50 Kuga8/2011
204-02- 14
Rear Suspension
204-02- 14
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

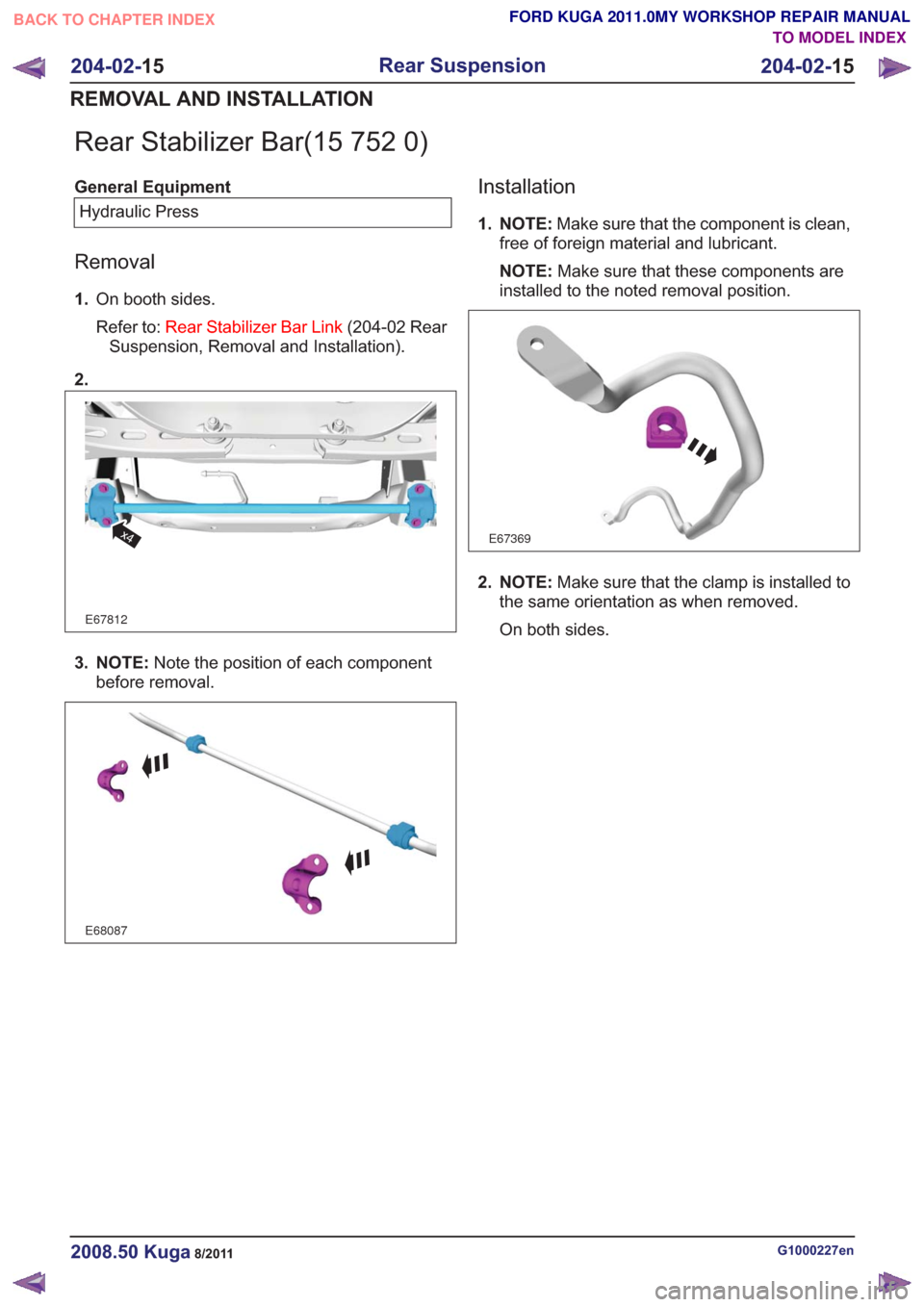

Rear Stabilizer Bar(15 752 0)
General EquipmentHydraulic Press
Removal
1. On booth sides.
Refer to: Rear Stabilizer Bar Link (204-02 Rear
Suspension, Removal and Installation).
2.
E67812
x4
3. NOTE: Note the position of each component
before removal.
E68087
Installation
1. NOTE: Make sure that the component is clean,
free of foreign material and lubricant.
NOTE: Make sure that these components are
installed to the noted removal position.
E67369
2. NOTE: Make sure that the clamp is installed to
the same orientation as when removed.
On both sides.
G1000227en2008.50 Kuga8/2011
204-02- 15
Rear Suspension
204-02- 15
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

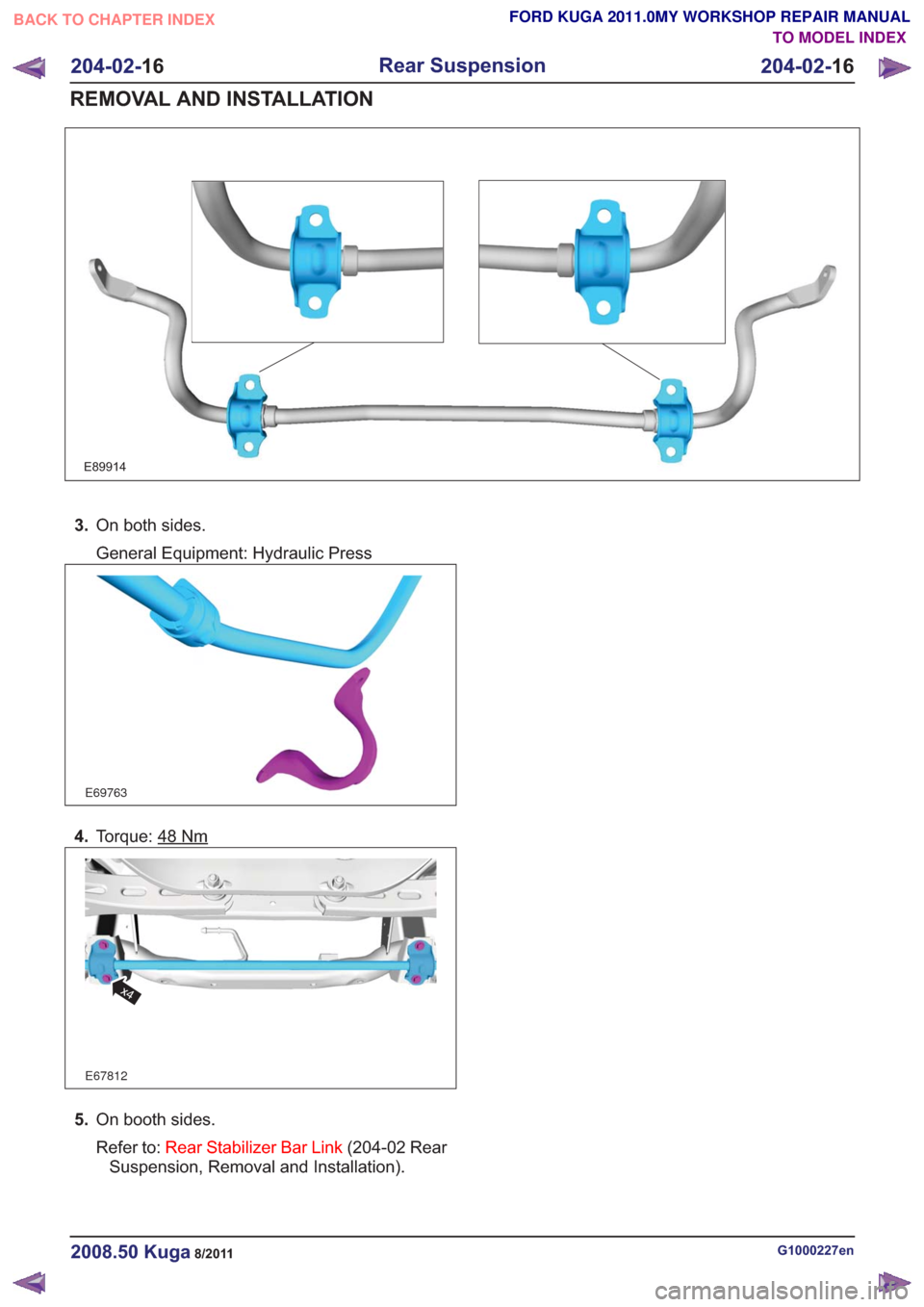

E89914
3.On both sides.
General Equipment: Hydraulic Press
E69763
4.Torque: 48Nm
E67812
x4
5.On booth sides.
Refer to: Rear Stabilizer Bar Link (204-02 Rear
Suspension, Removal and Installation).
G1000227en2008.50 Kuga8/2011
204-02- 16
Rear Suspension
204-02- 16
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

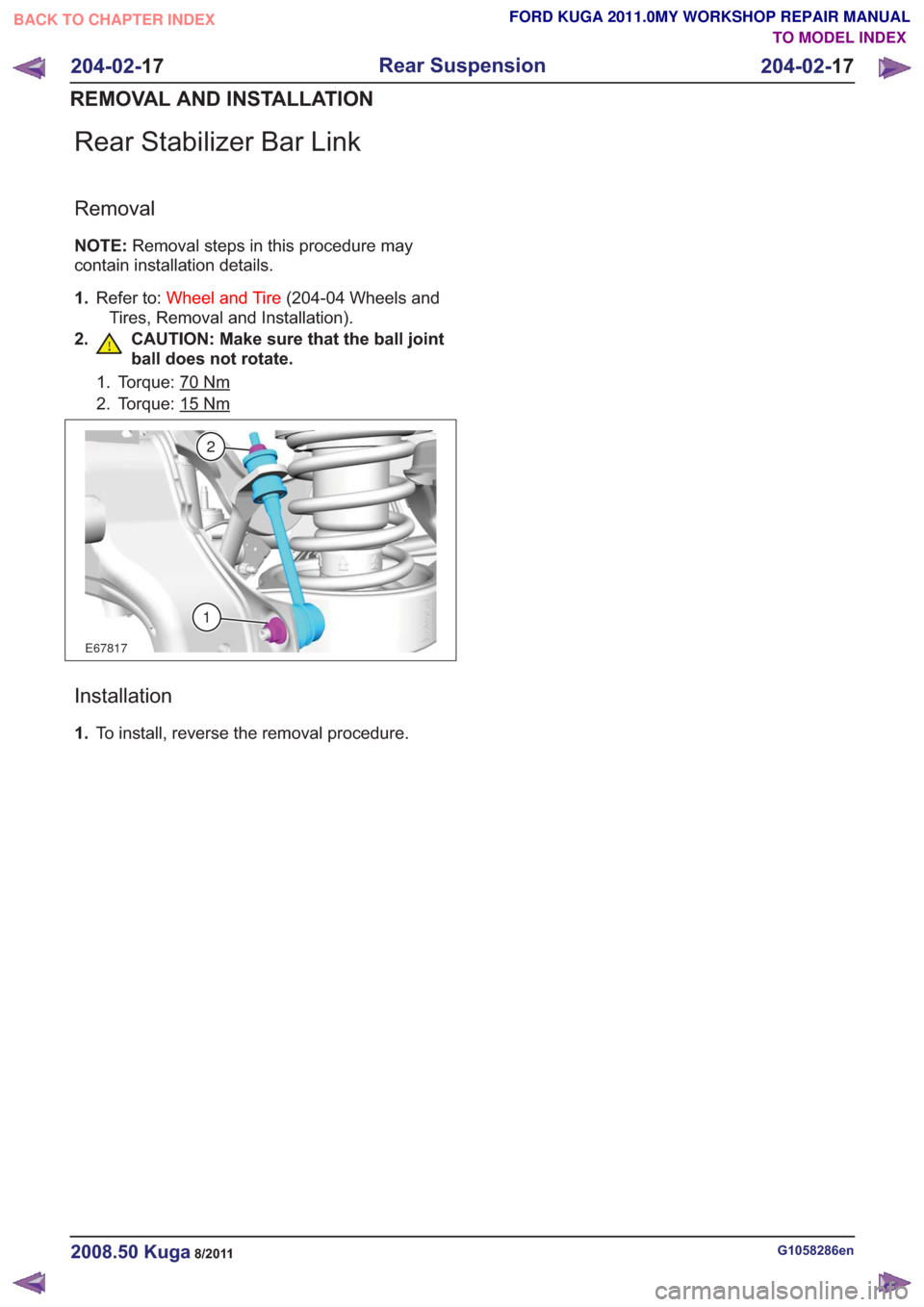

Rear Stabilizer Bar Link
Removal
NOTE:Removal steps in this procedure may
contain installation details.
1. Refer to: Wheel and Tire (204-04 Wheels and
Tires, Removal and Installation).
2. CAUTION: Make sure that the ball joint ball does not rotate.
1. Torque: 70Nm
2. Torque: 15Nm
E67817
2
1
Installation
1.To install, reverse the removal procedure.
G1058286en2008.50 Kuga8/2011
204-02- 17
Rear Suspension
204-02- 17
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

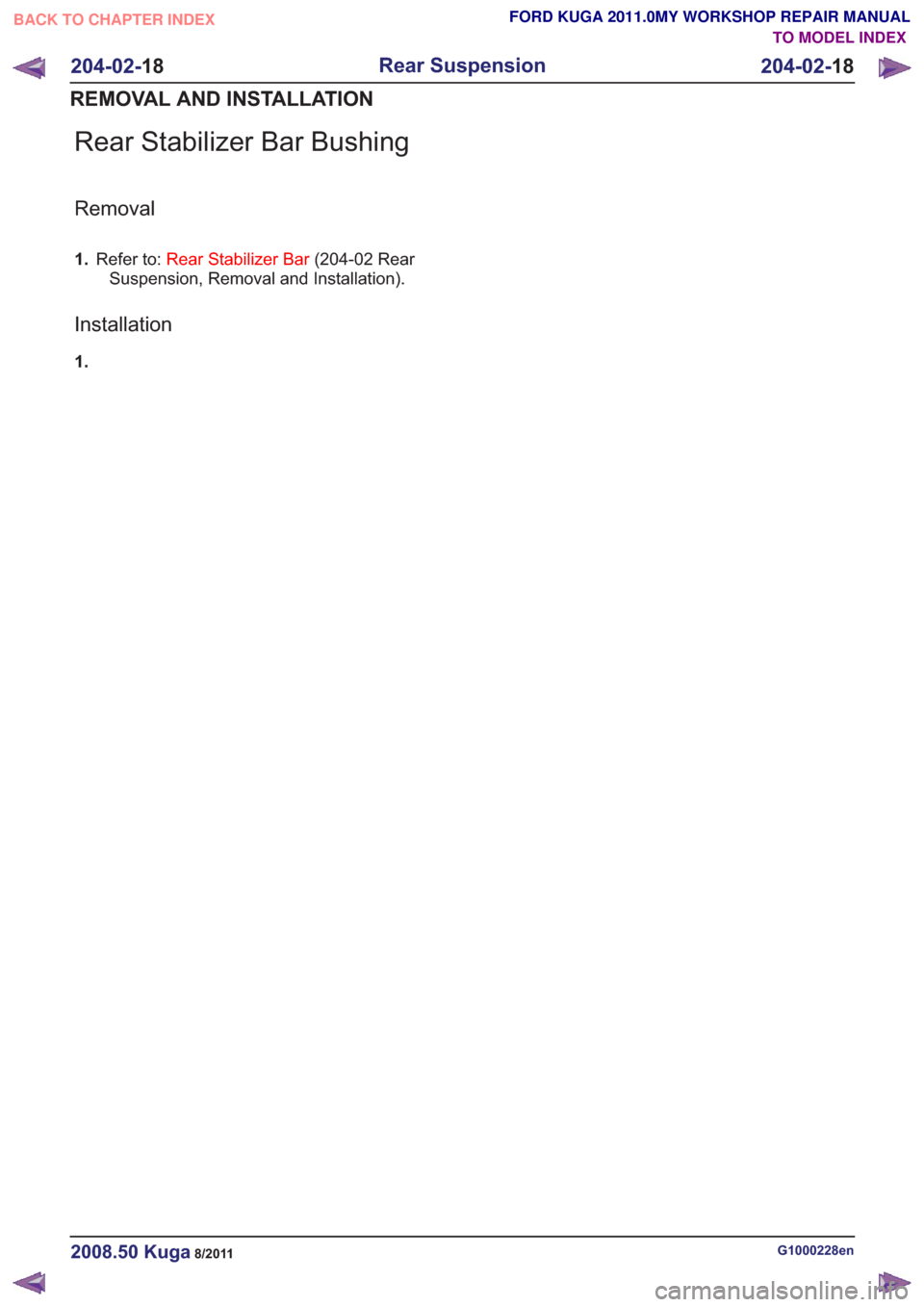

Rear Stabilizer Bar Bushing
Removal
1.Refer to: Rear Stabilizer Bar (204-02 Rear
Suspension, Removal and Installation).
Installation
1.
G1000228en2008.50 Kuga8/2011
204-02- 18
Rear Suspension
204-02- 18
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

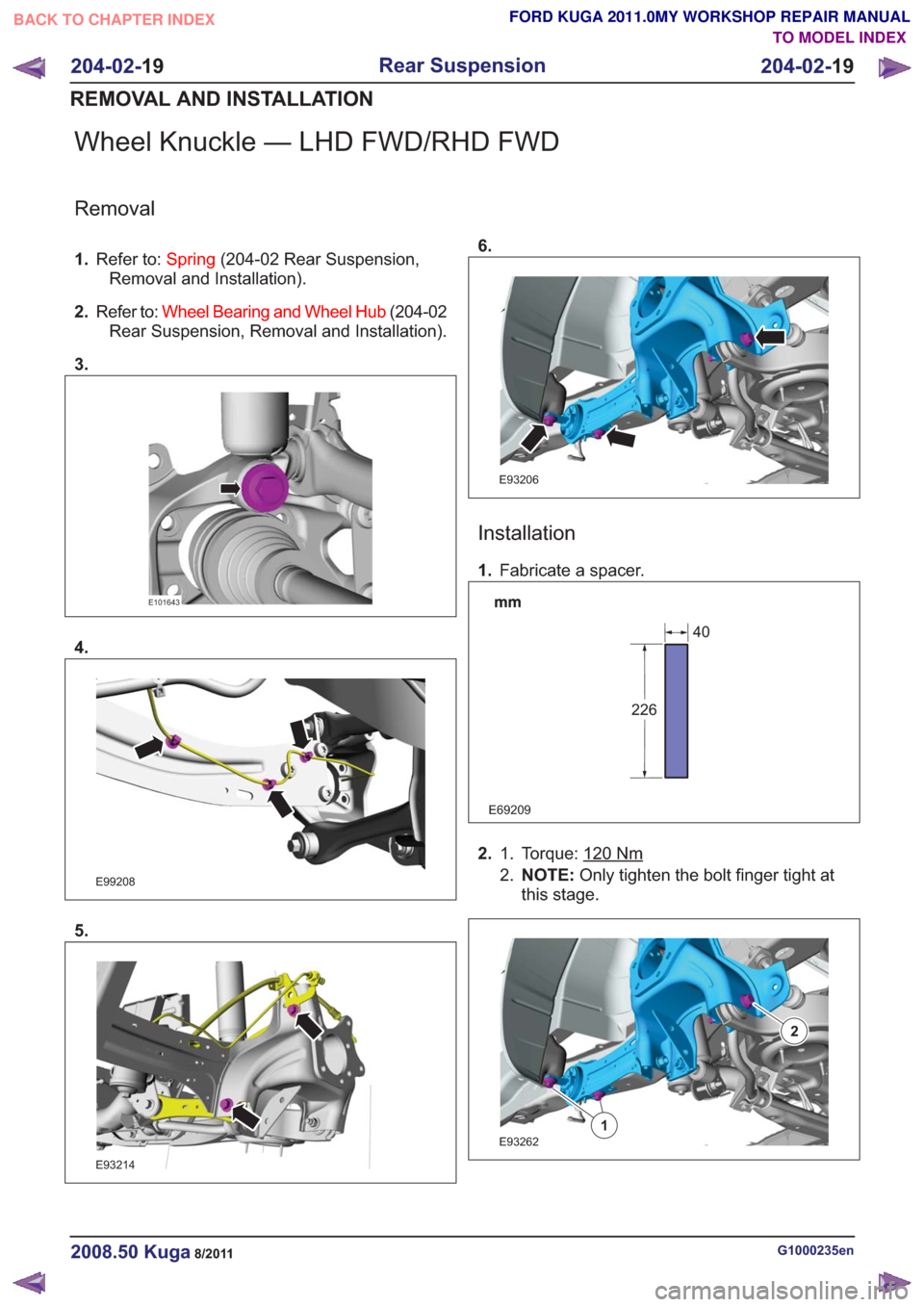

Wheel Knuckle — LHD FWD/RHD FWD
Removal
1.Refer to: Spring(204-02 Rear Suspension,
Removal and Installation).
2. Refer to: Wheel Bearing and Wheel Hub (204-02
Rear Suspension, Removal and Installation).
3.
E101643
4.
E99208
5.
E93214
6.
E93206
Installation
1. Fabricate a spacer.
E69209
226
40
2. Torque: 120Nm1.
2.NOTE: Only tighten the bolt finger tight at
this stage.
E932621
2
G1000235en2008.50 Kuga8/2011
204-02- 19
Rear Suspension
204-02- 19
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

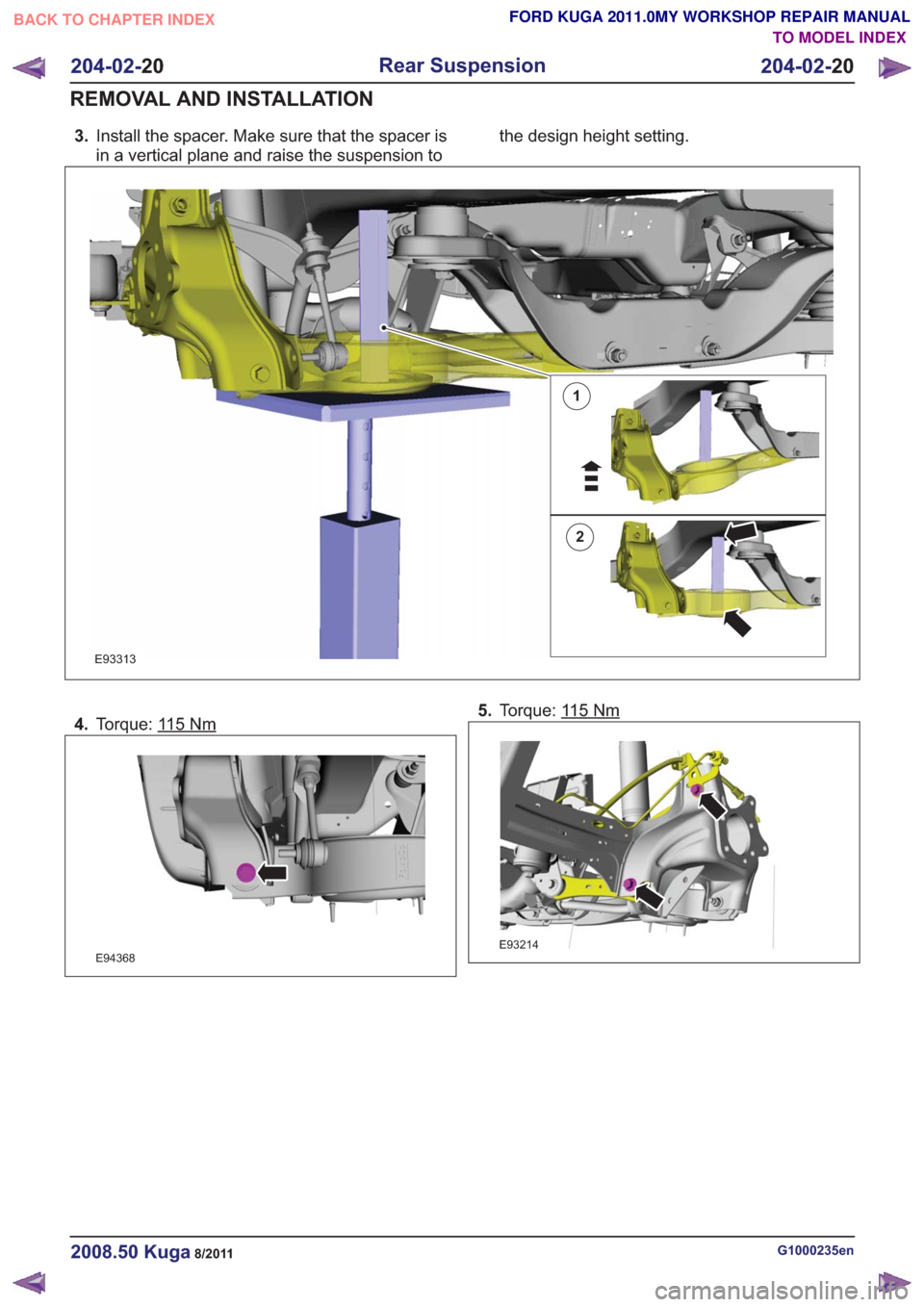

3.Install the spacer. Make sure that the spacer is
in a vertical plane and raise the suspension to the design height setting.
1
2
E93313
4.
Torque: 115Nm
E94368
5.Torque: 115Nm
E93214
