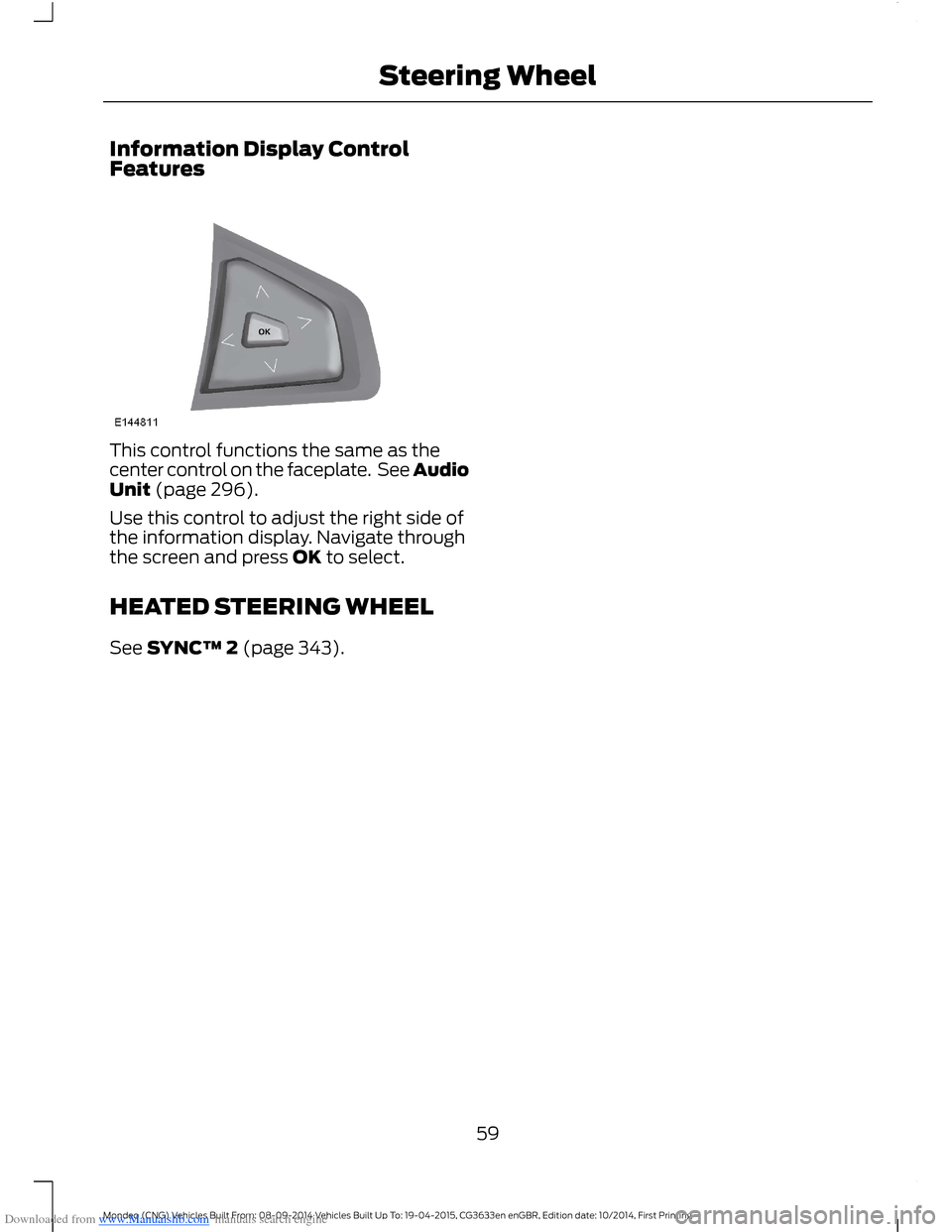

Downloaded from www.Manualslib.com manuals search engine Information Display ControlFeatures
This control functions the same as thecenter control on the faceplate. See AudioUnit (page 296).
Use this control to adjust the right side ofthe information display. Navigate throughthe screen and press OK to select.
HEATED STEERING WHEEL
See SYNC™ 2 (page 343).
59Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSteering Wheel

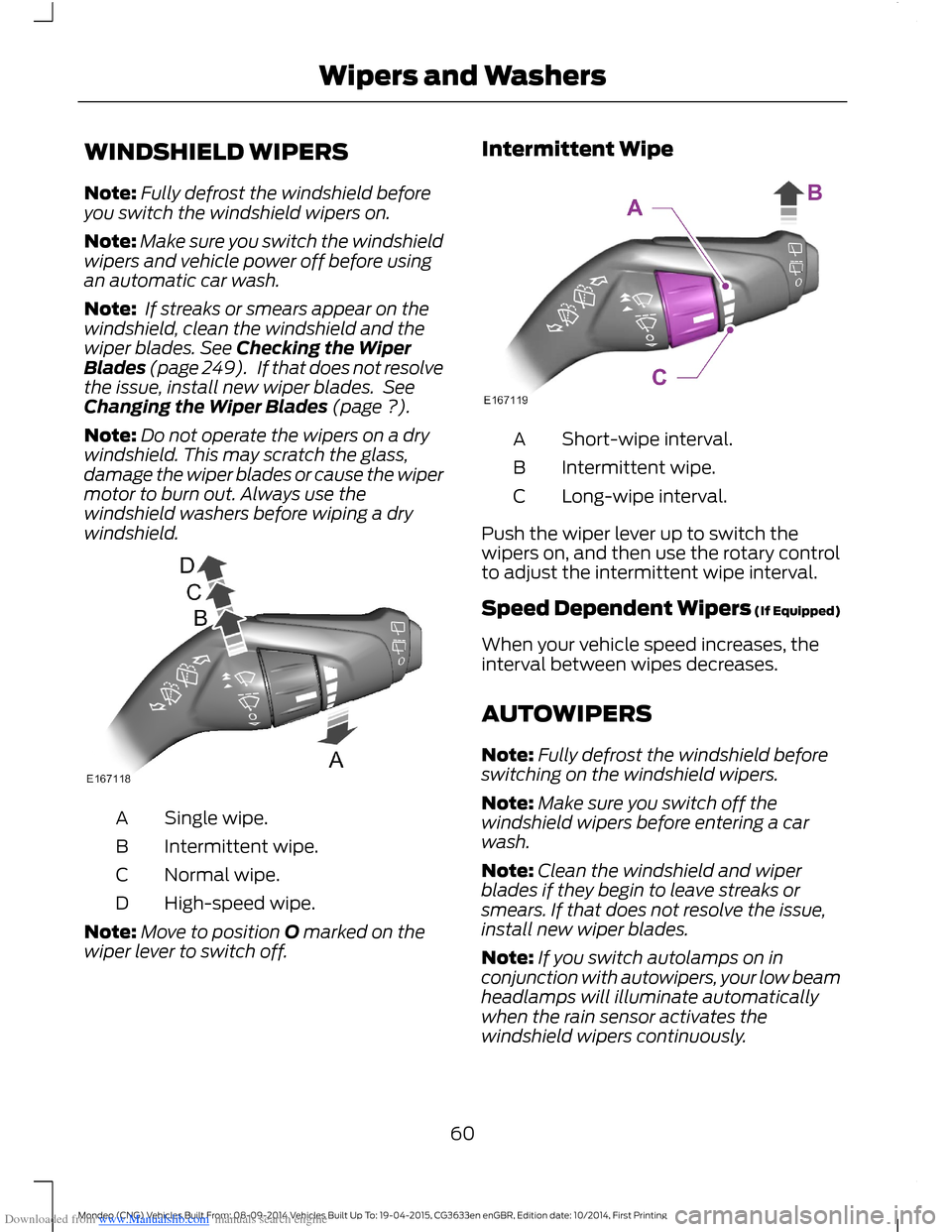

Downloaded from www.Manualslib.com manuals search engine WINDSHIELD WIPERS
Note:Fully defrost the windshield beforeyou switch the windshield wipers on.
Note:Make sure you switch the windshieldwipers and vehicle power off before usingan automatic car wash.
Note: If streaks or smears appear on thewindshield, clean the windshield and thewiper blades. See Checking the WiperBlades (page 249). If that does not resolvethe issue, install new wiper blades. SeeChanging the Wiper Blades (page ?).
Note:Do not operate the wipers on a drywindshield. This may scratch the glass,damage the wiper blades or cause the wipermotor to burn out. Always use thewindshield washers before wiping a drywindshield.
Single wipe.A
Intermittent wipe.B
Normal wipe.C
High-speed wipe.D
Note:Move to position O marked on thewiper lever to switch off.
Intermittent Wipe
Short-wipe interval.A
Intermittent wipe.B
Long-wipe interval.C
Push the wiper lever up to switch thewipers on, and then use the rotary controlto adjust the intermittent wipe interval.
Speed Dependent Wipers (If Equipped)
When your vehicle speed increases, theinterval between wipes decreases.
AUTOWIPERS
Note:Fully defrost the windshield beforeswitching on the windshield wipers.
Note:Make sure you switch off thewindshield wipers before entering a carwash.
Note:Clean the windshield and wiperblades if they begin to leave streaks orsmears. If that does not resolve the issue,install new wiper blades.
Note:If you switch autolamps on inconjunction with autowipers, your low beamheadlamps will illuminate automaticallywhen the rain sensor activates thewindshield wipers continuously.
60Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingWipers and Washers

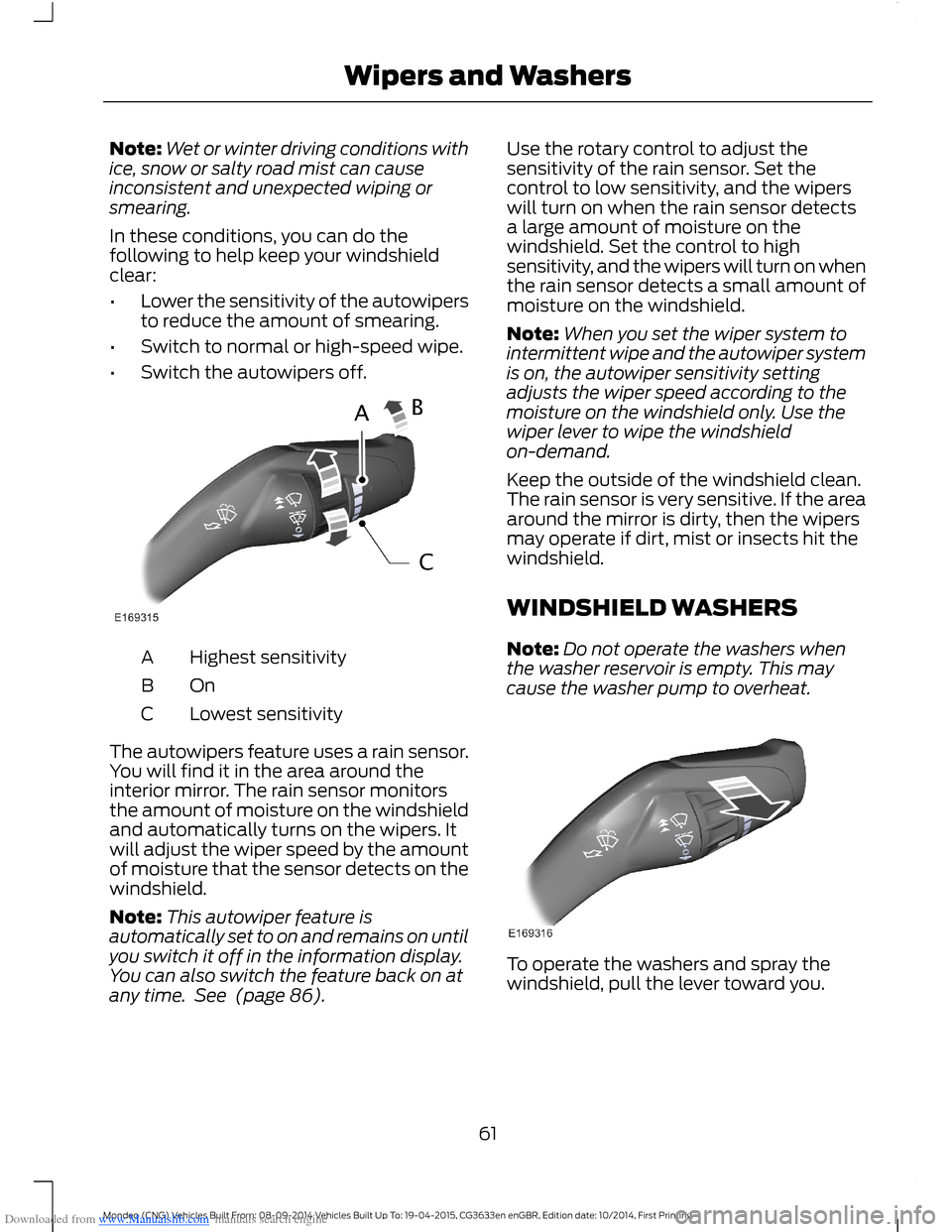

Downloaded from www.Manualslib.com manuals search engine Note:Wet or winter driving conditions withice, snow or salty road mist can causeinconsistent and unexpected wiping orsmearing.
In these conditions, you can do thefollowing to help keep your windshieldclear:
•Lower the sensitivity of the autowipersto reduce the amount of smearing.
•Switch to normal or high-speed wipe.
•Switch the autowipers off.
Highest sensitivityA
OnB
Lowest sensitivityC
The autowipers feature uses a rain sensor.You will find it in the area around theinterior mirror. The rain sensor monitorsthe amount of moisture on the windshieldand automatically turns on the wipers. Itwill adjust the wiper speed by the amountof moisture that the sensor detects on thewindshield.
Note:This autowiper feature isautomatically set to on and remains on untilyou switch it off in the information display.You can also switch the feature back on atany time. See (page 86).
Use the rotary control to adjust thesensitivity of the rain sensor. Set thecontrol to low sensitivity, and the wiperswill turn on when the rain sensor detectsa large amount of moisture on thewindshield. Set the control to highsensitivity, and the wipers will turn on whenthe rain sensor detects a small amount ofmoisture on the windshield.
Note:When you set the wiper system tointermittent wipe and the autowiper systemis on, the autowiper sensitivity settingadjusts the wiper speed according to themoisture on the windshield only. Use thewiper lever to wipe the windshieldon-demand.
Keep the outside of the windshield clean.The rain sensor is very sensitive. If the areaaround the mirror is dirty, then the wipersmay operate if dirt, mist or insects hit thewindshield.
WINDSHIELD WASHERS
Note:Do not operate the washers whenthe washer reservoir is empty. This maycause the washer pump to overheat.
To operate the washers and spray thewindshield, pull the lever toward you.
61Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingWipers and Washers

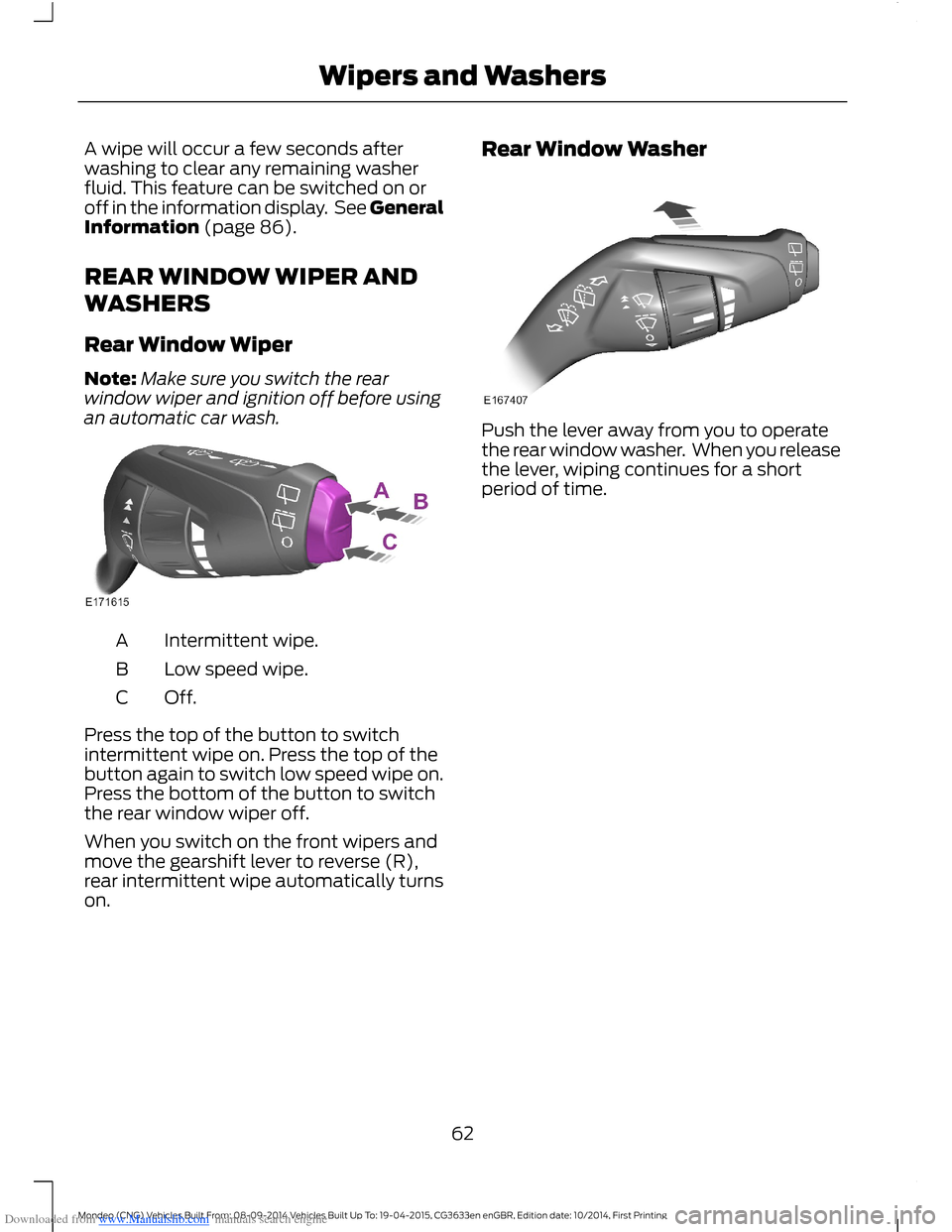

Downloaded from www.Manualslib.com manuals search engine A wipe will occur a few seconds afterwashing to clear any remaining washerfluid. This feature can be switched on oroff in the information display. See GeneralInformation (page 86).
REAR WINDOW WIPER AND
WASHERS
Rear Window Wiper
Note:Make sure you switch the rearwindow wiper and ignition off before usingan automatic car wash.
Intermittent wipe.A
Low speed wipe.B
Off.C
Press the top of the button to switchintermittent wipe on. Press the top of thebutton again to switch low speed wipe on.Press the bottom of the button to switchthe rear window wiper off.
When you switch on the front wipers andmove the gearshift lever to reverse (R),rear intermittent wipe automatically turnson.
Rear Window Washer
Push the lever away from you to operatethe rear window washer. When you releasethe lever, wiping continues for a shortperiod of time.
62Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingWipers and Washers

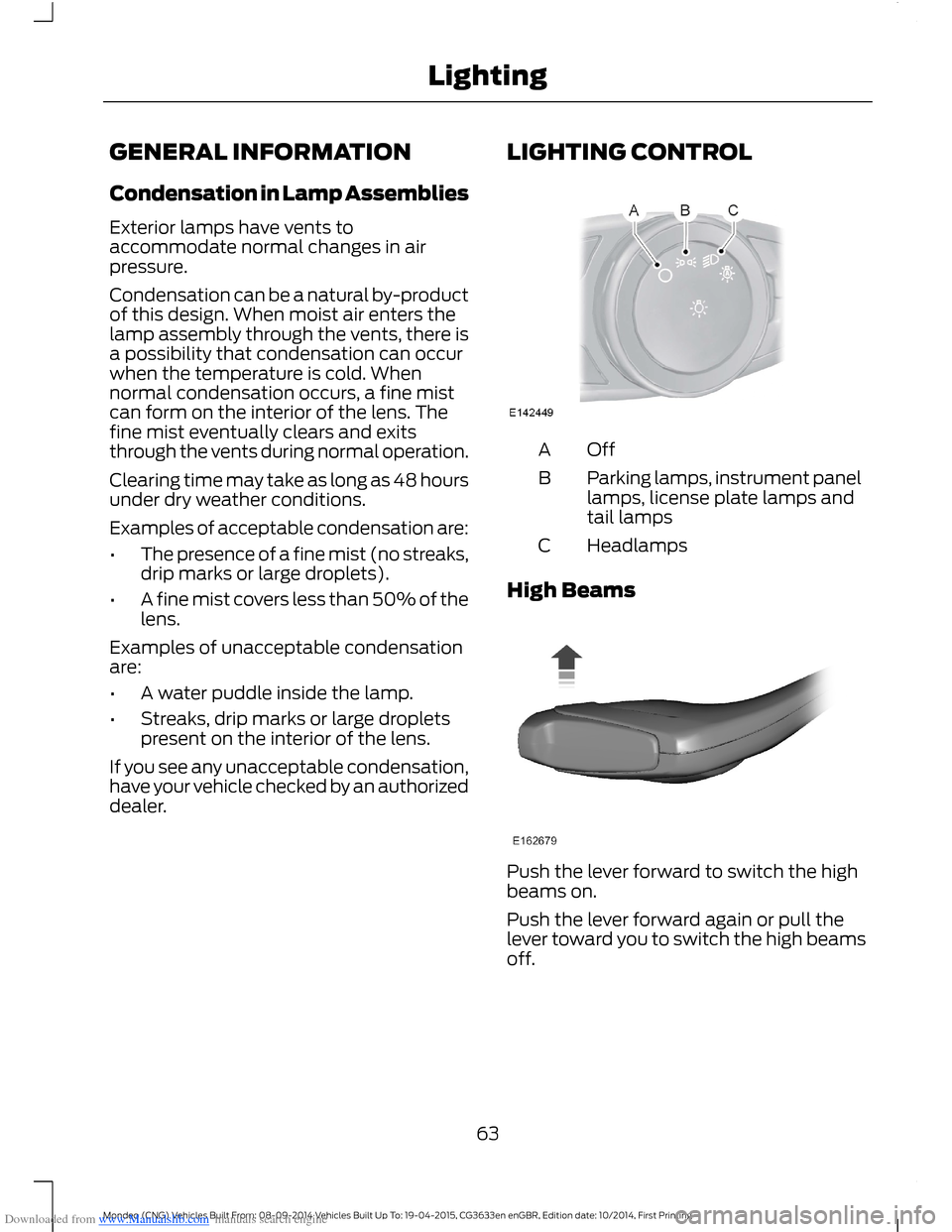

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Condensation in Lamp Assemblies
Exterior lamps have vents toaccommodate normal changes in airpressure.
Condensation can be a natural by-productof this design. When moist air enters thelamp assembly through the vents, there isa possibility that condensation can occurwhen the temperature is cold. Whennormal condensation occurs, a fine mistcan form on the interior of the lens. Thefine mist eventually clears and exitsthrough the vents during normal operation.
Clearing time may take as long as 48 hoursunder dry weather conditions.
Examples of acceptable condensation are:
•The presence of a fine mist (no streaks,drip marks or large droplets).
•A fine mist covers less than 50% of thelens.
Examples of unacceptable condensationare:
•A water puddle inside the lamp.
•Streaks, drip marks or large dropletspresent on the interior of the lens.
If you see any unacceptable condensation,have your vehicle checked by an authorizeddealer.
LIGHTING CONTROL
OffA
Parking lamps, instrument panellamps, license plate lamps andtail lamps
B
HeadlampsC
High Beams
Push the lever forward to switch the highbeams on.
Push the lever forward again or pull thelever toward you to switch the high beamsoff.
63Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingLighting

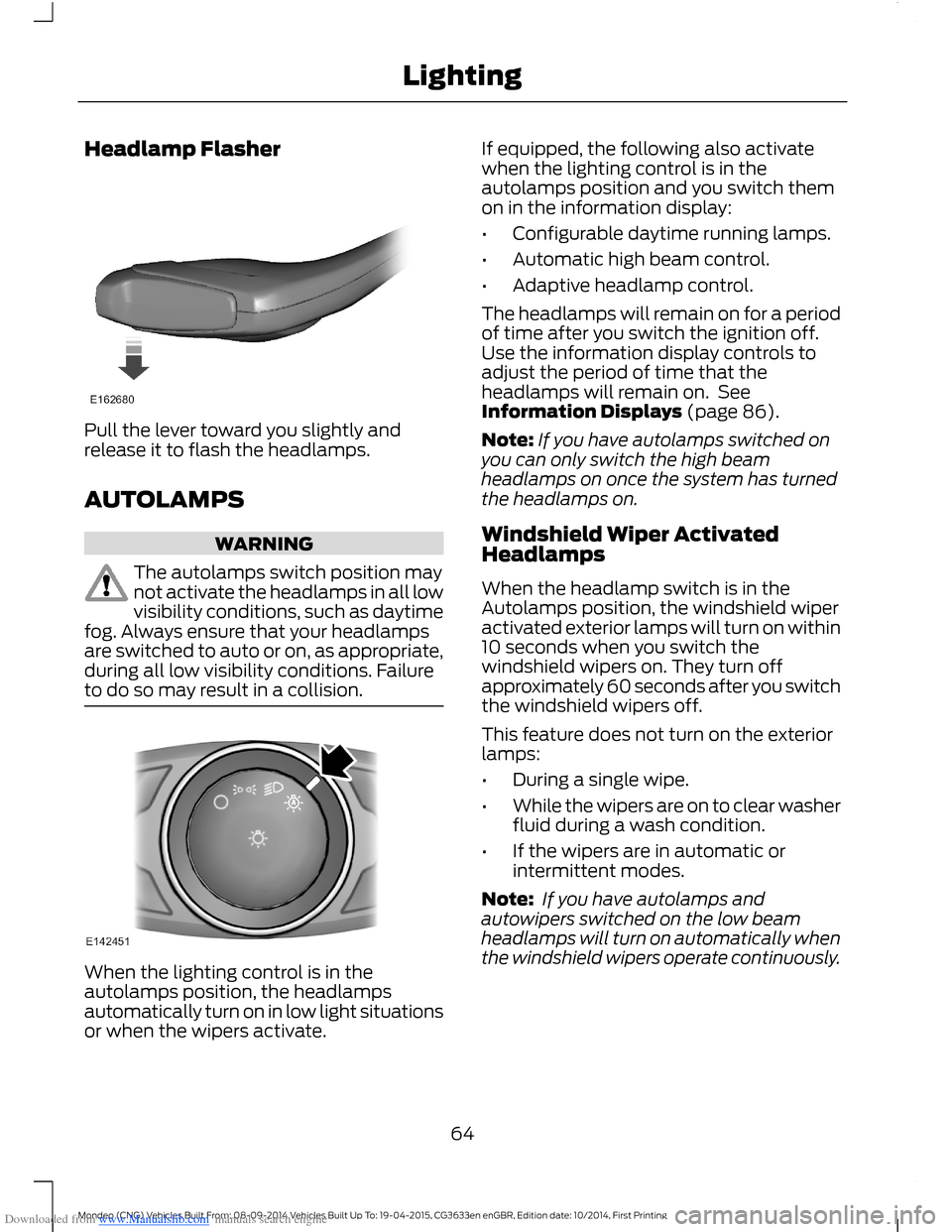

Downloaded from www.Manualslib.com manuals search engine Headlamp Flasher
Pull the lever toward you slightly andrelease it to flash the headlamps.
AUTOLAMPS
WARNING
The autolamps switch position maynot activate the headlamps in all lowvisibility conditions, such as daytimefog. Always ensure that your headlampsare switched to auto or on, as appropriate,during all low visibility conditions. Failureto do so may result in a collision.
When the lighting control is in theautolamps position, the headlampsautomatically turn on in low light situationsor when the wipers activate.
If equipped, the following also activatewhen the lighting control is in theautolamps position and you switch themon in the information display:
•Configurable daytime running lamps.
•Automatic high beam control.
•Adaptive headlamp control.
The headlamps will remain on for a periodof time after you switch the ignition off.Use the information display controls toadjust the period of time that theheadlamps will remain on. SeeInformation Displays (page 86).
Note:If you have autolamps switched onyou can only switch the high beamheadlamps on once the system has turnedthe headlamps on.
Windshield Wiper ActivatedHeadlamps
When the headlamp switch is in theAutolamps position, the windshield wiperactivated exterior lamps will turn on within10 seconds when you switch thewindshield wipers on. They turn offapproximately 60 seconds after you switchthe windshield wipers off.
This feature does not turn on the exteriorlamps:
•During a single wipe.
•While the wipers are on to clear washerfluid during a wash condition.
•If the wipers are in automatic orintermittent modes.
Note: If you have autolamps andautowipers switched on the low beamheadlamps will turn on automatically whenthe windshield wipers operate continuously.
64Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingLighting

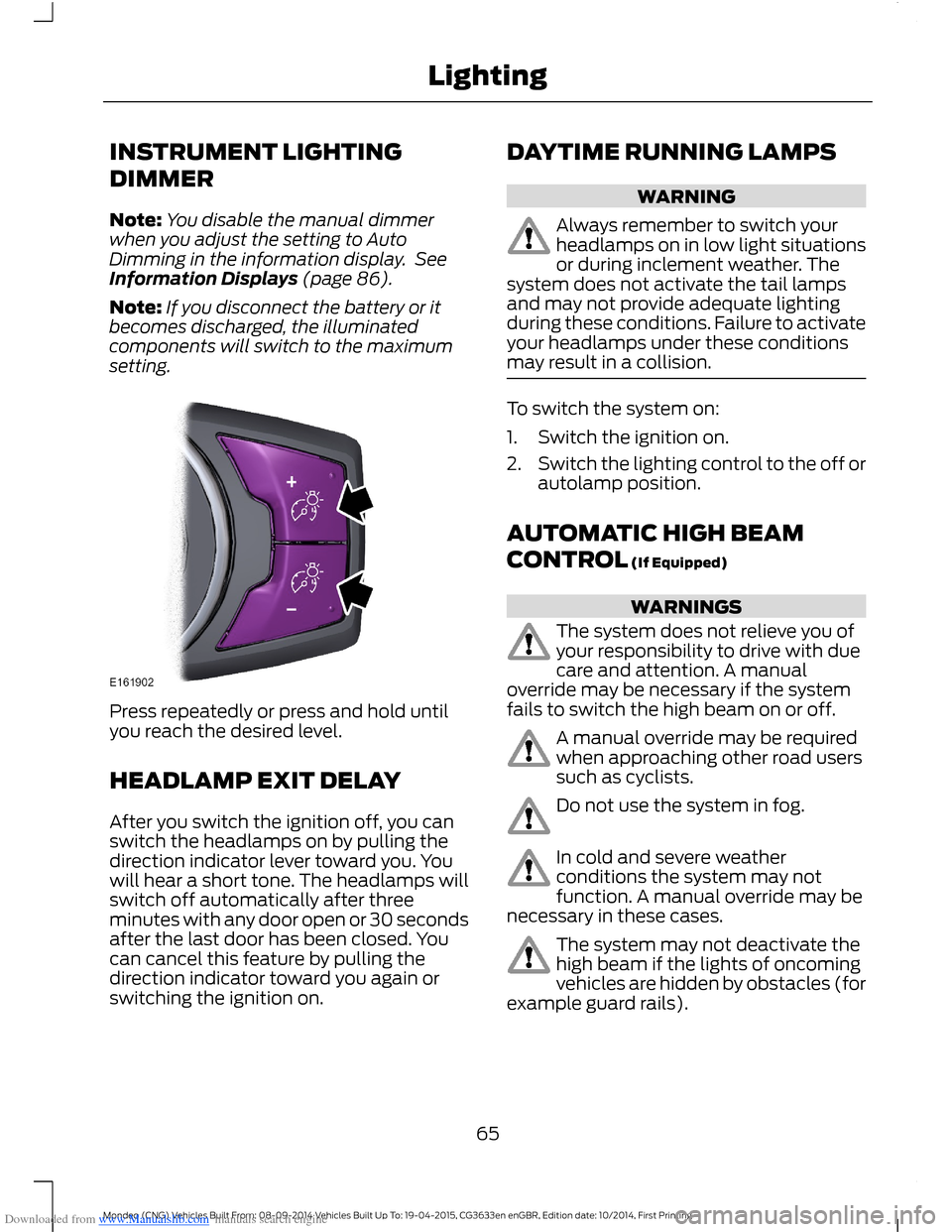

Downloaded from www.Manualslib.com manuals search engine INSTRUMENT LIGHTING
DIMMER
Note:You disable the manual dimmerwhen you adjust the setting to AutoDimming in the information display. SeeInformation Displays (page 86).
Note:If you disconnect the battery or itbecomes discharged, the illuminatedcomponents will switch to the maximumsetting.
Press repeatedly or press and hold untilyou reach the desired level.
HEADLAMP EXIT DELAY
After you switch the ignition off, you canswitch the headlamps on by pulling thedirection indicator lever toward you. Youwill hear a short tone. The headlamps willswitch off automatically after threeminutes with any door open or 30 secondsafter the last door has been closed. Youcan cancel this feature by pulling thedirection indicator toward you again orswitching the ignition on.
DAYTIME RUNNING LAMPS
WARNING
Always remember to switch yourheadlamps on in low light situationsor during inclement weather. Thesystem does not activate the tail lampsand may not provide adequate lightingduring these conditions. Failure to activateyour headlamps under these conditionsmay result in a collision.
To switch the system on:
1.Switch the ignition on.
2.Switch the lighting control to the off orautolamp position.
AUTOMATIC HIGH BEAM
CONTROL (If Equipped)
WARNINGS
The system does not relieve you ofyour responsibility to drive with duecare and attention. A manualoverride may be necessary if the systemfails to switch the high beam on or off.
A manual override may be requiredwhen approaching other road userssuch as cyclists.
Do not use the system in fog.
In cold and severe weatherconditions the system may notfunction. A manual override may benecessary in these cases.
The system may not deactivate thehigh beam if the lights of oncomingvehicles are hidden by obstacles (forexample guard rails).
65Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingLighting

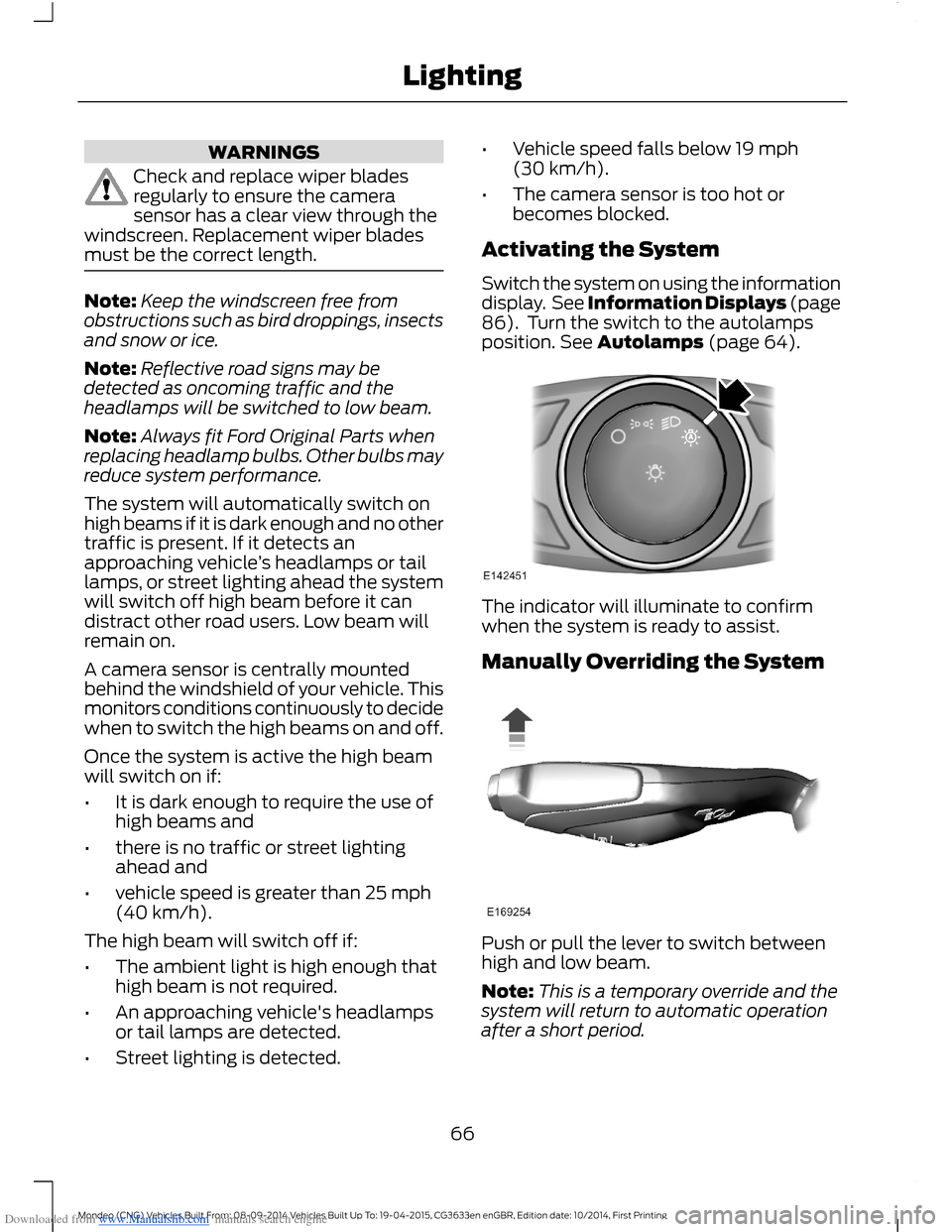

Downloaded from www.Manualslib.com manuals search engine WARNINGS
Check and replace wiper bladesregularly to ensure the camerasensor has a clear view through thewindscreen. Replacement wiper bladesmust be the correct length.
Note:Keep the windscreen free fromobstructions such as bird droppings, insectsand snow or ice.
Note:Reflective road signs may bedetected as oncoming traffic and theheadlamps will be switched to low beam.
Note:Always fit Ford Original Parts whenreplacing headlamp bulbs. Other bulbs mayreduce system performance.
The system will automatically switch onhigh beams if it is dark enough and no othertraffic is present. If it detects anapproaching vehicle’s headlamps or taillamps, or street lighting ahead the systemwill switch off high beam before it candistract other road users. Low beam willremain on.
A camera sensor is centrally mountedbehind the windshield of your vehicle. Thismonitors conditions continuously to decidewhen to switch the high beams on and off.
Once the system is active the high beamwill switch on if:
•It is dark enough to require the use ofhigh beams and
•there is no traffic or street lightingahead and
•vehicle speed is greater than 25 mph(40 km/h).
The high beam will switch off if:
•The ambient light is high enough thathigh beam is not required.
•An approaching vehicle's headlampsor tail lamps are detected.
•Street lighting is detected.
•Vehicle speed falls below 19 mph(30 km/h).
•The camera sensor is too hot orbecomes blocked.
Activating the System
Switch the system on using the informationdisplay. See Information Displays (page86). Turn the switch to the autolampsposition. See Autolamps (page 64).
The indicator will illuminate to confirmwhen the system is ready to assist.
Manually Overriding the System
Push or pull the lever to switch betweenhigh and low beam.
Note:This is a temporary override and thesystem will return to automatic operationafter a short period.
66Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingLighting

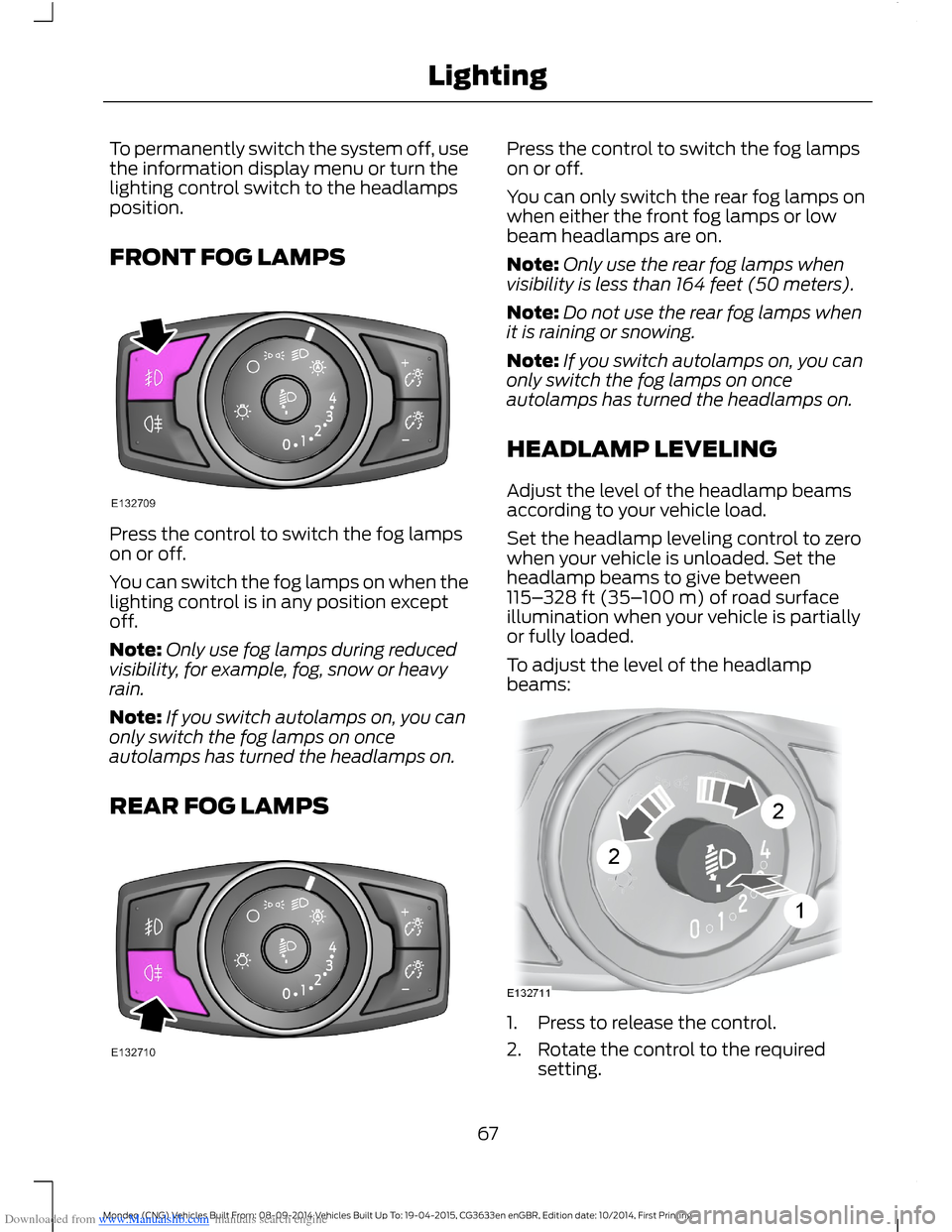

Downloaded from www.Manualslib.com manuals search engine To permanently switch the system off, usethe information display menu or turn thelighting control switch to the headlampsposition.
FRONT FOG LAMPS
Press the control to switch the fog lampson or off.
You can switch the fog lamps on when thelighting control is in any position exceptoff.
Note:Only use fog lamps during reducedvisibility, for example, fog, snow or heavyrain.
Note:If you switch autolamps on, you canonly switch the fog lamps on onceautolamps has turned the headlamps on.
REAR FOG LAMPS
Press the control to switch the fog lampson or off.
You can only switch the rear fog lamps onwhen either the front fog lamps or lowbeam headlamps are on.
Note:Only use the rear fog lamps whenvisibility is less than 164 feet (50 meters).
Note:Do not use the rear fog lamps whenit is raining or snowing.
Note:If you switch autolamps on, you canonly switch the fog lamps on onceautolamps has turned the headlamps on.
HEADLAMP LEVELING
Adjust the level of the headlamp beamsaccording to your vehicle load.
Set the headlamp leveling control to zerowhen your vehicle is unloaded. Set theheadlamp beams to give between115–328 ft (35–100 m) of road surfaceillumination when your vehicle is partiallyor fully loaded.
To adjust the level of the headlampbeams:
1.Press to release the control.
2.Rotate the control to the requiredsetting.
67Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingLighting

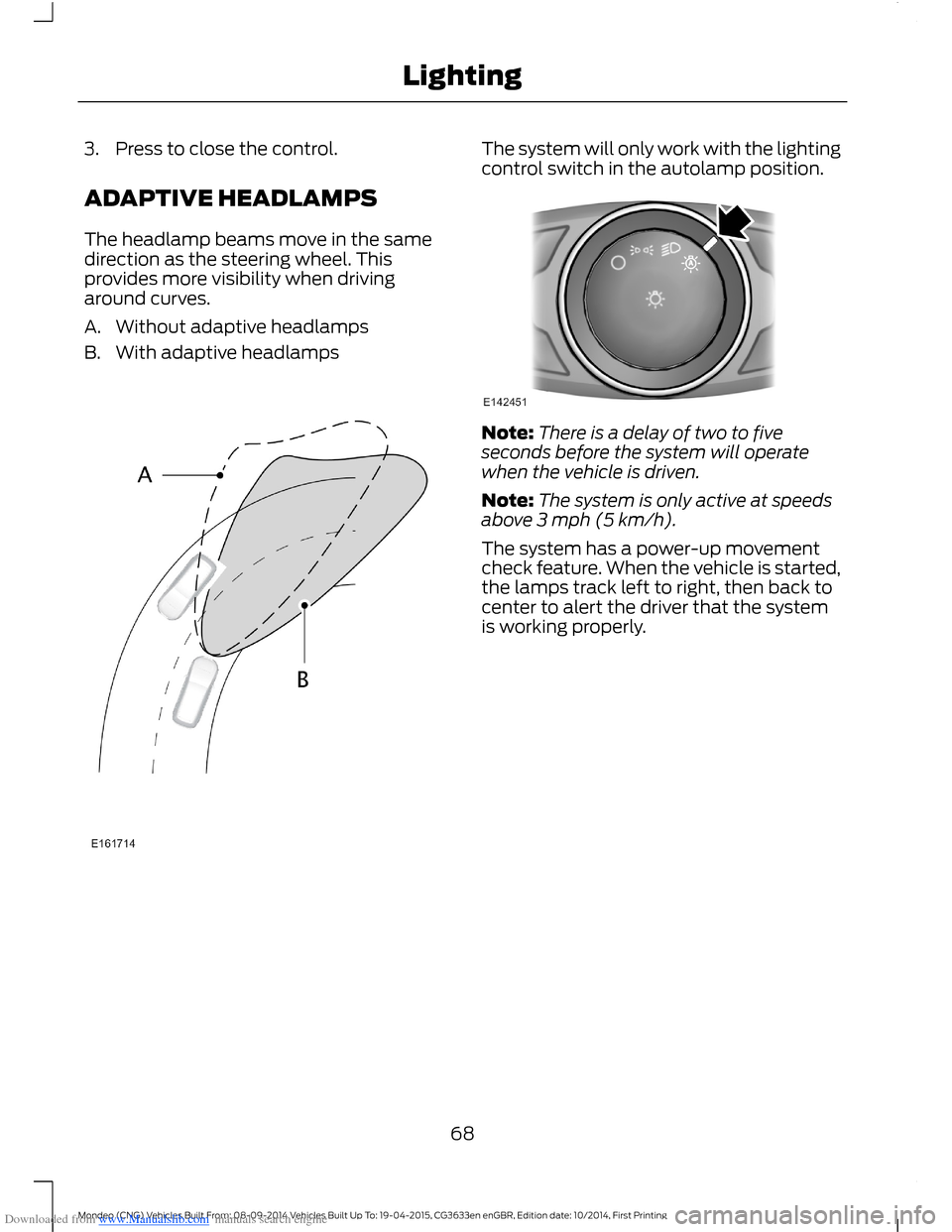

Downloaded from www.Manualslib.com manuals search engine 3.Press to close the control.
ADAPTIVE HEADLAMPS
The headlamp beams move in the samedirection as the steering wheel. Thisprovides more visibility when drivingaround curves.
A.Without adaptive headlamps
B.With adaptive headlamps
The system will only work with the lightingcontrol switch in the autolamp position.
Note:There is a delay of two to fiveseconds before the system will operatewhen the vehicle is driven.
Note:The system is only active at speedsabove 3 mph (5 km/h).
The system has a power-up movementcheck feature. When the vehicle is started,the lamps track left to right, then back tocenter to alert the driver that the systemis working properly.
68Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingLighting
