FORD MONDEO 2014 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Automatic High Beam Control
ActionMessage
The front camera sensor has reduced visibility. Clean thewindshield.Front Camera Low VisibilityClean Screen
The system requires service due to a malfunction. Contactan authorized dealer.Front Camera MalfunctionService Required
The front camera sensor has malfunctioned. Wait a shortperiod of time for the sensor to cool down.Front Camera TemporarilyNot Available
Auto Start-Stop
ActionMessage
The engine needs to be restarted, press the brake pedal tostart.Auto StartStop PressBrake to Start Engine
The engine needs to be restarted, press the brake pedal harderto start.Auto StartStop PressBrake Harder to Activate
The engine needs to be restarted, press the clutch pedal tostart.Auto StartStop PressClutch to Start Engine
The engine needs to be restarted, press the clutch pedal tostart. See Auto-Start-Stop (page 146).Auto StartStop Press aPedal to Start Engine
Select neutral for the system to restart the engine. See Auto-Start-Stop (page 146).Auto StartStop SelectNeutral To Start EngineSelect neutral for the system to restart the engine.
Select park for the system to restart the engine.Auto StartStop Shift toP, then Restart Engine
The system is not functioning. A manual restart is required.Auto StartStop ManualRestart Required
Conditions are not met for the Auto StartStop system tofunction properly.Auto StartStop NotAvailable
99Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

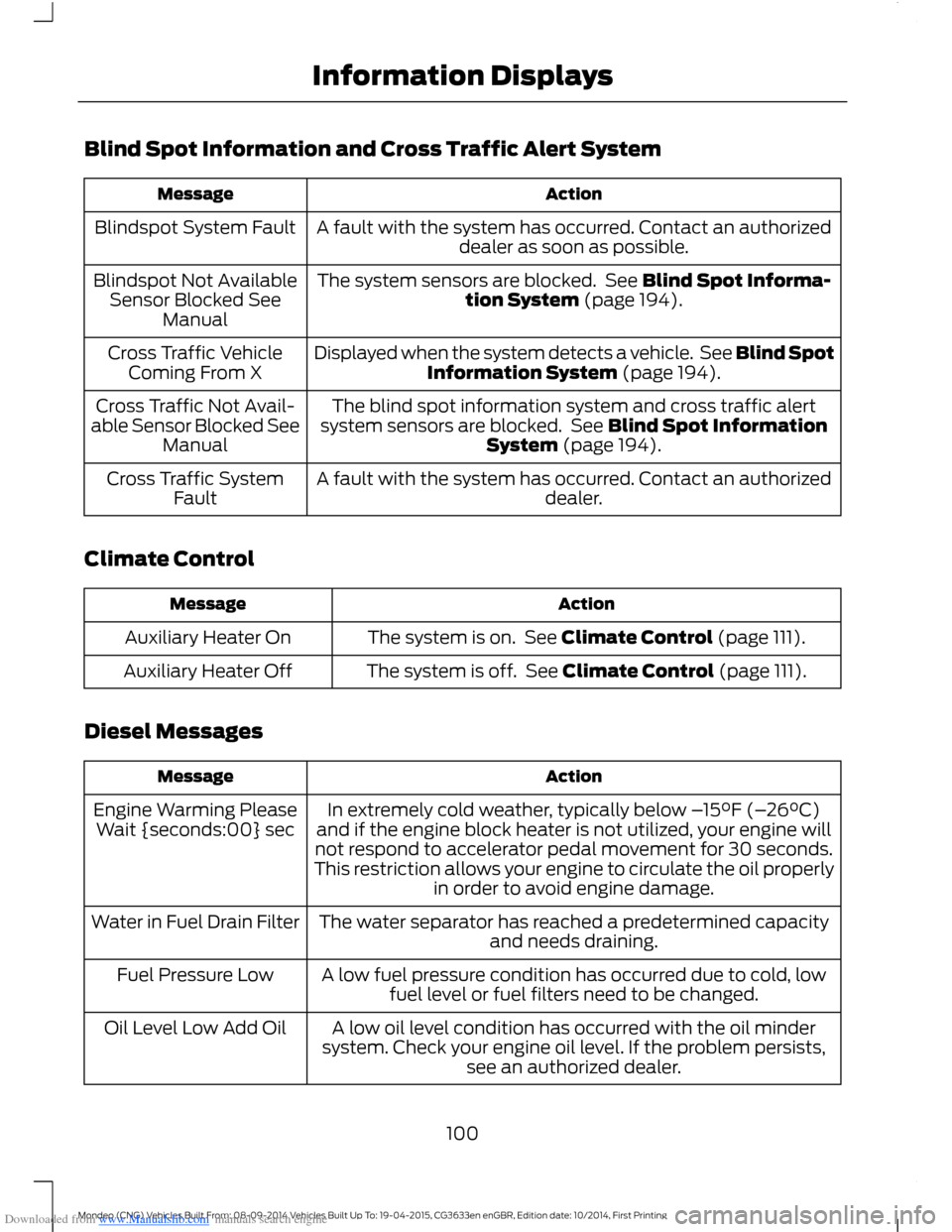

Downloaded from www.Manualslib.com manuals search engine Blind Spot Information and Cross Traffic Alert System
ActionMessage
A fault with the system has occurred. Contact an authorizeddealer as soon as possible.Blindspot System Fault
The system sensors are blocked. See Blind Spot Informa-tion System (page 194).Blindspot Not AvailableSensor Blocked SeeManual
Displayed when the system detects a vehicle. See Blind SpotInformation System (page 194).Cross Traffic VehicleComing From X
The blind spot information system and cross traffic alertsystem sensors are blocked. See Blind Spot InformationSystem (page 194).
Cross Traffic Not Avail-able Sensor Blocked SeeManual
A fault with the system has occurred. Contact an authorizeddealer.Cross Traffic SystemFault
Climate Control
ActionMessage
The system is on. See Climate Control (page 111).Auxiliary Heater On
The system is off. See Climate Control (page 111).Auxiliary Heater Off
Diesel Messages
ActionMessage
In extremely cold weather, typically below –15°F (–26°C)and if the engine block heater is not utilized, your engine willnot respond to accelerator pedal movement for 30 seconds.This restriction allows your engine to circulate the oil properlyin order to avoid engine damage.
Engine Warming PleaseWait {seconds:00} sec
The water separator has reached a predetermined capacityand needs draining.Water in Fuel Drain Filter
A low fuel pressure condition has occurred due to cold, lowfuel level or fuel filters need to be changed.Fuel Pressure Low
A low oil level condition has occurred with the oil mindersystem. Check your engine oil level. If the problem persists,see an authorized dealer.
Oil Level Low Add Oil
100Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

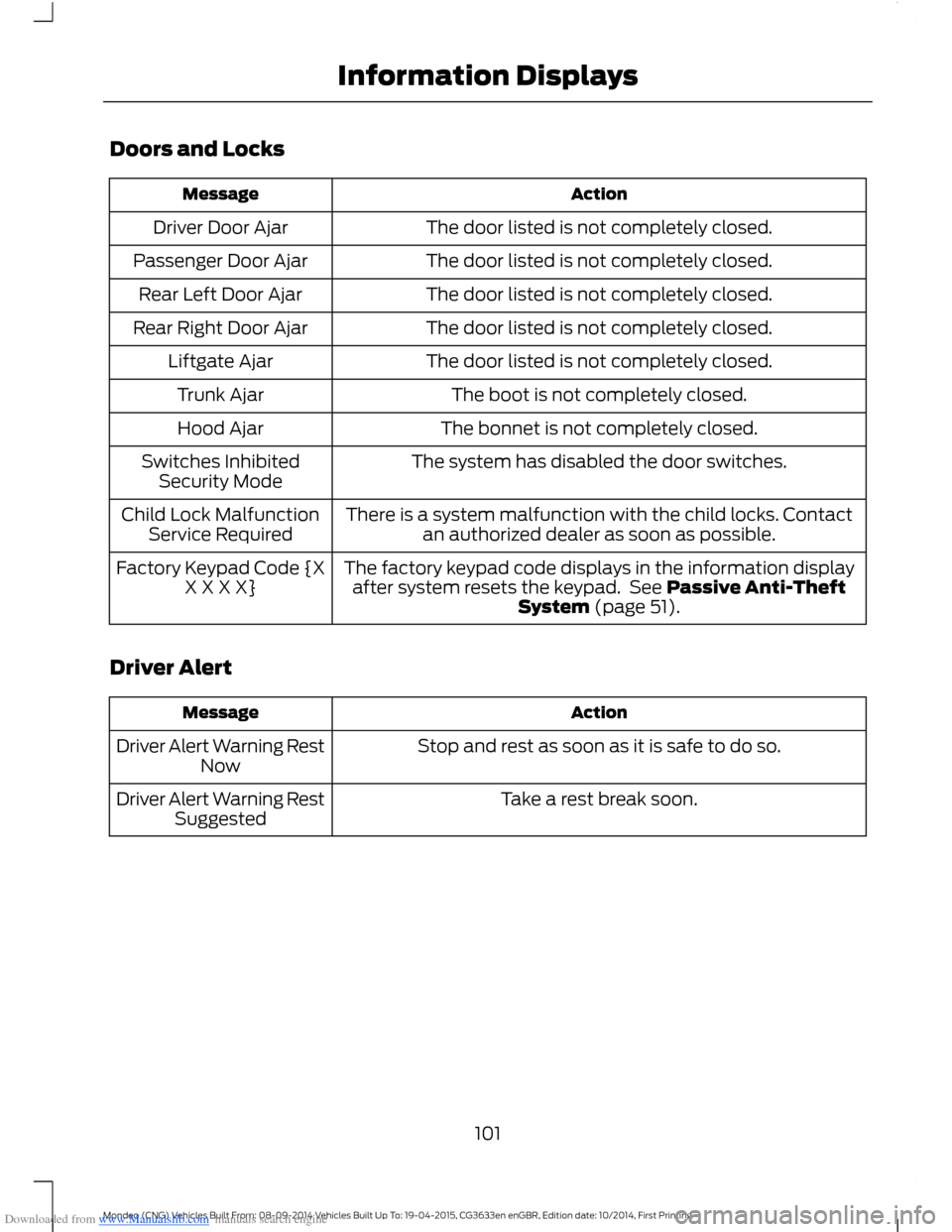

Downloaded from www.Manualslib.com manuals search engine Doors and Locks
ActionMessage
The door listed is not completely closed.Driver Door Ajar
The door listed is not completely closed.Passenger Door Ajar
The door listed is not completely closed.Rear Left Door Ajar
The door listed is not completely closed.Rear Right Door Ajar
The door listed is not completely closed.Liftgate Ajar
The boot is not completely closed.Trunk Ajar
The bonnet is not completely closed.Hood Ajar
The system has disabled the door switches.Switches InhibitedSecurity Mode
There is a system malfunction with the child locks. Contactan authorized dealer as soon as possible.Child Lock MalfunctionService Required
The factory keypad code displays in the information displayafter system resets the keypad. See Passive Anti-TheftSystem (page 51).
Factory Keypad Code {XX X X X}
Driver Alert
ActionMessage
Stop and rest as soon as it is safe to do so.Driver Alert Warning RestNow
Take a rest break soon.Driver Alert Warning RestSuggested
101Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

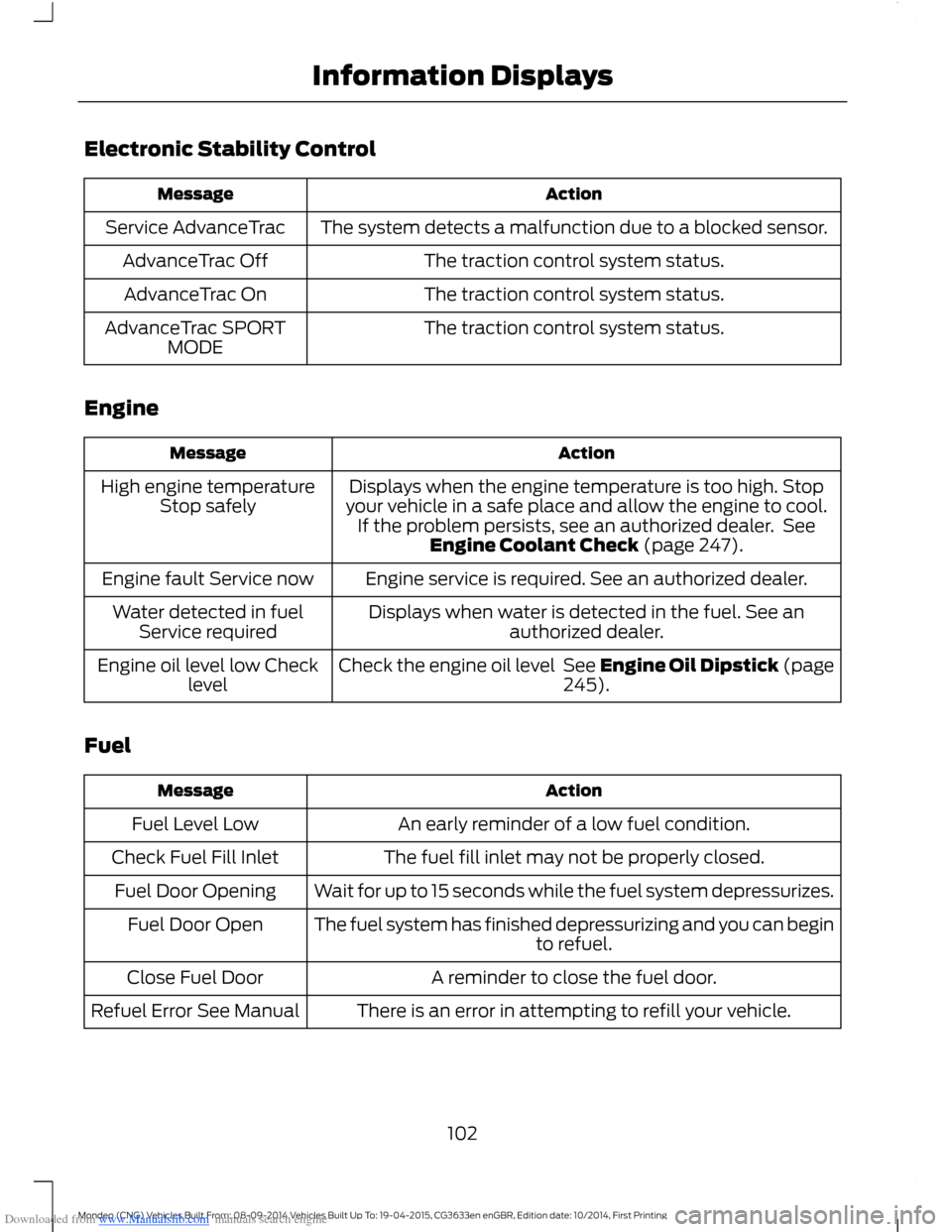

Downloaded from www.Manualslib.com manuals search engine Electronic Stability Control
ActionMessage
The system detects a malfunction due to a blocked sensor.Service AdvanceTrac
The traction control system status.AdvanceTrac Off
The traction control system status.AdvanceTrac On
The traction control system status.AdvanceTrac SPORTMODE
Engine
ActionMessage
Displays when the engine temperature is too high. Stopyour vehicle in a safe place and allow the engine to cool.If the problem persists, see an authorized dealer. SeeEngine Coolant Check (page 247).
High engine temperatureStop safely
Engine service is required. See an authorized dealer.Engine fault Service now
Displays when water is detected in the fuel. See anauthorized dealer.Water detected in fuelService required
Check the engine oil level See Engine Oil Dipstick (page245).Engine oil level low Checklevel
Fuel
ActionMessage
An early reminder of a low fuel condition.Fuel Level Low
The fuel fill inlet may not be properly closed.Check Fuel Fill Inlet
Wait for up to 15 seconds while the fuel system depressurizes.Fuel Door Opening
The fuel system has finished depressurizing and you can beginto refuel.Fuel Door Open
A reminder to close the fuel door.Close Fuel Door
There is an error in attempting to refill your vehicle.Refuel Error See Manual
102Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

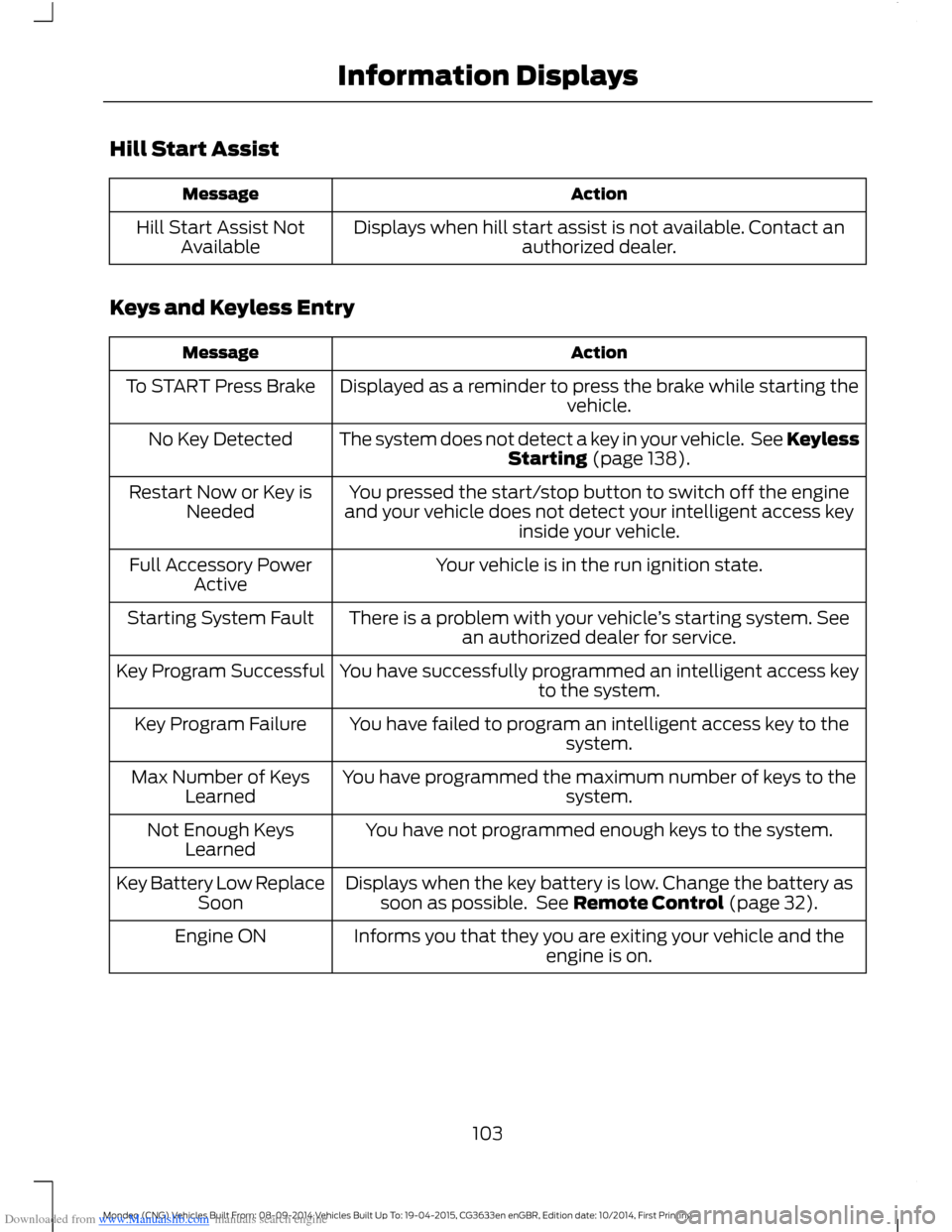

Downloaded from www.Manualslib.com manuals search engine Hill Start Assist
ActionMessage
Displays when hill start assist is not available. Contact anauthorized dealer.Hill Start Assist NotAvailable
Keys and Keyless Entry
ActionMessage
Displayed as a reminder to press the brake while starting thevehicle.To START Press Brake
The system does not detect a key in your vehicle. See KeylessStarting (page 138).No Key Detected
You pressed the start/stop button to switch off the engineand your vehicle does not detect your intelligent access keyinside your vehicle.
Restart Now or Key isNeeded
Your vehicle is in the run ignition state.Full Accessory PowerActive
There is a problem with your vehicle’s starting system. Seean authorized dealer for service.Starting System Fault
You have successfully programmed an intelligent access keyto the system.Key Program Successful
You have failed to program an intelligent access key to thesystem.Key Program Failure
You have programmed the maximum number of keys to thesystem.Max Number of KeysLearned
You have not programmed enough keys to the system.Not Enough KeysLearned
Displays when the key battery is low. Change the battery assoon as possible. See Remote Control (page 32).Key Battery Low ReplaceSoon
Informs you that they you are exiting your vehicle and theengine is on.Engine ON
103Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

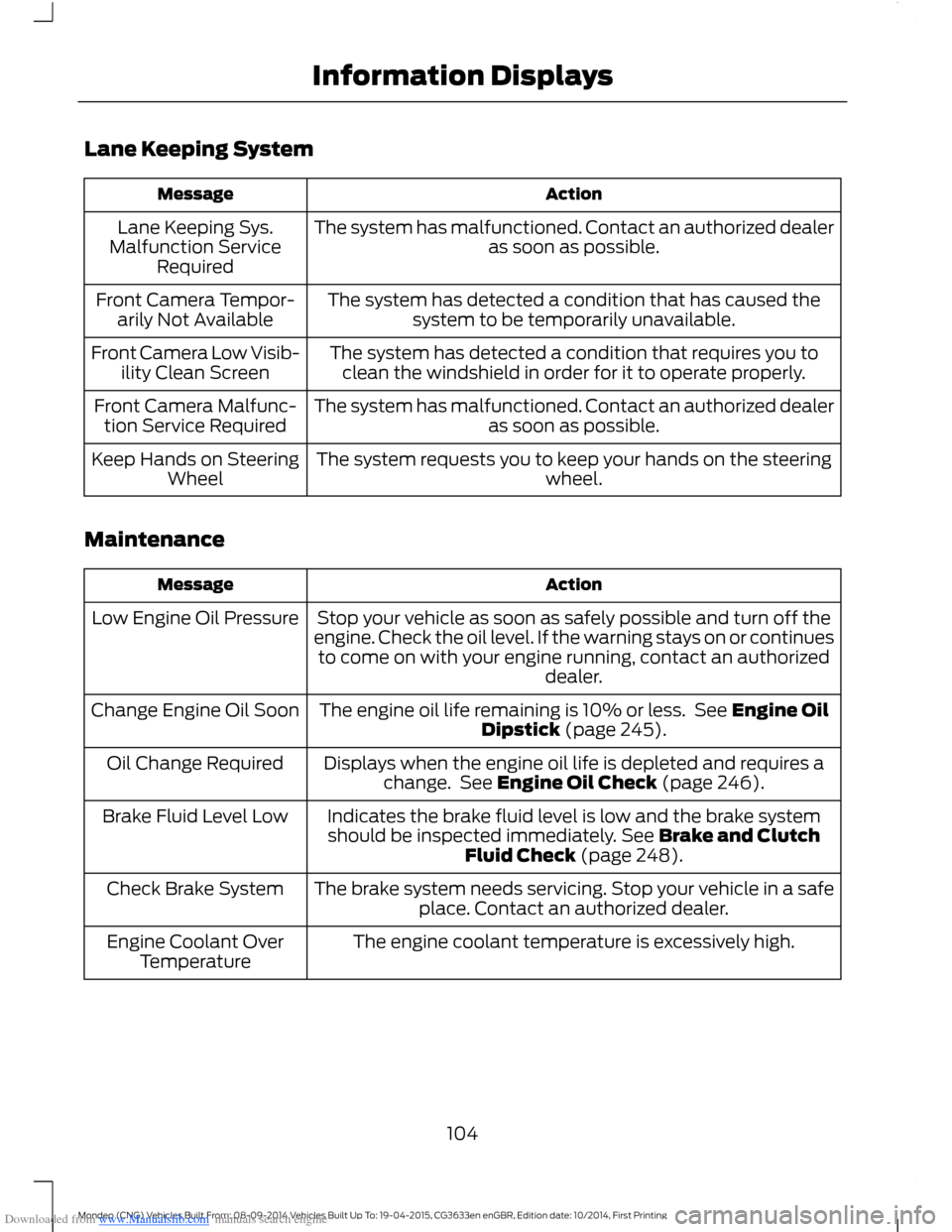

Downloaded from www.Manualslib.com manuals search engine Lane Keeping System
ActionMessage
The system has malfunctioned. Contact an authorized dealeras soon as possible.Lane Keeping Sys.Malfunction ServiceRequired
The system has detected a condition that has caused thesystem to be temporarily unavailable.Front Camera Tempor-arily Not Available
The system has detected a condition that requires you toclean the windshield in order for it to operate properly.Front Camera Low Visib-ility Clean Screen
The system has malfunctioned. Contact an authorized dealeras soon as possible.Front Camera Malfunc-tion Service Required
The system requests you to keep your hands on the steeringwheel.Keep Hands on SteeringWheel
Maintenance
ActionMessage
Stop your vehicle as soon as safely possible and turn off theengine. Check the oil level. If the warning stays on or continuesto come on with your engine running, contact an authorizeddealer.
Low Engine Oil Pressure
The engine oil life remaining is 10% or less. See Engine OilDipstick (page 245).Change Engine Oil Soon
Displays when the engine oil life is depleted and requires achange. See Engine Oil Check (page 246).Oil Change Required
Indicates the brake fluid level is low and the brake systemshould be inspected immediately. See Brake and ClutchFluid Check (page 248).
Brake Fluid Level Low
The brake system needs servicing. Stop your vehicle in a safeplace. Contact an authorized dealer.Check Brake System
The engine coolant temperature is excessively high.Engine Coolant OverTemperature
104Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

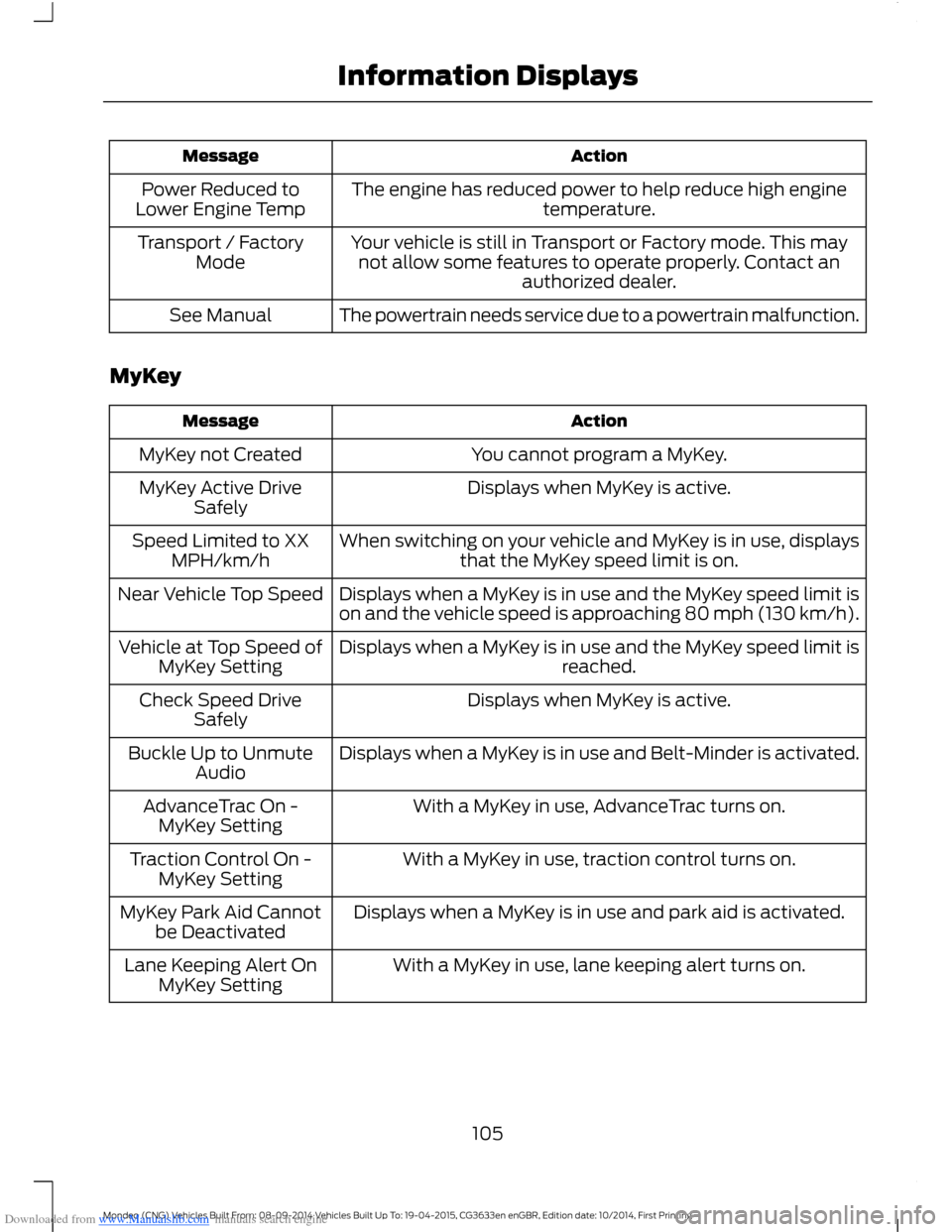

Downloaded from www.Manualslib.com manuals search engine ActionMessage
The engine has reduced power to help reduce high enginetemperature.Power Reduced toLower Engine Temp
Your vehicle is still in Transport or Factory mode. This maynot allow some features to operate properly. Contact anauthorized dealer.
Transport / FactoryMode
The powertrain needs service due to a powertrain malfunction.See Manual
MyKey
ActionMessage
You cannot program a MyKey.MyKey not Created
Displays when MyKey is active.MyKey Active DriveSafely
When switching on your vehicle and MyKey is in use, displaysthat the MyKey speed limit is on.Speed Limited to XXMPH/km/h
Displays when a MyKey is in use and the MyKey speed limit ison and the vehicle speed is approaching 80 mph (130 km/h).Near Vehicle Top Speed
Displays when a MyKey is in use and the MyKey speed limit isreached.Vehicle at Top Speed ofMyKey Setting
Displays when MyKey is active.Check Speed DriveSafely
Displays when a MyKey is in use and Belt-Minder is activated.Buckle Up to UnmuteAudio
With a MyKey in use, AdvanceTrac turns on.AdvanceTrac On -MyKey Setting
With a MyKey in use, traction control turns on.Traction Control On -MyKey Setting
Displays when a MyKey is in use and park aid is activated.MyKey Park Aid Cannotbe Deactivated
With a MyKey in use, lane keeping alert turns on.Lane Keeping Alert OnMyKey Setting
105Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

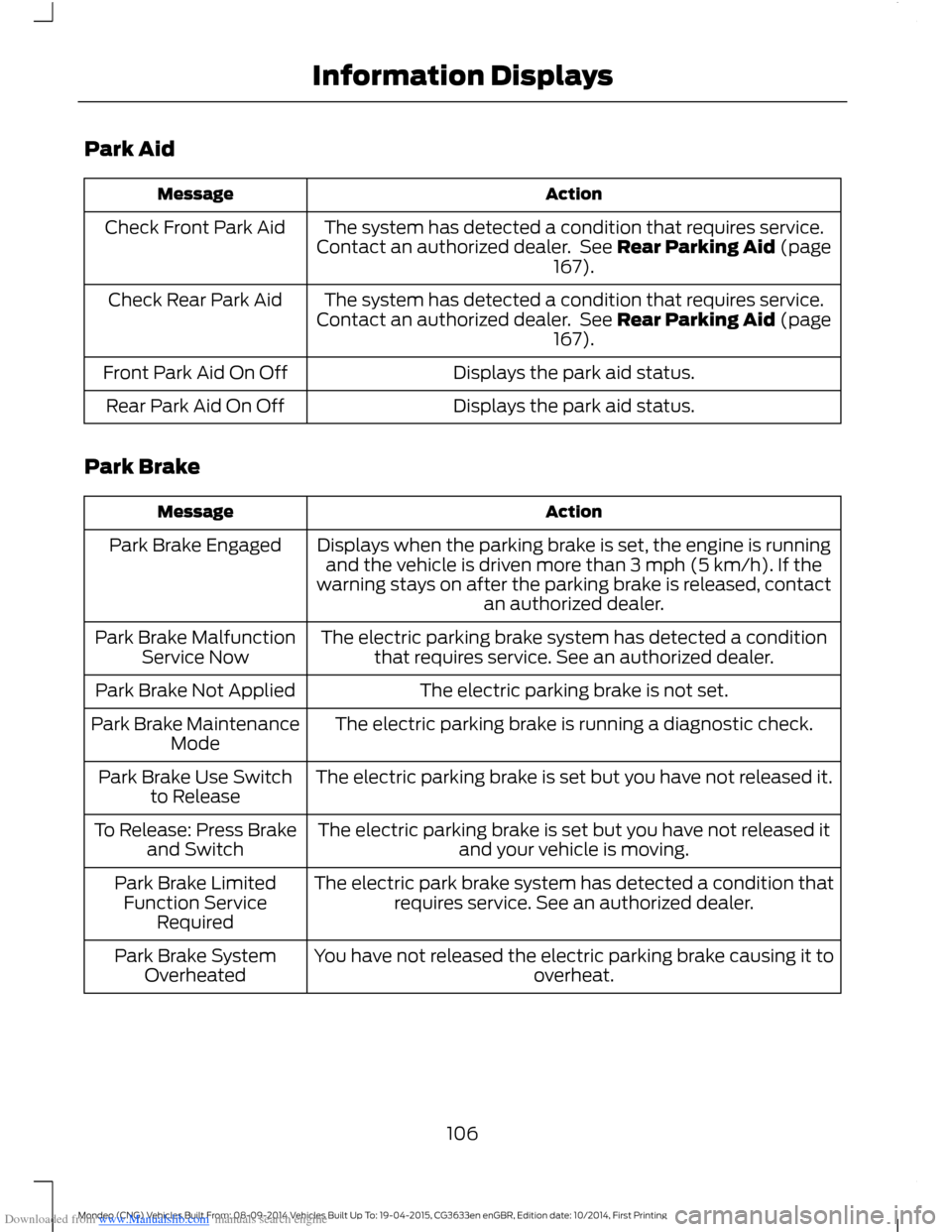

Downloaded from www.Manualslib.com manuals search engine Park Aid
ActionMessage
The system has detected a condition that requires service.Contact an authorized dealer. See Rear Parking Aid (page167).
Check Front Park Aid
The system has detected a condition that requires service.Contact an authorized dealer. See Rear Parking Aid (page167).
Check Rear Park Aid
Displays the park aid status.Front Park Aid On Off
Displays the park aid status.Rear Park Aid On Off
Park Brake
ActionMessage
Displays when the parking brake is set, the engine is runningand the vehicle is driven more than 3 mph (5 km/h). If thewarning stays on after the parking brake is released, contactan authorized dealer.
Park Brake Engaged
The electric parking brake system has detected a conditionthat requires service. See an authorized dealer.Park Brake MalfunctionService Now
The electric parking brake is not set.Park Brake Not Applied
The electric parking brake is running a diagnostic check.Park Brake MaintenanceMode
The electric parking brake is set but you have not released it.Park Brake Use Switchto Release
The electric parking brake is set but you have not released itand your vehicle is moving.To Release: Press Brakeand Switch
The electric park brake system has detected a condition thatrequires service. See an authorized dealer.Park Brake LimitedFunction ServiceRequired
You have not released the electric parking brake causing it tooverheat.Park Brake SystemOverheated
106Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

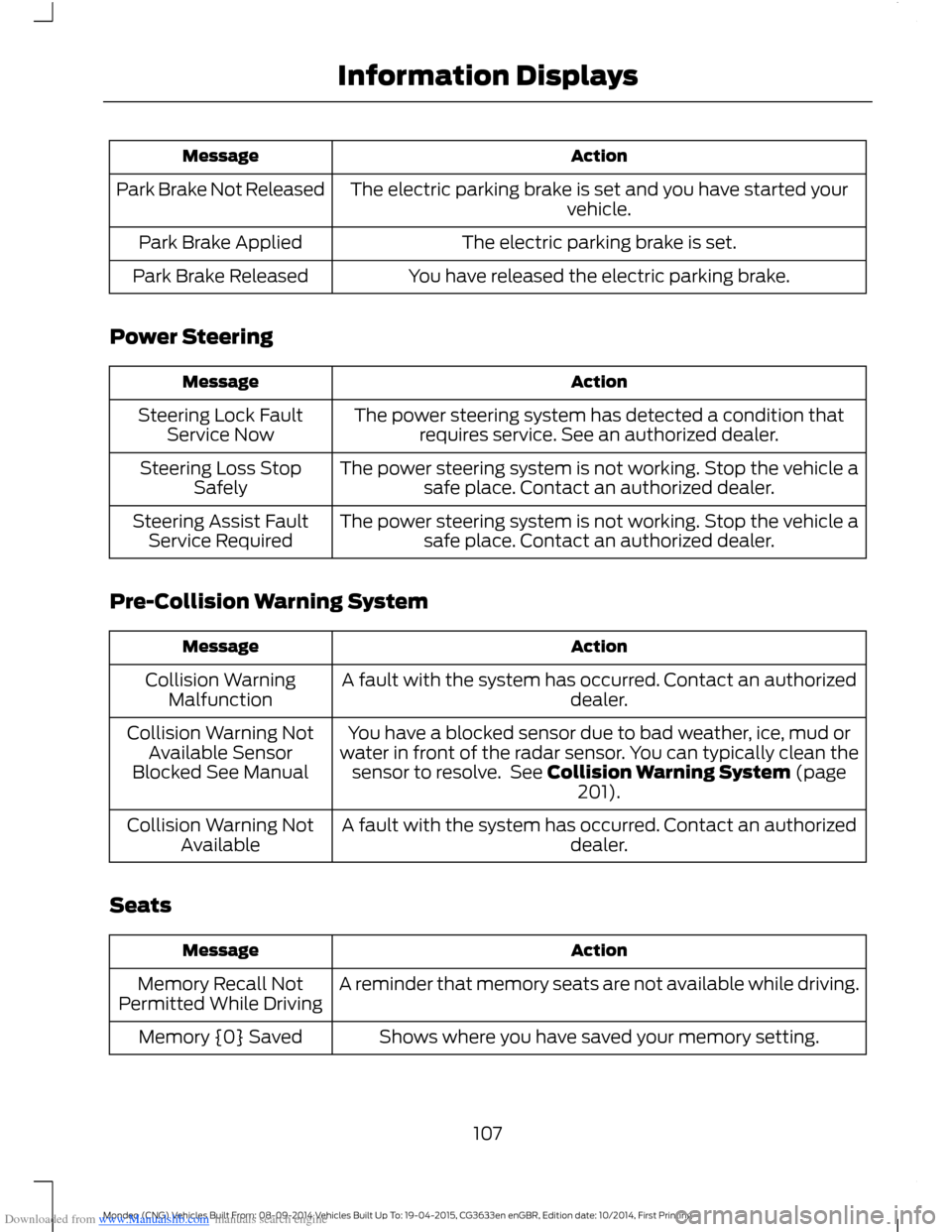

Downloaded from www.Manualslib.com manuals search engine ActionMessage
The electric parking brake is set and you have started yourvehicle.Park Brake Not Released
The electric parking brake is set.Park Brake Applied
You have released the electric parking brake.Park Brake Released
Power Steering
ActionMessage
The power steering system has detected a condition thatrequires service. See an authorized dealer.Steering Lock FaultService Now
The power steering system is not working. Stop the vehicle asafe place. Contact an authorized dealer.Steering Loss StopSafely
The power steering system is not working. Stop the vehicle asafe place. Contact an authorized dealer.Steering Assist FaultService Required
Pre-Collision Warning System
ActionMessage
A fault with the system has occurred. Contact an authorizeddealer.Collision WarningMalfunction
You have a blocked sensor due to bad weather, ice, mud orwater in front of the radar sensor. You can typically clean thesensor to resolve. See Collision Warning System (page201).
Collision Warning NotAvailable SensorBlocked See Manual
A fault with the system has occurred. Contact an authorizeddealer.Collision Warning NotAvailable
Seats
ActionMessage
A reminder that memory seats are not available while driving.Memory Recall NotPermitted While Driving
Shows where you have saved your memory setting.Memory {0} Saved
107Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays

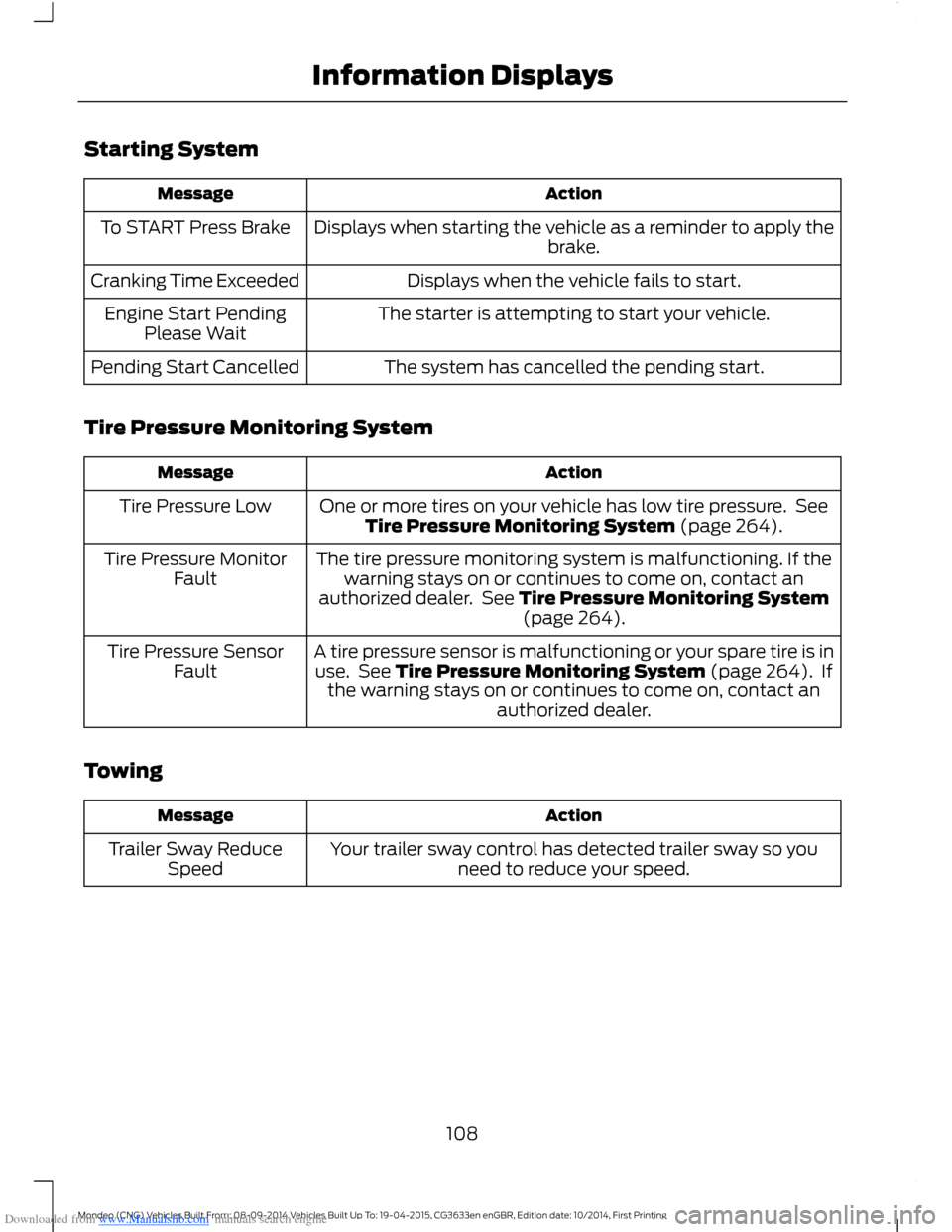

Downloaded from www.Manualslib.com manuals search engine Starting System
ActionMessage
Displays when starting the vehicle as a reminder to apply thebrake.To START Press Brake
Displays when the vehicle fails to start.Cranking Time Exceeded
The starter is attempting to start your vehicle.Engine Start PendingPlease Wait
The system has cancelled the pending start.Pending Start Cancelled
Tire Pressure Monitoring System
ActionMessage
One or more tires on your vehicle has low tire pressure. SeeTire Pressure Monitoring System (page 264).Tire Pressure Low
The tire pressure monitoring system is malfunctioning. If thewarning stays on or continues to come on, contact anauthorized dealer. See Tire Pressure Monitoring System(page 264).
Tire Pressure MonitorFault
A tire pressure sensor is malfunctioning or your spare tire is inuse. See Tire Pressure Monitoring System (page 264). Ifthe warning stays on or continues to come on, contact anauthorized dealer.
Tire Pressure SensorFault
Towing
ActionMessage
Your trailer sway control has detected trailer sway so youneed to reduce your speed.Trailer Sway ReduceSpeed
108Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingInformation Displays
