FORD MUSTANG 1997 4.G Owners Manual

213
%*
[MC04500( ALL)03/96]
Engine Compartment
*
[MC04600(MBC )01/96]
Your vehicle has one of these types of engines:
[MC04800(MBC )02/96]
q
a 3.8 liter SFI engine
[MC04900(MBC )12/95]
q
a 4.6 liter SFI engine
*
[MC05000(MBC )03/96]
The following pages show diagrams of each
engine type and where to find items that you
should regularly service.
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

214 [MC05100(M )04/96]
full page art:0010325-EA 3.8 Liter SFI engine
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

215 [MC05200(M )04/96]
full page art:0011343-B

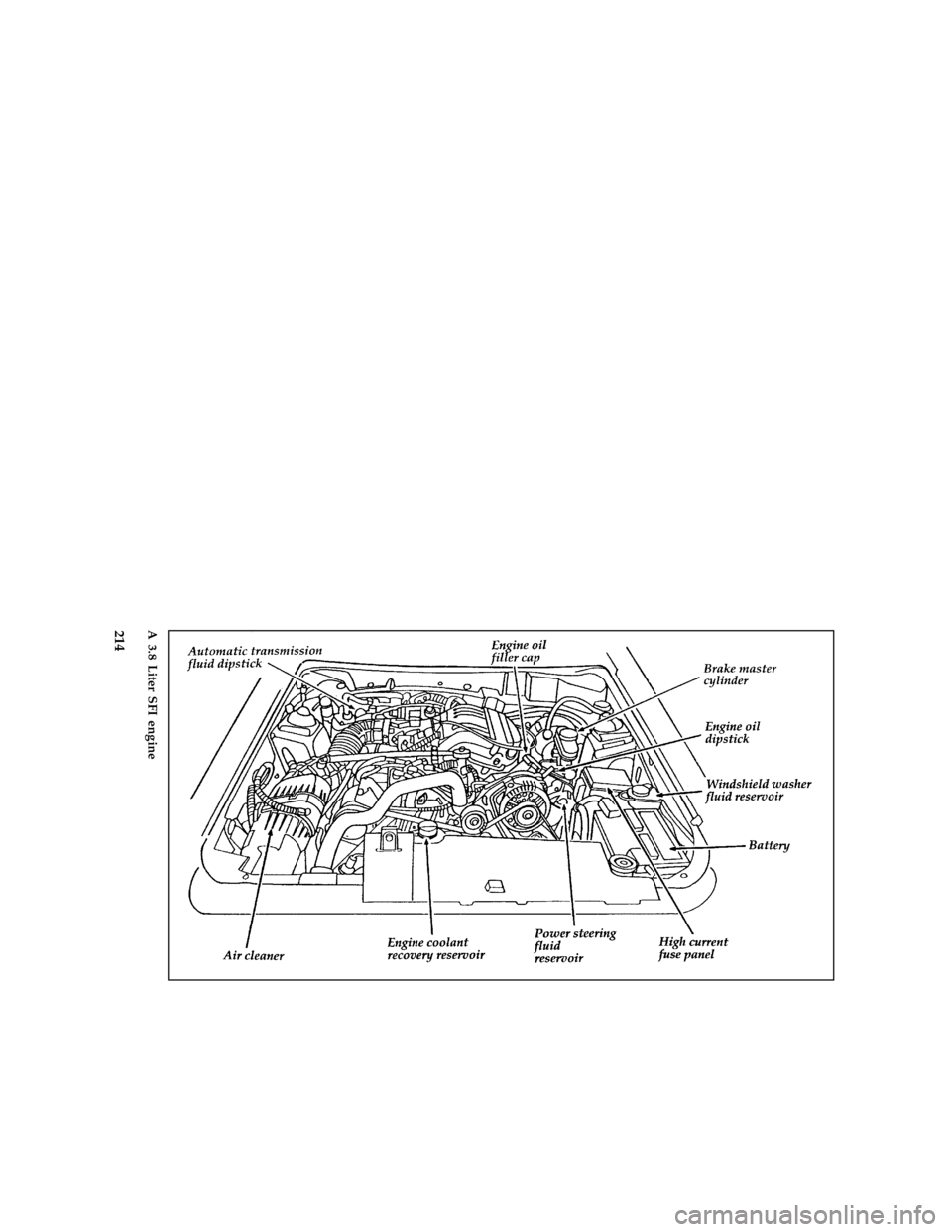

A 4.6 Liter (2V) engine Ð GT models
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

216
%*
[MC05600( ALL)01/96]
Engine Oil Recommendations
*
[MC05700( ALL)01/96]
We recommend using Motorcraft oil or an
equivalent oil meeting Ford Specification
WSS-M2C153-F and displaying the American
Petroleum Institute CERTIFICATION MARK on
the front of the container.
*
[MC05800( ALL)01/96]
one third page art:0060021-E
The API Certification Mark
*
[MC05900( ALL)01/96]
Neveruse:
*
[MC06000( ALL)01/96]
q
ªNon-Detergentº oils
*
[MC06100( ALL)02/96]
q
Oils labeled API SA, SB, SC, SD, SE, SF or SG
%*
[MC06200( ALL)01/96]
q
Additional engine oil additives, oil treatments
or engine treatments
%*
[MC06300( ALL)01/96]
Engine oils with anSAE 5W-30viscosity are
PREFERREDfor your vehicle. They provide the
best engine performance, fuel economy and
engine protection for all climates down to-15ÊF
(-25ÊC).
%*
[MC06400( ALL)03/96]
Synthetic engine oils which are CERTIFIED and
of the preferred viscosity may be used in your
engine. The engine oil and oil filter must still be
changed according to the maintenance schedule.
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

217 %
*
[MC06500( ALL)01/96]
Checking and Adding Engine Oil
*
[MC06600( ALL)01/96]
Since the proper amount of engine oil is
important for safe engine operation, check the oil
using the dipstick each time you put fuel in
your vehicle. Remember the engine must be off,
the oil must be warm and the vehicle must be
parked on level ground.
%*
[MC06700( ALL)01/96]
Checking the engine oil level:
*
[MC06800( ALL)01/96]
1. Turn the engine off after it has warmed up
and allow a few minutes for the engine oil
to drain back into the oil pan.
*
[MC07000(M )01/96]
2. Set the parking brake, making sure that the
gearshift is securely latched in P (Park)
(automatic transmission) or 1 (First) (manual
transmission).
*
[MC07100( ALL)01/96]
3. Open the hood. Protect yourself from engine
heat.
*
[MC07200( ALL)01/96]
4. Locate the engine oil dipstick (highlighted in
yellow) and carefully pull it out of the
engine.
*
[MC07300( ALL)01/96]
5. Wipe the dipstick clean and put it back into
position, making sure it is fully seated.
[MC07450(M )03/96]

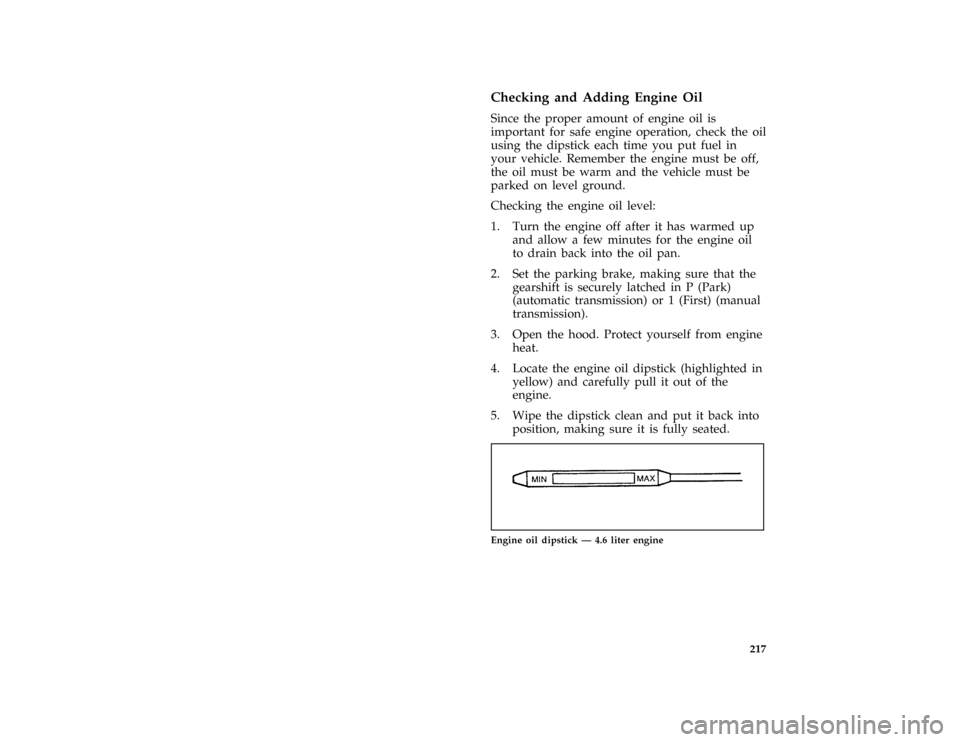

one inch art:0011386-B
Engine oil dipstick Ð 4.6 liter engine
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

218 [MC07600(MBC )12/95]

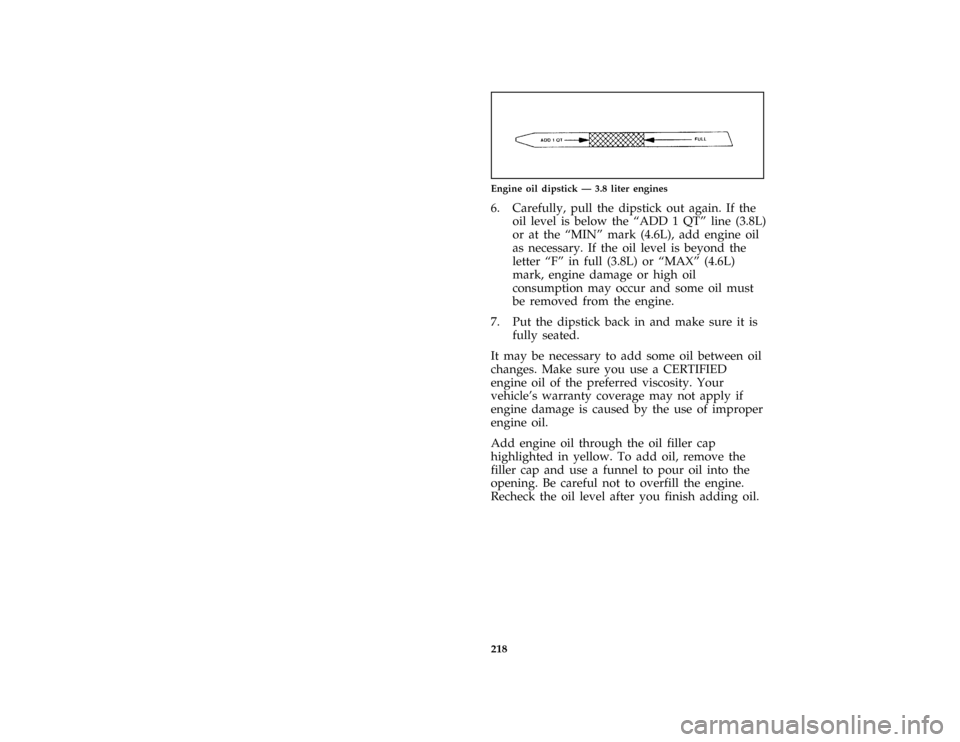

one inch art:0000970-BEngine oil dipstick Ð 3.8 liter engines
[MC07750(M )03/96]
6. Carefully, pull the dipstick out again. If the
oil level is below the ªADD 1 QTº line (3.8L)
or at the ªMINº mark (4.6L), add engine oil
as necessary. If the oil level is beyond the
letter ªFº in full (3.8L) or ªMAXº (4.6L)
mark, engine damage or high oil
consumption may occur and some oil must
be removed from the engine.
*
[MC07800( ALL)01/96]
7. Put the dipstick back in and make sure it is
fully seated.
*
[MC07900( ALL)01/96]
It may be necessary to add some oil between oil
changes. Make sure you use a CERTIFIED
engine oil of the preferred viscosity. Your
vehicle's warranty coverage may not apply if
engine damage is caused by the use of improper
engine oil.
*
[MC08000( ALL)01/96]
Add engine oil through the oil filler cap
highlighted in yellow. To add oil, remove the
filler cap and use a funnel to pour oil into the
opening. Be careful not to overfill the engine.
Recheck the oil level after you finish adding oil.
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

219 %
*
[MC08100( ALL)01/96]
Changing the Engine Oil and the Oil Filter
*
[MC08200( ALL)01/96]

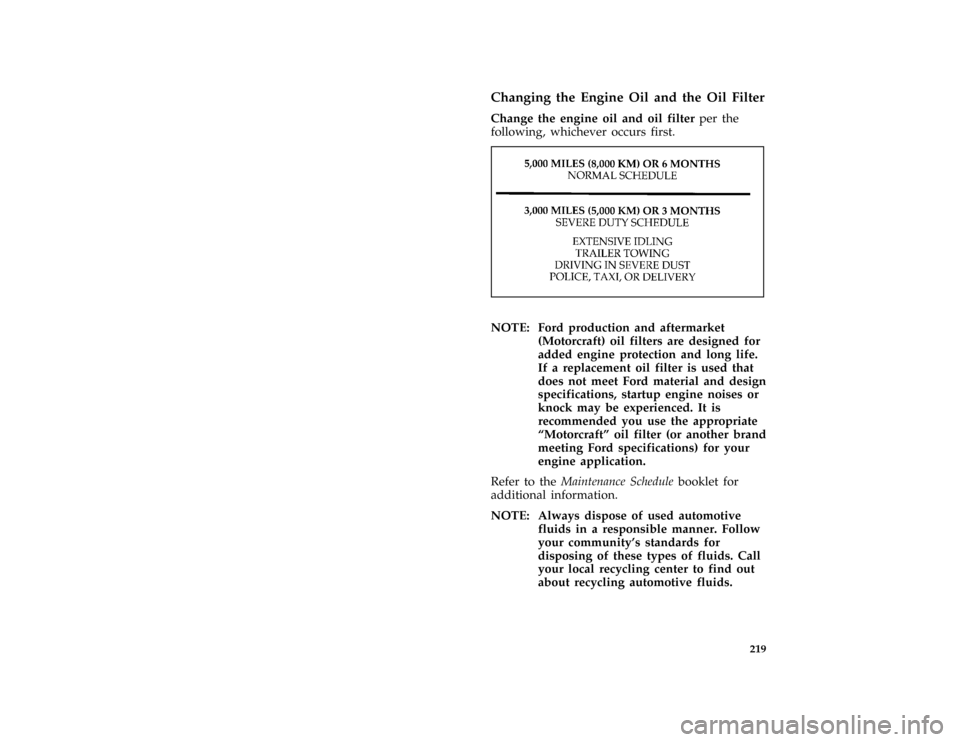

Change the engine oil and oil filterper the
following, whichever occurs first.
*
[MC08300( ALL)01/96]
one third page art:0060618-C
*
[MC08350( ALL)05/96]
NOTE: Ford production and aftermarket
(Motorcraft) oil filters are designed for
added engine protection and long life.
If a replacement oil filter is used that
does not meet Ford material and design
specifications, startup engine noises or
knock may be experienced. It is
recommended you use the appropriate
ªMotorcraftº oil filter (or another brand
meeting Ford specifications) for your
engine application.
*
[MC08400( ALL)05/96]
Refer to theMaintenance Schedulebooklet for
additional information.
%*
[MC08500( ALL)05/96]
NOTE: Always dispose of used automotive
fluids in a responsible manner. Follow
your community's standards for
disposing of these types of fluids. Call
your local recycling center to find out
about recycling automotive fluids.
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

220
*
[MC08600( ALL)01/96]
RWARNING
Continuous contact with USED motor oil
has caused cancer in laboratory mice.
*
[MC08700( ALL)01/96]
Protect your skin by washing with soap and
water.
%
*
[MC08800( ALL)05/96]
Brake Fluid
*
[MC08900( ALL)01/96]
Under normal circumstances, your vehicle
should not use up brake fluid rapidly. However,
expect the level of the brake fluid to slowly fall
as you put more mileage on your vehicle and
the brake lining wears.
[MC09100(M )04/96]
Check the brake fluid at each scheduled engine
oil change or at least once a year. You can do
this by looking at the fluid level in the plastic
reservoir on the master cylinder. Also, see label
on reservoir cap. (To locate the master cylinder,
seeThe Engine Typesin the Index.) The fluid
level should be between the MAX fill mark and
3/8" below the MAX fill line.
*
[MC09200( ALL)01/96]
RWARNING
Brake fluid is toxic.
*
[MC09300( ALL)01/96]
If brake fluid contacts eyes, flush eyes with
running water for 15 minutes. Get medical
attention if irritation persists. If taken internally,
drink water and induce vomiting. Get medical
attention immediately.
%*
[MC09400( ALL)03/96]
If the fluid is low, carefully clean and remove
the filler cap from the reservoir. Fill the
reservoir to the MAX line with Ford High
Performance DOT 3 Brake Fluid C6AZ-19542-AB
or DOT 3 equivalent fluid meeting Ford
specification ESA-M6C25-A.
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

221
*
[MC09500( ALL)01/96]
RWARNING
If you use a brake fluid that is not DOT
3, you will cause permanent damage to
your brakes.
*
[MC09600( ALL)01/96]
Do not fill the reservoir above the MAX line.
[MC09800(M )12/95]

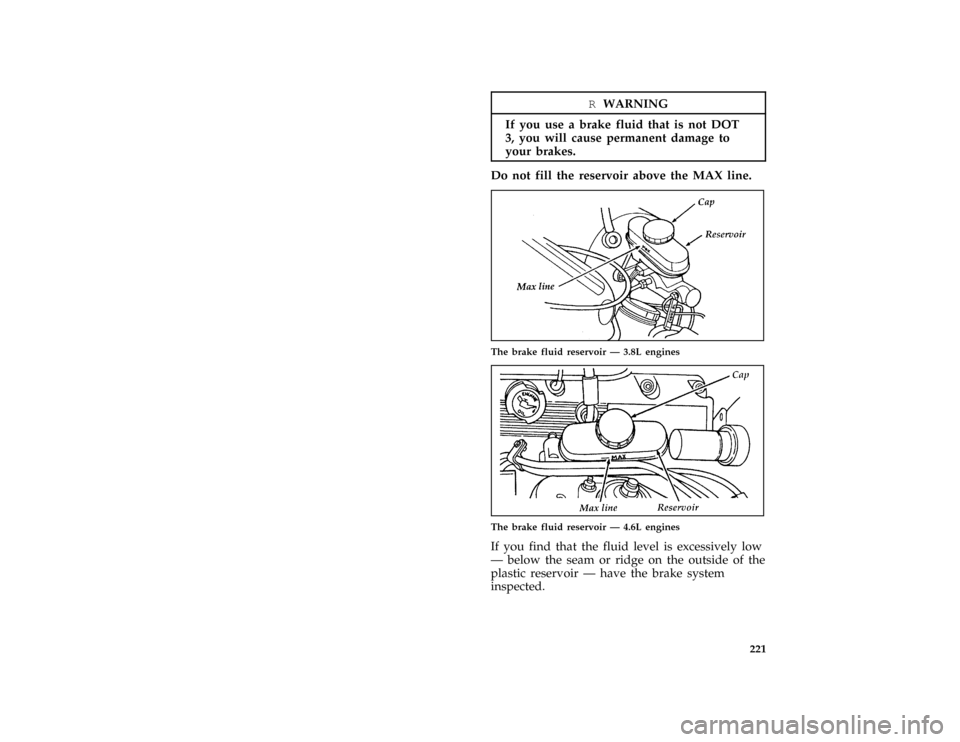

one third page art:0010386-C
The brake fluid reservoir Ð 3.8L engines
[MC09900(M )12/95]
one third page art:0011349-A
The brake fluid reservoir Ð 4.6L engines
*
[MC10100( ALL)01/96]
If you find that the fluid level is excessively low
Ð below the seam or ridge on the outside of the
plastic reservoir Ð have the brake system
inspected.
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

222
*
[MC10200( ALL)01/96]
RWARNING
Do not let the reservoir for the master
cylinder run dry. This may cause the
brakes to fail.
%
*
[MC10400(M )05/96]
The Clutch
[MC10500(M )12/95]
The clutch on your vehicle is operated by a
cable that adjusts itself with a little help from
you. Complete the following steps every
5,000-6,000 miles (10,000 km) to adjust the
clutch.
[MC10600(M )12/95]
1. Turn your engine off and put your gearshift
in First.
[MC10700(M )12/95]
2. Put your foot under the clutch pedal and
gently pull it up until the pedal stops.
[MC10800(M )12/95]
3. Then push the clutch down slowly. You will
hear a click if your clutch needed adjusting
and adjusted itself.
