Windshield Washer Fluid
%*
[MC11000( ALL)03/96]
Washer Fluid
[MC11100( ALL)04/96]
Check the level of the windshield washer fluid
periodically. The reservoir for washer fluid is
located on the driver's side of the engine
compartment. Do not operate the washer when
the reservoir is empty.
[MC11200(M )12/95]
half page art:0010374-D
The reservoir for the windshield washer fluid
*
[MC11500( ALL)01/96]
RWARNING
Do not put windshield washer fluid in the
container for the engine coolant.
%*
[MC11600( ALL)02/96]
Use specially formulated windshield washer
fluid rather than plain water, because specially
formulated washer fluids contain additives that
dissolve road grime. For safety reasons, washer
fluids containing an appropriate antifreeze such
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

224as methanol should be used in freezing weather
(temperatures below32ÊF [0ÊC]).State or local
regulations on Volatile Organic Compounds
(VOCs) may restrict use of the most common
antifreeze, methanol. Washer fluids containing
non-methanol antifreeze agents should be used
only if they provide cold weather protection
without damaging the vehicle's paint finish,
wiper blades, and windshield washer system.
%
*
[MC11700( ALL)01/96]
Engine Coolant
%*
[MC11800( ALL)01/96]
Checking the Engine Coolant
*
[MC11900( ALL)05/96]
NOTE: Be sure to read and understand
Precautions When Servicing Your
Vehicleat the beginning of this chapter.
*
[MC12000(M )05/96]
RWARNING
The cooling fan is automatic and may
come on at any time. Always disconnect
the negative terminal of the battery before
working near the fan.
%*
[MC12200( ALL)12/95]
Your vehicle's coolant protects your engine from
overheating in the summer and from freezing in
the winter. Check the level of the coolant at least
once a month. Simply look at the engine coolant
reservoir located in the engine compartment. To
locate the reservoir, see the diagram of your
vehicle's engine underEngine Type, in this
chapter.
*
[MC12300( ALL)02/96]
The coolant additives also protect the entire
cooling system from internal passageway
corrosion and these additives lubricate the water
pump. The coolant should be serviced as noted
in theMaintenance Schedulebooklet.
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

225 [MC12400(M )12/95]
half page art:0010371-B

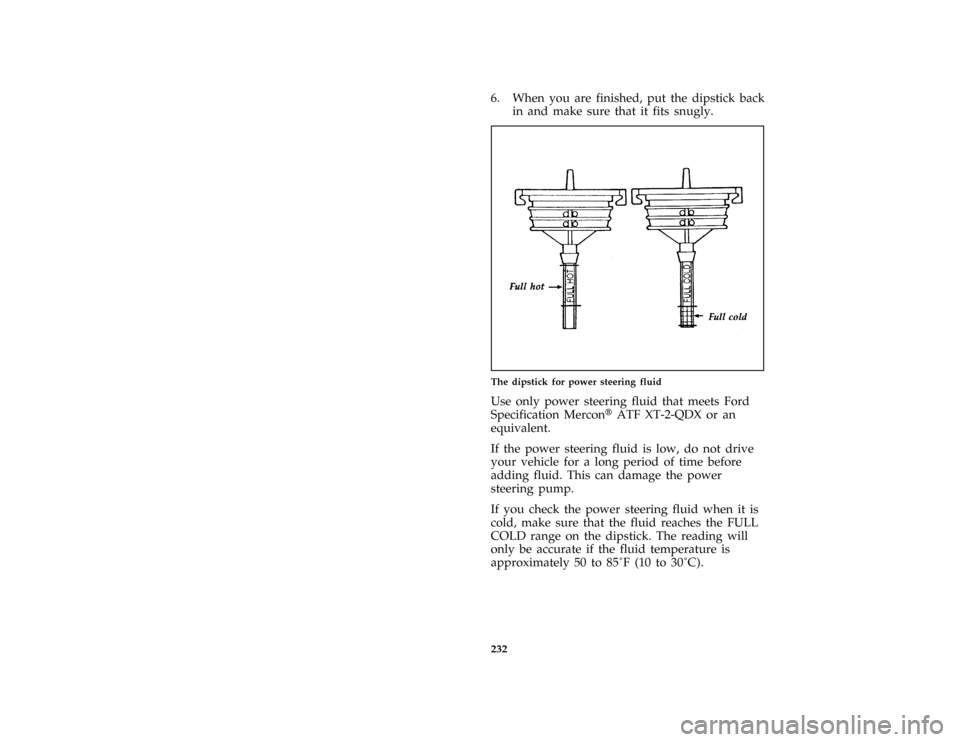

The engine coolant recovery reservoir Ð 3.8L
[MC12600(M )05/96]
one third page art:0011392-A

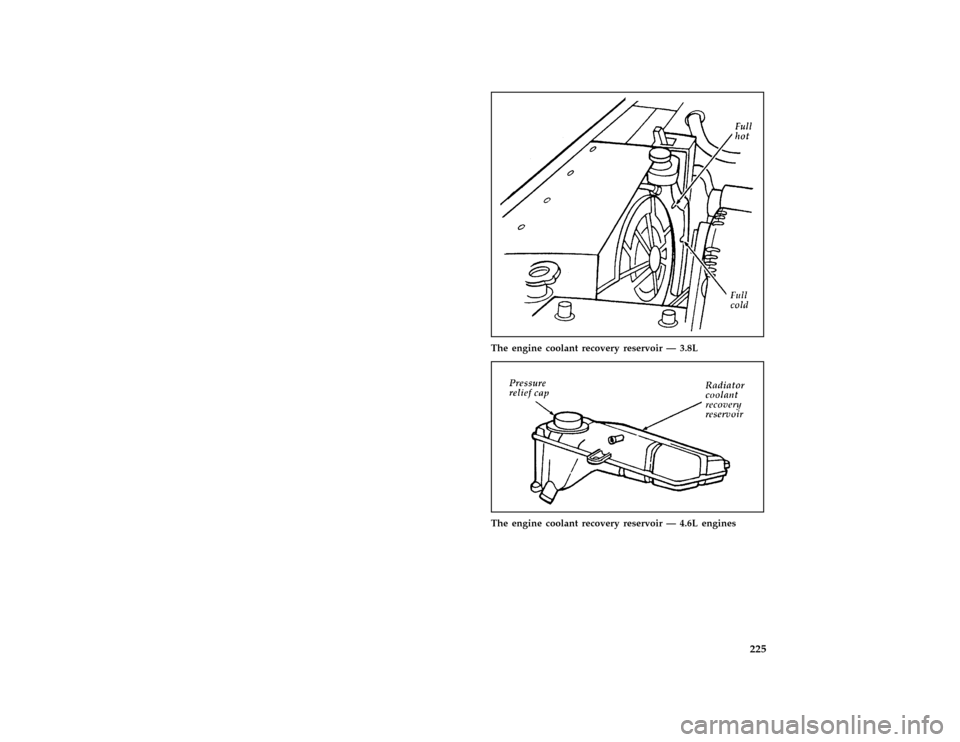

The engine coolant recovery reservoir Ð 4.6L engines
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

226 %
*
[MC12700( ALL)01/96]
Checking Hoses
[MC12800( ALL)04/96]
Inspect all engine and heater system hoses and
hose connections for deterioration, leaks, and
loose hose clamps as specified in theMaintenance
Schedulebooklet. Repair or replace with
Motorcraft hoses or equivalent as necessary.
*
[MC12900( ALL)05/96]
Adding Engine Coolant
*
[MC13000( ALL)05/96]
RWARNING
Do not put engine coolant in the container
for the windshield washer fluid.
*
[MC13100(MBC )05/96]
If sprayed to clean the glass, engine coolant or
antifreeze could make it difficult to see through
the windshield.
[MC13200(MBC )05/96]
RWARNING
Never remove the radiator cap or vent
plug while the engine is running or hot.
[MC13400(MBC )05/96]
Follow these steps to avoid personal injury that
can be caused by escaping steam or engine
coolant.
[MC13500(MBC )12/95]
1. Before you remove the cap, turn the engine
off and let it cool. Even when the engine is
cool, be careful when you remove the
radiator cap or vent plug.
[MC13700(MBC )05/96]
2. When the engine is cool, wrap a thick cloth
around the cap and turn it slowly
counterclockwise to unscrew.
*
[MC13800(MBC )05/96]
3. Step back while the pressure releases.
[MC13900(MBC )05/96]
4. When you are sure that all the pressure has
been released, use the cloth to press the cap
down, turn it counterclockwise, and remove
it.
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

227
*
[MC14000(MBC )05/96]
5. Stand away from the radiator opening. Hot
steam may blow out or hot engine coolant
may even splash out.
*
[MC14505( ALL)05/96]
Use Ford Premium Cooling System Fluid
E2FZ-19549-AA (in Canada, Motorcraft CXC-8-B)
or an equivalent premium engine coolant that
meets Ford specification ESE-M97B44-A. Ford
Premium Engine Coolant is an optimized
formula that will protect all metals and rubber
elastomers used in Ford cooling systems for 4
years or 50,000 miles (80,000 km).
*
[MC14510( ALL)05/96]
Do not use alcohol or methanol antifreeze or any
engine coolants mixed with alcohol or methanol
antifreeze. Do not use supplemental coolant
additives in your vehicle. These additives may
harm your engine cooling system. The use of an
improper coolant may void the warranty of your
vehicle's engine cooling system.
*
[MC14605( ALL)05/96]
Recycled engine coolant
*
[MC14705( ALL)05/96]
Ford Motor Company recommends that Ford
and Lincoln-Mercury dealers use recycled engine
coolant produced by Ford-approved processes.
Not all coolant recycling processes produce
coolant which meets Ford specification
ESE-M97B44-A, and use of such coolant may
harm engine and cooling system components.
*
[MC14805( ALL)05/96]
Always dispose of used automotive fluids in a
responsible manner. Follow your community's
regulations and standards for recycling and
disposing of automotive fluids.
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

228
*
[MC14905( ALL)05/96]
Coolant refill capacity
[MC14910( ALL)05/96]
To find out how much fluid your vehicle's
cooling system can hold, refer toRefill Capacities
in theCapacities and Specificationschapter.
*
[MC14915( ALL)05/96]
Have your dealer check the engine cooling
system for leaks if you have to add more than a
quart (liter) of engine coolant per month.
*
[MC15005( ALL)05/96]
Severe winter climate
*
[MC15105( ALL)05/96]
If you drive in extremely cold climates (less than
-34ÊF [-36ÊC]), it may benecessary to increase
the coolant concentration above 50%. Refer to
the chart on the coolant container to ensure the
coolant concentration in your vehicle is such that
the coolant will not freeze at the temperature
level in which you drive during winter months.
Never increase the engine coolant concentration
above 60%. Leave a 50/50 mixture of engine
coolant and water in your vehicle year-round in
non-extreme climates.
%*
[MC15200( ALL)05/96]
Engine Coolant Drain and Flush
[MC15300( ALL)04/96]
Proper procedures for a complete coolant drain
and flush of the cooling system can be found in
theCar Service Manual. Following these
recommended procedures will ensure that the
specified coolant level and a 50/50 or
appropriate mixture of coolant and water is
maintained.
*
[MC15400( ALL)12/95]
Engine Coolant Refill Procedure
*
[MC15500( ALL)12/95]
When the entire cooling system is drained and
refilled, the following procedure should be used
to ensure a complete fill:
*
[MC15600( ALL)12/95]
NOTE: It is imperative the following
procedure be adhered to. Failure to do
so could result in damage to your
engine.
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

229 [MC15700(MBC )12/95]
3.8L engine only
[MC15800(MBC )12/95]
q
Open the vent plug.
[MC15900(MBC )12/95]
q
Remove coolant recovery reservoir cap.
[MC16000(MBC )12/95]
q
Remove radiator pressure cap.
[MC16100(MBC )12/95]
q
With the engine off and cool, add a 50/50
mixture of recommended cooling system fluid
and water to the radiator until full, then add
to the reservoir until the reservoir is at the
FULL-HOT level.
[MC16200(MBC )12/95]
q
Close the vent plug.
[MC16300(MBC )12/95]
q
Reinstall the coolant recovery reservoir cap
by installing the cap to the fully installed
position.
[MC16400(MBC )12/95]
q
Reinstall the pressure cap to the pressure
relief position by installing the cap to the
fully installed position, and then backing off
to the first stop.
[MC16500(MBC )12/95]
q
Start and idle engine until the radiator upper
hose is warm (this indicates the thermostat is
open and coolant is flowing through the
entire system).
[MC16600(MBC )12/95]
q
Immediately shut off engine. Cover cap
completely with a thick cloth and cautiously
remove radiator pressure cap and add a
50/50 mixture of recommended coolant and
water until system is full.
[MC16700(MBC )12/95]
q
Reinstall the radiator cap securely.
[MC16800(MBC )12/95]
q
Remove the cap from the engine coolant
recovery reservoir and add a 50/50 mixture
of recommended cooling system fluid and
water to the FULL-HOT mark on the engine
coolant recovery reservoir. Check that
reservoir hose is not kinked.
[MC16900(MBC )12/95]
q
Reinstall the reservoir cap.
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

230
*
[MC17000(MBC )12/95]
q
Check for leaks at the draincock, block plug
and vent plug.
*
[MC17100(MBC )12/95]
q
Recheck the engine coolant level, using the
recommended procedure, after one or two
occasions of vehicle use.
[MC17300(M )12/95]
4.6L (2V) engine only Ð GT models
*
[MC17400( ALL)12/95]
q
With the engine OFF and cool, remove the
pressure cap, located on the coolant reservoir.
Remove the heater hose and clamp, located
on the rear of the intake manifold.
*
[MC17500( ALL)12/95]
q
Add a 50/50 mixture of specified coolant and
water to the coolant reservoir. Refer toRefill
Capacitieslater in this chapter for the correct
amount. Add coolant to the reservoir until
the coolant continuously flows out of the tube
in the rear of engine. Reattach hose and
secure clamp.
[MC17600( ALL)12/95]
q
Continue to fill the reservoir until the coolant
is at the FULL COLD level.
*
[MC17700( ALL)12/95]
q
Reinstall the pressure cap to the fully
installed position.
*
[MC17800( ALL)12/95]
q
Start and idle the engine until the radiator
upper hose is warm (this indicates the
thermostat is open and coolant is flowing
through the entire system).
*
[MC17900( ALL)12/95]
q
Immediately shut off the engine and let cool.
Cautiously remove the pressure relief cap and
add a 50/50 mixture of specified coolant and
water until the coolant is at the COLD FILL
level in the coolant reservoir.
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

231
*
[MC18000( ALL)12/95]
q
Reinstall the pressure cap securely.
*
[MC18100( ALL)12/95]
q
Check for leaks at the draincock.
*
[MC18200( ALL)12/95]
q
Recheck the engine coolant level, using the
recommended procedure, after one or two
occasions of vehicle use.
%
*
[MC18300( ALL)01/96]
Power Steering Fluid
*
[MC18400( ALL)01/96]
Check the level of the power steering fluid at
least twice a year (i.e., every Spring and Fall).
%*
[MC18500( ALL)01/96]
Checking and Adding Power Steering
Fluid
[MC18650(M )04/96]
3.8L SFI engine (check warm)
*
[MC18700( ALL)04/96]
1. Start the engine and let it run until the
power steering fluid reaches normal
operating temperature. The power steering
fluid will be at the right temperature when
the engine coolant temperature gauge in the
instrument cluster is near the center of the
NORMAL operating temperature range.
*
[MC18800( ALL)01/96]
2. While the engine idles, turn the steering
wheel back and forth several times. Make
sure that the cap assembly is installed at this
time.
*
[MC18900( ALL)01/96]
3. Turn the engine off.
%*
[MC19000(MBC )01/96]
4. Check the fluid level on the dipstick (which
is highlighted in yellow in your vehicle). The
fluid level should be between the arrows in
the FULL HOT range, which is marked on
the side of the dipstick, opposite the side
marked FULL COLD. Do not add fluid if the
level is within the FULL HOT range.
*
[MC19200(MBC )01/96]
5. If the power steering fluid is low, add fluid
in small amounts, continuously checking the
level, until you reach the FULL HOT range.
Do not overfill.
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997

232
*
[MC19400(MBC )03/96]
6. When you are finished, put the dipstick back
in and make sure that it fits snugly.
[MC19600(MBC )12/95]
half page art:0010485-C
The dipstick for power steering fluid
[MC19900( ALL)05/96]
Use only power steering fluid that meets Ford
Specification MerconHATF XT-2-QDX or an
equivalent.
*
[MC20000( ALL)01/96]
If the power steering fluid is low, do not drive
your vehicle for a long period of time before
adding fluid. This can damage the power
steering pump.
*
[MC20100(MBC )03/96]
If you check the power steering fluid when it is
cold, make sure that the fluid reaches the FULL
COLD range on the dipstick. The reading will
only be accurate if the fluid temperature is
approximately 50 to85ÊF (10 to 30ÊC).
File:11rcmcm.ex
Update:Thu Apr 3 07:49:33 1997
