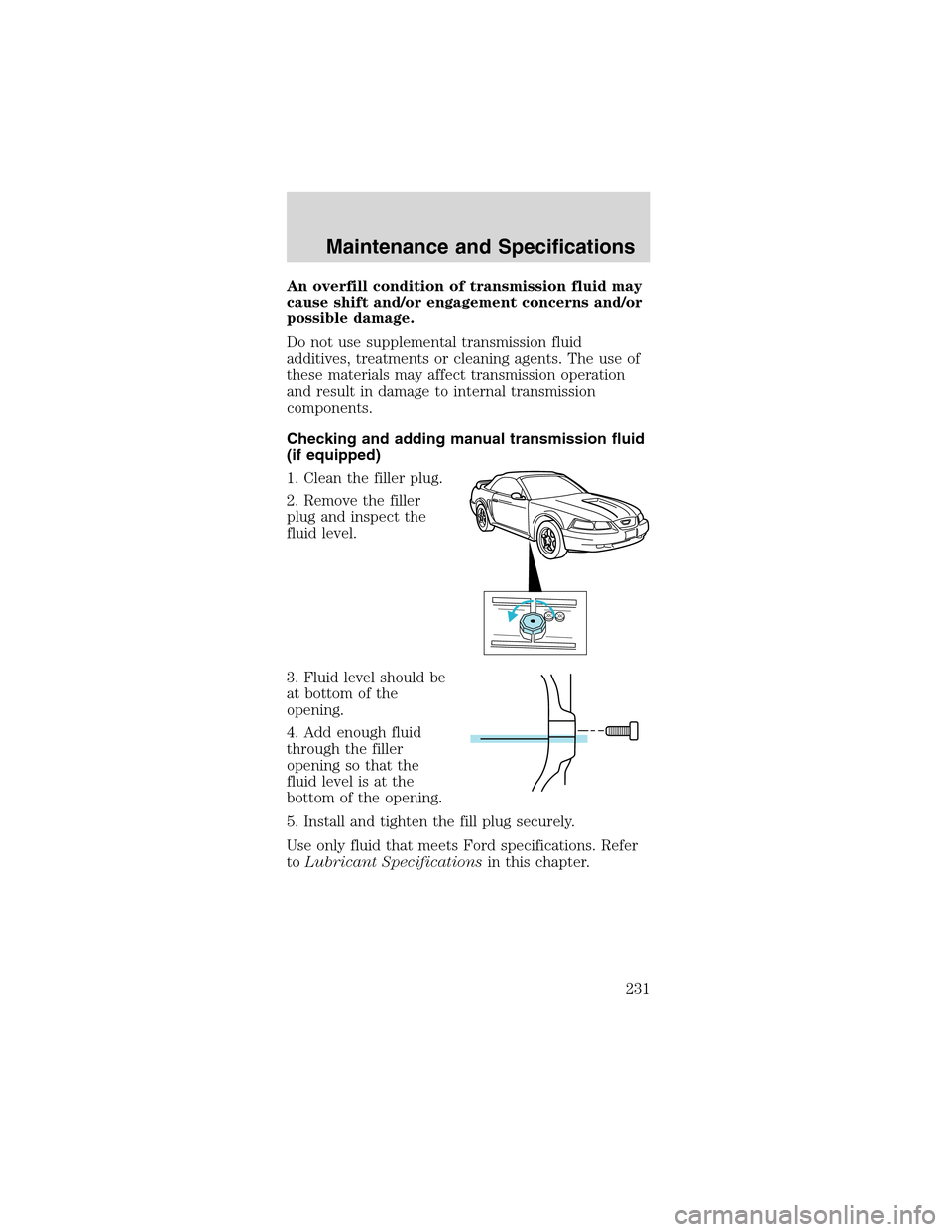

An overfill condition of transmission fluid may
cause shift and/or engagement concerns and/or
possible damage.
Do not use supplemental transmission fluid
additives, treatments or cleaning agents. The use of
these materials may affect transmission operation
and result in damage to internal transmission
components.
Checking and adding manual transmission fluid
(if equipped)
1. Clean the filler plug.
2. Remove the filler
plug and inspect the
fluid level.
3. Fluid level should be
at bottom of the
opening.
4. Add enough fluid
through the filler
opening so that the
fluid level is at the
bottom of the opening.
5. Install and tighten the fill plug securely.
Use only fluid that meets Ford specifications. Refer
toLubricant Specificationsin this chapter.
Maintenance and Specifications
231

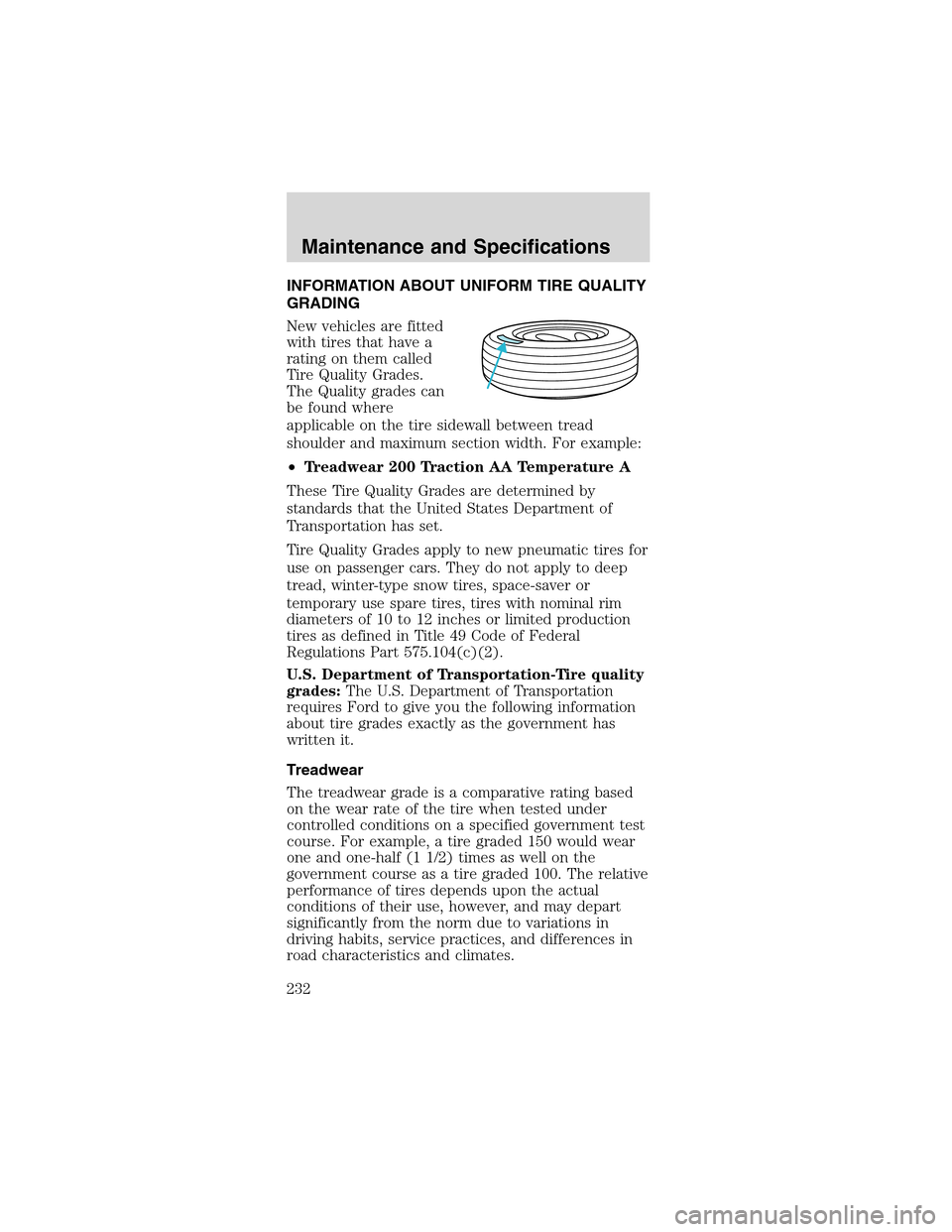

INFORMATION ABOUT UNIFORM TIRE QUALITY
GRADING
New vehicles are fitted
with tires that have a
rating on them called
Tire Quality Grades.
The Quality grades can
be found where
applicable on the tire sidewall between tread
shoulder and maximum section width. For example:
•Treadwear 200 Traction AA Temperature A
These Tire Quality Grades are determined by
standards that the United States Department of
Transportation has set.
Tire Quality Grades apply to new pneumatic tires for
use on passenger cars. They do not apply to deep
tread, winter-type snow tires, space-saver or
temporary use spare tires, tires with nominal rim
diameters of 10 to 12 inches or limited production
tires as defined in Title 49 Code of Federal
Regulations Part 575.104(c)(2).
U.S. Department of Transportation-Tire quality
grades:The U.S. Department of Transportation
requires Ford to give you the following information
about tire grades exactly as the government has
written it.
Treadwear
The treadwear grade is a comparative rating based
on the wear rate of the tire when tested under
controlled conditions on a specified government test
course. For example, a tire graded 150 would wear
one and one-half (1 1/2) times as well on the
government course as a tire graded 100. The relative
performance of tires depends upon the actual
conditions of their use, however, and may depart
significantly from the norm due to variations in
driving habits, service practices, and differences in
road characteristics and climates.
Maintenance and Specifications
232

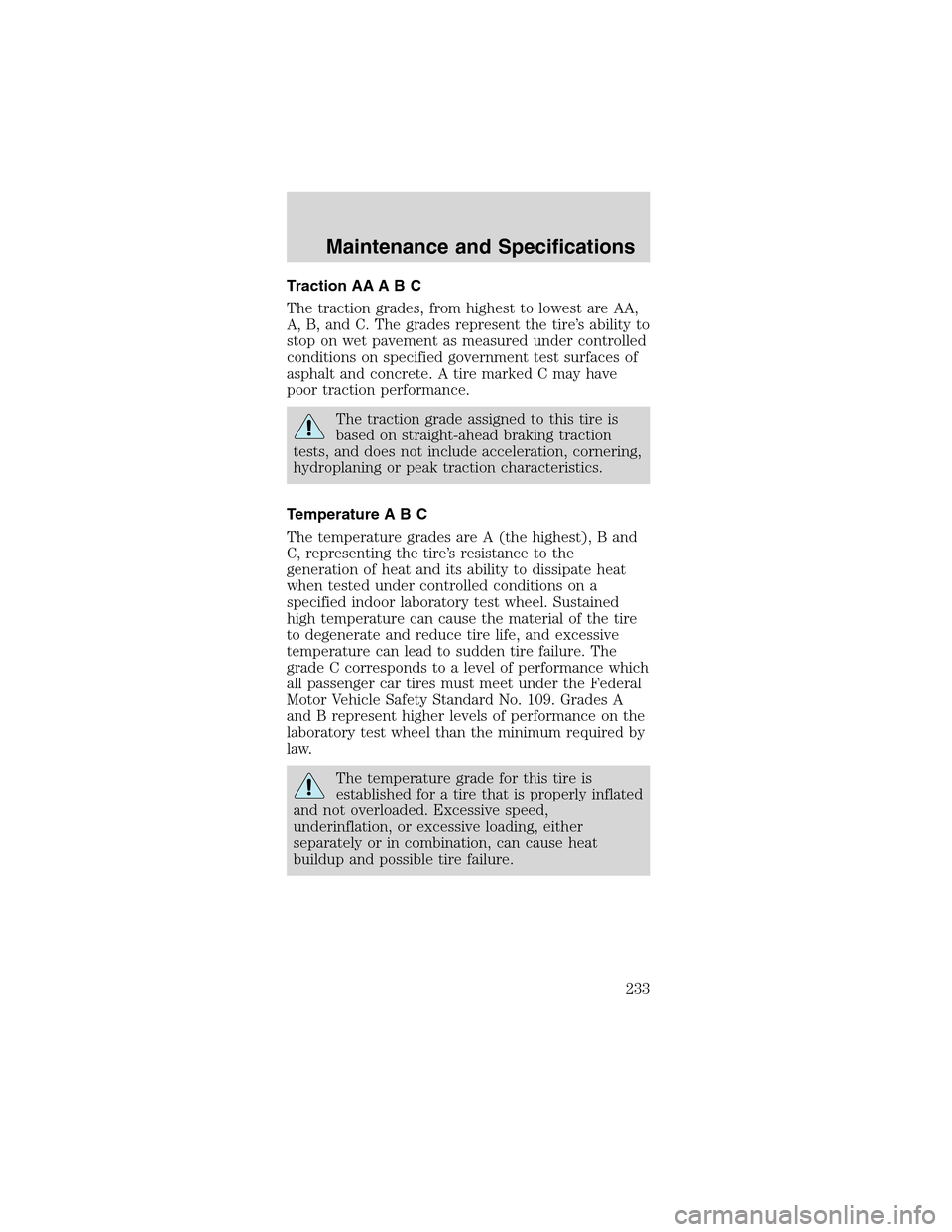

Traction AA A B C
The traction grades, from highest to lowest are AA,
A, B, and C. The grades represent the tire’s ability to
stop on wet pavement as measured under controlled
conditions on specified government test surfaces of
asphalt and concrete. A tire marked C may have
poor traction performance.
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration, cornering,
hydroplaning or peak traction characteristics.
Temperature A B C
The temperature grades are A (the highest), B and
C, representing the tire’s resistance to the
generation of heat and its ability to dissipate heat
when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the tire
to degenerate and reduce tire life, and excessive
temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance which
all passenger car tires must meet under the Federal
Motor Vehicle Safety Standard No. 109. Grades A
and B represent higher levels of performance on the
laboratory test wheel than the minimum required by
law.
The temperature grade for this tire is
established for a tire that is properly inflated
and not overloaded. Excessive speed,
underinflation, or excessive loading, either
separately or in combination, can cause heat
buildup and possible tire failure.
Maintenance and Specifications
233

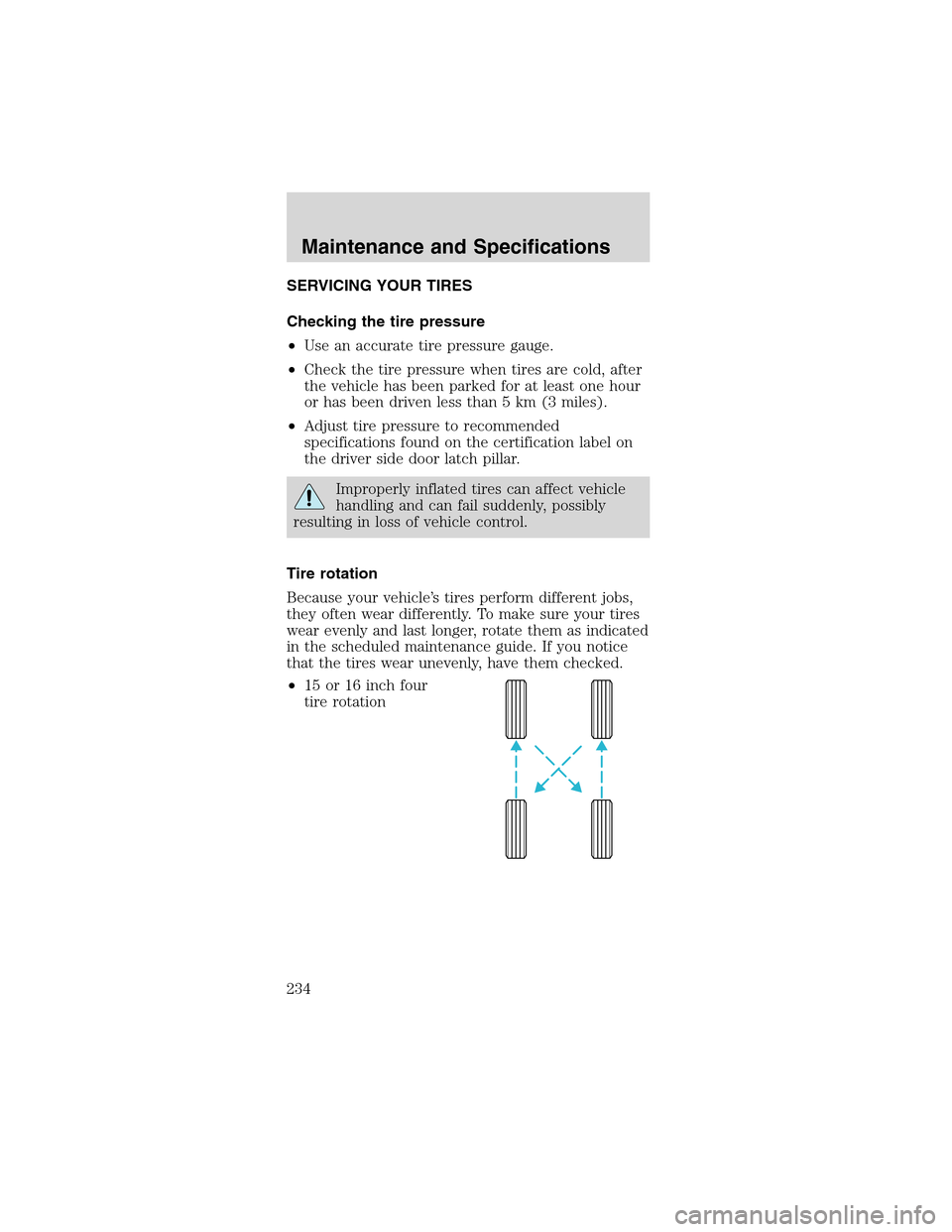

SERVICING YOUR TIRES
Checking the tire pressure
•Use an accurate tire pressure gauge.
•Check the tire pressure when tires are cold, after
the vehicle has been parked for at least one hour
or has been driven less than 5 km (3 miles).
•Adjust tire pressure to recommended
specifications found on the certification label on
the driver side door latch pillar.
Improperly inflated tires can affect vehicle
handling and can fail suddenly, possibly
resulting in loss of vehicle control.
Tire rotation
Because your vehicle’s tires perform different jobs,
they often wear differently. To make sure your tires
wear evenly and last longer, rotate them as indicated
in the scheduled maintenance guide. If you notice
that the tires wear unevenly, have them checked.
•15 or 16 inch four
tire rotation
Maintenance and Specifications
234

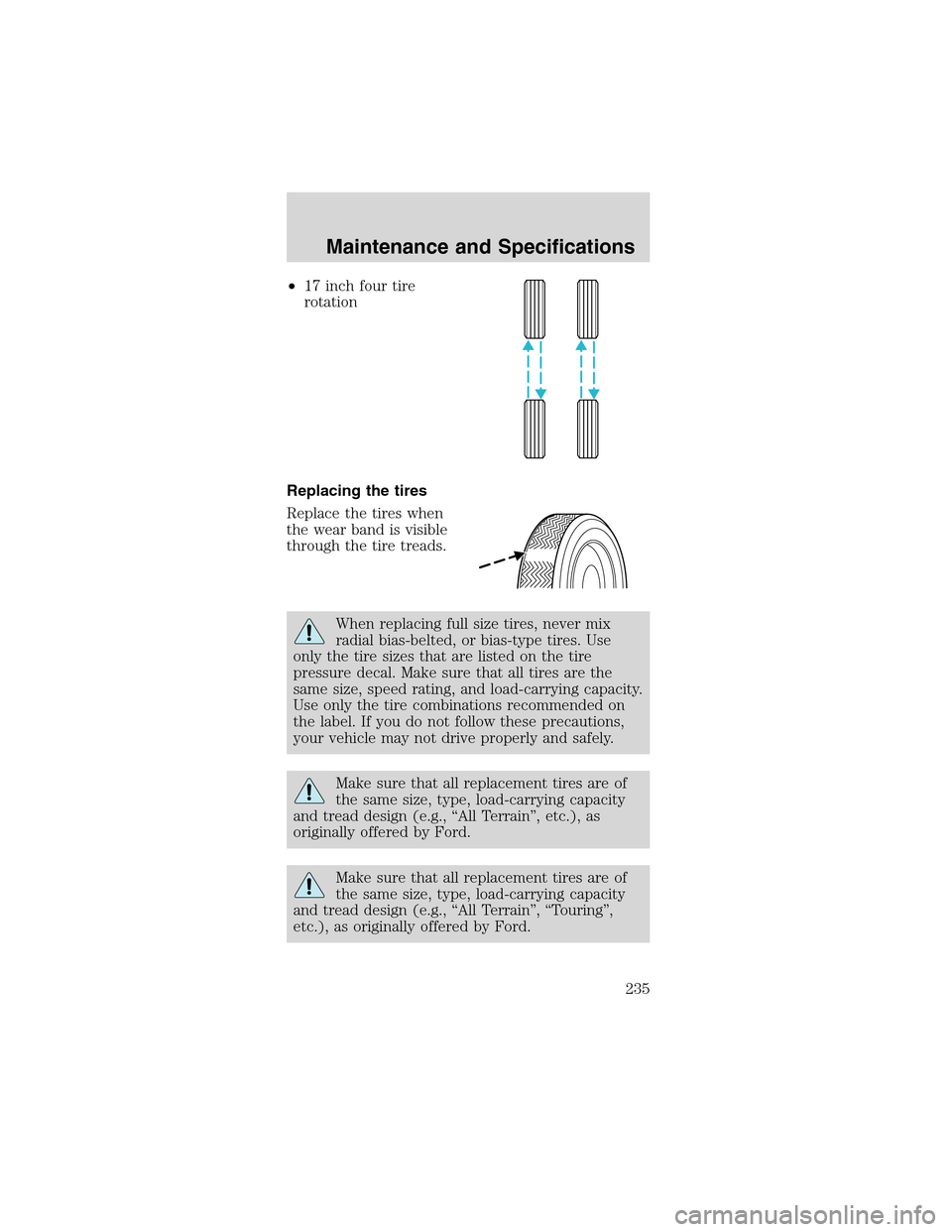

•17 inch four tire
rotation
Replacing the tires
Replace the tires when
the wear band is visible
through the tire treads.
When replacing full size tires, never mix
radial bias-belted, or bias-type tires. Use
only the tire sizes that are listed on the tire
pressure decal. Make sure that all tires are the
same size, speed rating, and load-carrying capacity.
Use only the tire combinations recommended on
the label. If you do not follow these precautions,
your vehicle may not drive properly and safely.
Make sure that all replacement tires are of
the same size, type, load-carrying capacity
and tread design (e.g.,“All Terrain”, etc.), as
originally offered by Ford.
Make sure that all replacement tires are of
the same size, type, load-carrying capacity
and tread design (e.g.,“All Terrain”,“Touring”,
etc.), as originally offered by Ford.
Maintenance and Specifications
235

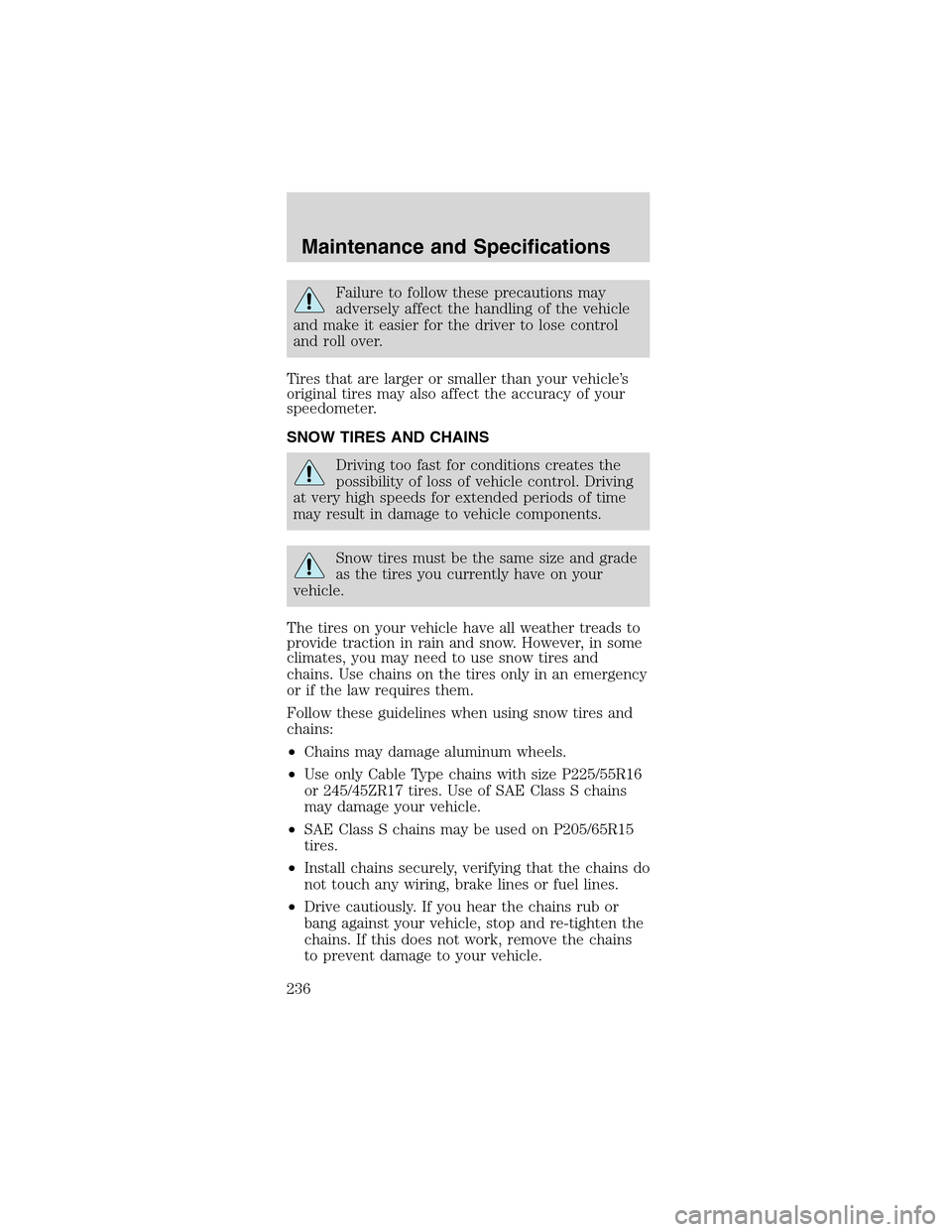

Failure to follow these precautions may
adversely affect the handling of the vehicle
and make it easier for the driver to lose control
and roll over.
Tires that are larger or smaller than your vehicle’s
original tires may also affect the accuracy of your
speedometer.
SNOW TIRES AND CHAINS
Driving too fast for conditions creates the
possibility of loss of vehicle control. Driving
at very high speeds for extended periods of time
may result in damage to vehicle components.
Snow tires must be the same size and grade
as the tires you currently have on your
vehicle.
The tires on your vehicle have all weather treads to
provide traction in rain and snow. However, in some
climates, you may need to use snow tires and
chains. Use chains on the tires only in an emergency
or if the law requires them.
Follow these guidelines when using snow tires and
chains:
•Chains may damage aluminum wheels.
•Use only Cable Type chains with size P225/55R16
or 245/45ZR17 tires. Use of SAE Class S chains
may damage your vehicle.
•SAE Class S chains may be used on P205/65R15
tires.
•Install chains securely, verifying that the chains do
not touch any wiring, brake lines or fuel lines.
•Drive cautiously. If you hear the chains rub or
bang against your vehicle, stop and re-tighten the
chains. If this does not work, remove the chains
to prevent damage to your vehicle.
Maintenance and Specifications
236

•If possible, avoid fully loading your vehicle.
•Remove the tire chains when they are no longer
needed. Do not use tire chains on dry roads.
•The suspension insulation and bumpers will help
prevent vehicle damage. Do not remove these
components from your vehicle when using snow
tires and chains.
MOTORCRAFT PART NUMBERS
Component 3.8L OHV V6
engine4.6L SOHC V8
engine
Air filter element FA-1611 FA-1634
Fuel filter FG-986 FG-986B
Battery BXT-59 BXT-59
Oil filter FL-400S FL-820S
PCV valve EV-152 EV-98
Spark plugs* AWSF-42EE** AWSF-32P
* Refer to Vehicle Emissions Control Information
(VECI) decal for spark plug gap information.
**If a spark plug is removed for inspection, it must
be reinstalled in the same cylinder. If a spark plug
needs to be replaced, use only spark plugs with the
same service part number suffix letter as shown on
the engine decal.
Maintenance and Specifications
237

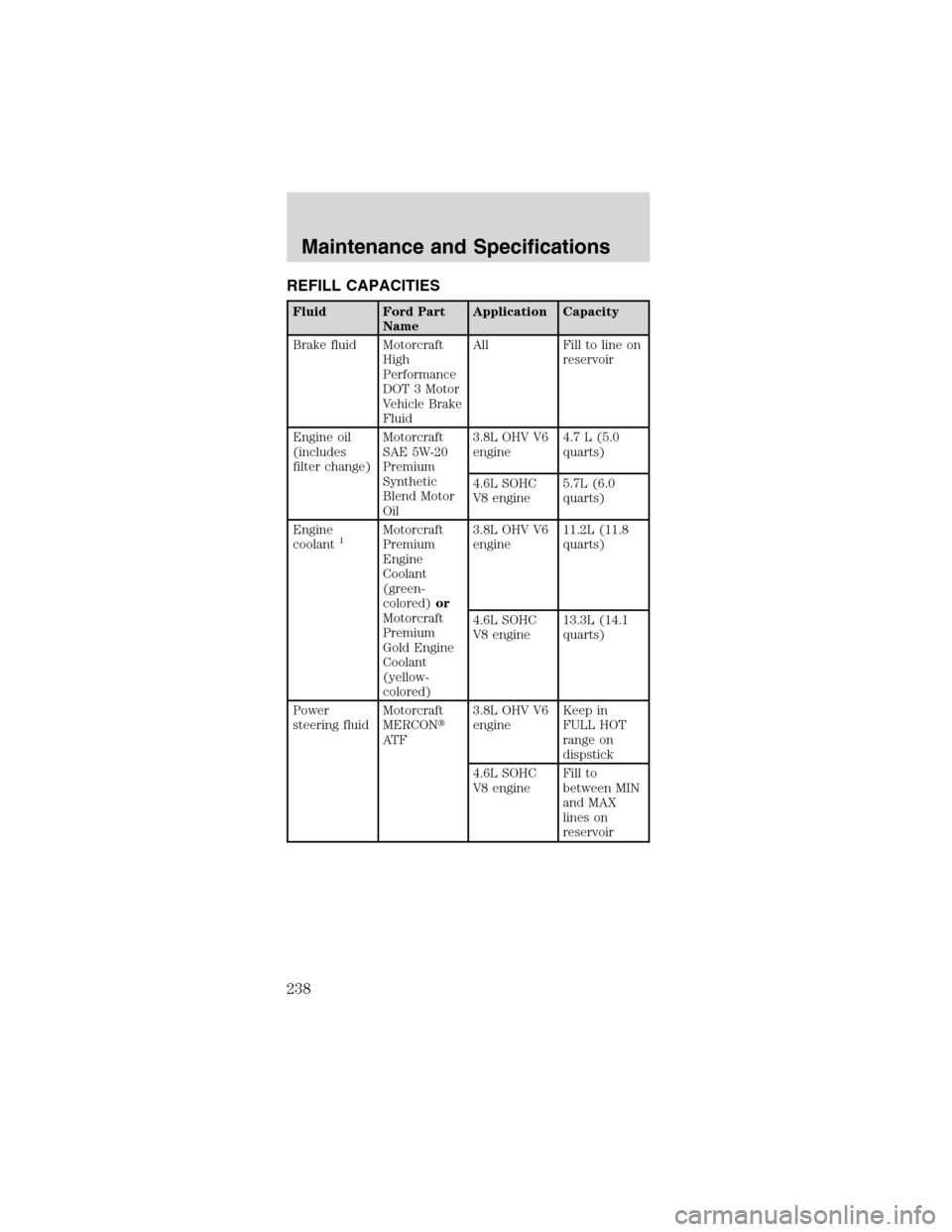

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft
High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoir
Engine oil
(includes
filter change)Motorcraft
SAE 5W-20
Premium
Synthetic
Blend Motor
Oil3.8L OHV V6
engine4.7 L (5.0
quarts)
4.6L SOHC
V8 engine5.7L (6.0
quarts)
Engine
coolant
1Motorcraft
Premium
Engine
Coolant
(green-
colored)or
Motorcraft
Premium
Gold Engine
Coolant
(yellow-
colored)3.8L OHV V6
engine11.2L (11.8
quarts)
4.6L SOHC
V8 engine13.3L (14.1
quarts)
Power
steering fluidMotorcraft
MERCON
AT F3.8L OHV V6
engineKeep in
FULL HOT
range on
dispstick
4.6L SOHC
V8 engineFill to
between MIN
and MAX
lines on
reservoir
Maintenance and Specifications
238

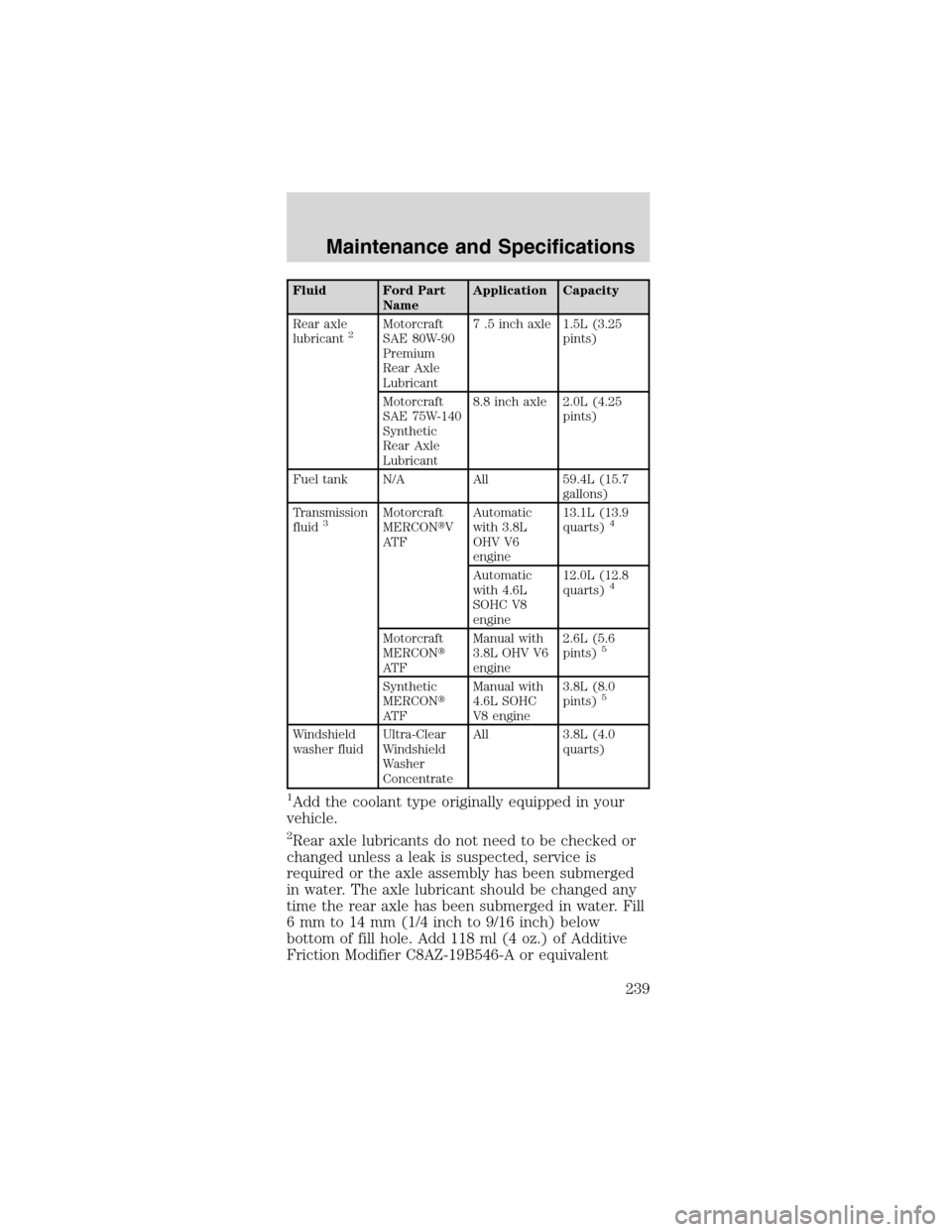

Fluid Ford Part
NameApplication Capacity
Rear axle
lubricant
2Motorcraft
SAE 80W-90
Premium
Rear Axle
Lubricant7 .5 inch axle 1.5L (3.25
pints)
Motorcraft
SAE 75W-140
Synthetic
Rear Axle
Lubricant8.8 inch axle 2.0L (4.25
pints)
Fuel tank N/A All 59.4L (15.7
gallons)
Transmission
fluid
3Motorcraft
MERCONV
AT FAutomatic
with 3.8L
OHV V6
engine13.1L (13.9
quarts)4
Automatic
with 4.6L
SOHC V8
engine12.0L (12.8
quarts)4
Motorcraft
MERCON
AT FManual with
3.8L OHV V6
engine2.6L (5.6
pints)5
Synthetic
MERCON
AT FManual with
4.6L SOHC
V8 engine3.8L (8.0
pints)5
Windshield
washer fluidUltra-Clear
Windshield
Washer
ConcentrateAll 3.8L (4.0
quarts)
1Add the coolant type originally equipped in your
vehicle.
2Rear axle lubricants do not need to be checked or
changed unless a leak is suspected, service is
required or the axle assembly has been submerged
in water. The axle lubricant should be changed any
time the rear axle has been submerged in water. Fill
6 mm to 14 mm (1/4 inch to 9/16 inch) below
bottom of fill hole. Add 118 ml (4 oz.) of Additive
Friction Modifier C8AZ-19B546-A or equivalent

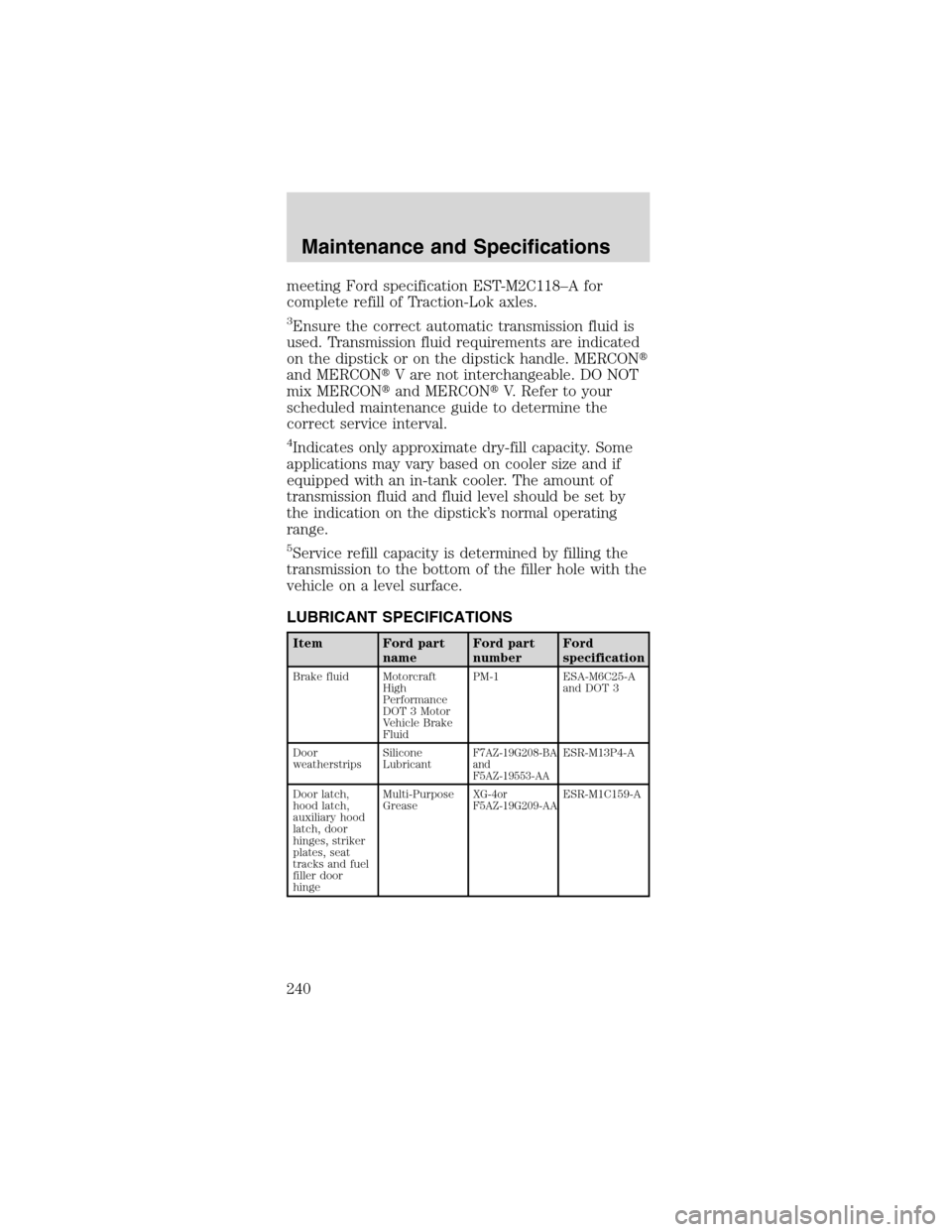

Maintenance and Specifications
239

meeting Ford specification EST-M2C118–Afor
complete refill of Traction-Lok axles.
3Ensure the correct automatic transmission fluid is
used. Transmission fluid requirements are indicated
on the dipstick or on the dipstick handle. MERCON
and MERCONV are not interchangeable. DO NOT
mix MERCONand MERCONV. Refer to your
scheduled maintenance guide to determine the
correct service interval.
4Indicates only approximate dry-fill capacity. Some
applications may vary based on cooler size and if
equipped with an in-tank cooler. The amount of
transmission fluid and fluid level should be set by
the indication on the dipstick’s normal operating
range.
5Service refill capacity is determined by filling the
transmission to the bottom of the filler hole with the
vehicle on a level surface.
LUBRICANT SPECIFICATIONS
Item Ford part
nameFord part
numberFord
specification
Brake fluid Motorcraft
High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Door
weatherstripsSilicone
Lubricant
F7AZ-19G208-BA
and
F5AZ-19553-AAESR-M13P4-A
Door latch,
hood latch,
auxiliary hood
latch, door
hinges, striker
plates, seat
tracks and fuel
filler door
hingeMulti-Purpose
Grease
XG-4or
F5AZ-19G209-AAESR-M1C159-A
Maintenance and Specifications
240
