Assembly
All vehicles
1. Record the main bearing code found on the front of the engine block.
2. Record the main bearing code found on the back of the crankshaft. 303-
516 (T95P-6701- BH) Compressor, Piston Ring
303-
D032 (D81L-6002- C) or
equivalent Holding Tool, Crankshaft
303-
448 (T93P-6303- A)
Material Item Specification
Metal Surface Cleaner
F4AZ-
19A536- RA or equivalent WSE-
M5B392-
A Silicone Gasket and Sealant
F7AZ-
19554- EA or equivalent WSE-
M4G323-
A4 Super Premium SAE 5W-20
Engine Oil
XO- 5W20- QSP or equivalent WSS-
M2C153-
H Motorcraft Premium Gold
Engine Coolant VC-7-
A (in
Oregon VC-7- B) (yellow color) WSS-
M97B51-
A1 Klj . 2 ba
302003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

NOTE:
Before assembling the cylinder block, all sealing surfaces must be free from chips, dirt, paint
and foreign material. Also, make sure the coolant and oil passages are clear.
5. Install the upper main bearings into the cylinder block and the lower main bearing into the crankshaft main bearing caps. Lubricate the main bearings with clean engine oil.
6. Install the crankshaft into the cylinder block.
7. CAUTION: Make sure the coated side of the thrust washer with the 5- mm wide oil
grooves faces the crankshaft thrust surface.
Push the crankshaft rearward and install the crankshaft thrust washer at the back of the No. 5
main boss. Klj . 4 ba
302003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

56.
NOTE: Lubricate the O- ring seal with clean engine oil.
Install the coolant pump.
57. NOTE: The RH is shown; the LH is similar. Use new gaskets when installing the exhaust
manifolds.
Install the exhaust manifold.
58. Install the knock sensors. Klj . 20 ba
302003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

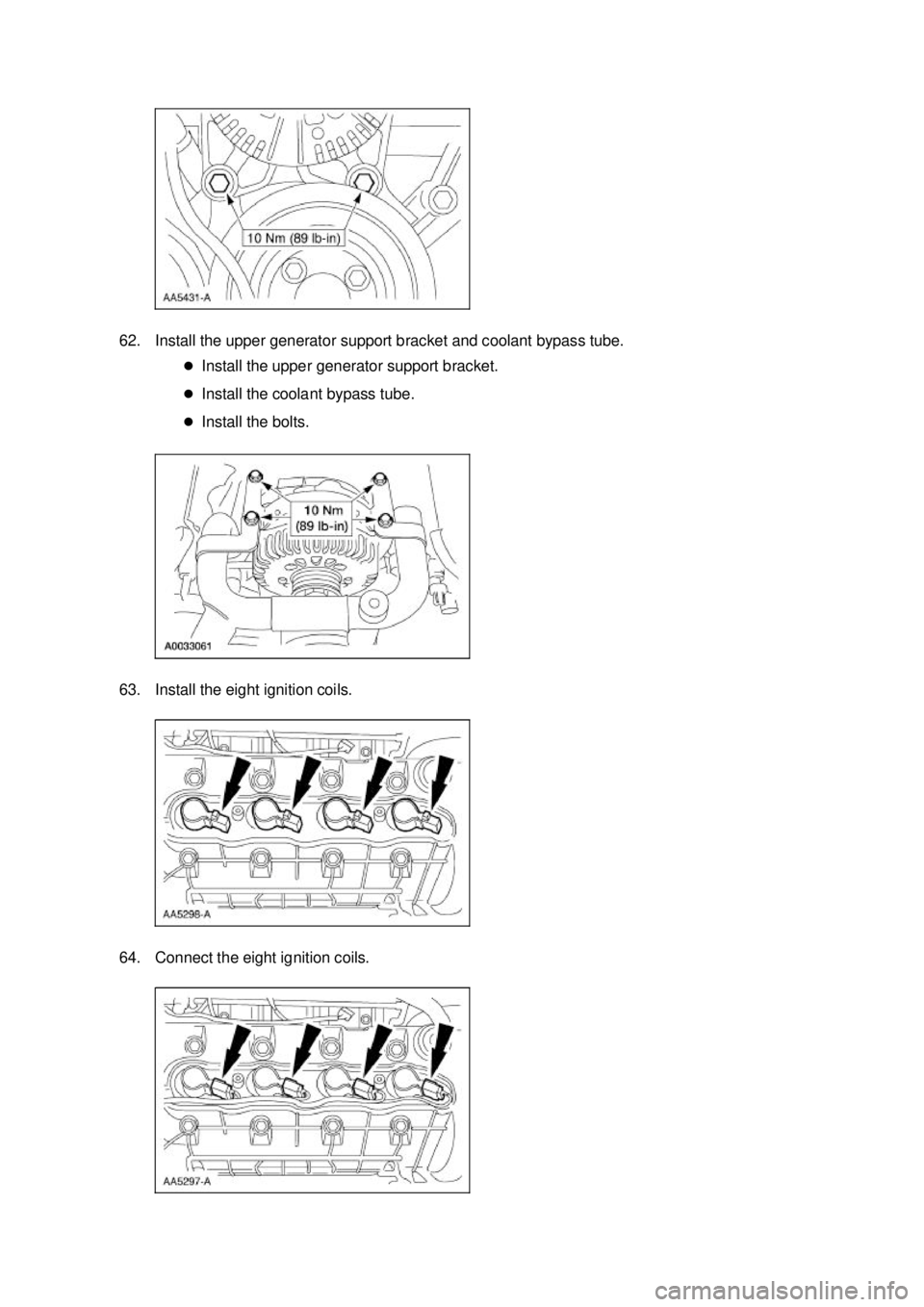

62. Install the upper generator support bracket and coolant bypass tube.
zInstall the upper generator support bracket.
z Install the coolant bypass tube.
z Install the bolts.
63. Install the eight ignition coils.
64. Connect the eight ignition coils. Klj . 22 ba
302003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

65. Connect the engine coolant temperature (ECT) sensor.
66. Connect the eight fuel injectors.
67. Install the RH ignition coil cover.
68.
NOTE: The fastener at location five is a stud. Install the gasket and the upper intake. Klj . 23 ba
302003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

INSTALLATION
Engine
Installation
All vehicles
1. Install the engine in the vehicle and remove the floor crane and the spreader bar.
SECTION 303-
01D: Engine — Mach I 4.6L (4V) 2003 Mustang Workshop Manual Special Tool(s)
Lifting Bracket, Engine
303-
D087 (D93P-6001- A1) Lifting Bracket, Engine
303-
D088 (D93P-6001- A2) Installer Set, Teflon Seal
211-
D027 (D90P- 3517A) or
equivalent Spreader Bar
303-
D089 (D93P-6001- A3) or
equivalent
Material Item Specification
Super Premium SAE 5W-20
Engine Oil
XO- 5W20- QSP or equivalent WSS-
M2C153-
H Motorcraft Premium Gold
Engine Coolant VC-7-
A (in
Oregon VC-7- B) (yellow color) WSS-
M97B51-
A1 Threadlock and Sealer
E0AZ-
19554- AA WSK-
M2G351-
A5 Klj . 1 ba
182003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 303-
03A: Engine Cooling 2003 Mustang Workshop Manual General Specifications
Item Specification
Cooling System Capacity 15.2 L (4.0 gal)
Coolant Type
Motorcraft Premium Gold Engine Coolant VC-7-
A in
(Oregon VC -7-B) (yellow color) WSS-
M97B51- A1 Other Chemicals
Motorcraft Premium Cooling System Flush VC-
1 ESR-
M14P7-A Premium Long Life Grease XG-1-
C ESA-
M1C75- B Cooling System Stop Leak Pellets
VC-
6 ESE-
M99B37- B5 except as noted in ES-
F65E-19A511- AA Gasket Adhesive TA-
6 WSS-
M2G408- A Cooling System Pressure Test Specifications 138 kPa (20 psi)
Radiator Cap Pressure Test Specifications 110 kPa (16 psi)
Thermostat Opening Temperatures
Starts to open (4.6L 2V) 87-
93°C (192- 199°F) Starts to open (3.8L) 86.7-
90.6°C (189- 196°F) Starts to open (Cobra) 80-
83°C (175- 182°F) Fully open 104°C (219°F)
Torque Specifications Description Nm lb-
ft lb-
in Accelerator cable bracket bolts 10 — 89
Cylinder block drain plug 20 15 —
Exhaust manifold to EGR valve tube nut 35 26 —
Fan shroud bolts 10 — 89
Fan motor bolts 10 — 89
Degas bottle nuts 10 — 89
Coolant expansion tank bracket bolts 10 — 89
Radiator support bracket bolts 30 22 —
Transmission fluid cooler fittings 30 22 —
Coolant outlet connection bolts (3.8L) 10 — 89
Bypass tube bracket bolts (3.8L) 10 — 89
Bypass tube bolts (4.6L) 10 — 89
Bypass tube nuts (Supercharged engine) 25 18 —
Coolant hose mounting bolt 25 18 — Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

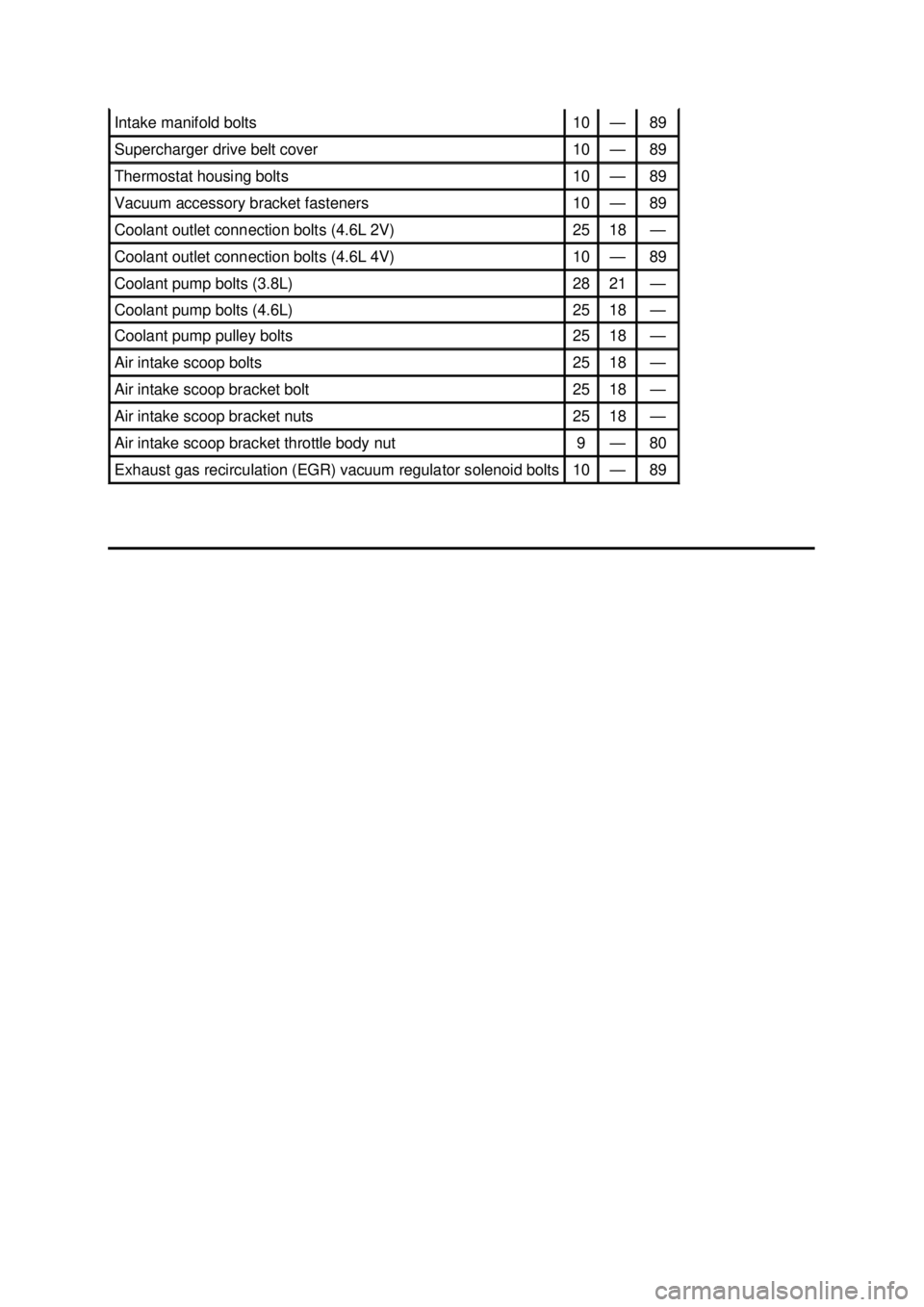

Intake manifold bolts 10 — 89
Supercharger drive belt cover 10 — 89
Thermostat housing bolts 10 — 89
Vacuum accessory bracket fasteners 10 — 89
Coolant outlet connection bolts (4.6L 2V) 25 18 —
Coolant outlet connection bolts (4.6L 4V) 10 — 89
Coolant pump bolts (3.8L) 28 21 —
Coolant pump bolts (4.6L) 25 18 —
Coolant pump pulley bolts 25 18 —
Air intake scoop bolts 25 18 —
Air intake scoop bracket bolt 25 18 —
Air intake scoop bracket nuts 25 18 —
Air intake scoop bracket throttle body nut 9 — 80
Exhaust gas recirculation (EGR) vacuum regulator solenoid bolts 10 — 89 Klj . 2 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Engine Cooling
CAUTION: Vehicle cooling systems are filled with Motorcraft Premium Gold Engine
Coolant VC -7-A (in Oregon VC -7-B) or equivalent meeting Ford specification WSS- M97B51-A1
(yellow color). Always fill the cooling system with the same coolant that is present in the
system. Do not mix coolant types.
NOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC- 6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
The 4.6L cooling system components include the:
zblock heater
z engine coolant temperature (ECT) sensor
z fan blade, fan motor and fan shroud assembly
z radiator
z pressure relief cap
z radiator draincock
z coolant pump
z coolant thermostat
z oil filter adapter
z radiator overflow hose
z upper radiator hose
z lower radiator hose
The radiator overflow hose circulates the coolant.
The coolant thermostat:
zcontrols the engine coolant temperature.
z allows for quicker engine warm- up.
The degas bottle/coolant expansion tank:
zprovides a location for service fill.
z contains coolant expansion and system pressurization.
z provides air separation during operation.
z replenishes the engine coolant to the system.
The engine coolant flows:
zfrom the lower radiator hose to the coolant pump.
z from the coolant pump to the engine block and the cylinder heads.
SECTION 303-
03A: Engine Cooling 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

The 3.8L cooling system components include the:
zblock heater
z engine coolant temperature (ECT) sensor
z fan blade, fan motor and fan shroud assembly
z radiator
z radiator cap
z radiator draincock
z coolant pump
z coolant thermostat
z oil filter adapter
z radiator overflow hose
z coolant expansion tank
z upper radiator hose
z lower radiator hose
The fan blade draws air through the radiator to help cool the engine coolant.
The fan motor:
zoperates only when the ignition switch is in the RUN position.
z will not operate with the switch in the OFF position.
The engine coolant:
zflows through the radiator tubes and is cooled by passing air over the cooling fins.
z is then circulated from the radiator outlet tank through the coolant pump and into the cylinder
block to complete the circuit.
A closed coolant thermostat returns the engine coolant to the coolant pump. An open coolant
thermostat allows the engine coolant to flow to the radiator.
CAUTION: Engine coolant provides freeze protection, boil protection, cooling efficiency,
and corrosion protection to the engine and cooling components. In order to obtain these
protections, the engine coolant must be maintained at the correct concentration and fluid level
in the degas bottle (4.6L) or coolant expansion tank (3.8L).
When adding engine coolant, use a 50/50 mixture of engine coolant and deionized water.
To maintain the integrity of the coolant and the cooling system:
zNOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC-6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
Add Motorcraft Premium Gold Engine Coolant VC-7- A (in Oregon VC-7-B) or equivalent
meeting Ford specification WSS- M97B51-A1 (yellow color). Use the same coolant that is
present in the cooling system. Do not mix coolant types.
z Do not add/mix orange-colored Motorcraft Speciality Orange Engine Coolant VC- 2 or equivalent Klj . 2 ba
