24. Disconnect the fuel pressure sensor electrical connector and the vacuum hose.
25. Disconnect the fuel charging ground wire.
26. Disconnect the ignition coils and the fuel injectors.
27. Disconnect the climate control vacuum supply hoses and remove the vacuum harness. Klj . 6 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

28. Remove the four studs.
29. Remove the injectors and fuel injection supply manifold as an assembly.
30. Remove the ignition coils.
31. Disconnect the battery terminal. Klj . 7 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

32. Remove the generator support brace.
33. Disconnect the electrical connector.
34. Remove the generator.
35. Disconnect the heater hose. Klj . 8 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

36. Separate the engine harness and position it out of the way.
37. Disconnect the water temperature indicator sender.
38. Remove the water outlet connector.
39. Remove the water thermostat and the O-
ring.
z Inspect the O- ring and discard if necessary. Klj . 9 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

40.
NOTE: The gaskets are reusable if not damaged.

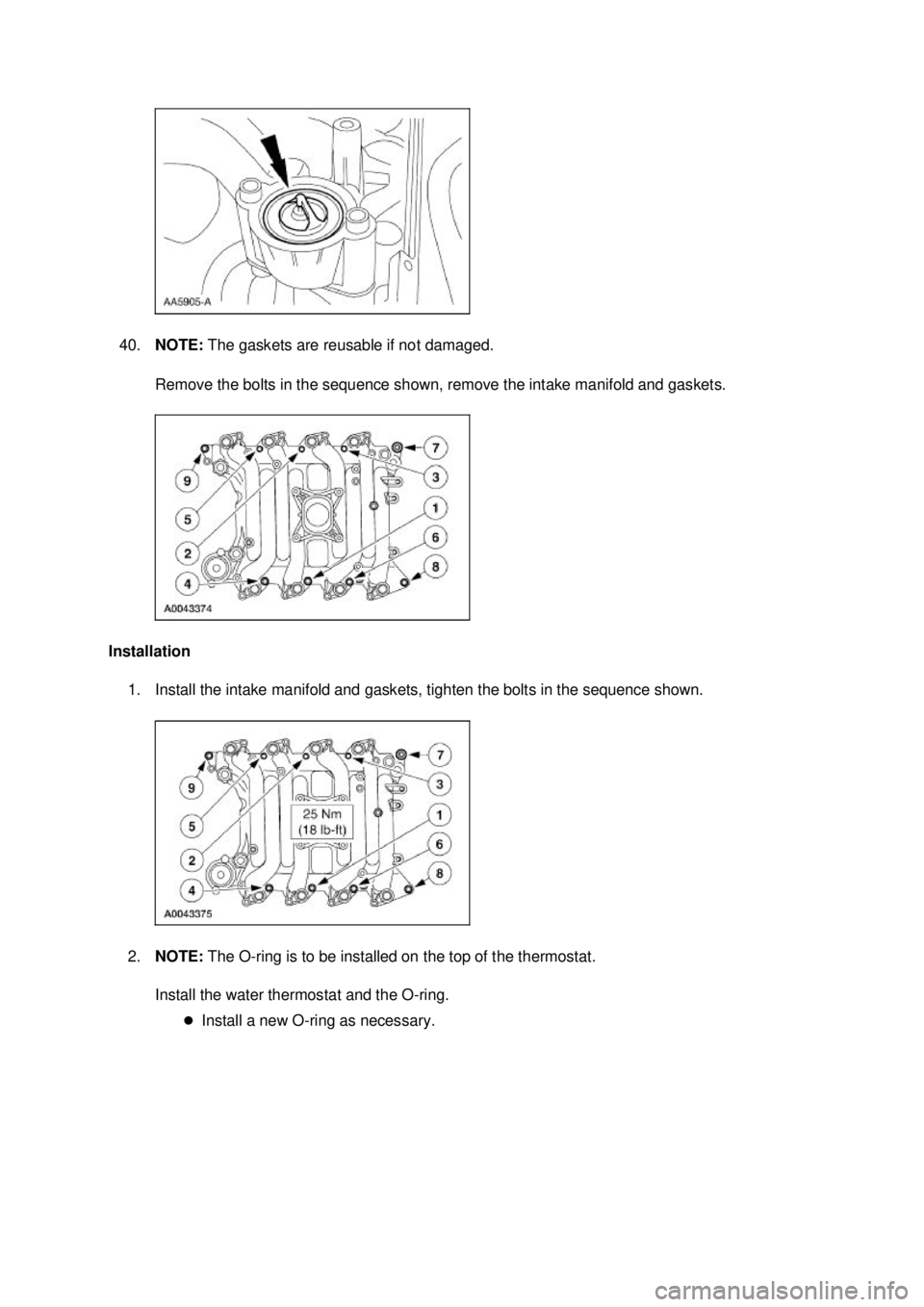

Remove the bolts in the sequence shown, remove the intake manifold and gaskets.
Installation 1. Install the intake manifold and gaskets, tighten the bolts in the sequence shown.
2. NOTE: The O-ring is to be installed on the top of the thermostat.
Install the water thermostat and the O- ring.
z Install a new O- ring as necessary. Klj . 10 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

3. Install the water outlet adapter.
4. Connect the water temperature indicator sender.
5. Position the engine harness and attach to the intake manifold in two locations.
6. Connect the heater hose. Klj . 11 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

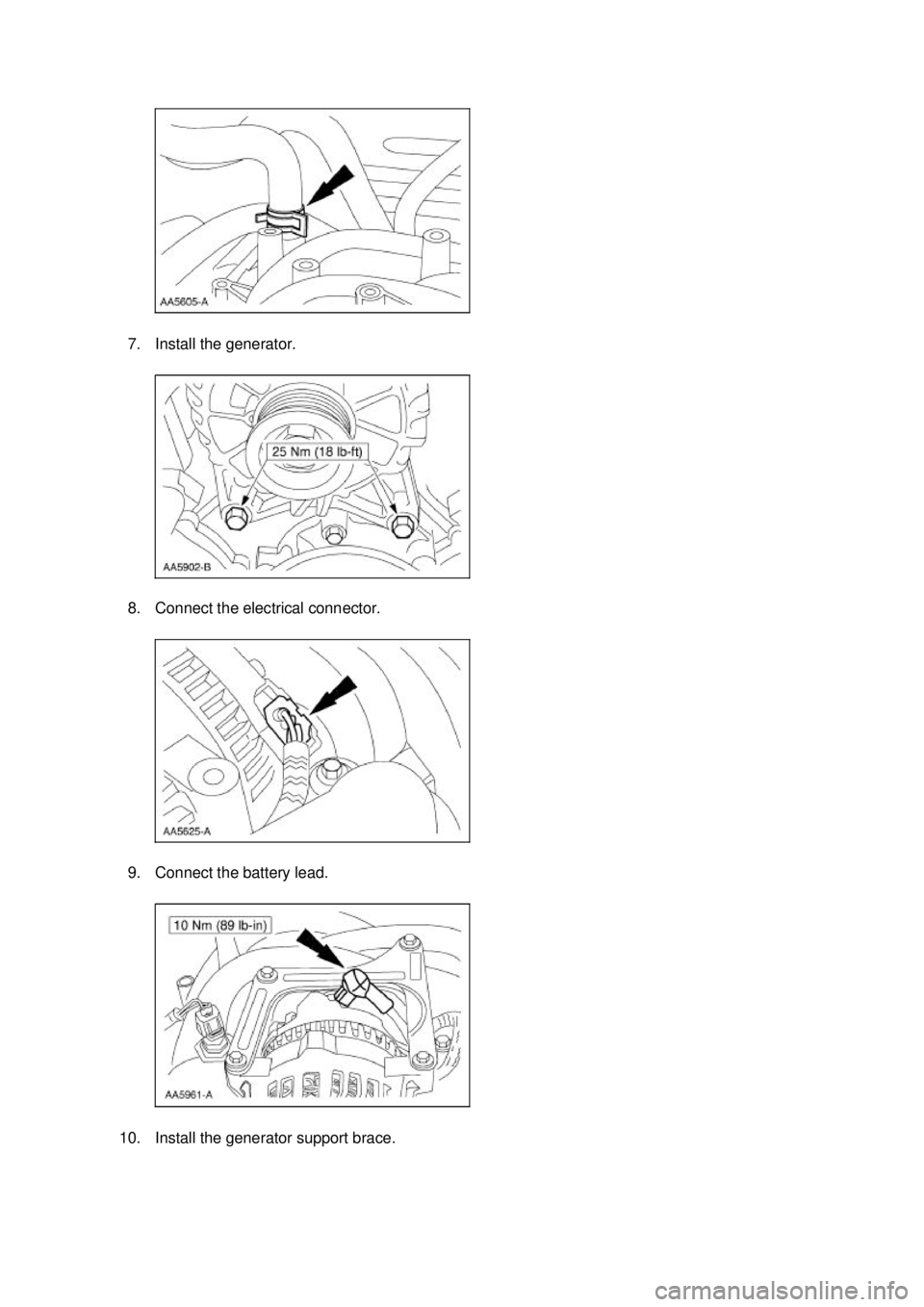

7. Install the generator.
8. Connect the electrical connector.
9. Connect the battery lead.
10. Install the generator support brace. Klj . 12 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

11. Install the ignition coils.
12. Install the fuel injection supply manifold and fuel injectors as an assembly.
13. Install four studs.
14. Position the vacuum harness and connect to the climate control vacuum supply hoses. Klj . 13 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

15. Connect the ignition coils and the fuel injectors.
16. Connect the fuel charging ground wire.
17. Connect the fuel pressure sensor electrical connector and the vacuum hose.
18. Install the throttle body and adapter as an assembly. Klj . 14 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

19. Tighten the bolts in the sequence shown.
20. Connect the throttle position sensor (TPS) electrical connector.
21. Connect the main vacuum supply to the base of the throttle body adapter.
22. Connect the idle air control (IAC) valve electrical connector. Klj . 15 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
