Crankshaft Rear Oil Seal Removal SECTION 303-
01B: Engine — 4.6L (2V) 2003 Mustang Workshop Manual Special Tool(s)
Installer, Crankshaft Rear Oil
Seal
303-
518 (T95P-6701- DH) Remover, Crankshaft Rear Oil
Seal
303-
519 (T95P-6701- EH) Installer, Crankshaft Rear Oil
Seal
303-
516 (T95P-6701- BH) Remover, Crankshaft Rear Oil
Slinger
303-
514 (T95P-6701- AH) Installer, Crankshaft Rear Oil
Slinger
303-
517 (T95P-6701- CH) Impact Slide Hammer
100-
001 (T50T-100- A)
Material Item Specification
Super Premium SAE 5W-20
Engine Oil
XO- 5W20- QSP or equivalent WSS-
M2C153-
H Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

1. Remove the flywheel. For additional information, refer to
Flywheel in this section.
2. Using the special tools, remove the crankshaft oil slinger.
3. Using the special tools, remove the crankshaft rear oil seal (6701).
Installation 1. Using the special tools, install the crankshaft rear oil seal. zLubricate the oil seal using clean engine oil.
2. Using the special tool, install the crankshaft oil slinger. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

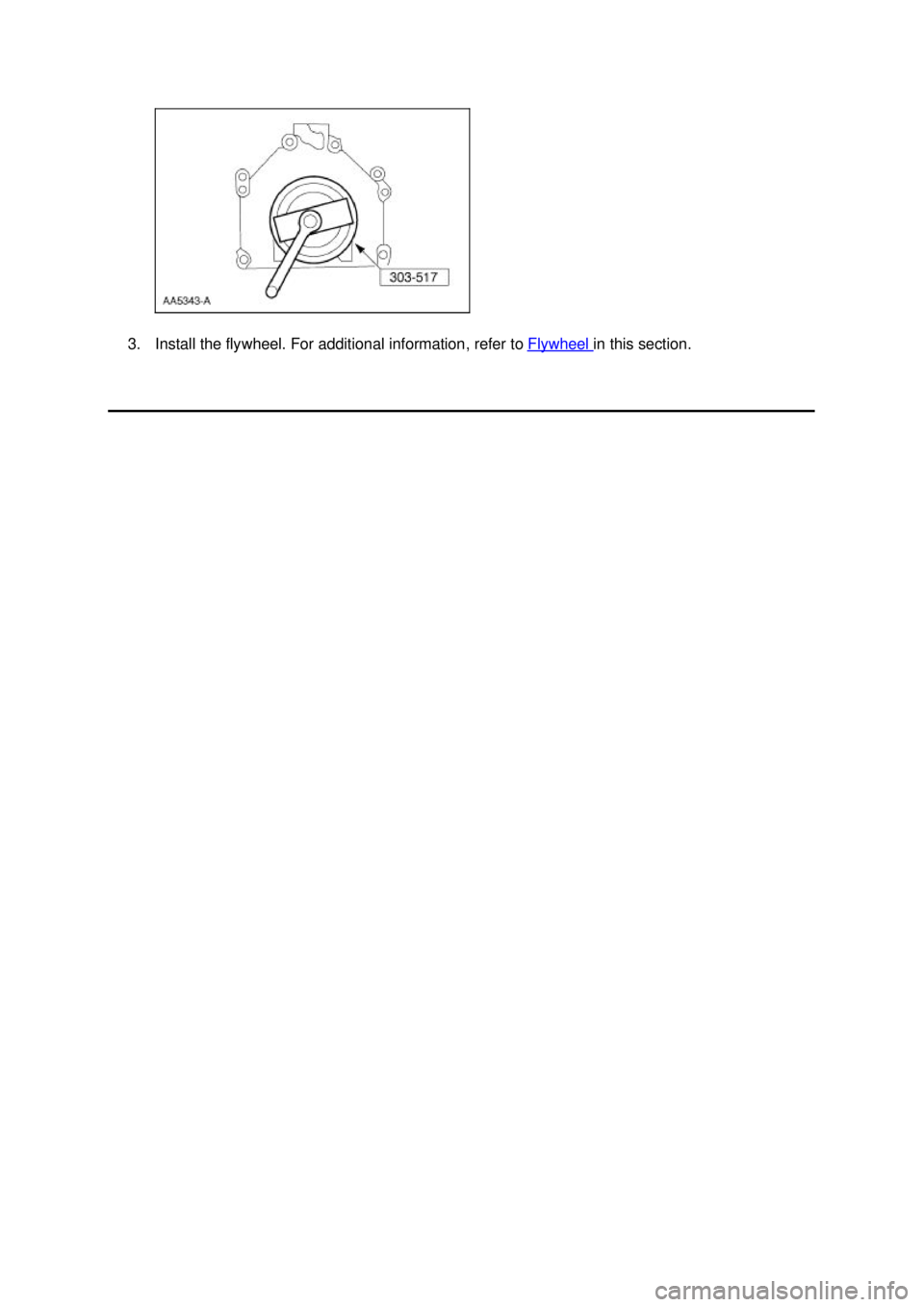

3. Install the flywheel. For additional information, refer to
Flywheel in this section. Klj . 3 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Engine Mount RH
Removal 1. Install the special tool.
2. Install the special tools.
3. Remove the starter. For additional information, refer to Section 303 - 06 .
4. Remove the two engine mount nuts. SECTION 303-
01B: Engine — 4.6L (2V) 2003 Mustang Workshop Manual Special Tool(s)
Lifting Bracket, Engine
303-
D088 (D93P-6001- A2) Support Bar, Engine
303-
290- A Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

5. Lower the vehicle.
6. Using the special tools, raise the engine.
7. Raise and support the vehicle. For additional information, refer to
Section 100 - 02 .

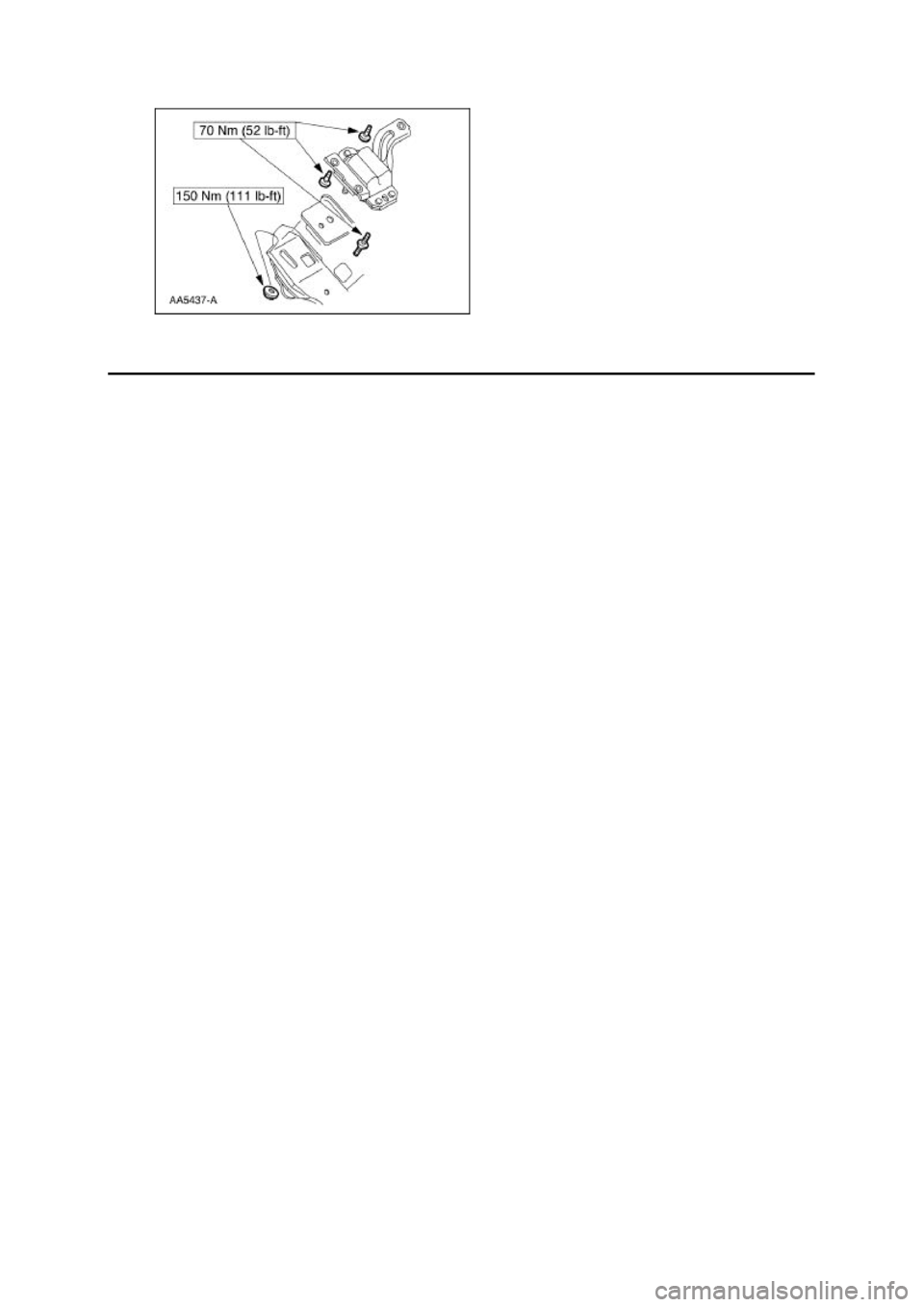

8. Remove the engine mount.
Installation 1. To install, reverse the removal procedure. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 3 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Engine Mount LH
Removal 1. Install the special tool.
2. Install the special tools.
3. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
4. Remove the two engine mount nuts. SECTION 303-
01B: Engine — 4.6L (2V) 2003 Mustang Workshop Manual Special Tool(s)
Lifting Bracket, Engine
303-
D088 (D93P-6001- A2) Support Bar, Engine
303-
290- A Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

5. Lower the vehicle.
6. Using the special tools, raise the engine.
7. Raise and support the vehicle. For additional information, refer to
Section 100 - 02 .
8. Remove the engine mount.
Installation 1. To install, reverse the removal procedure. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 3 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
