differential FORD MUSTANG 2003 Workshop Manual

4. Position the halfshaft for installation.
5. Seat the CV joint stub shaft in the differential side gear.
1. Slide the stub shaft into the axle housing until the shaft splines are past the differential seal.
2. Remove the special tool.
3. Align the stub shaft splines and the side gear splines, and slide the stub shaft into the gear until it seats.
„When seated, the axle circlip will lock the stub shaft in the differential side gear.
Check the circlip engagement by attempting to pull the inboard CV joint out of the
differential side gear. If the circlip has not seated, push the CV joint inward until
the circlip is fully engaged in the differential side gear.
6. Connect the axle shaft to the hub. 1. Making sure the serrations on the shaft line up with the serrations in the hub, install the axle shaft into the hub.
2. Install a new retainer. Do not tighten the retainer at this time. Klj . 6 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

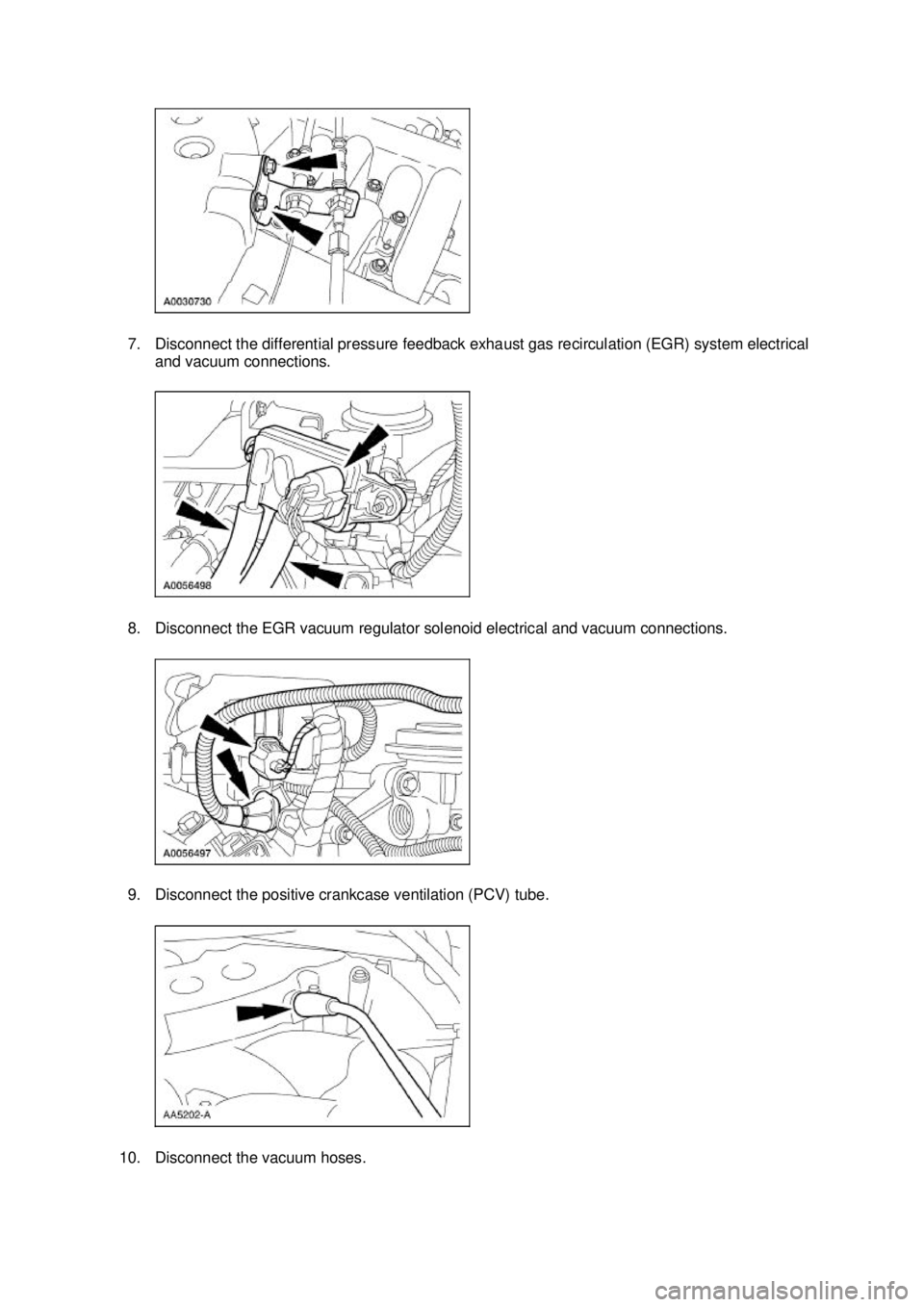

7. Disconnect the differential pressure feedback exhaust gas recirculation (EGR) system electrical
and vacuum connections.
8. Disconnect the EGR vacuum regulator solenoid electrical and vacuum connections.
9. Disconnect the positive crankcase ventilation (PCV) tube. 10. Disconnect the vacuum hoses. Klj . 2 ba
82003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

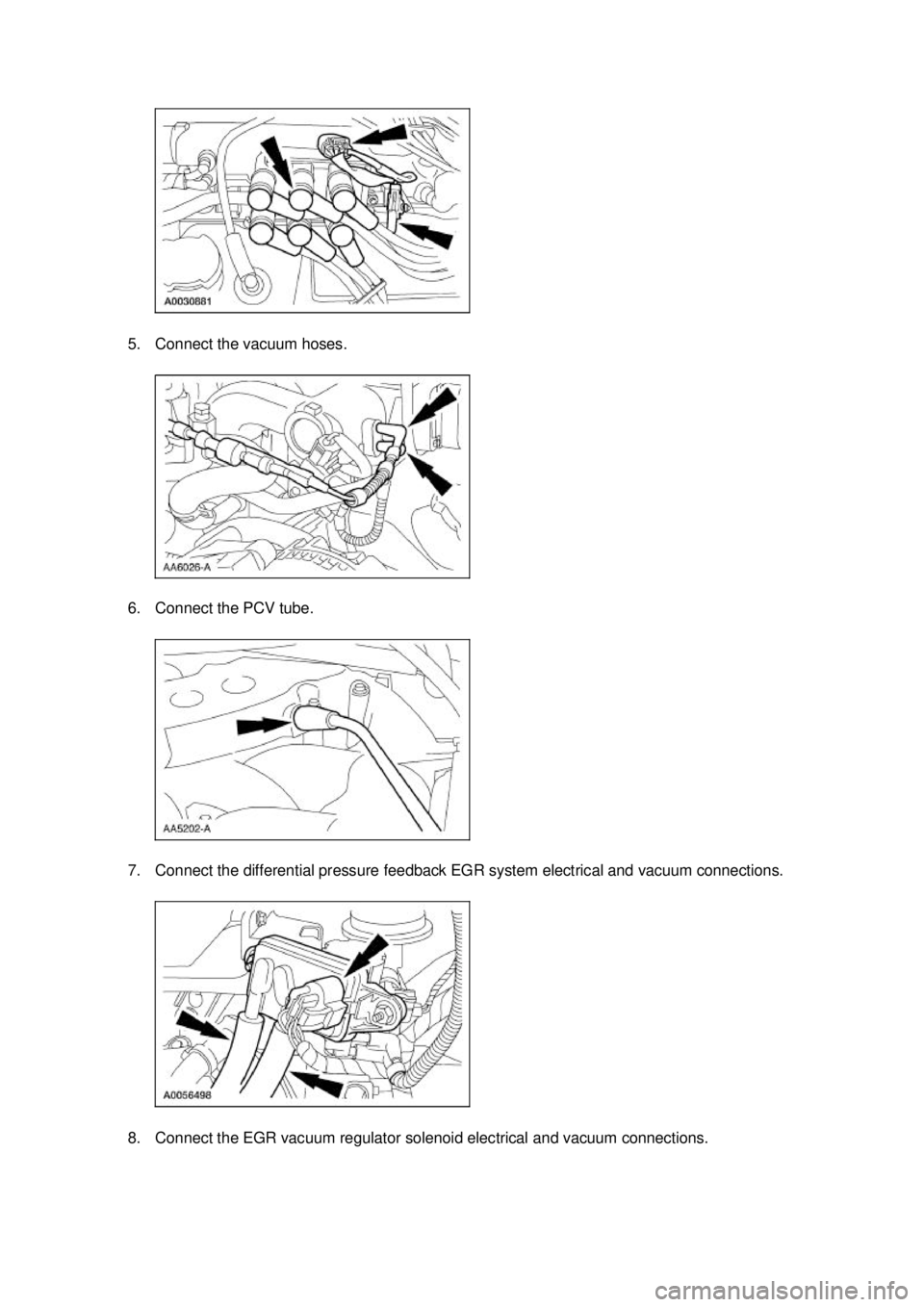

5. Connect the vacuum hoses.
6. Connect the PCV tube.
7. Connect the differential pressure feedback EGR system electrical and vacuum connections.
8. Connect the EGR vacuum regulator solenoid electrical and vacuum connections. Klj . 6 ba
82003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Valve Cover RH
Removal and Installation 1. Remove the throttle body. For additional information, refer to Section 303 - 04A .
2. Disconnect the crankcase vent hose.
3. Remove the differential feedback exhaust gas recirculation (EGR) system vacuum hoses and the bracket bolts. Position the bracket assembly aside.
4. Disconnect the EGR tube.
5. Remove the EGR tube.
SECTION 303-
01A: Engine — 3.8L 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Exhaust Manifold RH
Removal and Installation 1. Disconnect the battery negative cable. For additional information, refer to Section 414 - 01 .
2. Remove the air cleaner outlet pipe. For additional information, refer to Section 303 - 12 .
3. Disconnect the differential pressure feedback exhaust gas recirculation (EGR) system electrical and vacuum connections.
4. Disconnect the EGR tube.
5. Remove the EGR tube. 6. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . SECTION 303-
01A: Engine — 3.8L 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

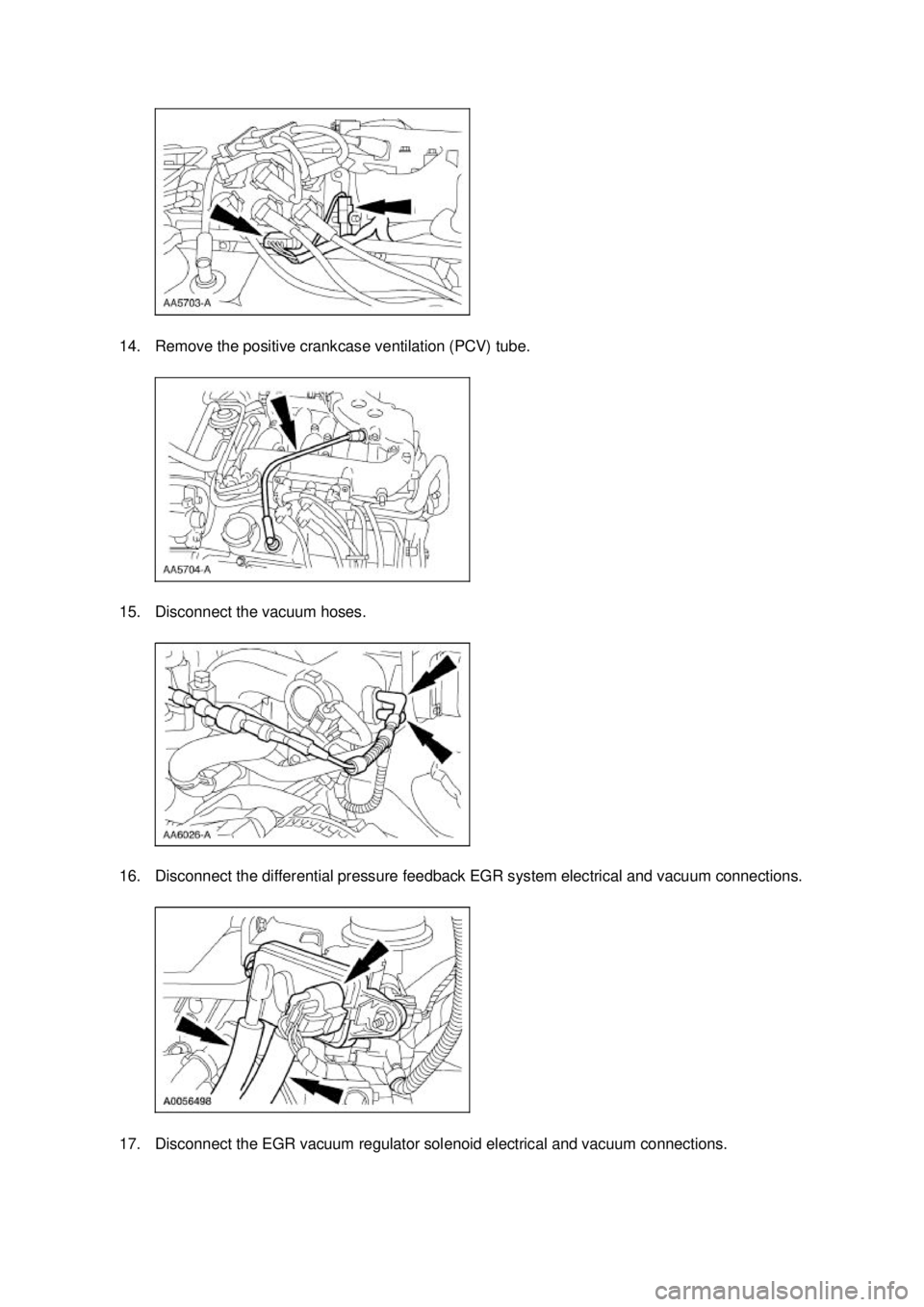

14. Remove the positive crankcase ventilation (PCV) tube.
15. Disconnect the vacuum hoses.
16. Disconnect the differential pressure feedback EGR system electrical and vacuum connections.
17. Disconnect the EGR vacuum regulator solenoid electrical and vacuum connections. Klj . 5 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

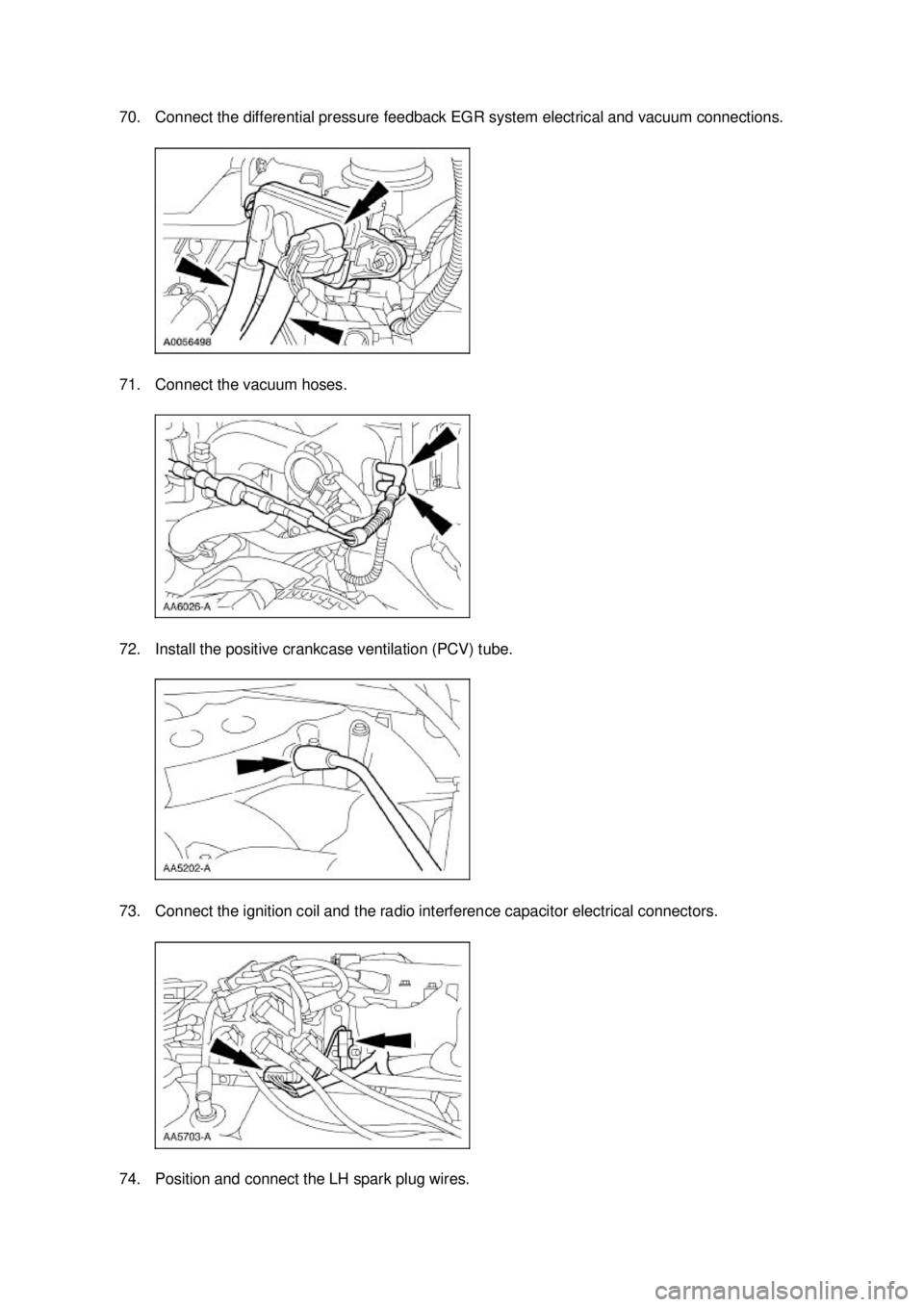

70. Connect the differential pressure feedback EGR system electrical and vacuum connections.
71. Connect the vacuum hoses.
72. Install the positive crankcase ventilation (PCV) tube.
73. Connect the ignition coil and the radio interference capacitor electrical connectors.
74. Position and connect the LH spark plug wires. Klj . 23 ba
282003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

7. Remove the bolts and position the cables and bracket out of the way.
8. Remove the breather tube.
9. Disconnect the evaporative emissions return line.
10. Disconnect the differential pressure feedback EGR electrical connector.
11. Disconnect the hoses from the differential pressure feedback EGR transducer. Klj . 2 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

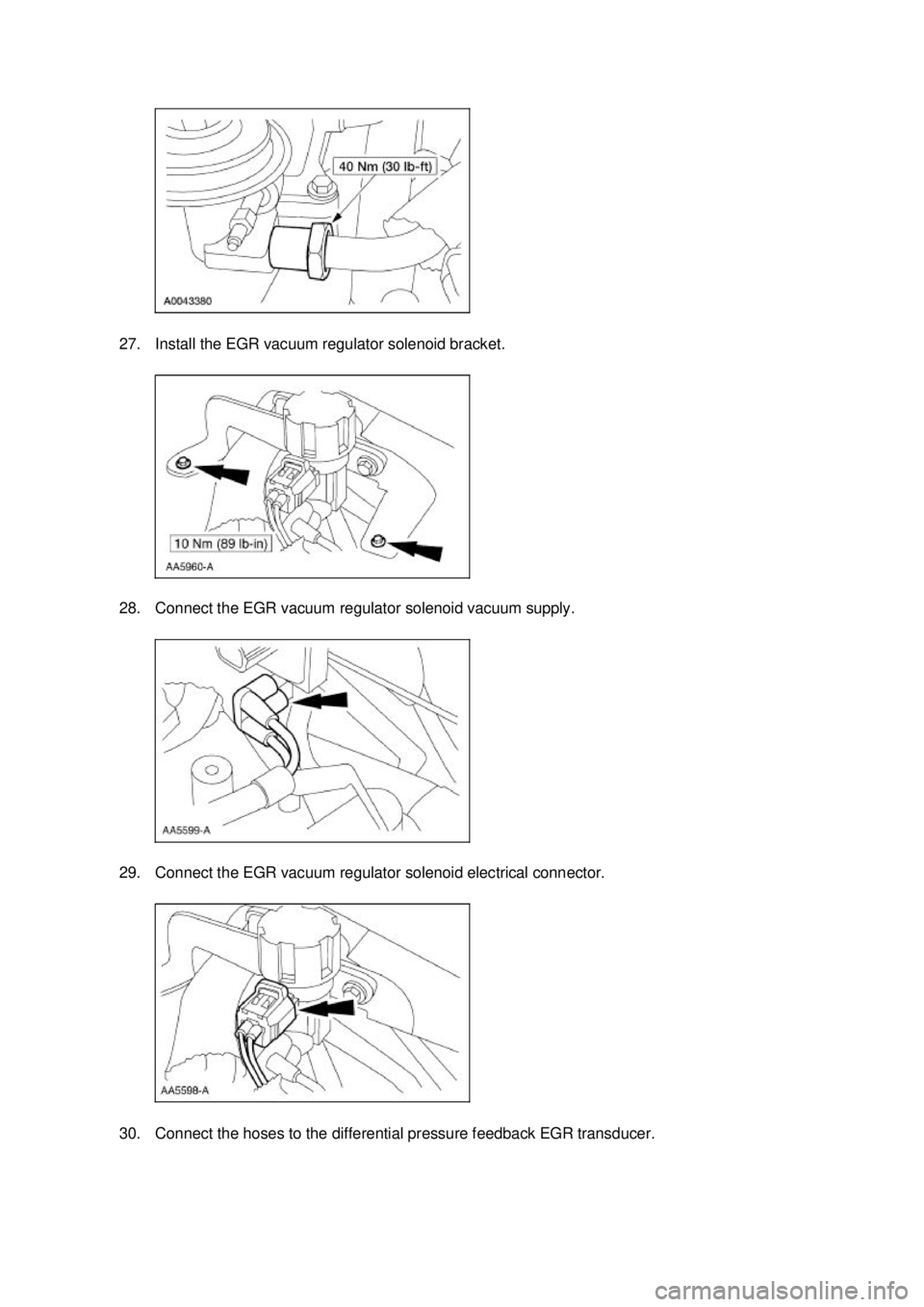

27. Install the EGR vacuum regulator solenoid bracket.
28. Connect the EGR vacuum regulator solenoid vacuum supply.
29. Connect the EGR vacuum regulator solenoid electrical connector.
30. Connect the hoses to the differential pressure feedback EGR transducer. Klj . 17 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

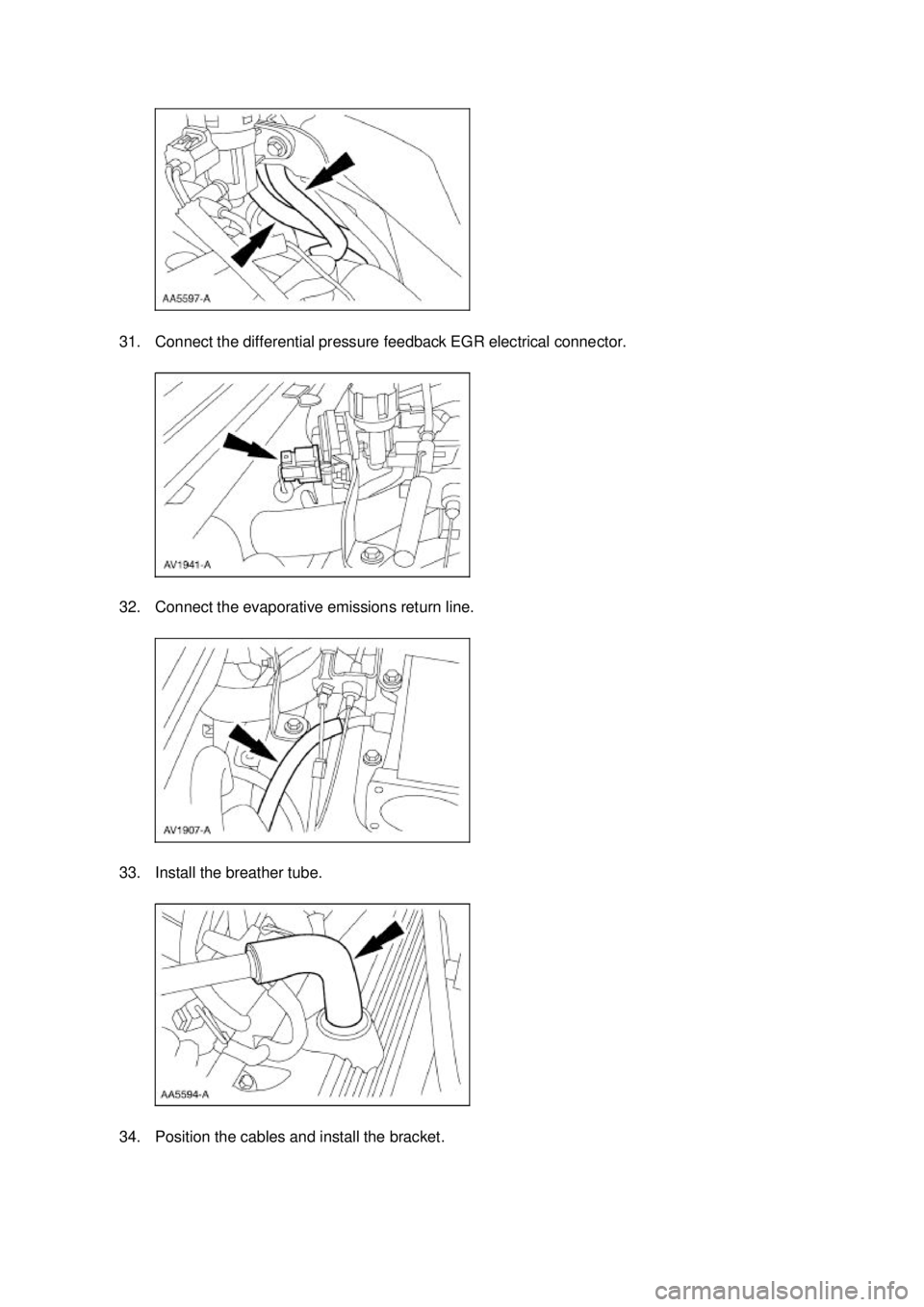

31. Connect the differential pressure feedback EGR electrical connector.
32. Connect the evaporative emissions return line.
33. Install the breather tube.
34. Position the cables and install the bracket. Klj . 18 ba
202003 Mustang Workshop Manual
