FORD MUSTANG 2003 Workshop Manual MUSTANG 2003 FORD FORD https://www.carmanualsonline.info/img/11/56942/w960_56942-0.png FORD MUSTANG 2003 Workshop Manual

Page 41 of 4378

FORD MUSTANG 2003  Workshop Manual Lateral runout means measuring the movement or "wobble" of a wheel or tire at the sidewall. Radial
runout means measuring the out-of-
round at the tread surface.
Rustling
Intermittent sound of vary

Page 61 of 4378

FORD MUSTANG 2003  Workshop Manual glass
�zAir traveling up
windshield molding
along A- pillar.  �z
INSTALL foam rope the
full length of the A- pillar.
�z Windshield/backlite
misaligned or not
installed correctly.  �z
REINSTALL

Page 79 of 4378

FORD MUSTANG 2003  Workshop Manual closing/opening
the window
�z Squeak— heard
outside of vehicle
when
closing/opening
the door  �z
Exhaust shield
rubbing against
the chassis or
exhaust pipe.  �z
CHECK the exhaust system.
R

Page 823 of 4378

FORD MUSTANG 2003  Workshop Manual B1405  Driver Power Window Down
Circuit Short to Battery  GEM  REFER to
Section 501 - 11  .
B1408  Driver Power Window Up
Circuit Short to Battery  GEM  REFER to
Section 501 - 11  .
B1410  Drive

Page 2014 of 4378

FORD MUSTANG 2003  Workshop Manual Component Tests
Drive Belt Noise/Flutter
Drive belt chirp occurs due to pulley misalignment or excessive pulley runout. It can be the result of a
damaged pulley or an incorrectly aligned pulley.
T

Page 3044 of 4378

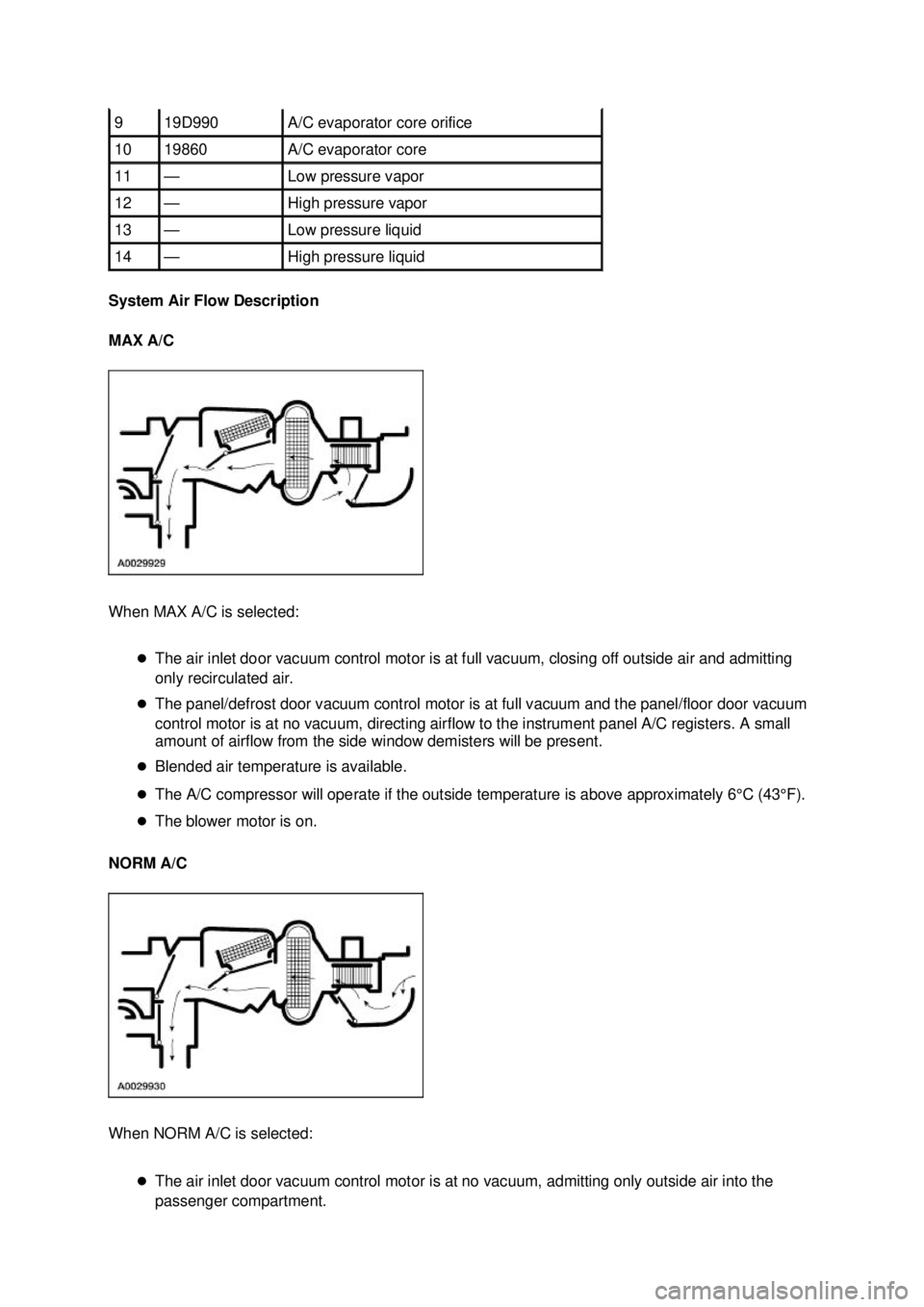

FORD MUSTANG 2003  Workshop Manual System Air Flow Description
MAX A/C
When MAX A/C is selected:
�zThe air inlet door vacuum control motor is at full vacuum, closing off outside air and admitting
only recirculated air.
�z The pane

Page 3045 of 4378

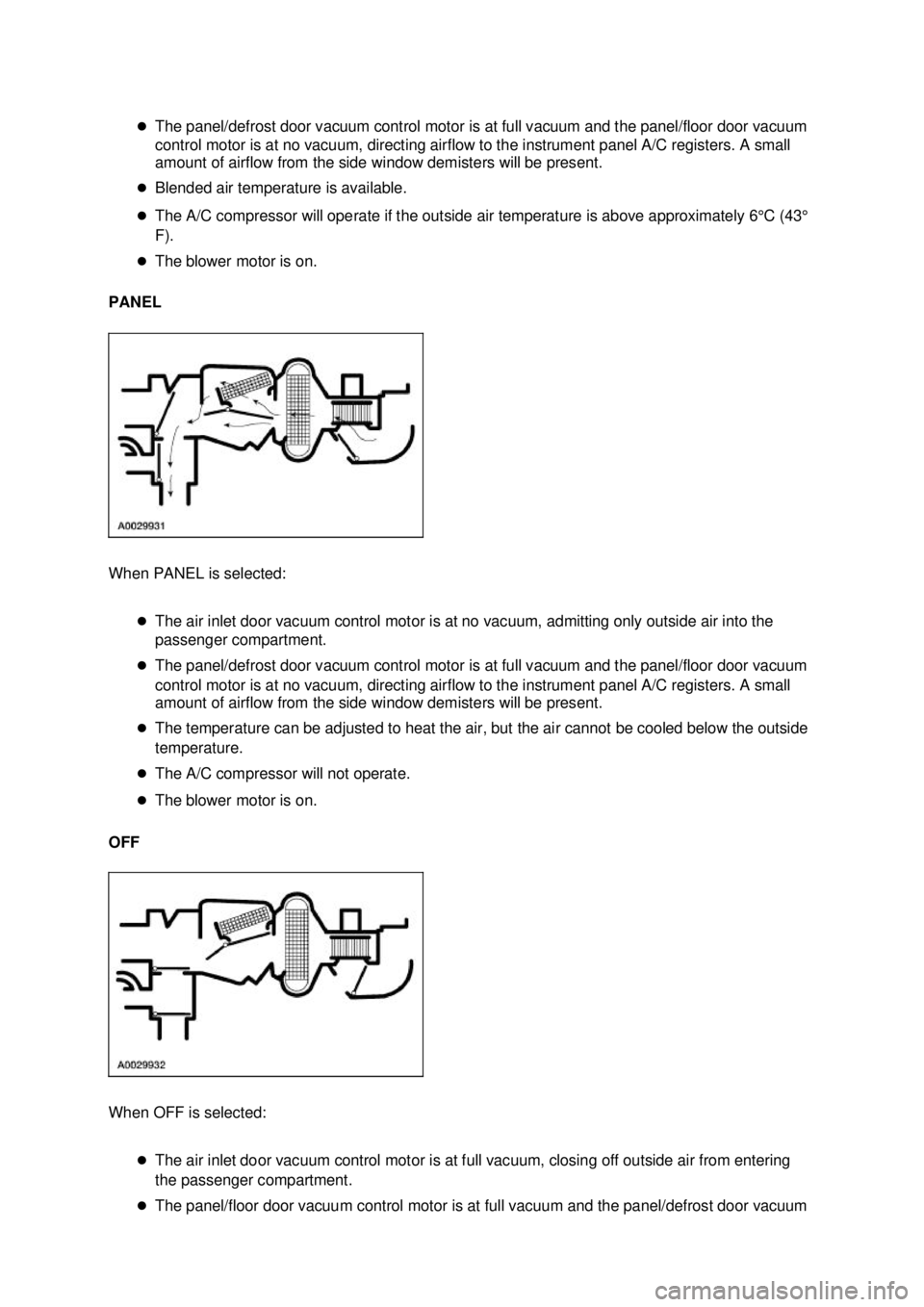

FORD MUSTANG 2003  Workshop Manual �z
The panel/defrost door vacuum control motor is at full vacuum and the panel/floor door vacuum
control motor is at no vacuum, directing airflow to the instrument panel A/C registers. A small
amoun

Page 3046 of 4378

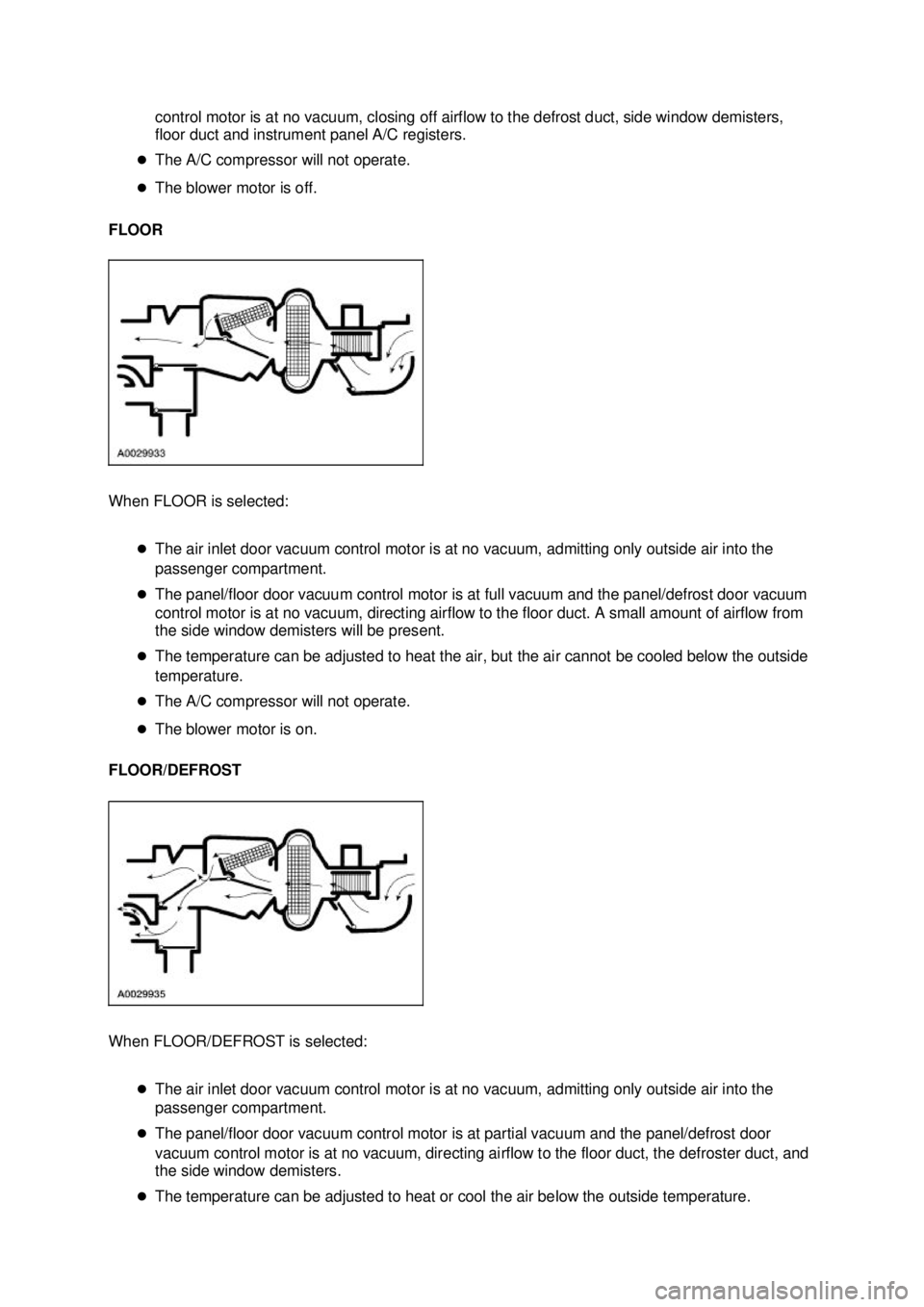

FORD MUSTANG 2003  Workshop Manual control motor is at no vacuum, closing off airflow to the defrost duct, side window demisters,
floor duct and instrument panel A/C registers.
�z The A/C compressor will not operate.
�z The blower m

Page 3047 of 4378

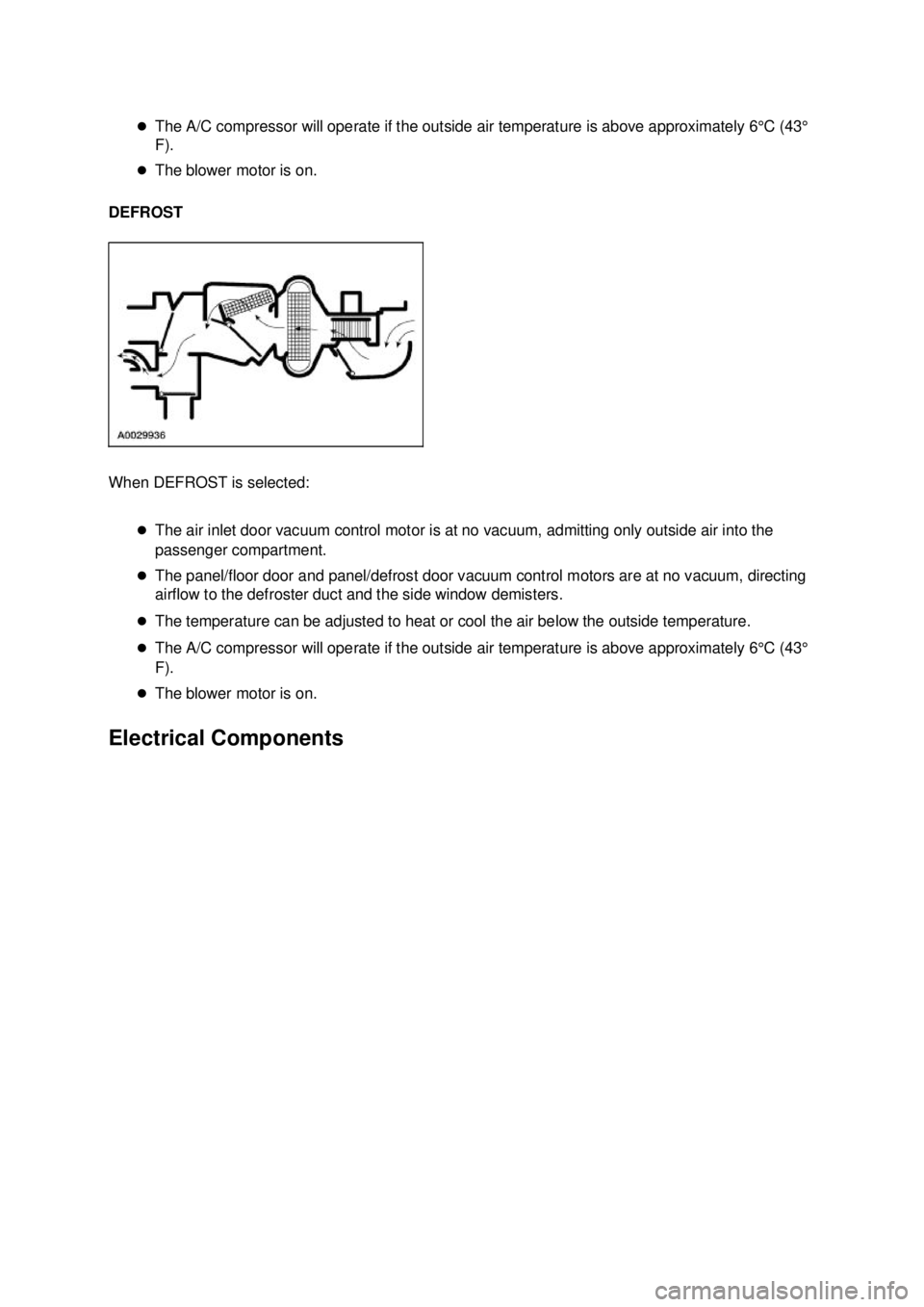

FORD MUSTANG 2003  Workshop Manual �z
The A/C compressor will operate if the outside air temperature is above approximately 6°C (43°
F).
�z The blower motor is on.
DEFROST
When DEFROST is selected:
�zThe air inlet door vacuum con

Page 3052 of 4378

FORD MUSTANG 2003  Workshop Manual Item  Part Number  Description
1  18A318  Vacuum control motor, panel/defrost door
2  18A478  Panel/defrost door (full vacuum position)
3  — Defrost airflow
4  — Side window demister airflow
