FORD MUSTANG 2003 Workshop Manual

REMOVAL AND INSTALLATION
Cooling Fan Motor and Shroud
Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the degas bottle or coolant expansion tank. For additional information, refer to Degas Bottle — 4.6L(2V) and 4.6L(4V) in this section.
3. Disconnect the cooling fan electrical connector.
4. Separate the fan harness from the shroud.
5. Remove the LH bolt. 6. Remove the RH bolt. SECTION 303-
03A: Engine Cooling 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

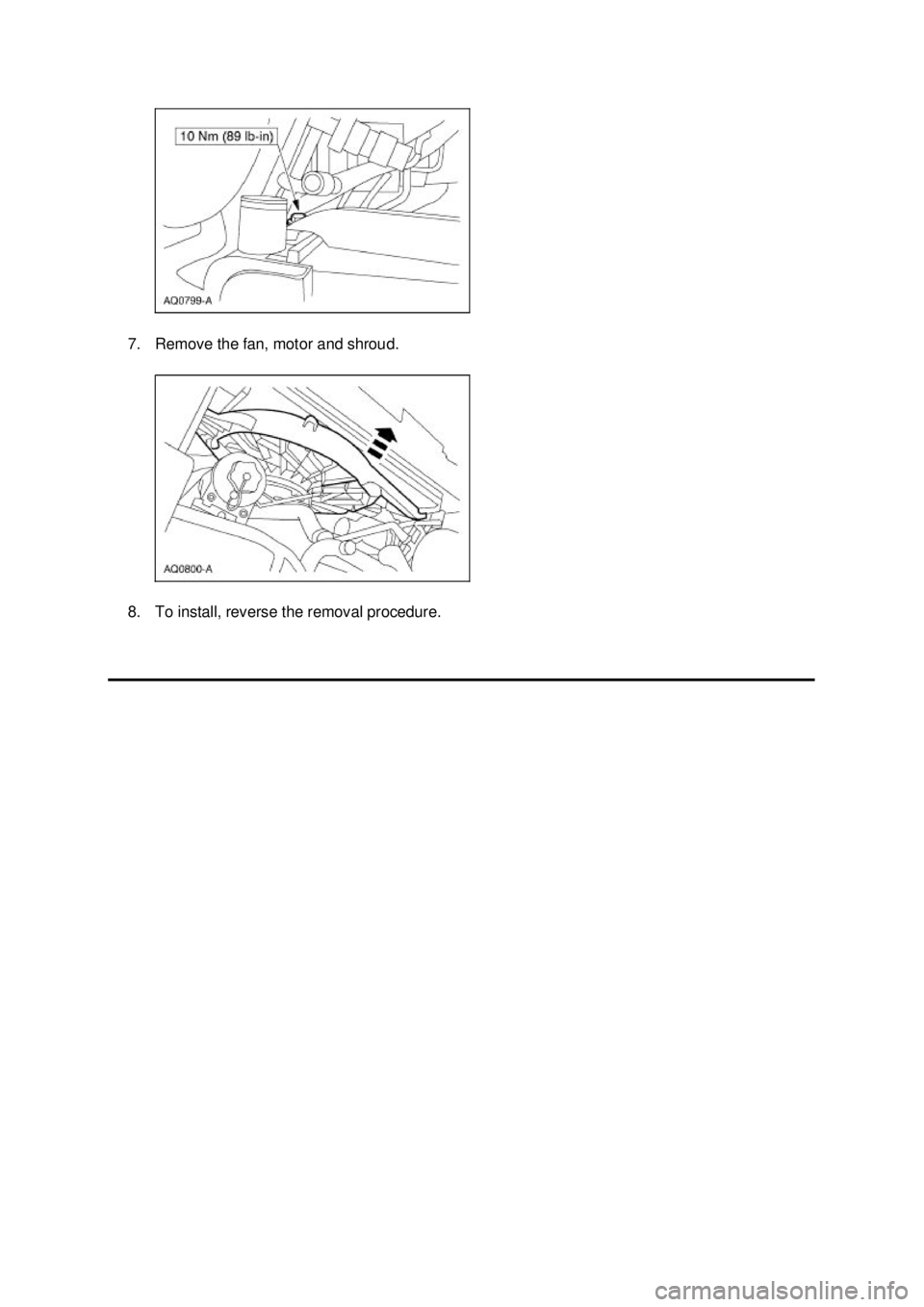

7. Remove the fan, motor and shroud.
8. To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Water Bypass Hose —
3.8L
Removal and Installation 1. Drain the engine coolant. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section.
2. Remove the bypass hose.
3. To install, reverse the removal procedure.
4. Fill and bleed the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section.
SECTION 303-
03A: Engine Cooling 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Degas Bottle —
4.6L(2V) and 4.6L(4V)
Removal and Installation 1. Drain the engine coolant from the degas bottle only. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section.
2. Disconnect the radiator vent hose.
3. Remove the degas bottle return hose.
4. Remove the nuts and the degas bottle.
5. To install, reverse the removal procedure.
6. Fill and bleed the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section.
SECTION 303-
03A: Engine Cooling 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
a
Use the same type coolant that was drained from the cooling system. Do not mix coolant types.
b The addition of Motorcraft Cooling System Stop Leak Pellets, VC- 6, darkens Motorcraft Premium
Gold Engine Coolant from yellow to golden tan. SECTION 303-
03B: Supercharger Cooling 2003 Mustang Workshop Manual General Specifications
Item Specification
Cooling System Capacity
System capacity L (qts) 3.75 (4.0)
Coolant Type
Motorcraft Premium Engine Coolant VC-4-
A (CXC-10 in
Canada, VC- 5 in Oregon) a ESE-
M97B44- A Motorcraft Premium Gold Engine Coolant VC-7-
A (in
Oregon VC-7- B)
a b WSS-
M97B51- A1 Other Chemicals
Premium Cooling System Flush VC-
1 ESR-
M14P7-A Premium Long Life Grease XG-1-
C ESA-
M1C75- B Cooling System Stop Leak Pellets
VC-
6 ESE-
M99B37- 5 except as noted in ES-
F65E-19A511- AA Cooling System Pressure Test Specifications
System (radiator) kPa (psi) 138 (20)
System (intercooler) kPa (psi) 138 (20)
Cap (relief opening pressure)
kPa (psi) 69 (10)
Torque Specifications Description Nm lb-
ft lb-
in Water pump bolts 20 — 15
Dropping resistor screw 6 53 —
Degas bottle bolt 10 89 —
Intercooler radiator support bracket-
to-bumper bolts 12 — 9
Intercooler radiator support bracket bolts 10 89 — Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Supercharger Cooling
CAUTION: Some vehicle cooling systems are filled with Motorcraft Premium Engine
Coolant VC -4-A (in Oregon VC- 5, in Canada CXC- 10) or equivalent meeting Ford specification
ESE- M97B44- A (green color). Others are filled with Motorcraft Premium Gold Engine Coolant
VC -7-A or equivalent meeting Ford specification WSS- M97B51-A1 (yellow color). Always fill the
cooling system with the same coolant that is present in the system. Do not mix coolant types.
NOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC- 6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
NOTE: The air that is produced from the supercharger is cooled by the intercooler.
Walter C. Avrea, the owner of patents 3,601,181 and RE 27,965, has granted Ford Motor Company
rights with respect to cooling systems covered by these patents.
The cooling system components include the:
zintercooler
z intercooler radiator (8K226)
z pressure relief cap
z degas bottle
z electric water pump (8501)
The degas bottle:
zprovides a location for system fill.
z contains coolant expansion and system pressurization.
z provides air separation during operation.
z replenishes the intercooler coolant to the system.
The intercooler coolant flows:
zfrom the intercooler to the degas bottle.
z from the degas bottle to the water pump.
z from the water pump to the intercooler radiator.
z from the intercooler radiator to the intercooler.
Engine coolant provides freeze protection, boil protection, cooling efficiency and corrosion protection to
the engine and cooling components. In order to obtain these protections, the engine coolant must be
maintained at the correct concentration and fluid level in the degas bottle.
When adding engine coolant, use a 50/50 mixture of engine coolant and clean, drinkable water.
To maintain the integrity of the coolant and the cooling system: SECTION 303-
03B: Supercharger Cooling 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

NOTE:
The addition of Motorcraft Cooling System Stop Leak Pellets, VC- 6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
zAdd Motorcraft Premium Engine Coolant VC-4- A (in Oregon VC-5, in Canada CXC-10) or
equivalent meeting Ford specification ESE- M97B44-A (green color), or Motorcraft Premium
Gold Engine Coolant VC-7- A or equivalent meeting Ford specification WSS-M97B51- A1 (yellow
color). Use the same coolant that was drained from the cooling system. Do not mix coolant
types.
z Do not add/mix orange-colored Motorcraft Speciality Orange Engine Coolant VC- 2 or equivalent
meeting Ford specification WSS- M97B44-D. Mixing coolants may degrade the coolant's
corrosion protection.
z Do not add alcohol, methanol, brine, or any engine coolants mixed with alcohol or methanol
antifreeze. These can cause engine damage from overheating or freezing.
z Do not mix with recycled coolant unless it meets the requirements of Ford specification ESE-
M97B44- A or WSS-M97B51- A1. Not all coolant recycling processes meet these Ford
specifications. Use of such coolants can harm the engine and cooling system components. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Supercharger Cooling
Inspection and Verification
WARNING: Never remove the pressure relief cap while the engine is operating or when the
cooling system is hot. Failure to follow these instructions can result in damage to the cooling
system or engine or personal injury. To avoid having scalding hot coolant or steam blow out of
the degas bottle when removing the pressure relief cap, wait until the engine has cooled, then
wrap a thick cloth around the pressure relief cap and turn it slowly. Step back while the
pressure is released from the cooling system. When you are sure all the pressure has been
released, (still with a cloth) turn and remove the pressure relief cap.
CAUTION: Check the coolant and engine oil levels. Top off the coolant level if needed. If
there is engine coolant in the engine oil, the cause must be corrected and the oil changed or major component damage can occur. SECTION 303-
03B: Supercharger Cooling 2003 Mustang Workshop Manual Special Tool(s)
Pressure Test Kit
014-
R1072 or equivalent Battery/Antifreeze Tester
014-
R1060 or equivalent
Material Item Specification
Motorcraft Premium
Engine Coolant
VC
-4-A (in Oregon
VC- 5, in Canada
CXC- 10) ESE-
M97B44- A Motorcraft Premium
Gold Engine Coolant
VC
-7-A WSS-
M97B51- A1 Motorcraft Cooling
System Stop Leak
Pellets
VC-
6 or equivalent ESE-
M99B37- 5 except as
noted in ES-F65E-19A511- AA Klj . 1 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
