ignition FORD MUSTANG 2003 User Guide

4 N805572-
S36 Air bag module retaining screws (2 req'd)
5 3L518 Steering wheel spoke cover
(2 req'd)
6 — Lock tabs
7 14A664 Clockspring
8 13318 Turn indicator cancel cam
9 3C610 Snap ring
10 3520 Bearing spring
11 3518 Upper bearing sleeve
12 3517 Upper bearing (small)
13 3517 Lower bearing (large)
14 3524 Shaft assembly
15 390345-
S36 Screw
16 13K359 Multi-
function switch 17 3E695 Lock cam
18 3F609 Tilt wheel handle
19 N806157 Lock cam pivot pin
20 3530 Lower shroud
21 55929 Shroud retaining screws
22 3D544 Release lever
23 3B661 Lock actuator lever (RH)
24 N805856 Lock actuator lever pin
25 3D653 Lock actuator lever (LH)
26 3B664 Lock lever spring (2 req'd)
27 14A099 Wiring shield
28 3D655 Lock lever spring return
29 3E715 Lock lever upper actuator
30 3E696 Lock spring (shaft)
31 11572 Ignition switch
32 N806423-
S56 Steering column mounting lower nuts
33 N806584 Screw
34 3E660 Mounting bracket
35 3D681 Bearing retaining
36 3518 Bearing sleeve
37 3517 Lower bearing
38 3L539 Lower bearing tolerance ring
39 3C131 Sensor ring
40 3520 Bearing spring
41 N808349 Bolt —
flange yoke 42 3N725 Coupling
43 3C611 Tube boot
44 3B676 Intermediate shaft Klj . 2 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

NOTE:
All fasteners are important because they can affect the performance of vital parts and systems.
Incorrect installation of the fasteners can result in major repair expenses. They must be installed new
with fasteners of the same part number if installation becomes necessary. Do not install a new part of
lesser quality or substitute a design. Torque values must be used as specified during assembly to
make sure these parts function correctly.
The body of the steering column (3C529) is made of magnesium die castings. The steering column is
attached to a support that is an integral part of the instrument panel. The lower attachments of the
steering column are through a bracket that bends during collapse. The upper attachments are through
plastic shear modules that separate from the main casting during collapse. A clip and washer are
attached to the shear modules to reduce steering column shake and to assist in installation of the
steering column. 45 N621906 Nut
46 N803942 Bolt
47 3A525 Intermediate shaft coupling
48 11A128 Ignition key warning switch terminal
49 N806583 Bearing housing retaining screw
50 N804865-
S58 Screw
51 14A06 Wire connector bracket
52 3E715 Lock lever lower actuator
53 3E691 Lock pawl
54 3F723 Actuator housing
55 3E745 Lock actuator cover
56 3F719 Ignition/shifter interlock cable
57 N808124-
58M Screw
58 3D655 Position spring
59 3D656 Tilt flange bumper
60 N806582 Tilt pivot screws
61 11582 Ignition switch lock cylinder
62 3E700 Lock housing bearing
63 3E717 Lock gear
64 3530 Upper shroud
65 3511 Lock cylinder housing
66 N805857 Lock actuator lever pin
67 3D681 Bearing retainer Klj . 3 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Ignition Switch Lock Cylinder —
Functional
Removal and Installation 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Remove the ignition switch lock cylinder (11582). 1. Insert the ignition key and turn to the RUN position.
2. Using a 1/8- inch drift, press the ignition switch lock cylinder release pin through the
access hole while pulling out the ignition switch lock cylinder.
3. To install, reverse the removal procedure. zVerify ignition switch lock cylinder operation.
SECTION 211-
04: Steering Column 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Ignition Switch Lock Cylinder —
Non-Functional
Removal and Installation 1. NOTE: Make sure the front wheels are in the straight- ahead position.
Disconnect the battery ground cable (14301) and wait at least one minute to allow the depletion
of the restraint system backup power supply. For additional information, refer to Section 414 -
01 .
2. WARNING: To avoid the risk of serious personal injury, read and follow all
warnings, cautions, notes and instructions in the deactivation procedure.
Deactivate the supplemental restraint system (SRS). For additional information, refer to
Supplemental Restraint System (SRS) Deactivation and Reactivation in this section.
3. WARNING: To reduce the risk of serious personal injury, read and follow all
warnings, cautions, notes and instructions in the steering wheel removal and installation
procedure.
Remove the steering wheel assembly. For additional information, refer to Wheel in this section.
4. Twist off the cap from the ignition switch cylinder.
5. NOTE: The lock cylinder is repaired by discarding the inoperative lock cylinder and building a
new lock cylinder using the appropriate lock repair package (F85Z-11582- AA). The lock repair
package includes a detailed instruction sheet to build the new lock cylinder to the current key
code of the vehicle.
SECTION 211-
04: Steering Column 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Remove the ignition switch lock cylinder.
zUse a 1/8- inch diameter drill bit to drill out the lock cylinder retaining pin.
z Use a 3/8- inch drill bit to drill down the middle of the ignition lock key slot until the ignition
switch lock cylinder breaks loose.
z Remove and discard the ignition switch lock cylinder and clean the drill shavings from the
steering column.
6. Remove the bearing retainer.
7. Remove the bearing and gear. zThoroughly clean all drill shavings from the steering column and inspect it for damage.
8. To install, reverse the removal procedure. zInstall a new ignition switch lock cylinder.
z Verify ignition switch lock cylinder operation. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Wheel
Removal and Installation
1. Disconnect the battery ground cable (14301) and wait at least one minute to allow the depletion of the restraint system backup power supply. For additional information, refer to Section 414 -
01 .
2. Turn the steering wheel to the straight- ahead position and the ignition switch to the OFF
position.
3. WARNING: To avoid the risk of serious personal injury, follow all warnings,
cautions, notes and instructions in the beginning of the deactivation procedure.
Deactivate the supplemental restraint system (SRS). For additional information, refer to
Supplemental Restraint System (SRS) Deactivation and Reactivation in this section.
4. WARNING: To avoid risk of serious personal injury, follow all warnings, cautions,
notes and instructions in the driver air bag removal and installation procedure.
Remove the driver air bag module. For additional information, refer to Section 501 - 20B .
5. Remove and discard the steering wheel retaining bolt.
6. CAUTION: Removing the steering wheel without using a puller can damage the
column bearings.
Use a suitable puller to remove the steering wheel (3600).
SECTION 211-
04: Steering Column 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Column
Removal and Installation
All vehicles
1. Disconnect the battery ground cable and wait at least one minute to allow the depletion of the restraint system backup power supply. For additional information, refer to Section 414 - 01 .
2. WARNING: To avoid the risk of serious personal injury, follow all warnings,
cautions, notes and instructions at the beginning of the deactivation procedure.
Deactivate the supplemental restraint system (SRS). For additional information, refer to
Supplemental Restraint System (SRS) Deactivation and Reactivation in this section.
3. WARNING: To reduce the risk of serious personal injury, follow all warnings,
cautions, notes and instructions in the clockspring removal and installation procedure.
Remove the clockspring (14A664). For additional information, refer to Section 501 - 20B .
4. Remove the multi- function switch (13K359).
1. Remove the screws.
2. Disconnect the electrical connector.
3. Remove the multi- function switch.
5. Disconnect the ignition switch electrical connector. 1. Remove the bolt.
2. Disconnect the electrical connector.
SECTION 211-
04: Steering Column 2003 Mustang Workshop Manual Klj . 1 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

10. Disconnect the ignition/shifter interlock and remove the steering column.
All vehicles 11. To install, reverse the removal procedure.
12. WARNING: To avoid the risk of serious personal injury, follow all warnings,
cautions, notes and instructions at the beginning of the reactivation procedure.
Reactivate the supplemental restraint system (SRS). For additional information, refer to
Supplemental Restraint System (SRS) Deactivation and Reactivation in this section. Klj . 3 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DISASSEMBLY AND ASSEMBLY
Steering Column
Disassembly
1. WARNING: To avoid risk of serious personal injury, follow all warnings, cautions,
notes and instructions in the driver air bag removal and installation procedure.
Remove the steering column (3C529). For additional information, refer to Column in this
section.
2. Remove the ignition switch (11572). 1. Remove the screws.
2. Remove the ignition switch.
3. CAUTION: Carefully note the position of the steering column lock gear, bearing and
retainer prior to removal.
Remove the bearing retainer (3D681).
SECTION 211-
04: Steering Column 2003 Mustang Workshop Manual Special Tool(s)
Steering Column Locking Lever
Tool
(Shop Fabricated) Klj . 1 ba
182003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

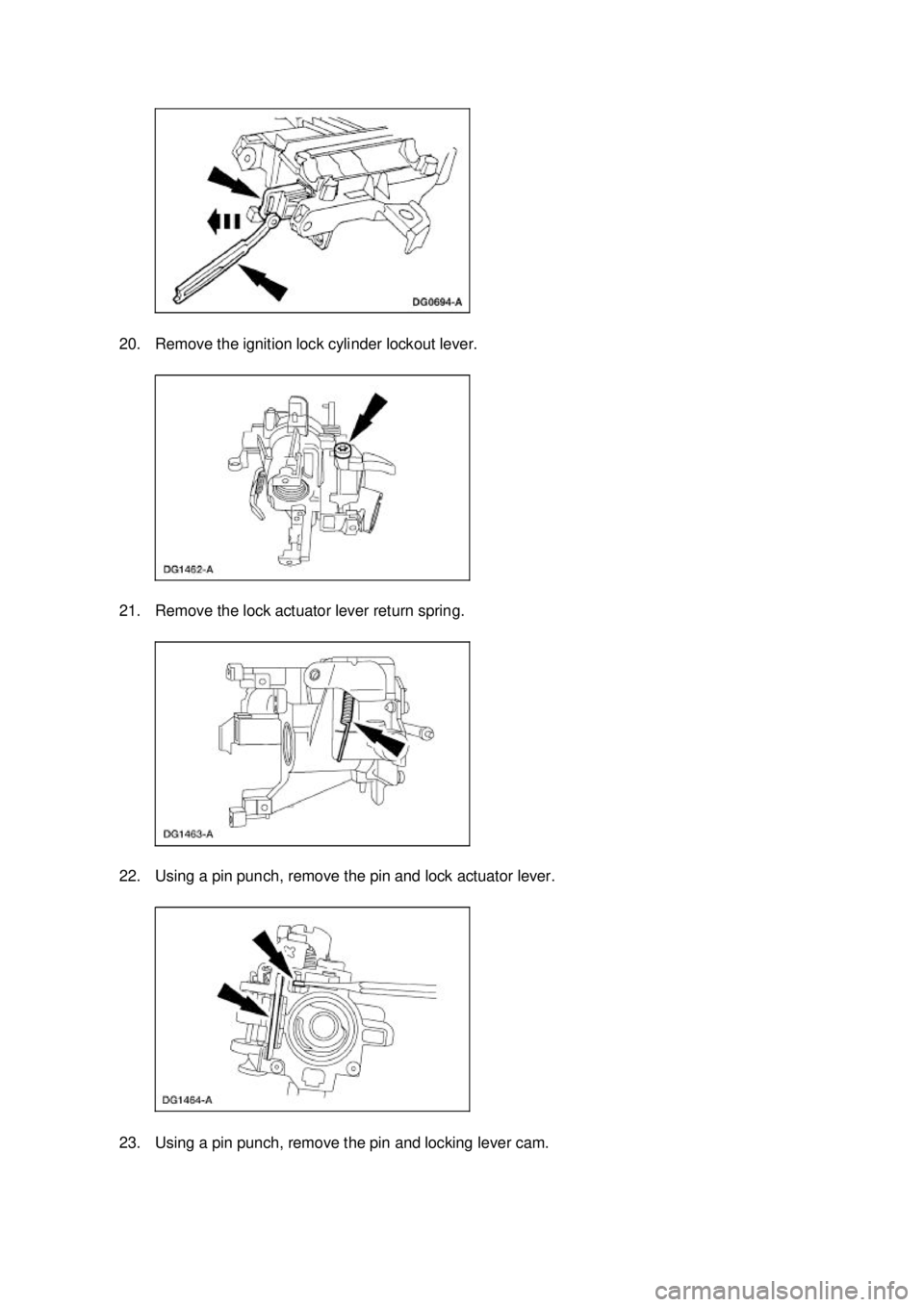

20. Remove the ignition lock cylinder lockout lever.
21. Remove the lock actuator lever return spring.
22. Using a pin punch, remove the pin and lock actuator lever.
23. Using a pin punch, remove the pin and locking lever cam. Klj . 6 ba
