REMOVAL AND INSTALLATION

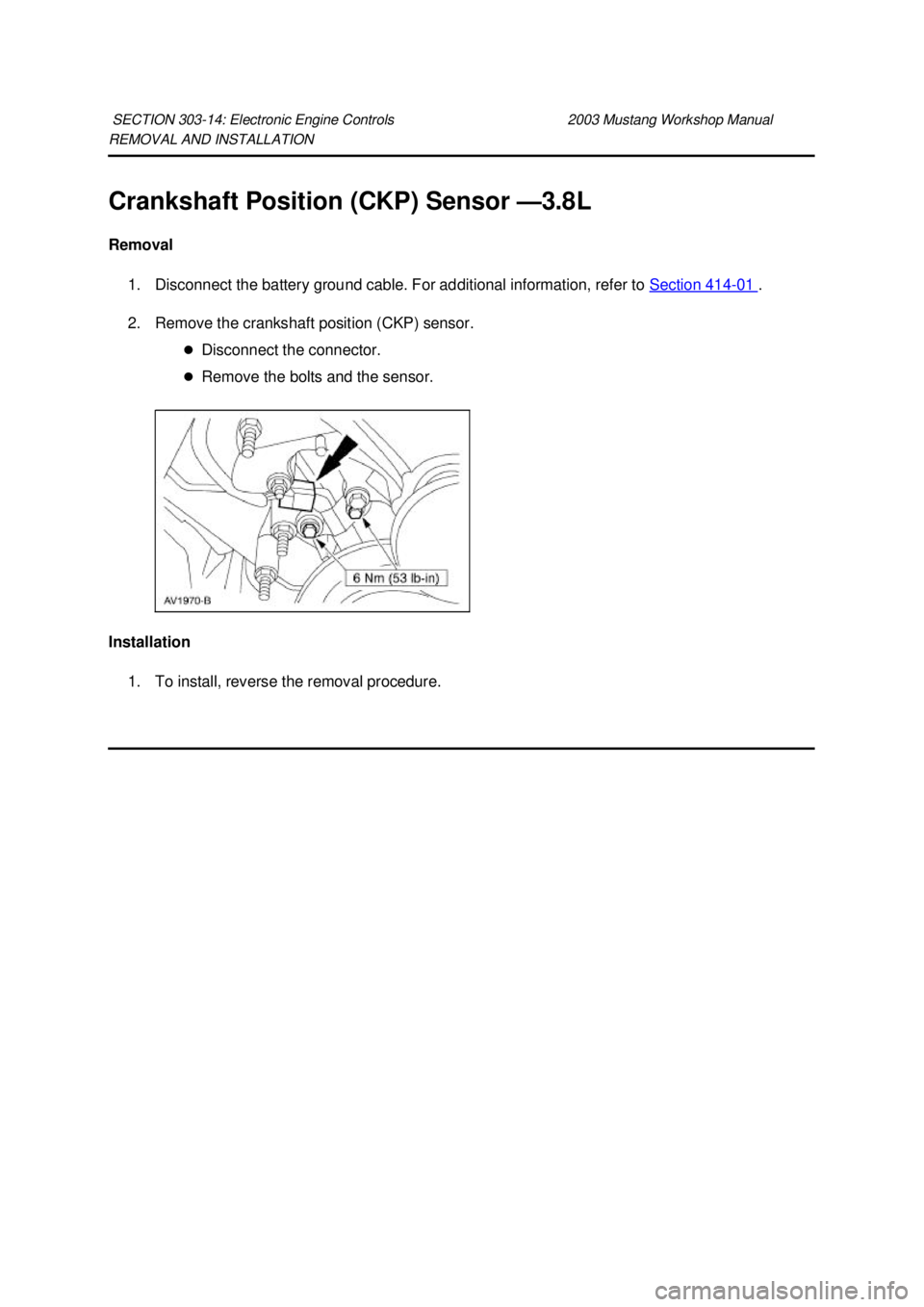

Crankshaft Position (CKP) Sensor —
3.8L
Removal 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Remove the crankshaft position (CKP) sensor. zDisconnect the connector.
z Remove the bolts and the sensor.
Installation 1. To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

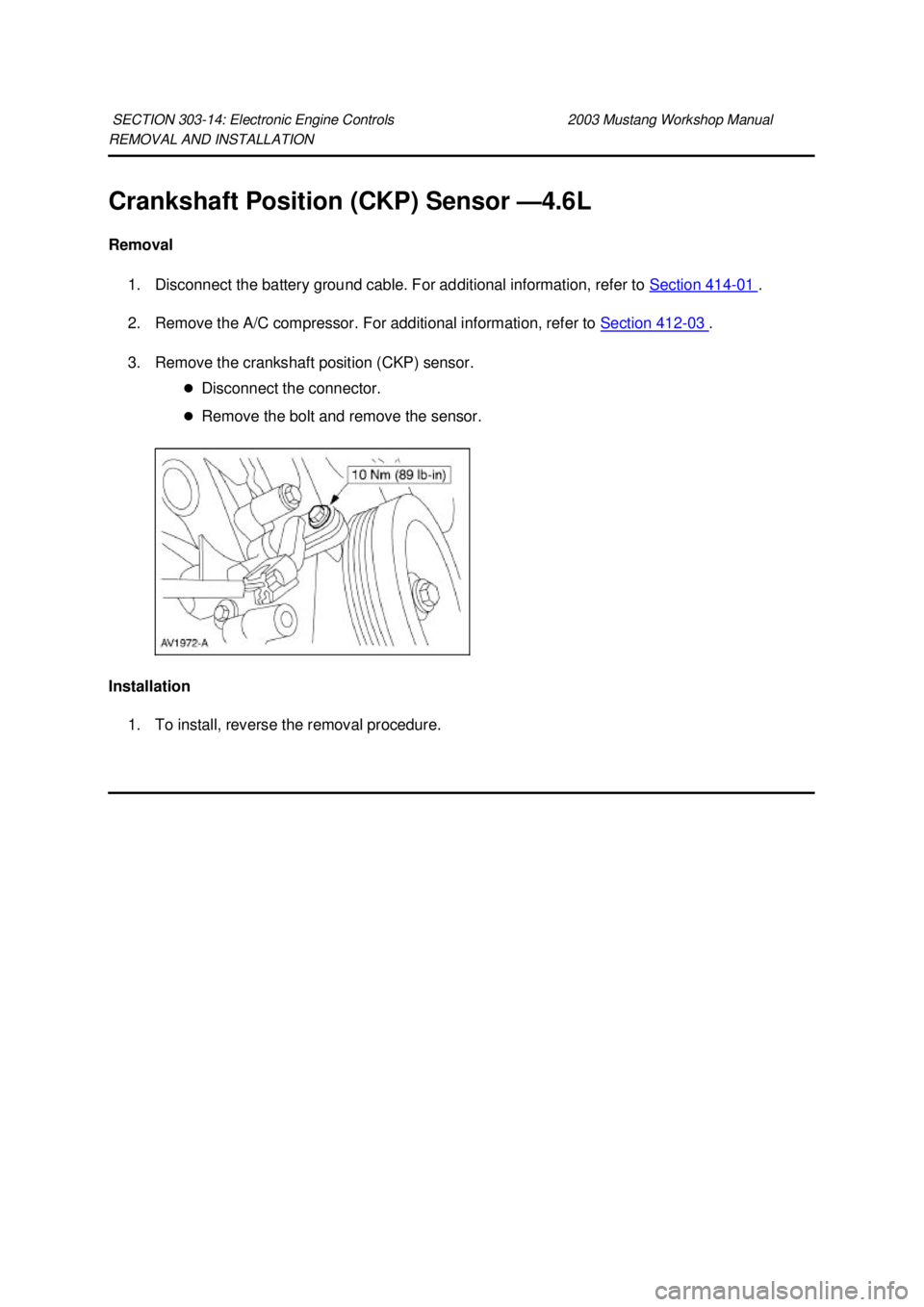

Crankshaft Position (CKP) Sensor —
4.6L
Removal 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Remove the A/C compressor. For additional information, refer to Section 412 - 03 .
3. Remove the crankshaft position (CKP) sensor. zDisconnect the connector.
z Remove the bolt and remove the sensor.
Installation 1. To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

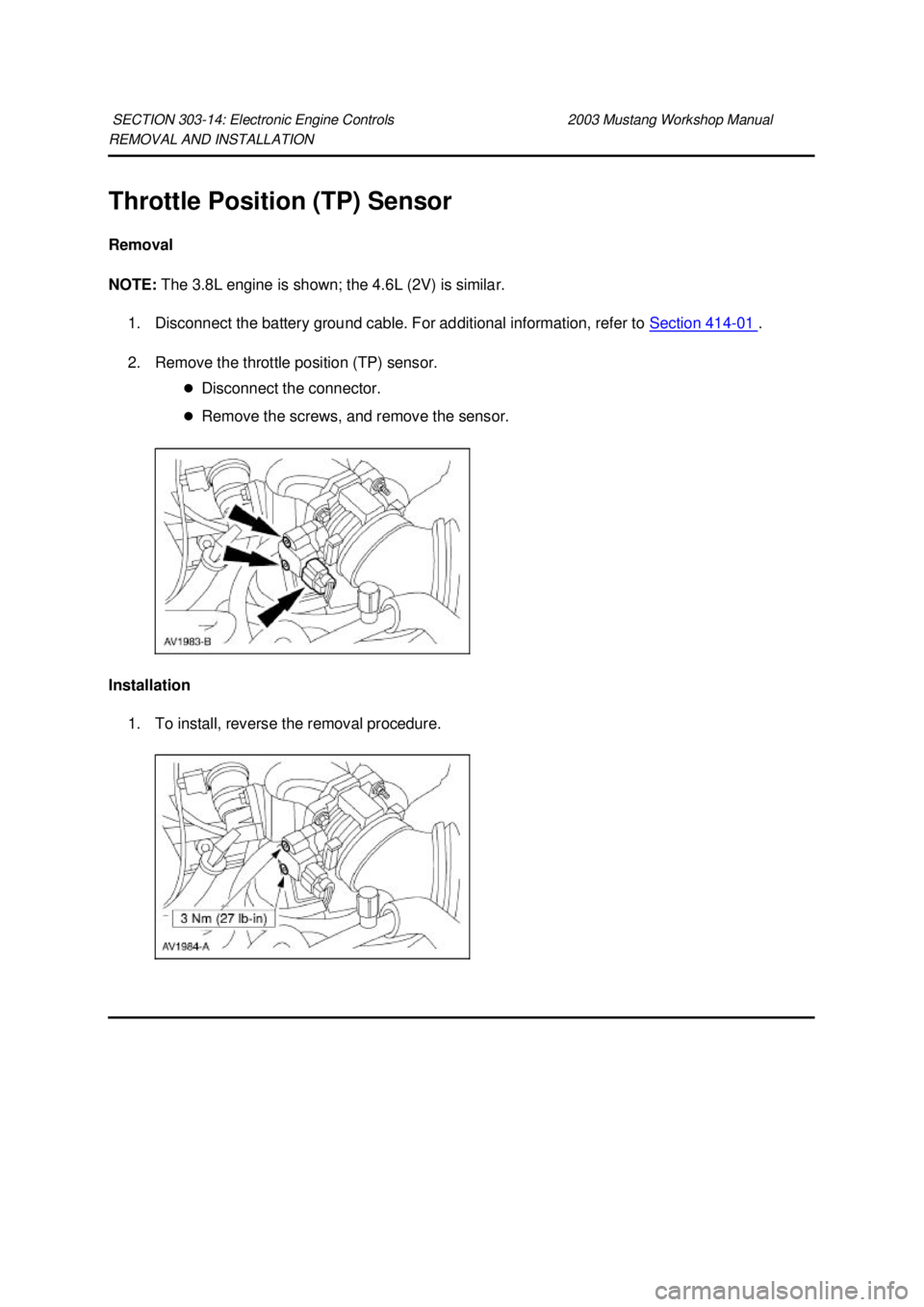

Throttle Position (TP) Sensor
Removal
NOTE:
The 3.8L engine is shown; the 4.6L (2V) is similar.
1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Remove the throttle position (TP) sensor. zDisconnect the connector.
z Remove the screws, and remove the sensor.
Installation 1. To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

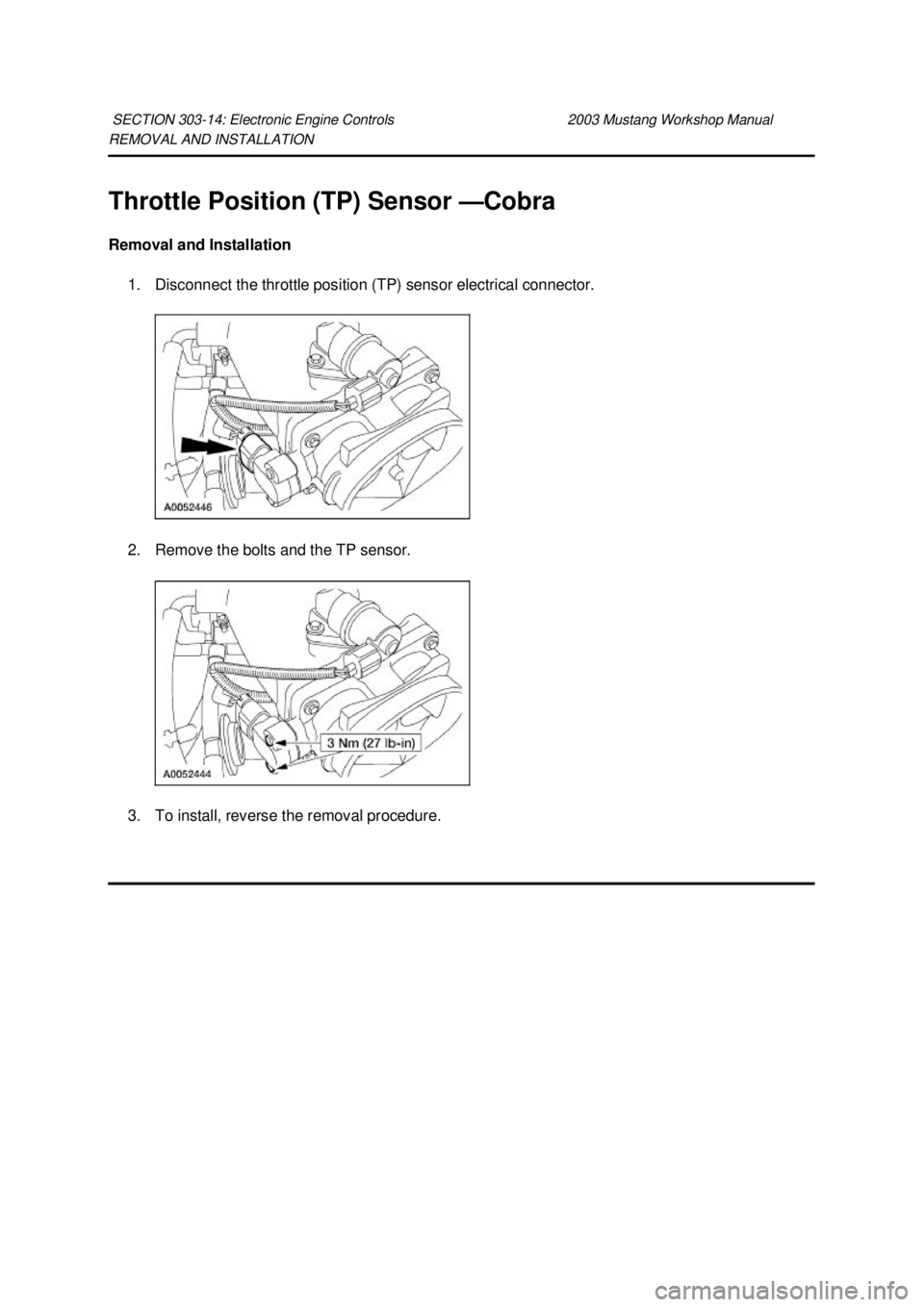

Throttle Position (TP) Sensor —
Cobra
Removal and Installation 1. Disconnect the throttle position (TP) sensor electrical connector.
2. Remove the bolts and the TP sensor.
3. To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Throttle Position (TP) Sensor —
Mach I
Removal and Installation 1. Remove the air intake scoop bracket. For additional information, refer to Section 303 - 12 .
2. Disconnect the throttle position (TP) sensor electrical connector.
3. Remove the bolts and the TP sensor.
4. To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

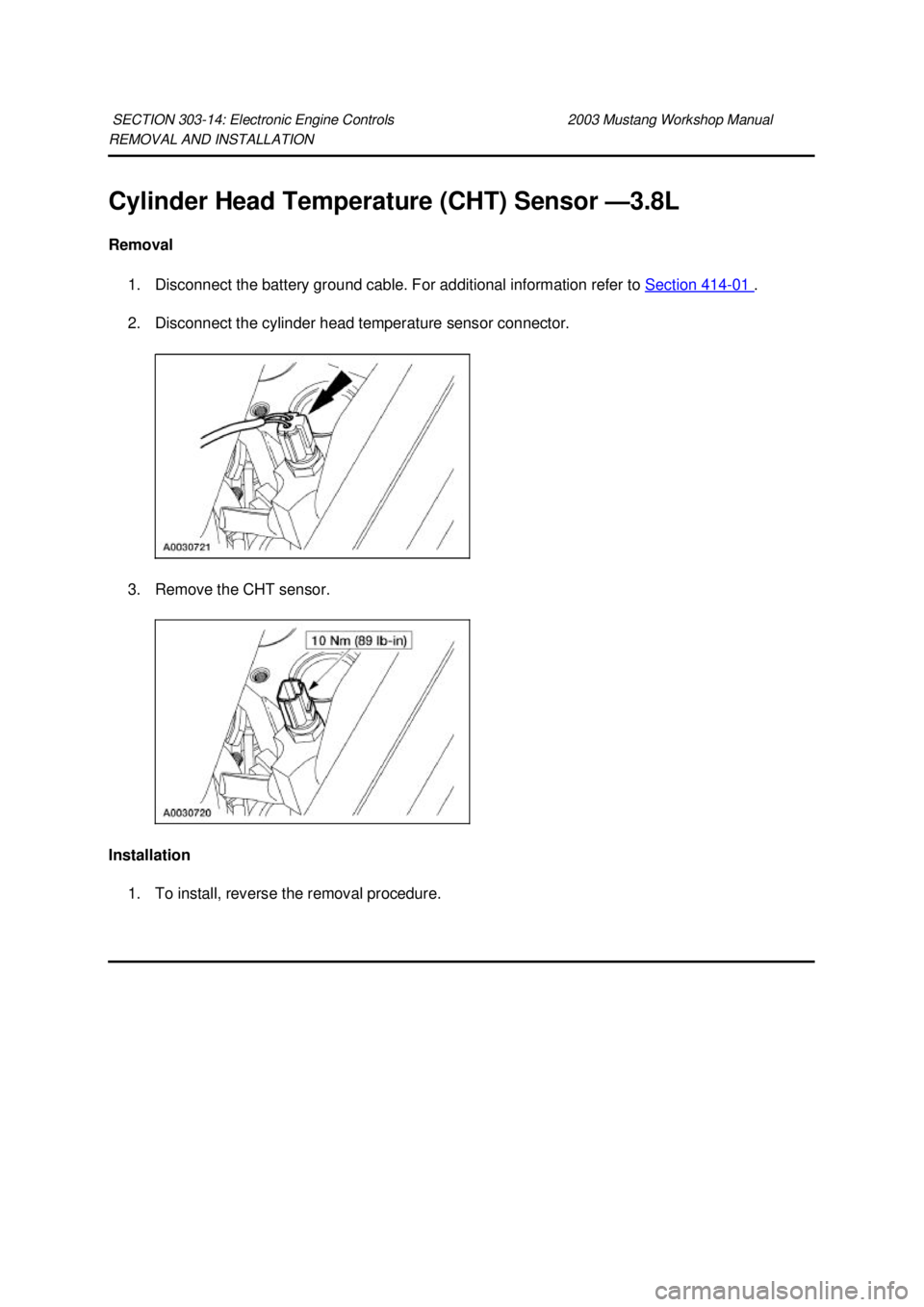

Cylinder Head Temperature (CHT) Sensor —
3.8L
Removal 1. Disconnect the battery ground cable. For additional information refer to Section 414 - 01 .
2. Disconnect the cylinder head temperature sensor connector.
3. Remove the CHT sensor.
Installation 1. To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

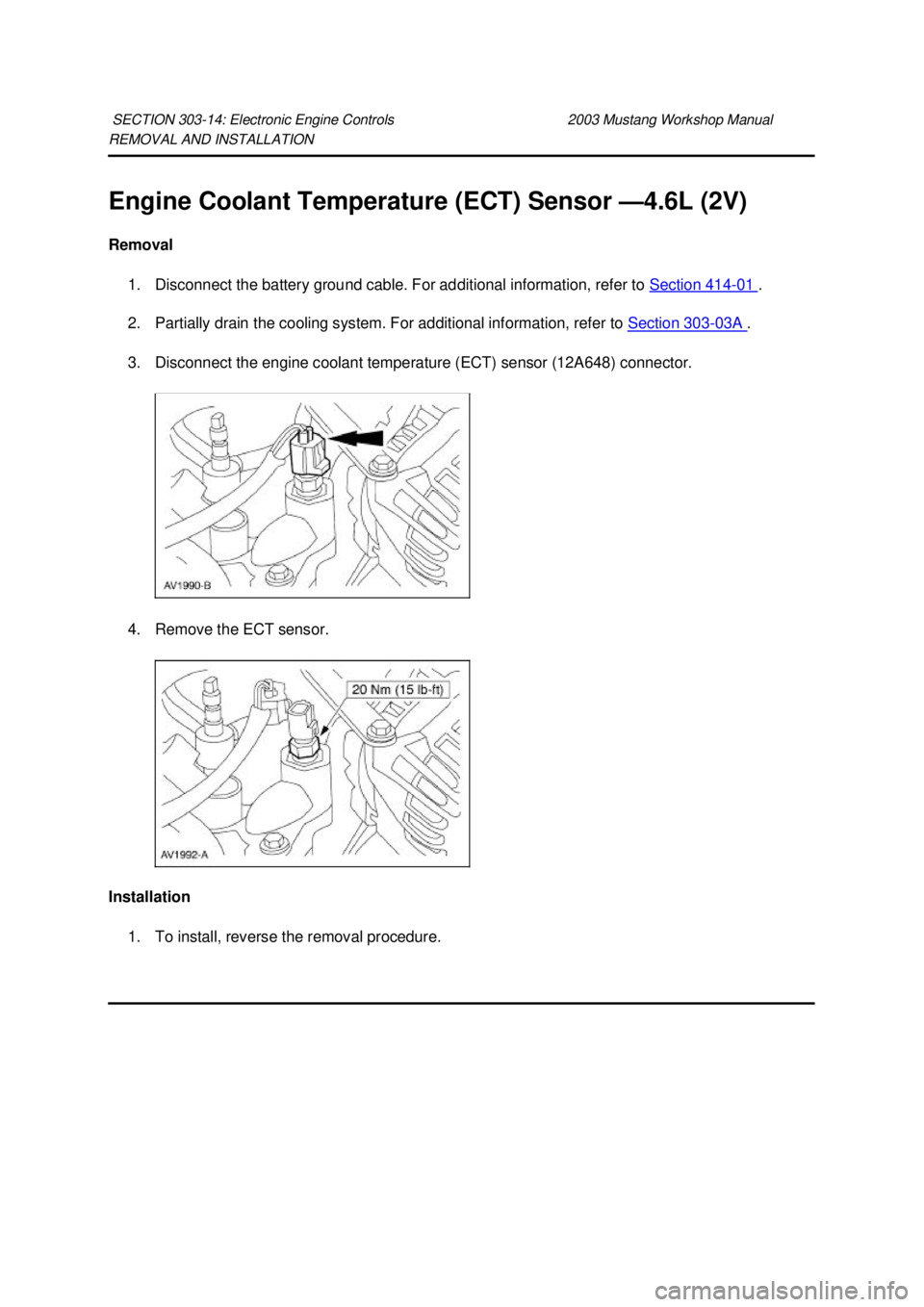

Engine Coolant Temperature (ECT) Sensor —
4.6L (2V)
Removal 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Partially drain the cooling system. For additional information, refer to Section 303 - 03A .
3. Disconnect the engine coolant temperature (ECT) sensor (12A648) connector.
4. Remove the ECT sensor.
Installation 1. To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

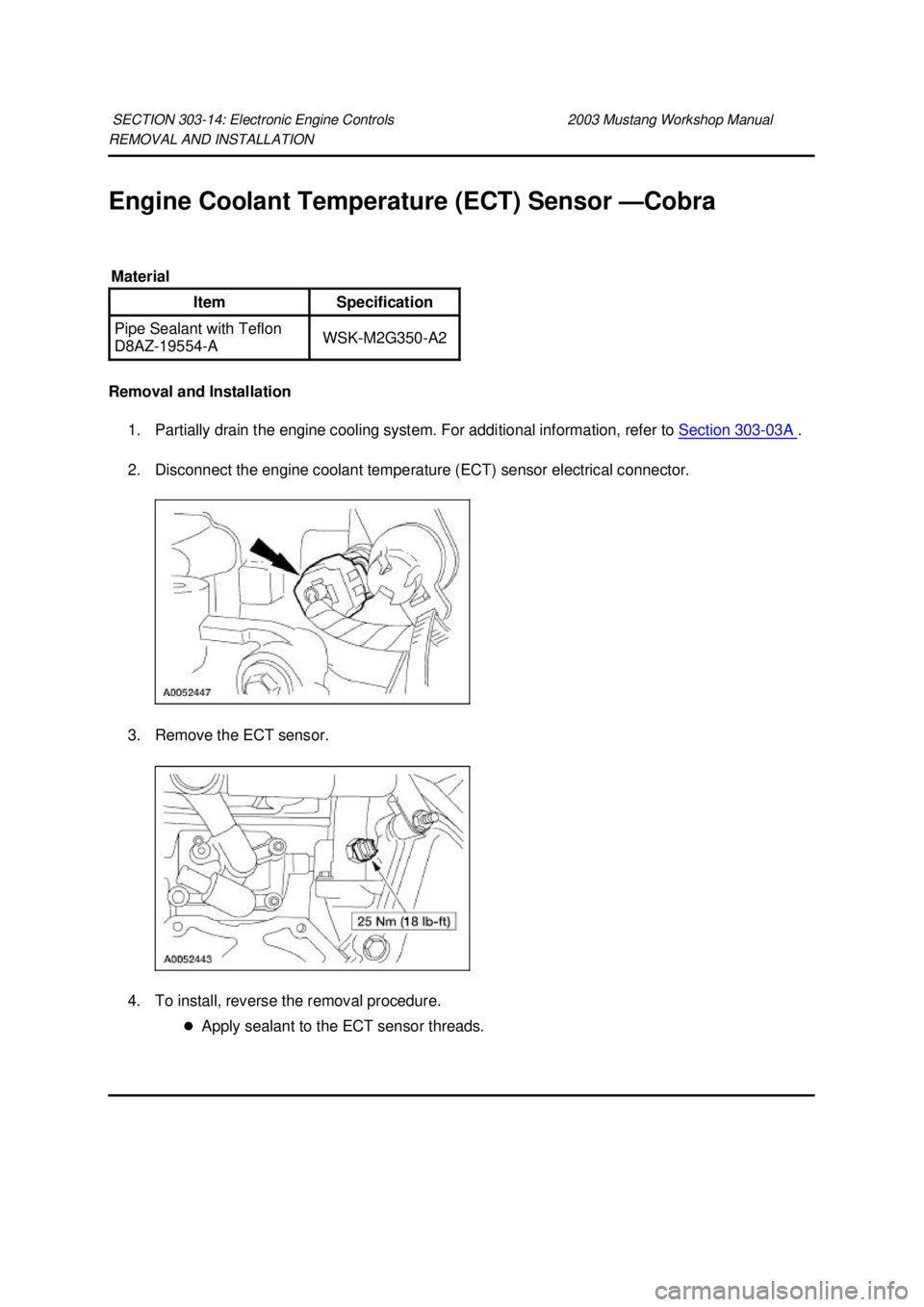

Engine Coolant Temperature (ECT) Sensor —
Cobra
Removal and Installation 1. Partially drain the engine cooling system. For additional information, refer to Section 303 - 03A .
2. Disconnect the engine coolant temperature (ECT) sensor electrical connector.
3. Remove the ECT sensor.
4. To install, reverse the removal procedure. zApply sealant to the ECT sensor threads.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Material
Item Specification
Pipe Sealant with Teflon
D8AZ-
19554- A WSK-
M2G350- A2 Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

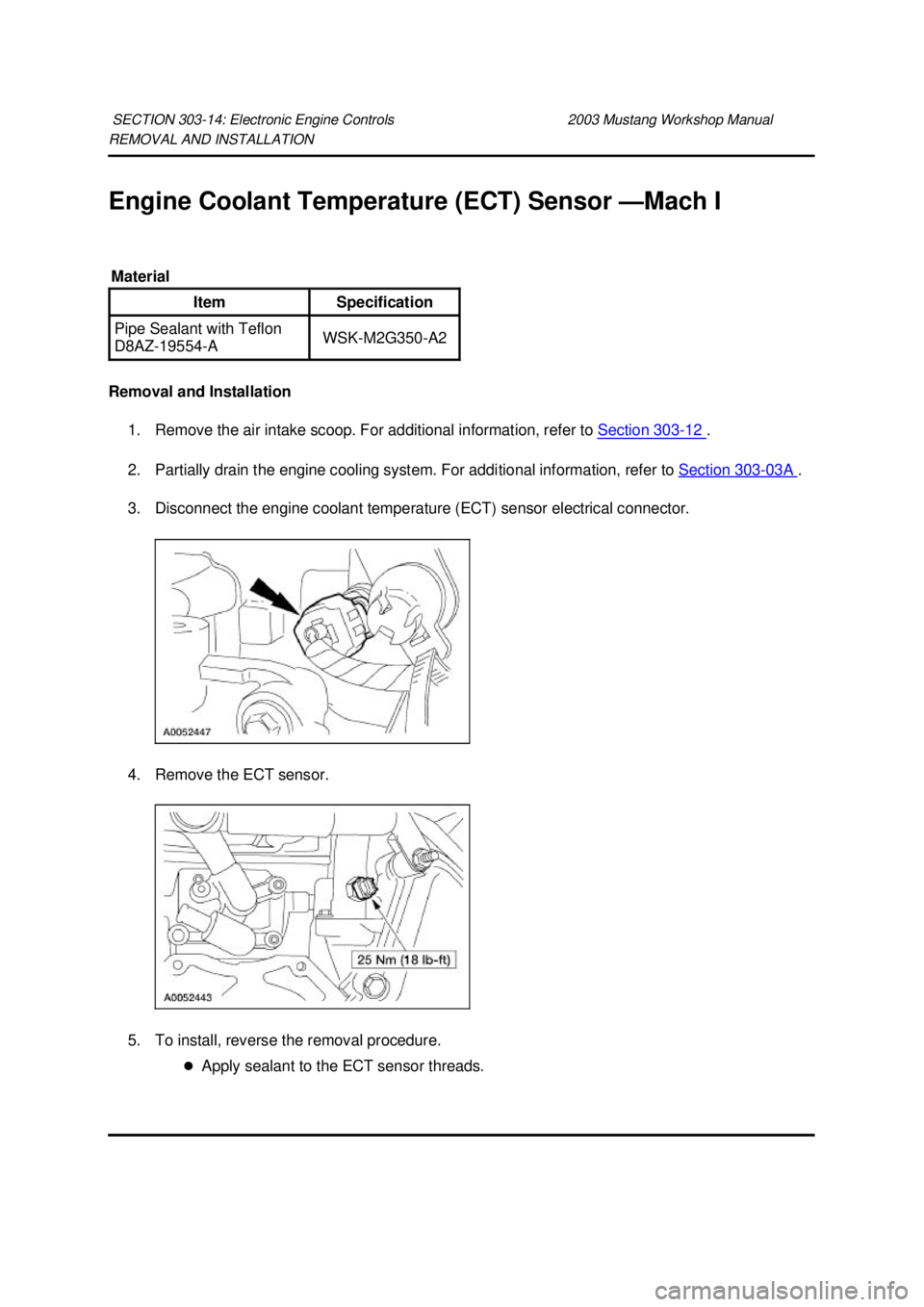

Engine Coolant Temperature (ECT) Sensor —
Mach I
Removal and Installation 1. Remove the air intake scoop. For additional information, refer to Section 303 - 12 .
2. Partially drain the engine cooling system. For additional information, refer to Section 303 - 03A .
3. Disconnect the engine coolant temperature (ECT) sensor electrical connector.
4. Remove the ECT sensor.
5. To install, reverse the removal procedure. zApply sealant to the ECT sensor threads.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Material
Item Specification
Pipe Sealant with Teflon
D8AZ-
19554- A WSK-
M2G350- A2 Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Mass Air Flow (MAF) Sensor —
3.8L
Removal
CAUTION: The mass air flow (MAF) sensor hot wire sensing element and housing are
calibrated as a unit and must be repaired as a complete assembly. Do not damage the sensing
element (internal to housing) or possible failure to the mass air flow sensor may occur.
1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Remove the air cleaner and duct assembly. For additional information, refer to Section 303 - 12 .
3. Release the four tabs and remove the mass air flow (MAF) sensor.
4. Disconnect the connector.
5. Remove the mass air flow sensor (MAF). zRemove the nuts and the MAF sensor.
